ST. MICHAEL’S HILL
HIGH KINGSDOWN
Outline Streetscape Improvements
ST. MICHAEL'S HILL HIGH KINGSDOWN - Outline Streetscape Improvements
This report was prepared by Hamilton-Baillie Associates Ltd
August 2011
For High Kingsdown Residents’ Association

With support from
Bristol City Council
Neighbourhood Partnership Wellbeing Fund

Dean House
94 Whiteladies Road
Bristol
BS8 2QX
Tel: 0117 9114221
www.hamilton-baillie.co.uk

Contents
Introduction							                                        1
Context							                                             2
Traffic and pedestrian survey				                          3
Traffic Counts						                                       4
Pedestrian movement					                                   5
Design Principles						                                    6
Specific Measures						                                    7
An overview							                                         8
The Core							                                            9
Visualisation 1. Paul Street and the narrow section       10
Visualisation 2.The Co-op Square				                      11
Conclusions and Recommendations			                        12

Maps based on originals reproduced from Ordnance Survey
© Crown Copyright and database right 2011. Ordnance Survey 100023406
ST. MICHAEL'S HILL HIGH KINGSDOWN - Outline Streetscape Improvements
Outline Streetscape Improvements

Introduction
Streets make up the majority of a community’s               design based on low-speed, continuous flow traffic
public space. Most urban streets serve a multitude          movement with greater emphasis on pedestrian
of purposes. In addition to serving as spaces for           activity are opening up new opportunities for
movement and traffic, they provide the forum                rethinking key streetscapes. The concept of shared
for the everyday activities of shopping and trade,          space is now established as an appropriate set of
restaurants and cafes, and all the opportunities for        principles for complex, mixed use streets.
the minor encounters, exchanges and interaction
                                                            This report explores potential improvements for
that define social life.
                                                            the busy space that forms the heart of the High
Our priorities and policies for streets are going           Kingsdown community in North Bristol. It seeks
through a period of rapid change. The rise of out-          to introduce an approach to reconciling the need
of-town shopping and internet trade are putting             for traffic movement, parking and circulation whilst
pressure on high streets and local centres.The need         making better use of the spaces and activities that
to attract activity and retain pedestrian presence          give this particular area a strong sense of place. It is
is becoming more urgent. Local centres will only            intended to help achieve a broad consensus on an
succeed if they can retain distinctive qualities that       appropriate way forward for the City Council, for
are not available elsewhere.                                the local residents and traders, and for all the local
                                                            interested organisations such as the University and
Approaches to street design and the management
                                                            Hospital.
of urban traffic is also changing. The publication
of The Manual for Streets in 2010 signalled a               The report was made possible through a small
fundamental shift away from the segregation of              grant from Bristol City Council’s Neighbourhood
traffic and pedestrians towards closer integration of       Wellbeing Fund, and was commissioned by the
movement with other social activities. In mainland          local High Kingsdown Residents’ Association with
Europe and in the UK, new examples of street                the support of several similar local groups.


ST. MICHAEL'S HILL HIGH KINGSDOWN - Outline Streetscape Improvements
High Kingsdown

Context
The area selected for study consists of the street
known as St. Michael’s Hill extending from the
junction with Tyndall’s Park Road in the north
to Tyndall Avenue to the south, a length of
approximately 600 metres. The area serves as as
the join between the Victorian streets of Eastern
Clifton and the Georgian and modern mix of High
Kingsdown. The varying widths and building lines
stem from an earlier road widening aspiration,
and the surroundings include an eclectic mix of
larger institutional building associated with Bristol
University and the Bristol Royal Infirmary Hospital.
The narrow section between the junctions with
Paul Street and Clarence Place contrasts with the
generous width associated with the Co-op and the
small shops and cafes facing it.

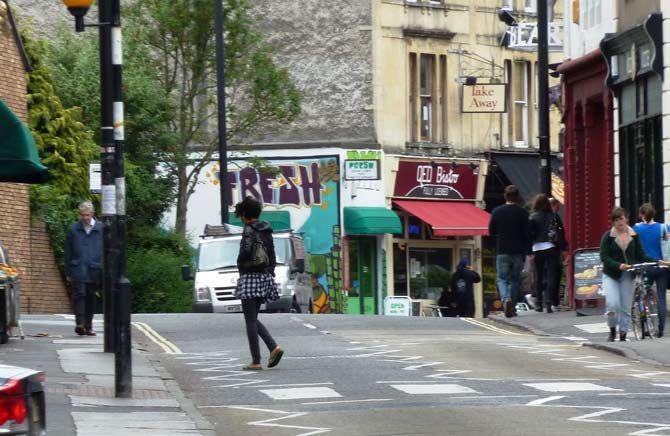

The high number of students and schoolchildren
walking and bicycling through High Kingsdown
help sustain a rich mix of shops and bars. These
appear to thrive despite, rather than because of, the
incoherent parking, street furniture and highway
markings. The latter emphasise the linear highway
characteristics, generating an uncomfortable
relationship between traffic and other activities.


ST. MICHAEL'S HILL HIGH KINGSDOWN - Outline Streetscape Improvements
Outline Streetscape Improvements

Traffic and pedestrian survey
With the help of local residents, a detailed survey        are also reports of inappropriate speeds on the
of traffic and pedestrian flows was carried out on         approach to the narrow section from the south,
Tuesday, June 21st, covering mid-morning as well           probably exacerbated by the unnecessarily wide
as the rush-hour periods (8-9 am, 11-12 am, and            carriageway that characterizes the top of St.
5-6 pm). This helped build a picture of movement           Michael’s Hill. Although the accident records
patterns, with the counts covering types of motor          for the past three years are not particularly
vehicles as well as bicycles.                              severe, of the four reported injury accidents
                                                           of the past four years, two are associated with
The count indicates two-way traffic volumes of
                                                           speed. One cyclist injury was associated with
between 700 vehicles per hour (vph) at peak hours
                                                           the parking arrangement outside the Coop, and
and 400 off-peak, with a pronounced north-bound
                                                           one pedestrian was hurt after stepping into the
emphasis in the evening period. Such volumes are
                                                           carriageway from the very narrow pavement.
relatively low for comparable high streets, where
flows of 1,000 - 1,500 are typical.
By contrast, pedestrian flows are high, peaking at
around 550 per hour and maintaining at 270 per
hour off-peak.The survey was able to record street
crossing patterns as well as flows. Around half such
crossings take place at the narrow section around
the zebra crossing, with a higher proportion
using the formal crossing at peak traffic periods.
Pedestrian crossing movements generally display
a familiar diagonal pattern, with “desire lines”
focused around key shops and intersections.

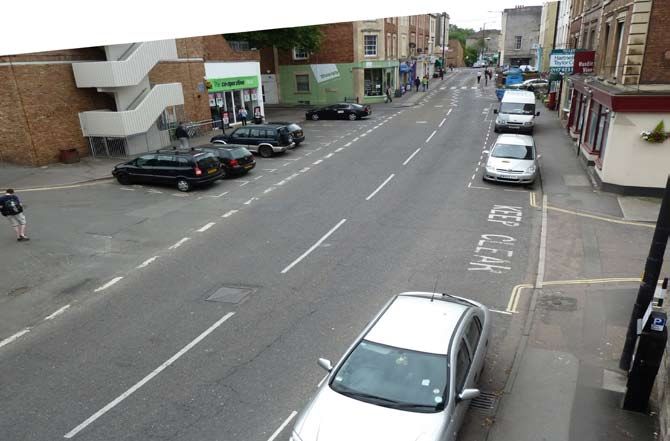

The set-back frontage of the Co-op supermarket
represents the dominant “attractor” for pedestrian
flows. Pedestrian patterns in front of the Co-op
are confused as a result of the unbroken line of
perpendicular parking fronting the store. The
awkward location of the parking spaces leaves
a very narrow and congested passageway for
pedestrians immediately outside the shop, with
some pedestrians choosing to walk behind the
park cars next to the carriageway.
The existing pavements are strikingly narrow for
such high volumes of pedestrians. This is especially
the case around the existing zebra crossing, and
where businesses such as the fruit shop and
flower shop display goods on the pavement.
The inadequacy of the current arrangements
us particularly striking on occasions when large
numbers of school children or students come
through the area.
No information on speeds was recorded.
Observations suggest speeds are generally low,
although approach speeds from the north are
sometimes inappropriately high, faciltated by the
predominance of the centre line markings. There


ST. MICHAEL'S HILL HIGH KINGSDOWN - Outline Streetscape Improvements
High Kingsdown

Traffic counts
  FROM     TO     CARS   CYCLES     M’BIKES   LGVs   HGVs   BUSES   TOTAL
  North   South    327     38          7       32     5       9      380
  South   North    291     13          3       31     5       8      338

  8.00 - 9.00 am

                              380

                              338

  FROM     TO     CARS   CYCLES     M’BIKES   LGVs   HGVs   BUSES   TOTAL
  North   South    131     8           2       27     7      10      177
  South   North    155     5           1       30     4       5      195

  11.00 - 12.00 am

                             177

                             195

  FROM     TO     CARS   CYCLES     M’BIKES   LGVs   HGVs   BUSES   TOTAL
  North   South    254     22          5       15     1       7      282
  South   North    390     42          9       15     0       4      418

  5.00 - 6.00 pm

                              282

                              418


ST. MICHAEL'S HILL HIGH KINGSDOWN - Outline Streetscape Improvements
Outline Streetscape Improvements

Pedestrian movement

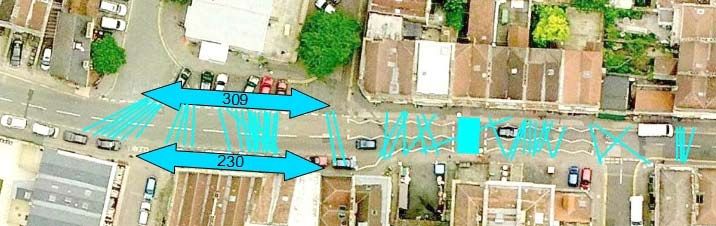

 CO-OP SIDE   WEST SIDE       TOTAL FLOWS   X’ING @ ZEBRA   X’ING ELSEWHERE
    309         230               539             114              53

 8.00 - 9.00 am

                  309

                  230

 CO-OP SIDE   WEST SIDE       TOTAL FLOWS   X’ING @ ZEBRA   X’ING ELSEWHERE
    131         139               270             97               73

 11.00 - 12.00 am

                        131

                        139

 CO-OP SIDE   WEST SIDE       TOTAL FLOWS   X’ING @ ZEBRA   X’ING ELSEWHERE
    355         222               577             142              12

 5.00 - 6.00 pm

                        355

                        222


ST. MICHAEL'S HILL HIGH KINGSDOWN - Outline Streetscape Improvements
High Kingsdown

Design principles
Our design recommendations draw on careful
analysis and observation of the specific context of
High Kingsdown.The buildings and their relationship
to the street, the activities they generate, and the
patterns of movement throughout the day create a
unique set of circumstances. Our approach involves
emphasizing these characteristics to create a
distinctive and convivial sequence of spaces that
reconcile the need for vehicular movement with
the qualities of place.
The sketch proposals are informed by the growing
number of examples of high streets and urban
spaces that apply the principles of shared space to
create low-speed, free-flowing traffic movements
whilst maximising the opportunities for trade and
social interaction. Many of these ideas are covered
by the government’s new streetscape policy, Manual
for Streets 2. The most important design principles
include:
     • The removal of road markings and
          especially centre lines
    •   Clear transition spaces to mark either
                                                                 Exhibition Road, Kensington
        end of the scheme
    •   Reduced visual carriageway widths whilst
        permitting uninterrupted low-speed two-
        way flows
    •   Clearly identifying parking spaces away
        from pedestrian flows to optimise use of
        street space
    •   Emphasizing connections between
        buildings and the streetscape to inform
        drivers and highlight gathering points
    •   Highlighting narrow areas and crossing             Petersfield High Street, Hampshire
        points through use of paving and kerbs
    •   Articulating and enlivening spaces
        through supplementary non-highway
        lighting at lower levels
Many of these elements are evident in successful
shared space schemes across the UK and
mainland Europe, where day-to-day traffic is fully
integrated into the spatial qualities of the street
and the activities it supports. The measures
deliberately contrast with the linear, standardised
and anonymous characteristics of the highway, to
                                                                      Wolvega, Friesland, NL
create a legible and distinctive streetscape.


ST. MICHAEL'S HILL HIGH KINGSDOWN - Outline Streetscape Improvements
Outline Streetscape Improvements

Specific measures
Our proposals are based on a design speed of 15-18
mph for the 600 metre stretch. Much of the traffic
already moves at around this speed, but interrupted
by the zebra crossing. All road markings would be
removed, and a simple low-cost paving language
introduced which might combine applied surface
finishes, sparsely used setts, or variations in asphalt
colour and texture.
A constant carriageway width of 5.5-6 metres
would be defined, visually reduced by a low kerb
detail and narrowing strips of around 500 mm.
Space thus saved would allow additional parking in
key locations to maintain existing provision.
Informal courtesy crossings replace the existing
zebra, with a clear crossing opposite the Co-op
entrance. Some new parking bays could be created
against the blank north wall of the Co-op. This
allows a distinct “square” to be created around the
Co-op, with additional display or loading space for
the shops opposite.
At key gathering points at junctions, simple
placemaking would encourage cafes to extend
                                                                    Centre line markings emphasise highway linearity
outdoors, creating a sequence of clear spaces.

 Pedestrian desire line behind cars parked in front of Coop         Existing carriageways unnecessarily wide in places

            Wide sweeping geometry at existing junctions                  Existing pavements inappropriately narrow

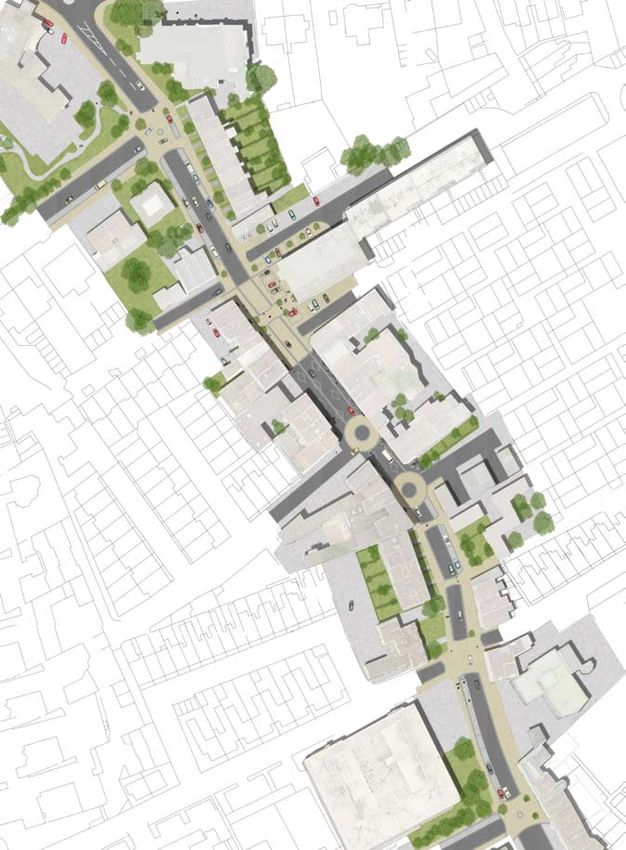

ST. MICHAEL'S HILL HIGH KINGSDOWN - Outline Streetscape Improvements
High Kingsdown

An overview
                                                                                                                                    Highway language ends at
                                                                                                                                    transition point of Tyndalls’s
                                                                                                                                    Park Road junction

                                             AD
                                        RO
                                   RK
                              PA
                     L   ’S
                  AL
              D
     TY
          N                                                                                                                         Additional parking against
                                                                                                                                    north wall of Co-op building

                                                                                                               E
                                                                                                          AC
Courtesy crossing                                                                                    PL
                                                                                                CE
on main desire line                                                               AR
                                                                                           EN
                                                                             CL
to Co-op entrance
                                                                                                                                    Narrow section with 5.5 - 6
                                                                                                                                    m. actual carriageway with
Additional space
                                                                                                                                    0.5 m. channels each side
for cafe seating
and display, or
loading / parking
                                                                                                                                                       ET
                                                                                                                                                  RE
                                                                                                                                             ST
                                                                                                                                        UL
                                                                                                                                   PA
                                                                                       S
                                                                                  LA
                                                                             IL
                                                                         V
                                                                    RY
                                                               BU
                                                           H
                                                      IG
                                                  H

                                                                                                                                                                                        AD
                                                                                                                                                                                   RO
                                                                                                                                                                          T   LE
                                                                                                                                                                     YR
                                                                                                                                                                 M

                                                                                                                         RK
                                                                                                                    PA
                                                                                                           L   ’S
Additional parking with                                                                                 AE
                                                                                               I   CH
                                                                                           . M
slightly repositioned bus stop                                                     ST

                                                                                                                                                            UE
                                                                                                                                                       EN
                                                                                                                                               AV
                                                                                                                                        A   LL
                                                                                                                                   ND
                                                                                                                              TY

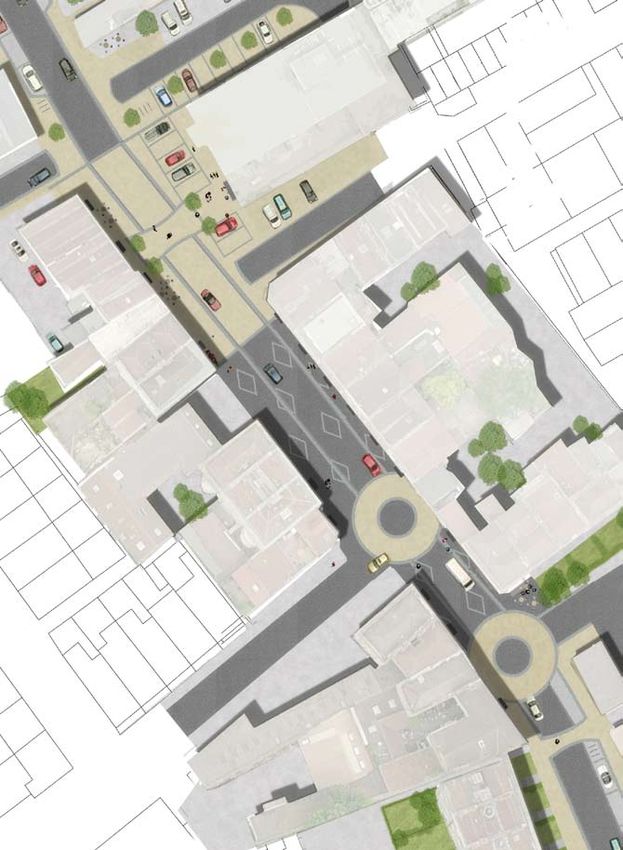

Outline Streetscape Improvements

The core                     ul
                                  ts
                        Va
                 u   ry
        g   hb
     Hi

                                       Th
                                        e
                                            Co                                                   E
                                                                                             C
                                                                                          LA
                                                -o
                                                 p                                    P
                                                                                 CE
                                                                       E     N
                                                                    AR
                                                              CL

                                                                         S
                                                                     A
                                                              I   LL
                                                          V
                                                     RY
                                                BU
                                            H
                                       IG
                                   H
                                                                                                                   ar
                                                                                                              Be
                                                                                                          ite
                                                                                              e      Wh
                                                                                           Th


High Kingsdown

Paul Street and the narrow section

                    10
Outline Streetscape Improvements

The Co-op Square

                   11
High Kingsdown

Conclusions and Recommendations
St. Michael’s Hill and High Kingsdown represents              The sketch plans and outline principles are also
the living room of a thriving, densely populated              consistent with the emerging masterplan for the
and diverse community with committed local                    University of Bristol and its long term goals for
organisations. It provides the shop front for a               enhancing the streets and public spaces around
range of small-scale businesses, a lobby space for            its principle buildings. The realignment of space
the University, and a set of meeting places for the           and low-speed design principles could significantly
many routes that converge on this key stretch of              benefit shops and businesses in the area, especially
streetscape.                                                  those capable of spilling out into the street.
Until now little coherent attention has been given            The proposals provide a scheme which is broadly
to the streetscape as a whole.The existing highway            parking-neutral, providing the potential for a minor
configuration dates back to a bygone era of road              increase in on-street spaces. It allows local traders
widening and segregation with an emphasis on                  to decide over time how best to use limited
speed and traffic capacity. It is uncomfortable for           street space, and provides flexibility for different
pedestrians and cyclists, and limiting for the fragile        circumstances, times of day and seasons.
small shops that depend on the passing footfall.
                                                              Considerable additional work will be necessary
These very sketchy outline plans are intended to              to explore appropriate materials and to work
suggest an appropriate direction for planning the             up the plans in more detail. The scheme does
longer-term future to allow the area to thrive                not rely on expensive paving materials, and
and develop without limiting the highway capacity.            could be implemented in phases as resources
Initial meetings with Bristol City Council Highways           and opportunities present themselves. For now,
& Transportation officers suggest there are no                this report should be reviewed by the interested
insurmountable legislative or policy barriers to              community groups and local traders, before
adopting such an approach. The principles can                 consideration by Bristol City Council in advance
immediately inform future maintenance work.                   of future fund assembly and detailed planning.

                                                         12
You can also read
