Pedestrian acoustic warning system for electric vehicle - PBNv2 - H20202 Marie Curie ETN First Public Technical Course; 28th - 29th November 2018 ...
Pedestrian acoustic warning system for electric vehicle

                                         PBNv2 – H20202 Marie Curie ETN
                 First Public Technical Course; 28th – 29th November 2018
                                                               INSA - Lyon

PUBLIC     INTERNAL   CONFIDENTIAL   SECRET
Pedestrian acoustic warning system for electric vehicle - PBNv2 - H20202 Marie Curie ETN First Public Technical Course; 28th - 29th November 2018 ...
Quiet vehicle audible alert systems: current situation

The recent rapid growth of very quiet Electric Vehicles and Hybrids has prompted new
concerns about pedestrian safety.

The solution proposed by vehicle manufacturers and legislators is to add synthetic
vehicle sounds to EV’s (EC/EV 540/2014)

The objective is simple to make quiet EV’s detectable by pedestrians through the use
audible cues.

But is this solution really that simple to implement, to everyone’s satisfaction?
Pedestrian acoustic warning system for electric vehicle - PBNv2 - H20202 Marie Curie ETN First Public Technical Course; 28th - 29th November 2018 ...
Quiet vehicle audible alert systems: restrictions

 • Some fundamentals generally accepted:

 • Pedestrians and Vulnerable Road Users need to be aware of the presence of any
   vehicle which could pose a collision risk, in time to take avoidance action.

 • The impact on environmental noise pollution should be minimised

 • The synthetic alert sounds added to cars should not result in customer rejection of
   EV’s and HEV’s
Pedestrian acoustic warning system for electric vehicle - PBNv2 - H20202 Marie Curie ETN First Public Technical Course; 28th - 29th November 2018 ...
eVADER - Consortium Members

eVADER was a 3 year project, which kicked-off in October 2011 and was finished in
December 2014 (Electric Vehicle Alert for Detection and Emergency Response)
The consortium members were:

                    Consortium Member Organisations                      Country       Leaders of Work Packages Category

                IDIADA Automotive Technology             IDIADA           Spain        * WP7, * WP8, WP9 & WP10

                     LMS International NV                  LMS           Belgium               * WP11
                                                                                                                     R&D
          ÖSTERREICHISCHES FORSCHUNGS- UND                                                                          Centre
                                                           AIT           Austria                  -
                PRÜFZENTRUM ARSENAL
     TOEGEPAST NATUURWETENSCHAPPELIJK ONDERZOEK            TNO         Netherlands               WP3

            Institut National des Sciences Appliquées   INSA-Lyon        France                 * WP2
                                                                                                                  Universities
               Technische Universitaet Darmstadt           TUD          Germany                 * WP5
               NISSAN Motor Manufacturing (UK)            Nissan      United Kingdom            * WP6
                            Renault                      Renault         France                 * WP1               OEM’s
                              PSA                          PSA           France                   -
                          Continental                   Continental      France                 * WP4               Tier-1’s
                     European Blind Union                  EBU           France                   -               End Users
Pedestrian acoustic warning system for electric vehicle - PBNv2 - H20202 Marie Curie ETN First Public Technical Course; 28th - 29th November 2018 ...
eVADER technical direction - Concept

  eVADER proposed an ‘smart’ audible alert system, to find an optimum balance
  between pedestrian safety in the vicinity of EV’s and minimising environmental
  noise pollution, but also securing customer acceptance.
Pedestrian acoustic warning system for electric vehicle - PBNv2 - H20202 Marie Curie ETN First Public Technical Course; 28th - 29th November 2018 ...
eVADER technical direction - Concept

  The pedestrian alert sound was emitted by a Beamforming Loudspeaker Array
  (directed towards the detected VRU – Vulnerable Road User)
  The sound beam could optionally be rotated from one side of the vehicle to the other
  side within ~0.5s if required.

Default condition                                                  Alert sound directed
broad beam at                                                      toward pedestrian at
lower sound level                                                  increased sound lev
                                                                   el, dependant on
                                                                   risk estimation
Pedestrian acoustic warning system for electric vehicle - PBNv2 - H20202 Marie Curie ETN First Public Technical Course; 28th - 29th November 2018 ...
eVADER technical direction - Pedestrian

 eVADER incorporates an Environmental Perception System (EPS) based on existing
 ADAS [Advanced Driver Assistance Systems] able to detect any Vunerable Road
 User (VRU)
 The EPS will be coupled with a Location Based System (LBS) which will give GPS
 position, time of day and a database of hotspots, critical areas and speed limits, to
 support risk estimations when no VRU is detected.

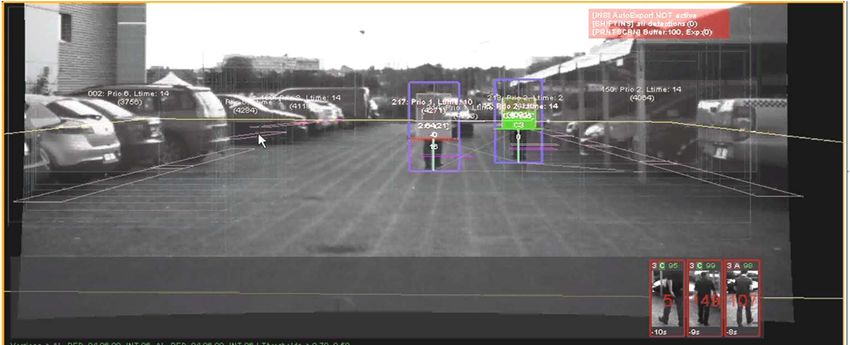

 Tracing pedestrians paths for       Pedestrian detection by EPS came
    better risk estimations                      ra system
Pedestrian acoustic warning system for electric vehicle - PBNv2 - H20202 Marie Curie ETN First Public Technical Course; 28th - 29th November 2018 ...
eVADER – System Overview

 eVADER pedestrian risk estimation concept is divided into two main topics.
 • Risk based on location / time (LBS)
 • Risk based on pedestrian detection (EPS), risk estimator output = collision
   probability and time to collision.
Pedestrian acoustic warning system for electric vehicle - PBNv2 - H20202 Marie Curie ETN First Public Technical Course; 28th - 29th November 2018 ...
Pedestrian detection & LBS system hardware

                             Stereo                             Vehicle
                                            Eberspacher
                             Camera                            to CONTI
                                              Flexcon
                             MFC310                               CAN
                                              Midget
                                                                Gateway

                              Front
                              Radar                CONTI CAN
                             ARS351
                                                          CONTINENTAL

                               LBS
                           (Squarell GPS)
Pedestrian acoustic warning system for electric vehicle - PBNv2 - H20202 Marie Curie ETN First Public Technical Course; 28th - 29th November 2018 ...

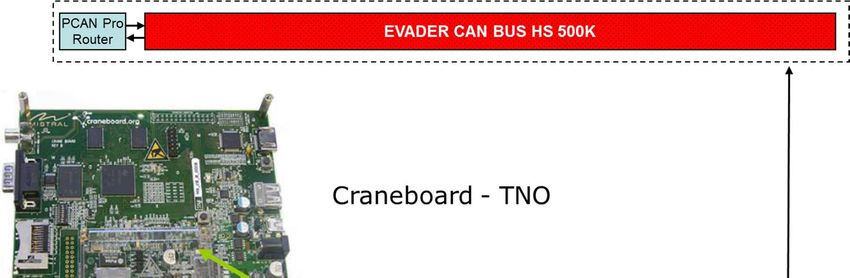

Can Bus Router & Vsound DSP Unit
Risk Estimator & Interaction Manager

F2016-ETNVH-1

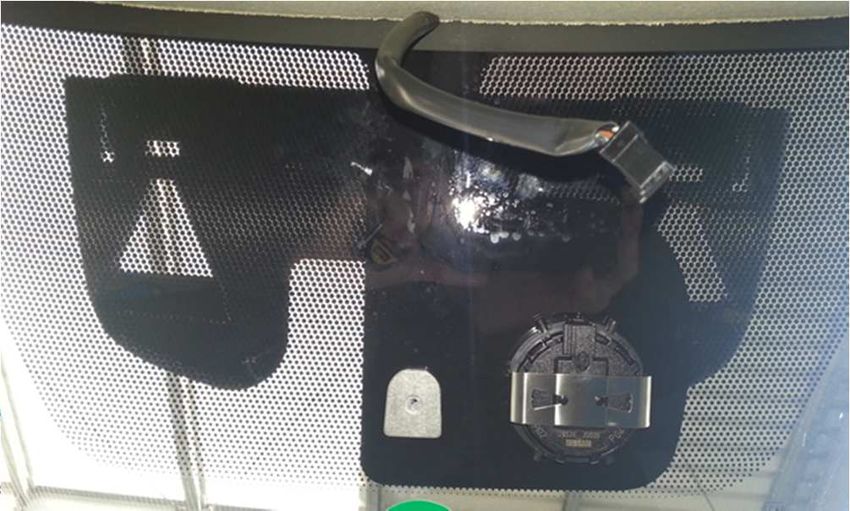

Stereo camera - Installation

Special windscreen used with masking profile to match Pedestrian Detection Camera

                                                                     Windscreen masking
                                                                                 profile

 T1018_full.avi   T1033_full.avi   T1032_full.avi   T1034_full.avi
Microphone array design

  Objective
  eVADER system monitors street
  ambient sound levels to allow for
  compensation in the alert sound level
  to help audibility.
  Selected microphone
  Knowles Sisonic microphone (MEMS):
                                       Mic 1    Mic 2
  Low cost
   Robust, tolerant of environmental
  conditions and vibration.

                                       Mic 3   Mic 4
eVADER psychoacoustics

eVADER explored the balance between good detectability of EV sounds, minimum
environmental noise annoyance and customer acceptance.

 Three main aspects of vehicle sound were studied by eVADER

 1: Detectability and the influence of three timbre parameters:
      - Frequency content
      - Frequency modulation
      - Temporal modulation
 2: Ability to judge vehicle speed / distance from a vehicle sounds only
 3: Annoyance of warning sounds
eVADER psychoacoustics – 1. Detectability

 Experiment 1
 11 stimuli (Diesel car, EV, EV+Alert sound).
 8 repetitions for each stimuli (left-right or vice-versa).
 Background noise (69 dBA).
 Headphone presentation (Stax Lambda Pro).

 Task :
 Detect the car as soon as possible, identify the direction of the car (left/right).
 112 participants (36 visually impaired, 86 sighted).
eVADER psychoacoustics – 1. Detectability

                "Waiting-to-cross" scenario passing car (20 km/h)
       - 30 m                                                       30 m

 Recording of a diesel and an electric vehicle
 Synthesis of the 9 alert sounds
 Binaural simulation of a moving sound source
 Mixing with EV recording
eVADER psychoacoustics – 1. Detectability

 88 trials for each participant : averaged response time was computed
                                   14

                                   12
          Number of participants

                                   10

                                   8

                                   6

                                   4

                                   2

                                   0
                                                        10

                                                             12

                                                                  14

                                                                        16

                                                                              18

                                                                                      20

                                                                                           22

                                                                                                24

                                                                                                     26

                                                                                                          28

                                                                                                               30
                                    0

                                        2

                                            4

                                                6

                                                    8

                                                              Distance at detection

 Key Finding:
 No difference between Visually-Impaired and Sighted subjects.
eVADER psychoacoustics – 1. Detectability
 Distance for detection

  Key Finding:
  Some alert sounds were as easy to detect as the diesel car

F2016-ETNVH-1
eVADER psychoacoustics – 1. Detectability

                                                    78
                                                    76
                                                    74
Maximum of

                   dB(A)
                                                    72
A-weighted level                                    70
                                                    68
                                                    66
                                                    64
                                                         111   122   133   212      223     231      313   321   332   Electric   Diesel
                                                                                          stimulus
                   distance to the pedestrian (m)

                                                    0
                                                                                 Low detectability
                                                    5
                                                    10
                                                    15
  Detectability
                                                    20
                                                    25
                                                    30
                                                         111   122   133   212      223      231    313    321   332     EV       Diesel
                                                                                           stimulus

                                                    Key finding: No relationship to sound level
eVADER psychoacoustics – 1. Detectability

  Influence of timbre parameters:

                         Level   Level    Level                   6
  Factor   Description
                          L1      L2        L3                    4
                                                                  2                        F1

                                                   effe ct (m )
              No. of
                                                                                           F2
   F1       frequency     3       6        9                      0
           components                                                                      F3
                                                                  -2
           Frequency                      Saw
   F2                    None    Sine
                                         tooth                    -4
              mod.
                                                                  -6
            Temporal
   F3                    None    Sine    Chaotic                       0   1    2      3        4
              mod.
                                                                               level

 Key Finding:
 Timbre parameters which aid detection
 • small frequency range
 • Temporal modulation

F2016-ETNVH-1
eVADER psychoacoustics – 2. Speed / distance

                               Procedure for experiment 2

 Same "waiting-to-cross" scenario            - 30 m                                 30 m

 Task:
 Indicate when you think it is no longer safe to cross the road while this car is
 approaching.

 20 Stimuli :
                                             Key Finding:
     9 alert sounds                          - Visually Impaired participants were on a
     2 speeds (20 km/h, 30 km/h).            verage 0.5 sec quicker to respond to
     Diesel car included.                    approaching car sounds
     Background noise (64 dBA).
     4 repetitions.

 116 participants (39 Visually Impaired, 77 Sighted).
eVADER psychoacoustics – 2. Speed / distance

 Factors effect: Pitch, Modulation freq. & Vehicle speed

                                         400
                                         300
                                         200

                      e ffe c t (m s )
                                         100
                                           0
                                         -100
                                                                              pitch
                                         -200                                 mod. freq.
                                         -300                                 speed
                                         -400
                                                low             mid            high

 Key Findings:
 - Speed effect as expected:                          People feel unsafe sooner for cars at
                                                      30 km/h compared to 20 km/h.
 - No effect of modulation frequency.
 - Surprising effect of pitch:        higher pitch tended towards later
                                      judgement of unsafe to cross.
eVADER psychoacoustics – 3. Annoyance

 All sounds were as used in previous experiments

 Procedure:
 Sounds corresponded to a car passing in front of the listener at 20 km/h – with no
 background noise.
 Each sound presented twice, participants could listen to each sound as often as
 they wanted before moving on.

 Task: Listen to the sound then move the slider to indicate how unpleasant the
 sound was
 (scale: not at all unpleasant - to - extremely unpleasant)

 Key Findings:
 - The EV was judged the least unpleasant sound.
 - Four of the synthetic sounds judged as equally unpleasant as the diesel – all
   others were judged more unpleasant
eVADER psychoacoustics – 3. Annoyance

 Factors effect:
 Frequency modulation, Number of harmonics & Temporal modulation

     More
     Annoyance

    Less
    Annoyance

 Key Findings:
 - Temporal fluctuation increases unpleasantness
 - Increasing number of harmonics tends to lower unpleasantness
eVADER psychoacoustics – 3. Annoyance

 Distance-to-detection chart, highlighting the synthetic
 sounds with lowest annoyance.

 Sound 313 – a good compromise between detectability and annoyance which is
 also 6dBA quieter than the diesel.
eVADER Beamforming loudspeaker array

 A range of potential beamforming algorithms have been evaluated. The ‘sound power
 minimization’ algorithm was chosen for eVADER as it provides narrow beams and
 allows flexible real-time implementation.

                                      System requirements:
                                      - Minimise number of acoustic sources (6)
                                      - Frequency range 300Hz to 1.2kHz
                                      - SPL up to 90dBA at 1 metre
                                      - Directivity only required in horizontal plane
                                      - Beam steering nominally ±60 degrees
                                      - Angular tracking speed ~300 deg/sec
                                      - Non uniform loudspeaker array
eVADER Beamforming loudspeaker array

Evaluation of beamforming system performance using FEM & BEM modelling techniques.
Influence of ambient temperature, humidity, ground reflections and beam scattering from
parked vehicles have been considered.

                                          Simulation model for
                                          Loudspeaker array
 50mm
 Speakers

                                                                 Example: Beamforming Directivity performance
                                                                 as a function of frequency for a 30 degree
            Simulation result, 30 degree orientated alert        orientated alert signal at distance of 20m from
            signal spatial distribution at 600Hz                 the bumper loudspeaker array.
eVADER Beamforming loudspeaker array

                                  Bumper & loudspeaker test
                                  system prepared by Technic
                                  al University of Darmstadt –
                                  using CAD data supplied by
                                  Nissan
eVADER System integration into vehicle

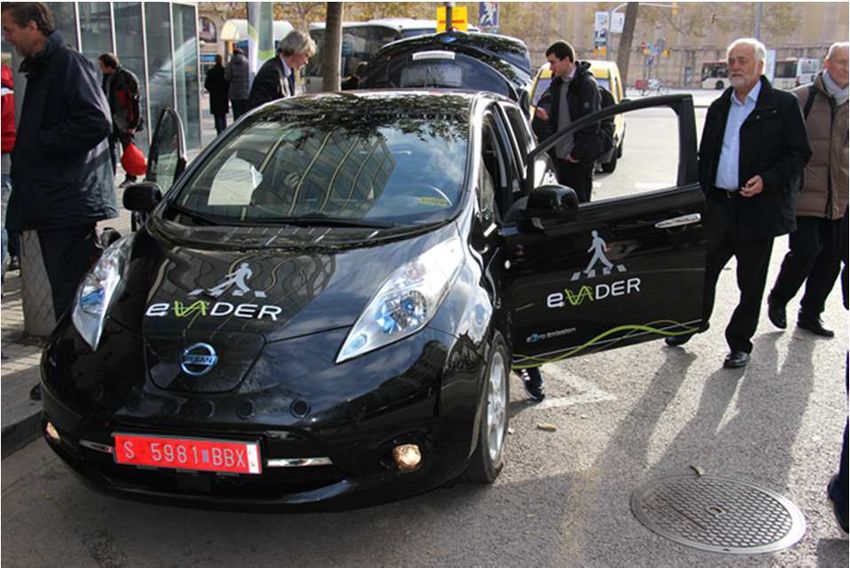

 The eVADER pedestrian alert system was implemented into a Nissan LEAF
 vehicle for evaluation and testing.

 Systems for integration:
 • External microphones
 • EPS system, camera & radar
 • LBS system, GPS
 • Risk Estimator computer
 • Beamforming loudspeaker array
 • Beamforming controller and internal
   alert sound generator
 • Communications on dedicated
   eVADER CAN bus
eVADER System integration into vehicle

    PCAN Pro
     Router                                          EVADER CAN BUS HS 500K

         Stereo                         Vehicle            Environmental    Exterior sound
                       Eberspacher                          noise level       database
         Camera                        to CONTI
                         Flexcon
         MFC310                           CAN
                         Midget                                                                      TNO                 1-6
                                        Gateway                                Exterior
          Front                                                                                    speaker
                                                             CAN bus
          Radar              CONTI CAN                                         BKSV              beam-forming            Line
                                                               data
         ARS351                                                            Sound algorithm          library              Out
                                                            Processing
                               CONTINENTAL
                                                                               Interior
                                                                                                                         7-8
          LBS
                             Speaker
      (Squarell GPS)                                        LMS Stereo      Interior sound          Nissan
                              Amps
                                                           speaker TFs         database          DSP V Sound

                          Speaker Array

               Mic 1         AUX in          Mic 2
                                                                              LBS         Environmental        Ped.
                                                                           algorithms      noise level       filtering

                             LEAF                             V Sound                           Risk
                                                             RP feedback                     estimation
                            V-CAN1
                                                                Driver                      Interaction
                               Mic                             behavior                      manager
                            Pre-Amps
               Mic 3                        Mic 4                                                    TNO Craneboard
Assessment : Warning sound detectability

                     Movement of jury member
Assessment : Detectability

                            Point       Measurement   SPL       Loudness   Loudness
                        of pedestrian   point         (dB(A))    (Phone)    (Sone)
                          detection
                             1               1          62.0      70.1       8.1
                             2               2          48.5      59,3       3.8
                             3               3          58.5      67,0       6.5
                             4               4          46.9      57,6       3.4
                             5               5          57.2      65,9       6.0
                             6               6          45.3      57,1       3.3
                             6               4          33.2      44,4       1.4
Assessment : Beam forming & detectability
Assessment: Polar plots of beam former
Assessment : In a real urban environment

     Vehicle turning (Near – Pos 1)
                                      Vehicle turning (Away) – Pos. 1)

     Vehicle turning (Near) – Pos 2
                                      Vehicle turning (Near) – Pos 2
Assessment : In a real urban environment

      Walking to backing vehicle (Near)   Walking to backing vehicle (Away)

        Waiting to cross (Near)                 Waiting to cross (Away)
Assessment : Pass by test configuration

        10 dB(A)
difference between risk
    and non-risk area
Assessment : In a real urban environment

   Questions about eVADER’s performance                            Global %          VIP %             Non-VIP %
                                                                   Yes     No        Yes     No        Yes    No
   1)Do you feel that eVADER sound exceeds that of a typical
   conventional internal combustion vehicle in similar               0         100     0         100     0         100
   operating conditions?
   2)Do you associate the eVADER sound with a vehicle?              54         46     60         40     50         50
   3) Does eVADER inform you of the vehicle location in the
                                                                    86         14     73         27     95          5
   street?
   4) Does eVADER’s sound inform pedestrians of the vehicle
                                                                    75         25     67         33     82         18
   motion (approaching, stationary, etc.)
   5) What do you think about eVADER’s sound
   characteristics? ( 5 = Very good / 1 = Poor )                         3.7               3.3               4.0

   6) Do you find eVADER’s sound is acceptable for its
                                                                    84     16         67         33     95          5
   purpose?
   7) Do you find eVADER’s sound detectable in ‘at risk’ traffic
                                                                    70         30     40         60     91          9
   situations with pedestrians?
Conclusions

   The main objective of the eVADER project was to develop a next generation
   alert system solution which will resolve as much as possible the conflicting
   requirements of minimizing the impact of EV sounds on traffic noise pollution
   levels, whilst providing effective audible cues to alert pedestrians and other
   vulnerable road users of the presence of a nominally silent EV /HEV.

   The contribution of eVADER technology to the potential reduction of accidents
   caused by HEV /EV involving pedestrians has been assessed using basic
   considerations regarding the relative percentage of EV and the level of
   implementation of eVADER technology to these EV.

   The results show that the contribution of eVADER technology to the reduction
   of accidents involving HEV/EV and vulnerable road users is potentially high,
   with negligible impact on urban noise pollution.
eVADER - Acknowledgements

 This work has been part funded by the European Commission under the 7th Framework
 Programme as a collaborative project FP/-SST-2011-RTD-1 with Grant Agreement
 Number 285095.

 Thanks are due to all the consortium members for their contributions in order to materialise
 the ideas presented in this work on a real vehicle demonstrator: INSA-Lyon, TNO, LMS,
 AIT, Continental, Nissan NTCE, Renault, PSA, TUD, The European Blind Union, plus the
 support of B&K.
For further information:

                                                   Thank you!                                                            Email: jjgarcia@idiada.com
                                                                                                                         Applus IDIADA
                                                                                                                         Headquarters & Main Technical Centre

                                                   Questions?                                                            T +34 977 166 000 (Barcelona)
                                                                                                                         e-mail: idiada@idiada.com
                                                                                                                         www.idiada.com

Applus IDIADA                          Applus IDIADA France                     Applus IDIADA Malaysia                             Applus IDIADA Taiwan
Headquarters & Main Technical Centre   T +33 (0) 141 146 085 (Sèvres)           T +603 9207 7018 (Kuala Lumpur)                    T +886 47 810 702 (Lu-Kang)
T +34 977 166 000 (Barcelona)          e-mail: idiada_france@idiada.com         e-mail: idiada_malaysia@idiada.com                 e-mail: idiada_taiwan@idiada.com
e-mail: idiada@idiada.com
                                       Applus IDIADA India                      Applus IDIADA Mexico                               Applus IDIADA Thailand
Applus IDIADA Belgium                  T +91 986 0098 659 (Bangalore)           T +52 (1) 222 170 6722 (Puebla)                    T +66 86 7917 071 (Bangkok)
                                       T +91 994 0679 933 (Chennai)             e-mail: idiada_mexico@idiada.com                   e-mail: idiada_thailand@idiada.com
T +32 2 719 02 45 (Brussels)           T +91 124 4028 888 (New Delhi)
e-mail: idiada_belgium@idiada.com      T +91 203 0556 900 (Pune)
                                       e-mail: idiada_india@idiada.com          Applus IDIADA Poland                               Applus IDIADA Turkey
Applus IDIADA Brazil                                                            T +48 61 6226 905 (Poznan)                         T +90 216 250 6050 (Istanbul)
T +55 41 3373 0411 (Curitiba)          Applus IDIADA Indonesia                  e-mail: idiada_polska@idiada.com                   e-mail: idiada_turkey@idiada.com
T +55 11 4330 9880 (São Paulo)         T +6221 2939 1143 (Jakarta)
T +55 15 3205 2952 (Tatuí)                                                      Applus IDIADA Russia                               Applus IDIADA UK
                                       e-mail: idiada_indonesia@idiada.com
e-mail: idiada_brasil@idiada.com                                                T +7 (831) 297 94 32 (Nizhny Novgorod)             T +44 2476 328 083 (Nuneaton)
                                       Applus IDIADA Italy                      T +7 (831) 261 37 06 (Togliatti)                   e-mail: idiada_uk@idiada.com
Applus IDIADA China                                                             e-mail: idiada_russia@idiada.com
                                       T +39 011 016 0205 (Turin / Maranello)
T +86 10 8446 3317 (Beijing)                                                                                                       Applus IDIADA USA
T +86 431 8190 9680 (Changchun)        e-mail: idiada_italia@idiada.com
                                                                                Applus IDIADA Saudi Arabia                         T +1 248 978 0111 (Detroit)
T+ 86 23 6756 8060 (Chongqing)
T +86 20 2282 9202 (Guangzhou)         Applus IDIADA Japan                      T +966 53 4147 301 (Riyadh)                        e-mail: idiada_USA@idiada.com
T +86 (21) 6210 0894 (Shanghai)                                                 e-mail: idiada_GCC@idiada.com
                                       T +81 (0) 42 512 8982 (Tokyo)
T +86 (772) 3166 619 (Liuzhou)                                                                                                     CTAG IDIADA
                                       e-mail: idiada_japan@idiada.com
T +86 (755) 29184532 (Shenzhen)                                                 Applus IDIADA South Africa                         T +34 986 900 300 (Pontevedra)
e-mail: idiada_china@idiada.com                                                 T +27 83 450 8925 (Pretoria)                       e-mail: ctag_idiada@idiada.com
                                       Applus IDIADA Madrid
                                       T +34 915 095 795 (Madrid)               e-mail: idiada_southafrica@idiada.com
Applus IDIADA Czech Republic
                                       e-mail: idiada_madrid@idiada.com
T +420 493 654 811 (Hradec Králové)                                             Applus IDIADA South Korea
T +420 482 424 243 (Liberec)
T +420 326 736 860 (Mladá Boleslav)                                             T +82 31 478 1821 (Seoul)
e-mail: info@idiada.cz                                                          e-mail: idiada@idiada.co.kr
You can also read
