Bulb CCTV Security DVR HD 720P IR Camera User Manual

Bulb CCTV Security DVR
          HD 720P IR Camera User Manual

  (The figures and parameters offered in these specifications vary with types of the product, and
                        should subject to the actual product you bought.)

Ⅰ.Overview:

Thanks for choosing our HD IR camera product which uses the latest technology for intelligent
video surveillance systems and integrates video recording, sound recording, photo taking, motion
detecting and light induced IR self-starting, cycle storage and remote control functions together.
With a common TF card inserted into the TF card slot and an E27 bulb with a screw-type base
fixed into the lamp holder, the video surveillance function would activate automatically if the
camera is powered.
Compared to general surveillance systems, the product has the advantages of wiring and
installation-free uses, easy operation and various user settable working modes and video
resolutions. Compressing the video recorded by the 720P HD and megapixel camera in
accordance with the H.264 video compression standard, the product may reduce video file sizes
dramatically, and a 32G TF card is enough to accommodate videos (VGA) files recorded in about
one week. The product can be widely used in homes, stores, supermarkets, offices, warehouses,
restaurants, garages and general buildings.

Ⅱ.Operational Instruction

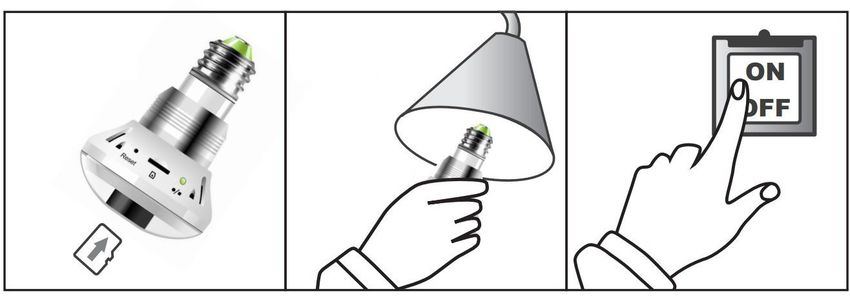

1. Quick Operation Guidance

1. Insert a TF card into the TF card slot.
2. Fix an E27 bulb with a screw-type base into the lamp holder.
3. Power on the camera, it would start recording videos automatically.
1.1 Make sure the camera’s power switch is in the OFF position and the supply voltage is suitable
(AC 110-250V), then insert a TF card (a formatted good branded TF card with a capacity of
2GB-32GB is recommended ).
1.2 Fix an E27 bulb into the lamp holder (using the same way to install a common bulb).
1.3 Power on the camera, it would start recording videos automatically.

2. Illustration of Multi-functional Remote Controller

3. Instructions under Various Working States:
3.1 Video Start: A powered on camera will enter into the automatic video surveillance state after
the red and blue indicators stay lit for 1 second. Then the red indicator will keep lit while the blue
indicator flashes to show that the camera has started to record videos. If the blue indicator doesn’t
flash, it means the TF card has something wrong and should be re-formatted.

3.2 Video Stop: A powered on camera will pause its video recording if the      key on the remote
controller or the“Stat/Stop” button on the camera is pressed. If the blue indicator stops flashing
and stays lit, it means the system has returned to the standby mode.

Press the         key or the“Stat/Stop”button again, the video recording will resume after the blue
indicator restarts flashing.

3.3 Motion Detecting: A powered-on camera will enter into the Motion Detecting surveillance

 state after the blue indicator flashes twice if the        key is pressed under any normal working
 state and it will return to the standby mode if the key is pressed again.
3.4 Photo: A powered-on camera will take one photo after the blue indicator flashes one time and

stays lit if the    key is pressed under any normal working state.

3.5 Light On: A power camera will turn the white light on if the           key is pressed under any
normal working state, and turn it off if the key is pressed again（Note: The night vision IR lamp
will turn off automatically when the white light lamp turns on. ）
3.6 Video Play: Stop video recording, power off the camera, wait for 3-4 second, and then press
the TF card gently to let it slide out. You may play the videos stored in the TF card on a computer.
Operation Steps:
1      Take out the TF card from the camera.
2      Use a suitable card reader to connect the TF card to a computer.
3      The computer will detect the TF card as a mobile HDD.
4      Access the mobile HDD in the path of“DCIM -> 100DSCIM” .
5       All videos recorded by the camera will be stored in the above path, and could be played by
     a video player application.

3. Indicator Statements
1. If the blue indicator flashes at regular intervals, it means that the camera is recording videos.
2. If the blue indicator flashes twice and then goes out, it means that the camera enters into the
indicator free mode.
3.If the blue and red indicators stay lit together, it means that the camera is in the standby mode
（ and there is a TF card in the camera）.
4. If the red indicator stays lit while the blue indicator goes out, it means that there is no TF card
   in the camera or the card doesn’t work. .

4．Surveillance Software（Function/parameter Adjustment）
The product could be set using the software contained in the accompanying CD according to
user required functions/parameters:
Selectable and Settable Parameters:
Video Resolution 1280x720P(HD) / 640*480(VGA);
Motion Detecting Function（ON/OFF）;
Date and Time Watermark（Yes/No）;
Cyclic Storage（ON/OFF）;
Working Indicator（ON/OFF）;
Audio（ON/OFF）;
Self-setting Video Time and Time Synchronization with Computer.

Steps for Software Installation and Use:

1. Firstly, click and open the accompanying CD, open the“user tool”folder, then double click the
   “setup”file in the setup_en folder.

The following installer will appear:

Then, just follow the installer instructions to finish the installation, and the“   ”icon will
automatically appear on the desktop means when the installation is successfully completed .

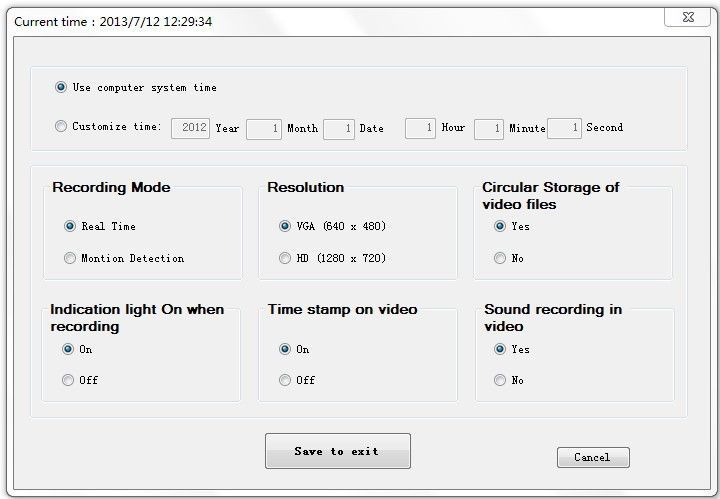

2. To change and set the parameters of the camera, users should take out the TF card from the

camera, connect the card to a computer via a card reader, and double click the       icon in the
card to open the following user setting interface:

Select the required function, click the“ Save & Exit”key to save the current setting or click the
“cancel”key to cancel the current setting.
Insert the TF card and power on the camera to validate the new setting automatically.

5．Factory Setting（Default Parameters）
 Parameter/Function                          Factory Defaults
 Video Format                                AVI （H.264）
 File Save Setting under Real-time Video Real-time Video: a file （HD 1280*720P）saved
 Mode                                    every 10 minutes/ a file （ VGA 640*480 ） saved
                                         every 30 minutes
 File Save Setting under Motion Detecting Motion Detecting Video: a file（HD 1280*720P）
 Mode                                     saved every 2 minutes/ a file （ VGA 640*480 ）
                                          saved every 5 minutes
 Video Mode                                  Real-time Video （ factory default ） /Motion
                                             Detecting（settable）
 Resolution                                  HD 1280*720P（factory default）/VGA 640*480
                                             （settable）
 With/without Sound                          Yes（factory default）/No（settable）
 Indicator State                             ON（factory default）/OFF（settable）
 Cyclic Storage                              Yes（factory default）/ No（settable）
 Time Watermark in Video                     Yes（factory default）/ No（settable）

6．Technical Parameters
 Product                        HD 720P IR Camera (Bulb Type Camera)
 Encoding Mode                  H.264 （standard H.264video compression technology）
 Image Sensor                   1/4 CMOS Sensor
 Camera Pixels                  5 Million Pixel HD Camera
 Lens                           3.6mm

Camera Visual Angle           90°
 Video Resolution              1280*720P（HD）/VGA 640*480（VGA）
 Image Resolution              1600*1200
 Microphone                    built-in (Synchronized Recording of Audio and Video Signals)
                               Micro-SD Card (TF Card) 2GB-32GB. Good branded speed
 Memory Card
                               memory cards are recommended
                               The 4GB storage space could support video recording （ VGA
                                  Format） for 20 hours at most.
 Memory Consumption
                               The Memory Consumption varies along with the parameter
                               setting/shooting environment.
                               Mainstream media playing applications,player software in the
 Video Play
                                accompanying CD.
 Infrared Lamp                 Third Generation IR Array Lamps (850nm ) / IR LED lights
 White Light Lamp              3W White Light Flood Lamp
 Night Visual Range            1-15m
 Motion Detecting Range        0-8m
 Minimum Illustration          0 Lux (infrared on), 0.5 Lux (infrared off)
 Power Port                    E27（standard bulb socket）
 Bulb Input Voltage            AC110V-250V
 Power

The figures and parameters offered in these specifications vary with types of the
product, and should subject to the actual product you bought. Continuously updating
the product, our company reserve the final right of explanation. Please contact your
local distributors and agents for further service.
