Vanadium Flow Battery - VFB - Gary Yang DOE Long Duration Energy Storage Workshop
Vanadium Flow
     Battery - VFB
              Gary Yang

     DOE Long Duration Energy Storage Workshop

                                                 March 11, 2021

1
Vanadium Flow Battery - VFB - Gary Yang DOE Long Duration Energy Storage Workshop
UniEnergy Technologies
    An energy storage company that has advanced a new gen VFB to safe, reliable and flexible
    commercial products, that are:
        ´ Capable of 4-24 hrs durations
        ´ Meeting rapidly increasing demands in renewable integration, C&I, utilities, …

2
Vanadium Flow Battery - VFB - Gary Yang DOE Long Duration Energy Storage Workshop
A long journey from molecules to MWs

                                                              √

                    PNNL            TECH VALIDATION                 EARLY              PRODUCT                        FIELD                               MARKET
                 DISCOVERY             AT SCALES                  PRODUCTS            MATURATION                   VALIDATION                          INTRODUCTION

                        2.28Å
         1.61Å

                        2.08Å
       1.61Å
                        2.48Å

                     VO2Cl(H2O)2                                                                                                                                Field-commissioned
                                                                                                                                                                ReFlexTM; UL/CE certified
                 2010                        2012                     2014                               2016                         2018                                Commercial
                                                                                                                                                               2020       deployment
    A new gen V chemistry          UET founded, with a            Commissioned 1st                         Field-deployed 1st   Rolled out next gen
    invented at PNNL,              mission to commercialize       container product                        MW scale             product ReFlexTM;
    demonstrating substantial      the discovery at PNNL          Uni.SystemTM                             Uni.SystemTM         built 1st production
    improvement in VFB                                                                                                          line at RKP

                                       The decade long journey from molecules to MW is documented in a series of posts in LinkedIn:
                                              https://www.linkedin.com/in/z-gary-yang-96ab864b/detail/recent-activity/posts/

3
Vanadium Flow Battery - VFB - Gary Yang DOE Long Duration Energy Storage Workshop
ReFlex™ - Most adaptable VFB battery
     ´ Engineering optimization informed by customer field experience and detailed market analyses

      C UL and CE certified!
                                                                                   A single ReFlex™ module is
      C New gen V electrolytes                                                     rated at 10kW/40kWh and
      C High power stack                                                           14kW peak

      C Air cooling
      C Built in auto-balancing
      C Compact design

      C Highly modularized
      C Seamless bypass
                                                                                               200kW/800kWh AC
      C Stack up to MWs                                                                        SmartString™
      C Shipped ready to run                                                                   Repeating AC product
                                                                                               with matching PCS
      C 20+ years life

4
Vanadium Flow Battery - VFB - Gary Yang DOE Long Duration Energy Storage Workshop
Field-proven reliability, addressing market needs
    ´ Over 100 ReFlexTM modules deployed, accumulating over one million hours with 99% availability
                                                                                               C&I with PV at BNM

                                T&D, MEPPI                   Wind+PV+Storage,
                                                                 Shangluo

                                                                                               Microgrid with wind,
                                                                                               State Grid

         Microgrid, WA

                                   Engie: 3rd party demonstration

                                                                    PV+Storage, Heron Island

5
Vanadium Flow Battery - VFB - Gary Yang DOE Long Duration Energy Storage Workshop
Substantially improved performance
                                                                               ReFlex™ VFB
      ´ 2X energy density over conventional VFB,
        3~5X footprint reduction
      ´ 25% improvement in V utilization
      ´ Practically unlimited cycles
      ´ No degradation, 100% access to rated
        energy over a long life

      ´ Unique thermal properties, enabling air
        cooling even under extreme conditions
      ´ Capable of long durations, only by adding
        more e’lytes, with
Vanadium Flow Battery - VFB - Gary Yang DOE Long Duration Energy Storage Workshop
Inherently safe, sustainable

    C Use of aqueous electrolytes
    C No thermal runaway
                                             No VFB fires … EVER!!!
    C Even short circuits produce no
      lasting damage

      Waste to kWhs

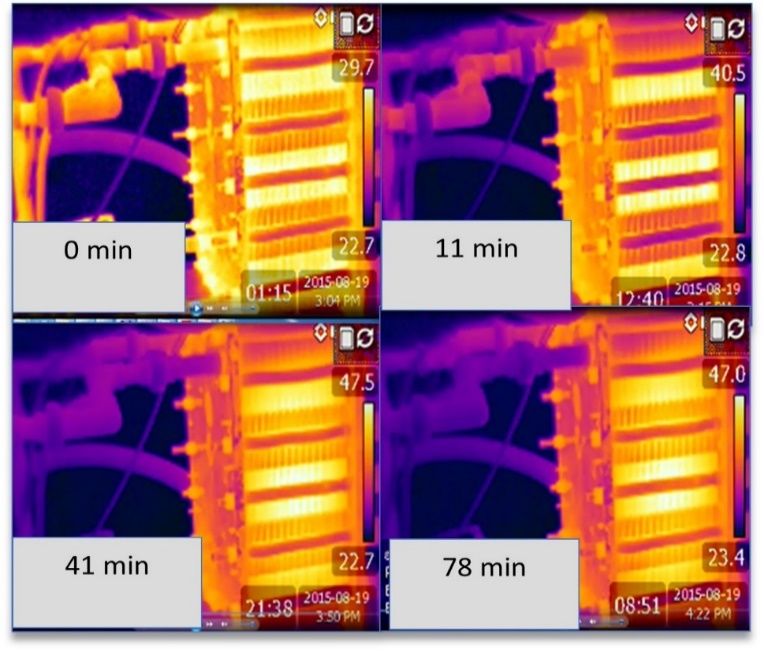

                                                                  Short-circuiting a fully charged stack with the pumps off only increases
                                                                  temperature 9.1oC. Even this increase is eliminated when the pumps are turned on

                                                                                       C E’lytes 100% reusable or recyclable
         Steel slag                                                                    C E’lytes made from industrial wastes
                                                                                       C V not resource-limited, with 200 ys
                                                                                         of identified deposits
                                 Electrolyte (V3.5+)        V chemicals
         Soot ash
7
Vanadium Flow Battery - VFB - Gary Yang DOE Long Duration Energy Storage Workshop
Longer duration, more competitive in costs
                          700                               Discharge durations:                4 hrs               ´ Longer duration, more competitive CapEx
                                                                                                6 hrs
                                                                                                                      & LCOE at system level*
                                                             Via technology                     8 hrs                   (Unlike Li-ion and other solid-state batteries, only
                          600
                                                             advancement and                                            additional e’lytes needed to extend durations.)
                                                             improving V utilization            12 hrs
                                                                                                                    ´ CapEx competitive with ≥ 8hrs durations
    System CapEx, $/kWh

                          500
                                                                                                                      at system level*
                                                                                                                    ´ LOCE already competitive over ≥4 hrs
                          400                                                          Via scaling up and further
                                                                                       technology advancement
                                                                                                                      duration
                                                                                                                    ´ CapEx & LCOE dropping via scaling up
                          300
                                                                                                                      production, building up industry chain,
                                                                                                                      engineering advancement
                          200                            Today

                                                                                                                      *DC system including packaging, heat management
                          100                                                                                         and other balance of plant
                             2017   2018   2019   2020    2021   2022   2023   2024    2025   2026   2027
                                                                  Year

8
Vanadium Flow Battery - VFB - Gary Yang DOE Long Duration Energy Storage Workshop
Status and needs of VFB industry
        Status & Challenges                                                  Needs

    ´ Technology proven: Inherent safe, capable of        ´ Government/private partnership in advancing
      long durations, unlimited cycles with SOC limits,     engineering
      no degradation, … sustainable
    ´ Struggle in reliability, only few achieved via      ´ Government/private partnership in
      field-demonstrations and deployments                  demonstration and improving value propositions

    ´ Achieved Signiant cost reduction, but much room     ´ “Invent in the US and Make in the US” require
      to drop further, by:                                  private investment and government support in
                                                            policies to scale up production and build up
        §   Scaling up production
        §   Build up industry chain                         industry chain in the US.
        §   Improve adaptability and application value
            propositions

9
Vanadium Flow Battery - VFB - Gary Yang DOE Long Duration Energy Storage Workshop
