THE WIRELESS POWER OF
Wireless Produal
Proxima® Room
MyCloud transmitters
• Backup your configuration files • 2.4 GHz
• Download firmware update files • Up to 100 per one base
• Be ready for IoT demands PRODUAL MESH unit
Reliable network with
Configuration files future-proof features
backup
Commissioning and
configuration
MyTool Wireless Produal
Easy installation and Proxima® base unit
configuration with modern with modern field bus
commissioning tool support for BMS needs
THE WIRELESS POWER OF
PRODUAL PROXIMA®
The wireless future is here. Our next-generation Produal Proxima® solution creates reliability for wireless
measuring for a multitude of applications – from building automation to environment monitoring and IoT-
applications.
Wireless Produal Proxima® is one of is a possibility to run a wireless network digital contacts, NTC10 temperature
the first wireless MESH systems that with minimal latency in applications where measurement and 0…10 V inputs to
can be fully operated with a battery. Its speed is a high priority. wireless messages, which allows for
every transmitter acts simultaneously almost unlimited application possibilities.
as a repeater, removing the need for Wireless Proxima base unit (WBU) Wireless Produal Proxima® is designed
external repeater units in the network. is the heart of the wireless Produal to be both tangle-free and future-proof,
Utilising the latest wireless technology MESH network, supporting up to 100 aiming to offer the most comprehensive
innovations, Produal MESH network wireless transmitters for a wide range and multifunctional wireless portfolio on
ensures extreme reliability even in the of measurements and options, e.g. the market.
most challenging radio environments. In temperature, humidity, and CO2. There
addition, with external power supply, there are also products that can convert
Unparalleled Adapted messages use available frequencies
reliability and
It’s scalable and scalability
RELIABLE. Frequency
Wireless interferences are a thing of the past
A self-healing Produal MESH network Wide network monitoring and supervising Produal MESH network operates
is the most energy-efficient way to possibilities make the system extremely along with other wireless
ensure reliable data transfer, since every trustworthy. technologies in the building by
transmitter in a MESH network works dynamically using the best available
as a repeater. In case of an interruption, • Scalable setup from small to large-sized communication frequencies. This
the transmitters simply reroute installations. patented technology minimises the
communication through working nodes • The best possible wireless connection likelihood of being interfered by
– thus keeping a steady connection at • A wider coverage area than ever before or interfering with other wireless
all times. Also, two-way communication • Transmitters working as repeaters systems.
ensures ultimate reliability with its smart extend the coverage.
message acknowledgement feature.
IMPROVED CONNECTION VIA PRODUAL MESH MESH VS. POINT-TO-POINT
NETWORK
1. Some transmitters detect a connection problem. 2. Produal MESH network technology enables them POINT-TO-POINT MESH
to find new routes to connect to the base unit. NETWORK NETWORK
Base unit
Transmitters
Limited
connection
distance
No need for worrying about
maximum distance between
the base unit and the utmost
transmitter in the network.
Battery-powered
It’s
freedom BATTERY LIFETIME OF TRANSMITTERS UP TO 8 YEARS
depending on measuring intervals and functions
EASY. The first fully battery-operated MESH network
on the market Built-in options
Display
Temperature °C
Value Over External
• No need for extra repeaters • Battery lifetime up to 8 years Bus measurements
Adjustable poll
• Energy efficient technology • Adjustable battery alarm set point interval Dry contact
• No need for external power supplies for • Battery-operated transmitters with Movement Resistance
routing nodes displays also available Humidity %rH NTC 10
• Ultra-low power consumption
Dew point 0. . .10 V
THE MANY FUNCTIONALITIES
OF PRODUAL MyTool®
• Network commissioning
• Network monitoring
• Signal scanning
It’s easy-to-use and
Intuitive security • Finding the best possible
transmitter installation places
• Device data monitoring
SECURE. Presenting an easy-to-use tool for quick
configuration and updates
By using the handy Produal MyTool® All the network messages between
Android application, the entire wireless devices are encrypted in AES-128 level.
network can be configured and Easy remote firmware updates allow time
commissioned easily through your and money savings and ensure future-
standard mobile device. proof security.
Operating in the globally accepted frequency
2.4 GHz, which is acknowledged in various
environments, Wireless Produal Proxima®
Stunning
offers a broad gamut of possibilities and
options for system integrators – including
multifunctionality
wide measuring possibilities, alarm and
monitoring functions, and more. With
It wirelessly covers base unit polling and/or transmitter change
EVERYTHING. A plethora of features to fully benefit system of value features, the system provides
integrators increased flexibility to network data
collecting.
Humidity Temperature
54% CO2 Temperature
20.2°C
Humidity
CO2
1200PPM 28.0°C 52%
500PPM
Average
temperature Temperature
Average CO2
546.7PPM 23.2°C 21.4°C
Humidity
CO2 35%
400PPM
Lost
Average transmitter
humidity alarm
44.7°C
BASE UNIT
MONITORS:
• Network overload
PIR detected Humidity • MESH status
• High temp
MOVEMENT
Battery 7%
47% • Low temp
• High CO2
e.g. outdoor
temperature
15.4°C
Value Over Compatible with
Bus (VOB) BMS
Wireless
Produal
Proxima® BATTERY-
OPERATED
network WIRELESS
PROXIMA BASE
WIRELESS
PROXIMA ROOM
components UNIT TRANSMITTERS

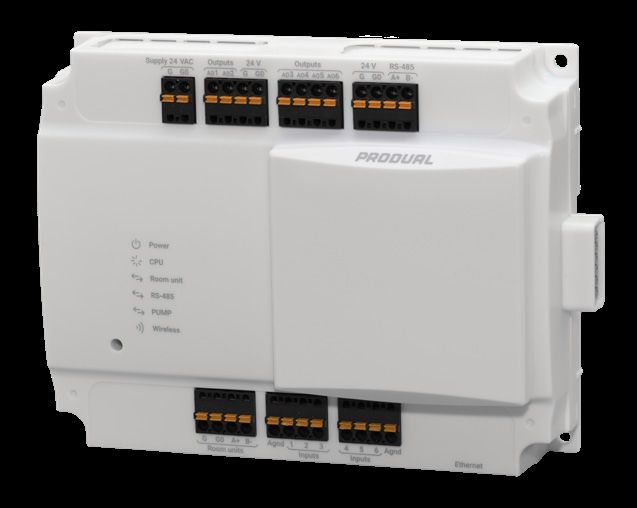

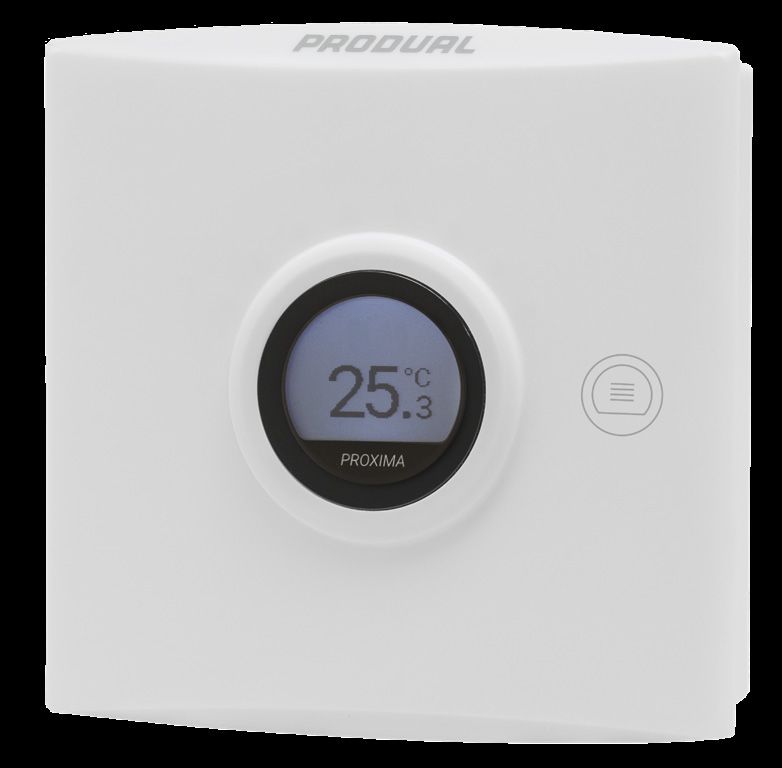

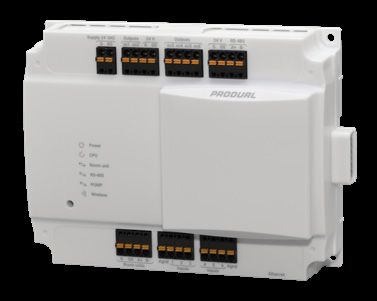

Presenting the foundation WBU is a base unit for wireless network Our basic WTR – battery-operated
of a wireless future transmitters. With Wireless Proxima, all wireless transmitter – includes
transmitters are communicating with temperature measurement, and offers
WBU over the air, with measurement data a variety of different options, such as
converted to Modbus TCP/IP, Modbus RTU humidity measurement and display. There
or 0…10 V analog outputs (6 pcs) for the are two basic colours available: white
requirements of BMS or other systems. (WTR) and black (WTRB).
Wired measurements can be read over
Modbus to BMS via inputs (6 pcs).
POWER SUPPLY OPERATED WIRELESS WIRELESS PRODUAL PROXIMA ROOM PROXIMA MYTOOL® TRANSMITTERS INPUT MODULE APPLICATION WTR24 is a power supply operated WTR-IM can be operated with a battery Android application available for download wireless transmitter. The basic WTR24 and/or power supply. The basic WTR‑IM via Google Play. includes temperature measurement, and includes temperature and humidity offers a variety of different options, such measurement. WTR-IM supports three as humidity and CO2 measurement, and additional external measurements, such display. Most installations can use battery- as NTC10 temperature, 0...10 V inputs, or powered devices, but wired versions can digital input. There are two basic colours provide a fast frequency of measurements available: white (WTR‑IM) and black for applications where speed is a high (WTRB-IM). priority. There are two basic colours available: white (WTR24) and black (WTR24B).
Produal is your reliable partner for high-quality building automation measurement and
control. Wireless functionality is one of the fastest growing trends in the world – and this
is also the case in building automation. Produal has been a pioneer in offering wireless
solutions to this market since 2006. Now, the wireless future is here: our next generation
Produal Proxima® solution is creating reliability for wireless building automation!
