SHERPA 100ECO "For Contractors, by Contractors." At 31" wide, it's the ONLY skid steer that fits through every standard door.
←
→
Page content transcription
If your browser does not render page correctly, please read the page content below

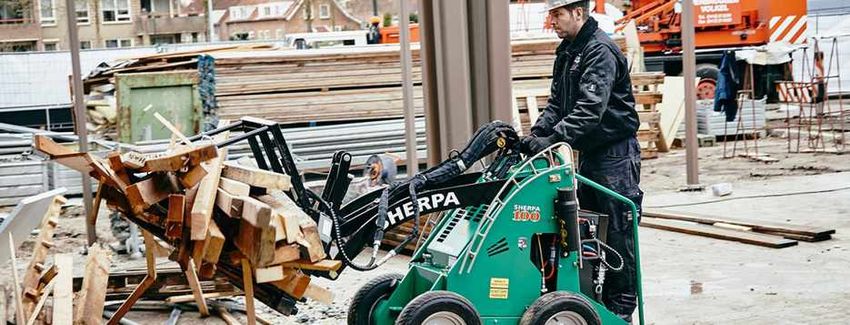

SHERPA 100ECO
"For Contractors, by Contractors."
At 31" wide, it's the ONLY skid steer that
fits through every standard door.
www.Cratos.com
A powerful skid steer that fits
everywhere, has no emissions, reduces
the risk of injury and saves on labor.

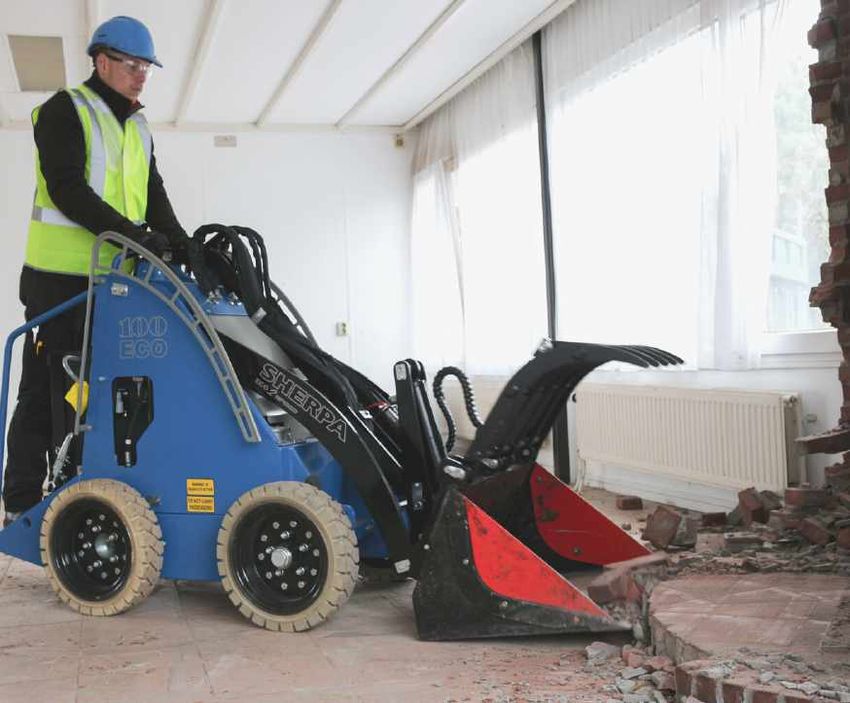

SHERPA 100ECO
Environmentally friendly Over 7 hours of run time
Less than 31" wide Designed for demolition & construction
Elevator-friendly (under 1,600 lbs) 6-foot dump height
Energy costs under $1 a day Charges on a single standard 110V outlet
A Maximum height with bucket up 100in H Height bucket horizontally 73in
B Height hinge point coupling plate 81in I Bucket angle when scooping low 26°
C Maximum height with bucket low 47in J Bucket angle when scooping high 53°
D Length + bucket 85in K Wheelbase 26in
E Bucket angle when dumping 51° L Length to coupling plate 60in
F Height underside of the M Ground clearance 5in
bucket when dumping 58in N Rear angle 14°
G Length from front wheel O Turning radius 64in
to bucket when dumping 8in P Turning radius with bucket 85in
Q Width 30in
SPECIFICATIONS
Engine Capacity Data Brakes
Type: DC Motor (brushless) Breakout force (lbs): 1851 Service brake: Hydrostatic on 2 rear
Capacity (kW/HP): 1,5/2 Tractive force (lbs): 1230
wheels/ 2 front wheels through chain
Revolutions per minute (rpm): 1800 System pressure (psi): 2200
transmission
Hydraulic tank capacity (gal): 10
Hydraulic flow (gpm): 3.8
Drive System Lead Acid Battery (Approx. 7 hours)
Operating capacity (lbs): 550
Hydraulic through 2 hydraulic wheel 24 V
motors 360 Ah
Weight
1591 lbs
Speed Lithium Battery (Approx. 9 hours)
0 to 2 MPH 24 V
Steering
Skid steering 315 Ah
J
E Q
A
G
B
H F
C
I N O
M
K
P
L
D
www.cratos.com
(833)-4Cratos
www.cratos.com
SHERPA ATTACHMENTS
REGULAR BUCKET GRAPPLE BUCKET PALLET FORKS
HYDRAULIC HAMMER VACUUM SYSTEM FLOOR SCRAPPER
I wish I had my 100ECO 10 years ago These things are bullet proof. We
when I was moving all this concrete. sent them out to a job for a couple
It's saved us a lot of time and money months and beat the crap out of
by doing all the heavy lifting where we them and did nothing but charge
used to have 8-10 people instead. the batteries. They still have not
Gary Andrews, R&K Concrete cutting stopped working.
Wes Baker, Lloyd's Construction service
The 100ECO has saved us months Short answer: It's a game changer.
of work. With it being battery It's the best purchase I have ever
powered, we were able to take it made for my business.
to our indoor job and as I said - it Josh Perkins, Patriot Concrete Cutting
literally saved us months on this job.
DALE BURDGE, innovative cleaning solutions

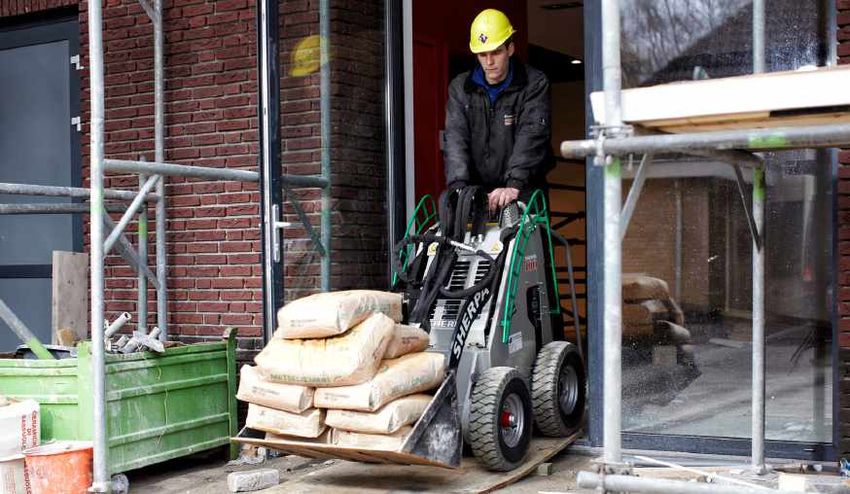

SHERPA 100 2SPEED
"For Contractors, by Contractors."
At 31" wide, it's the ONLY
battery-powered skid steer that fits
through every standard door.
www.Cratos.com
Like the 100ECO, the 2Speed fits
everywhere, has zero emissions plus
more pushing power and speed.
SHERPA 100 2SPEED
Environmentally friendly Over 7 hours of run time
Less than 31" wide Designed for demolition & construction
Elevator-friendly (1,800 lbs) Energy costs under $1 a day
Up to 3MPH Charges on a single standard 110V outlet
A Maximum height with bucket up 100in H Height bucket horizontally 73in
B Height hinge point coupling plate 81in I Bucket angle when scooping low 26°
C Maximum height with bucket low 47in J Bucket angle when scooping high 53°
D Length + bucket 85in K Wheelbase 26in
E Bucket angle when dumping 51° L Length to coupling plate 60in
F Height underside of the M Ground clearance 5in
bucket when dumping 58in N Rear angle 14°
G Length from front wheel O Turning radius 63in
to bucket when dumping 7.1in P Turning radius with bucket 89in
Q Width 30in
SPECIFICATIONS
Engine Capacity Data Normal High Brakes
Type: DC Motor Brushless Hydraulic flow (gpm): 2.85 4.75 Service brake: Hydrostatic on 2 rear
Capacity (kW/HP): 1.5/2 Breakout force (lbs): 1315 805 wheels/ 2 front wheels through chain
Revolutions per minute (RPM): 1800 Tractive force (lbs): 585 410 transmission
System pressure (psi): 2610 1595
Drive System Electrical System
Hydraulic through 2 hydraulic wheel Tank capacity (gal): 10 Lead Acid Battery (Approx. 7 hours)
motors Operating capacity (lbs): 595 24 V
360 Ah
Speed Steering
Normal Speed: 0-2.0 MPH Skid Steering Lithium Battery (Approx. 9 hours)
High Speed: 0-3.0 MPH 24 V
Weight 315 Ah
1800 lbs
*Specs subject to change without notice
J
E Q
A
G
B
H F
C
I N O
M
K
P
L
D
www.cratos.com
(833)-4Cratos
www.cratos.com
SHERPA ATTACHMENTS
REGULAR BUCKET GRAPPLE BUCKET PALLET FORKS
HYDRAULIC HAMMER VACUUM SYSTEM FLOOR SCRAPPER
We have seen cost savings in labor, These things are bullet proof. We
increase in productivity and less sent them out to a job for a couple
injuries on the job. We also like how months and beat the crap out of
versatile the machine is, no emissions, them and did nothing but charge
fits through a standard door, light the batteries. They still have not
enough for all elevators and we have stopped working.
even adapted some of our own Wes Baker, Lloyd's Construction service
accessories to it. Once the unit was in
the field, all of the foreman have been
Short answer: It's a game changer.
requesting them.
It's the best purchase i have ever
Chris Iscra, Break Thru Demolition
made for my business.
Josh Perkins, Patriot Concrete Cutting

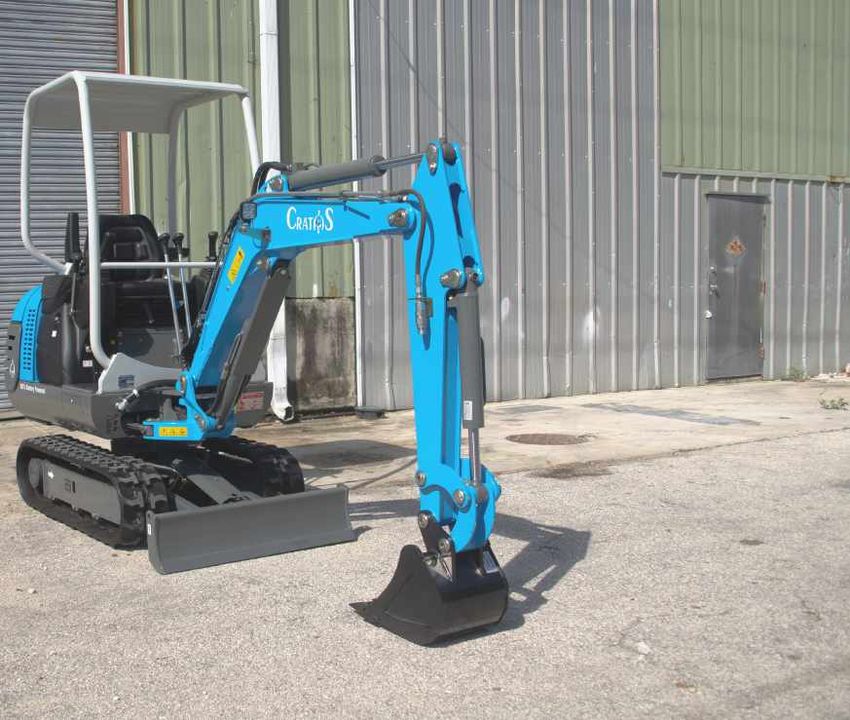

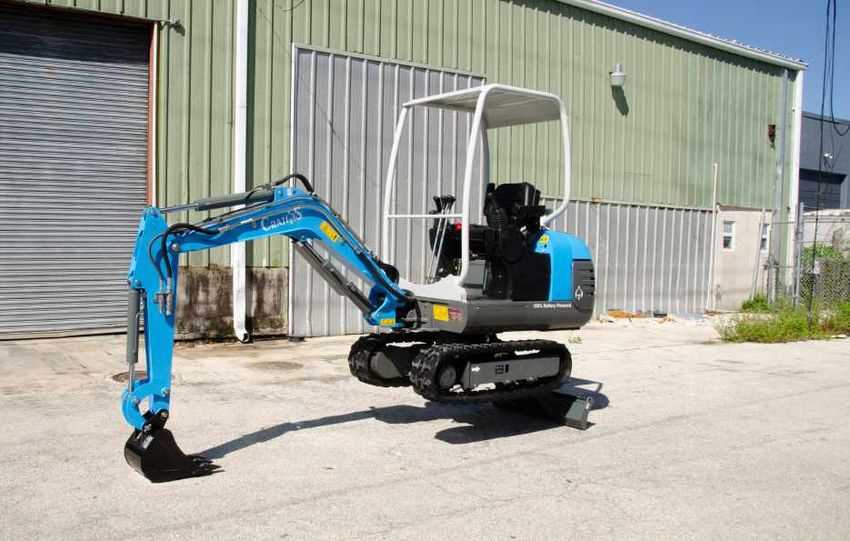

CMX18 MINI EXCAVATOR
"For Contractors, by Contractors."
A low maintenance battery-powered
mini excavator is changing the game.
www.Cratos.com
THE CMX18 takes a proven concept and
improves it. All the performance you
need with zero emissions.
CMX18 MINI EXCAVATOR
100% Battery powered for full daily use Expandable tracks from 40" to 51 1/5"
Recharge on 110v, overnight charging Over 7 foot dig depth
Removable ROPS for indoor height Variable speed servo-controlled
restrictionsSPECIFICATIONS
Engine & Battery: Hydraulic System:
Electric motor Total delivery 15 gal/min
48v LiFePO4 battery Max aux hydraulic flow 7.5 gal/min
Runtime 6-12 hours Max working pressure 2900/2610 psi
Continuous @2100 RPM 6 hours Hydraulic oil tank capacity 6.6 gal
Continuous @1800 RPM 8 hour
Life battery cycles: 3,000+ Performance:
Recharge time 110v- 8 - 16 hours Operating weight with ROPS 3642 psi
Break out force 3608 lbs
Undercarriage: Digging force 2012 lbs
Box section still frame Travel speed 1-2 mph
Track type and width - 9" wide Specific ground pressure ROPS 4.3 psi
rubber
Track bearing rollers N° 3+3 low
Track tensioning- grease
Dozer blade- 10" x 51"
www.cratos.com(833)-4Cratos
www.cratos.com
CMX18 ATTACHMENTS
12 INCH BUCKET 15 INCH BUCKET 18 Inch Bucket
THUMB

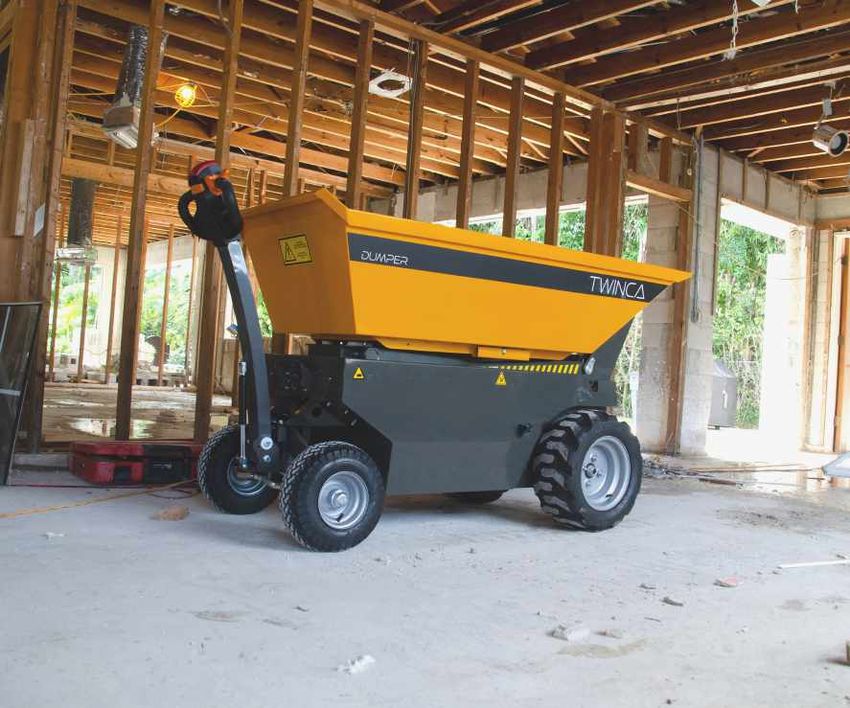

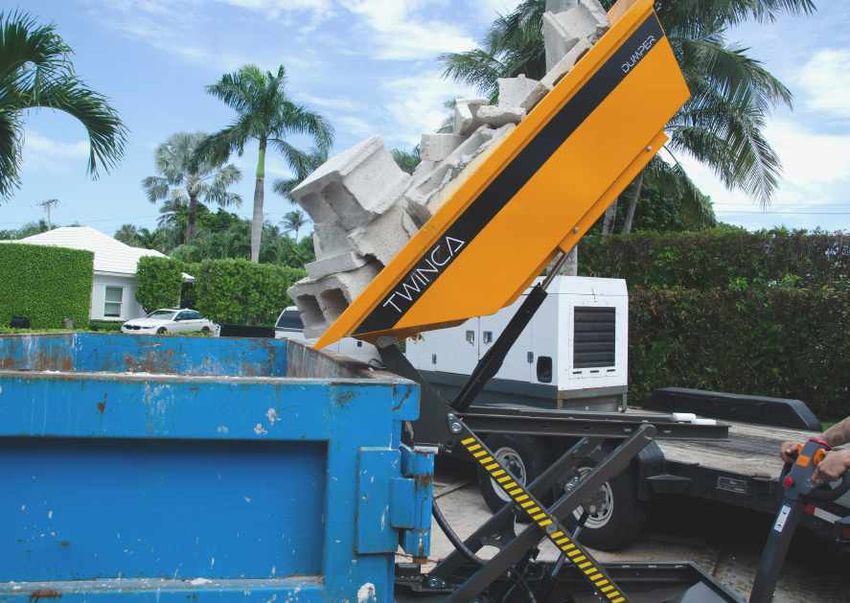

HYDRAULIC HAMMER AUGERTWINCA ES800
Equipment that leads the charge
The battery-powered wheelbarrow that
dumps over the side of a 20 yard dumpster.
www.Cratos.com(833)-4Cratos
www.cratos.com
SPECIFICATIONS
Electric System
2 x 12 V / 150 Ah
Operating time: 8-10 hours
Recharge time: 5-6 hours
Operational Specs
Weight: 1075 lbs
Max. Payload: 1764 lbs
Capacity: 15 CF
Speed: 0-4 MPH
Width: 35.5 in
Length: 80 in
Height: 46 in
Dump Height: 59 in
www.cratos.comMCE400 WHEELBARROW
"For Contractors, by Contractors."
The ultimate way to quickly and easily
remove bulky debris from any job site.
www.Cratos.com(833)-4Cratos
www.cratos.com
SPECIFICATIONS
Electric System
24V system
110V onboard charger
Operating time: 8-10 hours
Recharge time: 10-12 hours
Operational Specs
Weight: 287 pounds
Max. Payload: 880 pounds
Capacity:
12 CF poly bin
16 CF aluminum bin
Speed forward: 0-4 MPH
Speed backwards: 0-3 MPH
Width: 33.5 in
Length: 64 in
Height: 35 in
Optional Extensions
Seat w/ spring board and foot service
Stand on platform www.cratos.comSHERPA 100EHD
"For Contractors, by Contractors."
At 31" wide, it's the ONLY skid steer that
fits through every standard door.
www.Cratos.comA powerful skid steer that fits
everywhere, has no emissions, reduces
the risk of injury and saves on labor.

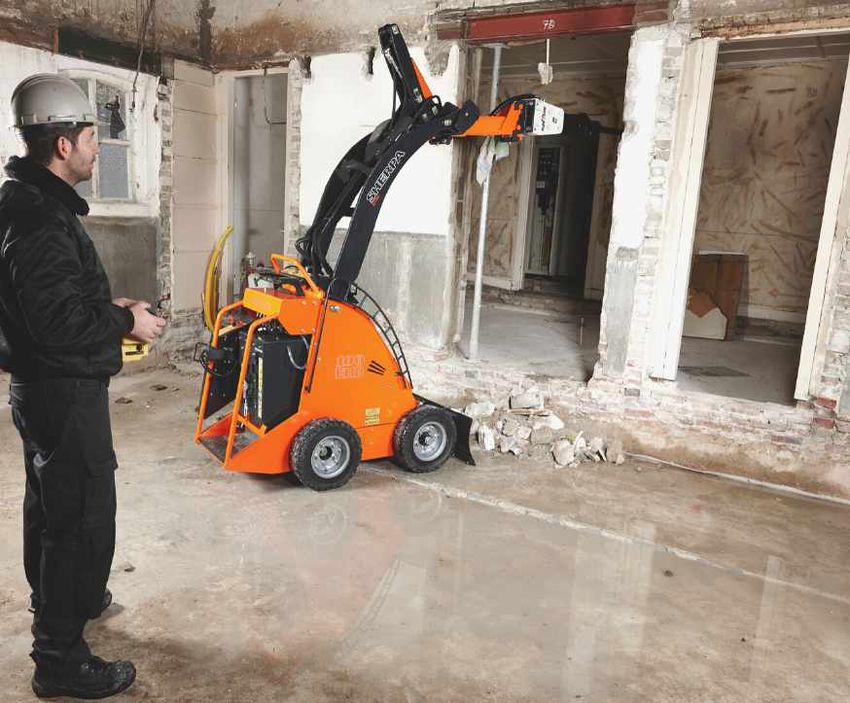

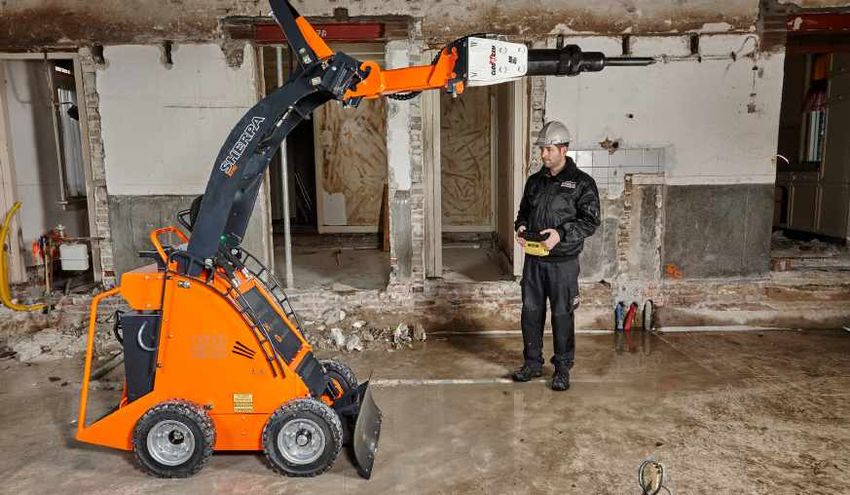

SHERPA 100EHD
Environmentally friendly and compact Over 7 hours of run time
Less than 31" wide Designed for demolition & construction
Elevator-friendly (under 2,000 lbs) Remote-controlled
Energy costs under $1 a day Charges on a single standard 110V outlet
A Maximum height with bucket up 100in H Height bucket horizontally 73in
B Height hinge point coupling plate 81in I Bucket angle when scooping low 26°
C Maximum height with bucket low 47in J Bucket angle when scooping high 53°
D Length + bucket 85in K Wheelbase 26in
E Bucket angle when dumping 51° L Length to coupling plate 60in
F Height underside of the M Ground clearance 5in
bucket when dumping 58in N Rear angle 14°
G Length from front wheel O Turning radius 63in
to bucket when dumping 7in P Turning radius with bucket 89in
Q Width 30inSPECIFICATIONS
Engine Capacity Data
Brakes
Type: DC Motor (brushless) Breakout force (lbs): 1390
Service brake: Hydrostatic on 2 rear
Capacity (kW/HP): 3,25 Tractive force (lbs): 1146
wheels/ 2 front wheels through chain
Revolutions per minute (rpm): 2000 System pressure (psi): 2755
Hydraulic tank capacity (gal): 6.6 transmission
Drive System Hydraulic flow (gpm): 6.5
Hydraulic through 2 hydraulic wheel Operating capacity (lbs): 650 Electrical System
Lead Acid Battery (Approx. 7 hours)
motors
Weight 24 V
1935 lbs 360 Ah
Speed
0 to 2.0 MPH
Steering Lithium Battery (Approx. 9 hours)
Skid steering 24 V
315 Ah
*Specs subject to change without notice
J
E Q
A
G
B
H F
C
I N O
M
K
P
L
D
www.cratos.com(833)-4Cratos
www.cratos.com
SHERPA ATTACHMENTS
REGULAR BUCKET GRAPPLE BUCKET PALLET FORKS
HYDRAULIC HAMMER VACUUM SYSTEM FLOOR SCRAPPER
I wish I had my 100ECO 10 years ago These things are bullet proof. We
when I was moving all this concrete. sent them out to a job for a couple
It's saved us a lot of time and money months and beat the crap out of
by doing all the heavy lifting where we them and did nothing but charge
used to have 8-10 people instead. the batteries. They still have not
Gary Andrews, R&K Concrete cutting stopped working.
Wes Baker, Lloyd's Construction service
The 100ECO has saved us months Short answer: It's a game changer.
of work. With it being battery It's the best purchase I have ever
powered, we were able to take it made for my business.
to our indoor job and as I said - it Josh Perkins, Patriot Concrete Cutting
literally saved us months on this job.
DALE BURDGE, innovative cleaning solutionsYou can also read
