Home power stations of the E and X series - All In One - E3DC
Technical data

        Home power stations
        of the E and X series
        All In One

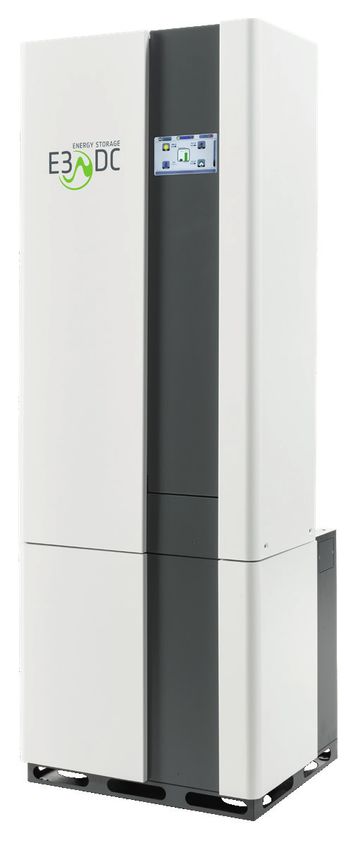

                          S10 E COMPACT and S10 X COMPACT
S10 E

           INFINITY:
            5 years
            battery
          retrofitting
Home power stations of the E and X series - All In One - E3DC
Technical data
S10 E & S10 X
Generation
Input
Max. recommended DC power (W)                                                   18,000
Min. MPP voltage (V)                                                              250
Min. MPP voltage for AC nominal power (V)                                         500
Max. MPP voltage (V)                                                              850
Max. DC input voltage (V)                                                        1,000
Max. DC current per MPP tracker (A)                                               22
Independent MPP trackers                                                           2
Connection technology input                                              4 x MC4 connectors
Compatibility with module optimisers                                              yes
AC storage – max.power input (W)                     all E3/DC home power stations are hybrid storage systems 1) 2)

Output
Max. AC nominal power (230 V, 50 Hz) (W)                          12,000 (depending on the PV size)
Max. output apparent power (VA)                                                 13,800
AC nominal voltage L / N / PE (V)                                               3 x 230
AC nominal frequencies (Hz)                                                       50
Max. output current (per phase) (A)                                               20
Feed-in phases / connection phases                                                3/3
Technology                                                                  transformerless
Cos (phi)                                                                    –0.9 … +0.9

General data
Max. system efficiency including battery (%)                                     > 88
Efficiency of PV inverter EU (%)                                                 > 95
AC short-circuit proof / earth fault monitor.                               yes / yes
                                                      in accordance with VDE-AR-N 4105, DIN VDE 0126-1-1,
Approvals
                                                ÖNORM E8001-4-712/A2, TOR producer, OVE guideline R25, CE, UN38.3
Operating range (°C)                                                           +5 to +35
Protection class / cooling                                          IP20 / fan depending on power
Data interface                                                      RS232 / USB / Ethernet / CAN
Dimensions S10 E W x H x D (mm)                               1,030 x 1,020 (including stand 1,810) x 446
Dimensions S10 E/X COMPACT W x H x D (mm)                 600 x 1,200 (including battery cabinet 1,710) x 500
Dimensions of the battery cabinet                                           600 x 550 x 500
Display                                                                     7" TFT display
Energy management                                                             integrated

Modes of operation
DC operation                                                                      yes
AC power storage                                                                  yes
Emergency power supply (solar rechargeable)           yes (3-phase backup power primarily for light and comfort)
                                                         3)

Hybrid (DC + AC)                                                                  yes
Technical data
S10 E & S10 X
Storage
S10 E home power station                                                       6.5                 9.75                  12                    –                   18
S10 E COMPACT version                                                          6.5                 9.75                   –                    –                    –
S10 X COMPACT version (from Q3 / 2021)                                          –                    –                    –                   14                    –
Usable battery capacity (kWh)               4)
                                                                               5.8                 8.75                 10.8                 12.3                 16.2
Battery converter continuous output 2) (kW)                                     3                   4.5                  4.5                   6                   4.5
Spatially separable battery system (up to 10 m)                                 –                    –                    –                  yes                    –
Battery technology                                                        lithium-ion certified as intrinsically safe in accordance with IEC62619
Total weight of batteries (kg)                                             up to 60              up to 90           up to 120            up to 120            up to 180
Temperature control from E3/DC                                                                              yes
Battery expansion or battery retrofitting                              typ. up to 11.6 typ. up to 8.75 typ. up to 5.4                                      typ. up to 16.2
                                                                                                                                               –
up to 1 year after installation up to kWh (usable) 5)                    additional      additional      additional                                          additional
INFINITY retrofitting up to 5 years after installation
                                                       typ. up to 11.6 typ. up to 8.75 typ. up to 8.75 typ. up to 12.3 typ. up to 16.2
(conversion of the system for a surcharge required)
                                                         additional      additional      additional      additional      additional
to kWh (usable)  5)

Battery capacity warranty 6)                                                                 10 years on 80% of the usable battery capacity

ready for the future
System and options                                                             6.5                 9.75                  12                   14                   18
Feed-in                                                                          freely selectable between 0% (non EEG operation) and 100%
Vehicle2Home interface                                                                     system is compatible with future products 7)
(use of electric car as storage)                                                                       system is prepared
Optional overvoltage protection with monitoring                                                        system is prepared
External interfaces                                                                            ModBUS (TCP), KNX, CAN–I/O, xComfort
Emergency power type 3)                                                             3-phase backup power (house) for light and comfort usage
Emergency power reserve (adjustable)                                        yes, via battery management 8)
Max. battery power in emergency power mode (kW) / 2)
                                                            3             4.5             4.5             6              4.5
solar rechargeable (check starting currents / loads)
Emergency power operation of motors, pumps            conditionally possible and needs to be checked with the manufacturer of
and heat pumps                                       the inverters / motors regarding start-up current and typical desired power
SG Ready (e.g. for heat pumps)                                         SG Ready board (incl.), ModBUS (TCP) (incl.), xComfort actuators (optional)
Home automation                                                                                   KNX, myGEKKO, Loxone, xComfort
max.system weight without batteries (kg)
S10 E / S10 E COMPACT / S10 X COMPACT                                                                           146 / 130 / 130

The performance and the availability of the emergency power function can be influenced and limited by software updates, grid checks and grid states of the inverter and
by external conditions (e.g. house load, generation, hardware failure, temperature or battery calibration). In addition, battery calibration / discharge using self-generated
electricity is carried out on a weekly basis, usually at night, depending on the requirements of the battery manufacturer. You can find further important information about
backup / emergency power operation in the information sheet "Emergency power in the S10 home power station" at e3dc.com/en/infocentre/#Downloads

1)
     he maximum AC charging power corresponds to the maximum battery
    T                                                                                   6)
                                                                                          	Within the warranty period if warranty conditions are met
    converter continuous power / peak power of the battery system.                      7)
                                                                                          	The customer does not have a legal claim to option V2H. Depends specifically
2)
  	The actual power can be lower, depending on the system status and                       on future vehicles, interfaces / grid guidelines and regulations.
    temperature, PV conditions and weather / grid conditions.                           8)
                                                                                          	A lithium battery must generally be calibrated every 7 days. The emergency
3)
    Additional motor switch for the emergency power function is necessary and              power reserve is not available during this time. The time can be set conditionally.
     can be obtained for an extra charge. Consumers with power usage that is                1 kWh reserve requires approx. 52 kWh per year (solar + grid).
     non-sinusoidal and too high may need to be switched off.
4)
  	The warranty applies to 80% of this usable capacity                                 The service life of the batteries depends on the installation and operating
5)
  	Depending on availability / battery technology. Testing of equipment and            conditions. The terms and conditions of HagerEnergy GmbH apply. Internet
     installation space necessary. Not guaranteed.                                      connection required for remote maintenance and yield monitoring.
e3dc.com
                                                                                                                                                                                                 Karlstraße 5
                                                                                                                                                                                                 HagerEnergy GmbH

                                                                                                                                                                                                 D-49074 Osnabrück

                                                                                                                                                                           P +49 541 760 268 0

                                          Your E3/DC-partner
Revision date: 28 May 2021. Subject to changes and errors. The PDF document currently available at e3dc.com/infocentre/#Downloads is always the legally binding version.
