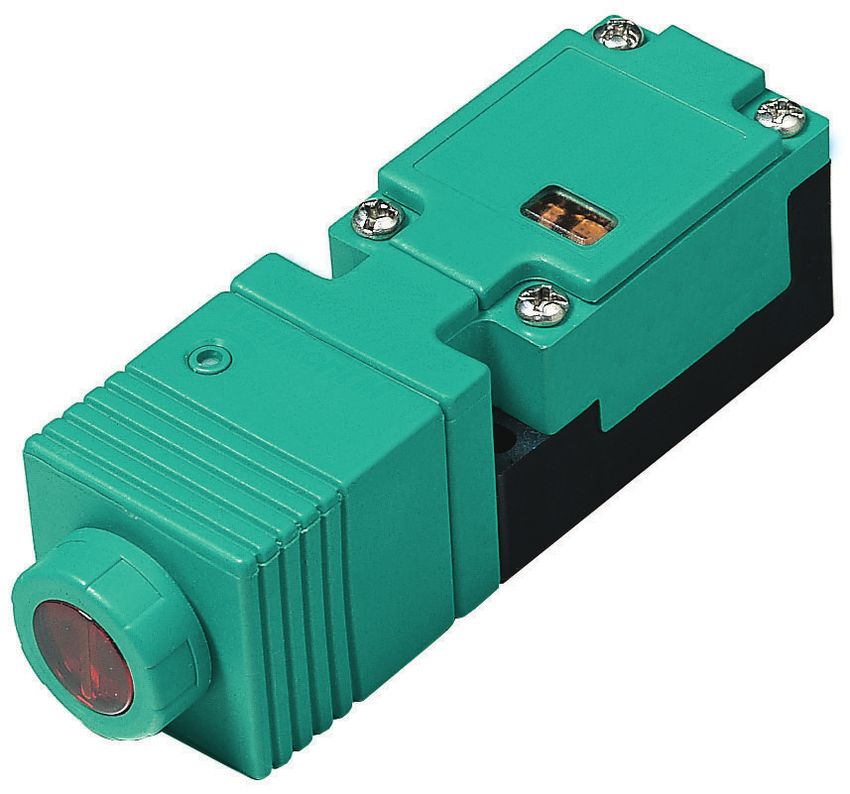

Fiber optic sensor OJ500-M1K-E23 < Light-on/dark-on parameterisable < Adjustable sensor head Fiber optic sensor for glass fiber optics Dimensions 100 91 ø25.5 30 15 15 Terminal compartment 15 59 30 Optical axis Sensitivity adjuster 20 4.3 x 5.3 LED M16 6 20/22 30 10 4 41 Release date: 2023-01-02 Date of issue: 2023-01-02 Filename: 018937_eng.pdf Terminal compartment 4 2 3 1 Technical Data General specifications Sensor range up to 100 mm (LMR 18-3,2-1,0-K4) Detection range up to 600 mm (LME 18-2,3-0,5-K3) Refer to "General Notes Relating to Pepperl+Fuchs Product Information". Pepperl+Fuchs Group USA: +1 330 486 0001 Germany: +49 621 776 1111 Singapore: +65 6779 9091 www.pepperl-fuchs.com fa-info@us.pepperl-fuchs.com fa-info@de.pepperl-fuchs.com fa-info@sg.pepperl-fuchs.com 1
Fiber optic sensor OJ500-M1K-E23 Technical Data Light source LED Light type modulated infrared light Ambient light limit 40000 Lux Temperature influence ≤ 0.5 mm/K Indicators/operating means Operation indicator LED green Function indicator LED yellow: switching state LED red: stability control (flashing) Control elements programming switch: bright/dark changeover switch selection of the operating frequency selection of the switching frequency pulse extension stability control dynamic/static Control elements Sensing range adjuster Electrical specifications Operating voltage UB 10 ... 30 V DC Ripple 10 % No-load supply current I0 ≤ 35 mA Output Stability alarm output 1 PNP, active when falling short of the stability control Switching type light/dark on Signal output 1 PNP output, short-circuit protected, reverse polarity protected, open collector Switching voltage max. 30 V DC Switching current ≤ 200 mA Switching frequency f ≤ 1.5 kHz / 200 Hz switchable Response time ≤ 0.3 ms at 1.5 kHz ≤ 2.5 ms at 200 Hz Timer function pulse extension 20 ms, switchable Conformity Product standard EN 60947-5-2 Approvals and certificates EAC conformity TR CU 020/2011 CCC approval CCC approval / marking not required for products rated ≤36 V Approvals CE Ambient conditions Ambient temperature -25 ... 70 °C (-13 ... 158 °F) Storage temperature -40 ... 80 °C (-40 ... 176 °F) Mechanical specifications Housing width 30 mm Housing height 30 mm Release date: 2023-01-02 Date of issue: 2023-01-02 Filename: 018937_eng.pdf Housing depth 102 mm Degree of protection IP67 Connection M16&bspterminal compartment, core cross section ≤ 2.5 mm2 Material Housing PBT Optical face Scratch resistant mineral glass lens Mass 100 g Refer to "General Notes Relating to Pepperl+Fuchs Product Information". Pepperl+Fuchs Group USA: +1 330 486 0001 Germany: +49 621 776 1111 Singapore: +65 6779 9091 www.pepperl-fuchs.com fa-info@us.pepperl-fuchs.com fa-info@de.pepperl-fuchs.com fa-info@sg.pepperl-fuchs.com 2
Fiber optic sensor OJ500-M1K-E23 Connection Assignment Option: Selector switches in terminal compartment E23 1 +UB Switch output: Dark ON Light ON 5 Pulse frequency: 2. frequency 1. frequency 4 Pre-fault indicator: Dynamic Static 3 Pulse extension: 20 ms 0 ms 2 ON Switch frequency: Alarm 1.5 kHz 200 Hz 1 2 Initial setting 4 Q 3 0V = Light on = Dark on Characteristic Curve Characteristic response curve Offset Y [mm] 20 10 -10 -20 -30 -40 -50 0 100 200 300 400 500 600 700 Distance X [mm] X Permissible distance (offset) between optical axis and object. -Y Y OJ 500-M1K Detection ranges Object colour Release date: 2023-01-02 Date of issue: 2023-01-02 Filename: 018937_eng.pdf black grey white 0 100 200 300 400 500 600 Distance X [mm] x Refer to "General Notes Relating to Pepperl+Fuchs Product Information". Pepperl+Fuchs Group USA: +1 330 486 0001 Germany: +49 621 776 1111 Singapore: +65 6779 9091 www.pepperl-fuchs.com fa-info@us.pepperl-fuchs.com fa-info@de.pepperl-fuchs.com fa-info@sg.pepperl-fuchs.com 3
Fiber optic sensor OJ500-M1K-E23 Mounting DIP-Schalter DIP-switch Commutateur DIP Conmutadores DIP Interruttore DIP 1 Schaltfrequenz (hellschaltend) Switch frequency Öffner (E1, E3) Fréquence de commutation (Light ON) Frecuencia de conmutación N.C. (E1, E3) Frequenza di commutazione (sensible à la lumière) à ouverture (E1, E3) dynamisch dynamic (Conm. claro) dynamique N.C. (E1, E3) 2 Impulsverlängerung dinámica (comm. pres. luce) Pulse extension 1,5 kHz dinamico cont. norm. chiuso (E1, E3) Prolongation des impulsions Prolongacion de impulsos 20 ms f2 Estensione impulsi ON 3 Vorausfallanzeige Pre-fault indicator Contrôle de la portée Grundstellung Initial setting Indicación de reserva de función Position initiale Indicazione preallarme Ajuste inicial Posizione base 1 2 3 4 5 4 Pulsfrequenz Pulse frequency Fréquence d'émission 0 ms f1 Frecuencia de impulsos Frequenza di impulso 200 Hz statisch (dunkelschaltend) static Schließer (E0, E2) statique (Dark ON) estática N.O. (E0, E2) 5 Schaltausgang statico (sensible à l'obscurité) Switch output à fermeture (E0, E2) Sortie de commutation (Conm. oscuro) Salida de conmutación N.A. (E0, E2) Uscita di commutazione (comm. ass. luce) cont. norm. aperto (E0, E2) Montage und Justage Mounting and Alignment Montage et Alignement Montaje y Ajuste Montaggio e Aggiustaggio Ein Gegenstand (z. B. Blatt Papier) wird langsam in den Strahlengang 1. bewegt bis der Sensor anspricht. Ist der Überdeckungsgrad beim An- sprechen des Sensors aus allen Richtungen gleich, so ist die Ausrich- tung des Sensors optimal. An object (e. g. piece of paper) is being moved into the beam until the sensor responds. An optimum sensor adjustment is provided if the engagement factor is the same from all directions when the sensor 2. responds. Release date: 2023-01-02 Date of issue: 2023-01-02 Filename: 018937_eng.pdf Un objet (p.e. une feuille de papier) est déplacé latéralement jusqu'à ce que la cellule commute. L'orientation de la cellule est optimale si son point de commutation dans chaque direction de déplacement de l'objet est situé au même. Se introduce un objeto (por ejemplo hoja de papel) lentamente en el haz de luz, hasta que el sensor efectue la conmutación. La orientación 3. de la célula es optima, cuando el grado de cobertura, al efectuarse la conmutación, es igual en todas las direciones. Un oggetto (per esempio con un foglio di carta) viene lentamente e progressivamente, fino a quando il sensore reagisce. Quando il grado di copertura è uguale in tutte le direzioni, l'allineamento è ottimale. 4. Refer to "General Notes Relating to Pepperl+Fuchs Product Information". Pepperl+Fuchs Group USA: +1 330 486 0001 Germany: +49 621 776 1111 Singapore: +65 6779 9091 www.pepperl-fuchs.com fa-info@us.pepperl-fuchs.com fa-info@de.pepperl-fuchs.com fa-info@sg.pepperl-fuchs.com 4
Fiber optic sensor OJ500-M1K-E23 Accessories LMR 18-3,2-0,5-K1 Glass fiber optic - diffuse with metal covering LCR 18-3,2-0,5-K5 Glass fiber optic - diffuse with PVC covering LMR 18-3,2-0,5-K4 Glass fiber optic - diffuse with metal covering LME 18-2,3-0,5-K1 Glass fiber optic - thru-beam with metal covering LME 18-2,3-0,5-K3 Glass fiber optic - thru-beam with metal covering LME 18-2,3-0,5-K5 Glass fiber optic - thru-beam with metal covering LSE 18-2,3-0,5-K9 Glass fiber optic - thru-beam with silicon covering LME 18-1,9-0,5-K9 Glass fiber optic - thru-beam with metal covering Release date: 2023-01-02 Date of issue: 2023-01-02 Filename: 018937_eng.pdf Refer to "General Notes Relating to Pepperl+Fuchs Product Information". Pepperl+Fuchs Group USA: +1 330 486 0001 Germany: +49 621 776 1111 Singapore: +65 6779 9091 www.pepperl-fuchs.com fa-info@us.pepperl-fuchs.com fa-info@de.pepperl-fuchs.com fa-info@sg.pepperl-fuchs.com 5
