NoDrop® Dry Disconnect Couplings are imperative when your service
media is:
Unsafe for the environment and human personnel around
Expensive
Difficult to clean in case of leakages
HOW IT WORKS
Attached on the Attached on the
Hoses/Loading Arm, Manifold,
also Known as: also Known as:
Coupler or Adaptor or
Female Coupling Hose Unit Tank Unit Male Coupling

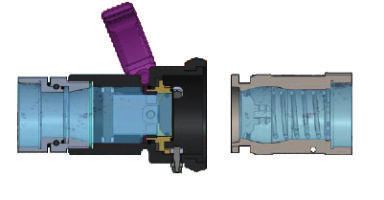

BEFORE OPERATION
DURING OPERATION
Flow can be in Any Direction
AFTER OPERATION
Automatic Sealing on Disconnection
FLUID TRANSFER SPECIALIST
3
WHY USE NoDrop®
DRY DISCONNECT COUPLINGS
Operation without NoDrop® Coupling
Increases Safety
DDC’s have a mechanically operated valve design
which eliminates the chances of spillage. This in turn
increases human and environmental safety.
No Loss of Media
These couplings are technologically advanced to
avoid not allow the transfer fluid to leak on
disconnection, resulting into loss of media.
Eliminating the use of drain buckets.
Easy To Operate Operation with NoDrop® Coupling
There is an inbuilt swivel, hence only the handles
need to be rotated. The valves open and shut
automatically.
Flow rate
Ergonomically designed couplings for excellent flow
rates.
APPLICATION AREA

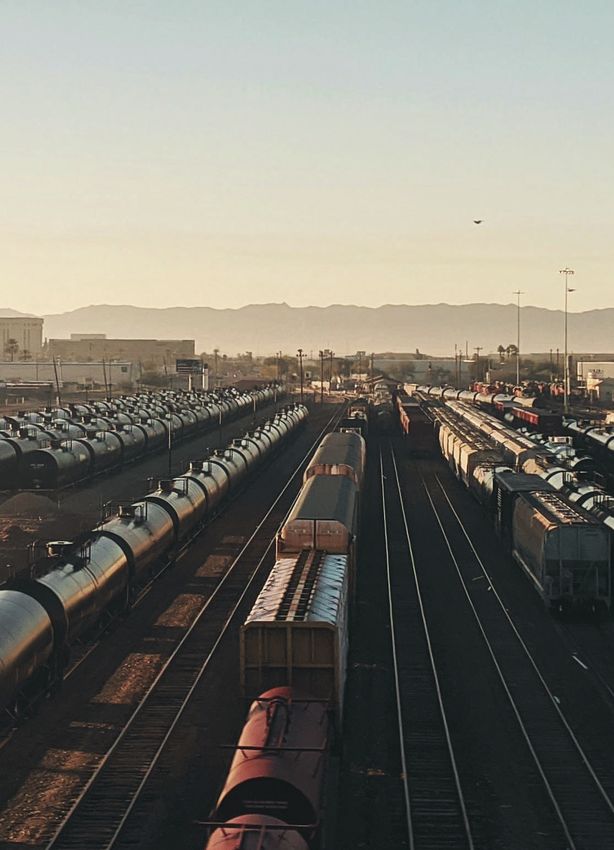

Chemical Refinery Track & Rail Wagon Jetty
Lube Bunkering Tank farm Offshore
FLUID TRANSFER SPECIALIST
4

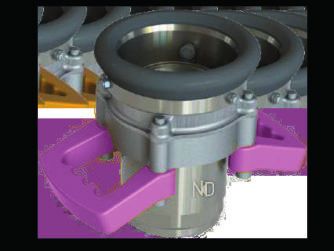

NoDrop®
DRY DISCONNECT COUPLING
Specially designed couplings for transfer of liquids including Oil, Water,
Organic & Inorganic chemicals.
Size Range
1 inch to 6 inch.
Material of Couplings
Stainless Steel, Aluminium, Bronze and Hastelloy (C276)
Seals
FKM (Viton®), NBR (Nitrile), EPDM, Chemraz®, Kalrex®
End Connections
Threaded - BSP, NPT, ISO | Flange - ANSI, ASME, ISO, DIN, TTMA
Working Pressure
PN10-PN25
Safety Factor
5:1
Compatibility
NATO STANAG 3756
Standard
As per EN 13480 & EN 13445
Viton® and Kalrez® is registered trademarks of Dupont Performance Elastomers.
Chemraz® is a registered trademark of Green-Tweed FLUID TRANSFER SPECIALIST
5

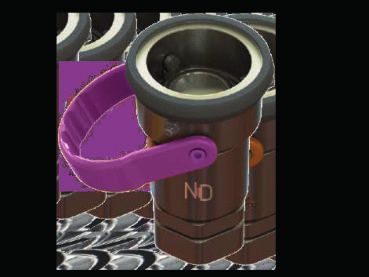

NoDrop® “GAS”
DRY DISCONNECT GAS COUPLINGS
Specially designed couplings for handling a full range of liquefied Gases, LPG, Propane-Butane
and similar, in Liquid or Vapor phase. High level of security and easy of handling and use.
Perfectly interchangeable with other main manufacturers.
Size Range Working Pressure
1 inch to 6 inch PN25
Material of Couplings Safety Factor
Stainless Steel 6:1
Seals Standard
FKM (Viton®) As per EN 13175, EN 13480 & EN 13445
End Connections
Threaded - BSP, NPT, ISO | Flange - ANSI, ASME, ISO, DIN
NoDrop®AdBlue®
Quick Connect Disconnect Couplings for Safe Handling of AdBlue®
The use of AdBlue® increased in recent years, thanks to the introduction anti-pollution
Standards. For the transfer to be spill free we recommend the use of NoDrop-AdBlue
Couplings. We do this in conjunction with the recommendations from The European Chemical
Industry Council CEFIC: DIN 70070, paragraph 8.4 states “...fool proof connections must be
employed so as to minimize the possibility of mistakes and contamination.”
NoDrop-AdBlue Couplings ensures full proof-leak free connections and disconnection for
AdBlue transfer.
We Recommend Using:
2 inch Couplings for 4,000 to 10,000 litre tanks, and 3 inch for larger tanks and also for loading
and unloading of distribution tanks.
Material: Stainless Steel 316L Features of NoDrop – AdBlue:
Seal: EPDM Quick connect disconnect
Working pressure: PN 25 No spillage on disconnection 3. Easy to maintain
Test pressure: 37.5 bar Ergonomic design
End connections: BSP-and NPT-threads.
DIN-, ASA and TTMA-flanges.
Compatibility: NATO STANAG 3756
Standard: As per EN 13480 & EN 13445
FLUID TRANSFER SPECIALIST
6

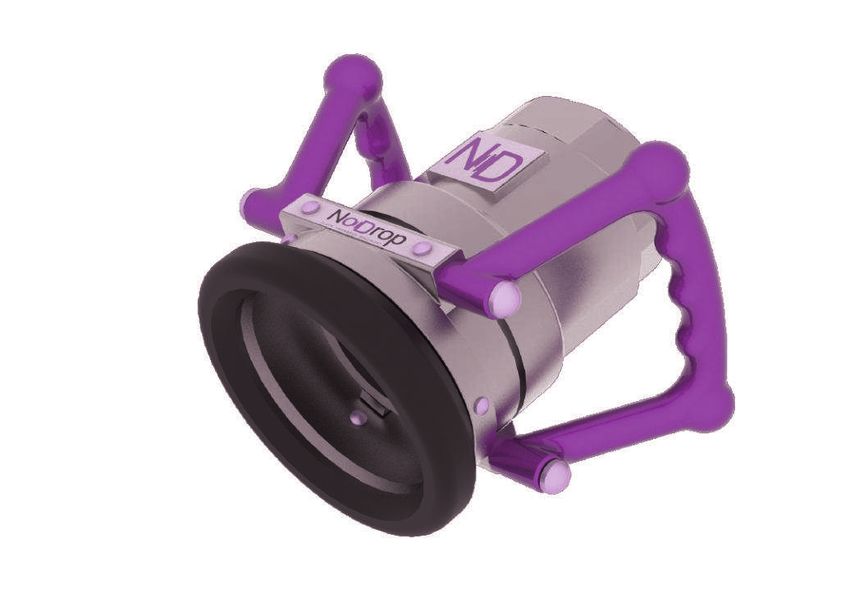

NoDrop®
COUPLINGS PRODUCT LINE
NoDrop® Couplings, are produced according to NATO Standard STANAG 3756 Compatible
with other existing brands.
1" NoDrop® Couplings (Socket 56 mm): Used in different range of applications from
Pharmaceutical processing to Auto gas vehicle, fueling, perfume dosing to freon gas
transfer.
2" NoDrop® Couplings (Socket 70 mm): The 2" probably covers the widest
selection of applications in the range: Diesel locomotive refueling, Pharmaceutical
processing, Blending pits.
21⁄2" NoDrop® Couplings (Socket 105 mm): Mainly used for road tanker bottom
loading, aviation fuel bunkering (AVGAS), acid transfer, and lubrication oil blending.
3" NoDrop® Couplings (Socket 119 mm): A full flow 3" coupling, similar in size to
the 2 1 /2" but with greater flow. Typically used for road and rail tank loading/discharge, in
plant chemical transfers etc.
4" NoDrop® Couplings (Socket 164 mm): Used for offshore bunkering transfer of
fuels and drinking water, aviation fuel bunkering, rail tank loading/discharge
QUALITY ASSURANCE
AND CERTIFICATIONS
Matec quality management system is
certified according to ISO 9001:2008.
Our quality assurance department
ensures that our quality procedures are
followed and improved throughout the
complete manufacturing process cycle.
Welders and welding procedures are
certified by DNV.
PED 2014/68/UE - ATEX 2014/34/UE
FLUID TRANSFER SPECIALIST
Made in Italy
NoDrop® engineering is part of Matec group, which has a proud
40 year legacy in the field of engineering within the fluid transfer
industry. We have the expertise and commitment to manufacture
the perfectly engineered Dry Disconnect Couplings that we call
NoDrop®
NoDrop®,
a division of
Matec® Group Srl
Via 1 Maggio 7, 20068 Peschiera Borromeo (Mi) - Italy
T. +39 02 55301788 | F. +39 02 5472158
www.mategroup.com
