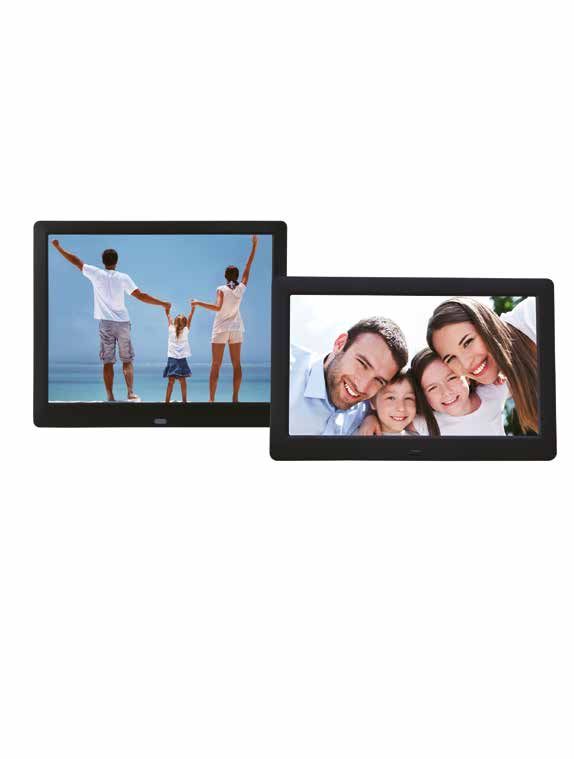

Digital Picture Frame
                User’s Guide

Important: Please read all instructions carefully
 before using and keep for future reference ！

Files Format Support:
 1.Picture format support: .jpg / .bmp / .png / (pictures in format of .gif are occasionally
 not supported, please save your pictures in the formats above)
 2.Music /audio format support: .mp3 /.wma/ .wav
 3.Video format support: .mp4/ .rm/ .rmvb/ .wmv/ .asf/ .avi/ .mov

 Main Features:
 1.Support external memory card including USB flash drive / SD/MS/MMC/SDHC card
 (32GB or less)
 2. Support picture display with background music
 3. Support pictures display on multiple windows
 4. Support thumbnail browsing
 5. Support picture flash in different effects.
 6. Support HD videos in 1080P/ 1080i / 720P
 7. Support file deletion from the external memory card
 8. Built-in Calendar clock with Alarm
 9. Brightness、Contrast、Grayscale adjustment
 10. Automatic Power On/Off (Refer to System setup “Power off/on” )
 11. 6 Languages: English / Français / Deutsch / Italiano / Español / Chinese
 12. Remote Control

 Buttons & Ports on the Back:

                   speaker                                         power on/off
                                       speaker                                        menu
                         wall mount hole

   USB
mini USB
   SD

         earphone jack
                                   stand
                                                                     left     down
                          DC in                                                            right
                                               Image #1 ▲                   ENTER up

Power on Your Digital Picture Frame
1. Plug the DC connector on the power cable of the AC adaptor into the port of DC
 on the back of your digital picture frame.
2. Insert the AC adaptor into mains electricity socket. Your digital picture frame will turn on
after connecting to the power, the main menu is as follows：

                                                                ◄ Image #2

 Note: your digital picture frame is not battery operated, therefore you will need to
 connect the power adaptor to the mains to function.

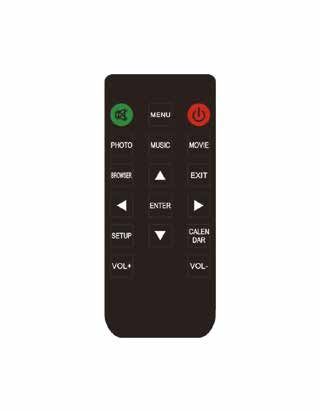

   ▲ AC power adaptor                                           ▲ remote controller

To Personalize the Setting
Select Setting icon on the main menu and press ENTER button on the remote controller or
ENTER button on the back. you will see two columns on the screen.
One column shows Photo Setup/ Calendar Setup/ Video Setup/ Music Setup/ System Setup
on the left, the other one shows details of those setup on the right.

 System Setup       Language               English          English / Français / Deutsch / Italiano / Español / Chinese

 Photo Setup        Grayscale                 50            increase or decrease screen grey scale

 Calendar Setup     Brightness               55             increase or decrease screen brightness

                    Contrast                 50             increase or decrease screen contrast
 Video Setup
                    Power Off                Off            set the time of automatic power-off
 Music Setup
                    Power On                 Off            set the time of automatic power-on
                    Auto-Power Frequency     Everyday       set the frequency of automatic power on/off

                    Start up Mode            Photo&Music choose display of photo / music/ video/ photo &background music/
                                                            calendar when booting up the media player
                    Version                  1.1.10.180928 system version
                    Reset Setting                          press ENTER on the remote controler to refresh setting all over

                                Image #3 ▲

 System Setup       Display                PHOTO            play photo / view thumbnail

 Photo Setup        Background Music       On               turn on or turn off background music when photo playing

 Calendar Setup     Display Ratio          Original Size    set photos in full screen/ original size/ scale up to fit the screen

                    Slide Speed            3 seconds        set the duration of each photo display
 Video Setup
                    Slideshow repeat       On               set to repeat all photos or once off
 Music Setup
                    Slideshow Effect       Random           transition effects of one picture into another one
                    Slide Mode             Single Window    screen split in multiple parts to view more photos at once
                    Photo Order            Sequence         display photos in random order or in sequence

                                                Image #4 ▲

System Setup     Date              2018-11-14           set date

Photo Setup      Clock Time        01:13                set time

                 Set Time Format   24                   select 12 / 24 time mode
Calendar Setup
                 Alarm Status      Off                  set alarm on/ off
Video Setup
                 Alarm Time        00:00                set time of alarm
Music Setup
                 Alarm Frequency   Once                 set alarm once off / Everyday / at Workday/ at Weekend

                 Volume             Off                 set alarm volume

                           ▲
                        Image #5

System Setup     Play Mode              Random          play your videos once off in random order/ in sequence/ repeat

Photo Setup      Display Ratio          Original Size   set the video in original size/ full screen / or scale up to fit the

Calendar Setup                                          screen

Video Setup
Music Setup

                              ▲ Image #6

System Setup      Play Mode              Random         play your music once off in random order/ in sequence/ repeat

Photo Setup
Calendar Setup
Video Setup
Music Setup

                              ▲ Image #7

View Your photos
1. Once digital picture frame is powered on, plug your USB flash drive or SD card in USB
or SD slot.
2.1> Press the PHOTO key of the remote controller to display the photos directly.

2.2> Or press MENU key on the remote controller or MENU key on the back to go to the
main menu, choose Photo icon on the screen and then press ENTER key on the remote
controller or on the back to check the photos.
3. If Thumbnails of Photos are displayed, you can use the navigation keys ◄ ►▲▼on the
remote controller or on the back to select a thumbnail, press ENTER key on remote controller
or on the back to display the photo.
4. You can set up the photos while they are displayed, just press SETUP key on the remote
controller, you will see setup menu on the right side of the screen.
5. You have more photo setup options in setting , please refer to the section of To personalize
the setting

  Rotate                           rotate a photo at an angle of 90°/ 180°/ 270°, but rotation will not be stored and
                                   need to rotate again in the next round
  Zoom                      >      Zoom in/out
  Slide Speed                      set the duration of display for each photo

  Slideshow Effect >               various effects in transition from one picture to another

  Display Ratio             >      set photos in full screen/ original size/ scale up to fit the screen

  Delect                           delect the photo from your USB flash drive or SD card

  Information              >       information of the picture including file name,resolition,size and created date

  Gamma Correction                 adjust the color /gray scale /brightness/ contrast of the screen

                                        ▲ Image #8

           Important: Photos may fail to display due to format unsupported or oversize, our advice is to change the format to
           proper format or change the photos in smaller sizes (3000 pixels or less both in width and height).
           Please keep your USB flash driveor SD card inserted in your digital picture frame when you need to view your photos

Enjoy Your Music
1. Once digital picture frame is powered on, plug your USB flash drive or SD card in USB or
 SD slot.
2.1> Press the MUSIC key on the remote controller to play the music directly.

2.2> Or press MENU key on the remote controller or MENU key on the back to go to the main
menu, choose Music icon on the screen and then press ENTER key on the remote controller or
on the back to play the music.

3. You can set up the music while you listen to it, just press SETUP key on the remote
controller, you will see setup menu on the right side of the screen.

  Select EQ                     play the music in its normal(original) type, or in Pop/ Classic/ Soft/ Jazz/ Rock/
                                DBB style, or set tones at your preference (check User EQ in EQ Setting as below)
  Play Mode                      > music in random order or in sequence
                                display
  EQ Setting                    set tones of the music at your preference

                             ▲ Image #9

     Important: Music may fail to display due to format unsupported, our advice is to change the format to proper format
     Please keep your USB flash drive or SD card inserted in your digital picture frame when you need to enjoy your music.

Watch Your Videos
1. Once digital picture frame is powered on, plug your USB flash drive or SD card in USB
or SD slot.
2.1> Press the MOVIE key on the remote controller to display the videos directly.

2.2> Or press MENU key on the remote controller or MENU key on the back to go to the
main menu, choose Video icon on the screen and then press ENTER key on the remote
controller or on the back, choose the video from the file list and press ENTER key on the
remote controller or on the back to check the video.

3. You can set up the videos while they are displayed, just press SETUP key on the remote
controller, you will see setup menu on the right side of the screen.

     Play Mode                       display videos in random order or in sequence

     Screen Size           >                 > videos in Full Screen / Original Size/ Scale up to fit the screen
                                     display the

     Delect                          delect the video file from your USB flash drive or SD card
                                     sound track
     Track                 >
                                     display the external subtitle of the video
     Subtitle              >
                                     information about the video including file name, resolution, frame rate, bite rate,
     Information           >         time and file size

                                  ▲ Image #10

    Important: Videos may fail to display due to format unsupported, our advice is to change the format to proper format.
    Please keep your USB flash drive or SD card inserted in your digital picture frame when you need to watch your videos.

Calendar & Clock
1.1> Press the CALENDAR key of the remote controller to display the calendar clock
directly.
1.2> Or press MENU key on the remote controller or MENU key on the back to go to the
main menu, choose Calendar icon on the screen and then press ENTER key on the remote
controller or ENTER key on the back to check the video.

2. Your digital picture frame is able to display part of your pictures from your inserted USB
flash drive or SD card. But you maynot adjust the photo ratio or slideshow effect.
The display duration of each photos in the calendar mode is exactly the same as that in the
photo mode.

3. You can set up the calendar clock ONLY in the Setting mode (refer to image# 5 )

Browse Your Files
1.1> When both USB flash drive and SD card are inserted in your digital picture frame, you
will need to select either of their icon on the screen and press the BROWSER key of the
remote controller to display the folders or files in root directory of the USB flash drive or
SD card.

1.2> Or press MENU key on the remote controller or MENU key on the back to go to the
 main menu, choose Browser icon on the screen ,and then press ENTER key on the remote
controller or ENTER key on the back to check the folders or files in root directory of the
USB flash drive or SD card.

2. You can not set up the Browser mode.

3. To enter any folder or display any file, choose the folder or file in the root directory of
USB flash drive or SD card, then press ENTER key on the remote controller or ENTER
key onthe back.

4. How to mix your photos and videos in the same slideshow ?

Choose Browser mode to display these files, you can view photos and videos in an alternate
way without switching the display modes.
What you need to do is to put all your photos and videos in the root directory of the USB
flash drive or SD card, or creat a folder in the USB flash drive or SD card and drop the
 photos and videos in the same folder.
Remember, videos and photos cannot mix in the same slideshow if they are put in the
different folders.

Finding the Right Place for Your Digital Picture Frame
Your digital picture frame includes a back stand for displaying on flat surfaces and a
recess for wall hanging. Please ensure the fixing method is strong enough to bear the
weight of the item to reduce the risk of any impact hazard.
Don’t place your digital picture frame close to a heat source such as a radiator or fire.
Maintenance and Cleaning
Unplug before cleaning.
Clean the display screen by gently wiping it with a special screen cloth or a soft,
damp cloth moistened with a glass cleaning liquid. Do not use excessive liquid as
this can be hazardous if it enters the inside of the product.
Important Safety Warnings
• Use this appliance only with the AC adaptor supplied.
• Unplug the appliance before cleaning.
• Keep the mains cord out of the reach of children.
• Keep the unit, mains cord and plug away from water.
• Do not attempt to repair the unit as this can be hazardous.
• The unit is for indoor use only.
• This device has an integral CR2032 lithium button cell and a CR2025 lithium
button cell battery in the remote controller. Do not attempt to access it and do not
subject it to excessive heat such as direct sunlight, fire etc.
• Discard this digital picture frame (including the integral CR2032 lithium button cell
and CR2025 lithium button cell battery in the remote controller) in accordance with
recycling regulations in your area.
Waste electrical products and their batteries can be harmful to the environment and
should not be disposed of with household waste. The integral battery should be removed
by an independent professional. Separate disposal facilities exist. Contact your local
authority to find details of your closest recycling centre.

Troubleshooting
       Problems              Potential Cause                             Solutions

                        power lead has become                  connect power lead. Screen
                        disconnected.                          should switch on after 5
 Screen display is                                             seconds

 blank
                                                            press the power button on the
                        screen is switched off.             rear of the item. Screen should
                                                            switch on after 5 seconds.

                                                            change the format to proper format
                        file format is not supported        or edit the photos in smaller sizes
 File open failed
                        or is oversized                     (3000 pixels or less in both width
                                                            and height).

                        the thin plastic insulator in the
                        remote controller is not            remove the thin plastic insulator

                        removed                             before use
 Remote controller
 doesnot function

                        the power runs out in the           buy one CR2025 battery in the
                        battery of the remote               market and change it
                        controller over time

 Photos displayed in   the photo has been shot              adjust the size of photo in a
 false orientation     in portrait orientation but          smaller pixels (3000 pixels or
                       display in landsacpe orientation     less in both width and height)

* Please contact our sales team for help when you have further troubles

Eine kurze Einführung des digitalen Bilderrahmens in Deutsch
Dateiformatunterstützung:
◆ Bildformatunterstützung: .jpg / .bmp / .png / (Bilder im Format .gif sind gelegentlich nicht
unterstützt, bitte speichern Sie Ihre Bilder in den oben genannten Formaten)
◆ Unterstützung für Musik / Audioformate: .mp3 /.wma/ .wav
◆ Unterstützung für Videoformate: .mp4 / .rm / .rmvb / .wmv / .asf / .avi / .mov

Wie schaltet man den Gegenstand ein?
Schließen Sie das Netzteil an das Stromnetz an und stecken Sie den DC-Adapter in den
DC-Anschluss. Merken ! Sie müssen das Netzteil ständig anschließen, damit es funktioniert.

Wie verbinde ich den USB-Stick / SD-Karte mit dem digitalen Bilderrahmen?
Stecken Sie Ihren eigenen USB-Stick / SD-Karte in den USB / SD-Anschluss an der Seite des
digitalen Bilderrahmens. Erinnere dich! Sie müssen den USB-Stick / die SD-Karte ständig
anschließen, um Ihre Bilder / Videos / Musikstücke anzuzeigen.

Wie wähle ich die Sprache in der Einstellung?
Drücken Sie die MENU-Taste auf der Fernbedienung, um das Hauptmenü aufzurufen, das
Einstellung symbol befindet sich auf der rechten Seite, wählen Sie das Einstellungssymbol,
drücken Sie ENTER auf der Fernbedienung, wählen Sie System-Einstellungen und drücken
Sie erneut die ENTER-Taste.
Sie werden die Sprache in der obersten Zeile sehen, drücken Sie einmal die ENTER Taste
und drücken Sie die Orientierungstaste ◄ oder ► auf der Fernbedienung, um die Sprache zu
prüfen, drücken Sie ENTER zur Bestätigung und EXIT zum Verlassen der Einstellung.

Wie man Fotos mit Hintergrundmusik anzeigt?
Geben Sie das Einstellungssymbol ein, wählen Sie die Option Foto-Setup, wählen Sie
Hintergrundmusik, und wählen Sie in der Einstellung An.

Wie kann ich das Fotoverhältnis ändern?
Wenn das Foto angezeigt wird, drücken Sie die SETUP-Taste auf der Fernbedienung. Sie
werden auf dem Bild-Anzeig. Wählen Sie Anzeigeverhältnis und drücken Sie ENTER,
wählen Sie das gewünschte Bildverhältnis und drücken Sie erneut ENTER auf der
Fernbedienung. EXIT 'zum Beenden.

Wie ändere ich die Fotoausrichtung?
Drücken Sie die SETUP-Taste, wählen Sie Rotieren auf dem Bildschirm, drehen Sie ein Foto
um 90 ° / 180 ° / 270 °, aber die Drehung wird nicht gespeichert und muss in der nächsten
Runde erneut gedreht werden.

Wie man Fotos in der Reihenfolge oder in der gelegentlichen Ordnung zeigt?
Drücken Sie die Taste MENU auf der Fernbedienung, um das Hauptmenü aufzurufen. Wählen
Sie das Einstellungssymbol und drücken Sie die ENTER-Taste. Wählen Sie Foto-Einstellung
und drücken Sie die ENTER-Taste. Wählen Sie Foto Auftrag und drücken Sie die ENTER
Taste. Drücken Sie "ENTER" zur Bestätigung und "EXIT" zum Beenden

Une brève introduction du cadre photo numérique en français
Prise en charge du format de fichier:
◆ Image: .jpg / .bmp / .png / (les images au format .gif sont aléatoires. non pris en charge,
veuillez enregistrer vos photos dans les formats ci-dessus)
◆ musique / audio: .mp3 /.wma/ .wav
◆ Vidéo: .mp4 / .rm / .rmvb / .wmv / .asf / .avi / .mov

Comment activer l'article?
Branchez l’adaptateur secteur sur le secteur et branchez l’adaptateur secteur sur le
Port DC. Remarquer ! Vous devez brancher l’alimentation électrique en permanence
pour que celle-ci fonctionne.

Comment connecter le lecteur flash USB / carte SD au cadre photo numérique?
Branchez votre propre clé USB / carte SD sur le port USB / SD situé sur le côté de la
cadre photo numérique. Rappelles toi! Vous avez besoin du lecteur flash USB / carte SD
en permanence
connectez-vous pour voir vos photos / vidéos / musique.

Comment choisir la langue dans le réglage?
Appuyez sur la touche MENU de la télécommande pour accéder au menu principal, le
L'icône des règlage est sur le côté droit, sélectionnez l'icône des règlage, appuyez sur la
touche ENTER de la télécommande, sélectionnez Configurtion du système et appuyez sur
Appuyez à nouveau sur la touche ENTER.
Vous verrez la langue dans la ligne du haut, appuyez une fois sur la touche ENTER.
et appuyez sur la touche d'orientation ◄ ou ► de la télécommande pour vérifier la langue,
appuyez sur ENTER pour confirmer et sur EXIT pour quitter le réglage.

Comment afficher des photos avec une musique de fond?
Entrez l’icône des paramètres, sélectionnez l’option Configuration de la photo, puis
sélectionnez Musique de fond et sélectionnez Sur dans les paramètres.

Comment puis-je changer le ratio de photo?
Lorsque la photo est affichée, appuyez sur la touche SETUP de la télécommande.
Sélectionnez rapport d’affichage et appuyez sur ENTER, sélectionnez le format d’image
approprié et appuyez de nouveau sur ENTER sur la télécommande. EXIT 'pour sortir.

Comment changer l'orientation de la photo?
Appuyez sur le bouton SETUP, sélectionnez Rotation à l'écran, faites pivoter une photo.
à 90 ° / 180 ° / 270 °, mais la rotation n’est pas enregistrée et doit être tournée à nouveau lors
du tour suivant.

Comment afficher les photos dans un ordre ou dans un ordre aléatoire?
Appuyez sur le bouton MENU de la télécommande pour accéder au menu principal. Choisir
L'icône des règlage et appuyez sur le bouton ENTER. Choisir les Photo Setup
et appuyez sur le bouton ENTER. Sélectionnez Commande de Photo et appuyez sur ENTER.
Bouton. Appuyez sur "ENTER" pour confirmer et sur "EXIT" pour sortir

Una breve introduzione delle cornici digitali in italiano
Supporto per il formato di file:
◆ Immagine: .jpg / .bmp / .png / (le immagini nel formato .gif sono casuali
non supportato, per favore salva le tue foto nei formati sopra)
◆ musica / audio: .mp3 /.wma/ .wav
◆ Video: .mp4 / .rm / .rmvb / .wmv / .asf / .avi / .mov

Come accendere l'oggetto?
collegare l'alimentatore alla rete elettrica e inserire l'adattatore DC nel Porta DC Avviso! È
necessario collegare l'alimentatore costantemente affinché funzioni.

CCome collegare l'unità flash USB / scheda SD alla cornice digitale?
Collegare la propria chiavetta USB / scheda SD alla porta USB / SD sul lato del cornice
digitale. Ricorda! È necessario connettere costantemente la chiavetta USB / scheda
SD per visualizzare le foto / i video / la musica.

Come scegliere la lingua nell'mantatura?
Premere il tasto MENU sul telecomando per accedere al menu principale, l'icona di
mantatura è sulla destra, selezionare l'icona di mantatura, premere ENTER sul
telecomando, selezionare System Setup e premere nuovamente il tasto ENTER.
Vedrete la lingua nella riga superiore, premete il tasto ENTER una volta e premete il tasto di
orientamento ◄ o ► sul telecomando per controllare la lingua, premete ENTER per
confermare e EXIT per uscire dall'impostazione.

Come visualizzare le foto con musica di sottofondo?
Immettere l'icona delle mantatura, scegliere Setup Foto, premere il tasto ENTER,
scegliere Musica di sottofondo e scegliere su nelle impostazioni

Come cambiare il rapporto di aspetto foto?
Quando viene visualizzata la foto, premere il tasto SETUP sul telecomando. le opzioni di
configurazione sono visualizzate sullo schermo. Selezionare Indicazione Immagine e premere
ENTER, selezionare lo aspect ratio desiderato e premere nuovamente ENTER sul
telecomando. premere il tasto EXIT per uscire.

Come cambiare l'orientamento della foto?
Premere il pulsante SETUP, selezionare l'opzione Ruota sullo schermo, ruotare una foto con
un angolo di 90 ° / 180 ° / 270 °, ma la rotazione non verrà salvata e dovrà essere ruotata
nuovamente nel giro successivo
Come mostrare le foto in ordine o in ordine casuale?
Premere il tasto MENU sul telecomando per accedere al menu principale. Selezionare l'icona
di mantatura e premere il tasto ENTER. Seleziona Setup Foto e premi il pulsante ENTER.
Selezionare Ordine foto e premere il tasto ENTER Premere ENTER per confermare e EXIT
per uscire

Una breve introducción de los marcos digitales en español.
Soporte de formato de archivo:
◆ Imagen: .jpg / .bmp / .png / (las imágenes en formato .gif son aleatorias
no es compatible, guarde sus imágenes en los formatos anteriores)
◆ música / audio: .mp3 /.wma/ .wav
◆ Vídeo: .mp4 / .rm / .rmvb / .wmv / .asf / .avi / .mov

Cómo encender la pantalla?
conecte el adaptador de corriente a la red eléctrica y enchufe el adaptador de CC a la puerto
DC .Recuerda ! Debe enchufar la fuente de alimentación constantemente para que funcione.

Cómo conecto la unidad flash USB / tarjeta SD al marco de fotos digital?
Conecte su propia unidad flash USB / tarjeta SD al puerto USB / SD en el lado de la
marco de foto digital. ¡Recuerda! Debe conectar la memoria USB / tarjeta SD constantemente
para ver sus imágenes / videos / música.

Cómo elegir el idioma en la Instalación?
Presione el botón MENÚ en el control remoto para ingresar al menú principal, el ícono de
Instalación se encuentra a la derecha, seleccione el ícono de Instalación, presione ENTER
en el control remoto, seleccione Configuración del sistema y presione el botón ENTER
nuevamente.
Verá el idioma en la línea superior, presione la tecla ENTER una vez y presione la tecla de
orientación ◄ o ► en el control remoto para verificar el idioma, presione ENTER para
confirmary EXIT para salir de la configuración.

Cómo mostrar fotos con música de fondo?
Ingrese el icono de Instalación, elija Configuración de fotografias, presione la tecla ENTER, elija
Música de fondo y elija En

Cómo cambiar la relación de aspecto foto?
Cuando se muestre la foto, presione el botón configuración en el control remoto. Las
opciones de configuración se muestran en la pantalla. Seleccione Relación de Pantalla y presione
ENTER, seleccione la relación de aspecto deseada y presione ENTER en el control remoto
nuevamente. presione la tecla EXIT para salir.

Cómo cambiar la orientación de la foto?
Presione el botón configuración, seleccione la opción Rotar en la pantalla, gire una foto en un
ángulo de 90 ° / 180 ° / 270 °, pero la rotación no se guardará y debe girarse nuevamente en la
siguiente ronda

Cómo mostrar fotos en orden o en orden aleatorio?
Presione el botón MENÚ en el control remoto para ir al menú principal. Seleccione el icono de
Instalación y presione el botón ENTER. Seleccione Configuración de fotografias y presione el
botón ENTER. Seleccione Orden de la Foto y presione el botón ENTER. Presione ENTER
para confirmar y EXIT para salir.

Need More Help?
If you have any further trouble when using your digital picture frame, just simply get in
touch and we’ll see how we can help.
