Columnar data analysis with uproot and awkward array
Nikolai Hartmann
LMU Munich
February 19, 2021, Munich ATLAS Belle II Computing meeting
1 / 17
2 / 17

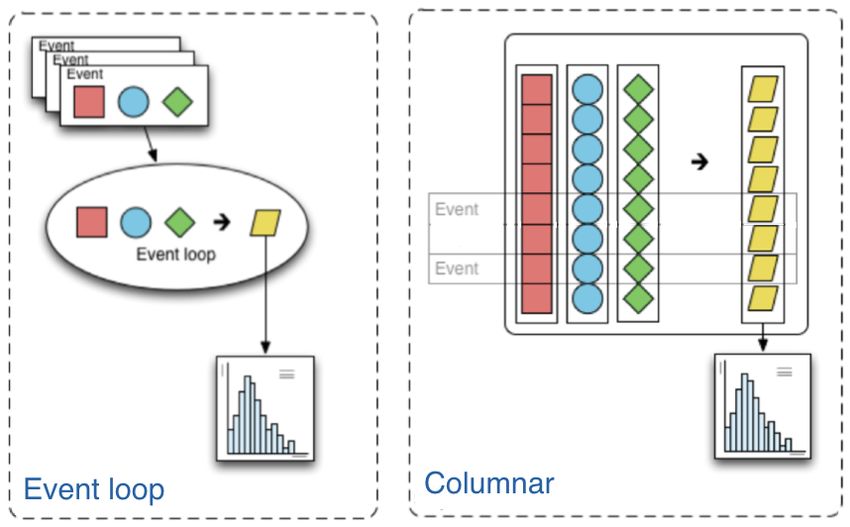

Columnar data analysis - Motivation
Operate on columns - “array-at-a-time” instead of “event-at-a-time”
Advantages:
• Operations can be predefined, no for loops! Most prominent example: numpy
→ Move slow performing organisational stuff out of the event loop
→ Write analysis code in python instead of c++
• These operations run on contiguous blocks in memory and are therefore fast (vectorizable,
good for CPU cache)
• Lots of advances in tools during the last years, since this kind of workflow is essential for
data science/machine learning
Disadvatages
• Arrays need to be loaded into memory
→ need to process chunk-wise if amount of data too large
• Some operations more difficult to think about
(e.g combinatorics, nested selections, variable length lists per event)
3 / 17ATLAS analysis model for Run 3 (+x)
4 / 17ATLAS analysis model for Run 3 (+x)
4 / 17Read DAOD PHYSLITE with uproot
DAOD PHYSLITE has most data split into columns, but
• Some branches have higher level of nesting (vector)
• Those can’t be split by ROOT
• Also, need to loop through data to “columnize”
→ slow in python
→ i have a hack based on numba for now
→ there is now a Forth machine in awkward that will handle this in the future
5 / 17Read DAOD PHYSLITE with uproot
vector (Jets) Uproot default
Uproot default
101 Custom deserialization
Only decompression
Loading time for 10000 events [s]
ROOT TTree::Draw
100
10 1
10 2
t>> (Jets) ctrons) > (MET)
vector (Ele c tor>Plots from Jim
https://github.com/scikit-hep/awkward-1.0/pull/661
(We will probably here more from him about this topic at vCHEP21)
7 / 17Intermezzo - why ROOT files have a high compression ratio
Example: Data of one basket of the AnalysisElectronsAuxDyn.pt branch:
8 / 17Intermezzo - why ROOT files have a high compression ratio
Example: Data of one basket of the AnalysisElectronsAuxDyn.pt branch:
“Garbage”: Header (telling us “this is a vector”) and number of bytes following (redundant)
8 / 17Intermezzo - why ROOT files have a high compression ratio
Even more true for higher nested, structured data
Example: AnalysisElectronsAuxDyn.trackParticleLinks
(vector and ElementLink has 2 members - m_persKey,
m_persIndex):
9 / 17Alternative storage formats
Loading times for all columns of 10k DAOD PHYSLITE events
Format Compression Dedup. offsets Size on disk Execution time
ROOT zlib No 117 MB 6.0 s
ROOT (large baskets) zlib No 116 MB 5.0 s
Parquet snappy No 121 MB 0.6 s
Parquet snappy Yes 118 MB 0.6 s
HDF5 gzip No 101 MB 2.0 s
HDF5 gzip Yes 89 MB 1.6 s
HDF5 lzf No 137 MB 1.5 s
HDF5 lzf Yes 113 MB 1.1 s
npz zip No 92 MB 2.0 s
npz zip Yes 82 MB 1.5 s
Parquet seems especially promising, but everything is faster than ROOT
10 / 17Event data models and awkward array
Awkward array has everything we need to represent what we are doing in a columnar fashion:
• Nested records
e.g. Events -> [Electrons -> pt, eta, phi, ..., Jets -> pt, eta, phi ...]
• Behavior/Dynamic quantities
e.g. LorentzVector - can add vectors, calculate invariant masses etc.
• Cross references via indices
e.g. Events.Electrons.trackParticle represents an electron’s track particle via
indices
11 / 17Prototype for DAOD PHYSLITE
→ git
Can already do this:
>>> import awkward as ak
>>> events[ak.num(events.Electrons) >= 1].Electrons.pt[:, 0]
→ filtering on different levels
>>> events.Electrons.trackParticles.z0
→ dynamically create cross references from indices
12 / 17>>> events.Electrons.trackParticles
>>> events.Electrons.trackParticles.pt
→ dynamically calculate momenta from track parameters
>>> electrons = Events.electrons
>>> jets = Events.jets
>>> electrons.delta_r(electrons.nearest(jets)) < 0.2
→ more advanced LorentzVector calculations
13 / 17Technical aspects of this
• Class names are attached as metadata to the arrays
→ separation of data schema and behaviour
• To do dynamic cross references, need a reference to the top level object
(events.Electrons needs to know about events)
• Also, want to load columns lazily
→ very useful for interactive working
→ using awkward’s VirtualArray
• Cross references also have to work after slicing/indexing the array
→ need “global” indices
All these exist in the coffea NanoEvents module
→ in contact with developers, working on an implementation for DAOD PHYSLITE
14 / 17Trying to do an actual analysis
athena/SUSYTools columnar analysis
500000 25000
20000
400000 20000
Object count
15000
300000 15000
10000 200000 10000
5000 100000 5000
0 0 0
all
baseline
passOR
signal
all
baseline
passOR
signal
all
baseline
passOR
signal
Electrons Jets Muons
• Start with some simple object selections on Electrons, Muons, Jets
→ most challenging part: getting all the overlap removal logic correct
• Compare with SUSYTools framework (athena analysis)
→ working to some extend
• Many things still missing/unclear
→ e.g. MET calculation, Pileup reweighting, Systematics
15 / 17Performance
Measurement Total time [s] average no. events / s
Athena/SUSYTools 22 2300
Columnar 3.8 13000
Columnar (cached) 1.2 42000
• In all cases: Read with “warm” page cache
• “Cached” for columnar analysis means data already decompressed and deserialized
16 / 17Scaling tests
• We have now a sample of PHYSLITE ATLAS Run2 data:
100 TB, 260k files, 1.8e10 events
• Starting testing with a 10% subset on lrz
• Want to run this using dask
• Found several issues with (py)xrootd and uproot xrootd on the way ...
→ Mostly fixed now, but still some problems with memory leaks
• Want to test this analysis within the ATLAS Google cloud project
→ working together with Lukas Heinrich and Ricardo Rocha who did this demo at the
KubeCon2019
17 / 17Backup
18 / 17An impressive demo

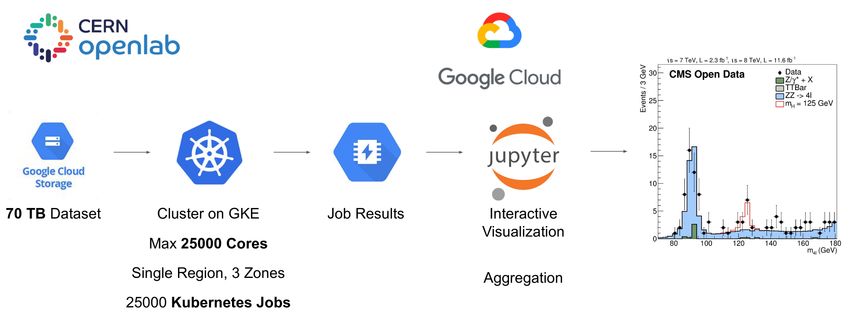

Lukas Heinrich and Ricardo Rocha at the KubeCon 2019 → youtube recording, chep talk
Reperform the Higgs discovery analysis on 70 TB of CMS open data in a live demo
19 / 17ROOT file storage
(graphics from tutorial by Jim Pivarski)
20 / 17How does that basket data actually look like?
... and how does uproot read it?
For simple n-tuples actually just the numbers!
• Stored in big-endian format (starting with the most significant bit)
(most nowadays processors use little-endian)
• After decompressing the basket can be simply loaded into a numpy array
• Example for a float (single precision) branch:
np.frombuffer(basket_data, dtype=">f4")
21 / 17More complicated for vector branches
Example for vector
10 bytes header (vector) float float float float float
--+---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+-
64 0 0 26 0 9 0 0 0 5 72 8 207 244 71 187 94 243 71 144 28 162 70 114 142 37 70 134 68 95
140095.81 95933.9 73785.266 15523.536 17186.186
--+---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+-
• Each event consists of a vector header (telling us how many bytes and numbers follow)
and then the actual data
• Fortunately ROOT stores event offsets at the end of baskets for vector branches
→ can read them and use numpy tricks to skip over vector headers
• Not possible any more for further nesting (vectorColumnar data analysis with PHYSLITE
Idea:
• Most data is stored in “aux” branches (vector)
→ easily readable column-wise, also with uproot
• Reconstruction/Calibrations already applied
→ the rest might be “simple” enough to do with plain columnar operations
→ the xAOD EDM should be representable to large extend in awkward array
→ many things already solved by CMS in coffea / NanoEvents
23 / 17Represent the PHYSLITE EDM as an awkward array
{
"class": "RecordArray",
"contents": {
{
"AnalysisElectrons": {
"class": "ListArray64",
"class": "ListOffsetArray64",
"starts": "i64",
"offsets": "i64",
"stops": "i64",
"content": {
"content": {
"class": "RecordArray",
"class": "IndexedArray64",
"contents": {
"index": "i64",
"pt": "float32",
"content": {
"eta": "float32",
"class": "RecordArray",
"phi": "float32",
"contents": {
"m": "float32",
"phi": "float32",
"charge": "float32",
"d0": "float32",
"ptvarcone30_TightTTVA_pt1000": "float32",
"z0": "float32",
(...)
(...)
"trackParticles": { }
},
},
"parameters": {
"parameters": {
"__record__": "xAODTrackParticle"
"__record__": "xAODParticle"
}
}
}
}
}
}
}
(...)
}
}
With this we can do things like
>>> # pt of the first track particle of each electron in events with at least one electron
>>> Events[ak.num(Events.AnalysisElectrons) >= 1].AnalysisElectrons.trackParticles.pt[:,:,0]
24 / 17Awkward combinatorics
ak.cartesian ak.combinations
(graphics from tutorial by Jim Pivarski)
ak.cartesian can be called with nested=True to keep structure of the first array
→ can apply reducer afterwards to regain array with same structure
→ e.g. find closest other particle (min)
25 / 17approx. overlap removal
def has_overlap(obj1, obj2, filter_dr):
"""
Return mask array where obj1 has overlap with obj2 based on a filter
function on deltaR (and pt of the first one)
"""
obj1x, obj2x = ak.unzip(
ak.cartesian([obj1[["pt", "eta", "phi"]], obj2[["eta", "phi"]]], nested=True)
)
dr = np.sqrt((obj1x.eta - obj2x.eta) ** 2 + delta_phi(obj1x, obj2x) ** 2)
return ak.any(filter_dr(dr, obj1x.pt), axis=2)
def match_dr(dr, pt, cone_size=0.2):
return dr < cone_size
def match_boosted_dr(dr, pt, max_cone_size=0.4):
return dr < np.minimum(*ak.broadcast_arrays(10000. / pt + 0.04, 0.4))
26 / 17Alternative: Numba
https://numba.pydata.org
• Just-in-time compiler for python code
→ just decorate a function with @numba.njit
• Works with numpy arrays
• Works with awkward arrays
• Reading compontents of awkward arrays works more or less straight forward
→ just index like Events[0].AnalysisElectrons[0].pt
• Creating awkward arrays a bit more difficult - 2 Options:
→ Use the awkward ArrayBuilder
→ Create arrays and offsets separately
• Can be a fallback if it is hard to think about a problem without a loop over events/objects
27 / 17Overlap removal using numba and ArrayBuilder
@numba.njit
def delta_phi(obj1, obj2):
return (obj1.phi - obj2.phi + np.pi) % (2 * np.pi) - np.pi
@numba.njit
def delta_r(obj1, obj2):
return np.sqrt((obj1.eta - obj2.eta) ** 2 + delta_phi(obj1, obj2) ** 2)
@numba.njit
def has_overlap_numba(builder, obj1, obj2, cone_size=0.2):
# loop over events
for i in range(len(obj1)):
builder.begin_list()
# loop over first object list
for k in range(len(obj1[i])):
# loop over second object list
for l in range(len(obj2[i])):
if delta_r(obj1[i][k], obj2[i][l]) < cone_size:
builder.append(True)
break
else:
builder.append(False)
builder.end_list()
def has_overlap(obj1, obj2, cone_size=0.2):
builder = ak.ArrayBuilder()
has_overlap_numba(builder, obj1, obj2)
return builder.snapshot()
28 / 17approx. overlap removal - cont’d
# remove jets overlapping with electrons
evt["jets", "passOR"] = (
evt.jets.baseline
& (
~has_overlap(
evt.jets,
evt.electrons[evt.electrons.baseline],
match_dr
)
)
)
# remove electrons overlapping (boosted cone) with remaining jets (if they pass jvt)
evt["electrons", "passOR"] = (
evt.electrons.baseline
& (
~has_overlap(
evt.electrons,
evt.jets[evt.jets.passOR & evt.jets.passJvt],
match_boosted_dr
)
)
)
... etc
