Technical data sheet Clesana C1
Clean. Care. Comfort - Introducing the first waterless mobile toilet with sanitary bag system. Technical data sheet Clesana C1
2
    Clesana C1                                                                                         Dimensions

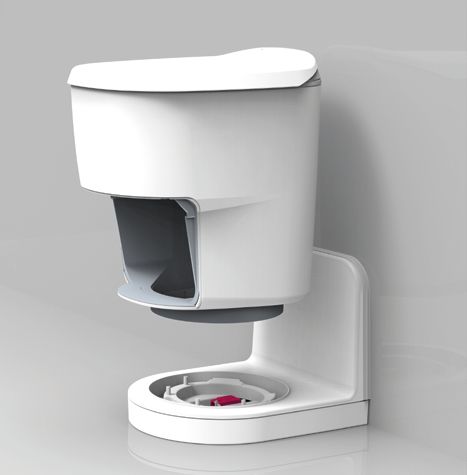

                                                                                                       C1 with L-adapter for retrofitting a Thetford C260
                                                                                                                                                                                         3

                                                                                                                                                                       414

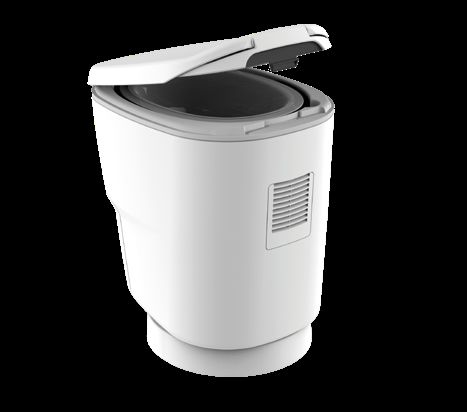

    Reinventing mobile sanitary solutions: adaptable, reliable
    and eco-friendly.
    Clesana‘s innovative toilet system is as uncompromisingly hygienic as it is eco-friendly. By

                                                                                                                                                                 461
    applying thermal pressure and barrier foil (liner) excretions and toilet waste are safely sealed
    in sanitary bags. These can be easily discarded, without any use of water or sanitary additives.

                                                                                                                                                       363
    Technical drawings

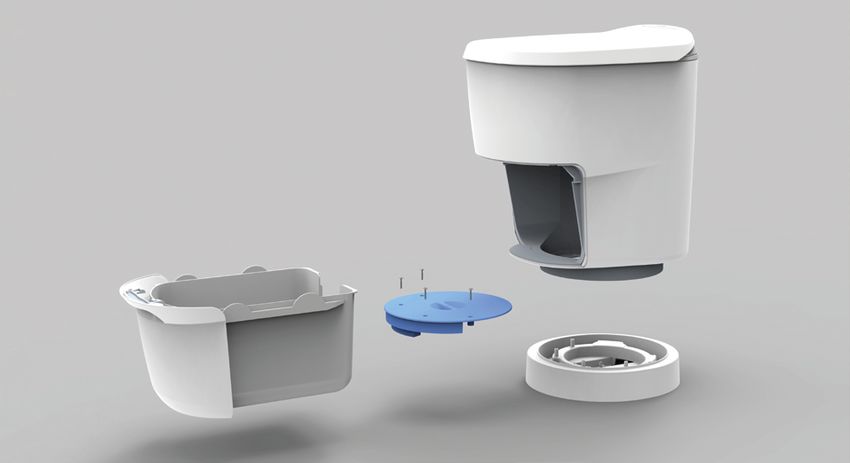

    Explosion drawing & spare parts                                                                                                                                      516

    1. Lid and seat
    2. Welding unit with corpus
    3. Compartment
                                                                          1

                                                                                                                                                                                   515
    4. Display

                                                                                                                                                                 313
    5. Round socket / L-adapter
    6. PTFE band (wear part)

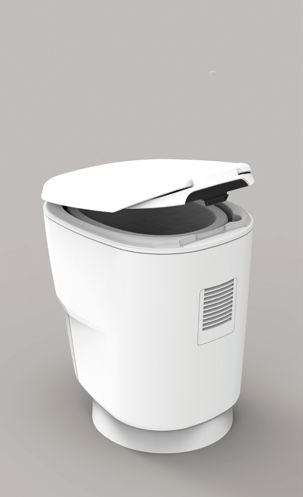

                                                                                                       C1 with round socket for flexible positioning
                                                                                         4
                      6

                                                                                                                                                                                   363
                                                              2
                                                                                                                                                                             461

                                                                                                                                                                             461

                                  3                                                                    Display
                                                                                                       Dimensions identical to display of Thetford C260 series

                                               5                                                                                         38

                                                                                                                                                                                   515
                                                                                                                                  72.5
                                                                                                                                   69
                                                                                                       85

                                                                                                                   128                   1.75
Clean. Care. Comfort - Introducing the first waterless mobile toilet with sanitary bag system. Technical data sheet Clesana C1
4
    Clesana C1 - Specifications                                       Clesana C1 - Consumables                                                                                     5

    Technical data
    Dimensions L-adapter (H x W x D)        515 x 363 x 516 mm
    Dimensions round socket (H x W x D)     515 x 363 x 461 mm
    Sitting height                          478 mm
    Outer dimensions display (H x W x D)    85 x 128 x 38
    Gross weight                            14 kg
    Load capacity (corpus & lid)            150 kg
    Toilet usage BIG per liner              26
    Toilet usage SMALL per liner            36

    Power data
    Nominal voltage                         12 V
    Supply voltage                          10 - 15 V                    Clesana Liner (H x W x D)    90 x 280 x 350 mm        Clesana Absorber (H x W x D)   55 x 40 x 10 mm

    Power input (max.)                      27 A
    Power consumption in standby mode       0,14 W                    All excretions and toilet waste are hygienically sealed in barrier foil made from Polyethylen, Polyamid
    Power consumption (max.)                324 W                     and EVOH. A fresh barrier liner allows for 36 uses. The PTFE-band used for welding the sanitary bags
                                                                      has a lifetime of approximately 1500 cycles.
    Energy consumption welding process      0,32 Wh
                                                                      Liner from bio-based and recycled Polyethylen (eco-friendly PE & rPE) currently under development.
    Energy consumption separation process   0,67 Wh
                                                                      Optional: the Clesana superabsorber can be applied for liquid absorption (foil made from biopolymer
                                                                      Polylactid (PLA)).
    Cycle times under use
    Bag chain (welding)                     ± 60 sec
    Single bag (welding and separating)     ± 90 sec
                                                                      Clesana C1 Retail prices
    Other                                                             Recommended retail price (RRP) end customer, excl. VAT.
    Lifetime PTFE band                      1.500 welding processes   RRP Clesana C1 - Toilet                                                                        € 1.049,00
    Lid                                     soft close		              RRP Clesana Liner 			                  (PU* 2)                                                 €    21,00
    Capacitiy compartment (SMALL/BIG)       8 / 4, in sum 4-6         RRP Clesana Absorber 			               (PU* 20)                                                €      2,51
    Protection class                        IP 54		                   * Packing unit

    Machine directive                       CE
    ID                                      ECE
    Category power safety                   Home appliances
    EMC conformity                          2014/30/EU
Clean. Care. Comfort - Introducing the first waterless mobile toilet with sanitary bag system. Technical data sheet Clesana C1
6
    Clesana C1 - Use & Operation                                                                            Clesana C1 - Ecological footprint                                                                   7

    Operation                                              Insert/Change foil liner                         Objective of study: comparing eco-balance of C1 with that of conven-
                                                           1. Remove lid                                    tional chemical toilets (assuming use of “green sanitary additives”)
                                                           2. Put liner onto foil cassette
                                                           3. Reinsert foil cassette into toilet                 Basis of calculation
                                                           4. Place lid back on                                  150 uses per person in the course of a year (corresponds to 5 uses of toilet
                       2                                                                                         – 4x small, 1x big – for 30 days of travel)

                                                                                                                 Method
                                                                                                                 Impact assessment in accordance with “ecoinvent” (database for ecological life cycle
                                                                                                                 analysis) and assessment of sustainability following “ ReCiPe (H)” procedures

                                                                                                                 Results
                                                                                                                 The C1 toilet is superior in all effect categories

                                                                                                            Reduced environmental impact of C1 compared to chemical toilets
                                                                                                            (according to comparative study):
                                                                                                                     Terrestrial Acidification [kg SO2e]: up to 124% lower
                                                                                                                     Fresh water ecotoxicity [kg 1,4-DCBe]: up to 63% lower
       1                                     3                                    4                                  Human toxicity [kg 1,4-DCBe]: up to 115% lower
                                                                                                                     Climate change / CO2 footprint [kg CO2e]: up to 10% smaller

                                                                                                            Further advantages of Clesana compared to conventional chemical toilets*
    Usage
                                                                                                                     Fresh water savings compared to chemical toilets: 170l per year and person
    Preparation
                                                                                                                     Eliminating all care products as used with chemical toilets
    If necessary, add liquid absorbant prior to “flushing” .
                                                                                                                     C1 barrier foil on basis of eco-friendly PE & rPE (recycled) currently under development

    Flushing                                                                                                * not considered in comparative study
    1. Initiate “flushing” at press of button (choose “big” oder “small”). 2. Excretions and toilet waste
    are automatically sealed in foil bags and collected in special compartment beneath the toilet seat.
    3. System automatically lines toilet bowl with fresh foil for subsequent use.                           By comparison: 5 uses* with multi-layer foil equal the CO2-footprint of just…
                                                                                                            the production of 1 glas of wine (0,2l) or 2 bottles of beer (0,33l)
    Emptying / Discarding
    1. Fill level indicator integrated in display shows need for emptying bag compartment. 2. To empty      a driving distance of 1,4 km in a camper van (Fiat Ducato 130 Multijet, Diesel, Euro 6**)
    simply pull out bag compartment and discard sanitary bags as household waste.                           * 5 uses correspond to the average number of uses per person and day
                                                                                                            ** Ø 0,263 kgCO2/km, measured by Deutsche Umwelthilfe e.V., April 2021
Clean. Care. Comfort - Introducing the first waterless mobile toilet with sanitary bag system. Technical data sheet Clesana C1
8
    Clesana C1 - Benefits                                                                                     Clesana C1 - Installation options                                                                9

    For campers                                                                                               Installation
    +     Hygiene in accordance with medical standards                                                        Floor-mounting of the Clesana toilet via socket (rounded socket or L-adapter). For easy
                                                                                                              integration into bathroom fittings the control panel is exchangeable. With its integrated
    +     Completely odor-free
                                                                                                              rotation disc the Clesana C1 can be turned up to 180°.
    +     Multi-purpose (diapers, leftovers, hygiene products etc.)
    +     Easy handling and cleaning
    +     More environmentally friendly than chemical toilets
    +     Increased freedom through independance from disposal stations and water supply
    +     Instantly ready to use, even after long periods of non-use
    +     No winter shut down needed
    +     Always operational even for just one single use
    +     Close to no need for maintenance
    +     Simple and secure disposal of sanitary bags
                                                                                                                                                                         180°
                                                                                                                                                                                  232 mm

    For manufacturers
    +     New possibilities for layout and spatial planning in vehicle design & development
    +     Meeting the growing demand for more flexibility and spontaneity on camping trips                    To allow for the opening of the lid in any rotational position, a minimum distance towards
          (independent from camping sites with disposal stations)
                                                                                                              side walls and other installations must be kept. When using the round socket leave 232 mm
    +     High potential for new customer acquisition, especially among first timers and young campers        between the rotational axis and the back wall. When installing the L-adapter leave 225 mm
    +     Getting ahead of the competition by offering innovative sanitary technologies                       from the toilet‘s centre to any spatial limitations left or right.
    +     Clesana C1 can be installed in any vehicle designed with the Thetford C260 series, without
                                                                                                                                                              Retrofitting
          major changes to existing part lists
                                                                                                                                                              Retroffiting of a Thetford C260 series chemi-
    +     Recuced expenses for maintenance and cleaning of rentals                                                                                            cal toilet to a C1 via L-adapter (service ope-
    +     Easy retrofitting via local dealerships                                                                                                             ning in toilet room is sealed by rubber lid on
                                                                                                                                                              the back piece of the L-adapter). Important:
    +     Great business potential from growing demand for retrofitting registered vehicles equipped
                                                                                                                                                              Water hose for flushing has to be plugged.
          with conventional chemical toilets (model series other than C260 can be retrofittet by spe-
          cialist retailers)
                                                                                                                                                              Power supply
    +     Improving camping infrastructures, as sites no longer require central sanitary facilities (paving
                                                                                                                                                              Installation requires 12V power supply and a
          the way for care-free farm holidays, camping in vineyards, etc.)
                                                                                                                                                              30A fuse central electronic block. For fuses
                                                                                                                                        225 mm
Clean. Care. Comfort - Introducing the first waterless mobile toilet with sanitary bag system. Technical data sheet Clesana C1
10
     Excited?                                                                                     11

     Product demonstration
     & further details
     Want to know more about Clesana or book a test demonstration with us? Simply get in
     touch via telephone or e-mail. For straight-forward inquiries you may also use the contact
     form on our website. Our team of experts is looking forward to supporting you!

     +41 81 533 20 15
     mail@clesana.com
     www.clesana.com
