Trailer Hitch Wiring Harness
for Jeep® Wrangler (JL) & Unlimited (JLU) ’18-Current
Installation and Instruction Manual
#92015.8004
B
C D
A
READ ALL SAFETY MESSAGES AND UNDERSTAND ALL
INSTRUCTIONS AND PROCEDURE NOTICES BEFORE
ATTEMPTING TO INSTALL OR USE THIS PRODUCT.
VEHICLE BATTERY MUST BE DISCONNECTED DURING
WIRING HARNESS INSTALLATION.
FAILURE TO DISCONNECT BATTERY COULD RESULT IN
ELECTRICAL SHOCK TO THE PERSON PERFORMING
INSTALLATION.
FAILURE TO DISCONNECT BATTERY COULD RESULT IN
DAMAGE TO VEHICLE ELECTRICAL SYSTEM.
PARTS LIST: REQUIRED TOOLS:
A.) Trailer Wiring Harness Assembly (1) Safety Glasses
B.) M6 Flange Nut (1) 10mm Socket & Rachet
C.) Lang Cable Ties Zip Ties (16) 8mm Socket
D.) Short Cable Tie (1) T-40 Torx Socket or Factory Jeep Tool Kit
Double Sided Tape Forked Clip/Trim Removal Tool
Side Cutters
JL_HARNESS_92015_8004_LTR6.qxp_Layout 1 3/12/20 12:12 PM Page 2
JL Trailer Wiring Harness Installation:
FIG1 FIG2
Put on safety glasses. Start by removing On both sides of the vehicle remove the
the factory splash guard. Remove the 6 plastic trim to gain access to the tail
screws holding the inner shields on, 3 on light mounting hardware. (FIG2)
either side, using a 8mm socket. (FIG1)
FIG3
FIG4
Using a T-40 torx bit loosen the tail light Remove the drivers side tail light from the
mounting hardware on both sides of the body and let it hang carefully. (FIG4)
vehicle. (FIG3)
FIG5
FIG6
Route the new wiring harness box up Slide the red locking tab outward and
the wheel well and into the tail light disconnect the plug. Install the tee har-
cavity. (FIG5) Disconnect the original ness with the yellow wire in the reverse
harness from the tail light housing using fashion. (FIG6)
a clip removal tool.
2
JL_HARNESS_92015_8004_LTR6.qxp_Layout 1 3/12/20 12:12 PM Page 3
JL Trailer Wiring Harness Installation:
FIG7 FIG8
Install the ground wire terminal on the Install the first cable tie of the main
protruding bolt with the provided power wire, black, into the hole just
flange nut using a 10mm socket. (FIG7) above the rear bumper connector. (FIG 8)
FIG9 FIG10
Route the trailer plug harness down and Route the tee harness with green wire up
over the frame rail pushing the wire ties and over the frame rail pushing the wire
into each hole along the way, 7 total. ties into each hole along the way, 2 total.
Install the 4 way trailer connector into (FIG10)
the hitch mount (FIG9)
FIG11
FIG12
Route the tee harness with green wire Using the double sided tape provided
up through the holes and into the rear attach the trailer harness control
tail light cavity. Disconnect the original module to the floor of the drivers side
harness from the tail light. Slide the red tail light cavity. Be sure the surface is
locking tab outward and disconnect the clean & prepped properly for good
plug. Install the tee harness in the adhesion. (FIG12)
reverse fashion. (FIG11)
3
JL_HARNESS_92015_8004_LTR6.qxp_Layout 1 3/12/20 12:12 PM Page 4
JL Trailer Wiring Harness Installation:
FIG13 FIG14

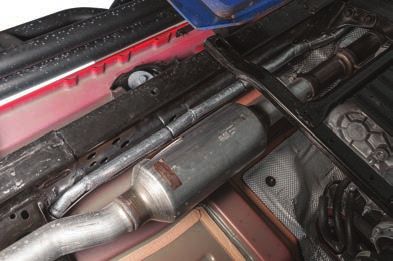

Route the power wire harness (Black) Continue to route the harness up & over
along the frame securing it to the fac- the coil spring mount crossmember and
tory wiring loom along the way using along the frame securing it to the factory
the supplied wire ties. (FIG13) Be sure wiring loom along the way. (FIG14)
to keep it away from the exhaust as Be sure to keep it away from the
much as possible. exhaust as much as possible.
FIG15 FIG16
Continue to route the harness securing Route the harness up towards the
it to the factory wiring loom along the firewall securing it to the factory wiring
way. (FIG 15) Be sure to keep it away loom. (FIG 16) Be sure to keep it away
from the exhaust as much as possible. from the exhaust as much as possible.
ON 2 DOOR MODELS THERE WILL BE SOME
EXTRA SLACK IN THE MAIN POWER WIRE.
Before finalizing cable tie placement for Step 16 we
recommend continuing to step 17 & 18 and leaving the slack
under the vehicle so the wiring loom can be tied up away
from the exhaust (noted on the right hand side in figure 16).
Coil up the excess wire and tie away from exhaust as much
as possible. We recommend keeping the coiled wire above
a crossmember or below the brake booster on the firewall.
4
JL_HARNESS_92015_8004_LTR6.qxp_Layout 1 3/12/20 12:12 PM Page 5
JL Trailer Wiring Harness Installation:
FIG17 FIG18
Route the harness up the firewall to the Connect the power wire to the battery
right of the brake booster and towards terminal as showing using a 10mm
the battery securing it along the way. socket. (FIG18)
(FIG17)
Replace the red battery cover to its
Using side cutters trim any excess original position.
length from the cable ties used to
secure any wiring. Wiring Installation is now complete.
Results:
Quadratec Receiver Hitch for JL shown with factory
Rear bumper and Quadratec Hitch Plug. (sold separately)
IMMEDIATELY CHECK VEHICLE TAIL LAMPS AND TRAILER
LAMPS TO ENSURE THAT BOTH TURN SIGNALS, BRAKE,
FLASHER, DRIVING AND BACKUP LAMPS ARE ALL
FUNCTIONING PROPERLY. IF NOT, DOUBLE CHECK YOUR
WORK OR SEEK A PROFESSIONAL AUTOMOTIVE
TECHNICIAN SINCE A PROBLEM MAY EXIST WITHIN
THE “TRAILER” WIRING.
5
