The new ITU Handbook: Implementing Digital Terrestrial Television (DTTB) Joint ITU/EBU/BNE/DVB Workshop on "Assistance for DTTB Implementation“, Geneva, 27 Oct. 2016 Christoph Dosch Vice-Chair ITU-R SG 6 1 Handbook-DTTB-Implementation.pptx © IRT 2016
Motivation for the new Handbook DTTB Substantial new developments since 2002, e.g. • GE06 • Additional allocations to the mobile service reduction of the BS bands • New audio-visual formats (HDTV, UHDTV, immersive sound) • Progress in compression techniques • New multiplexing techniques (MMT) • 2nd generation digital modulation technologies • Numerous new DTTB systems • Developments in IBB (Integrated Broadcast-Broadband) systems • Progress in accessibility services Existing Handbook from 2002 not outdated - still valuable 2 Handbook-DTTB-Implementation.pptx © IRT 2016
Contents of the new DTTB Handbook (1) Handbook on Digital Terrestrial Television Implementation Editor's foreword - Acknowledgements etc. PART 1 NETWORK ASPECTS Chapter 1 General aspects of digital TV broadcasting Chapter 2 Strategies for DTTB introduction Requirements for the implementation of digital terrestrial television Chapter 3 broadcasting networks Chapter 4 Broadcast network planning Chapter 5 Sharing and protection Chapter 6 Cross-border coordination Chapter 7 Quality of service for broadcast television Chapter 8 Satellite assistance 3 Handbook-DTTB-Implementation.pptx © IRT 2016
Contents of the new DTTB Handbook (2) Handbook on Digital Terrestrial Television Implementation PART 2 SYSTEM ASPECTS Chapter 9 Systems for digital terrestrial television broadcasting Interactivity and collaboration between DTTB and non-broadcasting Chapter 10 systems Conditional access and content protection in digital television Chapter 11 broadcasting Chapter 12 Quality of the baseband signal Chapter 13 Digital TV receivers Chapter 14 Accessibility aspects CONTRIBUTION AND ENG ASPECTS FOR DIGITAL PART 3 PROGRAMME PRODUCTION Chapter 15 Contribution and news-gathering systems List of Abbreviations Each Chapter is followed by its bibliography 4 Handbook-DTTB-Implementation.pptx © IRT 2016
Chapter 1 General aspects of digital TV broadcasting • DTTB: A dynamic and technically complex environment • Considerations when switching to digital terr. TV • Inter- operability, a prerequisite • The DTTB system model 5 Handbook-DTTB-Implementation.pptx © IRT 2016
Chapter 2 Strategies for DTTB introduction • Why going digital • The switchover process from analog to digital • The 2nd switchover process from digital to digital • DTTB as a competition enabler • Licence aspects • Network costs and configuration • Consideration of ancillary services • Sharing of spectrum by broadcast and non-broadcast services 6 Handbook-DTTB-Implementation.pptx © IRT 2016
Chapter 3 Requirements for the implementation of digital terrestrial television broadcasting networks • User and service requirements • Picture and audio quality • Associated audio and data • Sound radio over DTTB • Reception mode • Number of audio-visual programmes (data-rates) • Target coverage • Reception availability • Spectrum Requirements • Receiver related requirements 7 Handbook-DTTB-Implementation.pptx © IRT 2016
Chapter 4 Broadcast network planning • Digital terrestrial television networks • Basic terms and definitions • Service area • Coverage area … • Reception modes • Assignment and allotment planning Single Frequency Network (SFN) • Minimum usable field strength to be protected • Coordination trigger level • MFN, SFN or mixed MFN-SFN • Example Implementation Scenarios (DVB-T2, ATSC, ISDB-T, DTMB) 8 Handbook-DTTB-Implementation.pptx © IRT 2016
Chapter 5 Sharing and protection (references) • Categories of interference • Inside the national borders • Across national borders • Technical characteristics and criteria for sharing • Compatibility between DTTB and the Mobile Service • Other compatibility issues involving DTTB • Sharing between DTTB and SAB/SAP 9 Handbook-DTTB-Implementation.pptx © IRT 2016
Chapter 6 Cross-border coordination • Coordination inside the Planning Area of a Regional Agreements 2 • Coordination outside the Planning area of a Regional Agreements 3 • Bilateral or multilateral discussions • Coordination examples • Region 1 By correspondence By meeting • Region 2 The ability to unclog unresolved cases, obtain agreements in much • Region 3 Advantages Technical characteristics may be determined prior to the application of shorter time frames. the ITU coordination procedure. The working relationships between administrations may be promoted. It can be extended indefinitely in Preparation such as exchanging time, especially when a consulted Disadvantage necessary documents to ensure the administration is not motivated to s effectiveness of meeting is needed in answer the request for strategic advance. reasons or otherwise. Advantages and disadvantages of coordination procedures 10 Handbook-DTTB-Implementation.pptx © IRT 2016
Chapter 7 Quality of service for broadcast television • The blocks of a DTTB chain • Examples of Specifications to enable Quality of Service • Measurements for monitoring QoS at the various interfaces of the chain • Examples for transmission quality in digital television • Redundancy concept as a means of maintaining QoS 11 Handbook-DTTB-Implementation.pptx © IRT 2016

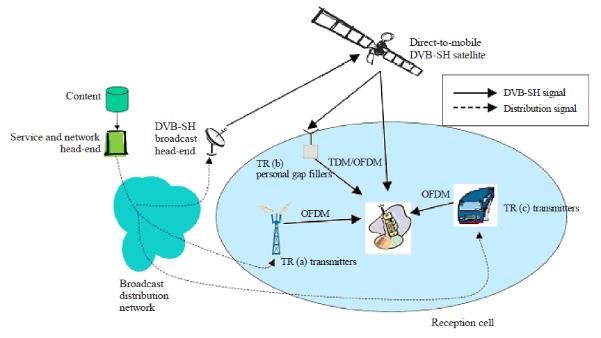

Chapter 8 Satellite assistance • Satellites as feeder-links for terrestrial television broadcasting networks • Using satellites as IP return channels for interactive television • Joint usage of the terrestrial and the satellite broadcasting • Definition of a Hybrid Satellite/Terrestrial System • Definition of an Integrated MSS System Source: ITU-R Report ITU-R BS.2173 “Multi-carrier based transmission techniques for satellite systems” 12 Handbook-DTTB-Implementation.pptx © IRT 2016
Chapter 9 Systems for digital terrestrial television broadcasting • Broadcast system technologies in general • Digital modulation and channel coding (FEC) ensure that, above a certain threshold of C/(N+I), the demodulated signal is a one-by-one image of the signal at the studio output • Detailed and comprehensive description of the various terrestrial digital broadcasting systems • ATSC • DVB-T/T2 • ISDB-T • DTMB/DTMB-A • T-DMB Service specific concept based on PLPs (physical layer pipes) • RAVIS • Home local networks: From IEEE 1394 (Firewire) to wireless DLNA/UPnP 13 Handbook-DTTB-Implementation.pptx © IRT 2016

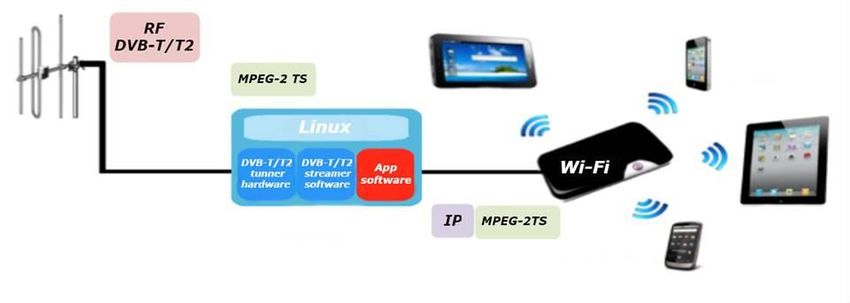

Chapter 10 Interactivity and collaboration between DTTB and non-broadcasting systems • Opportunities of collaboration • Collaboration at the service layer • Integrated Broadcast-Broadband technologies • Middleware • Technical commonalities (e.g. coding schemes) • Collaboration at the network level • Interactive television Principle of DTT-to-IP conversion for wireless in-house distribution • Interactivity aspects • Interactive system model • Content format for interactive systems • Interaction channel for terrestrial environment 14 Handbook-DTTB-Implementation.pptx © IRT 2016
Chapter 11 Conditional access and content protection in digital television broadcasting • Need for encryption: • To offer pay TV services • To limit the reception to a pre-defined geographical area • Approaches to the implementation of Conditional Access Systems (CAS) • CAS for ISDB • CAS for ATSC • CAS for DVB • Content Protection and Copy Management 15 Handbook-DTTB-Implementation.pptx © IRT 2016
Chapter 12 Quality of the baseband signal • Objective quality estimation for compression systems in digital television • Objective measurements for video compression quality estimation • Objective measurements for video transmission quality estimation • Objective measurements for audio quality estimation • Remarks on future developments • Subjective quality estimation for compression systems in digital television • The most common types of quality control processes are: • Manual QC (“Golden eyes/ears” monitor the programme) • Automated QC (To check signal levels and standards) • File Structure Compliance (To check against file standards, e.g. AS11 DPP) • File Structure Analysis (Deep analysis where something is wrong with the file structure) 16 Handbook-DTTB-Implementation.pptx © IRT 2016
Chapter 13 Digital TV receivers • General aspects for DTV receivers • Worldwide broadcast roaming • Requirements for DTV receivers • ATSC receivers • ISDB-T / SBTVD receivers • DVB-T / DVB-T2 receivers • DTMB receivers • General Requirements • Middleware for DTV receivers • Integrated Broadcast-Broadband functionality 17 Handbook-DTTB-Implementation.pptx © IRT 2016

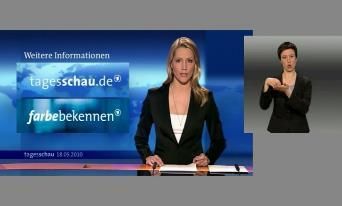

Chapter 14 Accessibility Aspects • Digital television offers more possibilities for and easier realization of access services Example sign-language video using IBB for people with special needs • Services which are of help to all of us, not only to people with disabilities • ITU and the need for access services (UNCRPD)* * UN Convention on the Rights of Persons with Disabilities”, 2006, ref. http://www.un.org/disabilities/ • Access services relevant to TV broadcasting • Receiver-processed versus broadcast-based access services • The use of subtitles/captions • The special importance of IBB (Integrated broadcast-broadband) systems • When IBB solutions are not be practical (no broadband connection) • Production of access services – some aspects 18 Handbook-DTTB-Implementation.pptx © IRT 2016

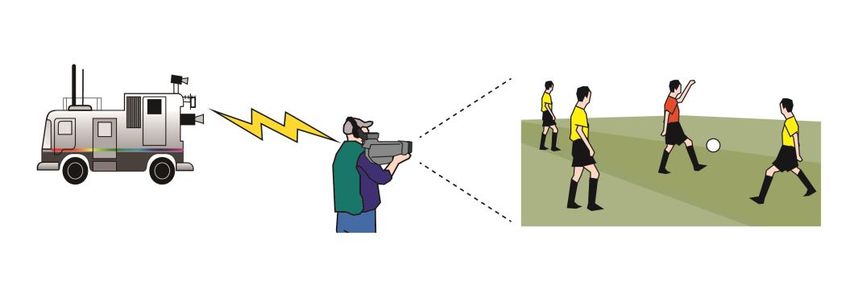

Chapter 15 Contribution and news-gathering systems (1) • Systems for television production are constantly evolving • Requirements for contribution and news gathering systems often differ from those for the broadcasting service • Signal robustness • Delay time between content generation and delivery • Need for mobility in contribution and news gathering, etc. • Services Ancillary to Programme-making and Broadcasting (SAP/SAB) often have a very high requirement for quality (e.g. wireless microphones) • Programme Making and Special Events (PMSE) systems • share, for their transmission, the UHF broadcasting bands, or • make use of the mobile service bands or use terrestrial or satellite fixed transmissions 19 Handbook-DTTB-Implementation.pptx © IRT 2016
Chapter 15 Contribution and news-gathering systems (2) Terrestrial News Gathering and Contribution • User requirements for terrestrial news gathering and contribution • User requirements for HDTV/SDTV terrestrial news gathering • User requirements for UHDTV terrestrial news gathering • Italian 4K production experience, 2009 • Japanese 8K production experience • Frequency requirements for terrestrial news gathering • Adaptation to the terrestrial environment • Satellite assistance to contribution and programme production for ENG applications 20 Handbook-DTTB-Implementation.pptx © IRT 2016
Name Organization / Administration Dr. Abdullah Saleh ALARAIMI Oman Acknowledgement Dr. Pablo ANGUEIRA BUCETA Spain Dr. Vladimir BALYAR Ukraine Mr. Vittorio BARONCINI Italy Mr. Istvan BOZSOKI ITU-D Mr. Roger BUNCH Australia Mr. José Ramón CAMBLOR Ministerio de Industria, Energía y Turismo, Spain Mr. Perez DE LEMA Spain • Highest appreciation goes to Prof. Oleg Gofaizen Mr. Christoph DOSCH IRT Dr. Charles EINOLF CBS Dr. Joseph FLAHERTY USA who has tirelessly guided the development Prof. Oleg GOFAIZEN Dr. David GUERRA PEREDA Ukraine University of the Basque Country of this Handbook Mr. Jean-Jacques GUITOT Mr. Pham HAI France ITU-R Mr. David HEMINGWAY BBC • Greatest thanks are due to the numerous people Dr. Shuji HIRAKAWA Mr. Klaus HUBER Japan LS Telcom who have contributed with text, images and Mr. Mark JORDAN Arqiva Dr. Alina KARWOWSKA-LAMPARSKA Poland Dr. Alexandre KHOLOD Switzerland proofreading (see table on the right) Ms. Kyung-Mee KIM Mr. Oh KYOUNGSEOK Korea Korea (TTA) • An editing team has been active from Ms. Lucia Luisa LA FRANCESCHINA Rai Way SpA Mr. Stephane MEBALEY EKOME France Dr. Alberto MORELLO RAI February to October 2016 to finalise the Mr. Amir Hassan NAFEZ Mr. Akira NEGISHI Iran NHK existing draft Mr. Yukihiro NISHIDA Mr. Larry OLSON Japan USA Prof. PAN Changyong Tsinghua University, China • The ITU-R secretariat of SG 6 has continuously Mr. Rolly PURNOMO Indonesia Mr. Ari REFIK TDF Dr. Walid SAMI EBU assisted the whole process Mr. Eli SOFER Ms. Sato TELEMI Israel IRT Ms. Anne-Lise THIEBLEMONT Qualcomm Mr. Kengo TSUDA NHK Mr. Aljo VAN DIJKEN Netherlands Dr. Manuel María VELEZ ELORDI Spain Mr. Tobias VIERACKER IRT Dr. David WOOD EBU Ms. Norafidah YOSUF Malaysia Mr. Juan ZAPATA 21 Handbook-DTTB-Implementation.pptx © IRT 2016
Thank you for your attention On behalf of the Core Editing Team: Christoph Dosch, IRT, Germany David Hemingway, BBC, UK Walid Sami, EBU, Switzerland 22 Handbook-DTTB-Implementation.pptx © IRT 2016
