STOCKINBINGAL TO PARKES 1 December 2020 COMMUNITY BRIEFING: ONLINE SESSION
ACKNOWLEDGMENT TO
COUNTRY
I wish to acknowledge the traditional owners of
the land on which we meet today and pay my
respects to elders, past present and emerging
Inland Rail Community Briefing 1 December 2020
AGENDA
Acknowledgement of Country
Introduction
Project Overview
Project Timings
Design Update
Heritage Considerations
Community and Stakeholder Engagement
Inland Rail Community Briefing 1 December 2020
ABOUT INLAND RAIL
Inland Rail is a once-in-a-generation project that will enhance
supply chains and complete the backbone of the national
freight network by providing for a transit time of 24 hours or
less for freight trains between Melbourne and Brisbane via
regional Victoria, New South Wales and Queensland.
Comprising of 13 individual projects and spanning more than 1,700km,
Inland Rail is the largest freight rail infrastructure project in Australia and one
of the most significant infrastructure projects in the world.
Construction of Inland Rail commenced in late 2018 and is expected to be
completed in 2025.
Inland Rail will provide greater freight carrying capacity, as it is designed for
double-stacked trains up to 1,800m long, each of which will be able to carry
the same volume of freight as 110 B-Double trucks.
Inland Rail Community Briefing 1 December 2020
BENEFITS OF INLAND RAIL
Road competitive service Reducing Congestion Reducing Burden
Globally Competitive Connecting
1/3 of the fuel of road
For producers
Cities, farms,
mines and ports
Inland Rail Community Briefing 1 December 2020
INLAND RAIL
PROGRAM
STATUS NSW/QLD BORDER P2N
COMPLETE
N2NS
PROJECTS IN
DELIVERY
T2A G2H H2C C2K PROJECTS IN
PROCUREMENT
PROJECTS
A2I I2S S2P N2N NS2B B2G K2ARB YET TO BE
PROCURED
Inland Rail Community Briefing 1 December 2020 6
PROJECT PROGRESS
PROJECTS PROJECT STAGES
CONCEPT REFERENCE DETAILED PROJECT
VICTORIA CONSTRUCTION OPERATION
ASSESSMENT DESIGN DESIGN APPROVAL
1 Tottenham to Albury
CONCEPT REFERENCE DETAILED PROJECT
NEW SOUTH WALES CONSTRUCTION OPERATION
ASSESSMENT DESIGN DESIGN APPROVAL
LEGEND 2 Albury to Illabo
CURRENT STATUS 3 Illabo to Stockinbingal
Q3 2020
4 Stockinbingal to Parkes
5 Parkes to Narromine
6 Narromine to Narrabri
7 Narrabri to North Star
North Star to NSW/Qld Border
8
CONCEPT REFERENCE PROJECT DETAILED
QUEENSLAND CONSTRUCTION OPERATION
ASSESSMENT DESIGN APPROVAL DESIGN
NSW/Qld Border to Gowrie
9
10 Gowrie to Helidon
PUBLIC PRIVATE PARTNERSHIP (PPP)
11 Helidon to Calvert These three Queensland projects will
be constructed under a single PPP.
12 Calvert to Kagaru
Kagaru to Acacia Ridge and
13
Bromelton
Inland Rail Community Briefing 1 December 2020
STOCKINBINGAL TO PARKES (S2P)
An enhancement project of specific sites along the 173kms existing
rail corridor from Stockinbingal to Parkes (S2P)
Enhancement Projects require horizontal and vertical clearances at
specific sites to accommodate the operation of double stacked
container trains and does not include upgrade or improvement
works
The environmental assessment for the S2P project is via Four
Review of Environmental Factors (REF)
October 2020 awarded contract to new consultant service provider
WSP Australia
WSP Australia will support the finalisation of the reference and
detailed design and environmental approvals
We expect to tender for first packages of work for the Stockinbingal
to Parkes project in late 2021.
Inland Rail Community Briefing 1 December 2020
WHERE IS THE PROJECT UP TO?
We are here
Phase 1 Phase 2 Phase 3 Phase 4
Operate
Concept Design Approval Construct
Design includes: Investigations include:
Community consultation Ecological surveys
Site Investigations Geotechnical surveys
Reference and detailed design Cultural heritage surveys
Review of Environmental factors Utility identification surveys
Noise, air quality, vibration surveys etc
Inland Rail Community Briefing 1 December 2020
PROJECT TIMINGS
DATE PROJECT ACTIVITY
Q3 2020 WSP Australia commences as new consultant service provider
Reference & Detailed Design
Community Engagement
Q4 2020 to Q4 2021
Environmental Approvals
Public Exhibition
Q3 & Q4 2021 Procurement
Q1 2022 – Q3 2023 Construction
Inland Rail Community Briefing 1 December 2020S2P ENHANCEMENT SITES
Site Detail Proposed Solution
Daroobalgie • Crossing loop • Construct new crossing loop
• Wyndham Avenue Bridge • Track lowering
Forbes
• Forbes Railway Station • Clearance works and track slew
• Lachlan River Bridge • Modification or new structure
• Wirrinya (Forbes Shire Council) • Track Slew
Horizontal and vertical • Redbend (Forbes Shire Council) • Track Slew
clearance works
• Caragabal (Weddin Shire Council) • Track Slew
• Quandialla (Weddin Shire Council) • Clearance works
• Bribbaree (Hilltops Council) • Track Slew
• Milvale (Hilltops Council) • Clearance works
Inland Rail Community Briefing 1 December 2020LEVEL CROSSINGS IN SOUTHERN NSW
Not within S2P scope to grade separate any road/rail
interface
Assessments of road/rail interface underway
All new and upgraded level crossings (LX) must
comply with the Australian Level Crossing Assessment
Model (ALCAM)
ALCAM considers road traffic numbers, vehicle
types, train numbers, speeds and sighting distances
Private LX: we work closely with each landowner to
understand individual access requirements and
safety issues
~2.5 minutes: estimated wait times for Inland Rail
freight trains at level crossings in towns
Inland Rail Community Briefing 1 December 2020 12DAROOBALGIE CROSSING LOOP

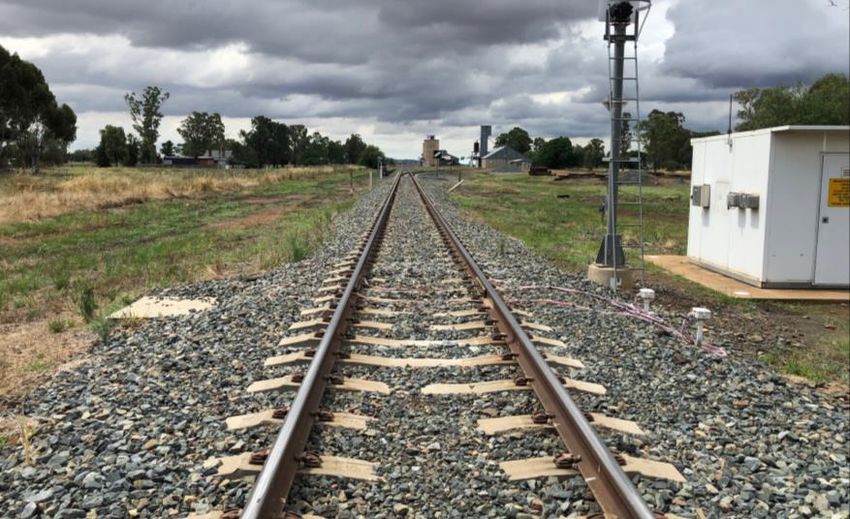

Proposed works
New Crossing Loop
Construct new crossing loop on eastern
side of existing track
Approx. 2.2km of new track
Daroobalgie Road upgraded for road trains
requires upgrade to existing Level Crossing
from passive to active
Above: Proposed location of new crossing loop at Daroobalgie looking north
Inland Rail Community Briefing 1 December 2020WYNDHAM AVENUE BRIDGE
Proposed works
Track Lowering
Vertical clearance of 5755 mm - a required
vertical clearance shortfall of 1430mm
Further design work required for collision
Track Lower 1.43m
protection for bridge piers
Above: Wyndham Avenue Bridge from the Southern side looking north
Inland Rail Community Briefing 1 December 2020LACHLAN RIVER BRIDGE

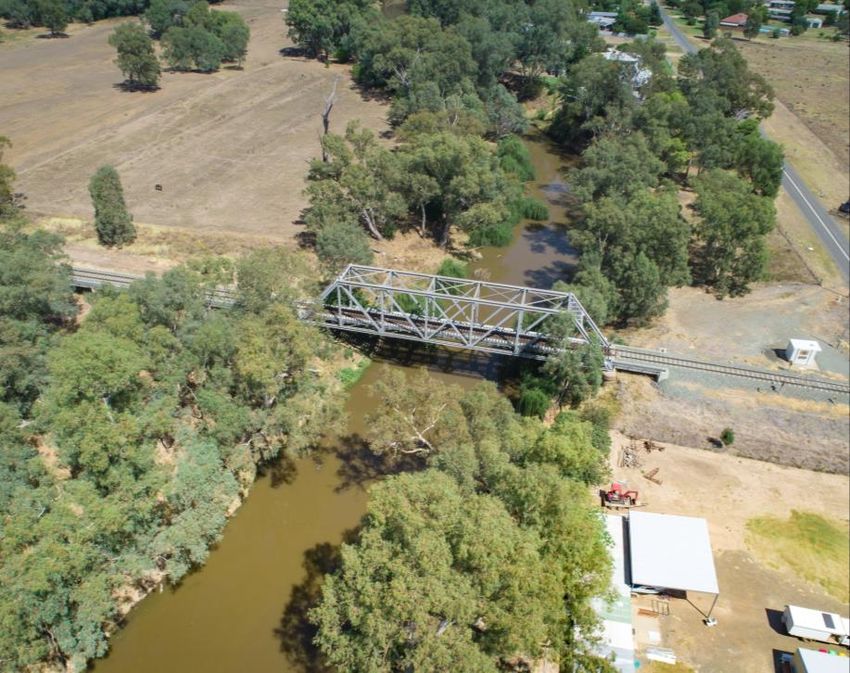

Issue Options assessment required to determine
preferred solution which may include;
Vertical clearance required
Modify existing bridge
Local Heritage Status
Replace existing bridge with new bridge
Existing Bridge
Inland Rail Community Briefing 1 December 2020INDICATIVE EXAMPLES ONLY

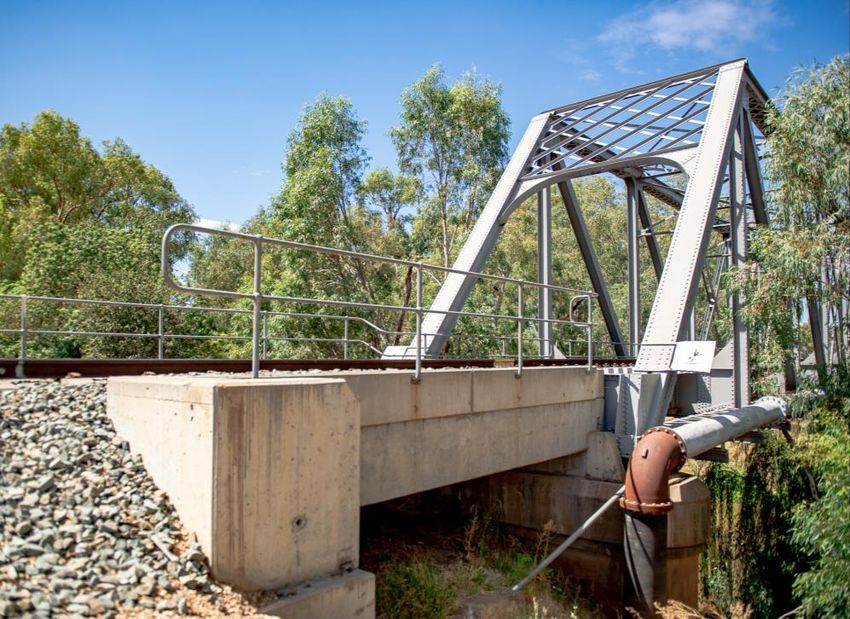

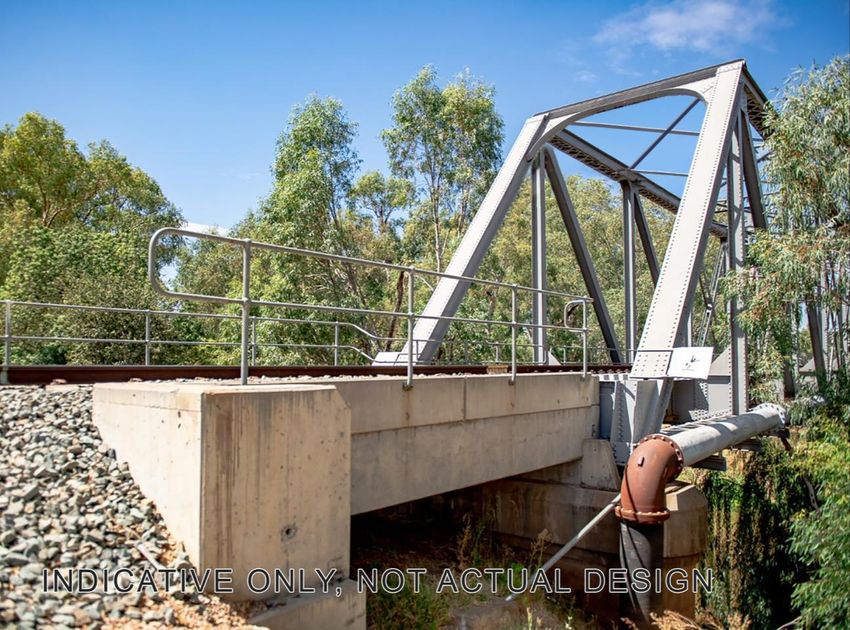

Option 1 – Modify existing bridge Option 2: Build new bridge
Inland Rail Community Briefing 1 December 2020FORBES STATION

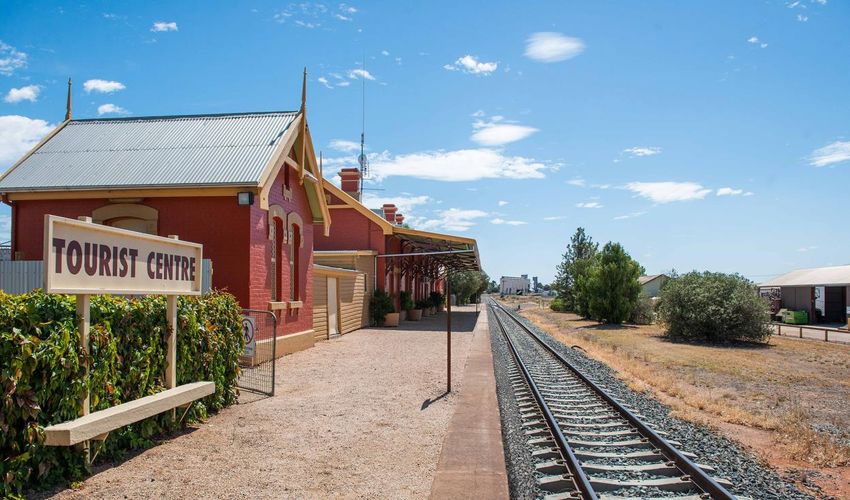

Issue Options Assessment
Horizontal Clearance works required Modify Awning on Station Platform
Local and State Heritage Listed Track slew required further along
Goods Siding – possible removal
Existing Indicative Drawing: Trim Awning
Inland Rail Community Briefing 1 December 2020MILVALE
Issue
Horizontal
Clearance works
required
Local Heritage
listing
Options
Assessment
Removal or
modification of
water tank
Minimise
impacts to
heritage listed
water tank
Inland Rail Community Briefing 1 December 2020HORIZONTAL CLEARANCE SITES
Track Slew or Clearance
Works
1. Red Bend
2. Wirrinya
3. Caragabal
4. Quandialla
Red Bend Caragabal
Caragabal
5. Bribbaree
A track slew is a slight
movement of the train
track, to allow for improved
horizontal clearances
Wirrinya Quandialla
Inland Rail Community Briefing 1 December 2020HERITAGE CONSIDERATIONS
There are three heritage listed sites;
the Lachlan River Railway Bridge,
Forbes Railway Station Group; and
the Milvale Water Tank.
Protected under the Heritage Act 1977 and
Environmental Planning & Assessment Act
1979.
Inland Rail is engaging technical advisors to
inspect and assess these heritage sites
Once the options are finalised, regulatory
authorities will be consulted, and appropriate
permits will be sought to carry out any works
as required.
Community will also have the opportunity to
provide feedback
Inland Rail Community Briefing 1 December 2020S2P COMMUNITY ENGAGEMENT 2020 - 2021
Snapshot Engagement To Date
10 community information sessions since September
2018
1 regional supplier briefing
70+ face to face and group project meetings to date
Upcoming Engagement 2020
Project update & Design Progress
1 & 3 December – Online
4 & 5 December – Face to Face in Forbes
Workforce Participation in Forbes 2021
Regional Supplier Briefing – Q1 2021
Capability Development Workshops – Q2 & Q3 2022
Inland Rail Community Briefing 1 December 2020WORK WITH US
Inland Rail Community Briefing 1 December 2020INLAND RAIL & THE COMMUNITY
Sponsorships & Donations Program
To date approx. $20k in grant funding awarded to
community initiatives, e.g.
Taste on Templar,
laptops for Forbes Public School,
new equipment for CanAssist,
sporting equipment for Wirrinya Progress &
Sports Association
Four grants available annually, up to $4,000 each
round
Pictured above: two students with the laptops purchased by Forbes
Public School
Inland Rail Community Briefing 1 December 2020S2P NEXT STEPS
TIMING ACTIVITY
December 2020 Community Consultation – gain feedback from the
community on the multicriteria assessment sites and
detailed designs.
January – February Investigations to inform development of Reference Design &
2021 primary approvals documentation e.g. biodiversity
February 2021 Multicriteria Assessment Workshop to determine design
solution for heritage sites
March/April 2021 Detailed & Reference Design Community Engagement
Supply Chain Briefing
Inland Rail Community Briefing 1 December 2020HAVE YOUR SAY
W
We invite community feedback to help inform the decision-
making process through the following channels;

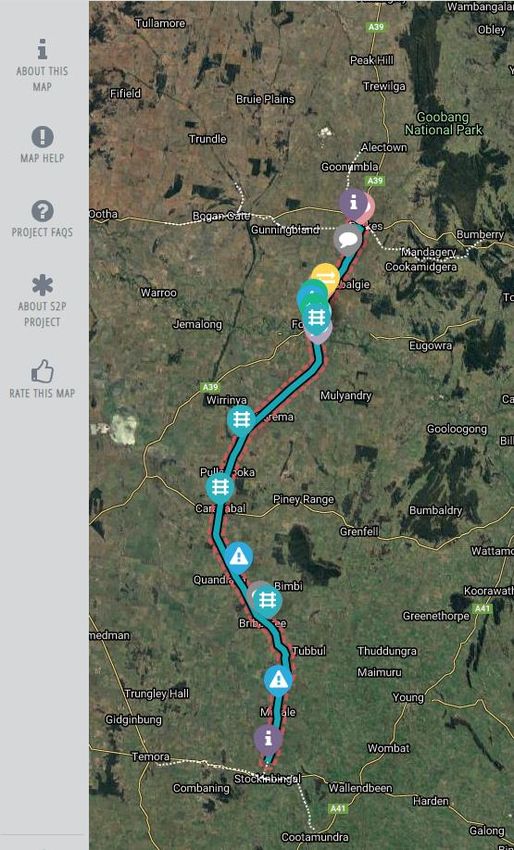

Social Pinpoint https://maps.inlandrail.com.au/s2p#/
Contact us directly Eleanor Falkiner
Efalkiner@artc.com.au
Amanda Dunn
Adunn1@artc.com.au
1800 732 761
Inlandrailnsw@artc.com.au
Attend our Community Information 4 DEC, 6 – 8pm
sessions Club Forbes, Templar Street
5 DEC, 9 - 11am
Rankin St, Forbes
Public exhibition Q4 2021
