RFS Infrastructure Solutions
for Remote Radio Head Deployments
Enabling innovative approaches for advanced service delivery
T h e C l e a r C h o i c e ®
Enable a more
cost-effective
wireless operation
The business of providing wireless broadband communications
services is a continuous balancing act for wireless network
operators worldwide. On the one hand, operators must invest in
continuously evolving technologies to enable delivery of premium
services to subscribers. At the same time, they must find operating
efficiencies that offset the capital cost of technology investments
required to deliver the high volume, low margin services
subscribers want.
Radio Frequency Systems (RFS) provides complete wireless
infrastructure solutions that enable efficient delivery of advanced
wireless broadband services and a more cost-effective wireless
operation. Based on an unrivaled knowledge of wireless
infrastructure, RFS’ proven portfolio of lightweight, high
performance RF equipment is optimized to provide the best
RFS INFRASTRUCTURE SOLUTIONS FOR REMOTE RADIO HEAD DEPLOYMENTS
possible performance, compatibility and cost-effective longevity
for the full range of the most common bands, applications and
emerging technologies, including LTE, CDMA 850, GSM 900 and
1800, PCS 1900, AWS and UMTS 2100.
2
Hybrid cabling and Simplify RRH deployments;
innovative connection Lower costs
solutions
RFS’ portfolio includes hybrid cabling Upgrading technology, reducing operating expenditures (OPEX)
and connection solutions that make it and decreasing CO2 emissions at cellular sites are constant challenges
easier to streamline operations when for operators around the globe. Distributed base station architectures
upgrading or replacing traditional allow operators to address these challenges by installing the RF filter
base station configurations with the and power amplifier of a base station next to the antenna on a tower or
latest distributed base station rooftop rather than at the tower bottom or a building basement where
architectures. old-style macro base stations are typically located, thus creating Remote
Radio Heads (RRHs).
These solutions are the result of ongoing
investments in R&D and a close working But installing RRHs close to antennas requires operators to extend data
relationship with customers, which transmission, power and grounding cables to the RRH on the tower or
ensure all products are designed to meet rooftop. This can be a costly and complicated effort.
the demanding network infrastructure
needs of today and the requirements of The RFS portfolio of hybrid cabling and connection products
emerging communications standards. simplifies the process and lowers the cost of distributed base
station architectures. This complete portfolio includes:
The result is lightweight, cost-effective
RFS INFRASTRUCTURE SOLUTIONS FOR REMOTE RADIO HEAD DEPLOYMENTS

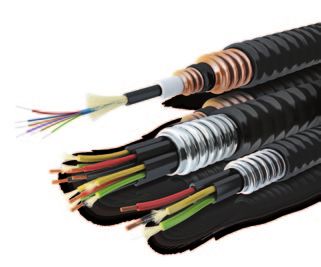

hybrid cabling and connection HYBRIFLEX™, a revolutionary RRH hybrid feeder
solutions that make innovative use cabling solution, which combines optical fiber and
of materials to reduce tower load DC power in a single corrugated cable
and maximize existing infrastructure
investments. DC-FIT™, the world’s first DC converter solution,
which features innovative new technology that turns
existing coaxial feeders into RRH power supplies
F/O-FIT™ for site renovation, an optical cabling
solution, which allows the reuse of existing deployed
coaxial cable to carry a fiber bundle through the inner
conductor tube to transport optical signals to a RRH.
3
Optimize base station
operations with HYBRIFLEX™
HYBRIFLEX is an
™ This integrated, cabling solution (patent
pending) replaces traditional multi-cable
innovative, hybrid cabling Antenna approaches, which require additional
solution for new RRH infrastructure components, long site
Jumper
deployments and base installation times, difficult implementation
station upgrades. It is the accessories and training for installers who
must work with the delicate optical fiber.
first to combine optical fiber
and DC power for RRHs Connector And it is available in 1-Sector or 3-Sector
in a single, highly flexible, Earthing
configurations to allow operators to
lightweight aluminum RF cable connect up to three sectors with a single,
composite cable.
corrugated cable that
allows operators to ground As a result, HYBRIFLEX™ provides the cabling
the cabling system. expenditure reductions, ease-of-installation
and operational efficiency mobile operators
need to evolve their networks while limiting
their power consumption and carbon
footprint at cellular sites.
Wall Gland
RFS INFRASTRUCTURE SOLUTIONS FOR REMOTE RADIO HEAD DEPLOYMENTS
Surge
Arrestor
Jumper
Connector
Earthing
Site today without
Clamp
HYBRIFLEX™ solution
Jumper Connector
Earthing
Earthing
BTS BTS BTS
BTS: Base Transceiver
Station
4
Designed for maximum
flexibility and reliability
HYBRIFLEX™ is designed to provide maximum
flexibility at installation and ongoing reliability
Antenna
long after installation is complete.
Jumper

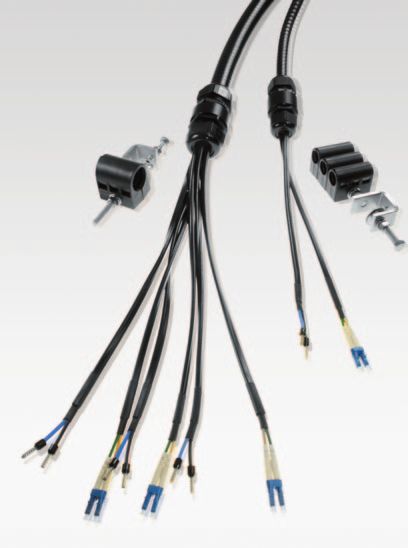

To simplify installation, the HYBRIFLEX™ corrugated RRH
aluminum outer armor offers outstanding bending (Radio Remote Head)
characteristics, which allows it to be installed like a
conventional coaxial RF cable. F/O-Connector
DC-Connector
Sealing
And it is designed to standard RF feeder diameters.
Therefore, commonly available RFS CELLFLEX®
LCF series feeder accessories can be used in all
HYBRIFLEX™ installations. And to further simplify
installation, HYBRIFLEX™ is delivered pre-connectorized
for fiber optic and DC connectors.
To ensure lifetime reliability, the corrugated aluminum
outer armor provides more durable, lightweight
protection than polyethylene tubes and at a much
lower cost than cable trays. This armor protects the
power and fiber optic (multi-mode or single-mode)
cables during and after installation. In addition, a
protective jacket on each individual cable pair ensures
the inner cables are suitable for outdoor use.
RFS INFRASTRUCTURE SOLUTIONS FOR REMOTE RADIO HEAD DEPLOYMENTS
HYBRIFLEX™
Site with HYBRIFLEX™ solution Clamp
Wall Gland
Fiber optics
Power cable
BBU: Base Band Unit BBU BBU BBU PSU PSU PSU
PSU: Power Supply Unit
5
HYBRIFLEX™: Eliminate
deployment complications
Simplified
installation logistics
The patent pending The integrated design further simplifies Together these benefits allow operators
HYBRIFLEX single cable
™ installation requirements by eliminating to take advantage of more efficient RRH
the need for specialized installation tools, deployment options, which can improve
design offers a number accessories and training for installers. network roll outs and deliver a total cost
of benefits to wireless HYBRIFLEX™ can be installed by current reduction per site of as much as 25 percent
network operators. As installation crews using common RF compared to conventional site installations.
a completely integrated installation tools and standard RFS And they ensure operators realize significant
accessories. This reduces inventory operational savings throughout the life of
hybrid cabling solution, requirements and simplifies installation the network.
HYBRIFLEX™ enables data logistics by eliminating special accessories.
transmission, power and It also eliminates the need for expensive
grounding functions to be cable trays and ducts and minimizes
brought to the RRH and
installation time. HYBRIFLEX™ is
tested and proven
connected with a single In addition, installation of stripped fiber optic
The benefits of HYBRIFLEX™
conduit. This single cable cable pairs directly to the RRH eliminates
have been field tested and
approach allows operators the need for expensive junction boxes,
proven by operators around the
which further reduces load on the tower world. For example, one of the
to reduce the number of or rooftop. Hybriflex™ is easily adaptable to largest customers in Asia has
RRH cables required from each site, thanks to an innovative sealing kit confirmed this innovative, single
cable solution enables fast,
up to nine to one, decreases for main cable/individual cable transition.
simple installation of RRHs and
the wind load and weight Standardized overlength management can
performs as expected in a variety
RFS INFRASTRUCTURE SOLUTIONS FOR REMOTE RADIO HEAD DEPLOYMENTS
be applied to the individual DC and optical of installation scenarios. Based
on the tower or rooftop, cables. This guarantees a customizable on field trials, the customer
and dramatically simplifies implementation of Hybriflex™ to every confirmed that HYBRIFLEX™
drastically reduces installation
the process and reduce condition on-site.
time on 3G radiating systems by
the cost of installation. 75 percent. In addition, by using
HYBRIFLEX™ it was possible to
reduce infrastructure material
HYBRIFLEX™ Type II HYBRIFLEX™ Type I
costs, lower implementation
for 3-Sector-configurations with common for 3-Sector-configurations with individual
DC-feed for each RRH DC-feed for each RRH time by one working day, and
thereby reduce overall service
Black PE costs.
PE external jacket
Copper Aluminium OC
White foam Power cable (pair)
Optical fiber with an internal
jacket (PE)
Copper
Optical cable (pair)
Black PE with an internal
jacket (PE)
6
Leverage pre-configured
solution kits
To further simplify the installation, Additionally, each kit also includes:
RFS offers HYBRIFLEX™ in tailor-made
kits, which provide different system A typical length of branched individual
lengths and connector types. length cable of 2 m to 8 m
Kits are available in:

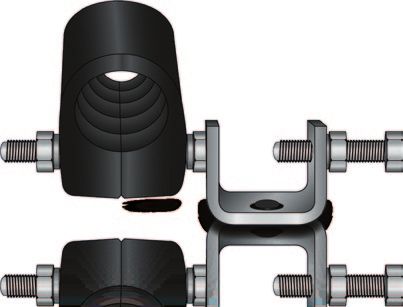

A corresponding number of 1/2” or 7/8”
1-Sector configurations, which clamps to fix the main HYBRIFLEX™ cable
include factory pre-connectorized 1-Sector
cable with a standard length of 20, 30 A corresponding number of 1/4” clamps
and 40 m. or cable ties to fix the branched individual
cables
3-Sector configurations, which
include factory pre-connectorized 3-Sector Sealing kits for main feeder/individual
cable with a standard length of 35 m in cable transition
increments of 10 m.
Wall glands (1/2” or 7/8”)
Earthing kits (1/2” or 7/8”)
RFS INFRASTRUCTURE SOLUTIONS FOR REMOTE RADIO HEAD DEPLOYMENTS
BBU/PSU section Tower section Sealing section RRH section
Jumper Clamp
7
Easily migrate to RRH with DC-FIT™
and F/O-FIT™ for site renovation
One of the key components
of the RFS portfolio of RRH
solutions is DC-FIT™, the
world’s first Direct Current
(DC) converter. Another Antenna
is RFS’ fiber optic (F/O)
set for site renovation, Jumper
which enables reuse of RRH
(Radio Remote Head)
existing RF feeders as ducts
for optical fibers. These Connector
solutions dramatically F/O-FIT for site
™
renovation
DC-FIT converter
simplify upgrades of
existing wireless cell sites. RF cable
They make it easier for Earthing
operators to migrate to
base station architectures
that take advantage of RRH RRH renovated site
configurations and fiber infrastructure
optic technologies.Typically,
upgrading or replacing
old-style base stations with
the latest base station
RFS INFRASTRUCTURE SOLUTIONS FOR REMOTE RADIO HEAD DEPLOYMENTS
architecture requires
operators to dismantle cell
sites to install new optical DC-FIT Converter
fibers, DC power cabling
and equipment. This is Clamp
Wall Gland
time consuming and, in Fiber optics
Power cable
many cases, not acceptable
because operators cannot Earthing
generate revenue from a
site that is off-air.
Earthing
BBU: Base Band Unit BBU BBU BBU PSU PSU PSU
PSU: Power Supply Unit
8
Easy migration to Reduce upgrade
RRH architectures time and costs
With DC-FIT™ and RFS’ F/O-FIT™ for By reusing existing, deployed coaxial
site renovation, operators can avoid cable to transport the DC voltage and
disruptions in service and quickly migrate optical fibers required by the tower top
to RRH architectures by leveraging RRH, operators can significantly reduce
existing base station hardware. The DC- rollout planning and site preparation time
FIT™ converter is designed to connect a by up to 50 percent.
DC cable with an existing coaxial cable
run. It features innovative technology Upgrades are simplified because only two
that turns an existing coaxial foam DC-FIT™ converters and two F/O-FIT™ for
dielectric feeder into a RRH power site renovation are required per site. In
supply. As a result, upgrading a addition, operators do not need to wait
conventional coax site to RRH technology for permission from the base station
is a breeze, compared to the time- site’s landlord to perform upgrades. Plus,
consuming installation of a new additional equipment, such as cherry
DC cable run. pickers, is not needed to install the
converter. And the upgrade does not As a result, DC-FIT™ and RFS’ F/O-FIT™
These innovative solutions are available require an extension of the cable path for site renovation allow operators to
for coaxial cables with a 7/8”, 1-1/4” or for the DC cable, or installation of fire perform upgrades where and when
1-5/8” nominal diameter and DC-FIT™ is protection in the form of wall glands they need them. This saves time,
already in use around the world. for the power cable. money, and operational headaches.
RFS INFRASTRUCTURE SOLUTIONS FOR REMOTE RADIO HEAD DEPLOYMENTS
Vodafone Germany leverages DC-FIT™
for site renovation
DC-FIT™ is being used by operators around the world to simplify upgrades
of existing wireless cell sites to RRH configurations. For example, Vodafone
in Germany is leveraging the benefits of DC-FIT™ to take advantage of
existing base station hardware as part of its roll out of new
technologies. More than 6500 units have been installed to
date with more on their way as Vodafone prepares its
network to meet the growing subscriber demand
for premium services.
9
Reduce time-to-market
and time-to-revenue
Installing RRHs close to Custom-tailored deployment solutions
antennas allows operators
to lower OPEX by reducing With HYBRIFLEX™, DC-FIT™ Converter and With RFS cables and converters, operators
power consumption – typically F/O-FIT™ for site renovation, operators can easily create an effective balance
can quickly and cost-effectively address between the ongoing need to invest
in half. But extending RF the space limitations and challenges in new technologies and the need to
transmission, power and imposed by weight and wind load maintain operating efficiencies. They can
grounding cables to new RRH allowances associated with distributed lower their total cost of ownership. Plus,
locations can be a costly and RRH architectures. And they can develop they can ensure long lasting network
custom-tailored deployment solutions that reliability and availability while delivering
complicated undertaking. allow them to get to market sooner with innovative, revenue-generating broadband
The RFS portfolio of RRH efficient delivery of the premium services services to their customers more efficiently.
products eliminates the subscribers are demanding.
complications. It significantly
All RFS products leverage the extensive
reduces time-to-market, time- experience and expertise RFS has
to-revenue and deployment developed designing and deploying
costs associated with wireless and broadcast infrastructure
upgrading high performance solutions for operators around the world.
wireless networks.
RFS Concept for RRH deployments
RFS INFRASTRUCTURE SOLUTIONS FOR REMOTE RADIO HEAD DEPLOYMENTS
DEPLOYMENT OF GREENFIELD SITES S I T E R E N O VAT I O N
HYBRIFLEX™ DC + OPTIC ACCESSORIES DC-FIT™ F/O-FIT™
Specialized all-in-one cable to connect RRH to Hybrid cable is Re-use standard RFS DC-FIT™ = DC-Converter F/O-FIT™ = optical solution
BTS base band units. Two types are available. equipped with accessories, like clamps which allows to reuse which allows to re-use existing
Type I: RRH DC and Optical cable are braided customer specific and grounding kit. existing deployed coaxial deployed coaxial cable. A fiber
in a corrugated Aluminum cover. DC and fiber-optic Jumpers can be also cable to transport the DC- bundle is carried through the
Type II: With optical cable in the inner of two connectors. offered in a complete Voltage required by the inner conductor tube of a
corrugated coaxial DC-conductors.1- Sector site installation tower top RRH. coaxial cable to transport the
and 3-Sector versions available. Different sizes package. optical signal required by the
of DC cable cross-section (2.5, 3.3, 6 and tower top RRH.
13.3 mm2) available
10Why RFS?
A worldwide leader in wireless
and broadcast infrastructure
Serious about services A tradition of innovation
Customers know they can count on RFS For over a century, RFS has been at the
for comprehensive logistical capabilities, forefront of the wireless communication
flawless execution and outstanding industry through its unwavering commitment
technical skills and support. The company’s to design and develop the world’s most
dedicated shipment coordinators, hotline advanced technology in the fi eld. Dedicated
staff and on-site engineers go well beyond R&D teams, along with a privileged
mere technology, striving to offer tailored partnership with Bell Labs, are at the source
solutions to meet even the most complex of breakthroughs that are ensuring the
site-engineering and delivery challenges. mobility of an increasingly wireless world.
Radio Frequency Systems
(RFS) is a global designer and
RFS’ value-added services match the RFS is at the frontier of wireless technology
manufacturer of cable, antenna
exact needs of business partners large innovation, sustaining the boldest ventures
and tower systems, along
and small. to enhance the way people communicate
with active and passive RF
and live.
conditioning modules, providing
total-package solutions
for wireless and broadcast
infrastructure. Ever-present quality A truly global
guarantee company
RFS serves OEMs, distributors,
systems integrators, operators
From design to manufacture, ISO 9001 With on-the-ground personnel in more
and installers in the broadcast,
and ISO 14001 certification standards than 20 countries and on every continent,
wireless communications, land-
RFS INFRASTRUCTURE SOLUTIONS FOR REMOTE RADIO HEAD DEPLOYMENTS
encompass all aspects of RFS’ business RFS always delivers on its commitments,
mobile and microwave market
worldwide. Every product RFS ships has providing a comprehensive range of
sectors.
stood up to the most stringent technical, premium products, systems and services. Its
environmental and quality control tests, clients benefit from all the advantages of a
As an ISO-compliant organi-
continuously meeting and surpassing global supplier, while relying on dedicated
zation with manufacturing
the expectations of a long list of wireless support from RFS’ local engineering,
and customer-service facilities
carriers, transportation and utility operators, manufacturing and shipping teams.
that span the globe, RFS offers
and broadcasters.
cutting-edge engineering
RFS’ products, systems and personnel can
capabilities, superior field
RFS backs every product bearing its name be found in every corner of the planet.
support and innovative product
with a quality guarantee that is unrivaled in As a global group, RFS is committed
design.
the market. to upholding the most stringent
environmental, health and safety standards,
and seeks to integrate green initiatives in
every aspect of its business.
11For more information, please
contact the nearest RFS sales office:
Southern Europe, Middle East, Africa & India
www.rfsworld.com/sales/semeai
Northern Europe
www.rfsworld.com/sales/euno
Latin America
www.rfsworld.com/sales/latam
North America
© Radio Frequency Systems - 05/2011
www.rfsworld.com/sales/na
Asia Pacific
www.rfsworld.com/sales/apac
T h e C l e a r C h o i c e ®
www.rfsworld.comYou can also read
