Personal Identity Verification (PIV) Enablement Solutions pivCLASS® Solutions
Affordable Personal Identity
Verification (PIV) Enablement
Solutions from a Single,
Trusted Supplier
COMPLETE SOLUTION FOR PIV The HID Global pivCLASS solution accomplishes
ENABLEMENT this in part by communicating with an agency’s
HID Global’s pivCLASS® Solutions portfolio PACS and external trust authority PKIs to deliver
is an extensive product family that makes it functionality specified by National Institute
easy for U.S. Federal Government, government of Standards and Technology (NIST) Federal
contractors, ports, other facilities to comply with Information Processing Standards Publication
security regulations and to use their Personal 201 (FIPS 201).
Identity Verification (PIV) and other smart cards for
physical access control, resulting in compliance, A N I NT E G R AT E D S O LU T I O N F R O M A
interoperability and high security. SINGLE PROVIDER
Delivering fully tested and validated turnkey
FIPS 201 COMPLIANCE WITHOUT THE government solutions from a single, trusted source,
NEED TO “RIP AND REPLACE” that authenticate PIV credentials across the full
The modular approach provides government range of assurance levels as defined by the federal
agencies the ability to use their PIV identity cards government’s Special Publication 800-116 (SP
for strong public key infrastructure (PKI)-based 800-116) and supports the Transportation Worker
validation for physical access control. The solution Identification Credential (TWIC)
enables this functionality without the need to Reader Specification.
“rip and replace” existing physical access control
systems (PACS), reducing costs, and removing Offering strong authentication solutions, the
complexities to make it easy and affordable to portfolio includes pivCLASS Registration Engine,
acquire, install and maintain compliant physical pivCLASS Certificate Manager, pivCLASS Reader
access control systems. Services, pivCLASS Authentication Module (PAM)
and a complete line of PIV readers, enabling
agencies to quickly and easily acquire all of the
necessary components for their PIV-enabled access
control systems.
Achieving Compliance
Made Simple
HOW IT WORKS • Validates cardholder credentials both during
a card’s registration into local access control
Working together to deliver strong authentication
software and at the door.
at the door and during the initial cardholder
registration, the pivCLASS solution ensures the • Validates visiting cardholder credentials
card is the originally registered card and the from other agencies (i.e., provides certificate
cardholder is the person he/she claims to be. It path discovery and validation essential for
also verifies the card has not been forged, altered, interoperability across government agencies and
cloned, lost, stolen, shared, revoked or expired. HID any other entities cross-certified with the
Global pivCLASS solutions accomplishes this by Federal Bridge).
performing the following functions: • Provides centralized configuration and
• Automatically registers cards into the PACS management of pivCLASS products via a
database with no manual data entry. graphical user interface.
• Executes full path discovery and certificate • Allows configuration of trusted card issuers,
revocation checking using CRL, OCSP or SCVP. authentication modes, Wiegand output format
and more.
• Periodically retrieves card revocation status from
issuing certificate authorities. • Provides centralized distribution of firmware
updates to pivCLASS Authentication Modules.
• Caches validation data and offers degraded
mode settings to allow continued validation when • Collects detailed log activity for display
access to card issuer validation data (e.g., CRL) and export.
is unavailable.
PIV-Enablement for Existing PACS
The modular approach allows agencies to deploy different
pivCLASS components over time as their budget allows and as they
work toward achieving compliance. The pivCLASS off-the-shelf
software is integrated with more than 30 physical access control
systems and does not require any software development.
-B R O C H U R E
“Controlled Areas”
“Limited Areas”
“Exclusion Areas”

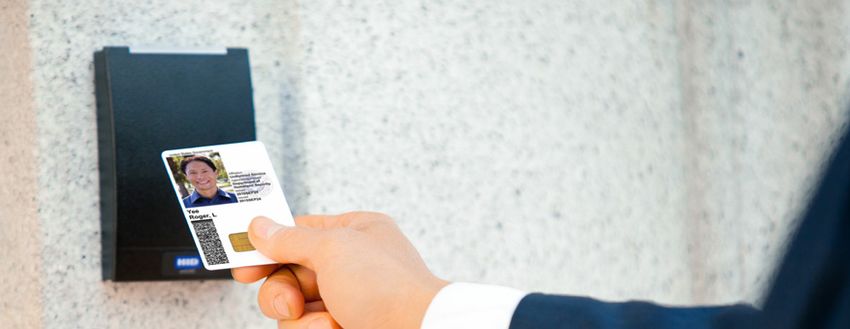

HID PIV-enabled Readers Meet
Any Authentication Mode and
Any Assurance Level

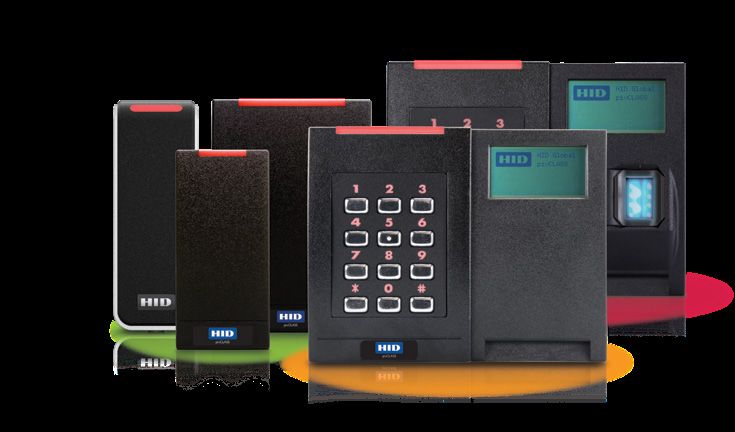

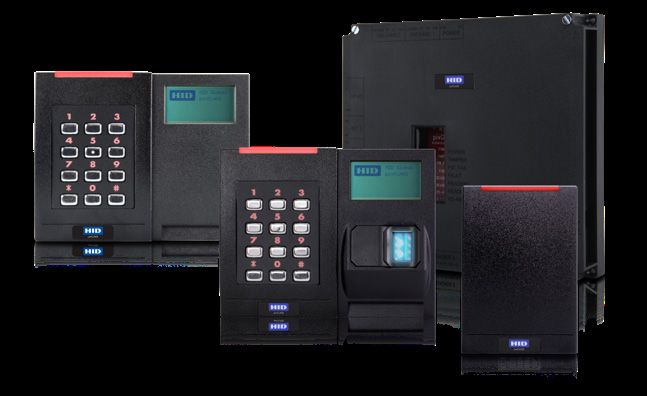

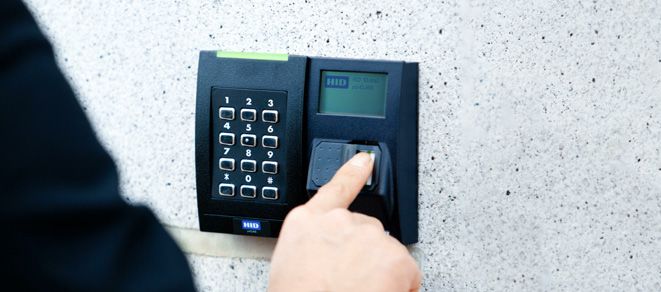

H I D P I V- E N A B L E D R E A D E R S The readers also support bi-directional
communication to the PAM and panels running
The pivCLASS Solution suite includes a broad
pivCLASS Embedded Authentication.
selection of readers for agencies to meet any
security level and the NIST SP 800-116 guidelines.
HID PIV-enabled readers work with the pivCLASS ASSURANCE LEVELS AND
Authentication Module™ or pivCLASS Embedded AU T H E NT I C AT I O N M O D E S
Authentication, to meet requirements for: Most Federal facilities have likely completed a risk
• Any assurance level: controlled, limited or assessment that designated each door and portal
exclusion. as requiring an unrestricted, controlled, limited
or exclusion assurance level. NIST SP 800-116
• Any authentication mode: CHUID, CAK, PIV +
specifies which authentication modes are required
PIN, or PIV + PIN + BIO; also, FASC-N reads for
for which assurance levels. For instance, a door
non-SP800-116 “unrestricted” areas, and the
leading to a high security area will require a more
additional TWIC authentication modes, CHUID +
advanced reader (in order to perform additional
BIO and CAK + BIO.
identity checks, such as biometric fingerprint
• Nearly any card type, contact or contactless, match) than a lower security door.
including PIV, PIV-I, CIV (a.k.a., PIV-C), TWIC,
FRAC and CAC. Figure 1 illustrates the different security levels
Additionally, the HID PIV-enabled readers provide per NIST SP 800-116-1 and the attack vectors
fully functional compatibility with existing Seos, addressed by the pivCLASS solution.
iCLASS® and HID Prox cards, easing the transition
to PKI-based credentials and supporting temporary
or visitor use.
Meet Any Assurance Level Secures against cards that are...
Security Area Authentication Authentication Revoked Counterfeit Copied Lost Shared
(per NIST SP800-116 Factors Models or Altered or Cloned or Stolen
& Risk Assessment)
Unrestricted None FASC-N •
Unrestricted 1 CHUID + VIS • •
Controlled 1 CAK • • •
Limited 2 PIV + PIN • • • •
Exclusion 3 PIV + PIN + BIO • • • • •
BIO: Biometric; CAK: Card Authentication Key; CHUID: Cardholder Unique Identifier; FASC-N: Federal Agency Smart Credential Number; PIN: Personal Identification Number;
PIV: Personal Identity Verification (PIV) Authentication Key; VIS: Visual
Figure 1
pivCLASS Authentication
Module or pivCLASS Embedded
Authentication
P I VC L A S S® AU T H E NT I C AT I O N In its role, the PAM does the “heavy lifting” of
MODULE cryptographic operations for PIV cardholder
The pivCLASS Authentication Module (PAM) is credential authentication each time a card is
an embedded computer packaged in a small form presented to a reader. Each PAM can process up to
factor with pre-installed, updatable firmware. The two readers at one or two doors.
PAM is installed between a supporting reader (such
as an HID PIV-enabled reader) and the existing INCREASED OVERALL SYSTEM
access control panel, and provides configurable SECURITY
Wiegand output to the controller. The pivCLASS solution is architected for the
security-conscious yet cost-sensitive security
This enables the system to be upgraded to administrator. The pivCLASS Authentication Module
support PIV cards for access control; the access typically sits inside the secure perimeter, where it –
control panels do not have to be replaced or even not the reader – performs the critical cryptographic
reconfigured, and the head-end access control functions. This architecture locates the PKI
software does not need to be enhanced with new operations within the secure perimeter rather than
features. Similarly, much of your existing wiring may in an expensive, PKI-capable reader placed on the
be reusable. insecure/attack side of the door.
Readers pass card information to the PAM, which pivCLASS Embedded Authentication
performs the required authentication to validate (or pivCLASS Embedded Authentication takes the
invalidate) the cardholder credential. If validated, functionality of the pivCLASS Authentication
the badge ID is then passed to the existing access Module and embeds it into
control panel for the access authorization decision. the physical access control
panel for a more integrated
Since the PAM regularly receives and caches approach and supports all
cardholder credential status from the pivCLASS of the same authentication
Certificate Manager, the result is nearly real-time modes as the PAM.
PKI-based high security at the door.
pivCLASS Software Communicates
with Trust Authorities
P I VC L A S S R E G I S T R AT I O N E N G I N E Typically, an agency will install the pivCLASS
A N D P I VC L A S S C E RT I F I C AT E Registration Engine on each workstation where
MANAGER credential registration is to occur. pivCLASS
The pivCLASS Registration Engine is a software Certificate Manager software is required for
module that reads, validates, authenticates and ongoing revalidation of certificates after registration
registers credentials with a PACS automatically and is usually placed on the PACS server, although
without manual data entry. The software validates alternative configurations can be implemented to
multiple card types, including PIV, PIV-I, CIV (PIV-C), meet specific needs.
CAC NG, CAC EP, TWIC and FRAC.
The communication flow between pivCLASS
The pivCLASS Certificate Manager is a software elements and other parts of the architecture is
module that, after credential registration, regularly detailed in Figure 2.
communicates with external trust authorities to U
check the status of cached certificates. Upon GENUINE HID® EN IN
G
E
determining a status change, the software can With Genuine HID, the
suspend any card associated with a revoked U.S. Federal Government,
certificate and/or send an email to a distribution government contractors se
list for notification. pivCLASS Certificate Manager and other facilities benefit cu
re ident
it
y
also sends that information via Ethernet (AES256 from the broadest product
encryption optional) to the pivCLASS Authentication line of trusted, fully interoperable secure identity
Modules (PAMs) for enforcement. solutions in the market. Genuine HID solutions are
designed and built in IS0 9001 certified facilities;
pivCLASS Reader Services sends mode include worldwide agency certifications; and are
updates, TWIC Privacy Keys (TPKs), and other backed by global product warranties. Supported
information to PAMs and supports multiple by industryleading expertise and the strongest
authentication modes including FASC-N, CHUID, delivery and response platform available, Genuine
CAK, PIV + PIN, CHUID + BIO, CAK + BIO, and PIV + HID solutions reinforce the long-standing trust that
PIN + BIO. when customers purchase from HID Global, they
are investing with absolute confidence.
pivCLASS® Software Licensed Options:
• pivCLASS Registration Engine: reads, validates, authenticates and automatically registers valid credentials into
PACS database without any manual data entry.
• pivCLASS Certificate Manager: periodically revalidates the status of digital certificates and updates the PACS
with any change in status; can automatically suspend any card associated with a revoked certificate; can send
an email to a distribution list for notification.
• pivCLASS Reader Services: configures and manages PIV-enabled readers via the PAM.
pivClass® System Diagram
PACS PACS Validation Authorities
Controller/Panel Software
Federal Bridge, CRL, OCSP,
Existing Physical Access Existing Security Mgmt
SCVP, TWIC Cancelled Card List
Control System (PACS) System Head-end
Module or pivCLASS
pivCLASS Embedded Registration Engine
Authentication & pivCLASS
Certificate Manager
Authentication Module Registration Engine &
& Reader Functions Certificate Manager Functions
• Signature checks • Credential Registration
• Private key challenge • Path discovery and validation
• Conformity & freshness checks • Revocation checking
• PIN & BIO checks
Figure 2
