AeroSpace and Defence
Industries Association of Europe
SSG meeting N°36
on the 19th – 20th of Nov. 2019
PDM-IF
Product Data Management
Implementor Forum
Frederic DARRE - Airbus
Kevin LeTutour – Boost Conseil
Slide 1 ASD SSG N°36 : 19 – 20 Nov. 2019
Table of contents
• PDM-IF organisation reminders
• Test rounds
• Test cases review
• Next event
Slide 2 ASD SSG N°36 : 19 – 20 Nov. 2019
User
Community
Standardization Feedbacks
Extensions & Improvements Use Cases
STEP Application Protocols (AP) Requirements
AP242 XML
CAx-PDM
Interoperability
AP242 complementary
use cases
RV&V-IF
Long-term Evaluation of tools
Archiving & with AP242 interfaces
Retrieval available on the market
Use Cases
Requirements
AP242 Benchmarks
Slide 3 ASD SSG N°36 : 19 – 20 Nov. 2019
PDM-IF structure
User Group Implementor Group
Defines Use Cases Reviews Use Cases
Derives Defines Recommended
requirements Practices
For PDM standards Enables expert
For implementations discussions in trusted
based on these Requirements
User Implementor environment
Describe Best Community
Interoperable
Forum
Conducts Test Rounds to
Practices Solutions
improve PDM data
Enables expert Requirements
exchange quality
discussions in Suggestions for
Standardized Improvement
Standardized Provides feedback to
trusted environment Format Format
standardization activities
Defines roadmap Standard-
ization
Community
Slide 4 ASD SSG N°36 : 19 – 20 Nov. 2019
PDM-IF Consortium Members 2019
prostep ivip AFNeT
Airbus Airbus
Beta CAE CT CoreTechnologie
BMW Dassault Systèmes
Boeing Datakit
Daimler GIFAS (Dassault Aviation, Liebherr)
PDTec PFA
PROSTEP AG PTC
T-Systems
Slide 5 ASD SSG N°36 : 19 – 20 Nov. 2019
Overall planning 2019-2020
Year N Year N+1
User Group
User Group Joint UG-IG User Group Joint UG-IG
Workshop Workshop Workshop Workshop
Use cases definition for next year Use cases definition for next year
Implementor Group
Implementor Group Implementor Group
Workshop Workshop
TR08 TR09 TR10 TR11
Test case definitions and Test case definitions and Test case definitions and Test case definitions and
Test Rounds Test Rounds Test Rounds Test Rounds
Related
ISO SC4 Offsite Offsite ISO SC4 ISO SC4 Offsite Offsite ISO SC4
Meetings Meetings Meetings Meetings Meetings Meetings Meetings Meetings
STEP AP242 Edition 2 International Standard development and publication
Slide 6 ASD SSG N°36 : 19 – 20 Nov. 2019
Test rounds 2019 - 2020
TR08: 2019 Q1 Q2
• multi-ids (“Data exchange VDA UC2”)
• Cax-PDM interoperability (CAx-IF TCs)
TR09: 2019 Q3 Q4
• Continued: multi-ids multi-languages (“Data exchange VDA UC2”)
• Continued: Cax-PDM interoperability (CAx-IF TCs)
TR10 / TR11: 2020
• VIM: Visual Issue Management
• AD/AP: as-designed/as-planned views OEM to Supplier exchange
• Substitute and alternate part
Slide 7 ASD SSG N°36 : 19 – 20 Nov. 2019
Multi-ids and multi-language test case
It covers different scenarios:
Update sending of data as well
as return sending of data
Requires management of
common part IDs at OEM and
supplier, independently from
the local IDs at OEM and
supplier side.
Slide 8 ASD SSG N°36 : 19 – 20 Nov. 2019

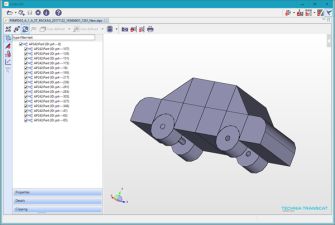

CAx-PDM Interoperability test case
This test case describes the minimum amount of data that should be exchangeable between CAx
sys-tems and PDM systems, when one of the exchange partners hasn’t got a PDM system.
It covers different scenarios:
• Update sending of data as well as return sending of data
• Requires management of common IDs at OEM and supplier
AP242 XML
CAx-PDM
Interoperability
Slide 9 ASD SSG N°36 : 19 – 20 Nov. 2019
VIM: Use Case Visual Issue Management
The simulation expert identifies an issue
Collision between part and welding gun
He uses Visual Issue Management workflow to document
the issue and forwards to designer
The geometric designer opens the issue /scene via VIM
in CAD tool and provides a solution in CAD tool
Designer hands over the solution back to the simulation
expert via VIM

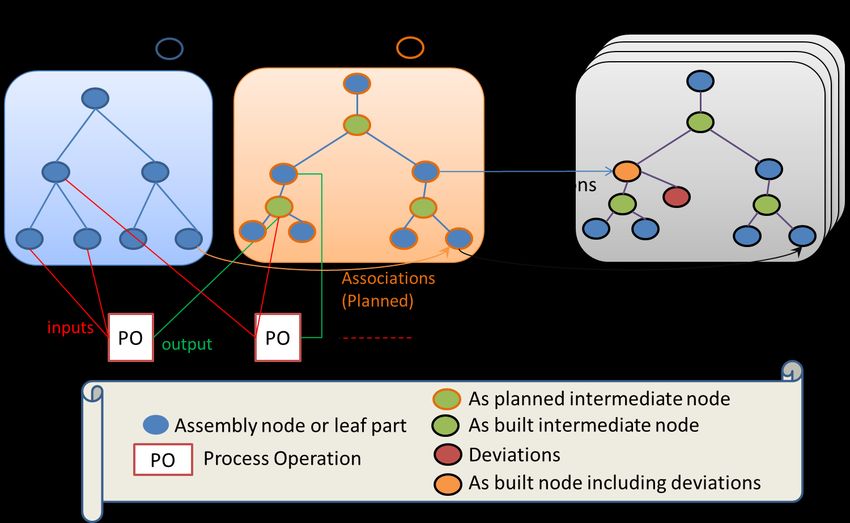

Slide 10 ASD SSG N°36 : 19 – 20 Nov. 2019AD/AP: As-Designed/As-Planned views OEM to Supplier exchange
Distribution of engineering and manufacturing information to manufacturing suppliers, for production and/or manufacturing
engineering, using AP242 XML files referencing and, positioning 3D CAD models as external documents. It is not co-engineering.
OEM is able to produce a valid technical data package from different applications of its information system, which is essentially its
PDM system. The content of the dataset exported from its PDM system with the as-designed view (EBOM) and the as-planned
(MBOM) view of the product structure, and the relationships between those two views.
The supplier is able to consume the technical data package. By validating and importing the information inside its information
system, potentially including PDM, ERP and MES systems.
Slide 11 ASD SSG N°36 : 19 – 20 Nov. 2019Next event in december, PDM-IF workshop in Paris
3/12/2019 Full day => Implementer Group
- Current test rounds
- Recommended practices status
- Test cases preparation
4/12/2019 Morning => Joint session between Implementer Group and User Group
- Results presentation
- New use cases presentation
- Test rounds planning for 2020
4/12/2019 Afternoon => User group session
- Use cases consolidation
- Project plan for 2020
Slide 12 ASD SSG N°36 : 19 – 20 Nov. 2019Previous test rounds highlight
Simple effectivities (Serial number, date …) Complex effectivities and options
“Black” “Red”
Interoperability of customized attributes
CAD - PDM Interoperability
Interoperability of multiple
Ids and Multi-linguage strings
