Det-Tronics offers advanced flame detection
technologies and high-performance solutions
that are:
▲▲ Certified SIL 2 Capable for safety compliance
▲▲ Performance certified to FM 3260, EN 54
and VNIIPO to respond to a multitude of
fuel sources
▲▲ NFPA 72 compliant LON output for safety
system integration
TESTED AND PROVEN
All detectors pass rigorous flame testing,
including exposure to multiple fuel sources ➍
and at varying ranges, both on and off axis.
Skilled engineers also simulate specific
applications to ensure uncompromising
safety and performance. X5200 UVIR Flame Detector
with Q9033B Stainless Steel
Mounting Arm
➊▲ ▲Heated optics for frigid or humid conditions ➋
➌ ➏
➋▲▲Integrated wiring compartment for ease
of installation
➎
➌ ▲▲▲Rugged aluminum or stainless steel
construction for optimum environmental
protection
➊
➍▲ Vibration-resistant mounting arm to ensure
stability and maximize performance ➍
➎ Factory-calibrated automatic Optical Integrity
®
( ) function to ensure continuous operation

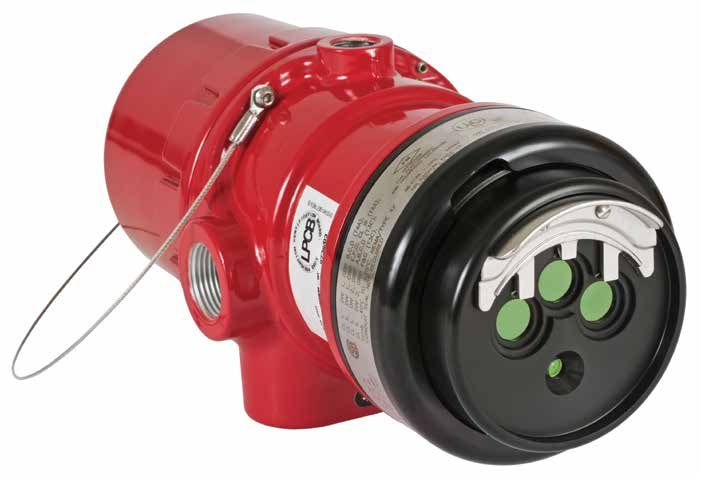

➏ Integrated data logger for event, time and date X3301 Multispectrum Infrared
Flame Detector with Q9033A
stamping
Aluminum Mounting Arm
➋
➏ ➌
➎
➊
www.hmagrp.com Email: instrumentation@hmagrp.com
Optical Flame
Detection Solutions
A Proven Choice Around the World
A Proven Choice Around the World
SUPERIOR PERFORMANCE OF THE X3301 MULTISPECTRUM INFRARED FLAME DETECTOR
45º
X3301 Multispectrum IR Flame Detector
80.7m (265’) 30º Conventional Multispectrum IR Technology
73.1m (240’) 15º ▲▲ The world’s foremost flame
detector, approved for the widest
64.0m (210’)
60.9m (200’)
range of hydrocarbon fires
0º
▲▲ Performance approved at 81m (265')
48.7m (160’) for a 0.3 x 0.3m (1x1') n-Heptane fire
15º ▲▲ Best in class for flame detection
36.5m (120’) coverage and false alarm rejection
▲▲ Patented detection algorithms,
24.3m (80’) optics and signal processing ensure
30º
reliable performance
12.1m (40’) ▲▲ Marine approved for deck
installation offshore
0.0m (0’) 45º
Based on global third party performance data of a 0.3 x 0.3m (1x1’) n-heptane fire.
www.hmagrp.com Email: instrumentation@hmagrp.com
Optical Flame
Detection Solutions
Flame Detectors from Det-Tronics
Flame Detectors from Det-Tronics
X3302 MULTISPECTRUM INFRARED FLAME DETECTOR
▲▲ Proven technology for fast detection of invisible hydrogen
flames and methanol
▲▲ Performance approved at 30.5m (100'), on and off axis, for
a 0.76m (30") plume of hydrogen
▲▲ Ideal for hydrogen storage, aerospace, battery rooms,
refining and filling stations
X5200 ULTRAVIOLET/INFRARED FLAME DETECTOR
▲▲ Leverages state-of-the-art UV and IR technologies to
detect fire
▲▲ High-speed, versatile detector for specialty applications,
such as munitions and aerosol filling
▲▲ Auxiliary relay offers the flexibility to customize detection,
using UV, IR or both
X9800 INFRARED FLAME DETECTOR
▲▲ Quick Fire technology for high-speed detection in areas
with infrared sources
▲▲ Time Domain Signal Analysis (TDSA) provides superior
detection capability while rejecting false alarm sources
▲▲ Reliable detector for powder coating, paint spray booths,
printing and industrial processes
X2200 ULTRAVIOLET FLAME DETECTOR
▲▲ Ultraviolet sensor and advanced algorithm for rapid
detection and false alarm immunity
▲▲ Responds to unusual fire types, such as metal and sulfur
▲▲ Superior signal processing meets stringent requirements
for ultra high-speed response
www.hmagrp.com Email: instrumentation@hmagrp.com
Optical Flame
Detection Solutions
InnovativeFlame
Innovative Flame and
and Safety
SafetySolutions
Solutions
EAGLE QUANTUM PREMIER ®
(EQP) SAFETY SYSTEM
▲▲ Combines gas and flame
detection with extinguishing
agent release capability in a
single integrated solution
▲▲ Certified SIL 2 Capable
▲▲ NFPA 72 compliant
▲▲ Redundant, fault-tolerant loop
reduces installation costs
ACCESSORIES
Stainless Steel Aluminum X-Series Weather Shield Universal Air Shield Collar Attachment
Mounting Arm Mounting Arm Assembly
Flange Mount Laser/Aimer Holder Field of View Limiter/ Sun Shade for X-Series Inspector Software
Weather Shield Flame Detectors
www.hmagrp.com Email: instrumentation@hmagrp.com
Optical Flame
Detection Solutions
Select from Proven Products
Select
for from
Your Proven
Safety Products for Your
Needs
Safety Needs
X3301 X3302
PERFORMANCE APPROVED Multispectrum Multispectrum
X5200 Ultraviolet/
X9800 Infrared X2200 Ultraviolet
Infrared
DETECTION RANGE (FM) Infrared Infrared
n-Heptane 81m (265') 26m (85') 26m (85') 26m (85')
0.3m x 0.3m (1x1')
Diesel 53m (175')
0.3m x 0.3m (1x1')
Methanol 46m (150') 21m (70')
0.3m x 0.3m (1x1')
Methane 38m (125') 20m (65') 18m (60') 30.5m (100')
0.81m (32")
Propane 38m (125')
0.81m (32")
Hydrogen 30.5m (100')
0.76m (30")
Black Powder 3m (10') 3m (10') 3m (10')
40g
Jet-A
46m (150')
0.3m x 0.3m (1x1')
DETECTOR APPLICATION X3301 X3302
X5200 Ultraviolet/
Multispectrum Multispectrum X9800 Infrared X2200 Ultraviolet
Infrared
Infrared Infrared
Refinery ▲ ▲ l l
Platform ▲ l l
Pipeline ▲ l l
Tank Farm ▲ l l
Loading Rack ▲ l l
Petrochemical ▲ l l l
FPSO ▲ l
Marine ▲ l
Turbine Enclosure ▲ ▲ l
Hydrogen ▲ l
Ammonia l
Electrostatic Paint ▲ l
Munitions ▲ l l
Metal ▲
Printing l ▲ l
Powder Coating l ▲
Transformer ▲ l
Battery Room l ▲
Warehousing ▲ l
Aerosol Fill ▲ l l
Hangar ▲ l
▲▲Highly Recommended
l▲Recommended
