LOCK-BLOCK LTD.
AGGREGATES 604-325-9161 | 1-800-865-2565
info@lockblock.com | www.lockblock.com
PRICES EFFECTIVE MAY 11 - 31, 2021
$4.99/tonne CLEARANCE SALE $11.99/tonne
SALE PRICE until June 30, 2021 SALE PRICE
3" Minus Road Base 3/4" Minus Road Base Navvy Jack
Reg Price: $1.99/tonne Reg Price:
$8.00/tonne Reg Price: $6.00/tonne $13.00/tonne
$12.99/tonne $5.99/tonne $11.99/tonne
SALE PRICE SALE PRICE SALE PRICE
3/4" Clear Crushed Concrete 1"- 3" Clear Crushed Concrete 1/2" Clear Crushed Concrete
Reg Price: Reg Price: Reg Price:
$14.50/tonne $8.50/tonne $13.50/tonne
Additional $0.50/tonne environmental fee on all
aggregates
Testing data available upon request.
$25 minimum charge + tax.
TM
*Prices subject to change without notice and to all applicable taxes.
Page 1/26
LOCK-BLOCK LTD.
CONCRETE RECYCLING 604-325-9161 | 1-800-865-2565
info@lockblock.com | www.lockblock.com
PRICES EFFECTIVE MAY 11 - 31, 2021
*Load quality is subject to the scale operator's discretion.
Depending on the composition, Lock-Block Ltd. reserves the right to charge accordingly.
Broken up, workable pieces, no contamination
$7 / Tonne
whatsoever, clear concrete.
'Light' contamination with steel. $13 / Tonne
'Medium' contamination with steel mesh, some rebar. $17 / Tonne
'Heavy' contamination with steel mesh, lots of rebar. $25 / Tonne
Pump Washouts $115
Off-Load (in Flat Deck) $9 / unit
Recycling Blocks (Any Shape) $14 / block
Recycling Mini-Blocks (Any Shape) $6 / block
Recycling Barriers (Any Type) $12 / barrier
$25 minimum charge + tax
MATERIALS THAT WILL NOT ACCEPTED:
Asphalt Drywall or gypsum board
Styrofoam Asbestos
Ceramic or porcelain tiles Plastic
Radiant floor heating tubes Dirt
Anything flammable Wood
Garbage Red Brick
TM
*Prices subject to change without notice and to all applicable taxes. Page 2/26
LOCK-BLOCK LTD.
BARRIERS 1 604-325-9161 | 1-800-865-2565
info@lockblock.com | www.lockblock.com
PRICES EFFECTIVE MAY 11 - 31, 2021
690mm CRB Roadside: $210 690mm CRB Slotted: $219 690mm CDB Drainage: $549
690 mm 690 mm
690 mm
1000 mm
1000 mm 250 mm
2500 mm
562 mm 562 mm 2500 mm 562 mm 2500 mm
3000 lbs | 1350 kg 2800 lbs | 1250 kg 2100 lbs | 1000 kg
810mm CMB Median: $229 810mm CMB Slotted: $239 810mm CMDB Drainage: $575
810 mm 810 mm 810 mm
1000 mm
1000 mm
2500 mm
612 mm 612 mm 2500 mm 2500 mm
612 mm
3800 lbs | 1700 kg 3600 lbs | 1650 kg 2550 lbs | 1150 kg
Bottom two rows of Lock-Block™ barriers available in Rod-Lock™ variants
690mm Lock-Block™ Barrier: $199 690mm Lock-Block™ Half Barrier: $174
1500 mm 750 mm
690 mm 690 mm
562 mm 562 mm
1700 lbs | 750 kg 900 lbs | 400 kg
690mm Lock-Block™ L Junction: $239 690mm Lock-Block™ T Junction: $259
690 mm 690 mm
656 mm 656 mm 656 mm 750 mm TM
800 lbs | 350 kg 1000 lbs | 450 kg
All barriers can be made with steel mesh reinforcement instead of fibre by request.
All produced MoTI Barriers meet or exceed the requirements of BC-MOTI-SS, and DBSS sections 211 and 941 Page 3/26
LOCK-BLOCK LTD.
BARRIERS 2 604-325-9161 | 1-800-865-2565
info@lockblock.com | www.lockblock.com
PRICES EFFECTIVE MAY 11 - 31, 2021
690mm Bullnition: $285 460mm CBN Bullnose: $135
690 mm
460 mm
562 mm
1200 mm
2500 mm
460 mm
460 mm
Available with lifting hole
2000 lbs | 900 kg 700 lbs | 300 kg
690mm to 810mm Transition: $235 460mm to 690mm Transition: $229
CTB-2H CTB-1E
690 mm
810 mm
562 mm
690 mm 612 mm 460 mm
2500 mm
1300 mm
562 mm 460 mm
1800 lbs | 800 kg 2400 lbs | 1100 kg
810mm Bridge Parapet Transition: $335 1070mm CMT Parapet Transition: $428
810 mm 1070 mm
612 mm 425 mm
810 mm
2500 mm
2000 mm
402 mm
402 mm
2600 lbs | 1200 kg 3840 lbs | 1750 kg
460mm CLB 18": $175 810 CPB Pier Barrier: $275
460 mm
810 mm
3050 mm
2500 mm
460 mm
414 mm
2100 lbs | 950 kg 3100 lbs | 1400 kg
All barriers can be made with steel mesh reinforcement instead of fibre by request.
All produced MoTI Barriers meet or exceed the requirements of BC-MOTI-SS, and DBSS sections 211 and 941
If available: TM
Used: 50% off regular price.
Utility: 30% off regular price.
CTB-3H also available (not pictured) Page 4/26
LOCK-BLOCK LTD.
BARRIER ADD ONS 604-325-9161 | 1-800-865-2565
info@lockblock.com | www.lockblock.com
PRICES EFFECTIVE MAY 11 - 31, 2021
690mm Tight Radius Modification: +$20
Rod-Lock™ hole: +$35 / key
Paint for Barrier: +$48
AVAILABLE SERVICES:
Installation call for quote
Relocation call for quote
Removal call for quote
Barriers are made as either:
Female-Female (E)
Male-Male (H)
Male-Female (E/H)

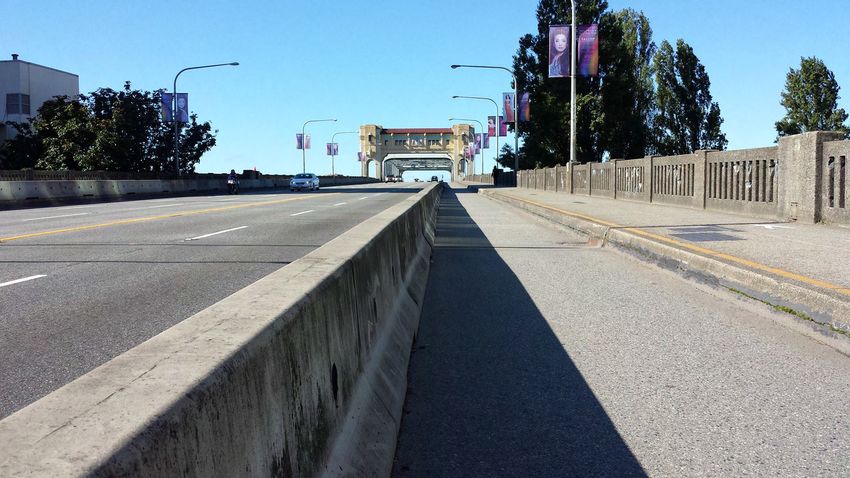

690mm CRB Barriers on the Burrard Street Bridge, Vancouver.
TM
All produced MoTI Barriers meet or exceed the requirements of BC-MOTI-SS, and DBSS sections 211 and 941.
*All Lock-Block™ barriers available in Rod-Lock™ variants. Page 5/26
WALL SYSTEMS
LOCK-BLOCK LTD.
604-325-9161 | 1-800-865-2565
info@lockblock.com | www.lockblock.com
GRAVITY WALL
Classic Lock-Block™ wall system used for over 3
decades for various construction application.
Design Manual available for professional engineers,
free of charge.
Example uses: retaining wall, storage bin, etc.
MSE WALL
Mechanically Stabilized Earth (MSE) walls constructed
with Standard Lock-Block™ units and extensible soil
reinforcement (such as Geogrid™).
Design Manual available for professional engineers,
free of charge.
Example uses: advanced retaining walls.
ROD-LOCK™ WALL
A composite, semi-gravity retaining wall
system, made of Lock-Block™ concrete blocks
and hot dip galvanized steel rods with locking
anchors.
Design Manual available for professional
engineers, free of charge.
Example uses: push wall, retaining wall,
storage bins, etc.
LANDSCAPING WALL
Walls made of half-scale blocks.
Size comparison Each block weighs 1/8th of its full-size counterpart.
between Can be used in all wall types shown (Gravity, MSE, and
Landscaping Block Rod-Lock™).
and Standard Block Default facing: Texturlock™.
Default strength: Min. 20MPa with min.4% air content.
TM
Page 6/26
LOCK-BLOCK LTD.
HOW TO ORDER: 604-325-9161 | 1-800-865-2565
info@lockblock.com | www.lockblock.com
1 - Choose Blocks (Page 8 - 14)
Keyed Blocks, Flat Tops, Transitions, Benches, and
Specialty Blocks.
Full Keyed Standard
2 - Pick the Specifications (Page 15)
Utility Class A, Utility Class B, Tagged 20, Tagged 30,
Tagged 32, and MoTI Spec.
Location of Spec Tag
3 - Choose Facing (Page 16)
Standard Smooth, Smooth Grade A, Texturlock™,
Vertical Rib, Cutstone, Granite, or Custom.
Facing requests are unavailable for Utility Blocks.
Texturlock™ Facing
4 - Pick the Add-Ons (Page 17)
Weights, Paint, Anchors, Pipes, Rod-Lock™ Pricing, etc.
Rod-Lock™ Anchor
TM
Page 7/26
LOCK-BLOCK LTD.
KEYED BLOCKS 604-325-9161 | 1-800-865-2565
info@lockblock.com | www.lockblock.com
PRICES EFFECTIVE MAY 11 - 31, 2021
Prices are reflective of Tagged20 Blocks, with guaranteed 20MPa compressive strength, min. 4% air content, and standard smooth facing.
Full Keyed: $149 $134 Half Keyed: $125 $119 Double Wide Keyed: $299
750 mm
750 mm
750 mm
1500 mm 15 1500 mm
750 mm 1500mmm 00
m
750 mm 50 mm
7750
mm
Utility Class A: $75 $69
20mm chamfer available
20mm chamfer available 7550 lbs | 3450 kg
20Mpa 3800 lbs 1700 kg 1850 lbs | 850 kg
30Mpa 4070 lbs 1850 kg
Half-Height: $125 $119 Half-Height Half: $120 $114 Three Cross: $299
375 mm 750 mm
375 mm
1500 mm 2250 mm
750 mm 750 mm
750 mm 750 mm
1850 lbs | 850 kg 900 lbs | 400 kg 5650 lbs | 2550 kg
Half-Height Three Cross: $279 Four Cross: $399 Five Cross: $499
750 mm
375 mm 750 mm
2250 mm 3000 mm 3750 mm
750 mm
750 mm 750 mm
2750 lbs | 1250 kg 7500 lbs | 3400 kg 9400 lbs | 4250 kg
Transition Keyed: $164 Wedge Keyed: $164
22.5°
Design Manual available for 750 mm 750 mm
Professional Engineers, free of
charge.
Email for info.
1500 mm
1500 mm
750 mm
153 mm
TM
3000 lbs | 1350 kg Texture available on back face
2250 lbs | 1000 kg
Blocks are normally available for immediate delivery, however some configurations may not be in stock, and will require
advance notice. Granite or textured facing can be added to most blocks upon request. Block weights can vary by 5%. Page 8/26
FLATS
LOCK-BLOCK LTD.
604-325-9161 | 1-800-865-2565
info@lockblock.com | www.lockblock.com
PRICES EFFECTIVE MAY 11 - 31, 2021
Prices are reflective of Tagged20 Blocks, with guaranteed 20MPa compressive strength, min. 4% air content, and standard smooth facing.
Full Flat: $169 $154 Half Flat: $145 $139 Double Wide Flat: $319
750 mm
750 mm
750 mm
1500 mm
75
750 mm 0
m 1500 mm 1500 mm
m 750 mm 750 mm
Utility Class A: $89 20mm chamfer available
20mm chamfer available
1800 lbs | 800 kg 7350 lbs | 3350 kg
20MPa 3650 lbs | 1650 kg
30MPa 4100 lbs | 1870 kg
Half-Height Flat: $145 $139 Half-Height Half Flat: $140 $134 Three Cross Flat: $349
750 mm
375 mm
375 mm
1500 mm 2250 mm
750 mm 750 mm
750 mm
750 mm
1750 lbs | 800 kg 850 lbs | 400 kg 5490 lbs | 2490 kg
Half-Height Three Cross
Four Cross Flat: $440 Five Cross Flat: $549
Flat: $329
750 mm
750 mm
375 mm
2250 mm 3000 mm 3750 mm
750 mm 750 mm
750 mm
2610 lbs | 1180 kg 7320 lbs | 3330 kg 9150 lbs | 4160 kg
TM
Blocks are normally available for immediate delivery, however some configurations may not be in stock, and will require
advance notice. Granite or textured facing can be added to most blocks upon request. Block weights can vary by 5%. Page 9/26TRANSITIONS
LOCK-BLOCK LTD.
604-325-9161 | 1-800-865-2565
info@lockblock.com | www.lockblock.com
PRICES EFFECTIVE MAY 11 - 31, 2021
Prices are reflective of Tagged20 Blocks, with guaranteed 20MPa compressive strength, min. 4% air content, and standard smooth facing.
Full Transition Flat: $184 Half Transition: $144 2 to 1 Transition: $184
750 mm
750 mm
750 mm
1500 mm 1500 mm
750 mm 750 mm 750 mm
750 mm
2950 lbs | 1350 kg 1200 lbs | 550 kg 2300 lbs | 1050 kg
Side Transition: $184 Wedge Flat: $184
22.5°
750 mm
750 mm
1500 mm
1500 mm
750 mm
153 mm
Texture available on back face
2450 lbs | 1100 kg 2150 lbs | 1000 kg
Wedge Blocks in corner Wedge Blocks can be used to
connect two walls at angles, in
increments of 22.5°, making them
perfect for pre-loads and irregular
site plans.
TM
Blocks are normally available for immediate delivery, however some configurations may not be in stock, and will require
advance notice. Granite or textured facing can be added to most blocks upon request. Block weights can vary by 5%. Page 10/26BENCHES 1
LOCK-BLOCK LTD.
604-325-9161 | 1-800-865-2565
info@lockblock.com | www.lockblock.com
PRICES EFFECTIVE MAY 11 - 31, 2021
Prices are reflective of Tagged20 Blocks, with guaranteed 20MPa compressive strength, min. 4% air content, and standard smooth finish.
Full Bench: $154 Half Bench: $134 Left Corner Bench: $184
300 mm
300 mm
300 mm
750 mm
750 mm
750 mm
450 mm 450 mm 450 mm 450 mm
1500 mm 1500 mm
750 mm 750 mm
750 mm 750 mm
Utility Class A: $94
2750 lbs | 1250 kg 1350 lbs | 600 kg 2950 lbs | 1350 kg
Right Corner Bench: $184 Left Transition Bench: $184 Right Transition Bench: $184
300 mm 750 mm 750 mm
750 mm
450 mm
150
m 0m
1500 mm 0m
150 m
750 mm
750 mm
750 mm
3950 lbs | 1350 kg 2100 lbs | 950 kg 2100 lbs | 950 kg
Outside Corner Block Wall with Standard Smooth Facing
Left Transition Bench
Full Bench
Left Corner Bench Right Transition Bench
Transition Keyed
Full Keyed TM
Blocks are normally available for immediate delivery, however some configurations may not be in stock, and will require
advance notice. Granite or textured facing can be added to most blocks upon request. Block weights can vary by 5%. Page 11/26BENCHES 2
LOCK-BLOCK LTD.
604-325-9161 | 1-800-865-2565
info@lockblock.com | www.lockblock.com
PRICES EFFECTIVE MAY 11 - 31, 2021
Prices are reflective of Tagged20 Blocks, with guaranteed 20MPa compressive strength, min. 4% air content, and standard smooth finish.
Left Inside Corner Bench: $174 Right Inside Corner Bench: $174
300 mm 300 mm
450 mm
450 mm
1500 mm 1500 mm
750 mm
750 mm
2550 lbs | 1150 kg 2550 lbs | 1150 kg
Wedge Bench: $194 4-Step Stairs: $259
300 mm 750 mm
750 mm
375 mm
750 mm
187.5 mm
450 mm
1500 mm
1500 mm
750 mm
153mm
Texture available on back face
1550 lbs | 700 kg 2250 lbs | 1050 kg
Full Stairs: $249 Half Stairs: $189
Steps are 250mm x 3
Steps are 250mm x 3 750 mm
750 mm
1500 mm
750 mm 750 mm 750 mm
1200 lbs | 550 kg
2400 lbs | 1100 kg
TM
Blocks are normally available for immediate delivery, however some configurations may not be in stock, and will require
advance notice. Granite or textured facing can be added to most blocks upon request. Block weights can vary by 5%. Page 12/26SPECIALTY BLOCKS
LOCK-BLOCK LTD.
604-325-9161 | 1-800-865-2565
info@lockblock.com | www.lockblock.com
PRICES EFFECTIVE MAY 11 - 31, 2021
Weight of all Anchors vary +/-5%
Large Anchor: $1480 Medium Anchor: $1280 Small Anchor: $980
69"" 69"" 48" 48" 34"" 34""
60" max.
45.5" max.
58" max.
73" 73"
48" 48" 40.5" 40.5"
Max Weight: Max Weight: Max Weight:
22700 lbs | 10300 kg 10000 lbs | 4550 kg 3550 lbs | 1600 kg
10.1 Imperial Tons 4.5 Imperial Tons 1.6 Imperial Tons
Parking Curb: $69 4' x 3' Parking Pad: $179
6"
5.25"
Sound Wall: $1698
7"
9"
4' 3'
7'6"
200 lbs | 100 kg 650 lbs | 300 kg
Tuf-Stop™ Curb by Tuf-Tite w/ Gutter Block: $199 9'10"
1500 mm 4'
Yellow Plastic Cover: $99
10300 lbs | 4700 kg
750 mm
6'
750 mm
6"
750 mm
6"
3150 lbs | 1450 kg
160 lbs | 70 kg
Full Planter: $369 Standard Smooth Half Planter: $249 Standard Smooth
750 mm
750 mm
1500 mm
750 mm 750 mm
750 mm
Four Face Textured: $349 Four Face Textured: $229 TM
2850 lbs | 1300 kg 1550 lbs | 700 kg
Blocks are normally available for immediate delivery, however some configurations may not be in stock, and will require
advance notice. Granite or textured facing can be added to most blocks upon request. Block weights can vary by 5%. Page 13/26SPECIALTY BLOCKS
LOCK-BLOCK LTD.
604-325-9161 | 1-800-865-2565
info@lockblock.com | www.lockblock.com
PRICES EFFECTIVE MAY 11 - 31, 2021
Battered Block: $199
9.5°, 12° or 20 °
Battered Blocks can be used to
create walls, without doing complex
grading to set the wall at an angle.
The block can be placed at any level,
allowing for greater control over your
retaining wall solution.
Batters Available:
1:4.7 - 12°
1:2.7 - 20°
*20° block shown 1:6 - 9.5°
3250 lbs | 1450 kg
Hinge Block: $199
With the Hinge Block, corners
can be built at any angle,
when installed at grade.
The min. radius of curvature
is 23m, and decreases with
battered walls. Shorter and
longer blocks can be used to
accommodate tighter radii.
m
23
3150 lbs | 1450 kg
TM
Blocks are normally available for immediate delivery, however some configurations may not be in stock, and will require
advance notice. Granite or textured facing can be added to most blocks upon request. Block weights can vary by 5%. Page 14/26SPECIFICATIONS
LOCK-BLOCK LTD.
604-325-9161 | 1-800-865-2565
info@lockblock.com | www.lockblock.com
Made of left-over concrete
UTILITY Might have cosmetic imperfections (less than 5%)
Engineered lifting eye: PC strand cable with breaking load of over 40,000 lbs
Availability varies time to time
CLASS A Example uses: any construction project with no restriction on concrete properties
Made of left-over concrete
UTILITY Some concrete defects and tolerance imperfects, or mixed and matched
textures
Engineered lifting eye: PC strand cable with breaking load of over 40,000 lbs
Availability varies time to time
CLASS B Example uses: some construction projects with no restriction on concrete
properties, temporary walls and bins, etc.
Proprietary Lock-Block™ concrete mix, freshly made in our precast facility
TAGGED More than 25 years of proven performance in British Columbia, Canada
Each block has an embedded aluminum tag with traceable QC Number
Engineered lifting eye: PC strand cable with breaking load of 40,000 lbs
20 Min. Guaranteed Strength: 20MPa
Min. Air Content: 4%
Meets or exceeds the requirements of CSA-A23 classes of exposure C-3, A-3, C-4,
A-4, F-1, F-2, R-1, R-2, R-3, N-CF, S-3
TAGGED Each block has an embedded aluminum tag with traceable QC Number
Engineered lifting eye: PC strand cable with breaking load of over 40,000 lbs
Min. Guaranteed Strength: 30MPa
30 Air Content: Min. 4% or as per customer requirements
Max. Water-Cement Ratio: 0.45
Meets or exceeds the requirements of CSA-A23 classes of exposure C-2, C-3, A-2,
A-3, C-4, A-4, F-1, F-2, R-1, R-2, R-3, N-CF, S-3
TAGGED Each block has an embedded aluminum tag with traceable QC Number
Engineered lifting eye: PC strand cable with breaking load of over 40,000 lbs
Min. Guaranteed Strength: 32MPa
32 Air Content: 5%-8% or as per customer requirements
Max. Water-Cement Ratio: 0.45
Meets or exceeds the requirements of:
BC MoTI Standard Specifications SS211 and DBSS 211; and
MoTI BC MoTI Recognized Product List, several retaining wall categories
CSA-A23 classes of exposure C-2, C-3, A-3, C-4, A-4, F-1, F-2, R-1, R-2, R-3, N-CF, S-3
Each block has an embedded aluminum tag with traceable QC Number
Engineered lifting eye: PC strand cable with breaking load of over 40,000 lbs
SPEC Min. Guaranteed Strength: 32MPa
Air Content: 5%-7%
Max. Water-Cement Ratio: 0.4
Final Step: Min. Cement content: 320 kg/m3
pick facing Slump (mm): 60-100
Note: Special provisions and job specific requirements may differ and must be TM
(next page) considered at the time of ordering.
Page 15/26FACINGS
LOCK-BLOCK LTD.
604-325-9161 | 1-800-865-2565
info@lockblock.com | www.lockblock.com
ON SALE
On Sale, $19 front face
Texturlock™: $5 discount per block. Smooth Grade A: $24 each side face
$19 front face $19 front face
Vertical Rib: $24 each side face Cutstone: $24 each side face
$93 front face
$490+ for liner
Granite: $143 each side face Custom: $90+ per block
*unavailable for utility blocks.
TM
Page 16/26BLOCK ADD-ONS
LOCK-BLOCK LTD.
604-325-9161 | 1-800-865-2565
info@lockblock.com | www.lockblock.com
PRICES EFFECTIVE MAY 11 - 31, 2021
STRENGTH ADD-ONS:
Custom Anchor: 25MPa: +$58 Geogrid™ Block:
+$94/anchor 30MPa: +$78 +$49/block
32MPa: +$98
32MPa MoTI: +$149
PIPE PRICING:
1"-3" Horizontal Pipe: +$19/pipe
5' Pipe: +$25/each Can be installed in any block.
Geo-grid to be provided by
PAINT: client.
20mm Chamfer: Paint for Full Block: +$38
Tapered Block:
$159/block Paint for Parking Curb: +$14 +$49/taper
Paint for Barrier: +$48 700 mm
750 mm
ROD-LOCK™ PRICING
Pipe holes 1.25": +$9/hole
1500 mm
Anchor (bottom row): +$49/anchor
750 mm
Hardware Kit
*Regular Chamfer is 50mm
(Coil rod with coupling nut, 750 mm
3800 lbs | 1750 kg
locking plate, and washer): +$69/set Backside is tapered.
< 3000 lbs |LANDSCAPING 1
LOCK-BLOCK LTD.
604-325-9161 | 1-800-865-2565
info@lockblock.com | www.lockblock.com
PRICES EFFECTIVE MAY 11 - 31, 2021
Landscaping Blocks are half the size of the Standard
Standard Size Blocks in each dimension, making them 1/8th in volume
and weight. They can be placed with a skid steer, saving
time and hard labour costs.
Landscaping Size
All Landscaping Blocks come with Texturlock™ Facing.
Planters can also be made with Texturlock™ on all sides.
Landscaping Blocks are guaranteed min. strength of 20Mpa, and 4% air content
STRENGTHS:
25MPa: +$28
30MPa: +$38
32MPa: +$38
ROD-LOCK™ PRICING
Pipe Holes 1": +$9/hole
Hardware Kit
LANDSCAPING ADD-ONS
(Coil rod with coupling nut,
Landscaping block prices are based on
Tagged20 and Texturlock™ facing. locking plate and washer): +$29/kit
OTHERS:
1"-2" pipe for anchoring: +$19/pipe
Additional textured faces: +$12/face
Back Face: +$29
Granite: +$48
Mini Full Keyed: $59 Mini Half Keyed: $49 Mini Keyed Transition: $69
375 mm
375 mm
375 mm
750 mm
750 mm
375 mm 375 mm 375 mm
375 mm
470 lbs | 210 kg 230 lbs | 110 kg 370 lbs | 170 kg
Mini Full Flat: $69 Mini Half Flat: $59 Mini Flat Transition: $79
375 mm
375 mm
375 mm
750 mm
750 mm
375 mm 375 mm 375 mm
375 mm
TM
460 lbs | 210 kg 230 lbs | 100 kg 370 lbs | 170 kg
Blocks are normally available for immediate delivery, however some configurations may not be in stock, and will require
advance notice. Granite or textured facing can be added to most blocks upon request. Block weights can vary by 5%. Page 18/26LANDSCAPING 2
LOCK-BLOCK LTD.
604-325-9161 | 1-800-865-2565
info@lockblock.com | www.lockblock.com
PRICES EFFECTIVE MAY 11 - 31, 2021
Mini Planter: $89 Mini Half-Height Keyed: $49 Mini 3-Cross: $99
375 mm
375 mm 188 mm
750 mm 1125 mm
750 mm 375 mm
375 mm 375 mm
350 lbs | 160 kg 230 lbs | 100 kg 700 lbs | 320 kg
Mini Bench: $79 Mini Half Bench: $69 Mini Left Corner Bench: $99
150 mm
150 mm
375 mm 375 mm
225 mm
225 mm
375 mm
225 mm 225 mm
750 mm
750 mm
375 mm 375 mm
375 mm 375 mm
340 lbs | 160 kg 170 lbs | 80 kg 370 lbs | 170 kg
Mini Right Corner Mini Left Transition Mini Right Transition
Bench: $99 Bench: $99 Bench: $99
150 mm 150 mm
150 mm
375 mm
225 mm 225 mm
750 mm
750 mm 750 mm
375 mm 375 mm 375 mm
370 lbs | 170 kg 270 lbs | 110 kg 270 lbs | 120 kg
Mini Three Cross Mini Half Height
Mini Half Height Flat: $59
Flat: $129 Three Cross Flat: $109
375 mm 188 mm 188 mm
1125 mm
750 mm
1125 mm 375 mm
375 mm
375 mm
TM
700 lbs | 320 kg 690 lbs | 310 kg 320 lbs | 150 kg
Blocks are normally available for immediate delivery, however some configurations may not be in stock, and will require
advance notice. Granite or textured facing can be added to most blocks upon request. Block weights can vary by 5%. Page 19/26SAMPLE WALLS
LOCK-BLOCK LTD.
604-325-9161 | 1-800-865-2565
info@lockblock.com | www.lockblock.com
These sample walls can be made in
both full scale, and landscape scale. Standard
Size
All of the blocks shown are available
for both scales. Landscaping
Size
The versatility of Lock-Block™ units
allow for many configurations.
FULL KEYED FULL PLANTER FULL FLAT TOP
TRANSITION FLAT FULL BENCH LEFT/RIGHT OUTSIDE LEFT/RIGHT
CORNER BENCH TRANSITION BENCH
TRANSITION FLAT
(RIGHT FACE)
FULL FLAT TOP TRANSITION FLAT
TRANSITION FLAT
(LEFT FACE)
(RIGHT FACE)
FULL PLANTERS
TRANSITION FLAT
(LEFT FACE)
FULL KEYED
FULL KEYED
(FRONT + LEFT FACE)
FLAT TOPPED BLOCK WALL BLOCK WALL WITH PLANTERS
WITH TEXTURLOCK™ FACING WITH TEXTURLOCK™ FACING
TM
Page 20/26ARCH-LOCK™
LOCK-BLOCK LTD.
604-325-9161 | 1-800-865-2565
info@lockblock.com | www.lockblock.com
PRICES EFFECTIVE MAY 11 - 31, 2021
The Arch-Lock™ system can be used for many different projects, such as river crossings,
underpasses, storage sheds, conveyor projects, and more. The system can be designed without
embedded steel, which means that Arch-Lock™ structures have design lives in the hundreds of
years. The system can also be designed with post-tensioning cables for seismic considerations.
With an optional headwall, this 6 metre arch
can be used as an overpass for both trains
and cars.
4.5m
3m Arch
1.5m diameter 6m
6m Arch with attached Headwall
Arches are available in full scale, with openings
of 3m and 6m, as well as landscape scale with
an opening of 1.5m. Arch height can be
increased by adding regular blocks to the
bottom of the design.
Mini Arch
ARCH PRICING
3M 6M
Voussoir Block $245 $269
Half Voussoir $195 $219
Keystone $275 $299
Half Keystone $225 $249
Full Base Block with 3m Arch with sloped end
Anchor Conduit $245 $269
Half Base Block with There are many style options available for an
Arch-Lock™ structure to match your projects'
Anchor Conduit $229 $254 aesthetics. TM
Additional Blocks can be added for specialty designs
such as the sloped blocks. Inquire for pricing.
Page 21/26STANDARD HEADWALLS
LOCK-BLOCK LTD.
604-325-9161 | 1-800-865-2565
info@lockblock.com | www.lockblock.com
PRICES EFFECTIVE MAY 11 - 31, 2021
Standard Headwall Blocks: $488.00/ block
*Prices affect the shaded area.
600mm Standard
(Outside Diameter: 740mm)
750mm Standard
(Outside Diameter: 910mm)
900mm Standard
(Outside Diameter: 1100mm)
TM
Each example contains Full Keyed Blocks for design purposes. Headwall Blocks are specialty
formed to fit around pipes. Page 22/26MINI HEADWALLS
LOCK-BLOCK LTD.
604-325-9161 | 1-800-865-2565
info@lockblock.com | www.lockblock.com
PRICES EFFECTIVE MAY 11 - 31, 2021
Mini Headwall Blocks: $158.00 / block
*Prices affect the shaded area.
600mm Mini
(Outside Diameter: 740mm)
750mm Mini
(Outside Diameter: 910mm)
900mm Mini
(Outside Diameter: 1100mm)
TM
Each example contains Full Keyed Blocks for design purposes. Headwall Blocks are specialty
formed to fit around pipes. Page 23/26ROD-LOCK™ SYSTEM
LOCK-BLOCK LTD.
604-325-9161 | 1-800-865-2565
info@lockblock.com | www.lockblock.com
Rod-Lock™ transparent view. For Rod-Lock™ pricing, see page 16
1" Galvanized Coil Rod
Min. yield strength:
70.3 kips / 315 kN
Option shown with blocks anchored to the bottom row.
Another option is to anchor the bottom block into the
ground. Included in
Hardware Kit
Anchors can be used in the bottom row, if the wall
does not need to be fixed into the ground. Most Galvanized
products (keyed blocks, benches, flat tops, and some Locking Washer
barriers) are available for use in the Rod-Lock™
system. Please call for more details. Rod-Lock™ Galvanized
Coupling Nut
Design Manual available, free of charge, for
Professional Engineers.
Galvanized
Washer
Galvanized
Bulb Anchor
or
Alternative
Anchoring
Rod-Lock™ Barriers can connect directly to
the top of the wall.
Our Lock-Block™ Barriers are specially designed to fit on
top of any Keyed Block, creating a stable and easy to
place design. They can be used with the Rod-Lock™ Hardware sold separately.
system for added stability. TM
Page 24/26ROD-LOCK™ SYSTEM
LOCK-BLOCK LTD.
604-325-9161 | 1-800-865-2565
info@lockblock.com | www.lockblock.com
By connecting blocks together,
the wall-cross section can be
strengthened dramatically,
allowing for steeper walls, where
available space may be
constrained.
By using soil anchors, walls can be
constructed in areas, where the
possibility of Geogrid™ cannot be
employed.
The Rod-Lock™ system
can be used laterally for
more stability. The Block
units can be paired with
soil anchors to create a
stable retaining system
for various soil types.
Rods can be installed on
any axis by offsetting
location.
For Horizontal Pipe pricing, see page 16.
TM
Page 25/26INSTALLATION TIPS
Note: These tips only apply to genuine Lock-Block™ products,
due to our superior manufacturing tolerances.
1 - Always start with a smooth base, joint lines in the 7 - Should the clearance become tight for the
wall can only be as straight as the base on which they second row of blocks, merely place the next block
are placed. A six inch blanket or granular materials, along the bottom row, with a slight gap (10mm). The
compacted and raked or screeded is a sufficient base. second and subsequent rows will then have
sufficient clearance. Continue placing subsequent
2 - If possible, prepare the entire base before placing rows, taking care to align the front face.
blocks so that a visual inspection can be made to
minimize bumps and hollows. 8 - Non right-angle corners, or corners where walls
have different batters are achieved more easily by:
3 - If the location is not level or has a stepped bottom a. Building a 2 block square column and placing
surface, place the lowest block first, taking care to align each battered wall against the adjacent sides of
the front face of the wall. the column.
b. By using wedge blocks to create a 22.5°, 45°,
4 - Only use handheld compacting equipment within 4 67.5°, or 90° corner.
feet of the fill side of the wall. c. Building the 2 walls independently and
pouring the corners afterwards.
5 - As the surface finish of the blocks is variable, the
best face of the block should be turned out. 9 - If desired, the wall can be curved either vertically,
horizontally, or both.
10 - For speed & convenience a track mounted
6 IMPORTANT - Begin placing the second row of blocks
hydraulic excavator is the best machine to place the
after no more than 5 or 6 bottom blocks have been
blocks
placed, again taking care to align the front face of the
wall. This is particularly important if the bottom row of
11 - Pressure washing & sealing the surface will
blocks are turned sideways, to the direction of the wall,
minimize algae growth and prolong new
because the smooth-faced liner blocks are slightly less
appearance
than 750mm wide. The bottom row in this case, will
have a small gap to provide the correct clearance for the
12 - Some useful tools to have on the job-site
subsequent row. That is, when a row of blocks is placed
include:
perpendicular to the face of the wall, the distance
A transit to lay out a level base -- shovels and
between the centres of the key of two consecutive
rakes for base preparation.
blocks must be 750mm. This would create a small gap
A broom to clean the keyways before placing the
between the blocks. Remember, there is approximately
next layer.
12mm of clearance in every direction in the fit of the
One or more 5ft pry bars for jostling the blocks
keyways.
into position.
NOT TO SCALE
Excavated to suitable Always use clean, free
sub-grade and prepare a draining backfill adjacent
well compacted granular to wall.
base.
1
10
Drain pipe
Clean free-drilling backfill surrounded by
compacted in lifts drain rock.
Length of Geogrid
determined by engineer.
Drain pipe surrounded by Excavated to suitable
drain rock. sub-grade and prepare a well compacted granular base.
A vertical, or near vertical wall is possible if a soil reinforcing geogrid is added to the The greater the batter into the fill, the higher the wall can be built
backfill at every row of blocks. Very high loads can be supported with this type of without the need to increase the width of the base or adding
construction. Ask the manufacturer on how to minimize geogrid wrinkling behind reinforcing geogrid to the backfill.
the wall.
Page 26/26You can also read
