VOGT Geo Injector carry XL

                      Comprehensive optimisation with one device

    Soil loosening and aeration    Loosen soil compaction            Inject granules

Customer references

                                                            DIE BAUMEXPERTEN
Landscaping Aeration and injection technique - Version: 01/2019 - VOGT Baugeräte GmbH
carry XL

                                                           The 14 l large storage tank
        The vibration-damped VOGT
                                                        can quickly be filled with injection
           Turbospade drives the
                                                         material over the large opening
         lnJection tube into the soil

Low-wear materials and                                                 The quick-change carrier plate
the robust construction                                                allows easy switching between
enable a long service life                                                 transport backpack and
                                                                                transport unit

             Off-road pneumatic tyres                               Manual dosage of air and
              ensure a secure stand                              granules via the release trigger

  VOGT Geo Injector carry XL
  The VOGT Geo Injector carry is the proven entry-level system. The supply
  unit is carried on the back or can be attached to a transport frame via the
  quick-change system. Dry materials up to 4 mm grain diameter as well as
  liquid and gel materials can be injected. Thanks to its compact design, in-
  jections can also be carried out on slopes or in narrow areas. The soil can
  be aerated via the separate trigger technology and the desired amount of
  material can be injected. Optionally, the EasyClean can also be placed on
  the transport rack, which cleans the air and also acts as a buffer storage.
Landscaping Aeration and injection technique - Version: 01/2019 - VOGT Baugeräte GmbH
VOGT Geo Injector trolly

               Sustainable soil improvement with measurement

    Aerate the ground                        Loosen the ground    Zwangsmischer
                                                                 Inject granules Reinigung

Customer references

                        für die Baumpflege.
Landscaping Aeration and injection technique - Version: 01/2019 - VOGT Baugeräte GmbH
Lockable service box                                                         Central control panel for
     for VOGT TurboSpade,                                                         clear and simple operation
maintenance and cleaning material

Clear connection panel                                                                           Exact dosage from 100 - 300 ml
                                                                                                      material per injection

             The large all-terrain pneumatic tyres                           Pneumatic single lever control
                    ensure a secure stand                                         with carrying belt

  VOGT Geo Injector trolly

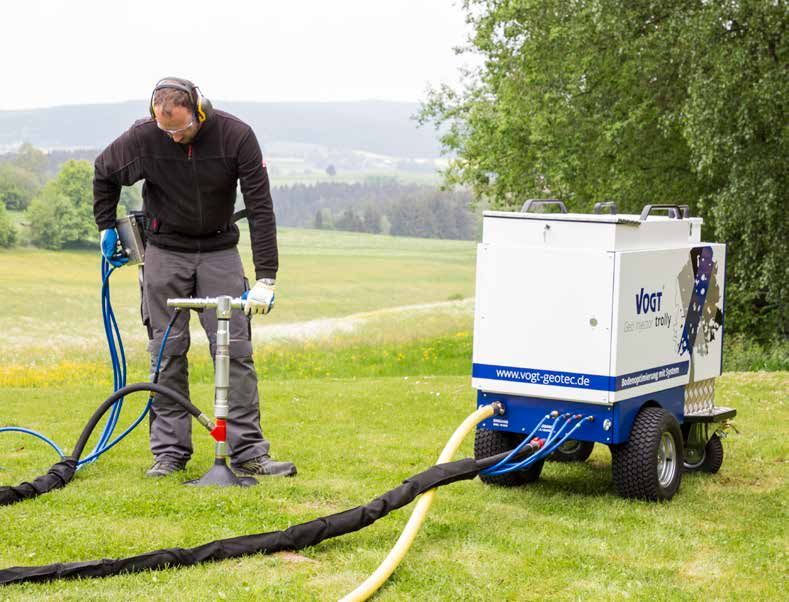

  The powerful professional device is the ideal technique for larger applicati-
  on volumes. Granules up to 4 mm in diameter can be injected. With optio-
  nal technology, liquid or gel suspensions can also be injected. The injection
  quantity can be precisely specified, soil loosening and injection take place
  fully automatically by triggering the pneumatic single lever control on the
  carrying belt. Buffer tanks ensure sufficient loosening performance, which is
  required, for example, for loamy soils. The powerful filter technology cleans
  the air before aeration or injection. The injection hose is seven metres long,
  allowing flexible working.
