INSTALLATION GUIDE One-Piece Batten - Decorative Imaging
←
→
Page content transcription
If your browser does not render page correctly, please read the page content below
INSTALLATION GUIDE
One-Piece Batten
Achieve effortless architectural style with the cool, clean and contemporary lines of DecoBatten.
The light-weight aluminium battens replicate the form, feel and appearance of real timber thanks to the Super Durable™ DecoWood finish, offering a dimensionally stable,
long-lasting timber alternative. DecoBatten allows for complete design flexibility and is suitable for a wide range of applications.
DecoBatten Design Options
DecoBatten comes in two easy-to-install systems: the standard One-Piece system and the Two-Piece 'Quick Click' system. Both systems are available in a wide range of shapes
and sizes and allow for multiple installation methods. One-Piece battens are generally used when fixing battens from behind and when fixings can be easily hidden. The Two-Piece
'Quick Click' system has been designed for easier and quicker installations of more difficult applications (walls, ceilings, etc) or where a seamless concealed fixing is desired.
One-Piece Battens
Please Note: Actual finish may vary from this render. Please Note: Actual finish may vary from this render.

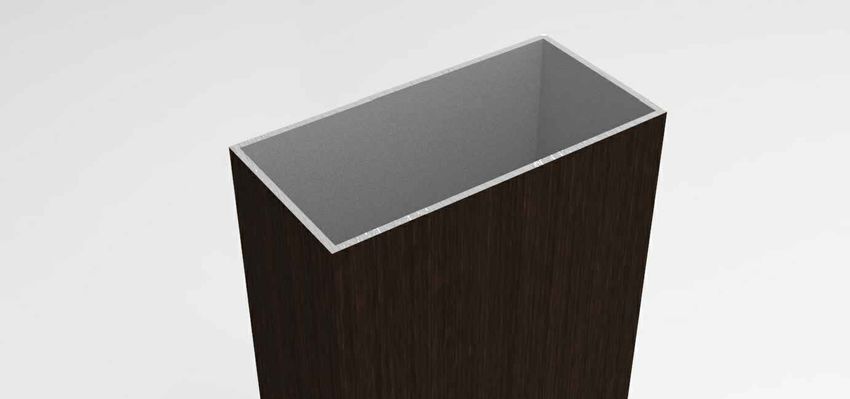

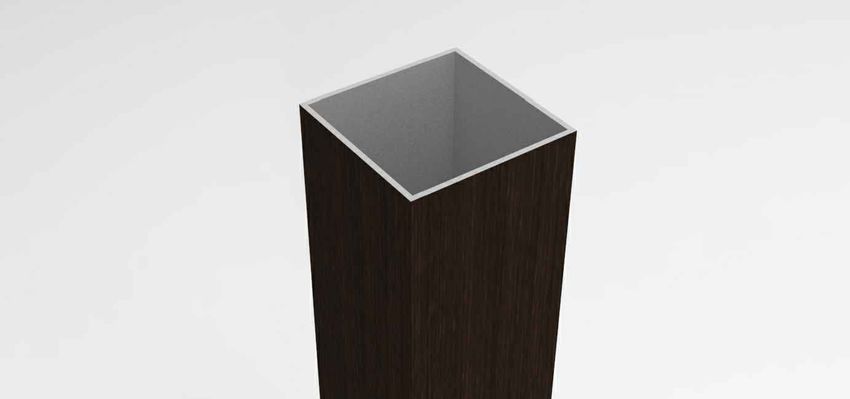

SQUARE HOLLOW DESIGNS RECTANGULAR HOLLOW DESIGNS
DecoBatten One-Piece Battens are available in numerous sizes, please discuss the options with your DECO Representative.
All DecoBatten and accessories are supplied in 6.5m lengths. As part of the manufacturing process, the first 10mm of both ends of the extrusion are taped and not imaged,
therefore each board will need to be trimmed by 15mm on each end to remove the tape and provide a clean finish. After the removal of each end, the useable length is 6.47m.
Please note : The usable length might be vary depending on the chosen finishes; please contact and discuss with your DECO representative for more information.
Performance
As part of DECO's commitment to offering compliant building products, the DecoBatten systems have been designed to meet Australia's stringent building standards.
The DecoBatten range has been tested to and passed the following standards:
DecoBatten - Tested Performance Data
Description Standard Testing Body
Methods for fire tests on building materials, components and structures - Combustibility test for materials AS1530.1 CSIRO
Methods for fire tests on building materials, components and structures - Simultaneous determination of
AS/NZS1530.3 CSIRO
ignitability, flame propagation, heat release and smoke release
Method of test for heat and smoke release rates for materials and products using an oxygen consumption
AS3837 CSIRO
calorimeter
DecoBatten - Assessed Performance Data
Clause Assessment Outcome
NCC 2019 - Volume 1 - Clause C1.9 Non-Combustible building elements Compliant
Please Note All testing has been undertaken using the detail provided in this installation guide and in order to claim the performances set out here within, the detail in this guide
must be followed.
Engineering Performance
Due to the extensive installation methods in which the DecoBatten systems can be applied, and the different requirements of each building type and location, it is recommended
that users consult with their Architect, Engineer, Building Designer and Building Surveyor to ensure that the installation detail will suit the local regulations and requirements.
WARRANTY FOR DECO PRODUCTS AND FINISHES
DECO Australia warrants that DECO finishes have been applied in accordance with the Australian Standard for Architectural Powder Coating AS 3715. The warranty is for 12
years and is subject to the provisions set out in AS 3715, including maintenance and cleaning, as set out in Appendix C of the standard.
Please Note that if a formal warranty certificate is required, then this must be applied for at the time of order. This is because the standard AS3715 requires DECO Australia to
process specimens for testing and reference at the same time as the job is processed. A warranty application form can be obtained by contacting DECO Australia by phone or email.
Contact your DECO representative on (02) 9603 1888 for more information.
Please Note The design of our Two-Piece batten systems may vary. The click, fixing and securing detail of each system may vary based on the design and product availability.
Please discuss the specific details of each design with your DECO representative.
Intellectual Property
This document and the information contained within it are copyright and confidential to DECO Australia. Disclosure, use and copying in any form, except as authorised by
DECO Australia in writing are prohibited. Patents and Design Registrations Pending.
DecoBatten 1P Install Guide V1 - Published 01/2021 Copyright © 2021 - DECO Australia Pty. Ltd. - All Rights Reserved. Page 1
INSTALLATION GUIDE
End Caps
DecoBatten End Caps
As a part of the DecoBatten range, End Caps are available to match your chosen batten profile. End Caps are available in colour-matched aluminium or black plastic for both the
One-Piece and Two-Piece batten systems. NB: Depending on the selected profile, End Caps will be one of two types; extruded aluminium for 50mm and 25mm wide profiles or
press-fit aluminium for all other profiles.
Extruded Aluminium End Caps
Extruded aluminium End Caps are available for selected One-Piece and Two-Piece batten systems. Depending on the profile, the End Cap will be machined so that two legs fit into
the profile and can be secured using a high-quality adhesive or mechanical fixings.
End Cap for Two-Piece 50 x 50 Batten
End Cap Securing Options
Adhesive Secure Mechanical Secure
Apply high-quality adhesive to each Fix in place with mechanical fixings
of the legs as depicted and insert such as screws or rivets through
into the One-Piece Batten. Take the outside of the section into one
Care to ensure that no adhesive is or more of the internal legs.
Adhesive applied to the visible surface of the
extrusion or end cap. DECO recommends the use of
stainless steel, galvanised or
Ensure that the End Cap is aluminium fixings. Colour-matched
securely fastened in place until the rivets are available to order.
adhesive sets.
Please Note: Pre-drilling are recommended for all mechanical fixing.
Press Fit Aluminium End Caps
For all other profiles, press-fit aluminium End Caps are available for both the One-Piece and Two-Piece batten systems. Depending on the profile, the End Cap will be machined
so that it fits snugly into the profile and can be secured using a high-quality adhesive.
Adhesive Secure
Apply a high-quality adhesive to
each of the legs as depicted and
insert into the One-Piece Batten.
Take care to ensure that the
adhesive is not applied to the
visible surface of the extrusion or Adhesive
End Cap.
Ensure that the End Cap is
securely fastened in place until the
adhesive sets.
Press Fit End Cap Please Note May require light
tapping with rubber mallet to install.
Black Plastic End Caps
Press Fit Secure
Fix the appropriate black plastic
end cap into the batten by applying
pressure and press fit it into the
hollow at the end of the batten.
Please Note Light tapping on
the end cap with a rubber mallet is
recommended.
Black Plastic End Cap
Please Note: Black plastic end caps are available in numerous sizes, please discuss the available
options with your DECO Representative.
DecoBatten 1P Install Guide V1 - Published 01/2021 Copyright © 2021 - DECO Australia Pty. Ltd. - All Rights Reserved. Page 2
INSTALLATION GUIDE
One-Piece Batten Fixing Options
Back Fixing Bolt Fixing
The simplest method of fixing One-Piece battens is to fix through the back of the Bolt Fixing allows connection of materials at any angle or interval. Bolt Fixing also
support material into the extrusion. allows on site construction of factory processed materials for a quick assembly
and installation. When tightening bolts, ensure that they are not over-tightened as
this may cause the extrusion to deform.
Fixed Surface Angle Fixing Fixed Surface Channel Fixing
End to End Angle Fixing End to End Channel Fixing
Front angle may be optional,
based on the the specific
site requirements or
construction detail.
Check your engineer's
specifications.
DecoBatten 1P Install Guide V1 - Published 01/2021 Copyright © 2021 - DECO Australia Pty. Ltd. - All Rights Reserved. Page 3
INSTALLATION GUIDE
50mm Range Two-Piece Batten
Achieve effortless architectural style with the cool, clean and contemporary lines of DecoBatten.
The light-weight aluminium battens replicate the form, feel and appearance of real timber thanks to the Super Durable™ DecoWood finish, offering a dimensionally stable,
long-lasting timber alternative. DecoBatten allows for complete design flexibility and is suitable for a wide range of applications.
DecoBatten Design Options
DecoBatten comes in two easy-to-install systems: the standard One-Piece system and the Two-Piece 'Quick Click' system. Both systems are available in a wide range of shapes
and sizes and allow for multiple installation methods. One-Piece battens are generally used when fixing battens from behind and when fixings can be easily hidden. The Two-Piece
'Quick Click' system has been designed for easier and quicker installations of more difficult applications (walls, ceilings, etc) or where a seamless concealed fixing is desired.
50mm Range Batten 50mm Range Batten Bases
Please Note: Actual finish may vary from this render.
Angle Radius 50mm 50mm
50 x 50 50 x 80 50 x 80 50 x 75 50 x 100 50 x 150 50 x 200 50 x 250 Base SpaceBase
DB01-50 DB01-80A DB01-80R DB01-75 DB01-100 DB01-150 DB01-200 DB01-250 DB01-B DB01-SB
All DecoBatten and accessories are supplied in 6.5m lengths. As part of the manufacturing process, the first 10mm of both ends of the extrusion are taped and not imaged,
therefore each board will need to be trimmed by 15mm on each end to remove the tape and provide a clean finish. After the removal of each end, the useable length is 6.47m.
Please note : The usable length might be vary depending on the chosen finishes; please contact and discuss with your DECO representative for more information.
Performance
As part of DECO's commitment to offering compliant building products, the DecoBatten systems have been designed to meet Australia's stringent building standards.
The DecoBatten range has been tested to and passed the following standards:
DecoBatten - Tested Performance Data
Description Standard Testing Body
Methods for fire tests on building materials, components and structures - Combustibility test for materials AS1530.1 CSIRO
Methods for fire tests on building materials, components and structures - Simultaneous determination of
AS/NZS1530.3 CSIRO
ignitability, flame propagation, heat release and smoke release
Method of test for heat and smoke release rates for materials and products using an oxygen consumption
AS3837 CSIRO
calorimeter
DecoBatten - Assessed Performance Data
Clause Assessment Outcome
NCC 2019 - Volume 1 - Clause C1.9 Non-Combustible building elements Compliant
Please Note All testing has been undertaken using the detail provided in this installation guide and in order to claim the performances set out here within, the detail in this guide
must be followed.
Engineering Performance
Due to the extensive installation methods in which the DecoBatten systems can be applied, and the different requirements of each building type and location, it is recommended
that users consult with their Architect, Engineer, Building Designer and Building Surveyor to ensure that the installation detail will suit the local regulations and requirements.
WARRANTY FOR DECO PRODUCTS AND FINISHES
DECO Australia warrants that DECO finishes have been applied in accordance with the Australian Standard for Architectural Powder Coating AS 3715. The warranty is for 12
years and is subject to the provisions set out in AS 3715, including maintenance and cleaning, as set out in Appendix C of the standard.
Please Note that if a formal warranty certificate is required, then this must be applied for at the time of order. This is because the standard AS3715 requires DECO Australia to
process specimens for testing and reference at the same time as the job is processed. A warranty application form can be obtained by contacting DECO Australia by phone or email.
Contact your DECO representative on (02) 9603 1888 for more information.
Please Note The design of our Two-Piece batten systems may vary. The click, fixing and securing detail of each system may vary based on the design and product availability.
Please discuss the specific details of each design with your DECO representative.
Intellectual Property
This document and the information contained within it are copyright and confidential to DECO Australia. Disclosure, use and copying in any form, except as authorised by
DECO Australia in writing are prohibited. Patents and Design Registrations Pending.
DecoBatten DB01 Install Guide V1 - Published 02/2021 Copyright © 2021 - DECO Australia Pty. Ltd. - All Rights Reserved. Page 1
INSTALLATION GUIDE
End Caps
DecoBatten End Caps
As a part of the DecoBatten range, End Caps are available to match your chosen batten profile. End Caps are available in colour-matched aluminium or black plastic for both the
One-Piece and Two-Piece batten systems. NB: Depending on the selected profile, End Caps will be one of two types; extruded aluminium for 50mm and 25mm wide profiles or
press-fit aluminium for all other profiles.
Extruded Aluminium End Caps
Extruded aluminium End Caps are available for selected One-Piece and Two-Piece batten systems. Depending on the profile, the End Cap will be machined so that two legs fit into
the profile and can be secured using a high-quality adhesive or mechanical fixings.
End Cap for Two-Piece 50 x 50 Batten
End Cap Securing Options
Adhesive Secure Mechanical Secure
Apply high-quality adhesive to each
of the legs as depicted and insert Fix in place with mechanical fixings
into the One-Piece Batten. Take such as screws or rivets through
care to ensure that no adhesive is the outside of the section into one
applied to the visible surface of the or more of the internal legs.
Adhesive
extrusion or End Cap.
DECO recommends the use of
Ensure that the End Cap is stainless steel, galvanised or
securely fastened in place until the aluminium fixings. Colour-matched
adhesive sets. rivets are available to order.
Please Note: Pre-drilling are recommended for all mechanical fixing.
Press Fit Aluminium End Caps
For all other profiles, press-fit aluminium End Caps are available for Two-Piece batten systems. Depending on the profile, the End Cap will be machined so that it fits snugly into the
profile and can be secured using a high-quality adhesive.
Adhesive Secure
Apply a high-quality adhesive to
each of the legs as depicted and
insert into the One-Piece Batten.
Take care to ensure that the
adhesive is not applied to the
visible surface of the extrusion or
End Cap.
Adhesive
Ensure that the End Cap is
securely fastened in place until the
adhesive sets.
Please Note May require light
tapping with rubber mallet to install.
50 x 80 Angle Batten
Press Fit End Cap
DecoBatten DB01 Install Guide V1 - Published 02/2021 Copyright © 2021 - DECO Australia Pty. Ltd. - All Rights Reserved. Page 2
INSTALLATION GUIDE
Standard Base
Preparation
Installation Surface
When installing DecoBatten care should be taken to ensure the installation surface has been prepared adequately to ensure that it is fit for the intended purpose. The surface
should also be clean and flat, and preparations (such as backing colour) should be applied before the installation of DecoBatten products.
Supporting Structure and Fixings
Before installing any DecoBatten products the supporting structure should be assessed to ensure that it is structurally sound and able to support live and dead loads of the
DecoBatten products that are to be installed. When fixing DecoBatten products, it is recommended that they are fixed at minimum 600mm centres when applied to a solid backing
or 450mm centres when applied to framing, however due to the wide variety of installation applications, this may not be required for all applications. DECO recommends that users
contact a certified Engineer to assess the supporting structure and fixings required when installing DecoBatten, especially in high-wind and high-risk areas.
Processing of DecoBatten
WARNING - When processing DecoBatten care should be taken and appropriate Personal Protective Equipment should be worn at all times. Failure to do so risks potential
serious injury, disablement or death. When processing DecoBattens, care should be taken to ensure that the work space is clean and free from dust, sawdust, metal fines and/or
shavings. Processing of the DecoBatten in areas with excessive dust, sawdust, metal fines and/or shavings risks potential damage to the finished surface.
STEP 1 - Apply the Two-Piece Batten Base to the Supporting Structure and Fix as Required
If the batten is to be installed flush to an end surface, ensure at least 3mm of clearance are provided to allow the batten cover to click over the base.
To ensure a straight, consistent and parallel installation, it is strongly recommended that a level is used to position each base.
Centre Fixing Dual Fixing
Fix with fasteners through the centre location Fix with fasteners through the outer two location
≥10mm groove. grooves.
STEP 2 - Install additional Two-Piece Bases and Fix as Required
To ensure equal consistent spacing between each batten, space the bases according to your desired finished spacing using the below formula.
1. X (spacing between bases) = Desired finished spacing + 4mm
2. Y (centre to centre spacing) = Desired finished spacing + 50mm
Spacing Dimensions
1 1 1
x
2 2 2 y
STEP 3 - Install Two-Piece Batten Covers and Fix as Required
Click the cover over each of the bases, ensuring a tight fit. Even though the DecoBatten product has been designed to ensure a secure click fit, if extra security against
dislodgement is required, follow the detail provided below.
Adhesive Fix Screw or Rivet Fix
A
DETAIL A
Apply screws or rivets as required
Prior to installation apply a bead of adhesive to the internal face of the step in the through the cover and into the base in
cover (as shown in DETAIL A) and click over the base. Ensure that the cover is the position indicated by the location
secured in place until the adhesive sets. guides on the side of the cover.
DecoBatten DB01 Install Guide V1 - Published 02/2021 Copyright © 2021 - DECO Australia Pty. Ltd. - All Rights Reserved. Page 3
INSTALLATION GUIDE
SpaceBase
Preparation
Installation Surface
When installing SpaceBase, care should be taken to ensure the installation surface has
been prepared adequately to ensure that it is fit for the intended purpose. The surface
should also be clean and flat, before the installation of SpaceBase.
Supporting Structure and Fixings
Before installing SpaceBase/DecoBatten products, the supporting structure should be
assessed to ensure that it is structurally sound and able to support live and dead loads of
the SpaceBase/DecoBatten products that are to be installed. When fixing the SpaceBase,
it is recommended that the bases are fixed at minimum 600mm centres when applied to a
solid backing or 450mm centres when applied to framing. DECO recommends that users
50
contact a certified Engineer to assess the supporting structure and fixings required when 40
installing SpaceBase/DecoBatten, especially in high-wind and high-risk areas. 30
20
Processing of SpaceBase 10
WARNING - When processing SpaceBase, care should be taken and appropriate
Personal Protective Equipment should be worn at all times. Failure to do so risks potential
serious injury, disablement or death. When processing SpaceBase, care should be taken Set up
to ensure that the work space is clean and free from dust, sawdust, metal fines and/or 50mm range SpaceBase provides a standard 50mm gap between battens after
shavings. Processing of the SpaceBase in areas with excessive dust, sawdust, metal installing. However, the SpaceBase can also trimmed down from 50mm to 10mm
fines and/or shavings risks potential damage to the finished surface. to fit the user's needs.
STEP 1 - Apply the SpaceBase to the Supporting Structure and Fix as Required
If the batten is to be installed flush to an end surface, ensure at least 10mm of clearance are provided to allow the batten cover to click over the base.
To ensure a straight, consistent and parallel installation, it is strongly recommended that a level is used to position each base.
Centre Fixing Dual Fixing
≥ 10mm Fix with fasteners through the centre location Fix with fasteners through the outer two location
groove. grooves.
STEP 2 - Install additional SpaceBases and Fix as Required
A DETAIL A
1
1
2 1
2
2
STEP 3 - Install Two-Piece Batten Covers and Fix as Required
Click the cover over each of the SpaceBases, ensuring a tight fit. Even though the DecoBatten product has been designed to ensure a secure click fit, if extra security against
dislodgement is required, follow the detail provided below.
Screw or Rivet Fix
Adhesive Fix
B
DETAIL B
Apply screws or rivets as required
Prior to installation apply a bead of adhesive to the internal face of the step in the through the cover and into the base in
cover (as shown in DETAIL B) and click over the base. Ensure that the cover is the position indicated by the location
secured in place until the adhesive sets. guides on the side of the cover.
DecoBatten DB01 Install Guide V1 - Published 02/2021 Copyright © 2021 - DECO Australia Pty. Ltd. - All Rights Reserved. Page 4INSTALLATION GUIDE
End to End Concealed Fixing
Preparation
Installation Surface
When installing DecoBatten care should be taken to ensure the fixing surface has been prepared
adequately to ensure that it is fit for the intended purpose. The fixing surface should also be clean and
flat, and preparations (such as top and bottom wall colour) should be applied before the installation of
DecoBatten products.
Supporting Structure and Fixings
Before installing any DecoBatten products the supporting structure should be assessed to ensure that it
is structurally sound and able to support live and dead loads of the DecoBatten products that are to be
installed. DECO recommends that users contact a certified Engineer to assess the supporting structure
and fixings required when installing DecoBatten, especially in high-wind and high-risk areas.
Processing of DecoBatten
WARNING - When processing DecoBatten care should be taken and appropriate Personal Protective
Equipment should be worn at all times. Failure to do so risks potential serious injury, disablement or
death. When processing DecoBattens, care should be taken to ensure that the work space is clean and
free from dust, sawdust, metal fines and/or shavings. Processing of the DecoBatten in areas with End to End Concealed Fixing
excessive dust, sawdust, metal fines and/or shavings risks potential damage to the finished surface. DecoBatten can be used in various applications. Using an end-to-end
concealed fixing allows fixings to be concealed in applications such as
the above image
STEP 1 - Apply the Generic Fixing to the Supporting STEP 2 - Fixing the Batten
Structure and Fix as Required Locate and fix the batten cover toward the Generic Fixing on the top and bottom of the
While applying fixing on the top ensure it lines up to the bottom fixing. batten. (see in DETAIL B)
DETAIL A DETAIL B
1
1
A
B
2
STEP 3 - Install additional Two-Piece Batten Cover and Fix as Required
To ensure a straight, consistent and parallel installation, it is strongly recommended that a level is used to position each batten.
For a consistent finish, ensure the battens cover are spaced apart evenly when installing. We recommend using a batten or other solid item for even spacing.
STEP 4 - Install the Two-Piece Batten Bases
DecoBatten DB01 Install Guide V1 - Published 02/2021 Copyright © 2021 - DECO Australia Pty. Ltd. - All Rights Reserved. Page 5INSTALLATION GUIDE
25mm Range Two-Piece Batten
Achieve effortless architectural style with the cool, clean and contemporary lines of DecoBatten.
The light-weight aluminium battens replicate the form, feel and appearance of real timber thanks to the Super Durable™ DecoWood finish, offering a dimensionally stable,
long-lasting timber alternative. DecoBatten allows for complete design flexibility and is suitable for a wide range of applications.
DecoBatten Design Options
DecoBatten comes in two easy-to-install systems: the standard One-Piece system and the Two-Piece 'Quick Click' system. Both systems are available in a wide range of shapes
and sizes and allow for multiple installation methods. One-Piece battens are generally used when fixing battens from behind and when fixings can be easily hidden. The Two-Piece
'Quick Click' system has been designed for easier and quicker installations of more difficult applications (walls, ceilings, etc) or where a seamless concealed fixing is desired.
25mm Range Batten 25/50mm Range Batten Base
Please Note: Actual finish may vary from this render.
25mm
25 x 25 25 x 50 25 x 75 25mm Base SpaceBase
DB02-25 DB02-50 DB02-75 DB02-B DB02-SB
All DecoBatten and accessories are supplied in 6.5m lengths. As part of the manufacturing process, the first 10mm of both ends of the extrusion are taped and not imaged,
therefore each board will need to be trimmed by 15mm on each end to remove the tape and provide a clean finish. After the removal of each end, the useable length is 6.47m.
Please note : The usable length might be vary depending on the chosen finishes; please contact and discuss with your DECO representative for more information.
Performance
As part of DECO's commitment to offering compliant building products, the DecoBatten systems have been designed to meet Australia's stringent building standards.
The DecoBatten range has been tested to and passed the following standards:
DecoBatten - Tested Performance Data
Description Standard Testing Body
Methods for fire tests on building materials, components and structures - Combustibility test for materials AS1530.1 CSIRO
Methods for fire tests on building materials, components and structures - Simultaneous determination of
AS/NZS1530.3 CSIRO
ignitability, flame propagation, heat release and smoke release
Method of test for heat and smoke release rates for materials and products using an oxygen consumption
AS3837 CSIRO
calorimeter
DecoBatten - Assessed Performance Data
Clause Assessment Outcome
NCC 2019 - Volume 1 - Clause C1.9 Non-Combustible building elements Compliant
Please Note All testing has been undertaken using the detail provided in this installation guide and in order to claim the performances set out here within, the detail in this guide
must be followed.
Engineering Performance
Due to the extensive installation methods in which the DecoBatten systems can be applied, and the different requirements of each building type and location, it is recommended
that users consult with their Architect, Engineer, Building Designer and Building Surveyor to ensure that the installation detail will suit the local regulations and requirements.
WARRANTY FOR DECO PRODUCTS AND FINISHES
DECO Australia warrants that DECO finishes have been applied in accordance with the Australian Standard for Architectural Powder Coating AS 3715. The warranty is for 12
years and is subject to the provisions set out in AS 3715, including maintenance and cleaning, as set out in Appendix C of the standard.
Please Note that if a formal warranty certificate is required, then this must be applied for at the time of order. This is because the standard AS3715 requires DECO Australia to
process specimens for testing and reference at the same time as the job is processed. A warranty application form can be obtained by contacting DECO Australia by phone or email.
Contact your DECO representative on (02) 9603 1888 for more information.
Please Note The design of our Two-Piece batten systems may vary. The click, fixing and securing detail of each system may vary based on the design and product availability.
Please discuss the specific details of each design with your DECO representative.
Intellectual Property
This document and the information contained within it are copyright and confidential to DECO Australia. Disclosure, use and copying in any form, except as authorised by
DECO Australia in writing are prohibited. Patents and Design Registrations Pending.
DecoBatten DB02 Install Guide V1 - Published 02/2021 Copyright © 2021 - DECO Australia Pty. Ltd. - All Rights Reserved. Page 1INSTALLATION GUIDE
End Caps
DecoBatten End Caps
As a part of the DecoBatten range, End Caps are available to match your chosen batten profile. End Caps are available in colour-matched aluminium or black plastic for both the
One-Piece and Two-Piece batten systems. NB: Depending on the selected profile, End Caps will be one of two types; extruded aluminium for 50mm and 25mm wide profiles or
press-fit aluminium for all other profiles.
Extruded Aluminium End Caps
Extruded aluminium End Caps are available for selected One-Piece and Two-Piece batten systems. Depending on the profile, the End Cap will be machined so that two legs fit into
the profile and can be secured using a high-quality adhesive or mechanical fixings.
End Cap for One-Piece 50 x 50 Batten End Cap Securing Options
Adhesive Secure
Apply high-quality adhesive to each
Adhesive of the legs as depicted and insert
into the One-Piece Batten. Take care
to ensure that no adhesive is applied
to the visible surface of the extrusion
or end cap.
Ensure that the End Cap is securely
fastened in place until the adhesive
sets.
Plasterboard Fixing
Plasterboard screws are strongly recommended while installing 25mm Two-Piece battens onto a plasterboard backing. The countersunk heads of these screws provides a suitable
grip to hold the battens in place against the plasterboard. Please Note: This is available on request, please contact and discuss with your DECO representative for more information.
Plasterboard
2 - Screw fix the
base/space base with
1- Position and plasterboard screws
pre-drill the base/space base
DecoBatten DB02 Install Guide V1 - Published 02/2021 Copyright © 2021 - DECO Australia Pty. Ltd. - All Rights Reserved. Page 2INSTALLATION GUIDE
Standard Base
Preparation
Installation Surface
When installing DecoBatten care should be taken to ensure the installation surface has been prepared adequately to ensure that it is fit for the intended purpose. The surface
should also be clean and flat, and preparations (such as backing colour) should be applied before the installation of DecoBatten products.
Supporting Structure and Fixings
Before installing any DecoBatten products the supporting structure should be assessed to ensure that it is structurally sound and able to support live and dead loads of the
DecoBatten products that are to be installed. When fixing DecoBatten products, it is recommended that they are fixed at minimum 600mm centres when applied to a solid backing
or 450mm centres when applied to framing, however due to the wide variety of installation applications, this may not be required for all applications. DECO recommends that users
contact a certified Engineer to assess the supporting structure and fixings required when installing DecoBatten, especially in high-wind and high-risk areas.
Processing of DecoBatten
WARNING - When processing DecoBatten care should be taken and appropriate Personal Protective Equipment should be worn at all times. Failure to do so risks potential
serious injury, disablement or death. When processing DecoBattens, care should be taken to ensure that the work space is clean and free from dust, sawdust, metal fines and/or
shavings. Processing of the DecoBatten in areas with excessive dust, sawdust, metal fines and/or shavings risks potential damage to the finished surface.
STEP 1 - Apply the Two-Piece Batten Base to the Supporting Structure and Fix as Required
If the batten is to be installed flush to an end surface, ensure at least 3mm of clearance are provided to allow the batten cover to click over the base.
To ensure a straight, consistent and parallel installation, it is strongly recommended that a level is used to position each base.
Centre Fixing
Fix with fasteners through the centre location
≥ 10mm groove.
STEP 2 - Install additional Two-Piece Bases and Fix as Required
To ensure equal consistent spacing between each batten, space the bases according to your desired finished spacing using the below formula.
1. X (spacing between bases) = Desired finished spacing + 4mm
2. Y (centre to centre spacing) = Desired finished spacing + 25mm
Spacing Dimensions
1
2 1 1 1 1
x
2 2 2 2
y
STEP 3 - Install Two-Piece Batten Covers and Fix as Required
Click the cover over each of the bases, ensuring a tight fit. Even though the DecoBatten product has been designed to ensure a secure click fit, if extra security against
dislodgement is required, follow the detail provided below.
Adhesive Fix
A
DETAIL A
Prior to installation apply a bead of adhesive to the internal face of the step in the cover (as shown in DETAIL A) and click over
the base. Ensure that the cover is secured in place until the adhesive sets.
DecoBatten DB02 Install Guide V1 - Published 02/2021 Copyright © 2021 - DECO Australia Pty. Ltd. - All Rights Reserved. Page 3INSTALLATION GUIDE
SpaceBase
Preparation
Installation Surface
When installing SpaceBase, care should be taken to ensure the installation surface has
been prepared adequately to ensure that it is fit for the intended purpose. The surface
should also be clean and flat, before the installation of SpaceBase.
Supporting Structure and Fixings
Before installing SpaceBase/DecoBatten products, the supporting structure should be
assessed to ensure that it is structurally sound and able to support live and dead loads of
the SpaceBase/DecoBatten products that are to be installed. When fixing the SpaceBase,
it is recommended that the bases are fixed at minimum 600mm centres when applied to a
solid backing or 450mm centres when applied to framing. DECO recommends that users
contact a certified Engineer to assess the supporting structure and fixings required when
25
installing SpaceBase/DecoBatten, especially in high-wind and high-risk areas.
Processing of SpaceBase
WARNING - When processing SpaceBase, care should be taken and appropriate
Personal Protective Equipment should be worn at all times. Failure to do so risks potential
serious injury, disablement or death. When processing SpaceBase, care should be taken
to ensure that the work space is clean and free from dust, sawdust, metal fines and/or Standard spacing
shavings. Processing of the SpaceBase in areas with excessive dust, sawdust, metal 25mm range SpaceBase provides a standard 25mm gap between battens after
fines and/or shavings risks potential damage to the finished surface. installing.
STEP 1 - Apply the SpaceBase to the Supporting Structure and Fix as Required
If the batten is to be installed flush to an end surface, ensure at least 10mm of clearance are provided to allow the batten cover to click over the base.
To ensure a straight, consistent and parallel installation, it is strongly recommended that a level is used to position each base.
Centre Fixing
≥ 10mm Fix with fasteners through the centre location
groove.
STEP 2 - Install additional SpaceBases and Fix as Required
DETAIL A
A
1
2 1
2
STEP 3 - Install Two-Piece Batten Covers and Fix as Required
Click the cover over each of the SpaceBases, ensuring a tight fit. Even though the DecoBatten product has been designed to ensure a secure click fit, if extra security against
dislodgement is required, follow the detail provided below.
Adhesive Fix
B
DETAIL B
Prior to installation apply a bead of adhesive to the internal face of the step in the cover (as shown in DETAIL B) and click over the
base. Ensure that the cover is secured in place until the adhesive sets.
DecoBatten DB02 Install Guide V1 - Published 02/2021 Copyright © 2021 - DECO Australia Pty. Ltd. - All Rights Reserved. Page 4You can also read
