HUDSON
REPRO PARTS WEBPAGE
Here's a list of reproduction parts available for Hudson, Essex and Terraplane
Automobiles. Please read next page to see
what’s listed here, and how to use the list.
Be sure to visit the Hudson-Essex-Terraplane Club's website at
http://www.hetclub.org/
For all sorts of resources on Hudsons!
Join us on the Hudson Open Forum at http://forum.hetclub.org/
and on Facebook at https://www.facebook.com/groups/16027154035/
Revision #22: 3-6-21—Previous revision: 4-26-20
LIST OF REPRODUCED PARTS AVAILABLE FOR
HUDSON-BUILT AUTOMOBILES
Please note date of this list, to make sure you’re getting the latest version. This list only covers parts from suppliers who either
stock items, or have patterns to fabricate parts on demand. It does not deal with companies that require a customer to send in
an item to be replicated from scratch.
I list a catalog links for suppliers with printed or on-line catalogs, but those parts are not listed here, due to space restrictions.
Reading the table: Under “Availability Code”, “A” means “in stock”, “D” means that an item must be made on demand. Where the
customer must make some modification (like plating a bronze casting or drilling holes, for example) this is noted in the descrip-
tion. Under “Hudson Part No., “NA” means the item had no separate Hudson part number, originally. Contact information on
vendors, appears at the end of the list. I have masked e-mail addresses with “X’s”. Please delete the X before sending! No prices
are shown, since updating them would be an endless process.
A listing here does not constitute an endorsement of a product. You are encouraged to contact the seller and ask questions. This
list is maintained by a volunteer who is not responsible for incorrect information.
Please advise me of any changes or additions, at XTerraplane@verizon.net , delete the X before sending.
Abbreviations used: Hr=Hornet, C=Commodore, T=Terraplane, P=Pacemaker, W=Wasp, SW=Super Wasp, HS=Hornet Special,
E=Essex, H=Hudson, Met=Metropolitan, J=Jet
NOTE: I DO NOT SELL PARTS!
SPECIAL ANNOUNCEMENT —
High-Speed Differential Gears for 1934-47 Hudsons & Terraplanes
SCROLL DOWN TO THE LAST PAGE
CATALOG LINKS (companies with on-line catalogs)
Click blue hyperlinks to see company catalogs; their products do not appear on this repro list.
21st Century Hudson (Randy Maas) - Hudson engine parts, suspension and steering parts, and gasket kits Timing chains 1948-56.
http://21stcenturyhudson.net/
Bob's Classic Auto Glass -- Replacement auto glass cut from in-stock patterns http://www.bobsclassicautoglass.com/products.html
The Brillman Co. – Hudson-specific ignition wiring, tune-up parts, battery cables, voltage regs., original wire. https://brillman.com/
Classic 2 Current Fabrication -- Steel body panels, floor pans, trunk pans, rocker panels, various years 1934-57 c2cfabrication.com/hudson/
Dale Cooper - Inventory of engine gaskets, seals and engine rebuild parts for Hudsons. http://www.hudsonmotorcarco.com/
Egge Machine -- Engine & suspension parts for all cars (select "Hudson" under either the engine or suspension "window" for listing) http://
www.egge.com/
Emblemagic Co. -- Plastic repro emblems & horn buttons -- click http://www.emblemagic.com/hudson.htm for link to Hudson items.
Eshelman Molding & Casting -- Hudson lenses, knobs, emblems & trim items of cast plastic & metal http://partsbyemc.com/catalog/
Kanter Auto Parts -- Hudson and other makes, Engine, Brake, Interior parts http://www.kanter.com/
Metro Moulded Parts --- All makes, weatherstripping, grommets, motor mounts, other rubber items http://www.metrommp.com/
Narragansett Reproductions -- All-make wiring harnesses. Click "American Catalog", upper left, for list of Hudson harnesses & prices. http://
www.narragansettreproductions.com/
SMS Auto Fabrics - All makes, New fabrics similar to original -- For best results, phone or e-mail needs http://www.smsautofabrics.com/
Rare Parts, Inc. --- Suspension parts (enter year, make and model for listing of parts) http://www.rareparts.com/
Rosol, Bob -- Original Hudson convertible tops, carpets. Phone for info. 135 Morris Ave., Summit, NJ 07901 908-273-2370.
Rhode Island Wiring --- Wiring harnesses and supplies for all makes. http://www.riwire.com/
(continued)
CATALOG LINKS (continued) Uncommon Engineering -- new speed parts available, including headers, dry clutch conversions and electronic ignitions. http:// www.uncommonengineering.com/ Vintage & Classic -- Cast metal trim, handles, hubcap, engine & fuel system parts. http://www.vintageandclassicreproductions.com/ Wildrick Rubber Parts LLC -- Hudson repro bumpers, weatherstripping, seals, gaskets, decals. Clutch discs, pressure plates, bearings, fluid, gas- kets. Brake cylinders, misc. parts. www.wildrickrestorations.com/wildrickrubberparts/wrp.html YNZ Yesterday's Parts -- Wiring harnesses for all makes http://www.ynzyesterdaysparts.com/ Vic's Automotive Window Channeling – Hudson window channels. See website: http://www.autochanneling.com/ P.O.BOX 1908, La Mirada, CA 90637, Tel. (562)947-5864 Email: thez@verizon.net
ELECTRICAL AND LIGHTS, LENSES
Hudson Description Years Vendor Availa-
Part No. Applicable Code bility
Code
NOTE: For steering wheel-mounted light switches (’27-29): see Dashboard, Steering
Wheel, Instruments and Control listing.
211087 License light housing, cast & plated (housing only, no innards) ’41-47 all; ’48-49 17 A
Super; 50 P
? Hood side light reflectors (metal), hold light sockets (not included); baked-on hi-temp ’42-’47 C 19 A
alum. finish (sold in pairs)
? Parking light housings (front) 52-53 all 20 A
--- Wiring Harnesses for many years (complete catalogue available) See catalogue 32 D
--- Wiring Harnesses for many years (complete catalogue available) See catalogue 33 D
BO109800 Lens, fender lamp (glass, not plastic) SEE PHOTO “G” 1934-35 H & T 41 A
? Taillight bracket -- castings polished w/ smooth brushed finish -- SEE PHOTO "EE" 1934-5 T, all 49 A
109804 Reflector for fender light -- SEE PHOTO "F" -- Nickel-plated brass, with pins at- 1934-5-6 H & T 17 A
tached.
? Fender lights (L or R) cast in resin. Ready for painting. SEE PHOTO “AA” 1937 H & T 11 A
? Fender lights (L or R) cast in brass, ready for plating. SEE PHOTO “BB” 1937 H & T 11 D
? Taillight mount (avail. left or right). 3D printed (see notes above) SEE PHOTO “MM” 1935 T 53 D
? Taillight mounts (avail. left or right) — SEE PHOTO “KK” — 3D printed 1932-33 T 53 D
? 1935 taillight mount and 1932-35 housing shown together (see separate listings for 1935 T 53 D
each) SEE PHOTO “HH”
ELECTRICAL AND LIGHTS, LENSES
Hudson Description Years Vendor Availa-
Part No. Applicable Code bility
Code
? Headlight mounts (avail. left or right), 3D printed. SEE PHOTO “JJ” 1933 T 53 D
NOTE ON 3D PRINTING: Parts are "printed" from an alloy of 60% #316 Stainless
Steel and 40% Bronze, from computer patterns on file. They do require hand finishing
to smooth the surface for plating, and plating.
? Taillight mount (left or right available) — 3D printed— SEE PHOTO “MM” 1935 T 53 D
? Taillight housings — 3D printed — customer supplies socket & wiring — SEE 1932-35 T 53 D
PHOTO “OO”
EXTERIOR TRIM & BRIGHTWORK
Hudson Description Years Vendor Availabil-
Part No. Applicable Code ity
Code
? Radiator Cap (flying man), nickel plated. SEE PHOTO "E2" 28 E 5 D
? Radiator cap, 12-sided (nickel plated). 29 H & E 5 D
? Radiator cap, rose pattern (all chrome). SEE PHOTO "E7" 29 H Biddle & 5 D
Smart body
116796 Center bumper bolt, chromed (covers crank hole) ’36-39 all 2 A
? Hubcaps, wire wheel (aluminum) ’29 Hudson 25 D
? Roof antenna (st. stl.) ’48-’56 all 28 A
? Hood mascot (does not include radiator cap), cast bronze, plated. SEE PHOTO “C” ’30-32 Essex 4 A

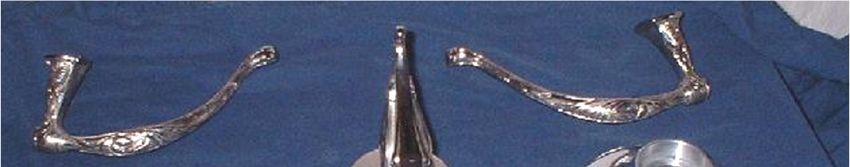

? Right & left sidelight “storks” (brackets) in cast bronze, drilled for lampholder, but ’31 Essex 4 D
must be tapped, and a hole drilled for wire to pass through. Must be plated.
? Plastic “V8” side trim 55-56 Hr 10 ?
? Crank hole cover (snaps into housing) – cast, chrome plated 34 H 17 A
? Crank hole cover backing plate (fits on grille) – cast, chrome plated 34 H 17 A
? Crank hole cover lower trim (fits on grille) – cast, chrome plated 34 H 17 A
240892 Hood ornament center casting (chromed) – center part of 3-piece hood trim 54 W 17 A
EXTERIOR TRIM & BRIGHTWORK (CONT’D)
Hudson Description Years Vendor Availabil-
Part No. Applicable Code ity
Code
? Grille, 14 ga. stl., unpainted 35 T 15 ?
? Pork chops (cast in red brass, chromed) 52-53 Hr & C 2 A
121174 Fender skirt or trunk ornament (cast in red brass, chromed) sold singly or in pairs ’37 T 2 A
120650 Hood front chrome trim piece (right side) ’37 T & H 2 A
120651 Hood front chrome trim piece (left side) ’37 T & H 2 A
121266 Cowl vent ornament (available in chrome only; original number 121267 was in prime; ’37 T & H 2 A
ask for availability of prime-finish only version)
? Hubcaps (furnished in brass, un-plated) SEE PHOTO"D" 1909-10 37 D
? Hubcap center "Essex Motors, Detroit, USA" -- SEE PHOTO "V" Year unknown D
? Radiator mascot -- "flying man" 28 H 39 A
? Radiator mascot -- "flying man" 29 H 39 A
? Rearview Mirror door mount -- SEE PHOTO "J" All StepDown 42 A
? Clear acrylic insert for chrome hood ornament. Note: a small quantity have been repro- '46-'47 Commo- 44 A
duced; if demand justifies it, further production will be undertaken. Inquire as to availa- dore
bility. SEE PHOTO "M" (does not include chromed ornament)
? Crank hole cover (this item cast in bronze ready for plating) SEE PHOTO "N" 1929 Hudson 45 A
EXTERIOR TRIM & BRIGHTWORK (CONT’D)
Hudson Description Years Ven- Availa-
Part No. Applicable dor bility
Code Code
? Crank hole cover (this item cast in bronze ready for plating) SEE PHOTO "L" 1930 Essex 45 A
BO134178 Hood/Radiator Grill Nameplate (this item is cast in bronze ready for plating) SEE 1939 Hudson 45 A
PHOTO "P" model 91, 92, 93,
95, 97
BO134927 Radiator/Hood Name Plate Top half (Hood) Fits 90, 98 (this item is cast in bronze 1939 model 90, 45 A
ready for plating) SEE PHOTO "Q" 98
BO134928 Radiator/Hood Name Plate Bottom half (Grill) (this item is cast in bronze ready for 1939 model 90 45 A
plating) SEE PHOTO "Q"
--- Fender skirt ornament. Not original, but designed to look as it might have looked in 1939 45 D
1939. Supplied as a casting; customer must plate. Only made to order. PHOTO "R"
? Crankhole cover, 3D printed — SEE PHOTO “LL” 1933 T 53 D
? Hood spears — 3D printed — SEE PHOTO “NN” 1933 T 53 D
COOLING SYSTEM
Hudson Description Years Vendor Availa-
Part No. Applicable Code bility
Code
? Reproduction radiator (available in alum. finish or black coated) – link to webpage: ’48-‘53 (need to 51 A
https://www.autocityclassic.com/1948-1954/1948-1953-hudson-aluminum-radiator- clarify applica-
with-hoses-clamps-sl-284-at-hud// SEE PHOTO “W” tion for 6 or 8
cyl.)
? Reproduction radiator – see photo “X” – link to webpage: https://www.cgj.com/store/ '41 – '47 all mod- 52 A
product/hud-3402/ elsDASHBOARD, STEERING WHEEL, INSTRUMENTS & CONTROLS
Hudson Description Years Vendor Availa-
Part No. Applicable Code bility
Code
? Steering wheel boss (hub that screws to steering wheel). SEE PHOTO “E4” '28 & 29 H 5 D
? Steering wheel boss (hub that screws to steering wheel). SEE PHOTO “E3” '28 Essex 5 D
? Light switch lever. ’27 H & E, ’27- 5 D
’29 H & E r.h.d.
? Steering column bracket (nickel plated). SEE PHOTO “VV” 28, 29 H & E 5 D
? Dashboard glass set, printed: speedo, gas, temp, gen, oil (5 pcs.) Note: background col- ’37 H & T 8 A
or was changed later in 1937; verify color of lettering on glass before buying.
? Glass clock face, printed (see note above regarding mid-year change) ’37 H & T 8 A
? Glass instrument face, fuel / temp ’51-53 H 8 A
? Radio dial face, convex plastic, printed. Only one is left in stock. ‘33 8 A
? Glove box inserts w/ screws (inquire as to year) 33 - 54 2 ?
BO 134858 Instrument Panel Center (without radio) This item is cast in bronze ready for plating 1939 model 91 45 A
by customer. SEE PHOTO "O" except panel; 92.
153851 Radio dial ribbon (rear-lit); opaque black as used on Terr.; will fit Hudson also, but '37 all 6 A
original brown color not avail.
116468 Spring - Locker Box Door Hinge - Right Hand SEE PHOTO "S" 1936 H & T 46 A
116469 Spring - Locker Box Door Hinge - Left Hand SEE PHOTO "S" 1936 H & T 46 A
? Map light & tube for dash — 3D printed — customer provides socket and wiring– 1933 T 53 D
SEE PHOTO “QQ”BODY PANELS
Hudson Description Years Vendor Availa-
Part No. Applicable Code bility
Code
122616-7 Fender skirts (include rubber edging but no emblems). Requires drilling holes in un- 37 & 38 H & T; 7 A
(’37); derside of fender. 30-40 cpe & cv.
others dif- (all models)
fer)
? Fender skirts 1953 Jet 9
? Fender skirts 1954 Hornet 9
? Fender skirts 1948-53 H 9
(NOTE: floor patch panels for 1937-47 H & T are no longer made)
? Fender skirts (verify years with vendor) ’38-39 all 34 D
102488 Sidemount bracket rubber grommet (at hole in fender or cowl) 33-36 all w/ side- 17 A
mounts
? Runningboards, L & R (16 ga. steel, covered w/ black “Stone Guard” coating) 41-47 Pickup on- 26 A
ly
? Steel front floor pan under front seat 1934-41 Hudson 14 A
? Steel front floor pan 1934-41 Hudson 14 A
? Steel rear floor pan 1934-41 Hudson 14 A
? Steel trunk pan 1934-41 Hudson 14 A
? Steel front floor pan 1948-54 Hudson 14 A
? Steel rear floor pan 1948-54 Hudson 14 A
? Steel trunk pan 1948-54 Hudson 14 A
? Outer rocker panels 1955-57 2-door 14 ACHASSIS, SUSPENSION, BRAKES & STEERING
(not including steering wheel)
Hudson Description Years Vendor Availa-
Part No. Applicable Code bility
Code
? Drum brake line set (avail. in original steel type, or stainless) 51-54 Hornet 38 A
? Rear axle brake line (avail. in original steel type, or stainless) 51 Hornet 38 A
? Complete brake line set #H1001 '40 Model 44, 8 1 A
cyl.RUBBER SEALS, PADS, MATS, PEDALS, BUMPERS
Hudson Description Years Vendor Availa-
Part No. Applicable Code bility
Code
? Accelerator pedal (see photo "H") '55-56-57 full 42 A
sized
incl Nash '52-'57)
123695 Rubber door bumpers (2 per door) – see photo “U” 1937-47 cv. only 6 AUPHOLSTERY & CARPET
Hudson Description Years Vendor Availa-
Part No. Applicable Code bility
Code
? Upholstery material, striped nylon in several variations (modern mat’l, exact match) ’48-‘53 23 A
? Upholstery material, checkerboard (green or blue) – modern mat’l, close match ’53? 23 A
? Carpet sets (include extra yardage for lower back of front seat). Modern material ’48 – ’54 all 29 D
matches original wool. Pedal & dimmer holes must be cut out by customer (dimmer
grommet included in kit).GLASS & GLASS FRAMES
Hudson Description Years Vendor Availa-
Part No. Applicable Code bility
Code
? Windshield glass (L or R), (AS-1 laminated safety glass, clear or tinted) 1948-53 24 A
? Windshield frame (metal) – cat. # 295 1914 H 13 D
? Windshield frame (metal) – cat. # 327 1924 H roadster 13 D
? Windshield frame (metal) – cat. # 296 1924 H closed 13 D
car
? Windshield frame (metal) – cat. # 43 1927 E roadster 13 D
? Windshield frame (metal) – cat. # 349 1928 E roadster 13 D
? Windshield frame (metal) – cat. # 288 1929 E coupe 13 D
? Windshield frame (metal) – cat. # 297 1931 13 D
? Windshield frame (metal) – cat. # 443 1931 Model T 13 D
boattail roadster
? Windshield frame (metal) – cat. # 367 1932 13 D
? Windshield frame (metal) – cat. # 109 1933 Terraplane 13 D
coupe
? Windshield frame (metal) – cat. # 298 1934 LT Sedan 13 D
116” wheelbase
? Windshield frame (metal) – cat. # 367 1934 convertible 13 D
? Windshield frame (metal) – cat. # 408 1934 T sedan 13 D
? Windshield frame (metal) – cat. # 299 1935 13 DCONVERTIBLE & HARDTOP BODY PARTS
Hudson Description Years Vendor Availa-
Part No. Applicable Code bility
Code
122705 Top front wooden header (above windshield). No steel braces, brackets, seals, bumpers 1937-39 all 50 A
or hardware are included. Must be drilled for fasteners & bumpers. Limited quantity conv.; possibly
available. SEE PHOTO “FF”. '40 conv. as well.

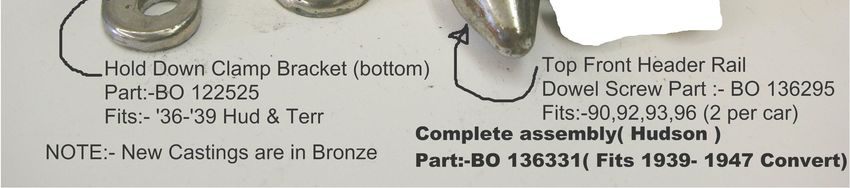

122525 Convert. top hold-down clamp bracket (bottom), holds clamp handle, cast bronze.. 36-39 H&T 2 A
Three per car. SEE PHOTO “UU” convt. (verify)
118848 Convt. Top hold down clamp bracket (top) SEE PHOTO “UU” 36-37 H & T 2 A
? Convert. top hold-down clamp bracket (as above, but has hole for later style latch) 48-54 convt. 2 A
BO 136295 Convt. Dowel screw, top front header, SEE PHOTO “UU” Models 90, 92, 2 A
93. 96
BO 136333 Convert. top hold-down clamp handle (bronze casting) SEE PHOTO “UU” Models 90, 92, 2 A
93, 95
? Power window hydraulic lines (steel or stainless stl.), 5-piece set ’51 Hornet conv. 38 A
(possibly other
years as well)
112658 Conv. Top header rail weatherstrip retainer (stainless stl.). Drilled for 4 screws, slotted 1937-39 all 6 A
for rubber T seal (seal not included). Buyer must polish stainless stl. for a true chrome conv.; probably
finish. 40 conv. alsoCONVERTIBLE & HARDTOP BODY PARTS (cont’d)
Hudson Description Years Vendor Availabil-
Part No. Applicable Code ity Code
? Convert. tops in Stay-Fast fabric: blue, green, tan, maroon, black. Also have pads for 48-54 all convt. 29 D
same. Price includes flexible clear plastic rear window. Reinforced blank rear curtain
for installation of customer’s glass window is available at extra cost.
? Ready-made top (supplied ready to install) 32 T cabriolet 54 D
? Ready-made top (supplied ready to install) 32 T roadster 54 D
? Ready-made top (supplied ready to install) 33 T8 cv. Cpe. 54 D
? Ready-made top (supplied ready to install) 33 T phaeton 54 D
? Ready-made top (supplied ready to install) 34-5 T cabriolet 54 D
? Ready-made top (supplied ready to install) 39-40 H brougham, 54 D
club cpe.
? Ready-made top (supplied ready to install) 42-47 Comm. Club 54 D
cpe
? Ready-made top (supplied ready to install) 48-54 Comm., 54 D
Pace., Hornet club
cpe.DECALS & SERIAL NUMBER PLATES
Hudson Description Years Vendor Availa-
Part No. Applicable Code bility
Code
? Air cleaner decal 32-35 H & T 35 A
? Air cleaner decal 36-37 H & T 35 A
? V8 “United” oil bath air cleaner decal 55-57 H 35 A
? Twin-H air cleaner service instructions 51-58 H 35 A
? “Twin H-Power” air cleaner decal 51-56 H 35 A
? “Hudson V8” valve cover decal 55 H 35 A
? Purolator oil filter decal 2” round 1920’s H 35 A
? Oil filter changed decal W/DZ76-176 1920-30 H 35 A
? Deluxe oil filter decal set 2-pc. 1920’s H 35 A
? Fram oil filter decal set 3-piece 1940’s H 35 A
? Decal, A-C oil bath cleaner. ( See photo at bottom of list) All w/ AC oil 36 A
bath
? Decals, Twin H-Power air cleaners (peel-off, not water type) All Twin H 2 A
? Twin H-Power dry style air cleaner decal 52 H 35 A
? Serial number plate on firewall.(not exact match to all years but similar). Etched alum. 1920’S & 1930’S 5 D
as original. Serial number stamped into plate. SEE PHOTOS “TT” & “WW” (Essex E&H
shown but also available Hudson)ENGINE, TRANSMISSION & DRIVE TRAIN
Hudson Description Years Vendor Availa-
Part No. Applicable Code bility
Code
? ’24-28 Essex Distributor counterweights 24-28 5 D
? Heat Shield for carbs, in stainless stl. (sold in pairs) Twin-H setups 2 A
— Ring & Pinion gear set, high speed. LIMITED PROJECT, SPRING OF 2021 — 34-47 H & T — — —
THESE MUST BE SPECIAL ORDERED. SCROLL ALL THE WAY DOWN 6- & 8– bolt versions
TO THE NOTICE AT THE END OF THIS WEBPAGE available
156496 Vacuum clutch cylinder rubber boot 38 – 50 w/ vacuum 17 A
clutch
? Distributor seal 232, 308 only 22 A
3143717 Air cond. bracket, orig. factory design. Requires one hole to be drilled for mounting All 262 & 308 en- 28 A
screw (depending upon which engine it is used with) gines
? Distributor weights for Auto-Lite IB4001 distributor only 1925-early 1928 Es- 5 D
sex (6 cyl.)
? Exhaust Pipe Adapters, dual. Outlet plates (for welding to pipes) are available too. all stock Hudson 232 40 D
(Adapters were formerly sold by Danny Barrier / Mark Hudson) See Photo "A" below. -262-308 engines w/
stock exh. manifolds.
? Starter solenoid with remote pushbutton 1930's - 1954 42 A
? Finned aluminum Twin Vortex cyl. Head, 8.4 to 1, modern design. 1951 to 1956 -- 232, 43 D
(Mfr's cat. # 62010-1) -- SEE PHOTO “K” 262, 308 engines
? Carburetor heat shield -- double barrel -- stainless stl. 1935-56, all 2-bbl 42 A
carbs (mounting
holes elongated to fit
several years). WDO,
WGD carbs.
? Carburetor heat shield -- single barrel -- stainless stl.-- PHOTO "B" 1933-56, all 1-bbl. 42 A
carb, Carter WA-1 or
1AENGINE, TRANSMISSION & DRIVE TRAIN (cont’d)
Hudson Description Years Vendor Availa-
Part No. Applicable Code bility
Code
? Exhaust manifold. Ready to bolt on. The castings are thicker and better gas flow at 1930 Essex 48 A
the rear of the exhaust manifold. Two of these have been running on cars for at least
ten years. Ten remaining in stock (August, 2011). Price is $985NZ, shipping runs
Marvel #10 Repro carburetor bowl for Marvel “V” carb, made of aluminum. SEE PHOTO “Y” 1929 Essex 16 D
-722
(complete)
Bowl:
65-585
166277 or 134-tooth flywheel ring gear 1940-54 with 30 A
160229 manual trans-
mission, allDOOR, DOORWAY, TRUNK, TRUNK LID & INTERIOR TRIM
Latches, handles, window hardware
(Excludes upholstery & convertible/hardtop-specific parts)
Hudson Description Years Vendor Availa-
Part No. Applicable Code bility
Code
NA Vent window gears, L & R (sold as pair) 37- Mod. 72, 73 18 A
38- Mod. 82, 83
39- Mod. 93
Power window hydraulic lines -- see "Convertible and Hardtop Body Parts"
-- Door latch guide oil wick dovetail 1940-47 10 A
-- Door latch striker – left 1948-53 10 A
-- Door latch striker – right 1948-53 10 A
-- Vent window gear 1948-54 10 A
? Window crank (nickel plated, with knob) plain, pine cone, and rose pattern. Nickel plated. 28 H & E 5 D
SEE PHOTO “SS” (shows plain design); SEE PHOTO “XX” (pine cone design)
? Window crank, pine cone pattern. 29 H & E 5 D
? Door Pull (nickel plated plain, and rose pattern) SEE PHOTO “E9” 28, 29 H & E 5 D
? Robe rail bracket (pine cone pattern nickel plated) SEE PHOTOS “E5” AND “E6” 29 H & E 5 D
? Vent lever (nickel plated or plain) 29 H & E 5 D
? Foot rest Holders (rose pattern) nickeled. ’29 H Briggs 5 D
bodies)
? Interior door handle, cast brass w/ chrome plating (made to order from mold) -- 1927 Hudson 21 D
SEE PHOTO "DD"
? Window crank, cast brass w/ chrome plating (made to order from mold) -- 1927 Hudson 21 D
SEE PHOTO "CC"DOOR, DOORWAY, TRUNK, TRUNK LID & INTERIOR TRIM (cont’d)
Latches, handles, window hardware, interior trim
(Excludes upholstery & convertible/hardtop-specific parts)
Hudson Description Years Vendor Availa-
Part No. Applicable Code bility
Code
? Trunk handle — 3D printed — not supplied with lock cyl. — SEE PHOTO “PP” 1939 (model un- 53 D
known)
? Exterior door handles , rose pattern, chromed. SEE PHOTO "E1" ’29 H with Briggs 5 D
or Biddle &
Smart body
? Exterior door handle (locking) — 3D printed — customer supplies lock cyl. 1936 (model not 53 D
SEE PHOTO “RR” verified)
? Robe rail brackets, acorn pattern SEE PHOTOS “E5” & “E6” 29 H & E std. 5 D
body
? Interior door handle, pine cone pattern. SEE PHOTO “XX” (top item) 29 H & E std. 5 D
bodyDOOR, DOORWAY, TRUNK, TRUNK LID & INTERIOR TRIM (cont’d)
Latches, handles, window hardware, interior trim
(Excludes upholstery & convertible/hardtop-specific parts)
Hudson Description Years Vendor Availability
Part No. Applicable Code Code
(various) Sill plates (at threshhold of door) 1914 4 dr touring 3 D (except for a
1914-16 Heel plate few ready-made
1928 4 dr ones)
1929 2 dr conv./roadster
1929 4 dr sedan, 7 pas 139" wb biddle/smart
1931 4 dr sedan custom 8
1937 2 dr super terraplane
1937 4 d sedam series 76 & 77
1938 2 dr conv series 84
1938 2 dr super terraplane
1938 4 dr sedan series 87
1939 2 dr series 92
1939 4 dr touring sedan country club model 95
1946-47 pickup
1946-47 2 dr conv commodore
1946-47 4 dr sedan (lwb)
1946-47 4 dr sedan super 6
1948-53 2 dr conv & coupes
1948-53 4 dr sedans
1950-53 2dr super wasp & pacemaker
1950-53 4 dr super wasp & pacemaker
1954 2 dr conv and coupes
1954 4 dr sedan, hornet special
1956 4 dr super wasp
1957 2 drFUEL TANK, LINES, PUMPS, FILTERS, SENDERS
Hudson Description Years Vendor Availa-
Part No. Applicable Code bility
Code
? Fuel line (fuel tank to pump) -- #HUF1001 '40 Model 44 8- 1 A
? Gas tank. Zinc-coated galvanized steel construction. See Photo “T” 1948-53 all exc. 31 A
JetPhoto “A” Photo “B” Photo “C”
E-5
E-6
E-4
E-2
Photo “D“ E-3
E-9
E-1
E-8 E-7
Photo “E“Photo “F” Photo “G” Photo “H” Photo “J” Photo “K” Photo “L” Photo “M” Photo “N” Photo “O”
Photo “P” Photo “Q” Photo “R” Photo “S”
Photo “T” Photo “U” Photo “V”
Photo “W” Photo “X” Photo “Y”Photo “Z” Photo “AA” Photo “BB”
Photo “CC” Photo “DD” Photo EE”
Photo “FF” PHOTO “GG” PHOTO “HH”Photo “JJ” Photo “KK” Photo “LL”
Photo “MM” Photo “NN” Photo “00”
Photo “PP” Photo “QQ” Photo “RR”Photo “SS”
Photo “TT” Photo “UU”
Photo “V V” Photo “W W” Photo “XX”VENDORS:
1. Classic Tube, 80 Rotech Drive , Lancaster, NY 14086, (800) 882.3711. http://www.classictube.com/
2. Vintage Coach, 16581 Arrow Blvd., Fontana, CA 92335-3405, 909-823-9168 Xalbrighthudsons@msn.com
3. Doorsills, LLC – Donald P. Kuehn, 81 Graham Ave., N. Haledon, NJ 07508, doorsills@gmail.com
4. Paul, Mike, 16 Portage Rd, New Lynn, Auckland, New Zealand, tel. 0064-09-827-3845. Xmike@essex-comshape.co.nz
5. Clark, Geoff, 13 / 88 Valley Road, Wakefield 7025, New Zealand. 64-35419693, Xgeoffclark@xtra.co.nz
6. Otto, John, 202 Peony Pl., Darien, Ill. 60561, (630) 789-9824
7. Gleydura, Joe, 3626 Liberty Ave., Hubbard, Ohio 44425, tel. 330-534-4901 Xdjgtour@aol.com
8. Young, Scott, 332 Devon Dr., San Rafael, CA 94903, (415) 472-5126
Xscottyoung1001@sbcglobal.net Website: http://www.showcarquality.com/dashGlass.htm
9. Big Jim’s, HWY 22 - P.O. Box 174, Whitney, TX. 76692 (254) 694-5830 Jim@BigJims.net
10. Eshelman Molding & Casting (see on-line catalog; mostly plastic Hudson items) – http://partsbyemc.com/catalog/
11. King, Alan, akingdiy@gmail.com or my website www.eastcoastclassicsuk.com, tel. 01526-869168 (England)
12. MacDonald, Pat, 150 Common Rd., Kensworth, Dunstable, Bedfordshire LU6 2PH, 44-01582-873170,
Xjasmcdonald@fsmail.net
13. N/C Industries Antique Auto Parts, 301 South Thomas Ave., P.O. Box 254, Sayre, PA 18840, 570-888-6216, http://
www.windshieldframes.com/Products/Hudson.asp , sales@windshieldframes.com
14. Classic 2 Current Fabrication, 7748 Lear Court, Westland, MI 48185, e-mail: sales@c2cfabrication.com tel. (313( 534-2886 website:
www.c2cfabrication.com
15. Vann, Colin, Box 64, #30 Bernardin St., Elie, Manitoba, Canada R0H 0H0, tel. (204) 353-2510 (office) or (204) 353-2543 (home),
Xcjvann@mts.net16. Horn, Peer, peer@ozair.net.au (Western Australia) 17. Hudson, Rod; 8149 SE 69 Terrace, Trenton, FL 32693 (352) 472-6463 Xkrodhudson@bellsouth.net 18. Whited, Mike. 6178 W Stanley Rd. Mt Morris, MI 48458, (810) 955-2051 Xtkwhited@sbcglobal.net 19. McCluskey, Fred, 3414 Kolbe Ln., Florence, AL 35634, (256) 766-3486, Xfastfreddiejoe@aol.com 20. Silva, Bruce, 5306 Bonniemae Way, Sacramento, CA 95820, (916) 451-2305 21. Sevic, Vojin; Kumanovska 34, 11000 Belgrade, Serbia, cellphone 381-64-295-62-02 Xvsevic@sbb.rs 22. Bennett, Rudy, 4924 Grapeland Dr., El Paso, TX 79924 Xrbennett37@sbcglobal.net 23. SMS Auto Fabrics, 350 S. Redwood St., Canby, Oregon 97013 (503) 263-3535 http://www.smsautofabrics.com/ 24. Bob’s Classic Auto Glass, 21170 Highway 36, Blachly, OR 97412, USA, 800-624-2130 Xclassicglass@peak.org 25. Evo Coelho, 2770 Chestnut St., Brentwood, CA. 94513. (925) 634-3122 26. Becker, Dalton; R.R.#1, 422003, Elmwood, Ontario NOG 1SO Canada, (519) 369-1399, Xdandhbecker@gmail.com 27. Johnson, Glen; 160 N. 600 East, Brigham City, UT 84302 (435) 723-3143, XGmc46golden@aol.com 28. Stinnett, Joe7953 Stone Rd., Apopka, FL 32703. (407) 222-0524 Xjastinnett@earthlink.com 29. Rosol, Bob; 49 Morris Ave., Summit, NJ 07901, tel (908) 273-2370 30. Hughes Machine, PO Box 2269, Shelton, Washington., 98584, XFrank@vintagefullflow.com 31. Vintage American Parts, 158 Allen Blvd suite b, Farmingdale, NY 11735, 516-233-7788, sales@moparpro.com,, www.moparpro.com 32. Rhode Island Wiring Service, 567 Liberty Lane, PO Box 434, West Kingston, RI 02892 Phone: (401) 789-1955, Xinfo@riwire.com , http:// www.riwire.com/ 33. YnZ's Yesterdays Parts, 333 Stuart Ave. Unit A, Redlands, CA 92374, (909) 798-1498, http://ynzyesterdaysparts.com/
34. Agape Auto, 2825 Selzer Rd., Evansville,IN.47712, 812-423-7332. http://www.skirtsandvisors.com/ 35. Bruce Levey Antique Auto Parts, 5480 Canotek Rd. Ottawa, ON K1J 9H5, Canada, tel. 800-897-2910- Xblaap@sympatico.ca 36. Ankney, Ryan, Xryan.ankney@gmail.com 37. Kieliszek, Joe, 7090 Hickory Drive, Walton Hills, Ohio 44146, XJoekieliszek@aol.com 38. Inline Tube, 15066 Technology Drive, Shelby Township, MI 48315, (800) 385-9452 (order line); website: http://inlinetube.com/ -- e-mail: Xin- fo@inlinetube.com 39. American Arrow Corporation, 105 Kinross, Clawson, MI 48017, http://www.americanarrowcorp.com/ Phone (248) 435-6115 Xdsommer@greatid.com 40. Parks, Robert Xpbebop@gmail.com 201 Westview Drive, Florence, AL 35633 -- 256-762-4211 41. DiGiorgio, Jim, 101 Elm St., Pepperell, MA. 01463. 978-433-1919 Xdigiorgio@charter.net 42. Schuster, Paul, 3560 York St., Munhall, Pa. 15120, (412) 462-2058. Xhudson1957@aol.com 43. Empire Motors, Inc., 13451 Montana Ave, El Paso, Tx. 79938 USA (915) 856-9607. Xinfo@empiremotorsinc.com www.empiremotorsinc.com (website) 44. Bill James, Apple River, Illinois, tel. (815) 291-3541 or (815) 594-2541, Xbj31kars@yahoo.com 45. Lajeunesse, Ivan, 1053 Guisachan Rd., Kelowna, British Columbia, V1Y 7X3, Tel. (250-860-2901, Xdarleen2@telus.net 46. Wylie, Bruce, 4091 Irvin Circle No., Lake Elmo, MN 55042. Tel. (651) 770-8334, Xbrucewylie@msn.com 47. Turner, Jerry, Nostalgic Reflections, P.O. Box 350, Veradale, Washington 99037, tel. (509) 226-3522, nosref@peoplepc.com , website: www.NostalgicReflections.com 48. Davis, Barry, 15A Clyde Street, Renwick 7204, Mariborough, South Island, New Zealand, (03) 5728631, Xizabel@slingshot.co.nz 49. Hicks, Bob, Lomita, CA, tel. 310 283 2627, hotrodfoundry@att.net 50. Double E Carriages, 60 N Harvest Rd., Bird in Hand, PA 17505. Phone: (717) 768-8484 (leave message; call will be returned)
51. Auto City Classic Inc., 28433 Highway 65 NE, Isanti, MN 55040, tel. (763) 444-5880. websales@autocityclassic.com 52. C,G, & J Inc., 2776 Wills Creek Road, Gadsden, AL 35904, 1-800-223-4299 (send email at website: https://www.cgj.com/ ) 53. HV3DWorks LLC, 322 Compton Court Dr., Sewickley, PA 15143. (724) 266-7925, 3d@hv3dworks.com Web Site: www.hv3dworks.com 54. ARO 2000, 845-778-1314, info@aro2000.com http://www.aro2000.com/HUDSON_CONVERTIBLE_TOPS.htm
Hudson 1934-47
High Speed Differen al Gears
6- and 8-bolt types
Limited-9me Remanufacturing Project
If you haven't seen the thread on the HET club website Open Forum 9tled 'Remanufactured Differen9al Gears', please visit it if you are able. There
is an effort underway (organized by HET member Tom Lynch) to have a state-of-the-art CNC gear manufacturer reproduce differen9al gears of a
modified ra9o for 34- 47 Hudsons. This would change the ra9o from 4.10 to 3.50, which according to users of previously produced sets, results in
favorable performance changes (somewhat lowered star9ng speeds, but much improved cruising speed/reduc9on in engine RPMs). As you may
know, this effort has been undertaken in the past by the Railton Club in England and HET member Ivan Zaremba in very limited quan99es. All of
the previously produced gearsets were of the earlier six-bolt type (1934-38) and they have all been sold. The current project will include both 6
bolt crown gear sets AND 8 bolt crown gear sets. The 6 bolt type covers 1934-38 Hudsons and Terraplanes, as well as some 1939 Hudson 112’s up
to a certain serial number (details of the changeover are in the 1934-39 Mechanical Procedures Manual). The 8 bolt type was used thereaPer up
through 1947. Note that the smaller 6 cylinder motor (175ci) may not have quite enough power to handle the differen9al gear change and owners
of these cars may want to consider other ways to improve road speed. The cost per set for either type will be 1300.00 (this is not a for-profit ven-
ture, rather it is to assemble a group of customers within a limited 9meframe in order to keep the cost per gearset as affordable as possible).
As a customer your two primary obliga9ons will be to commit to pay 1000.00 up front later this spring (to a dedicated bank account); and to be
certain as to which type of gears you require. Some cars may have had the differenal changed over the years, meaning that the year of your
car’s manufacture might not dictate which type you have. There is some informa9on on the club’s Open Forum as to ways to determine which
you have, or you can ask ques9ons there.
Please express your interest by sending an email to terrahasktavern@netsync.net (drop the 'terra' when sending) and/or chime in on the website
thread (hetclub.org, then go to ‘Open Forum’). The ini9al sign-up deadline is March 15, 2021. At that 9me, if there is enough interest (at least a
combined order of 10 sets of either gear type), the project will proceed and there will be an opportunity to order gears up to April 1. Please help
get the word out to as many Hudson/Terraplane owners as possible. Thank you!
(NOTE: The Hudson Repro Parts website is not involved in this project; please contact the project’s organizer, above, for more informa on.)You can also read
