HP 3D as a Service Plus (HP 3DaaS Plus) - Freedom to innovate. Pay-per-use model for low-risk, easy access to fast, quality 3D printing.
HP 3D as a Service
Plus
(HP 3DaaS Plus)
Freedom to innovate.
Pay-per-use model for low-risk, easy
access to fast, quality 3D printing.
HP 3D as a Service Plus (HP 3DaaS Plus) - Freedom to innovate. Pay-per-use model for low-risk, easy access to fast, quality 3D printing.

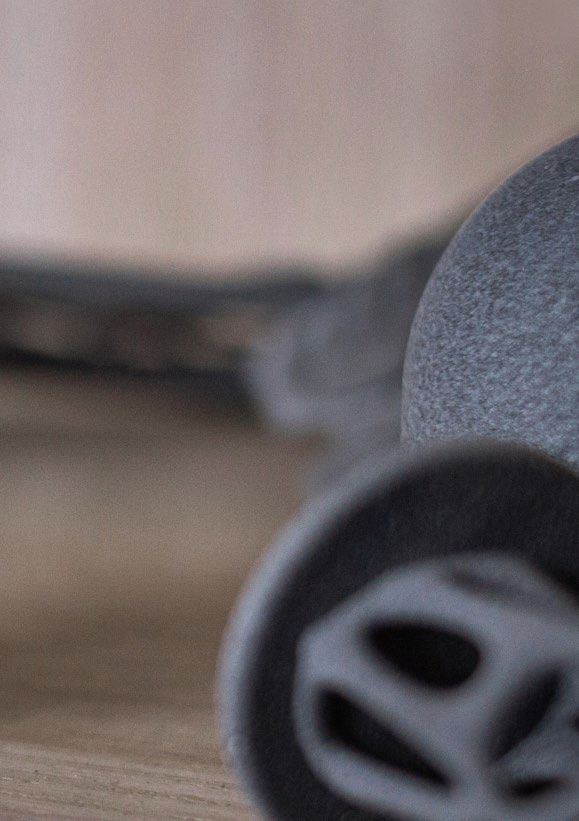

Produce quality,
                  functional prototypes
                and final parts in-house.

Data courtesy of EBK-Hungary Kft.
HP 3D as a Service Plus (HP 3DaaS Plus) - Freedom to innovate. Pay-per-use model for low-risk, easy access to fast, quality 3D printing.
Gain the freedom to innovate and bring products to market faster
HP 3DaaS Plus is an easy way to get started with 3D printing.1 Climb the learning curve for design for additive manufacturing with a low
commitment, pay-per-use model.

  • Convenient, quality HP Multi Jet Fusion 3D Printing—now in-house.

  • Predictable, affordable pay-per-use model—Reduce up-front investment and help align your costs directly with your revenue by paying
    monthly.*

  • A flexible service to fit your needs—easily scale your 3D printing technology and expertise in-house as your business grows with the help
    of immediate access to support and comprehensive training.

HP 3DaaS Plus—How it works

 Sign up for                      Receive                        Print your                 Automatically                     Pay monthly
 the service                    your printer                       parts                 receive your supplies                    fee

Once you receive your printer, you’re free to print as much as you want, whenever you want. Access the online dashboard for easy tracking of billing
and usage. To help you avoid downtime, we'll automatically send you everything you need. Now you can manage your 3D printing cost variability
more effectively with a predictable monthly bill.

Easily scale your 3D printing technology and expertise in-house as your business grows.

 *Requires a one-year commitment and start-up fee.
HP 3D as a Service Plus (HP 3DaaS Plus) - Freedom to innovate. Pay-per-use model for low-risk, easy access to fast, quality 3D printing.
All-inclusive solution                                                                  1

Convenient, quality
HP Multi Jet Fusion 3D Printing

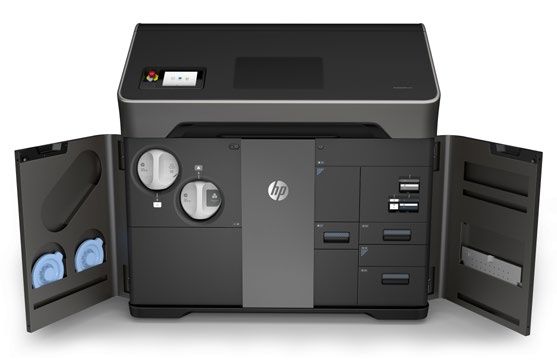

The HP Jet Fusion 340 3D Printer is the most compact HP Jet Fusion 3D device for
convenient in-house automated production designed for small/medium-sized product
development teams, design firms, and universities.

Accelerate your design cycles with rapid functional prototyping—produce multiple            HP Jet Fusion
design iterations in the same time it takes to print a single part.2
                                                                                            3D printer &
Deliver the quality your company and your customers expect with HP’s recommended
bead and air blasting solution, tailored for post-processing 3D printed parts. At the       accessories3
same time, HP's compact and easy-to-handle explosion-proof vacuum helps clean your
printer's build chamber and maintain maximum performance.

                                                                                                     HP 3Daa
                                                                                                      all-inc

                               Enclosed, automated
                                                            Multi-agent printing
                                 material mixing,
   Intuitive user interface                                  with voxel-level
                                    loading, and
                               reclamation systems
                                                                   control                      HP 3D
                                                                                              customer
                                                                                               success

A customer-centric service to
maximize your outcomes
Get immediate access to remote and on-site support, HP Printing Care Services, a
full set of training—including ramp-up and best design practices—and a central
contact to help maximize your success with HP Multi Jet Fusion technology.
HP 3D as a Service Plus (HP 3DaaS Plus) - Freedom to innovate. Pay-per-use model for low-risk, easy access to fast, quality 3D printing.
The HP 3D as a Service Plus (HP 3DaaS Plus) pay-per-use
            model1 includes everything you need to help accelerate your
            creation workflow and keep your designs confidential.

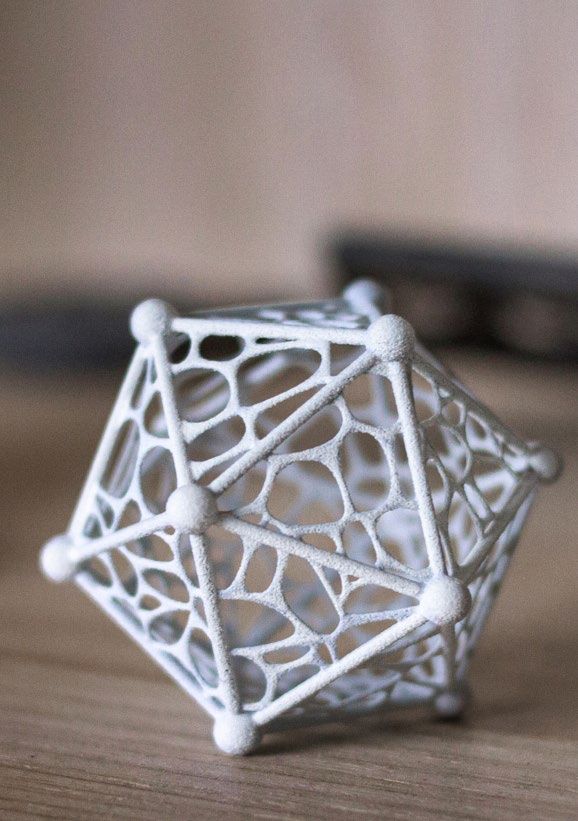

                              Engineering-grade prototypes
                              and final parts in-house
                              Produce accurate, functional thermoplastic white parts with fine detail and optimal
                              mechanical properties. Get the parts you want when you need them, easily, reliably, and
                              predictably—keeping your designs confidential.

 aS Plus                                                                            Data courtesy of Addit-ion

clusive
                              New operational efficiencies
                              With HP 3DaaS Plus, you'll automatically receive all the supplies you need, as you
                              need them, for day-to-day functional prototyping and final part production.

                              Simplify supplies ordering and reduce inventory costs with convenient automatic
                              supplies replenishment and predictable monthly pay-per-build billing.

       Original HP
    agents, printhead,
    and HP long-term
      consumables
HP 3D as a Service Plus (HP 3DaaS Plus) - Freedom to innovate. Pay-per-use model for low-risk, easy access to fast, quality 3D printing.
Reinventing 3D printing
     HP Jet Fusion 340 3D Printer—How it works

* HP Jet Fusion 3D Printing Solutions using HP 3D High Reusability CB PA 12 provide up to 80% powder reusability ratio producing functional parts batch after batch.
 For testing, material is aged in real printing conditions and powder is tracked by generations (worst case for reusability). Parts are then made from each generation and tested for
 mechanical properties and accuracy.
HP 3D as a Service Plus (HP 3DaaS Plus) - Freedom to innovate. Pay-per-use model for low-risk, easy access to fast, quality 3D printing.
Get set up to print
Successful installation relies on smart site preparation

Here are a few of the key considerations covered in the site preparation guide:

  • Account for printer footprint and            • Keep a safe distance from other
    operating space, plan space for the            machinery like CNCs, polishers, and
    bead blast solution and explosion-proof        milling or cutting machines
    vacuum
                                                 • Ensure that the floor is levelled, smooth,
  • Check printer dimensions and site              and vibration free—vibration can
    dimensions like doorways                       interfere with the printing process and
                                                   compromise print quality
  • Plan for supplies storage space
                                                 • Centralized air compression system or an
  • Access to 200-240V electrical service          air compressor required for bead blast
                                                   solution
  • Ventilation required to maintain
    recommended room temperatures                • For using HP SmartStream 3D software,
    between 20 to 30° C (68 to 86° F)              you’ll need a designated PC running the
                                                   server, always connected to the HP cloud
  • Floor must withstand 650 kg (1443 lbs)         with your HP PrintOS credentials
    weight; total weight with packaging
    850 kg (1874 lbs)
HP 3D as a Service Plus (HP 3DaaS Plus) - Freedom to innovate. Pay-per-use model for low-risk, easy access to fast, quality 3D printing.
Technical specifications                                                                                                                                        HP 3DaaS Plus:
         HP Jet Fusion 340 3D Printer                                                                                                                                  All-inclusive

                                                                                                                                                                        Printer                           HP Jet Fusion 340 3D Printer
        Printer                       Technology                                             HP Multi Jet Fusion technology
        performance                                                                                                                                                     Original HP 3D high               HP 3D High Reusability CB PA 12
                                      Effective building volume                              Up to 254 x 190 x 248 mm                                                   reusability material
                                                                                             (10 x 7.5 x 9.8 inches)
                                                                                                                                                                        Post-processing                   Bead and air blasting solution
                                      Building speed5                                        1389 cm³/hr (85 in³/hr)                                                    and cleaning
                                                                                                                                                                        accessories4                      Explosion-proof vacuum
                                      Full build job time for 248-mm                         As fast as 20 hours
                                      (9.8-in) buildable height6                                                                                                        Original HP                       HP 3D400 Printhead Kit
                                      Layer thickness                                        0.08 mm (0.003 inches)                                                     printhead
                                                                                                                                                                        Original HP agents                HP 3D400 500-ml Detailing Agent
                                      Printhead resolution                                   1200 dpi
                                                                                                                                                                                                          HP 3D400 500-ml Fusing Agent
        Dimensions                    Printer                                                1565 x 955 x 1505 mm
        (w x d x h)                                                                          (61.6 x 37.6 x 59.3 inches)                                                                                  HP 3D400 250-ml Bright Fusing Agent
                                      Shipping                                               1170 x 1143 x 2013 mm                                                      HP long-term                      HP Jet Fusion 500/300 Series 3D Printhead Cleaning Roll
                                                                                             (69.7 x 45 x 79.3 inches)                                                  consumables
                                                                                                                                                                                                          HP Jet Fusion 500/300 Series 3D Printer Lamp Module
                                      Operating area                                         2785 x 2530 x 2440 mm
                                                                                             (109.6 x 99.3 x 96 inches)                                                                                   HP Jet Fusion 500/300 Series 3D Printer Air Inlet Filter
        Weight                        Printer                                                650 kg (1433 lb)                                                                                             HP Jet Fusion 500/300 Series 3D Printer Print Area Filter
                                      Shipping                                               850 kg (1874 lb)                                                                                             HP Jet Fusion 500/300 Series 3D Printer Air Exhaust Filter
        Environmental                 Operating temperature                                  20-30° C (68-86° F)                                                        HP 3D support                     Remote and onsite support (includes shipment,
        ranges                                                                                                                                                                                            installation, and training)
                                      Operating humidity                                     20-70% RH without condensation
        Acoustics7                    Front operating position                               72 dB (without muffler) / 70 dB (with muffler)
                                      Rear bystander position                                80 dB (without muffler) / 75 dB (with muffler)
        Network8                      Gigabit Ethernet (10/100/1000Base-T), supporting the following standards: TCP/IP,
                                      DHCP (iPv4 only); TLS/SSL                                                                                                           Eco Highlights
        Hard disk                     HDD 1TB (AES-256 encrypted, disk wipe DoD 5520M) & SSD 1TB (AES-256 encrypted)                                                              • Cleaner, more comfortable experience—enclosed printing system, and
                                                                                                                                                                                    automatic powder management10
        Software                      Included software                                      HP SmartStream 3D Build Manager
                                                                                                                                                                                  • Minimizes waste due to industry-leading reusability of powder11
                                                                                             HP SmartStream 3D Command Center                                                     • Take-back program for eligible supplies available in select countries12

                                      Supported file formats                                 3MF, STL, OBJ, VRML v.2                                                       Please recycle printing hardware and eligible printing supplies.
        Power                         Consumption                                            6300W or 2 x 3150W                                                            Find out how at our website: hp.com/ecosolutions

                                      Requirements9                                          Single-circuit configuration: 221-240V 32A
                                                                                             Dual-circuit configuration: 221-240V 2 x 16A
        Certification &               Safety                                                 NA (US & Canada) IFC 61010-1 compliant,
        Statement                                                                            NRTL certified; EU: Machinery Directive, EN
                                                                                             61010-1, EN 60204-1, EN ISO 12100, and
                                                                                             EN ISO 13849-1 compliant
                                      Electromagnetic compatibility                          EN 55032:2012 Class A; CISPR 32:2015
                                                                                             Class A; FCC CFR 47 Part 15 Class A;
                                                                                             ICES-003, Issue 6 Class A; EN 61000-
                                                                                             3-12:2011; IEC 61000-3-12:2011; EN
                                                                                                                                                                               SPARK DESIGN AWARDS
                                                                                                                                                                                 PLATINUM WINNER

                                                                                             61000-3-11:2017; IEC 61000-3-11:2017;
                                                                                             EN 55024:2010; CISPR 24:2010
                                      Environmental                                          REACH compilant
        Warranty &       One-year limited hardware
        service coverage warranty
        included

       Learn more about HP 3DaaS Plus at: hp.com/go/3DaaSPlus                                                                                                              Dynamic security enabled printer. Only intended to be used with cartridges
       Request a free consultation on HP 3DaaS at hp.com/go/3DaaSContactUs                                                                                                 using an HP original chip. Cartridges using a non-HP chip may not work, and
                                                                                                                                                                           those that work today many not work in the future.
       Sign up for more information on HP 3DaaS at hp.com/go/3DaaSSignUp
                                                                                                                                                                           More at: hp.com/go/learnaboutssupplies

1. HP 3DaaS Plus now available in Austria, Belgium, Canada, Denmark, Finland, France, Germany, Ireland, Italy, Netherlands, Portugal,                6. Assumes default "Auto Cool and Reclaim" print mode. Job duration begins at the moment the job is selected to print at the control panel
   Spain, Sweden, UK and US. Includes HP Jet Fusion 340 3D Printer for printing white parts, installation, support and maintenance services,             and ends at the time the parts are ready to be removed from the build chamber. Does not include part cleaning.
   supplies and long-term consumables. HP 3DaaS Plus requires a one-year commitment and start-up fee.                                                7. Measurement positions conform to ISO 11201-2010 for machinery, 1.0 meters horizontally and 1.55 meters above the floor.
2. Based on internal and third-party testing for HP Jet Fusion 340 3D Printer, printing and cooling time is a fraction of the time of the printing   8. The HP Jet Fusion 3D Printing Solution should be connected to the HP Cloud in order to enable the correct functioning of the printer and
   times of comparable plastic fused deposition modeling (FDM), stereolithography (SLA), and material jetting solutions from $20,000 USD                 to offer better support.
   to $120,000 USD on market as of July 2019. Testing variables for the HP Jet Fusion 340 3D Printer: Part quantity: 1 full build chamber of         9. Consult the Site Preparation Guide for other electrical connection options and technical details on electrical installation.
   parts from HP Jet Fusion 3D at 8% of packing density versus same number of parts on above-mentioned competitive devices; Part size:               10. Compared to manual print retrieval process used by other powder-based technologies. The term “cleaner” does not refer to any indoor air
   30 cm3; Layer thickness: 0.08 mm/0.003 inches. Competitor testing variables are comparable.                                                           quality requirements and/or consider related air quality regulations or testing that may be applicable.
3. Both the bead and air blasting solution and the explosion-proof vacuum are available as an option together.                                       11. Compared to PA 12 materials available as of June 2017. HP Jet Fusion 3D Printing Solutions using HP 3D High Reusability CB PA 12 provide
4. HP Jet Fusion 3D Printing Solutions using HP 3D High Reusability CB PA 12 provide up to 80% powder reusability ratio producing functional             up to 80% powder reusability ratio, producing functional parts batch after batch.
   parts batch after batch. For testing, material is aged in real printing conditions and powder is tracked by generations (worst case for           12. Printing supplies eligible for recycling vary by supply and by printer. Visit hp.com/recycle to see how to participate and for HP Planet
   reusability). Parts are then made from each generation and tested for mechanical properties and accuracy.                                             Partners program availability; program may not be available in your area. Where this program is not available, and for other consumables
5. Based on 0.08-mm (0.003-in) layer thickness and 10 sec/layer.                                                                                         not included in the program, consult your local waste authorities on appropriate disposal.
