Gliding catalog 2019 Instruments and accessories International

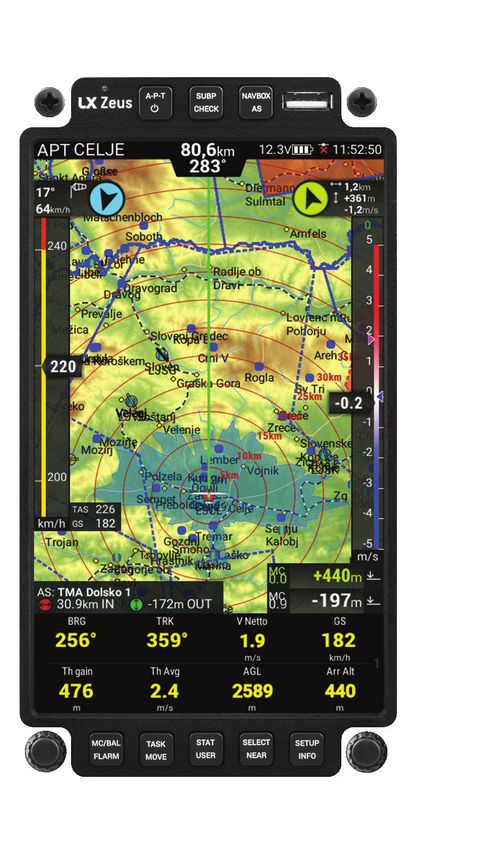

THE MASTER OF THE SKY. Zeus 7.0 2.8” / 4.3” / 5.5” / 7.0” Vario-navigation system. • Anti-glare, high brightness display • Intuitive, easy to use interface • IGC approved flight recorder with ENL • APT, TP, TSK navigation active at the same time • Multiple TP and airspace files active simultaniously • Navigation to the NEAREST landable point • 3D world terrain with details • ICAO and Rogersdata charts supported • Controls your radio and variometer • Up to 3 GPS inputs • Short/long press buttons • Custom page layout (colours, navboxes,...) • Plug and Play accessories via CAN BUS • 7 connectors for all possible devices
Zeus 2.8 Zeus 4.3 Zeus 5.5 Zeus 7.0 Screen size 2.8” 4.3” 5.5” 7.0” Size 82 x 82 x 52 mm 136 x 83 x 52 mm 146 x 106 x 52 mm 190 x 110 x 52 mm Weight 300 g 465 g 500 g 595 g Resolution 320 x 240 px 480 x 800 px 480 x 640 px 800 x 640 px Brightness 1200 cd/m2 1200 cd/m2 1200 cd/m2 1200 cd/m2 RAM 512 MB DDR 512 MB DDR 512 MB DDR 512 MB DDR Memory 32 GB 32 GB 32 GB 32 GB Power usage 200 mA @ 12V DC 300 mA @ 12V DC 500 mA @ 12V DC 550 mA @ 12V DC
MODERNIZE YOUR COCKPIT
WITH THE NEW SYSTEM.
LX 10K GREAT FOR CLUBS! NEW!
Ultimate upgrade system.
• The largest transflective display in 80 mm cutout
• IGC approved flight recorder with ENL
• World terrain map with multiple map palettes
• TP, APT, TSK and NEAREST landable navigation
• Airspace support with warnings
• Integrated voice module
• Backup battery (up to 3h)
• New advanced LX One Chip
• 16 GB internal memory
• Integrated G-meter and recorder
• 3-axis gyroscope and accelerometers
• WiFi and Bluetooth 4.0 + BLE
• Integrated GPS receiver
• OAT probe input (temperature)
• Micro SD card port for transfers and update
• Power consumption: 250 mA @ 12V DC
Simple operation Direct access to pages via rotary knobs and buttons. Intuitive user interface Based on experience we developed easy to use interface. TP, APT, TSK and NEAREST Full navigation to TP, APT, TSK and NEAREST landable point. Quick settings Just a push away are volume, QNH, MacCready, ballast and bugs. Colour themes Choose between black and white background for the best visibility. Speed and altitude tape Important informations are displayed as tapes. Airspace indication Avoid the airspace in your way with visual and audio warnings. Plug and play accessories AHRS module, Joy and other accessories are plug and play.
COMBINATION OF FUTURE
AND CLASSIC LOOK.
Eos 57 mm / 80 mm
Smart variometer, classic look.
• 2.7” anti-glare display
• IGC approved flight recorder with ENL
• TP, APT, TSK and NEAREST landable navigation
• Airspace support with warnings
• New advanced LX One Chip
• 8 GB internal memory
• Integrated G-meter with recorder
• 3-axis gyroscope and accelerometers
• WiFi and Bluetooth 4.0 + BLE
• Integrated GPS receiver
• Integrated voice module
• Rotary knob with push function
• OAT probe input (temperature)
• External micro SD card port for transfers and update
• Backup battery (up to 3h)
• Power consumption: 150 mA @ 12V DC
Classic mechanical needle Combination of precise needle with big, transflective display. Intuitive user interface Based on experience we developed easy to use interface. TP, APT, TSK and NEAREST Full navigation to TP, APT, TSK and NEAREST landable point. Quick settings Just a push away are volume, QNH, MacCready, ballast and bugs. Colour themes Choose between black and white background for the best visibility. Speed and altitude tape Important informations are displayed as tapes. Airspace indication Avoid the airspace in your way with visual and audio warnings. Plug and play accessories AHRS module, Joy and other accessories are plug and play.
WE DESIGNED THE
FUTURE OF VARIOMETERS.
Era 57 mm / 80 mm
Digital smart variometer.
• The largest transflective display
• IGC approved flight recorder with ENL
• TP, APT, TSK and NEAREST landable navigation
• Airspace support with warnings
• Backup battery (up to 3h)
• New advanced LX One Chip
• 8 GB internal memory
• Integrated G-meter and recorder
• 3-axis gyroscope and accelerometers
• WiFi and Bluetooth 4.0 + BLE
• Integrated GPS receiver
• Integrated voice module
• OAT probe input (temperature)
• Micro SD card port for transfers and update
• Power consumption: 150 mA @ 12V
Future variometer arc Super accurate variometer indication with colour arc. Intuitive user interface Based on experience we developed easy to use interface. TP, APT, TSK and NEAREST Full navigation to TP, APT, TSK and NEAREST landable point. Quick settings Just a push away are volume, QNH, MacCready, ballast and bugs. Colour themes Choose between 4 different color themes for the best visibility. Speed and altitude tape Important informations are displayed as tapes. Airspace indication Avoid the airspace in your way with visual and audio warnings. Plug and play accessories AHRS module, Joy and other accessories are plug and play.
SIMPLE VARIOMETER
FOR CLUB USE.
Helios
Simple standalone variometer.
• Anti glare display
• Integrated G-meter (G-force recorder)
• External GPS data based final glide calculation
• Flarm radar and Thermal assistant screen
• Built-in rechargeable backup battery
(up to 3 hours of autonomy)
• Navigation to take off location
• Flight information with Barograph
• Accurate wind calculation in circling
• Speed-to-fly function
• Logbook with transfer interface
• Power consumption: 150 mA @ 12VCompare
and decide.
Eos 57 Eos 80 Era 57 Era 80 Helios
Vario indicator Analog Analog Digital Digital Analog
Size 60 x 60 x 76 mm 82 x 82 x 52 mm 62 x 62 x 52 mm 82 x 82 x 52 mm 60 x 60 x 63 mm
Display 1.8” 2.7” 2.5” 3.5” 1.8”
Battery Up to 3h Up to 3h Up to 3h Up to 3h Up to 3h
IGC flight recorder
MOP sensor Optional Optional Optional Optional
AHRS Optional Optional Optional Optional Optional
Bluetooth
WiFi
APT navigation
TSK navigation
TP navigation
NRST navigation
AIRSPACE support
PNA/PDA OptionalPERSONAL TOUCHSCREEN
FLIGHT RECORDER.
Colibri X NEW!
Touchscreen flight recorder.
• 3.5“ transflective, touchscreen display
• IGC flight recorder with ENL
• Intuitive swipe operating
• Altimeter with QNH input
• Built-in GPS receiver and GPS antenna
• SD card port for data transfer
• Battery (up to 15h)
• Audio-visual warnings
• Variometer with thermal assistant
• Wind calculation
• Custom NavBox bar
• TP, APT and TSK navigation
• World map with terrain
• Airspace support
• Bluetooth and WiFi connectivityFeatures Brand new operating system. Colibri X OS 1
World map with terrain Navigation device IGC flight recorder with ENL
Colibri X comes with preloaded Turnpoint, Airport, Task and Your new Colibri X is a smart
world map with terrain. Pick Nearest navigation with airspace backup instrument with the
your favourite colour palette. support is basically everything highest level IGC certification
you need. with ENL.
Intuitive device Transflective display LX One chip
Over 40 years of research and Custom transflective display Avionics dedicated processor
experience in gliding gave us made with optical bonding has developed in the company for
the know how to produce the even better visibilty in direct complex data processing used
ulitmate pilot. sunlight conditions. in LX navigation devices.REFURBISHED ICON
IS BACK.
Colibri II
The smallest flight recorder ever.
• IGC flight recorder with ENL
• Built-in GPS receiver and GPS antenna
• NMEA output
• Built-in rechargeable back-up battery
(up to 10 hours of autonomy)
• Built-in battery charger (5V via USB cable)
• SD card for data transfer
• Internal memory for flight storage
• Basic variometer with audio
• Altimeter with QNH input
• Basic turnpoint navigation
• Basic task navigation
• Flarm page if Flarm connectedFOR JET OR FES
POWERED GLIDER.
MOP IGC
For gliders with JET or FES engines.
• IGC flight recorder
• Micro SD card port
• GPS receiver with external antenna
• Plug and play via CAN BUS
• LED multicolour indication
• Single cable installation
• CAN BUS connectivity
• Durable all aluminium design
• Backup battery (up to 5h)
• Power consumption: 80 mA @ 12VMULTIPLE AIRCRAFT,
ONE DEVICE.
Flarm Eagle mobile ADS-B NEW!
Standalone collision avoidance.
• Brand new PowerFLARM OEM Module
• Brand new LED display
• Lightest and smallest PowerFLARM available
• Improved transmitting and receiving
• IGC flight recorder and ENL sensor optional
• ADS-B receiver optional
• WiFi and Bluetooth optional
• Diversity module optional
• Standard RJ12 data, SMA GPS and
SMA FLARM RF connectors
• USB port
• Up to 12 hours of battery autonomy
• Internal beeper for audio warnings
• Lightweight designCOLLISION AVOIDANCE
IS IMPORTANT.
Flarm Eagle ADS-B NEW!
Fly safely and stay in control.
• Brand new PowerFLARM OEM Module
• Lightest and smallest PowerFLARM available
• Improved transmitting and receiving
• IGC flight recorder and ENL sensor optional
• WiFi and Bluetooth optional
• Diversity module optional
• ADS-B receiver optional
• Standard RJ12 data, SMA GPS and
SMA FLARM RF connectors
• USB port
• Power consumption: 80 mA @ 12 V
• Power supply: 9-36 V DCNEW! 57 mm / 80 mm NEW! Traffic monitor Colour display II LED display • Transflective display • Traffic radar screen with zoom • High brightness LED display • Traffic radar screen with zoom • User-friendly handling via • Audio and visual warnings • Micro-SD card slot multifunction switch • Compatible with all Flarm units • Audio and visual warnings • Micro-SD card slot • Plug and play installation • WP/RTE/TASK navigation • Near glider data display • Low power consumption • Airspace warnings • Audio and visual warnings • Easy to install • Flarm.net list supported • Flarm.net list supported • Custom competition numbers • Custom competition numbers • Flight statistics and logbook • Turnpoint navigation (.cup) • Compatible with all Flarm units • Compatible with all Flarm units
ATTITUDE AND HEADING
REFERENCE SYSTEM.
Horizon NEW!
57 mm / 80 mm
Standalone AHRS unit.
• Anti-glare display
• LX One chip
• CAN BUS ports
• All aluminium housing
• Backup battery (up to 3h)
• Bluetooth and WiFi
• 3 accelerometers
• 3 gyroscopes
• IAS and altitude sensor
• Plug and play with LX devices
• Customizable layout
• Quickly adjustable baro and pitch offset
• Adjustable plane icon (glider, powered aircraft)FLY, NAVIGATE,
COMMUNICATE.
KRT 2
8.33 kHz radio transciever.
• VHF transceiver for aircraft installation
• Frequency range from 118.000 to 136.975 MHz
• Channel spacing 8,33 / 25 kHz
• 2 microphone inputs (2 x standard or dynamic)
• 100 user defined frequencies (8 characters)
• Audio input for connection of NF-sources e.g. MP3
• Plug and play with LX devices
Installation:
• Aerospace standard cut out (57 mm)
• Mini version (63 mm x 46 mm)
EASA Form 1 - EASA.21O.10038036SUPPORT SAFETY,
SHARE YOUR POSITION.
KTX 2
Ideal mode S transponder.
• Low weight of only 360 grams
• Compact dimensions
• Low power consumption
• Large, high-contrast, long-life TFT colour display
• Intuitive operation – developed by pilots for pilots
• Excellent price/performance ratio
• Plug and play with LX devices
Installation:
• Aerospace standard cut out (57 mm)
• Mini version (63 mm x 46 mm)
EASA Form 1 - ETSOA.21O.10055186WE PROVIDE EVERYTHING YOU NEED. Ground station Microphone Cables & sets • Ground unit prepared • High sensitivity microphone • Different cable sets depend- for KRT2 radio and KTX2 • No need to talk close ing on the airplane type transponder (all included • No critical grounding • Different plug adaptors for except KRT2 or KTX2) • Length 50 cm, 10 mm mount other radio stations • Durable aluminium housing • Standard 8 V DC source • LX communication cables • Enhanced signal range • Easy installation • Cable amplifiers for dynamic • 12V 7,2 Ah longlife Pb battery • Durable design microphone • Ground station only for KRT2 • For KRT 2: gain level 3-6
AHRS Fuse holder NEW!
Joy II NEW!
A new digital attitude and head- Under voltage, short circuits First jostick with vibration warn-
ing reference system module. and over current protection of ings. Ergonomic, real leather
Plug and play with LX device. your Pb battery with LED status. hand stiched joystick. .
Flaps sensor NavBox Antennae
Control your flaps position with Emphasize what is important to We offer a wide spectrum of
simple yet smart device which you with plug and play of small antennas for your LX devices,
is durable and easy to install. display with multiple pages. Flarm, radios and transponders.LX navigation d.o.o., Tkalska ulica 10, SI-3000 Celje, Slovenia +386 (0)3 490 46 70, info@lxnavigation.com, lxnavigation.com
