DUNE FCRSG 2021
The picture can't
be displayed.
Fermilab Computing Resource Scrutiny Group
• Modeled on CERN CRSG
• Semi-External committee that looks at the computing requests from
experiments, but also the Fermilab plans to address those requests
• Goal: evaluate usage requests, plan for future of computing at Fermilab
– Not limited to M&S – SWF is the largest portion of our budget
– Not limited to Computing and Detector Operations
• Note, however, that CMS computing is separately reviewed
– Not including Scientific Software development
• Time frame: next year + experiment-specific horizon
• Scrutiny should focus on incremental costs (SWF + M&S)
– Including custom solutions in software, etc.
The picture can't
2 be displayed.

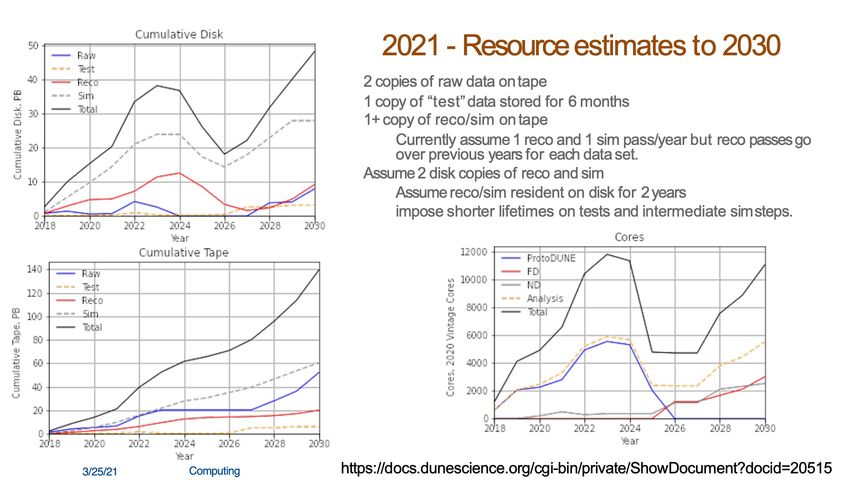

DUNE Computing Model
The picture can't
Heidi’s slide
3 be displayed.

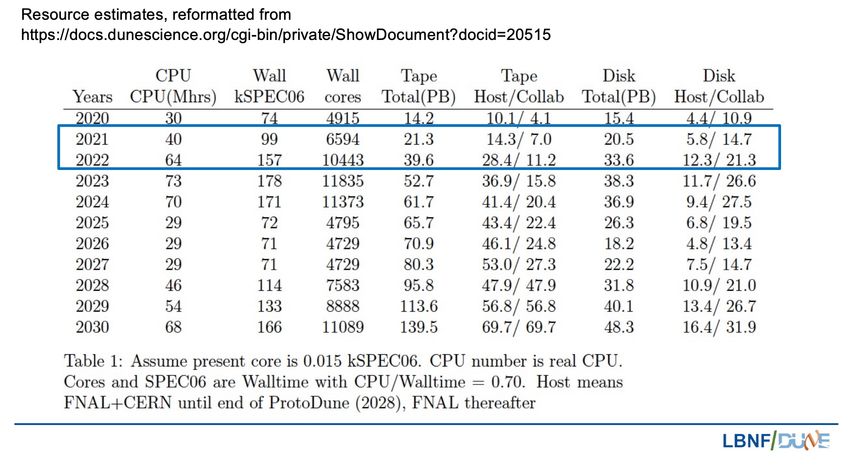

DUNE Resource Request in tabular form
The picture can't
4 be displayed.
Outcome
• Several questions from Brian Bockelman about network resource needs
– Currently have coverage for the SURF -> FNAL plans
– Asked to expand the planning of network resources to include production
processing and data distribution
• Should expand planning to include tape/disk read/write rates to understand
potential needs for drives/”spindles”
• Initial response from the committee was very positive
• Expect a close out report this week
• Projections also presented to the RRB by Peter Clarke
• Want to document the assumptions and computing model – updated annually
The picture can't
5 be displayed.
DUNE Organization Chart for Offline Computing DUNE 6
Important Dates to Remember
2021 2022 2023
Likely peak
Q1 Q2 Q3 Q4 Q1 Q2 Q3 Q4 Q1 Q2 Q3 Q4
pDUNE SP Prod4
ProtoDUNE SP Prod 5
DUNE Computing CDR
ProtoDUNE HD Prod 1
Likely peak
ProtoDUNE II Horizontal Drift Operations
ProtoDUNE II Vertical Drift Operations
DUNE 7
CPU - Experiment Usage Over the Last Year
Equipped to
exploit HEPCloud
elasticity? YES!
DUNE 8
CPU and Memory Efficiency Over the Last Year
CPU Efficiency getting better
Memory efficiency slight
improvement
DUNE 9
CPU Efficiency Comb vs Ana Over the Last Year
Combined
Analysis

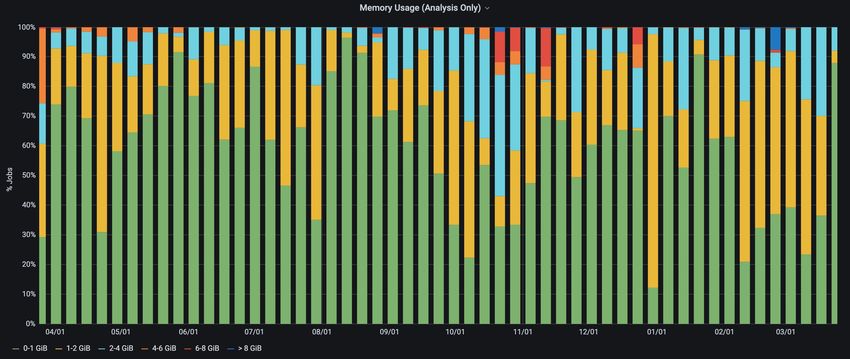

DUNE 10Memory Footprint & Efficiency Over the Last Year
Efficiency getting a little better
Envelope increasing slightly
DUNE 11Memory Efficiency Prod vs Ana Over the Last Year
Production
Analysis
DUNE 12Memory Footprint Prod vs Ana Over the Last Year
Production
Analysis
DUNE 13CPU - Prediction Going Forward and Accuracy of Your Predictions [units of
Million (1 CPU, 2GB) wall hours per CY]
2018 2019 2020 2021 2022 2023
Requested 25 (FNAL) 29 FNAL 30 FNAL 30 FNAL
(36 Total) 40 Total 64 Total 73 Total
Actual 33.29 29.15 (GPGrid) N/A N/A N/A
Used 42.7(WLCG+GPGrid)
3.85 (NERSC)
Efficiency % 91% % N/A N/A N/A
DUNE 14CPU Adaptations Going Forward
How can experiment use OSG/HPC/Cloud/HEPCloud going forward?
For cloud resources, please describe funding mechanisms.
For HPC, please describe plans for acquiring allocations.
Do you anticipate using heterogeneous computing resources, e.g., GPUs?

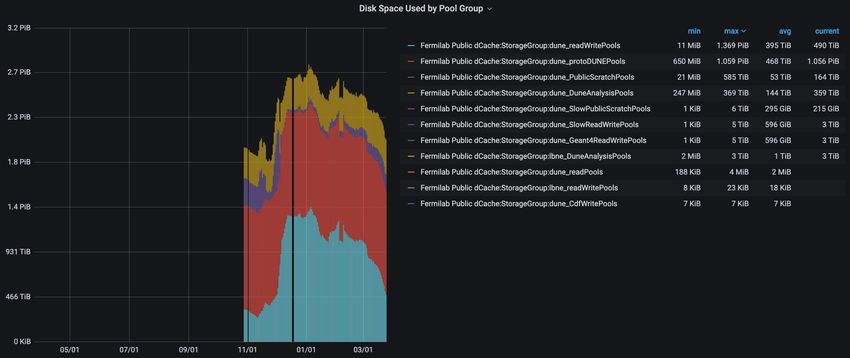

DUNE 15Disk: dCache Usage and Predictions (in TB)
Other
Analysis
Dedicated
(Persistent)
(Write)
2430 TB
396 TB (max)
Current
(actual) 585 TB
(scratch)
2021 600 TB 5300 TB
2022 800 TB 9800 TB
Total r/w (tape backed): 6264 TB
Total scratch: 2333 TB
Total persistent: 2576 TB Will not track cache usage,
but need to know of
Total other: 2131 TB 2023 800 TB 9200 TB
unusual requests
DUNE 16Tape - Usage and Predictions (in PB)
Total Added By
End of Year
12060 TB (total)
At end 2020
2900 TB (added)
2021 3000 TB (added)
All needs to
be migrated 2022 9200 TB (added)
except for 95
TB of LBNE
data
2023 6600 TB (added)
DUNE 17Disk: NAS Usage and Predictions (in TB Units)
App Data
2021 15 70
2022 17 80
2023 19 90
DUNE 18Age of files in NAS
The picture can't
be displayed.
19Data Lifetimes
Keep two copies of raw data on tape
1 copy of ”test” data for 6 months
1+ copy of reco/sim on tape
currently assume 1 reco and 1 sim pass/year but reco passes go over
previous years for each data set of reconstruction
Keep 2 disk copies of reco and sim
assume reco/sim resident on disk for 2 years
impose shorter lifetimes on tests and intermediate sim steps
DUNE 20What Do You Want to Achieve in Computing Over
Next Three Years
Where does the
Where does SCD need to
Goals experiment need to
contribute
contribute
Demonstration of computing engagement with Inter. Global Pool, Auth efforts,
model and data event Sites and WLCG, GlideInWMS, HEPCloud,
model with ProtoDUNE II accounting and int (CRIC, networking, etc.
EGI tools, etc.)
Fully integrated Data Integration of RSEs, req. for Rucio development, data
Management Infrastructure metadata, discovery, workflow mgmt.,
storage R&D
Transition analyzers to Joint effort Joint effort
POMS
Unified Framework Complete task force doc, SCD personnel
DUNE organize 21Anything else? DUNE 22
