Creating a biomethane market in Ireland - James Browne (B.E., Ph.D.) - Innovation Engineer - Dena
Creating a biomethane
market in Ireland

James Browne (B.E., Ph.D.) – Innovation Engineer
Creating a biomethane market in Ireland - James Browne (B.E., Ph.D.) - Innovation Engineer - Dena
Presentation Topics

Background

Biomethane Resources in Ireland

Biomethane Market Overview

Gas Quality Standard

The Causeway Project

Green Gas Certification Project

2
Creating a biomethane market in Ireland - James Browne (B.E., Ph.D.) - Innovation Engineer - Dena
Background
Creating a biomethane market in Ireland - James Browne (B.E., Ph.D.) - Innovation Engineer - Dena
Gas Networks Ireland

                       • Gas Networks Ireland owns and operates
                         the transmission and distribution natural
                         gas network in Ireland.

                       • Over 13,500 km of gas pipelines
                          • 2,422Km Transmission Network
                          • 11,288Km Distribution Network
                        More than 675,000 gas consumers
                          • 650,000 homes and 25,000
                            businesses
                       • Over 160 population centres present in
                         19 counties
                       • Gas Network with Abundant Capacity,
                         Secure and Reliable supply of energy
Creating a biomethane market in Ireland - James Browne (B.E., Ph.D.) - Innovation Engineer - Dena
Ireland’s Renewable Energy 2020 Commitments

                                                          • 16% overall renewable energy by 2020
                                                          • 40% electricity;12% heat; 10% transport
                                                          • Most progress to date has been in electricity
                                                            sector
                                                          • Least progress has been in the transport
                                                            sector
                                                          • The heat sector may have to make up the
                                                            short fall from transport
                                                          • Renewable Gas will enable Industry to
                                                            achieve renewable targets, without the need
                                                            to re-invest in alternative infrastructure,
                                                          • Industry can help Ireland meet its renewable
                                                            heat (RES-H) targets of 12% by 2020 by
Data sourced from SEAI, 2015 “Renewable Heat in Ireland     using renewable gas.
to 2020”
Creating a biomethane market in Ireland - James Browne (B.E., Ph.D.) - Innovation Engineer - Dena
Transition to decarbonisation – “Our Vision”
Creating a biomethane market in Ireland - James Browne (B.E., Ph.D.) - Innovation Engineer - Dena
Agri-Food Industry Commitments

• Agri-Food companies are “going green”
  for commercial reasons and corporate
  social responsibility
• There is increasing demand for
  renewable gas from food and drinks
  processors
• Many large natural gas users and now
  want to procure “green gas” in the same
  manner as they buy “green” electricity
Creating a biomethane market in Ireland - James Browne (B.E., Ph.D.) - Innovation Engineer - Dena
Biomethane Resources in Ireland
Creating a biomethane market in Ireland - James Browne (B.E., Ph.D.) - Innovation Engineer - Dena
Potential Renewable Gas Resource in Ireland

                     80.000
                     70.000
                     60.000
                     50.000
Energy (GWh/annum)

                     40.000
                     30.000
                     20.000
                     10.000
                          0
                              Theoretical Renewable Gas       Estimated Renewable Gas   Current natural gas demand
                                      Resource                   Production by 2030
                        Organic Waste   Agricultural Manure      Grass   Natural Gas demand   Emerging Sources
Creating a biomethane market in Ireland - James Browne (B.E., Ph.D.) - Innovation Engineer - Dena

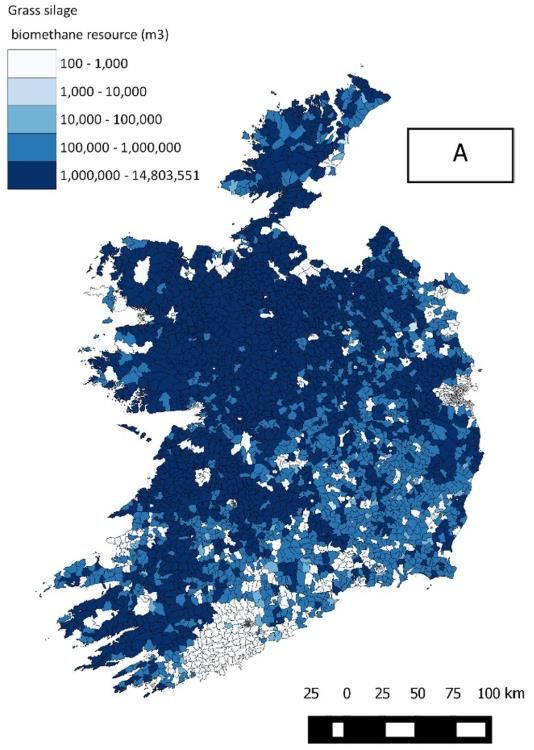

Grass biomethane resource in Ireland

                               Teagasc study by McEniry et al.,
                                2011 examined Ireland’s potential
                                to grow additional grass in excess
                                of livestock fodder requirements.
                               R. O’Shea et al. 2017 combined the
                                Teagasc methodology with CSO
                                data to identify areas with the
                                largest potential to grow additional
                                grass for biogas
                               Other sustainable energy crops
                                such as energy beet also have
                                significant potential in Ireland

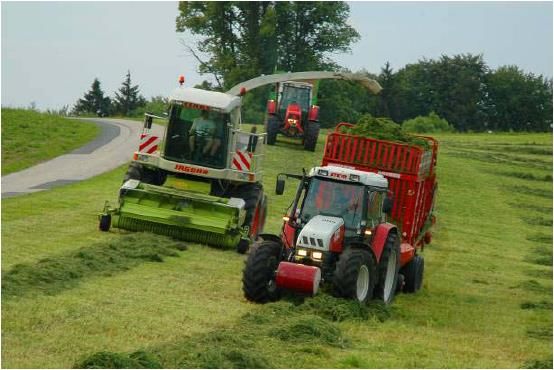

Grass to transport fuel

            harvest                      weigh bridge          silage storage

                                                   anaerobic
    Biogas service station         Scrubbing &                   macerator
                                                   digester
                                   storage

   Source: energiewerkstatt, IEA
Biogas from Seaweed

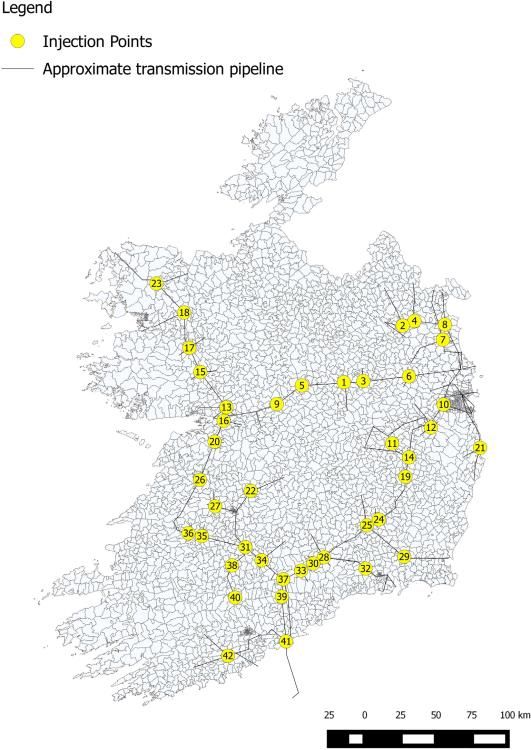

Renewable Gas Network
Cost of Biogas Scenarios for Ireland

• The levellised cost of energy (LCOE)                    100
                                                           90
  for biomethane production can range                      80

                                           LCOE (€/MWh)
  from €40-€90/MWh depending on the                        70
                                                           60
  scenario                                                 50
                                                           40
• Integration of small scale agri biogas                   30
  is more expensive but has many                           20
                                                           10
  benefits for local economies                              0
                                                                 Integrated   Large Scale   Agri-Food
• A guaranteed payment for the                                  small scale     Agri AD   processing AD
  biomethane produced is required for                             Agri AD       (Grass)
                                                                (Slurry and
  investor confidence                                              Grass)

• Renewable Heat Incentive is
  expected by fourth quarter of 2017
Biomethane Market Overview
Overview of the Biomethane Market Structure

                                                Green Gas
                                                Certificatio
                                                                Customer   Sector
                                                     n

                     Gas
                   Purchase
                  Agreement                     Gas Shipper /
                                                  Supplier
                      [Renewable
                          Heat
                       Incentive]

 Biomethane
  Producer /                                     Code of
Injection Plant                                 Operations
   Operator

                    Entry           Connected   Gas Networks
                  Connection         Systems       Ireland
                  Agreement         Agreement   (Transporter)
Parties involved in Renewable Gas to Grid

        Biogas Producer & Delivery Facility
        Operator (DFO) can be the same entity

     Biogas Producer         Delivery Facility Operator         Gas Transporter

                        Upgrading
 Production                 and                    Grid Entry             Grid
                        purification

17
Connection Model for Ireland

     • GNI following the National Grid
       UK “Minimum Connection
       Model”
         Well developed in GB,
          reflects best practice and
          applications of lessons
          learned.
         Competitive; several
          competent and capable
          technology providers and
          operators on the market.

                                         DFO   Network Operator

18
GNI’s Connection Process

1. Initial Enquiry with preliminary Network
    Assessment
2. Detailed Analysis Study
3. Customer Application to Connect
4. Economic Test (if applicable)
5. Impact Assessment
6. Final Technical Assessment & Design
7. Connection Agreement
8. Connected Systems Agreement
9. Build & Installation
10. Sign-up/Register with Shipper(s)
11. Testing & Commission
12. Project close out & Business as usual

 19
Gas Quality Standard
Gas Quality
 Appendix 1 – Part G - Code of Operations Gas Quality Specification at an Entry Point

‒   3The CO2 limit of 2.5% will not be considered breached if the total inerts (including CO2) in the gas is less than 8% where: “inerts” in
   natural gas means carbon dioxide(CO2), nitrogen(N2), helium(He), argon(Ar), and oxygen(O2).
‒ 4 Natural Gas shall not contain solid liquid or gaseous material which may interfere with the integrity or operation of pipes or any Natural
   Gas appliance which a consumer or transporter could reasonably be expected to operate. With respect to mist, dust, liquid, gas delivered
   shall be technically free in accordance with BS3156 11.0 [1998].
‒ 5 Natural Gas shall have no odour that might contravene the obligation of the Transporter to transmit gas which possesses a distinctive
21 and characteristic odour. Where the Transporter requires gas to be odourised, the gas shall be odourised in accordance with the
   following specification: - Odour intensity of 2 olfactory degrees on the SALES Scale (Ref- IGE/SR/16/1989), or - such other specification
   determined by the Transporter acting as an RPO
Continuous Monitoring Required at Network Entry
Facility
Parameter to be monitored      • The Delivery Facility Operator (DFO) is
                                 responsible for Controlling Gas Quality
Delivery temperature           • GNI is responsible for Assuring Gas Quality
Delivery pressure              • Network Entry Facility serves both the DFO and
Biomethane flowrate              the Network Operator (GNI)
Wobbe index                        ‒ Fully integrated into the DFOs Gas
                                      Purification and Process Control system; live
                                      streaming data, automatic interface controls.
Incomplete combustion factor
                                   ‒ It will provide interval data (repeat signals) to
Sooting index
                                      GNI Grid Control to provide Assurance of
Gross calorific value                 quality conformance and consumer
Oxygen (O2)                           protection.
Carbon dioxide (CO2)                     Includes a Remotely Operated Valve
Hydrogen Sulphide (H2S)                     (ROV), required for Network Control.
Water dew temperature
Odorant injection rate
Odorant injection status
ROV status
22
Constituents that may requiring routine monitoring

                                  • GNI will conduct a Measurement Impact
 POTENTIAL CONSTITUENTS             Assessment (MIA) with the DFO as part of the
                                    connection process.
 Total Sulphur
                                      ‒ Among the expected outputs of this MIA will
 Hydrogen Sulphide                      be identification of constituents that may
                                        only be present in very small quantities, but
 Ammonia                                may require sample monitoring
 Hydrogen Chloride
 Hydrogen Fluoride                • DFO must also notify GNI in advance of any
 Total halogenated hydrocarbons     material change in the type of feedstock;
                                     ‒ E.g. a farm based operator obtaining an
 Xylenes                                EPA license to take in Brown Bin waste
 Arsenic                             ‒ MIA may need revising, and increased
 Siloxanes, as Silicon                  monitoring may be required

23
Biomethane Key Market Enablers in UK

• UK Government support through Renewable Heat Incentive for biomethane
  included in 2014

• “Class exemption” with respect to oxygen (up to 1% mol) that permits any
  gas injected into a pipeline, provided it is compliant with all other aspects of
  GSMR

• Gas Transporter Licence Exemption - assisted biomethane to grid sector by
  enabling producers to own and operate biomethane pipelines less than 7 bar
  pressure.

24
The Causeway Project
The Causeway Project

The project aims to examine the impact
of increased levels of CNG fast refill
stations and renewable gas injection on
the operation of the gas network in
Ireland.

 14 Fast Fill CNG stations installed;
 Vehicle fund established to support
  CNG vehicle acquisition;
 Renewable gas injection facility; and
 System operation & behaviour data
  analysis.
Our vision for CNG in Ireland

• CNG is targeting the bus and truck fleets         Total
   ‒ Over 1,000 HGVs (Truck)                       Stations
   ‒ Over 1,000 Large PSV (Bus)
                                                                    70
   ‒ Vans also                                  2026               57
                                                                  49
• Refuelling Network – Fast Fill CNG            2024             41
   ‒ Causeway Project –                                         35
                                                2022           29
        GNI delivering 14 High Capacity Fast                 23
           Fill Stations and 1 Renewable Gas    2020         18
                                                             15
           injection point in RoI by 2019       2018        10
        The Causeway Project is co-financed               4
                                                2016       1
           by the European Union's TEN-
           T programme                                 0      50   100
   ‒ National Network of 70 CNG stations by
      2027
   ‒ 27 Public Access Stations CNG Stations
   ‒ Min. 8 Renewable Gas injection points

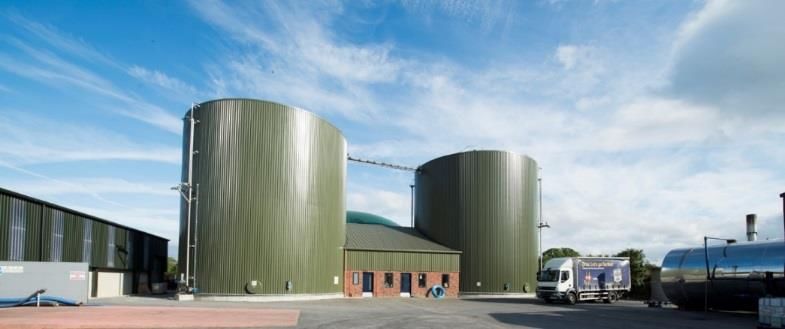

Ireland’s first Biogas to Grid Project

Feedstock
“Soup” = Pig
slurry + food
waste
                               Biogas Production                        Biogas Purification & Upgrading

                Compressed Gas                     Biomethane Network
                Transport by Road                  Entry Facility
Renewable Gas Project Timeline

                                  Today
1st Quarter 2017    2nd Quarter           3rd Quarter         4th Quarter             1st Quarter 2018

     Design & Procurement Phase                         Construction & Installation
     Fri 20/01/17 - Thu 30/09/17                        Wed 23/08/17 - Thu 25/01/18

                                                                             Biogas to Grid Flow On
Green Gas Certification Project
Green Gas Certification - GHG Accounting
Typical GHG emissions from different biomethane
sources

• Net Greenhouse gas (GHG)
                                                               EU NATURAL GAS
  savings from manure
  biomethane ~140% relative to
                                                                 GRASS SILAGE
  natural gas (i.e. carbon
  negative)
                                                                    BIOWASTE

• This includes carbon saving
  from avoided GHG emissions                                          MANURE

  from conventional manure
                                   -200       -150      -100       -50          0       50        100
  storage as per IPCC guidelines
                                                                Net GHG emissions (gCO2/MJ)
• Net GHG savings from
                                   Data sources for biowaste and manure taken from "Solid and
  biowaste biomethane (including   Gaseous bioenergy pathways: input values and GHG emissions"
  agri-food processing residues)   JRC. p.162. Available at:
  ~80% relative to natural gas     https://ec.europa.eu/jrc/en/publication/eur-scientific-and-technical-
                                   research-reports/solid-and-gaseous-bioenergy-pathways-input-
• Net GHG savings from grass       values-and-ghg-emissions
                                   Data for grass biomethane emissions savings taken from Korres et
  biomethane can be ~ 75%          al., 2010, “Is grass biomethane a sustainable transport fuel?
  relative to natural gas          Biofuels Bioprod, & Bioref. Vol. 4. pp. 310-325
Summary

• Biomethane can deliver major environmental and economic benefits to the
  agricultural and agri-food processing industry in Ireland
• Gas Networks Ireland is strongly advocating for policy support for
  biomethane to decarbonise the heat and transport sectors in Ireland
• GNI is committed to facilitating renewable gas on our network
Email: james.browne@gasnetworks.ie

Tel: +353 87 1128973
You can also read
