Tight Oil From Shale Plays World Congress 2011 January 31st & February 1st , 2011 Denver, CO Natural Fractures; Their Role in Resource Plays By Hutch Jobe SM Energy
Evolution of the Resource Play 1970’s 1990’s 2010’s Tight Gas Sands (TGS) CBM become vogue Confined to deep basin areas Realization of sorbed & absorbed gas Resource play targets not litho- Recognize no distinct LKG Recognition of coal composition dependent Recognized perm as a driver Fractures and cavitation in coals Recognized pervasive Sw Dewatering concept Brittleness, TOC, natural fractures are key Unconventional pay concept born Pattern & high density drilling Antrim & Barnett Shale play emerge Designer frac’s optimize induced fractures Image logging is greatly enhanced Source and carrier bed relationships Sequence stratigraphic framework 1980’s 2000’s Aggregate development drilling TGS plays expanded/evolved Shale Resource Plays explode Surface array/Buried array micro-seismic Recognition of over pressuring Source rocks become reservoirs Basin Center Gas concept Horizontal drilling becomes an art form Tight Gas tax credits Horizontal logging and frac’ing evolve Simal-fracs and Zipper-fracs Improvements in 2D and 3D Multi-stage completions Role of natural fractures emerges 3D is a “must” Go horizontal in produced TGS fields Micro-Seismic becomes very popular Natural fractures are key to perm Vertical drilling phases out to horizontal Shale oil and oil resource play focus
Misconceptions about Resource Plays They are all shales; you stimulate them all the same; stimulation of the matrix makes the play; and they should all produce the same. The prospective Resource Play is an unconventional reservoir. Since nothing shows up on seismic, the reservoir is not fractured; we drill in “quiet areas” where no faulting is present.
What is the definition of a Shale? Grain Size and Bedding are the controlling factors defining a Shale Bedding Thickness .0625 mm .0039 mm < .0039 mm (1/16 inch) (1/256 inch) Grain Size (Modified Rose & Assoc.; from Levine, 2003)
Lithologies of High Profile Resource Plays Closest to a Shale Closest to a Limestone Closest to a Siltstone Closest to a Dolomite Barnett Eagle Ford Haynesville (“stack”) Bakken Woodford Niobrara Montney Three Forks Fayetteville Mancos Collingwood Marcellus Bossier?? (Utica) SWS?? SWS?? Muskwa Conasauga Huron New Albany Antrim Bossier?? Closest to a Clastic/Congl Granite Wash

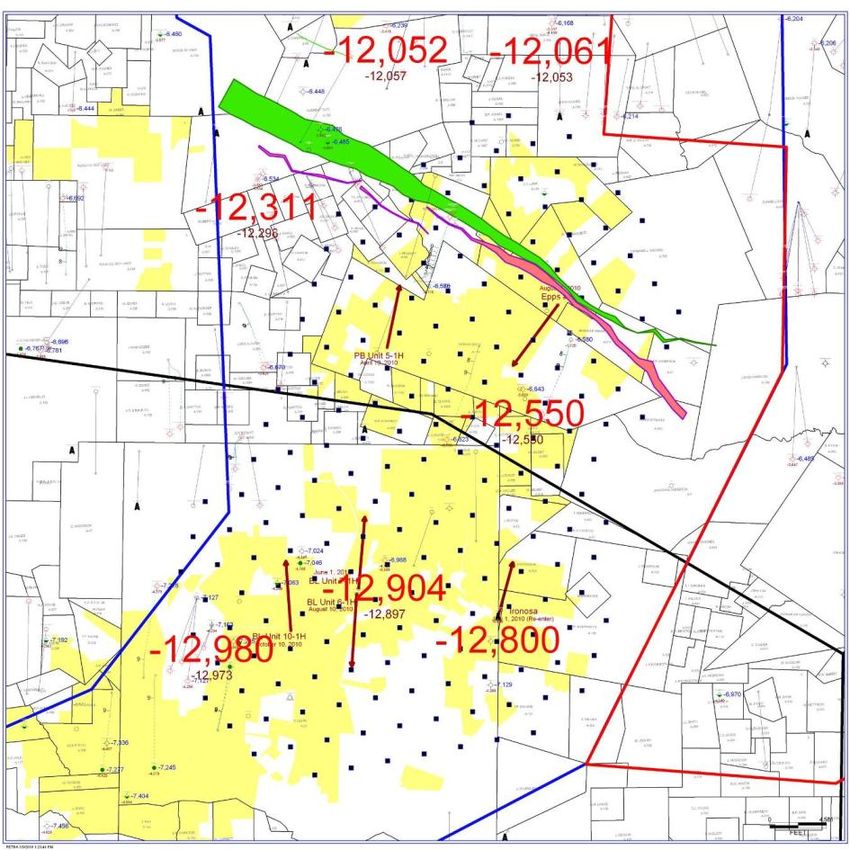

A Statement from Experience All reservoirs have some component of natural fracturing which contributes to the permeability within the rock

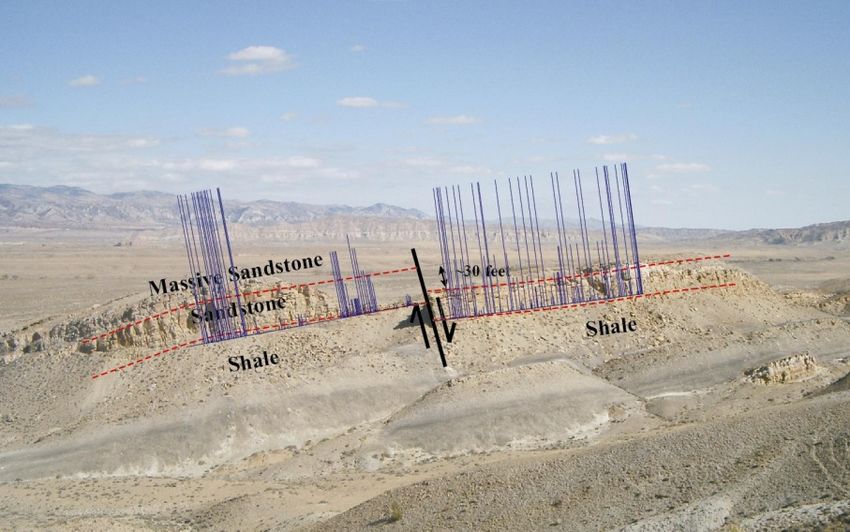

What is a Natural Fracture? ---”discontinuity caused by brittle failure” (Narr etal, 2006); a compromise of the structural fabric in rock caused by stress (tectonic, HC, and impact generated) ---a fracture can be a crack, joint, fault, deformation band or vein, and predominantly perpendicular to bedding ---a fracture is a function of scale; some may have displacement, some may have have shear, but all impact the ability for fluid flow; transmissibility; permeability
The Role of Fracturing on Permeability Upon Compaction in Sandstones Fracturing therefore is beneficial for flow in Tight Gas Sands; natural and induced
How Do We Describe Natural Fracturing? Via Fracture Intensity>>>length, height, density, spacing, aperture, patterns, bed thickness, rock composition; relationships with curvature, structure, dip and faulting; it’s 3-dimensional (Hennings, 2006) Understand the difference between closed/healed fractures versus cemented fractures Closed fractures on a surface do not imply they are closed throughout the volume, cemented fractures can
Key Drivers to Resource Play Performance Know the Structural History; Understand Natural Fractures Know the Rock; Sequence Stratigraphic Framework Brittleness: Understand Rock Properties TOC Content; % Percent by Weight, Kerogen Type (richness), and Maturity ( Ro--heat) 3D Seismic and Micro-seismic; Fault Geometries, Fault Magnitudes, SRV Stimulation Procedures
Structural Setting Determines Natural Fracture Geometry Drape over Enhancement via structural highs structural closure Dip-slip & Strike-slip faulting generate fracturing *Natural fractures can help determine productive limits (Modified Rose & Assoc.; Steward, 2009) associated with Resource Plays*
Silo Field Isocum Map: Fractured Niobrara 0 to 50 MBO 100 to 150 MBO >200 MBO 12 wells have produced between 50 to 100 MBO 150 to 200 MBO 200 MBO to 481 MBO *Data comes from 114 producers; Swanson mean of 74 MBO; range is .3 to 481 MBO*
Silo Field Isocum Map: Fractured Niobrara 0 to 50 MBO 100 to 150 MBO >200 MBO 12 wells have produced between 50 to 100 MBO 150 to 200 MBO 200 MBO to 481 MBO *Data comes from 114 producers; Swanson mean of 74 MBO; range is .3 to 481 MBO*
Sequence Stratigraphic Framework Helps Define the Resource Target Off lap sands and washes (modified) Key attributes: position of the margin, geometry of margin, angle of slope, fauna diversity optimizes TOC, water depth governs TOC, water depth governs facies
Rock Properties ---Brittleness; the ability for rock to fracture naturally or fracture via stimulation; it can be proportional to permeability and stimulation enhancement ---Brittleness and elasticity is a function of lithology/composition ---Siliceous and dolomitic rocks tend to be more brittle than limestones and clay rich rocks; clay in rock correlates to more ductility
Thermal Maturation Windows for Various Resource Plays Eagle Ford Marcellus TOC % (modified: Bustin etal, 2008)
Kerogen Types and Their Link to Ro, Tmax, HC Phase, and HC Efficiency Lacustrine, Marine, Terrestrial, Oil Prone Oil Prone Gas Prone (After Rose & Assoc,; Modified Jarvie, 2009)
In Source Rock Resource Plays; Understanding Relationships Between Fracturing Caused by Hydrocarbon Generation, Maturation, and Kerogen Type Can be Important (unpublished, MacKay, 2010) Thermal maturation of organic material can affect fluid type in terms of molecule size and compressibility (this can influence the areal extent of the pressure event)
Micro-Seismic has Evolved into an Important Part of Resource Play Development ---Down-hole monitor approach: initial application; monitor well can be expensive or difficult to position; data is usually good from a vertical aspect; fair to good lateral data ---Surface array approach: gaining popularity; no monitor well is needed; reasonable expense; vertical resolution not as good as down hole; lateral data is good; additional permitting and preparation ---Buried array approach: gaining popularity; no monitor well is needed; fairly expensive but can be used multiple times; vertical resolution similar to the surface array; lateral data is good; usually covers the largest area; additional permitting and preparation (Bennett etal Oilfield Review, 2006)
Depiction of Surface Array Design ---Vertical well case ---Horizontal well case ---Each radius approx. equal to ---Survey has an ellipse shape due depth of target to lateral wellbore length ---Multiple geophones per radius ---Multiple geophones per radius (Duncan & Laking, 2006)
Depiction of Buried Array Design ---Spacing of stations is a func. of budget, development plan, signal to noise, etc. ---Depth of stations can vary but 100’ to 300’ foot is common ---Multiple geophones are hung in each station (MicroSeismic, 2010)
Map View & Cross Profile of Micro-Seismic Data Gaps in events suggest Varying vertical growth poor stimulation coverage; of events suggests fracs and the possible need for might not be confined to more stages target interval (Modified; MicroSeismic Website, 2010)
Surface Array Micro-Seismic Application **Damage zones associated with faulting can be detrimental during stimulation**
Map View of Events Associated with “Relax-a-Frac” Periods
Cross-Sectional View of Total Events During Stage Zone of Interest
Final Distribution of Events Throughout Lateral
Learning's and Value of Micro Seismic ---Helps confirm in-zone stimulation ---Helps define lateral extents of stimulation ---Can calculate a stimulated rock volume (SRV) ---Identify fracture orientation ---Identify faulting ---Identify “thief” zones during stimulation ---Confirm spacing of frac stages along the length of the lateral ---Confirm conductivity intensity of frac fluids and design ---Helps identify well spacing, unstim. SRV, and potential recompl. Potential Re-fracs or new drill areas (Pinnacle Technologies Website, 2010)
How Can Geo-Science Effect Stimulation Design? ---Accurate lithology/composition determines most effective frac design: a.) high clay content>>>more gel design b.) low clay content>>>more slick-water design c.) more brittle rock might not need as high a rate d.) elasticity of rock might give insight on pump procedures ---Natural fracture and fault knowledge effects: a.) well placement b.) stage periodicity along lateral (length and spacing) c.) propant size, volume, and timing d.) SRV aerial size and distribution ---3D Seismic and Micro-Seismic gives confidence to: a.) did we stay in zone b.) are we too close to a fault c.) did we land in the correct spot d.) does the target extend this far or in this direction ---Understanding the rocks direct us to which resource plays we should pursue and which one’s we should avoid
In the past, we were concerned with the trap at the end of a hydrocarbon migration event. Now we are concerned with the pathway of the entire migration process.
