BRACKETS CUSTOM DESIGN MECHANICAL SUPPORTS
INTERNATIONAL EXPERT
IN FASTENING AND
ASSEMBLY SOLUTIONS
At ARaymond we focus on engineering and innovation
tailored to the demands of the automotive market.
By working closely with our customers, our engineering teams
are able to create the solutions which best
meet their assembly challenges.
We have advanced manufacturing capabilities worldwide
and manage metal transformation, plastic injection,
adhesive technology and assembly in-house.
Our efficient supply chain management is a source
of competitive advantage.
APPLICATIONS
POWERTRAIN P.4
CHASSIS P.5
CAR BODY P.6
ELECTRIC & MECHATRONIC P.7
GLAZING P.7
TECHNOLOGIES
PLASTIC P.8
METAL P.9
INTEGRATED FUNCTIONS P.10
LIGHTWEIGHT P.11
2
BRACKETS
CUSTOM DESIGN MECHANICAL SUPPORTS
FASTENING, PROTECTING
& REINFORCING
Available in plastic, spring steel, or combination assemblies,
with or without metal anti-creep inserts, our brackets
are high-strength, lightweight and flexible.
Designed to perform in a wide variety of applications
and environments.
Weight saving
Vibration and noise reduction
Integrated functions
3
APPLICATIONS
POWERTRAIN
Supporting and protecting
engine compartment elements
such as SCR pollution treatment
systems, HVAC lines, transmission
and fluid delivery systems.
Metal bracket to fix Bi-material anti-vibration bracket Plastic bracket with metal Secures the wiring particle
ABS cables to the damper. for A/C tube holding. anti-creep inserts for radiator filter sensor, guides the urea
fixing. tube and fastens the camshaft
position sensor.
VIBRATION AND NOISE REDUCTION
Bi-material assembly bracket to avoid interference
and mechanical friction with A/C lines, and to absorb
vibration.
Features a robust lockable holder with an additional
spring steel closure to strenghten the fastening
of the pipes.
www.araymond-automotive.com
4
CHASSIS
Reinforcement and fastening
of pollution treatment systems,
suspension & braking
and tire & wheel systems.
Support for selective catalytic Bracket for the NOX Bracket for protection Body height sensor rod
reduction pipes. control unit. of the NOX sensor. bracket.
ALL-IN-ONE, ANTI-RATTLE SUPPORT

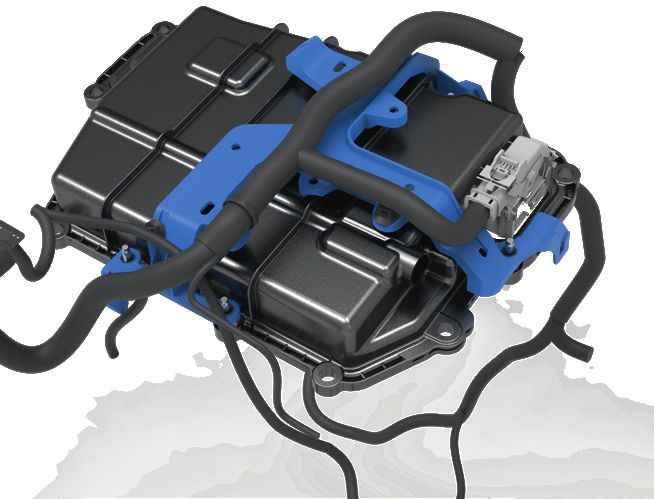

Due to the integrated features, this anti-rattle bracket
allows a single assembly of all components such as the
NOX control unit, the electric plug and the related cables.
The compression limiters enable robust fastening points
for high locking torque.
5
APPLICATIONS
CAR BODY
Holding and supporting lighting,
interior & exterior trim,
and cable routing.
Holder to join pillar, Rocker panel bracket to Holder for headlight lens. Bumper-to-fender plastic
car body and airbag wiring. fasten the sill protector, and bracket fastened to the BIW.
to manage lower body shell
expansion.
ERGONOMIC AND MODULAR
Connector bracket enabling easy electric connection and
disconnection, for safety belts and heating, to the back seats.
Ensuring electric connection for any selected seat position.
Designed to dampen vibration.
www.araymond-automotive.com
6
ELECTRIC
& MECHATRONICS
Fastening and protecting electrical distribution
systems, battery, electronic control unit
and infotainment equipment.
Anti-vibration fastening Camera support fastened Multi-connector support Body control module
system for HVAC. to the front fascia grille. for antenna systems. unit and relay holder.
GLAZING
Camera and sensor brackets, opening systems
and wiper plate designed for bonding assembly.
MULTI-COMPONENT SUPPORT
A tailored-made multi-support bracket that
enables integration of different electronic
components such as cameras, sensors and
lidar into the same area.
Holder for sensors on windshield. Ball stud mount for opening backlite.
Holder for wiper motor on backlite.
7
TECHNOLOGIES
PLASTIC
Plastic can be a lightweight and high performance alternative to metal. At ARaymond we use
overmolding and bi-injection (multi-material) molding processes compatible with over
300 thermoplastic materials such as polyamide, polyethylene, polyvinyl acetates,
polypropylenes, and more. Our plastic brackets can have integrated features such as hose
AR-BAG™ and tube holders and reinforced metal anti-creep inserts.
TECHNOLOGY FOR
ELASTICITY
REQUIREMENTS
Our proprietary material was
designed by ARaymond material
experts to respond to elasticity
requirements for applications like
exterior trim parts, which must
be able to withstand underbody
impacts.
Integrated pipe Reinforced with Integrated tube
and tube support. metal inserts. and hose holders.
BI-INJECTED & OVERMOLDED
SOLUTIONS
Vibration can compromise structural integrity, ultimately affecting vehicle safety and reliability.
The resulting noise has an enormous impact on consumers’ perceptions of comfort, quality,
and performance. That is why we focus on NVH and BSR in the very early stages of the design
process to come up with solutions that enhance the overall perception of vehicle quality.
Noise & vibration reduction
Anti-vibration feature for brake pipes or A/C tube fastening.
www.araymond-automotive.com
8
METAL
Our metal brackets include multi-purpose attachment points for relays, In-house heat treatment
connectors, electronic boxes and wire harnesses. They are ideal for harsh
& coating capability
environments and high temperature areas like the underbody, engine
bay, and wheel arches. We can provide versatile, complex shapes to
suit almost any packaging requirement and surface treatments to fit all
vehicle environments.

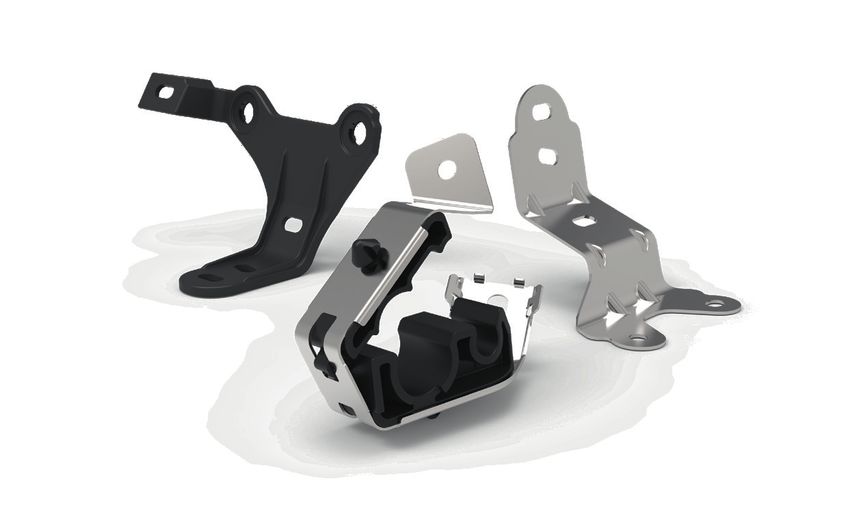

SPRING STEEL STAINLESS STEEL
Spring steel is a lightweight, high strength and flexible material Stainless steel is specifically adapted for harsh and / or
specifically suitable for ergonomic fastening. high temperature environments, and has a high corrosion
resistance.
BI-MATERIAL
ASSEMBLY SOLUTIONS
Brackets suited for high temperature requirements such as brake applications.
The design is optimized combining metal and plastic, and adapted for
complex fastening environments.
Robust
High temperature resistant
Anti-vibration features for pipe and tube fastening.
9
TECHNOLOGIES
INTEGRATED FUNCTIONS
To combine functionality features, we develop brackets with
integrated fastening systems such as tube, pipe or cable holders.
Manual locking system. Variable diameter hose support. Integrated swivel clips.
COMPRESSION LIMITERS
Since plastic is a less creep-resistant material than metal,
we insert anti-creep rings to our plastic parts. It stabilizes
the screwing points and prevents plastic crushing,
while ensuring a lightweight solution with high resistance.
ARaymond provides a wide range of compression limiters;
elastic and non-elastic, round or oblong, compatible
with a variety of panel thicknesses.
Robustness
Tolerance management
Bracket with reinforced attachment points
to fasten beam candles on the engine block.
www.araymond-automotive.com
10LIGHTWEIGHT
ASSEMBLY SOLUTIONS
To strike the right balance between weight and performance,
we develop solutions that reduce complexity, integrate multiple
features into a single part or use alternative materials.
OPTIMIZED
SOLUTION INITIAL SOLUTION
Optimized design with thin sheet Lightweight, cost efficient single molded Assembled metal bracket.
metal and integrated features. plastic bracket. Reinforced with metal
anti-creep inserts.
BONDING SOLUTIONS
Bonding solutions are ideal to ease assembly of brackets
on glazing. They are also suited for assembly on material ADHESIVE EXPERTISE
difficult to weld or drill such as painted metal or composite Techbond®pur
materials. We design with the aim to ease the industrialization Our expertise in chemistry,
of bonding solutions, and above all to support operations mechanics and electronics
until the last day of production. combined with a unique adhesive
technology, allow us to offer
tailor-made bonding solutions
to reach your expectations.
ARaymond works with a network
of partners on adhesives, surface
treatments and equipment, to
design the best possible bonding
solution for your project.
• Personalized services
• Support throughout
production cycle
• Ensure high process uptime
and maximum throughput
• Reliable results
11ARAYMOND, CLOSE TO YOU EVERYWHERE
www.araymond-automotive.com
YOUR CONTACTS
AUTOMOTIVE
Americas Asia
USA & CANADA CHINA SINGAPORE
+1 248 853 2500 +65 6634 1041
+86 0511-853 09 100
contact.us@araymond-automotive.com contact.cn@araymond-automotive.com contact.sg@araymond.com
MEXICO INDIA SOUTH KOREA
+1 248 853 2500 +91 (2135) 676 200 +82 70 5055 5000
contact.mx@araymond-automotive.com contact.in@araymond-automotive.com contact.kr@araymond.com
BRAZIL JAPAN
+55 19 3836-6900 +81 463 40 8600
Africa
contact.br@araymond-automotive.com contact.jp@araymond.com MOROCCO
+212 529048613
contact.ma@araymond.com
Europe
CZECH REPUBLIC ITALY TURKEY
Hungary, Poland, Romania, Slovakia +39 0161 937311 +90 262 658 1058
+420 483 358 111 contact.it@araymond-automotive.com contact.tr@araymond-automotive.com
contact.cz@araymond-automotive.com
FRANCE RUSSIA UNITED KINGDOM
+33 4 76 33 49 49 +7 831 3398 111 +44 1732 871934
contact.fr@araymond-automotive.com contact.ru@araymond-automotive.com contact.uk@araymond-automotive.com
GERMANY SPAIN
+49 7 621 174-0 +34 93 877 1314
contact.de@araymond-automotive.com contact.es@araymond-automotive.com
