AUTOMATION
FOR
TERMINAL
OPERATIONS
your
Expand vision
WHY AUTOMATE YOUR
OPERATIONS
Automation provides benefits in terminal
operations both in vessel and landside processes.
Automation is used in terminals of all sizes,
including small and medium-sized.
BENEFITS INCLUDE:
• Reduction of manpower • Reduction of mistakes in
under the cranes and in identification
gate operations
• Improved documentation of
• Increased safety under damage
the cranes
• Faster work cycles due to less
• Increased security due to manual entering of numbers
automatic identification in yard operations
of cargo and assets
• Faster processing at the gates,
• Reduced labor costs higher throughput capacity
2

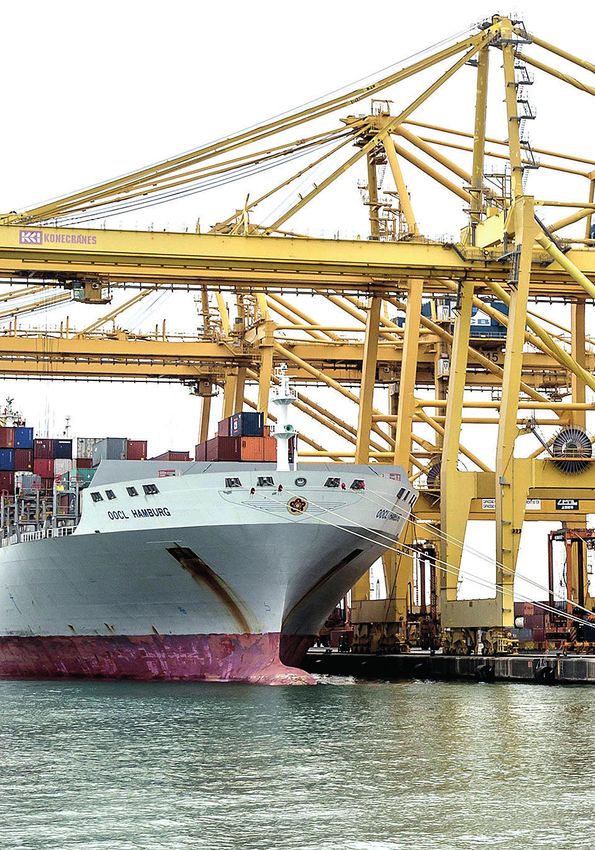

VESSEL OPERATIONS YARD OPERATIONS
Automatic container identification and damage Container identification and matching
detection is used when servicing vessels. Automation with container handling equipment

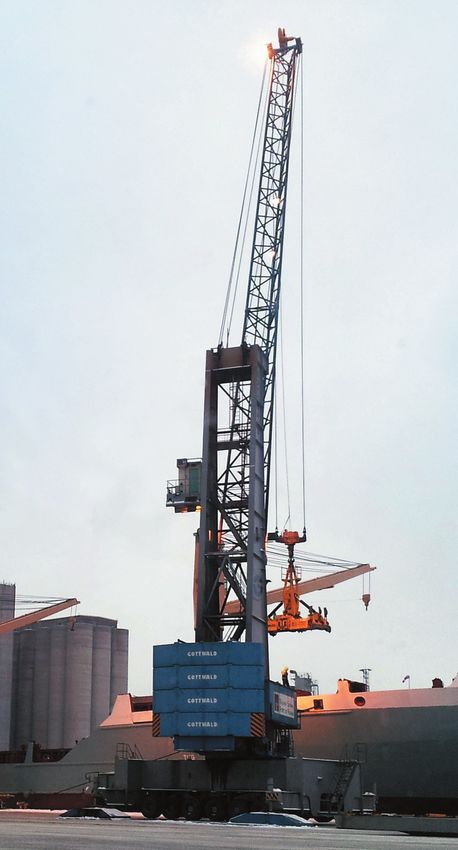

is based on using optical character recognition (OCR) (CHE) or transport vehicle is done
technology on ship-to-shore and mobile harbor automatically by using OCR on yard
cranes. Cameras are mounted on the spreaders and equipment.
crane frames. Elevator systems, i.e. cameras on tracks

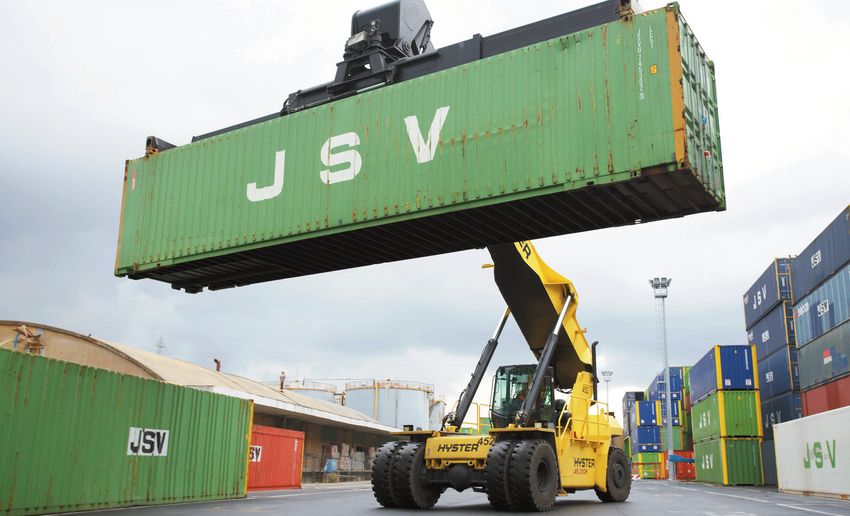

that move up and down crane legs, are used to Such technology can be mounted on
automatically change the camera position. all types of CHE, including RTG and
RMG cranes, reachstackers and top
Spreader mounted cameras can be used for container picks/lift trucks.
identification and detection of roof damage, which
usually accounts for most of container damage. Cameras are mounted on the
spreaders or on the equipment frame
A terminal operating system (TOS) interface is depending on the application.
implemented to obtain full automation benefits.
A TOS interface is implemented to
obtain automation benefits.

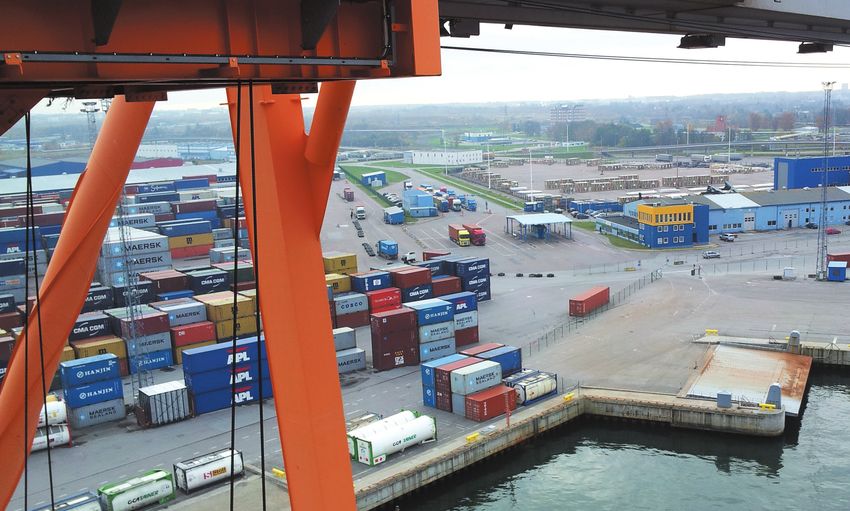

TK Muuga Container Visy TopView
Terminal (HHLA), Estonia Visy TopView OCR System
The main container terminal in with spreader mounted
Estonia. Baltic feeder traffic and cameras
railway connecting to Russia. • In use in various container
handling applications
• Visy STS Crane OCR with damage including ship-to-shore cranes,
inspection imaging mobile harbor cranes, yard
• Visy Access Gate Operating System (GOS), cranes and reach stackers
including RFID, OCR for container code • OCR for container code
and license plate recognition and damage recognition, also damage
inspection imaging inspection on container roof
• Visy Train Gate system with OCR for railcar possible in most applications
and container code identification
Since 2012 Since 2016
3 4
ROAD TRUCKS ACCESS CONTROL
Visy Access Gate is a centralized solution
Typical automated gate operation includes that automates processes for people,
the following features: cargo, vehicles and assets. It is flexible
and interfaces with a multitude of
• Pre-gate portal used for damage IT systems to enhance automation.
inspection imaging and arrival Multiple sites or tenants can operate on
announcement the same system.
• Container number and truck
identification using OCR and/or RFID Contractors, transportation companies
upon truck arrival and visitors can create access requests
• Gate Operating System (GOS) with work via the Internet. Access permits and
order/mission information, interfacing guidance will be ready upon arrival.
with TOS
• Pre-booking (i.e. appointments) of
trucks and cargo units
• Road trucks with appointments
automatically directed to security gate
• Driver kiosk for automated check-in
and check-out procedures

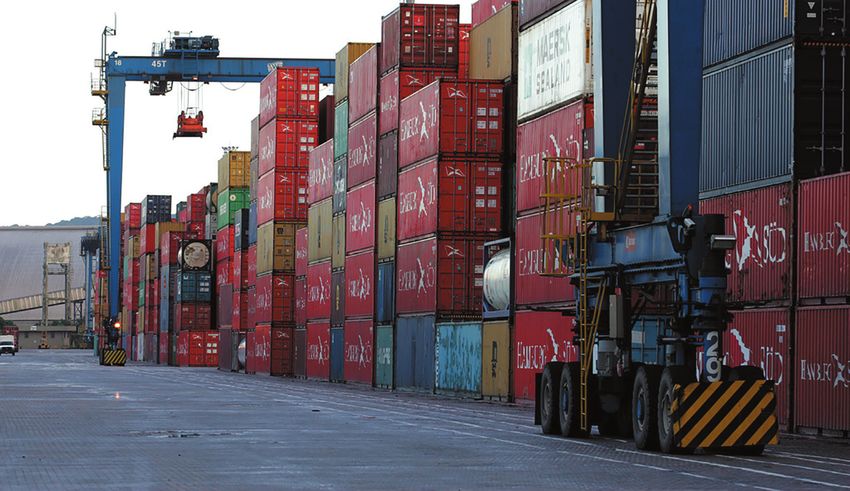

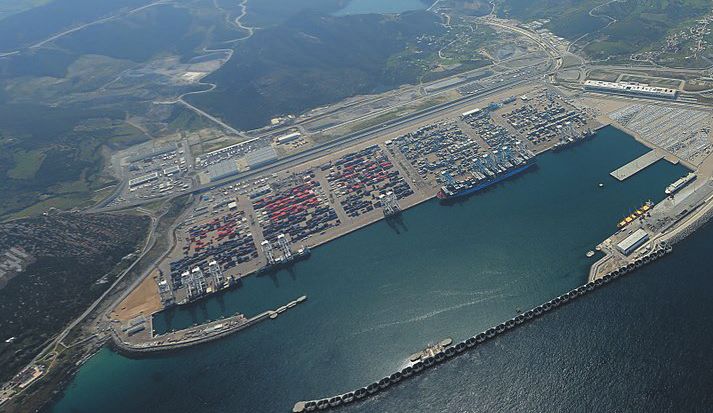

Tecon Santos Container TangerMed
Terminal, Santos Brazil Port Authority
Large port complex in Morocco
One of the largest container
provides transportation for
terminals in the region
different types of cargo
• Visy Access Gate Operating
• Visy Access Gate Operating System
System (GOS) including OCR for (GOS) including OCR for container
container code and license plate code and license plate recognition,
recognition, driver kiosks driver kiosks, biometric enrolment,
RFID
• Access control for employees and
contractors
Since 2007 Since 2009
5 6
RAIL OPERATIONS TERMINAL PLANNING
Visy Train Gate includes automatic container and railcar identification and damage Visy has a wide range of experience of various types of operations and equipment. That is
inspection upon the train’s arrival and departure. why Visy can offer terminal planning services as early as the terminal’s initial design phase.
These services can include layout proposals, storage capacity estimates, equipment fleet size
It includes railcar and container information with an interface to a TOS or 3rd party estimates, overall cost comparisons and environmental impact estimates. This approach is
management system. cost effective and speeds up the planning process.
Portals spanning over railway track are used to mount equipment for identification and Terminal audits with reports can be made for improving the efficiency of existing operations.
damage detection.
Simulation
A simulation tool is available for optimizing
terminal designs. Simulations help avoiding
mistakes and detecting possible bottlenecks.
A computer model is made of the planned
operations using the actual layout and traffic
data as a basis. Reports are made based
on main KPI’s, such as productivity and
turnaround times.

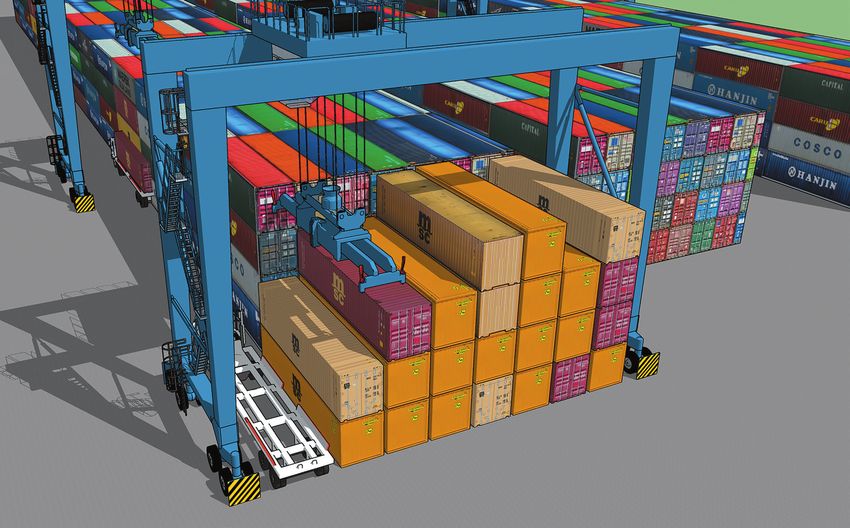

2D and 3D models illustrate
Jernhusen Årsta the solutions

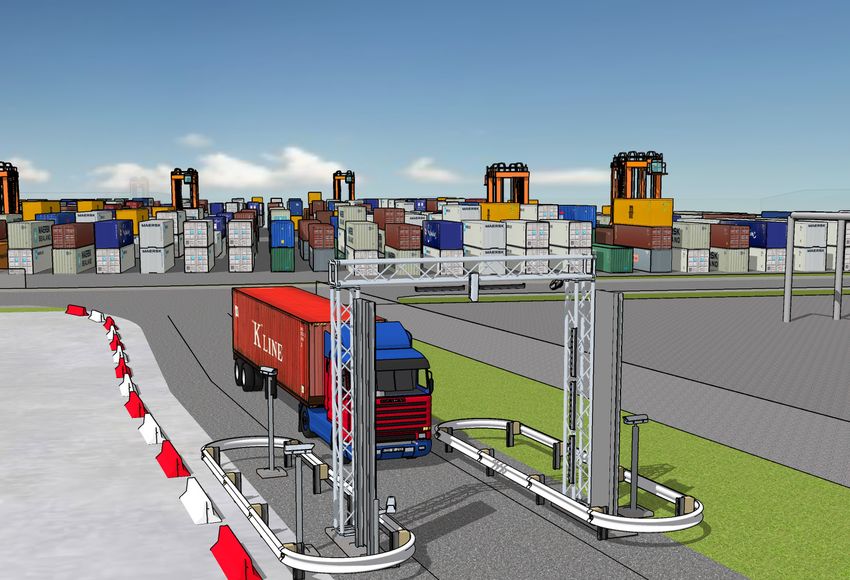

2D and 3D models are made to illustrate
Kombiterminal how Visy’s solutions will impact terminal
operations.
Intermodal terminal in Sweden,
located near Stockholm
• Visy Train Gate system with OCR for
railcar and container code identification
• Visy Access Gate operating system with
OCR for container and license plate
recognition
• Damage inspection imaging system on
portals
• Traffic to and from the warehouse
included
Since 2014
7 8
TECHNOLOGIES
Optical character recognition (OCR)
is used for:
• Container, trailer and railcar ID
• License plates
• Door direction, container location, IMO/IMDG label
identification and classification, seal presence
• All container sizes and oversized cargo units
Artificial intelligence (AI) is used for detecting shapes,
such as vehicles or people.
Line scan cameras are used for damage inspection
images.
Other technologies such as RFID or DGPS are used
when appropriate.
Latest examples of new innovations
by Visy include:
• Visy Area, tracking of road trucks within the
terminal using CCTV cameras
• TopView, OCR system with spreader mounted
cameras
9
VISY LOCATIONS
• BCT Gdynia, Poland • Alexandria Container & Cargo
SELECTED REFERENCES
VISY LOCATIONS
Headquartes
• TK Muuga Container Terminal Handling Co, Egypt
(HHLA), Tallin Estonia • Port of TangerMed, Morocco Sales
• Jernhusen Årsta • Tecon Santos Container Main partners
Kombiterminal, Sweden Terminal, Brazil
• DCT Gdansk, Poland • DP World Constanta, Romania Visy works with
partners in
• Seahafen Wismar, Germany • Mitteldeutsche Eisenbahn order to provide
• London Container Terminal, UK (MEG), Halle Germany efficient local
• Port of Grangemouth, • Westport Stavanger, Norway support
Edinburgh, UK • DFDS Vlaardingen, Holland
• Eurotransit, Nur Zholy, • BCT Riga, Latvia
Kazakhstan • APMT Gothenburg, Sweden
Visy Oy sales@visy.fi
Hatanpään valtatie 34 D www.visy.fi
33100 Tampere
Finland
