WALL RECESSED AIR DEHUMIDIFIER - MODEL ICS-3200 VERTICAL AIR FLOW
←
→
Page content transcription
If your browser does not render page correctly, please read the page content below
Via della Repubblica, 1ABCD
40057 Granarolo dell’Emilia BO
Telephone +39 051 6056846 - 6066593
info@tecnoklima.it - www.tecnoklima.it
WALL RECESSED AIR DEHUMIDIFIER
MODEL ICS-3200 VERTICAL AIR FLOW
Technical sheet with latest revision 07/2022
Suitable for apartments, houses, villas, residences, hotels, small exhibitions, taverns, homes, second homes, technical studios,
offices, meeting rooms, waiting rooms, medical offices and more.
Product code: ICS-3200 VERTICAL AIR FLOW
Supplier: TECNOKLIMA SRL
CODE
Via della Repubblica, 1 ABCD 40057 Granarolo dell’Emilia (BO) Italy
Telephone (+39) 051/6056846 - 051/6066593 - Fax (+39) 051/761367
Email info@tecnoklima.it - assistenza@tecnoklima.it
Web site: www.tecnoklima.it
Wall recessed dehumidifiers ideal for radiant panel cooling systems in residential applications. Built-in
dehumidifiers designed and built to be inserted into the thickness of the wall; ideal dehumidifiers for homes
and offices that adopt an underfloor air conditioning system. Our built-in dehumidifiers are characterized
by an extremely refined design. The particular care in assembling the refrigerating part and the excellent
yields in terms of humidity condensation capacity mean that our dehumidifiers are also extremely useful
in the professional environment, for museums, libraries, laundries, gyms, new and renovated buildings,
DESCRIPTION
reclamation in the building sector, but above all suitable for rooms that adopt a floor conditioning system
and where a dehumidification work is required with particular care aimed at optimizing the spaces and the
aesthetic care of the room itself. Our built-in dehumidifiers are equipped with a post-cooling coil in order to
remove the heat due to the compressor and the heat due to the condensation of water vapour. In this way,
dehumidified air is returned to the room without temperature variations. They are defined as “retractable
professional dehumidifiers” as they can be housed in the thickness of the wall and covered with an elegant
white lacquered front panel.
ICS-3200 wall recessed dehumidifiers ideal for environments with wall or false ceiling radiant air condi-
tioning, such as: apartments, houses, villas, residences, hotels, small exhibitions, taverns, homes, second
homes, technical studios, offices, meeting rooms , waiting rooms, doctor’s offices, etc...
STANDARD - functioning only with in/out water at 16/18°C.
NO WATER - functioning without cooling water.
VERSIONS
DEUCLIMA - functioning only with in/out water at 16/18°C.
• R134a ecological refrigerant
CHARACTERISTICS
• Centrifugal fan
• Latest generation hermetic compressor
• Ideal for environments with radiant floor or wall air conditioning
• Remote mechanical dehumidostat
• Version with vertical process air delivery (on request)
Centrifugal fan Contaore
PRODUCT PARTS
Connection for direct
Complete machine
condensate discharge
Dehumidostat

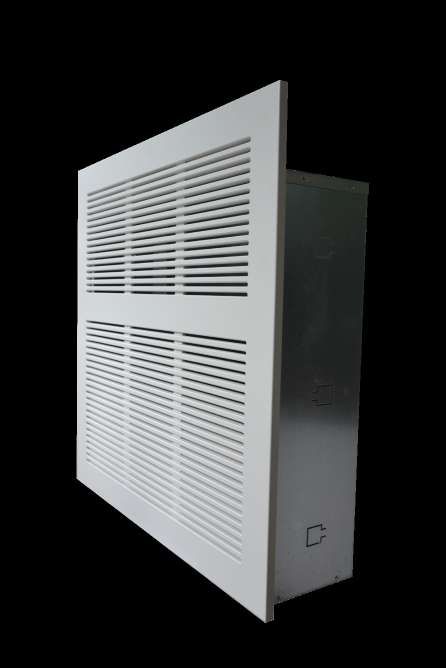

ICS-3200 dehumidifier
Dehumidifier designed to be inserted in the thickness of the wall in order to control the relative humidity
in environments that adopt a radiant air conditioning system.
STRUCTURE
Wall frame
Frame to be walled in pre-assembled galvanized sheet, it has clamps for fixing to the masonry (optional).
Front grille
very elegant front grille in lacquered wood and possibly customizable (optional).
Outdoor cabinet with grill
Dehumidifier also available in the version with outdoor cabinet with grill.
UNIT STRUCTURE
← Wall frame
← Front grille
Average rated absorbed power (26°C - 60% rh – water 16°C) 380 W
Maximum absorbed power (32°C – 95% rh) 460 W
Maximum absorbed current ( 32°C – 95% r.h.) F.L.A. 2,8 A
Inrush current F.L.A. 20 A
Nominal air flow (with clean filter) 300 m/h
Air flow range 240 - 360 mc/h
Sound pressure level Lps (at 3mt in free field) 38 db(A)
Refrigerant R134a
TECHNICAL DATA
IN/OUT water connections 3/8’’
Condensate drain connection (rubber hose) 3/4’’
Temperature operating range 14-33°C
RH operating range 45/98%
Cooling water flow rate (inlet temperature 16°C) 175 l/h
Cooling water pressure drop (inlet temperature 16°C) 0,13 bar
Inlet water temperatures never lower than +16°C due to the possible formation of unwanted and dan-
gerous phenomena of condensation and/or ice.
IN/OUT water
23°C - 55% 23°C - 65% 25°C - 55% 25°C - 65% 27°C - 65% 30°C - 80%
temp
16/18°C 13,5 18,5 15,5 21,5 25,5 33
The condensing capacity shown indicates the punctual, instantaneous capacity of the unit, in the ab-
sence of defrost pauses normally present in the unit.
DIMENSIONAL
TECNOKLIMA SRL
Air treatment for companies and individuals
Administrative headquarters and warehouse:
Via della Repubblica, 1 ABCD
40057 Granarolo dell’Emilia (BO) Italy
Telephone +39 051/6056846 - 051/6066593
Email info@tecnoklima.it
Web www.tecnoklima.it
TecnoKlima
The manufacturer reserves the right to make improvements to its products
without notice. Features may vary depending on
changes made for any customizations.
