Topkodas Remote control and monitoring Alarms and security Automation Software and service Consumer and Industrial
Product catalog
2020

           Remote control and monitoring
           Alarms and security
Topkodas   Automation
           Software and service
           Consumer and Industrial
Topkodas Remote control and monitoring Alarms and security Automation Software and service Consumer and Industrial
Topkodas, JSC is an electronic engineering company specialized in:

- automation,
- alarm systems,
- M2M monitoring,
- remote control,
- access control,
- security products.

The devices can be controlled by RFID cards, iButton keys, mobile
phones. It is possible to get alerts via text message or call as well as
monitor equipment distantly.

Founded in 2007, Lithuania

All devices are made in Europe
Topkodas Remote control and monitoring Alarms and security Automation Software and service Consumer and Industrial

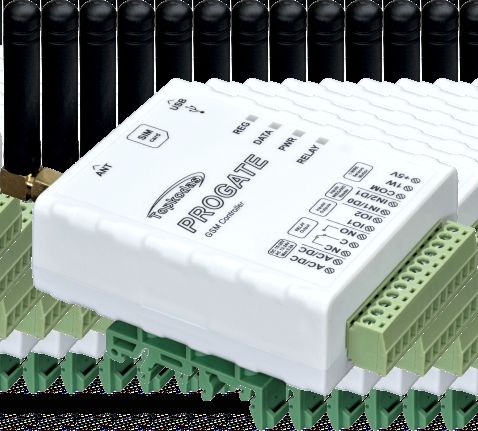

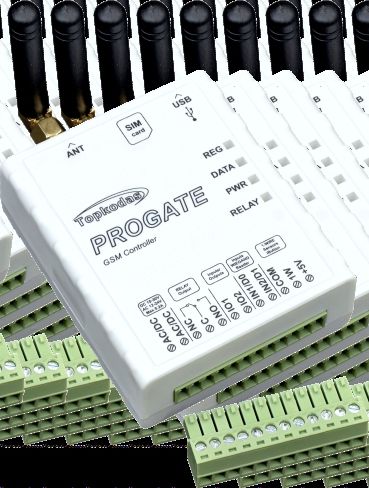

PROGATE
GSM gate controller
Thermostat
Topkodas Remote control and monitoring Alarms and security Automation Software and service Consumer and Industrial
Remote configuration, diagnostic, firmware update tool
                     Save your time, fuel and money!

                     SIA IP DC-09 standard protocol
                     Stay connected with Central Monitoring Station 24/7
                                                                      Thermostat

                                                                                   Cooler ON/ OFF
      !
                                                                                   Heater ON/ OFF

                                                                                   Alarms to your mobile
App Notifications    SMS Alarms            Events Log

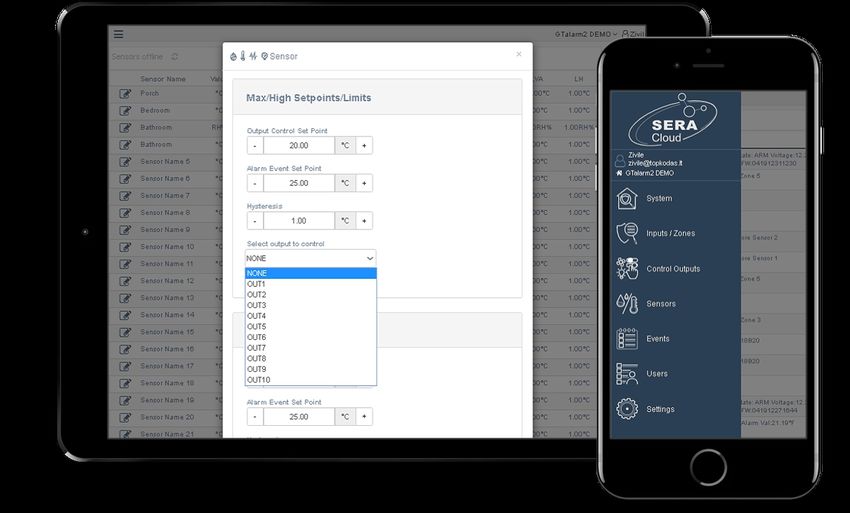

      FREE Adroid APP and Web browser monitoring

      Stay informed even if internet is not available

      Check events log remotely from anywhere, 24/7

  RFID cards       Keypad codes          iButton keys
Topkodas Remote control and monitoring Alarms and security Automation Software and service Consumer and Industrial
PARAMETERS:

 GSM modem 2G Quad band

 GSM modem 3G/4G LTE *

 Analog Inputs (In) 0-30V                                              2

 Outputs (Out) 1A                                                      2

 Relay Output                                                           1

 Analog Inputs (I/O) 0-30V**                                           2

 Digital Input (D, W) 1- Wire BUS**                                     1

 Digital Output (D) 10mA, Max3.3V!**                                    1

 Temperature sensors. Programmable thermostat                       Up to 32

 Humidity sensors                                                       1

                                                                       2+2
 Burglar alarm zones
                                                                (Up to32 sensors)

 RFID proximity cards ID, keyfobs                                  Up to 800

 iButton keys                                                      Up to 800

 SMS & auto DIAL alarm numbers                                       Up to 8

 Reporting to CMS. SIA DC-09 communicator. AES128 Encryption

 Events log memory                                                 Up to 2048

 Events log to server                                               Unlimited

 Remote control users                                              Up to 800

 Low voltage alarms

 Real time clock synchronization: GSM network or Cloud server

 Overall dimensions of the module                               86.5x59.7x30mm

** Programmable selectable Input or Output
* 4G Module Bands: FDD-LTE:B2/ B4/ B12, 3G-WCDMA:B2/B4/B5
Topkodas Remote control and monitoring Alarms and security Automation Software and service Consumer and Industrial
Velcro stick- on adhesive fasteners
Simply mounting

                             DIN rail mounting

                             Wall mounting
Easy SIM card, USB access.

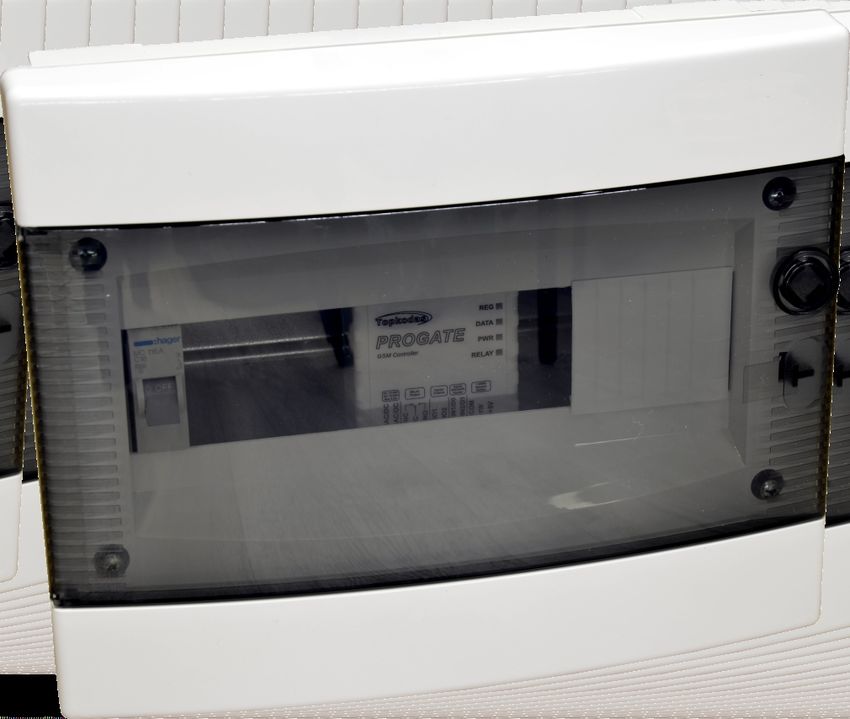

No need to open enclosure.   Flush mounting over electric wall box
Save Your time!              600mm EU standard
Topkodas Remote control and monitoring Alarms and security Automation Software and service Consumer and Industrial
GTCOM2
GSM Communicator
Contact ID to SMS Converter
Topkodas Remote control and monitoring Alarms and security Automation Software and service Consumer and Industrial

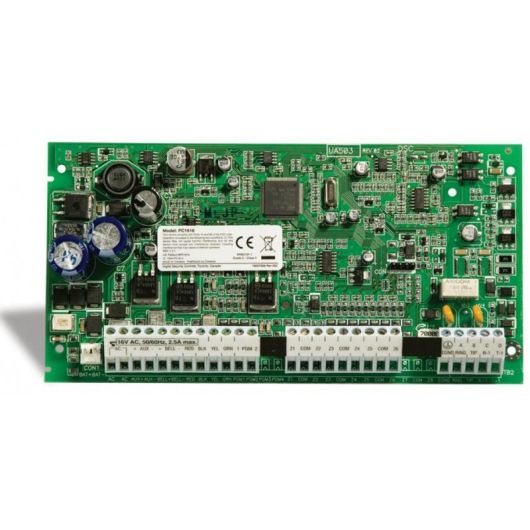

Contact ID DTMF

Alarm panel*           3G/4G LTE            Global              SIA DC-09                    Monitoring
                       communicator         Internet            Receiver                     software

 *Alarm panel must support DTMF (tone) dialling and Ademco Contact ID data format according to
 SIA SIA DC-05 standard.

 GTCOM2 can simulate PSTN line, receive DTMF Contact ID messages and
 convert them into readable format.

 Send SMS message to the mobile phone.

 Data transmission from the alarm panel to monitoring station

 Control primary alarm panel from GTCOM2 and see the status in app

 Control GTCOM2 from primary alarm panel and see the status in keyboard.

 24-hour monitoring with app alarm notifications.
Topkodas Remote control and monitoring Alarms and security Automation Software and service Consumer and Industrial
PARAMETERS:

GSM modem 3G/4G LTE *

 Analog Inputs (In) 0-30V                                              2

Outputs (Out) 1A                                                       2

 Analog Inputs (I/O) 0-30V**                                           2

Digital Input (D, W) 1- Wire BUS**                                     1

Temperature sensors. Programmable thermostat                       Up to 32

Humidity sensors                                                       1

                                                                      2+2
Burglar alarm zones
                                                               (Up to 32 sensors)

RFID proximity cards ID, keyfobs                                   Up to 800

iButton keys                                                       Up to 800

Dallas 1- wire BUS

SMS alarm numbers                                                   Up to 8

 Auto DIAL alarm numbers                                            Up to 8

Reporting to CMS. SIA DC-09 communicator. AES128 Encryption

Events log memory                                                 Up to 2048

Events log to server                                               Unlimited

Remote control users                                               Up to 800

Low voltage alarms

Real time clock synchronization: GSM network or Cloud server

PSTN emulator. Contact ID interpreter

Overall dimensions of the module                               86.5x59.7x30mm

** Programmable selectable Input or Output
* 4G Module Bands: FDD-LTE:B2/ B4/ B12, 3G-WCDMA:B2/B4/B5
Topkodas Remote control and monitoring Alarms and security Automation Software and service Consumer and Industrial
GTalarm2
All in one automation, alarm,
GSM control, monitoring
module
Temperature,
Humidity
Controller                  Temp humidity

GSM Automation
module
                               Alarms

                               Heating
 Greanhouse

                              Ventilation
  Warehouse

  Cold room

   Kitchen

 Get alerts when the temperature is below or above levels.

 Capture data directly in cooling rooms, freezers etc.

 View past event data records, as all data is saved.

 Energy savings.

 Better performance and quality.

 24-hour monitoring with alarm notifications.
Security, Alarm
Controller

                               CMS

                                                                Security
For modern houses

             PGM
             Siren contact     CMS                                Fire

For alarm panels without GSM

                                                                 Alarms

                               CMS

Fuel theft detection                                          Access control

  If PGM or siren output is activated, alarm SMS will be send.

  Alarm events could be send to central monitoring station.

  Fire alarm. Standard 2-Wire or 4-Wire sensors.
  Report system events to a monitoring station via SIA IP DC09
Access
Controller                                              ATM

Remote control
module
                             For road barriers         For ATMs.

                           For rental houses            For gates

   iButton keys

  RFID Key tags

   RFID cards

 Wiegand keypad

   Remote control via web interface.

 Turn ON the heater remotely, when the house is rented.
  Set the period when the rental period starts and stops.
  The same time rental period starts, heating switched ON.
1 of 2                 GTalarm2             Progate             GTCOM2

                            Module

    Parameter

GSM modem 2G Quad band

GSM modem 3G/4G LTE *

Analog Inputs (In) 0-10V                       4

Analog Inputs (In) 0-30V                                           2                    2

Outputs (Out) 1A                               4                   2                    2

Relay Output                                                        1

Analog Inputs (I/O) 0-10V**                    2

Analog Inputs (I/O) 4-20mA, 0-20mA**           2

Analog Inputs (I/O) 0-30V**                                        2                    2

Digital Input (D, W) 1- Wire BUS**             3                    1                   1

Analog Outputs (I/O) 20mA**                    2

Digital Output (D) 10mA, Max3.3V!**            3                    1

Temperature sensors.
                                           Up to 32             Up to 32            Up to 32
Programmable thermostat

Humidity sensors                            Up to 3                 1                   1

                                              4+2                  2+2                 2+2
Burglar alarm zones
                                       (Up to 32 sensors)   (Up to32 sensors)   (Up to 32 sensors)

2- Wire fire zones                              2

Wiegand RFID reader & Keypad

RFID proximity cards ID, keyfobs           Up to 800           Up to 800            Up to 800

iButton reader

iButton keys                               Up to 800           Up to 800            Up to 800
2 of 2                           GTalarm2                  Progate                  GTCOM2

                              Module

      Parameter

 Dallas 1- wire BUS

 SMS alarm numbers                                       Up to 8                  Up to 8                  Up to 8

 Auto DIAL alarm numbers                                 Up to 8                  Up to 8                  Up to 8

 Reporting to CMS. SIA DC-09
 communicator. AES128 Encryption

 Events log memory                                     Up to 2048               Up to 2048               Up to 2048

 Events log to server                                   Unlimited                Unlimited                Unlimited

 Remote control users                                   Up to 800               Up to 800                Up to 800

 Low voltage alarms

 Automatic conditions report

 USB interface

 Free configuration & diagnostic software

 Remote configuration & firmware updates
 via cloud server
 Real time clock synchronization:
 GSM network or Cloud server

 PSTN emulator. Contact ID interpreter

 SIM card holder                                        Nano SIM           Mikro SIM (2G)                Nano SIM
                                                                           Nano SIM (3G/ 4G)

 Enclosure

 Overall dimensions of the module                     84x66x18mm            86.5x59.7x30mm             86.5x59.7x30mm

** Programmable selectable Input or Output
* 4G Module Bands: FDD-LTE:B2/ B4/ B12, 3G-WCDMA:B2/B4/B5
  Compatible providers: USA: AT&T, T-Mobile, NOT WORK WITH Verizon. Canada: Chatr Mobile
  NOTE: Australia/Singapore, Europe/South American etc. customers please contact us to get a correct
  model gsm relay to compatible with your local country network provider
Website: www.topkodas.lt
Topkodas, JSC   Email: info@topkodas.lt
                Phone: +370-655-58449
