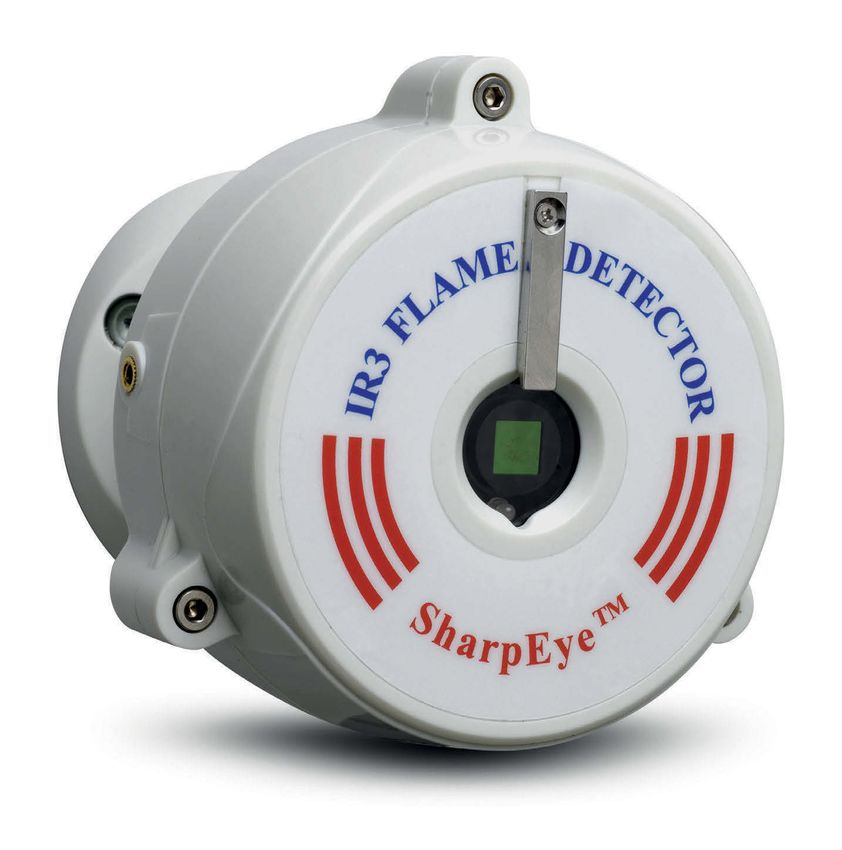

The SharpEye™ 20/20 MPI IR3 Flame Detection At airports, railway stations and shopping centres, in hospitals or offices: The SharpEye™ 20/20 MPI IR3 compact flame detector provides reliable monitoring of large indoor areas as part of a fire protection system. Manufactured by:
02 | The SharpEye™ 20/20 MPI IR3
Benefits
Always keeping an eye on things
With its extensive optical range and high immunity to false alarms, the SharpEye™ 20/20 MPI IR3 compact mini
flame detector provides reliable area monitoring. It is designed specifically for use in interior spaces with no
explosion hazard.
Reliable protection against fire – and against false alarms
The high immunity to false alarms of the flame detector protects against the negative consequences of false
alarms. At the same time, the installed IR sensors are characterised by a fast response time – allowing the
SharpEye™ 20/20 MPI IR3 to trigger an alarm quickly in case of fire.
Full performance, yet small and compact
Despite the lightweight, energy-conserving design, this compact version does everything you expect from a
powerful IR3 flame detector: A detection distance of up to 43 metres (141 ft) and a wide field of view of 100°
horizontally and 90° vertically.
Available in two output versions
You have a choice of two models with regard to the output options: The version with an alarm and fault relay
(four-wire) and the version with a 4 to 20 mA current interface (stepped) (three-wire). The 20/20 MPI is also
compatible with a RS485 Modbus system for data transmission. The integrated test circuit (BIT – Built-In-Test)
supports both automatic and manual test runs.The SharpEye™ 20/20 MPI IR3 | 03
Related Products
Spectrex SharpEye™ 20/20MI IR3
The Spectrex SharpEye™ 20/20MI is a triple IR (IR3) flame detector
in a rugged stainless steel housing. Due to its compact size it is very
useful in applications in small and tight areas, eg. windmills or turbine
enclosures.04 | The SharpEye™ 20/20 MPI IR3
Technical Data
The SharpEye™ 20/20 MPI IR3
Type Non-explosion-protected IR flame detector for hydrocarbon-based fires and gas fires
Spectral ranges Three IR bands
Technical sensing performance Field of view Horizontal 100°; Vertical 90°
Response time 5 seconds on average
Rated range Fuel ft / m
(at maximum sensitivity for fully developed n-Heptane / Gasoline 140 / 43
fire in a 1 ft2 (0.1 m2 pan fire) Diesel fuel / JP5 / Kerosene 100 / 30
Ethanol 100 / 30
Methanol 100 / 30
IPA Isopropyl Alcohol 115 / 35
Methane / LPG* 40 / 12
Polypropylene 50 / 15
Office paper 50 / 15
* Plume fire 20" (0.5m), 8" (0.2m)
Electrical Data
20/20 MPI-R Alarm and fault relay
SPST floating, contact rating of 2 A at 30 VDC,
fault relay normally closed, alarm relay normally open
20/20 MPI-M 0 - 20 mA source configuration
Fault: 0 +0.5 mA
BIT error: 2 mA ±10%
Normal: 4 mA ±10%
Warning: 16 mA ±5%
Alarm: 20 mA ±5%
Loop resistance: 100 - 600 Ω
Environmental conditions
Temperature Operation: -40 to +70 °C / -40 to +160 °F
Storage: -40 to +70 °C / -40 to +160 °F
Relative humidity Up to 95 %
Housing
Material Polycarbonate
Weight Detector 10.6 oz (300 g)
Mounting bracket 2.5 oz (70 g)
Detector dimensions 4.7" dia x 2.9" (119 mm x 74 mm)
Protection class IP55
Ordering Information
Flame detector 20/20 MPI-M 68 13 426
Flame detector 20/20 MPI-R 68 13 487
Flame simulator FS1100 68 13 461The SharpEye™ 20/20 MPI IR3 | 05 Notes
