The next generation - MTU Aero Engines
Summer/Autumn 2007

                                                       The next
                                                       generation
MTU Aero Engines Holding AG
Dachauer Straße 665           ■ Technology + Science   ■ Customers + Partners   ■ Products + Services
80995 Munich • Germany
Tel. +49 89 1489-0
Fax +49 89 1489-5500
www.mtu.de                    Delicate coatings for    High-tech envelope for   The eye in the sky
                              powerful protection      the engine
The next generation - MTU Aero Engines
Contents                                                         Cover Story

                                                                 The next generation                           4-7
                                                                                                                       Editorial
                                                                 Technology + Science

                                                                 Delicate coatings for powerful protection     8-9
                                                                                                                       Dear Readers:
                                                                 The repair mavens                           10 - 13
                                                                                                                       Climate protection is grabbing headlines          engine is the optimum propulsion system for
                                                                                                                       globally. In aviation, too, protecting the en-    the successor generation of today’s Airbus
                                                                                                                       vironment is an issue, and we’re making a         A320 and Boeing 737 families. We’ll have the
                                                                 MTU Global                                            strong contribution in the matter. However,       new engines up and running in time for the
                                                                                                                       demands to quit leisure flights and for people    flight testing of the new aircraft. They should
The next generation                                              A thousand tons for a good fit              14 - 15
                                                                                                                       to spend their vacations at home will not get     best be implemented under the banner of
MTU, jointly with its strategic partner Pratt & Whitney, is                                                            us anywhere.                                      today’s IAE. That consortium has done a very
working on future engine technologies. Its engine compo-                                                                                                                 good job fielding the V2500 and is practically
nents may be the answer to the needs of single-aisle aircraft                                                          Identified to be one of the major climate         predestined to make the successor a world-
in the pipeline.                                                 Customers + Partners                                  harming culprits has been carbon dioxide          wide winner as well.
Page 4                                                                                                                 (CO2), a greenhouse gas. It occurs in many
                                                                 High-tech envelope for the engine           16 - 19
                                                                                                                       areas and in aircraft is produced during the      This much is clear: The next generation of
                                Delicate coatings for            Flying high under the Silver Fern           20 - 23   combustion of fuel in the engine. Even if,        aircraft can achieve the necessary efficiency
                                powerful protection                                                                    viewed soberly, air traffic adds no more than     improvements only if it is powered by opti-
                                An MTU team of experts has                                                             a few percentage points to global CO2 emis-       mum engines. That’s not what we are saying
                                developed a new coating                                                                sions, we still should leave nothing undone       but the aircraft manufacturers themselves.
                                system. The coating has          Products + Services                                   to make our products “cleaner”. After all, we     The engine makes or breaks the aircraft, and
                                enormous strength and will                                                             want the aircraft to remain what it is, a major   we’ll do as best as we can.
                                                                 Service to customers                        24 - 25
                                long endure the impact of                                                              means of global transportation at everyone’s
                                solids carried in the air.       The eye in the sky                          26 - 27   disposal.
                                Page 8
                                                                                                                       MTU has for decades been optimizing air-
                                                                                                                       craft engines. One of our current key pro-
                                                                 Reports                                               jects is the geared turbofan. We’re develop-
                                                                                                                       ing and building, together with our strategic
High-tech envelope                                               Mini-engines power mega-model               28 - 29
                                                                                                                       partner Pratt & Whitney, a demonstrator en-       Udo Stark
for the engine                                                   Airborne paintings                          30 - 31   gine. Based on the PW6000, it will make its       Chief Executive Officer

Engine fairings are sophis-                                                                                            first run in the latter half of the year, with
ticated systems. They will                                                                                             flight testing to begin next year. MTU’s con-
have to meet stringent                                                                                                 tribution is its high-speed low-pressure tur-
requirements imposed by                                          Anecdotes                                             bine and, moreover, its tried and tested
engine makers and air-                                                                                                 PW6000 high-pressure compressor, both of
                                                                 Desert graveyard                            32 - 35
framers alike.                                                                                                         which are key components of the concept.
Page 16
                                                                                                                       The new geared turbofan promises to reduce
                                                                 News                                        36 - 39
                                                                                                                       fuel consumption by up to 15 percent and be
                                                                 Masthead                                        39    substantially quieter than conventional
                                                                                                                       engines. Also, it will be less expensive to
                                                                                                                       maintain. In our estimation, this type of
                                The eye in the sky
                                MTU Maintenance
                                Hannover’s engine trend
                                monitoring system continu-
                                ously watches engine con-
                                ditions. Early fault diagnosis
                                thus prevents costly conse-
                                quential damage.
                                Page 26

2   REPORT                                                                                                                                                                                                                 REPORT   3
The next generation - MTU Aero Engines
Cover Story

                                    The next
                                   generation
                                                                 By Silke Dierkes

                    M   TU is gearing up for the future. In current research projects it is collaborating with its strategic
                    partner Pratt & Whitney on the next generation of engines. The new engine incorporates advanced
                    short- and medium-haul technologies to sustain envisioned successors to the popular Airbus A320
                    and Boeing 737 aircraft families.

There is a frenzy of activity in the sky, and    manufacturing and maintenance costs and              innovative components. The engine will have
signs of it ever relenting are few. Ever more    alleviate their noise and contaminant emis-          enormous significance also for the next gen-
people are crowding into airliners. Experts      sions.                                               eration of Airbus and Boeing short- and
assume that air passenger counts will have                                                            medium-haul transports. The successors to
doubled by 2020. These are rosy prospects        The Advisory Council for Aeronautics                 the best-selling A320 and B737 are expected
for the aviation industry. But to keep so        Research in Europe (ACARE) is pushing for            to hit the marketplace by about 2015 and the
much growth from harming the environment         80 percent less oxides of nitrogen emissions,        requirements for their engines will unar-
and escalating fuel prices from cutting into     50 percent less carbon dioxide emissions,            guably be tough.
ticket sales, airframers and engine builders     and 50 percent less fuel consumption.
are challenged to embrace new ideas. These       Engines will play a key role in these lofty          MTU and its partner Pratt & Whitney are
are to cut their airliners’ fuel consumption,    goals that call for novel technologies and           accordingly maturing concepts to provide
                                                                                                      thrust for tomorrow’s needs. In their quest,
                                                                                                      development engineers are betting on the
                                                                                                      geared turbofan, which is an entirely novel
                                                                                                      commercial engine construction. A reduc-
                                                                                                      tion gear is used to uncouple the turbine
                                                                                                      from the fan, the pair conventionally being
                                                                                                      interconnected by a common shaft. Discon-
                                                                                                      nected, the large fan can be allowed to run
                                                                                                      slower and the turbine faster than in conven-
                                                                                                      tional engines. In this fashion, the two sys-
                                                                                                      tems operate to best effect. That improves
                                                                                                      the engine’s efficiency and reduces its noise.
                                                                                                      The partnership’s joint geared turbofan dem-
                                                                                                      onstrator bases on the PW6000, the engine
                                                                                                      powering the small Airbus A318. MTU takes
                                                                                                      to the venture its high-speed low-pressure
                                                                                                      turbine, an optimized version of the Clean
                                                                                                      technology demonstrator.

                                                                                                      “Since the speeds are higher than with con-
                                                                                                      ventional low-pressure turbines, it must sat-
                                                                                                      isfy exacting demands,” explains Dr. Christian
                                                                                                      Winkler, who heads new business develop-
                                                                                                      ment, commercial engines at MTU. To meet
                                                                                                      these demands, the engineers have altered
                                                                                                      structural mechanics and developed new
                                                 Innovative inner workings: the new geared turbofan   materials. “That accentuates our expertise in
                                                 demonstrator of MTU and Pratt & Whitney.             high-speed low-pressure turbines, which are

4   REPORT                                                                                                                                             REPORT   5
The next generation - MTU Aero Engines
Cover Story

                                                                                                                                                                 Light-weight and efficient: the high-pressure com-
                                                                                                                                                                 pressor features blisk construction and a novel inter-
Inspecting the compressor before its first test run at MTU.                                                                                                      locking rotor disk arrangement.

key to the efficient operation of a geared tur-           tive traditional expertise: “The new high-pres-         The eight-stage, highly efficient compressor   weight. The latest sibling of the MTU com-               Binder, senior vice president commercial           still unclear, considering that as an alterna-
bofan,” he adds. The first run is slated for              sure compressor is part of the fourth engine            has an extremely high, 17:1 compression        pressor family might prove a capable center-             programs at MTU. They might prove a solid          tive to an entirely new technology like the
end-2007. After further ground tests, the                 generation and a consistent upgrade of its              ratio. Its blisk construction and positively   piece for the next engine generation. It is a            basis for a successor to the V2500. Through        geared turbofan, IAE might elect to come out
geared turbofan is expected to fly in 2008.               predecessors.”                                          coupled rotor disks make it extremely light-   versatile candidate that apart from its use in           the International Aero Engines (IAE) consor-       with an optimized conventional engine in the
The flight tests will involve a retrofitted A340                                                                                                                 the geared turbofan might find applications              tium, MTU has a stake in the popular engine        form of an advanced turbofan. Concludes
and a B747. The tests aim to demonstrate                  MTU upgraded its compressor test stand for the particular test requirements.                           also in conventional turbofans. Already, it              for A320 family aircraft. Which way to go is       Binder: “MTU is ideally positioned for either
the production maturity of the concept and                                                                                                                       has successfully completed its first trials:                                                                technology. When sometime in the next cou-
convince aircraft manufacturers and airlines                                                                                                                     this spring, the compressor went to a test               The next generation in the making: the new high-   ple of years the decision is made to launch
of the desirability of the innovative engine.                                                                                                                    cell at MTU’s Munich facility, where it was              pressure compressor blisk under manufacture.       one or the other of the next-generation sin-
Sharp increases in fuel prices may prove                                                                                                                         tested in terms of efficiency, robustness and                                                               gle-aisle engines, it will find us ready for it.”
another argument in favor of the new fuel-                                                                                                                       structural mechanics. MTU is responsible for                                                                The single-aisles, or narrowbodies, like the
thrifty technology.                                                                                                                                              the entire testing of the component and has                                                                 A320 or B737 families have everything going
                                                                                                                                                                 its test cell specifically upgraded for it.                                                                 for them. Their market share is prognosticat-
MTU and Pratt & Whitney are moreover devel-                                                                                                                      Higher input powers make the test cell espe-                                                                ed at over 40 percent. Small wonder the
oping a new commercial high-pressure com-                                                                                                                        cially capable. More test lanes and higher                                                                  engine manufacturers want a part of the
pressor. This is a somewhat unusual project,                                                                                                                     scanning rates permit detailed measure-                                                                     action and have started work on the engine
the interface between the partners running                                                                                                                       ments to be made. A new feature is that it                                                                  to come.
midway through the compressor: MTU is                                                                                                                            enables non-contact vibration monitoring to
responsible for the first four stages and Pratt                                                                                                                  be conducted of all rotor blades of the eight
                                                                                                                                                                                                                                                                                      For additional information, contact
& Whitney for stages five to eight. “Split pro-                                                                                                                  stages.                                                                                                              Dr. Christian Winkler
duction of that type works only in a good and                                                                                                                                                                                                                                         +49 89 1489-8663
trusted spirit of cooperation,” Winkler says.                                                                                                                    “The geared turbofan demonstrator and
                                                                                                                                                                                                                                                                                      For interesting multimedia services
The advantage afforded by the new approach                                                                                                                       high-pressure compressor put us in a techni-                                                                         associated with this article, go to:
is that either partner can leverage its respec-                                                                                                                  cally outstanding position,” notes Dr. Anton                                                                         http://www.mtu.de/107NGSAE

6   REPORT                                                                                                                                                                                                                                                                                                           REPORT   7
The next generation - MTU Aero Engines
Technology + Science

                                                                                                                                                          An MTU worker charges a coating facility.          Electric arc in a PVD facility at MTU’s Munich          To the left, a worn compressor blade; to the right,
                                                                                                                                                                                                             location.                                               one in its virgin state.

                                                                                                                                                          expect. It’s not only takeoffs and landings on     ERCoatnt builds on the physical vapor depo-             impact of solids in the air. Its ductility, too, is
                                                                                                                                                          sandy runways that hurt the powerplants;           sition (PVD) technique MTU has been suc-                enormous. Ductility denotes a material’s
                                                                                                                                                          the salt crystals and dust particles encoun-       cessfully practicing for about 30 years. In             ability to change its form without suffering
                                                                                                                                                          tered during intercontinental high-altitude        this approach, metal vapor is produced in a             material separations. It is a very desirable
                                                                                                                                                          flights above the oceans also are chewing          vacuum, using an arc, and the particles car-            property in engine components subject to
                                                                                                                                                          away on components to shorten their lives.         ried in the vapor are made to condense on a             high rotational speeds and accompanying
                                                                                                                                                          Uihlein: “Erosion damage, if ever so slight,       substrate opposite it to form a thin film.              vibrations.
                                                                                                                                                          will still raise fuel consumption one or two
                                                                                                                                                          percent.” Alternatively, early replacement of      The multilayer ERCoatnt coating dramatically            Uihlein knows another advantage his method
                                                                                                                                                          the engine components affected will cost the       enhanced the action of the conventional PVD             provides: “We can coat selectively to suit the
                                                                                                                                                          operators dearly, too.                             technology. The multiple nanolayers of the              location of the part in the engine and its
                                                                                                                                                                                                             coating marry the hardness of ceramic lay-              material.” Consideration is also given to the
                                                                                                                                                          The best technical approach to protect the         ers with the high ductility of metallic layers.         prevailing temperatures in the engine.
                                                                                                                                                          components is to keep wear down to a mini-         This is achieved by neatly chaining a plurali-          “Presently, we’re achieving high-temperature
                                                                                                                                                          mum to begin with, and this is what Uihlein is     ty of metallic and ceramic layers one over              ranges of more than 550 degrees centi-
                                                                                                                                                          after. In 2002, he assembled an interdiscipli-     the other. Each layer is extremely thin within          grade, and we’re shooting for 650 degrees
                                                                                                                                                          nary team to develop special protective coat-      the nanostructure (10 -9 meter) range. Totally,         centigrade next.”
                                                                                                                                                          ings for sensitive engine blades. Three years      the resultant protective coating adds no
                                                                                                                                                          later, the team was honored with an MTU            more than five to 50μm in thickness, or the             Now that the first experimental engines have

       Delicate coatings for                                                                                                                              Award to testify to its successful work: the
                                                                                                                                                          ERCoatnt coating system is indeed solving
                                                                                                                                                          the problem effectively.
                                                                                                                                                                                                             five to 50 millionths of a meter (10 -6 meters).

                                                                                                                                                                                                             This structural principle gives the coating
                                                                                                                                                                                                             high and lasting strength to withstand the
                                                                                                                                                                                                                                                                     tested successfully, work is underway on the
                                                                                                                                                                                                                                                                     regulatory approval for the production use of
                                                                                                                                                                                                                                                                     the MTU innovation; development work is
                                                                                                                                                                                                                                                                     expected to conclude later this year.

       powerful protection
                                                                                                                                                                                                                                                                     Regarding the prospects, the engineer
                                                                                                                                                                                                                                                                     observes: “In the military arena, for one,
                                                                                                                                                          Ice and snow can seriously injure an engine’s      Sand and dust are critical companions in many
                                                                                                                                                          compressor blades. They are optimally protected,   flight missions. They are affecting not only the com-   practically all engines are eligible for getting
                                                                                                                                                          therefore, to benefit life cycle costs.            pressors but also the turbines of an engine.            the ERCoatnt coating. In commercial aviation,
                                                                                                                                                                                                                                                                     the short-haul transports will get it first. But
                                                                                                                                                                                                                                                                     for the others, too, the advantages afforded
                                                                  By Manfred Ruopp                                                                                                                                                                                   by our technology are impossible to ignore.”
                                                                                                                                                                                                                                                                     Especially so as the innovative MTU product
             A   ir isn’t just pure air. It is laden with, for instance, sand, dust, ice and salt. Engines dislike such foreign erosive sub-                                                                                                                         will facilitate customers’ acceptance of the
             stances. Erosion necessitates shorter maintenance intervals and curtails component lives. All of which costs com-                                                                                                                                       advanced technology, for most engines will
             mercial and military engine operators a mint. But help is on the way: MTU Aero Engines is developing a novel coating                                                                                                                                    lend themselves to retrofitting with ERCoatnt.
             system to beat any prior system of the kind.

                                                                                                                                                                                                                                                                               For additional information, contact
Dr. Thomas Uihlein’s collection of typical          of the blades come from an engine flown by          The 51-year-old MTU engineer has for years                                                                                                                             Dr. Thomas Uihlein
damage patterns make engineers shudder.             relief organizations, mostly in Afghan desert       been grappling with the fact that air after all                                                                                                                        +49 89 1489-3812
The assortment includes compressor blades           regions. Notes Uihlein: “That engine hasn’t         is a sharp-edged matter. It carries natural
                                                                                                                                                                                                                                                                               This article is available online at:
with blunt corners and torn edges. Some are         lasted there longer than a hundred service          contaminations like sand or other particles                                                                                                                            http://www.mtu.de/107ERCoatE
razor-sharp, others obviously scuffed. Some         hours, if that many.”                               that make engines wear faster than you’d

8   REPORT                                                                                                                                                                                                                                                                                                      REPORT     9
The next generation - MTU Aero Engines
Technology + Science
                                                                                                                          A technology leader and independent pro-
                                                                                                                          vider of engine maintenance (MRO) services,
                                                                                                                          MTU vigorously presses ahead with the
                                                                                                                          development of innovative repair techniques.
                                                                                                                          “We aim to be and remain a technology
                                                                                                                          leader in our market,” says Bernd Kessler,
                                                                                                                          president and CEO commercial mainte-
                                                                                                                          nance. MTU is clearly a step ahead of its
                                                                                                                          competition. “We’re combining the know-
                                                                                                                          how of an engine manufacturer, one that
                                                                                                                          develops materials and components, with
                                                                                                                          our MRO background,” explains Bernd Kriegl,
                                                                                                                          who supervises MRO repair engineering.
                                                                                                                          “Our winning approach is we’re transitioning
                                                                                                                          our design and manufacturing know-how to
                                                                                                                          our repair activities, and vice versa. Typically,
                                                                                                                          we’re world-class in blisk technology and so
                                                                                                                          it stands to reason we pretty well know also
                                                                                                                          how to repair these integrally bladed disks.”

                                                                                                                          MTU experts have found a reliable repair
                                                                                                                          solution even for heavily damaged blisk
                                                                                                                          blades: patching. “We use an adaptive cut-
                                                                                                                          ting process to remove the damaged portion
                                                                                                                          of blade tip or edge by fully automated preci-
                                                                                                                          sion machining. That leaves the load-bearing
                                                                                                                          structure of the blade intact,” explains
                                                                                                                          Winfried Lauer, senior consultant, military
                                                                                                                          engines. In a next step the blade is then
                                                                                                                          restored to its original shape by welding.

                                                                                                                          For the repair of the blisk’s titanium compo-
                                                                                                                          nents, tungsten plasma arc welding has
                                                                                                                          proved a trusted approach, because it pro-
                                                                                                                          duces a sound weld. The fully automated
                                                                                                                          welding process is performed in an oxygen-
                                                                                                                          free atmosphere to prevent oxidation. “The
                                                                                                                          reconditioned component is 100 percent free

              The repair mavens
                                                      By Nicole Geffert

                 W     hile engineers elsewhere may resort to virgin parts to replace worn or damaged ones, the spe-
                 cialists at MTU Aero Engines prefer to repair, also when the parts involved are complex. They pro-
                 duce high-grade reconditioned parts that in terms of quality and reliability are as good as new. MTU’s
                 customers appreciate the expertise involved: the company’s innovative high-tech repair processes
                 indeed slash their maintenance costs and ensure the repaired parts perform flawlessly and the lives
                 of their engines are extended.

                                                                                                                          Blisk repairs are among the most innovative practices
                                                                                                                          in the industry: shown here are preparations for
                                                                                                                          tungsten plasma arc welding at the Munich location.

10   REPORT                                                                                                                                                      REPORT     11
The next generation - MTU Aero Engines
Technology + Science

                                                                                                                                                               MTUPlus Laser Powder Cladding is used to repair worn   The plating shop at Hannover uses the balance      The five-axis milling machine—here shown at the
                                                                                                                                                               blade tips.                                            stripping process, among others.                   Ludwigsfelde location—restores deformed blades to
                                                                                                                                                                                                                                                                         their prior contour in a fully automated process.

                                                                                                                                                               tomers are benefiting from that as well,”              separately. Its measuring robot, in use since      Ludwigsfelde location. One of the location’s
                                                                                                                                                               says Bernd Stimper, senior manager, blisk              2006, gages each blade to determine the            special forte is the fully automated adaptive
                                                                                                                                                               repair. “We can transfer these sophisticated           thickness of the coating to be removed and         restoration of the contours of deformed LM
                                                                                                                                                               blisk technologies to commercial engines like          see how long it will have to dwell in the          series blades. The need to perform elaborate
                                                                                                                                                               the PW300, PW500, PW6000, GP7000 and                   chemical solutions. “The reason is we want         manual grinding has been obviated by a five-
                                                                                                                                                               GE90.”                                                 to strip only as much of the old coatings as       axis milling machine controlled by sophisti-
                                                                                                                                                                                                                      necessary,” explains Seidel. “We don’t want        cated software. “The particular challenge was
                                                                                                                                                               A challenging technique also is the high-tem-          to interfere with the original wall sections. It   to cope with the individual geometries of
                                                                                                                                                               perature brazing process that MTU special-             makes the blades repairable several times          blades pulled from current service, each
                                                                                                                                                               ists have developed for the repair of the tur-         over, giving them a second, third or fourth        sporting its own wear pattern,” Hornig elab-
                                                                                                                                                               bine center frame (TCF) in the GP7000 pow-             lease on life. It goes easy on our customers’      orates. The machine gages the actual con-
                                                                                                                                                               ering the A380 mega-transport. “We de-                 pocketbooks without sacrificing any of the         tour and matches it with the original shape.
                                                                                                                                                               signed the component and know its stress-              quality.”                                          From the actual-versus-specified data it gen-
                                                                                                                                                               es,” says Hans Banhirl from repair engineer-                                                              erates a fully automated milling program.
                                                                                                                                                               ing, GP7000. The challenge was that the TCF            The same holds true for MTUPlus Laser              According to Hornig, “automating the pro-
                                                                                                                                                               uses a novel material for which so far there           Powder Cladding, where worn tips of high-          cess saves time and money and so lets us
                                                                                                                                                               had been no suitable repair procedure.                 pressure turbine blades are repaired by            offer repairs at affordable prices.”
                                                                                                                                                               “Repair welding was no option, because of              welding, with a laser beam depositing pow-
                                                                                                                                                               the cracks it would produce in the highly              dered metal, which melts at 1,500 degrees          To further reduce customers’ maintenance
An EJ200 blisk being repaired using tungsten plasma arc welding.
                                                                                                                                                               heat-resistant cast nickel alloy,” explains            centigrade, on the component. Remaining            costs by the flying hour, the various repair
                                                                                                                                                               Karl-Heinz Manier from repair development.             weld flash is removed by high-precision            procedures remain under continuous devel-
                                                                                                               of pores in the weld. It’s as good as new,”     He led a team of experts that worked on a              grinding. The procedure produces work of a         opment and improvement. “We’re hoping to
                                                                                                               emphasizes Armin Eberlein from repair engi-     brazing material and a heat treat cycle for            quality impossible to achieve manually. The        expand our component repair business,”
                                                                                                               neering, military engines. Before the weld is   optimum strength. Successfully so. Says                fully automated machine, developed in-             Kriegl says. “We want to outpace the market

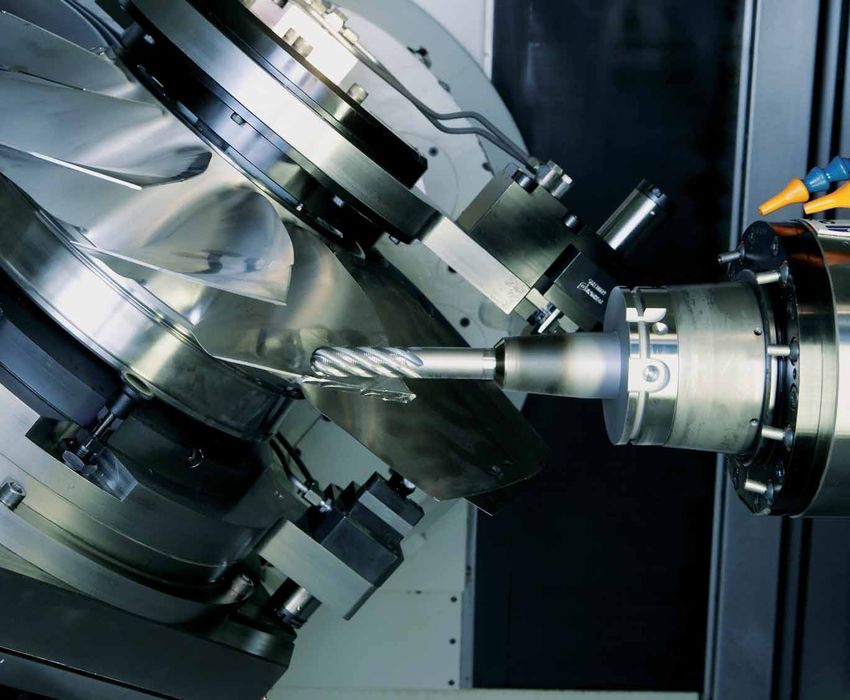

                                                                                                               machined using an adaptive milling process      Banhirl: “Our new technique is now available           house, ensures process stability. Says             and accelerate the introduction of new
                                                                                                               to obtain an optimum contour, the repaired      for the GP7000 production launch.”                     Seidel: “We use continuous inspections like        repairs.”
                                                                                                               area is heat treated. “We use induction coils                                                          X-ray and others to ensure that the parts
                                                                                                               to generate a local temperature field,” Lauer   “Repair beats replacement” is the mantra               going into the engine are the highest quality.”
                                                                                                               explains. “That completely removes thermal      also of MTU Maintenance Hannover. This is
                                                                                                               stresses induced in the part during welding.”   where Dr. Frank Seidel is responsible for              Repair activities at the various MTU locations
                                                                                                               After the subsequent milling process, the       repair development: “MTUPlus Repair is our             are coordinated to leverage synergies, as
                                                                                                               part is compaction peened. This produces a      trade name for the innovative repair proce-            perhaps on LM2500 and LM6000 industrial
                                                                                                               compression stress condition to set off ten-    dures we use to more flexibly respond to               gas turbines derived from CF6-6 and CF6-
                                                                                                               sile stresses arising in the component during   individual customer requirements. MTUPlus              80C2 aircraft engines, respectively. “Pro-
                                                                                                                                                                                                                                                                                  For additional information, contact
                                                                                                               flight service.                                 Repair satisfies demanding criteria like               cedures we’re developing at MTU Mainte-                     Bernd Kriegl
                                                                                                                                                               improved life and function.” Among these               nance Berlin-Brandenburg for the LM series                  +49 89 1489-3315
                                                                                                               “It was on the EJ200 military program that      procedures is MTUPlus Balance Stripping, an            can advantageously be used also on CF6

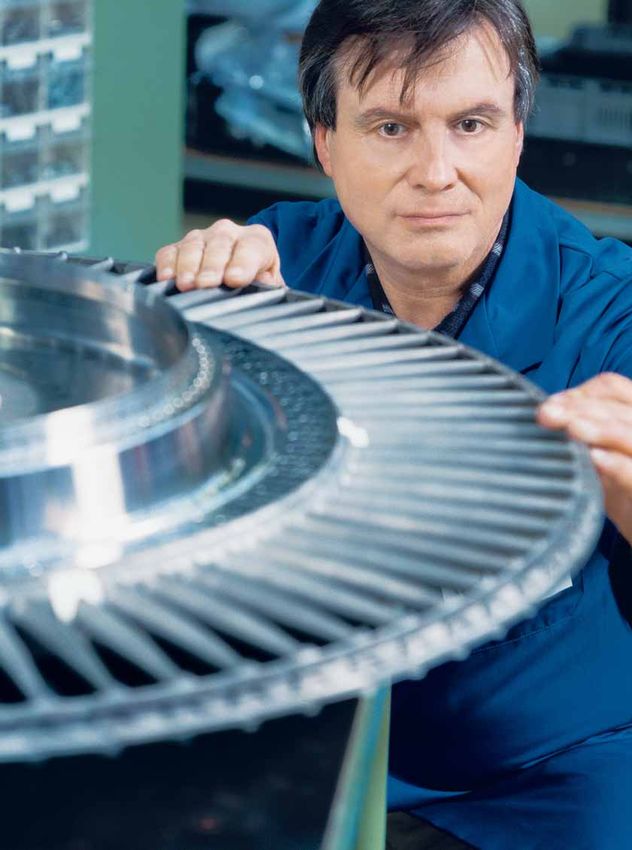

Following repair, detailed gaging makes sure the        Heat treatment, too, is a process step following the                                                                                                                                                                      To download images associated with
blisk is precisely within tolerances.                   actual repair.                                         we developed comprehensive capabilities in      electrochemical stripping process. What’s so           engines at Hannover,” says Christian Hornig,                this article, go to:
                                                                                                               blisk repair, and now our commercial cus-       special about it is that it strips each blade          who works in repair development at MTU’s                    http://www.mtu.de/107Repair

12    REPORT                                                                                                                                                                                                                                                                                                   REPORT   13
The next generation - MTU Aero Engines
MTU Global
                                                                                                              Since this spring, the machine has been
                                                                                                              serving in the production of rotating compo-
                                                                                                              nents like blisks and spools. Its highly pre-
                                                                                                              cise action makes it unique in the world: it
                                                                                                              joins components together to tolerances of
                                                                                                              ten hundredths of a millimeter. The techno-
                                                                                                              logy behind it was developed as part of re-
                                                                                                              search projects, with funds provided by the
                                                                                                              Free State of Bavaria and the Bavarian
                                                                                                              Research Foundation. MTU assumed over
                                                                                                              seven million euros of the cost. Partners in
                                                                                                              the venture were Munich Technical Universi-
                                                                                                              ty, the Erlangen-Nuremberg Friedrich Alex-
                                                                                                              ander University, the Bavarian Research
                                                                                                              Foundation and the Bavarian Economics
                                                                                                              Ministry.

                                                                                                              For friction welding, one member of a joint is

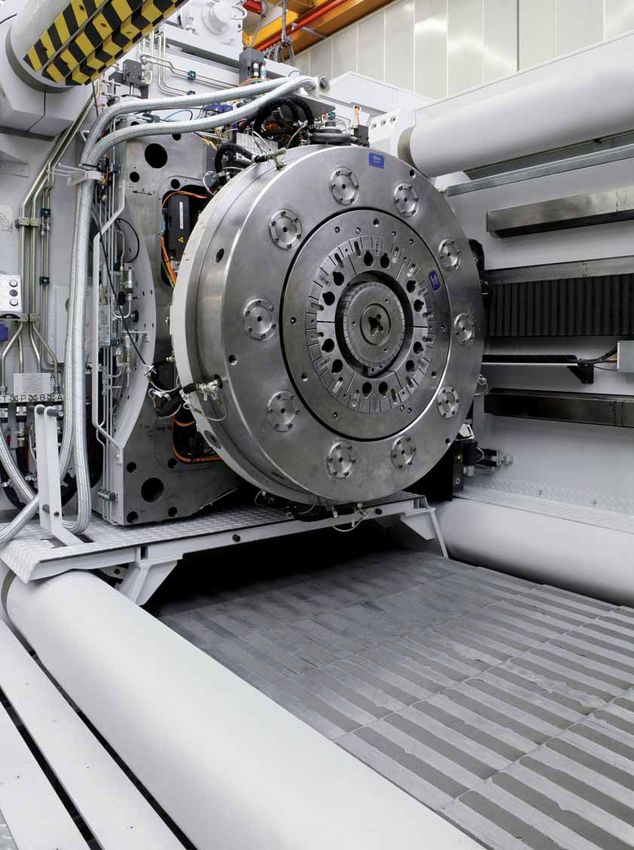

                                                                                                                                                                 A giant of that ilk: the new friction welding machine is 20 meters long and partially buried in the shop floor.
                                                                                                              clamped in place on a rotating spindle while
                                                                                                              the other is attached opposite it on a tail-
                                                                                                              stock. When a given speed is reached, the          In fact, the company’s new engine projects                 welding machines makes that obvious: with
                                                                                                              contacting surfaces heat up by friction to         call for higher upsetting pressures and cen-               them, the machine operators need a crane to
                                                                                                              welding temperature. Simultaneously, upset-        trifugal masses in friction welding than used              heave the tons and tons of flywheels on to
                                                                                                              ting pressure is finally applied to complete       so far. Another consideration is that the                  the spindle and manually attach them there,
                                                                                                              the welding process.                               increasingly growing compressor tempera-                   a process that may take as many as one-and-
                                                                                                                                                                 tures require not only titanium but also more              a-half work shifts. Whereas on the new
                                                                                                              What makes the new machine so unique are           temperature-resistant materials to be weld-                machine with its automated mass mecha-
                                                                                                              its two spindles with premounted flywheels         ed, such as the nickel-base alloys Udimet                  nism the centrifugal masses are premounted
                                                                                                              on it, a previously unparalleled arrangement.      720 or Inconel 718. In the quest for weight                on the spindles. When the desired moment
                                                                                                              Unlike on conventional single-spindle ma-          and volume reduction, friction-welded joints               of inertia is entered into the control unit, the
                                                                                                              chines, variable centrifugal masses can so         are often considered more desirable than                   centrifugal masses are individually engaged
                                                                                                              be applied from 500 to 45,000 kilograms per        bolted connections. Likely, friction welding               in the spindle. Setup times are so reduced to
                                                                                                              square meter. The upsetting pressure is infi-      will spread also to bulkier components.                    two hours. This, plus the fact that the heat-
                                                                                                              nitely variable from 100 to 1,000 tons to suit     Concludes Bähr: “The requirements for the                  ing cycle associated with the existing ma-
                                                                                                              the component under work.                          machine were dictated by the higher welding                chine is obviated, makes the new machine
                                                                                                                                                                 energies needed and the size of components                 suitable for multishift operation.
                                                                                                              Gerhard Bähr, who heads blisk production at        it could handle.”
                                                                                                              MTU, views the investment in the high-end                                                                     Toward the end of the friction cycle, care
                                                                                                              machine as a strategic decision, one that          For the production expert, it is not only the              must be taken to position the members prop-
                                                                                                              helps secure MTU’s technological spearhead         technical options provided by the machine                  erly in relation to one another, and this is

              A thousand tons                                                                                 position. “The machine is suited for all of the
                                                                                                              company’s current and pending engine pro-
                                                                                                              grams.”
                                                                                                                                                                 that count but moreover, and equally impor-
                                                                                                                                                                 tant, its integrability into the production
                                                                                                                                                                 cycle. Comparison with previous friction
                                                                                                                                                                                                                            where the new machine is again setting new
                                                                                                                                                                                                                            benchmarks. It easily cuts post-weld runout
                                                                                                                                                                                                                            tolerances in half, to about one tenth of a
                                                                                                                                                                                                                            millimeter. This is made possible by auto-

               for a good fit                                                                                 Highly advanced control systems help join compo-   The welding process proper takes only a few sec-           mated laser triangulation measurement of
                                                                                                              nents with maximum precision.                      onds. It produces an extremely homogeneous joint.          the spindles and components relative to
                                                                                                                                                                                                                            each other and automated adjustment of
                                                                                                                                                                                                                            their alignment. This approach opens up new
                                                                                                                                                                                                                            opportunities for near net shape welding
                                                   By Manfred Ruopp                                                                                                                                                         and, in production, novel approaches to the
                                                                                                                                                                                                                            production cycle, as for instance with com-
              A    dull thud behind the machine fairing announces that MTU Aero Engines’ new friction                                                                                                                       plex blisk spools.
              welding machine has just joined together another pair of engine parts under up to 1,000 tons
              of pressure. That’s like twelve locomotives bearing down on you all in one. After fully three
                                                                                                                                                                                                                                       For additional information, contact
              years of planning and development, Germany’s leading engine manufacturer, in partnership                                                                                                                                 Gerhard Bähr
              with mechanical engineering company KUKA Aerospace Group, is revolutionizing the manu-                                                                                                                                   +49 89 1489-8542
              facture of compressor rotors with a novel machine of theirs.
                                                                                                                                                                                                                                       For interesting multimedia services
                                                                                                                                                                                                                                       associated with this article, go to:
                                                                                                                                                                                                                                       http://www.mtu.de/107Welding

14   REPORT                                                                                                                                                                                                                                                          REPORT        15
The next generation - MTU Aero Engines
Customers + Partners

                       High-tech envelope
                         for the engine
                                                              By Patrick Hoeveler

                                    W    hile one A380 takes off at full thrust from the Toulouse runway,
                                    the landing lights of the next Airbus mega-transport are already seen
                                    flashing in the distance. A little later, the approaching superjumbo
                                    touches down. Its thrust reversers bring the giant to an amazingly
                                    quick stop. That’s the everyday testing scenario at Toulouse, where
                                    the airliner and its systems are tested in depth. That also goes for
                                    the engine nacelles, which are certified as part of the airframe, not
                                    the engine.

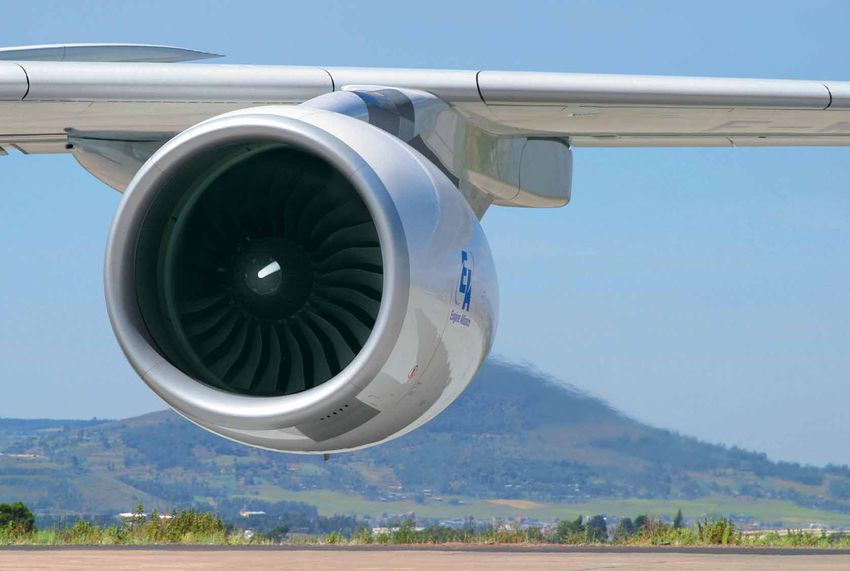

                       Electrically actuated thrust reversers,            fairings for such engines as the Pratt &
                       sophisticated noise attenuators, low weight        Whitney PW6000 for the Airbus A318 and
                       at enormous dimensions: these are just             the Engine Alliance GP7200 engine for the
                       some of the challenges for modern engine           A380. The main challenges are posed by
                       nacelles. On the fairings for the GP7200           weight and acoustics: the aircraft manufac-
                       engine powering the Airbus A380, the engi-         turers want nacelles to be as light as possi-
                       neers are breaking new ground. This neces-         ble and allow as little noise to escape as
                       sarily calls for a close dialog among all in-      possible, according to Gosset. “Weight is a
                       volved, nacelles forming a highly engineered       matter of the materials used. A large part of
                       interface between airframe and engine.             the nacelle is made of composite materials.
                                                                          But aluminum, titanium and steel are used
                       “Most people tend to believe an engine             as well.” The entire system should be tem-
                       nacelle is just a sort of tube wrapping            perature resistant and safely sustain distor-
                       around the engine; what they can’t see is          tions. Aerodynamics, too, is an important
                       that actually it is a very sophisticated sys-      issue, to keep drag down. A nacelle typical-
                       tem,” explains Benoît Gosset, who heads the        ly includes some 4,000 parts, almost half of
                       large nacelles division of Aircelle in Toulouse.   which go into the thrust reverser.
                       A SAFRAN company, Aircelle manufactures

16   REPORT                                                                                                 REPORT   17
The next generation - MTU Aero Engines
Customers + Partners
                                                                                                                                                                     inlet,” explains Dr. Wolfgang Gärtner, who       performed by Goodrich. That done, the unit       boosts fuel consumption, because engine
                                                                                                                                                                     supervises TP400-D6 development at MTU.          goes to Aircelle, where it is fitted with the    efficiency drops a little. To minimize that
                                                                                                                                                                     “Apart from that, there’re hardly any differ-    intake lining, the mounting bracket and the      phenomenon, chevrons made from a shape-
                                                                                                                                                                     ences between fairings for commercial and        exhaust nozzle. On a special frame, the work-    memory alloy may be used. As a result of the
                                                                                                                                                                     comparable military applications.”               ers then install the composite fan cowl and      high temperatures, they will at takeoff bend
                                                                                                                                                                                                                      the thrust reverser, checking them for per-      downward into the exhaust gas stream to
                                                                                                                                                                     When the design engineers worked on the          fect fit.                                        lower the noise. During cruise, they will cool
                                                                                                                                                                     envelope for the GP7200, they pursued                                                             and retract into their original position to
                                                                                                                                                                     some new avenues. In the lip of the air          While the novel nacelles are still in their      again reduce fuel consumption. It’s still too
                                                                                                                                                                     intake, for instance, hot air from the engine    infancy, design engineers on either side of      early in the game to use these chevrons in
                                                                                                                                                                     is swirled in cyclone fashion. The air intake    the Atlantic are already working on future       actual applications. But chevrons or no,
                                                                                                                                                                     itself, much as on other nacelles, is lined      technologies, mostly for noise damping.          today’s engine nacelles incorporate more
                                                                                                                                                                     with composite elements to dampen the            Sawtooth-shaped rear nacelle edges might         high-tech content than first meets the eye.
                                                                                                                                                                     noise. Visible joints have here been eliminat-   help create further savings. These chevrons,
                                                                                                                                                                                                                                                                               For additional information, contact
                                                                                                                                                                     ed, however. The upper layer has ports rout-     as they are called, optimize the mixing of the           Wolfgang Gärtner
                                                                                                                                                                     ing the noise into the honeycomb core and        fast air stream issuing from the engine with             +49 89 1489-2803
                                                                                                                                                                     so damping rather than reflecting it. A fur-     the ambient air to reduce the noise heard on
                                                                                                                                                                                                                                                                               For interesting multimedia services
                                                                                                                                                                     ther perforated layer in the interior still      the ground and by passengers in the aircraft.            associated with this article, go to:
                                                                                                                                                                     enhances that action. The thrust reverser        That type of air swirling, however, at times             http://www.mtu.de/107Nacelles
                                                                                                                                                                     system, too, is noise-optimized through the
                                                                                                                                                                     incorporation of 75,000 holes. Fitting the
                                                                                                                                                                     engine with this envelope, also called pod-
                                                                                                                                                                     ding, takes about twelve days. First, in the
                                                                                                                                                                     engine build-up (EBU) phase, specialists
                                                                                                                                                                     install some 30 subcomponents, such as pip-
                                                                                                                                                                     ing and flanges. On the GP7200, the work is

Not just a mere envelope for the engine: nacelles, like the CF6’s here seen, significantly reduce noise and fuel consumption.

In the development effort, cooperation be-                nacelles for the IAE V2500 and other                      a turboprop has no thrust reverser mecha-
tween engine maker and nacelle manufac-                   engines.                                                  nism. “Also, with propeller engines, the air
turer sets in early. “The nacelle people are in                                                                     issuing from the intake below the propeller
on the game from the outset, to define inter-             For the GP7200 engine fairings, the engi-                 hub—that’s what we call the chin intake—first
faces and mountings,” explains Wolfgang                   neers have gone the extra mile. For a first               needs deflecting into the annular engine
Gärtner, GP7000 program director at MTU                   time in their practice, they have made thrust
Aero Engines. Many of the auxiliary systems               reverser actuation electrical, as they have               The PW6000’s swing-up fairing provides optimum
like fire extinguisher, pumps and electrical              the opening mechanism of the fan fairing.                 access for maintenance.
adapters need accommodating in a maximally                The heavy fairing opens electrically at the
space- and weight-saving manner. The many                 push of a button, no longer hydraulically as in
interfaces make the nacelle a rather complex              earlier programs. When you are facing the
piece of equipment. “The tricky thing is to               finished product, a weight around two tons
define the interfaces and neatly separate                 seems little considering the tremendous
roles and responsibilities.” Depending on the             size, what with an overall length of 8.50
program, either the airframer or the engine               meters. You could comfortably put an Airbus
builder is responsible for doing the integra-             A320 fuselage into the four-meter diameter
tion work and compiling the specifications to             nacelle.
be met. “An engine fairing must be a perfect
fit for engine and airframe, and that makes               Apart from the enormous size difference, the
communication with the airframe manufac-                  engine fairing is configured much like those
turer mandatory for us,” confirms Peter                   for the smaller PW6000 or other engines. For
Inman, manager business development at                    turboprop engines, however, there are some
Goodrich Aerostructures, which provides the               significant dissimilarities: unlike a turbofan,

18    REPORT                                                                                                                                                                                                                                                                                                 REPORT   19
Customers + Partners
                                                                                                                       Air New Zealand aircraft are sporting the          it takes fully 12 to 14 hours to fly to the
                                                                                                                       Silver Fern on their tail fins. Called “koru” by   Asian metropolises or the hubs on the U.S.

     Flying high under the                                                                                             the Maori natives of the South Pacific island
                                                                                                                       state, the fern symbol signifies the begin-
                                                                                                                       ning of all life and aptly fits the current Air
                                                                                                                       New Zealand image. The profitable airline
                                                                                                                                                                          West Coast. Also remember that with its 3.8
                                                                                                                                                                          million people, New Zealand is not much of
                                                                                                                                                                          a home market, either. Intercontinental busi-
                                                                                                                                                                          ness travel, normally the most productive

          Silver Fern
                                                                                                                       and Star Alliance member that after a nar-         source of revenue for the big carriers, mat-
                                                                                                                       row escape from insolvency in 2001 has             ters little to the airline, for which tourist
                                                                                                                       radically changed its product, fleet and           travel is key. While at first sight those fac-
                                                                                                                       route network now is one of the most inno-         tors are a drag for airlines, the carrier
                                                                                                                       vative in the business. Hardly ranging             expects to profit from them. Says Welshman
                                                                                                                       among the heavyweights in the industry, Air        Ed Sims, group general manager in
                                                           By Andreas Spaeth                                           New Zealand with its 94 aircraft and 7.3 mil-      Auckland: “Our small size lets us adapt and
                                                                                                                       lion passengers carried annually is geo-           move quickly whenever necessary.”
                                                                                                                       graphically far remote from the world’s pop-
                       A   ir New Zealand has a long history, its predecessor company having provided flying boat      ulation centers, discounting Australia’s
                                                                                                                                                                                                                           TEAL, Air New Zealand predecessor company, in
                                                                                                                                                                                                                           1946 acquired Short Sandringham flying boats to
                       services to Australia and operated to destinations in the South Pacific already back in 1940.   Sydney and Melbourne. From its main base,                                                           serve its routes, among them Auckland-Sydney.
                       Following turbulent years and a near brush with bankruptcy in 2001, the company, now a
                       Star Alliance member, reinvented itself and by now counts among the most innovative of its
                       kind. Driving its success has also been its adopted practice of outsourcing its engine MRO
                       work to MTU Maintenance Hannover.

20   REPORT                                                                                                                                                                                                                                                    REPORT        21
Customers + Partners

                                                                                                                                                                                                               pany in New Zealand. The white knight then         spare parts provisioning, which otherwise
                                                                                                                                                                                                               was the government, which took 80.2 per-           necessitates lead times of between one and
                                                                                                                                                                                                               cent of Air New Zealand’s stock and has            six months when ordering new parts. MTU
                                                                                                                                                                                                               been hanging on to it ever since. That             further uses a so-called flowline principle to
                                                                                                                                                                                                               marked the beginning of the airline’s rapid        facilitate the teardown and reassembly of
                                                                                                                                                                                                               recovery. In 2002/2003, it already made            engines, which is a tough job considering
                                                                                                                                                                                                               close to 100 million U.S. dollars in profits. By   engines contain some 30,000 individual
                                                                                                                                                                                                               now, under the leadership of its chief execu-      items. Adds Fenske: “Since we’re repairing a
                                                                                                                                                                                                               tive officer Rob Fyfe, Air New Zealand has de      lot of engine parts in our high-tech shops
                                                                                                                                                                                                               facto again become a serious factor in the         and buying relatively few new parts from out-
                                                                                                                                                                                                               industry. “We were very dynamic for an air-        side sources, costs are bound to come down
                                                                                                                                                                                                               line of our size with our strategic decisions in   appreciably.” He continues to say: “With its
                                                                                                                                                                                                               the last months,” is how Rob Fyfe sees it.         well-known reliability and quality standard,

                                                                                                                                                                                                               The innovative Business Premier Class seats are    Minor engine work, like here on a Boeing 767, is per-
                                                                                                                                                                                                               driving Air New Zealand’s success.                 formed in Auckland.

                                                                                                                                                                                                               That also includes a decision, taken last year,    Air New Zealand is our key customer in the
                                                                                                                                                                                                               to close its own engine maintenance opera-         region.”
                                                                                                                                                                                                               tions in Auckland and outsource the engine
                                                                                                                                                                                                               MRO work. The company’s 34 General                 Already, the airline is planning ahead: Air
                                                                                                                                                                                                               Electric CF6-80C2 engines, which power             New Zealand is presently mulling the addi-
                                                                                                                                                                                                               part of its Boeing 747-400s and 767-300ER          tion of 23 new routes, many of which cannot
                                                                                                                                                                                                               fleet, plus spare engines, are now being           be served until 2010 and after, when the first
                                                                                                                                                                                                               maintained by MTU Maintenance Hannover             of the eight ordered Boeing 787-9s will be
                                                                                                                                                                                                               some 17,000 kilometers away. Fyfe praises          delivered, for which the New Zealanders con-
                                                                                                                                                                                                               the effectiveness of the cooperative effort:       stitute the launch customer. Independently
                                                                                                                                                                                                               “By outsourcing the work to MTU the cost of        of that, Air New Zealand has largely achieved
                                                                                                                                                                                                               maintaining our engines was lowered by 30          its current goal: “We want to be market
                                                                                                                                                                                                               percent and the turnaround is 50 percent           leader on all routes we serve—and that is

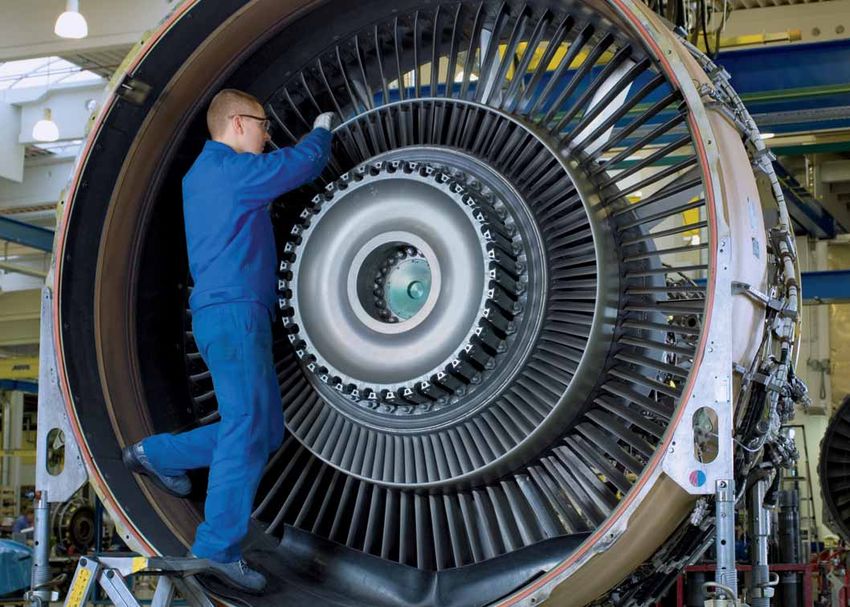

17,000 kilometers away from Auckland, the CF6-80C2 engines are supported by MTU’s maintenance facility in Hannover.
                                                                                                                                                                                                               quicker now.”                                      already the case everywhere with the excep-
                                                                                                                                                                                                                                                                  tion of Hong Kong where Cathay Pacific still
The company realigned operations at a                 herringbone layout. They extend into                   London Heathrow, flying to Auckland from          Tasman Empire Airways (TEAL) launched fly-      According to Fyfe, Air New Zealand Cargo           leads,” says a proud CEO.
breakneck pace. When it introduced Boeing             absolutely flat beds 2.07 meters long and              there via Los Angeles. Of late, it also sends a   ing boat operations to Australia. In 1961,      hauls eight to ten engines a year to Germany
777-200ERs into service in November 2005,             compartmented by high vertical walls on                jumbo jet every night from London to              TEAL was taken over by the government and       in its Boeing cargo aircraft. “We would take
it significantly changed its long-haul course,        either side. Also, the route network was               Auckland in the opposite direction, via Hong      later renamed Air New Zealand, on April 1,      about 120 days per engine, MTU does it in
with eight of the large twin jets today based         cleared out, with unprofitable routes like that        Kong, on a route that in flight time (21 to 24    1965. In October 1989 the company was pri-      50 to 60 days,” says a pleased airline CEO.
at Auckland. The interior of the transports,          to Singapore being canceled and new prom-              hours) and miles is almost exactly identical.     vatized and its shares listed on the Auckland   “That’s mostly due to smooth logistic organ-                For additional information, contact
too, saw some radical changes, the first-             ising destinations added, notably the new                                                                stock exchange. After its affiliate Ansett      ization,” explains Nils Fenske, who at MTU                  Nils Fenske
                                                                                                                                                                                                                                                                           +49 511 7806-390
class configuration being scrapped on long            Shanghai route. Since October 2006, Air                The airline has been in business for over 60      Australia went bust, the company in fiscal      Maintenance Hannover is the director sales,
routes in favor of a new Business Premier             New Zealand has been flying around the                 years, surviving times good and bad. On           2000/2001 posted a loss of 612 million U.S.     Australia and Pacific Rim. Also, according to               This article is available online at:
setup in which the seats are configured in a          world. In Europe, it traditionally serves only         April 30, 1940, its predecessor company           dollars, the largest ever incurred by a com-    Fenske, MTU is known for its flexibility in                 http://www.mtu.de/107ANZE

22    REPORT                                                                                                                                                                                                                                                                                               REPORT   23
Products + Services
                                                                                                                                       MTU has developed its expertise and contin-
                                                                                                                                       uously honed it over decades: from develop-

     Service to customers                                                                                                              ment to recycling, the company is versed in
                                                                                                                                       all engine product and service facets. The
                                                                                                                                       entire bandwidth of its portfolio will now be
                                                                                                                                       made available also to other manufacturers:
                                                                                                                                       “Our philosophy is ‘one face to the customer’
                                                                  By Elisabeth Wagner                                                  and that’s how we intend to provide cus-
                                                                                                                                       tomers, mostly in aviation, with tailored solu-
              M    TU Aero Engines stands for tradition, high-technology and top-notch quality: where in the past, predecessor com-    tions in the shape of products and services
              panies helped the first powered aircraft make it into the air, the company today is a force to be reckoned with and a    that are normally forming part of MTU’s over-
              technology leader in several disciplines. The German expert for all things engine now offers its products and services   all offerings,” says Dr. Sorina Seitz, who
              also singly. A new function, Supply Business, is responsible for marketing the individual offerings.                     supervises the new MTU activity. She has
                                                                                                                                       assembled an effective team of marketing
                                                                                                                                       and sales engineers selected from a variety
                                                                                                                                       of disciplines: “Our work focuses very clearly
                                                                                                                                       on meeting individual customer require-
                                                                                                                                       ments.”

                                                                                                                                       Aircraft engines come under fierce stresses,
                                                                                                                                       having to satisfy maximum performance,
                                                                                                                                       safety and reliability requirements. MTU, in
                                                                                                                                       hundreds of cooperative ventures and mani-
                                                                                                                                       fold contracts, has demonstrated its exper-
                                                                                                                                       tise to become a universally desirable, reli-
                                                                                                                                                                                                          A blisk stage is being gaged on an automated measuring machine.
                                                                                                                                       able partner. The industry is permanently in
                                                                                                                                       need of special manufacturing machines,
                                                                                                                                       test facilities and engineering services that         cial MRO, it is the world’s largest independ-         MTU’s offerings are the best available in all
                                                                                                                                       provide the very best modern technology is            ent provider of engine maintenance services.          essential individual aspects of engine manu-
                                                                                                                                       able to provide. A one-stop shop, MTU pro-            Demand for high-tech products and services            facturing, and the company’s Supply Busi-
                                                                                                                                       vides manufacturing, finishing, repair and            like MTU’s is growing in other industries as          ness function knows how to combine them
                                                                                                                                       testing, plus the entire supply chain behind          well. In the booming power generation busi-           into nose-to-tail solutions. Customers are
                                                                                                                                       it, for products earmarked for rough environ-         ness, for instance, many applications call for        provided maximum quality over the entire
                                                                                                                                       ments.                                                rotational friction welding techniques. For           process chain. Whether it’s project planning,
                                                                                                                                                                                             industrial gas turbines, the energy generated         consulting, manufacturing, testing, trouble-
                                                                                                                                       Ranking among the leading global players in           in rotational friction welding by large inertia       shooting or maintenance, it’s all single-point
                                                                                                                                       the engine business, MTU is a pacesetter in           masses is used to optimally join dissimilar           sourcing.
                                                                                                                                       various technologies. It excels in four differ-       materials. Similarly, MTU’s spin test stands
                                                                                                                                       ent areas: low-pressure turbines, high-pres-          are of special interest to the automotive             The engine manufacturer gave a taste of its
                                                                                                                                       sure compressors, engine control units and            industry, as is its surface finishing savvy.          capabilities late in March at Munich’s Aero-
                                                                                                                                       repair/manufacturing techniques. In commer-                                                                 space Testing Expo 2007. At this, the largest
                                                                                                                                                                                                                                                   European trade fair for aerospace inspection
                                                                                                                                       This deburring machine sports an integrated measur-   A blisk stage of the EJ200 low-pressure compressor    and test systems MTU premiered the whole
                                                                                                                                       ing system.                                           on a high-speed milling machine.                      gamut of its inspection and test expertise.
                                                                                                                                                                                                                                                   The debut proved to be a hit. Seitz noted:
                                                                                                                                                                                                                                                   “We met with very encouraging acceptance.
                                                                                                                                                                                                                                                   Small wonder: MTU combines exceptional
                                                                                                                                                                                                                                                   know-how with mature inspection and test
                                                                                                                                                                                                                                                   means ranging from the smallest probe to
                                                                                                                                                                                                                                                   the largest engine test cell, and that in
                                                                                                                                                                                                                                                   Germany is a unique offering.” The MTU hall-
                                                                                                                                                                                                                                                   mark, here and elsewhere, is best possible
                                                                                                                                                                                                                                                   quality and reliability.
                                                                                                                                                                                                                                                            For additional information, contact
                                                                                                                                                                                                                                                            Dr. Sorina Seitz
                                                                                                                                                                                                                                                            +49 89 1489-8339

                                                                                                                                                                                                                                                            To download images associated with this
                                                                                                                                                                                                                                                            article, go to:
                                                                                                                                                                                                                                                            http://www.mtu.de/107SupplyE

24   REPORT                                                                                                                                                                                                                                                                              REPORT   25
Products + Services
                                                                                                                                                                                                                                                    Air and the V2500 engines of JetBlue Airways
                                                                                                                                                                                                                                                    can now be monitored and repaired ever so

                 The eye in the sky                                                                                                                                                                                                                 more efficiently.

                                                                                                                                                                                                                                                    However, the MTU experts, much like the
                                                                                                                                                                                                                                                    system they created, are not taking time out.
                                                                                                                                                                                                                                                    They’re already working on improvements,
                                                                By Odilo Mühling                                                                                                                                                                    hoping to expand the system’s functionality.
                                                                                                                                                                                                                                                    “Short-term, we want to implement some
              U   nder permanent observation: At MTU’s maintenance affiliate in Langenhagen, data emitted from airborne engines                                                                                                                     extra functions customers want. We’re also
              is continuously monitored. A novel engine trend monitoring system on the ground compares the data from the wing                                                                                                                       thinking about evaluating the data via the
              with that of a reference engine, providing vital cues to the health of the airborne engine. Accurate prognostics and                                                                                                                  Internet,” says Dr. Christian Zähringer, who is
              early failure diagnostics so prevent costly consequential damage.                                                                                                                                                                     supervising the updating effort. Also, the
                                                                                                                                                                                                                                                    ETM system’s diagnostics capabilities are to
                                                                                                                                                                                                                                                    be upgraded, permitting it to process addi-
                                                                                                                                                                                                                                                    tional data, like that from the oil system. “We
                                                                                                                                                                                                                                                    also want to expand ETM to cover additional
                                                                                                                                                                                                                                                    engine types,” according to Zähringer.

                                                                                                                                                                                                                                                    Plans are also to widen the field of applica-
                                                                                                                                                                                                                                                    tion to include other MTU locations, like
                                                                                                                                                                                                                                                    Ludwigsfelde. In Munich, having a finger on
                                                                                                                                     This damage, a broken link on a V2500 compressor stator, was detected early. This prevented a major failure.
                                                                                                                                                                                                                                                    the pulse of the engine already pays divi-
                                                                                                                                                                                                                                                    dends. Says Zähringer: “We’re learning some
                                                                                                                                     Detecting defects early before they mature is            Hannover we clearly recognized the need for           valuable lessons in practical engine applica-
                                                                                                                                     the job of the engine trend monitoring (ETM)             it when we did a technology project called            tions. Such information comes in handy in
                                                                                                                                     system, a new, innovative building block of              advanced monitoring,” Kreiner says. At that           the engine development phase, too.”
                                                                                                                                     MTU’s maintenance concept. “ETM means                    time, there had been a similar system in
                                                                                                                                     monitoring an engine fleet using a PC-based              place at the MTU facility. “Except that users
                                                                                                                                     system on the ground,” explains Dr. Andreas              were missing some important functions,”                         For additional information, contact
                                                                                                                                     Kreiner, ETM project manager at MTU.                     according to Kreiner. So an interdisciplinary                   Dr. Christian Zähringer
                                                                                                                                                                                                                                                              +49 89 1489-6796
                                                                                                                                     During takeoff and cruise, the aircraft sys-             project team went to work on a solution of
                                                                                                                                     tem records critical engine data like pres-              its own, one that would clearly benefit cus-                    For interesting multimedia services
                                                                                                                                     sure, temperature and vibrations. These                  tomers. It does: the CF6 engine fleet of Atlas                  associated with this article, go to:
                                                                                                                                                                                                                                                              http://www.mtu.de/107ETME
                                                                                                                                     parameters are radioed directly or via satel-
                                                                                                                                     lite to a network on the ground. The ETM sys-            A JetBlue Airways technician photographed inspecting a V2500 on the ground.
                                                                                                                                     tem retrieves that data from the network and
                                                                                                                                     matches it against computations from a
                                                                                                                                     comparable engine model. In this manner,
                                                                                                                                     deviations from the standard curve become
                                                                                                                                     readily apparent. When a defect is noted, suit-
                                                                                                                                     able maintenance action is organized. Heavy
                                                                                                                                     secondary damage and costly repairs are so
                                                                                                                                     prevented.

                                                                                                                                     To make sure such valuable prevention works
                                                                                                                                     safely, the ETM system needs to satisfy
                                                                                                                                     tough requirements: it must be available
                                                                                                                                     24/7, and disruptions are anathema. Over
                                                                                                                                     98.5 percent is the minimum reliability de-
Tuesday morning, 8:00 a.m. on the dot, a           ating chain. Subsequent inspection confirms                                       manded. Also, the system is on continuous
Boeing 747 freighter aircraft operated by          that some component in the system had                                             duty and must not be deactivated for any
U.S.-based Atlas Air takes off uneventfully        indeed been damaged. So the problem can                                           duration exceeding four hours. Tolerances
from the Hannover runway. Nor are there any        be rectified right then and there. “Suppose                                       are far from liberal: precise prognostics
malfunctions noted on its return flight the        small damage like that goes undetected, it                                        detect the slightest of variations from the
day after. But still, the aircraft has to under-   might trigger some tremendous engine failure                                      model.
go an unscheduled engine check. MTU’s en-          that would cost a mint to repair,” figures
gine experts suspect that damage occurred          Ivaylo Krastev, a powerplant engineer at MTU                                      At MTU Maintenance Hannover, ETM was
somewhere along the compressor vane actu-          Maintenance Hannover.                                                             launched in September 2005. “Here at

26   REPORT                                                                                                                                                                                                                                                                                 REPORT   27
Reports

                                                                                                                                                    The model’s fuselage is mainly balsa and plywood.   At particularly highly-stressed places the model is       At first sight, the model takes off very much like the
                                                                                                                                                                                                        reinforced with fiberglass and composites.                original.

                                                                                                                                                    each takeoff, no matter how routinely he            glass and carbon fiber composites especially              from airfields and specifically designated
                                                                                                                                                    operates his remote control. The A380               on structural parts—the model refused to                  takeoff and landing surfaces. The model
                                                                                                                                                    model, after all, is the finest piece he has        break down under the cruel LBA tests.                     holds a ten-liter supply of kerosine, enough
                                                                                                                                                    produced in 20 years of impassioned model                                                                     to sustain a twelve-minute flight demonstra-
                                                                                                                                                    building that produced radio-controlled mod-        Flying at speeds of up to 120 kilometers an               tion that so far has fascinated thousands of
                                                                                                                                                    els of the Boeing 747-400, Concorde and             hour, the jet model carries its own three-mil-            spectators.
                                                                                                                                                    other jet-powered jumbos. With his latest           lion-euro insurance and boasts a noise
                                                                                                                                                    mega-model, the retired master motorcar             measuring chart plus a flight log recording all
                                                                                                                                                    mechanic from Ingelheim operates the                takeoffs and landings. “That’s about the
                                                                                                                                                                                                                                                                            For additional information, contact
                                                                                                                                                    world’s presently most intriguing airplane          paperwork a private pilot needs,” laments                           Sabine Biesenberger
                                                                                                                                                    model. In his basement shop and working all         Michel in exasperation of so much red tape.                         +49 89 1489-2760
                                                                                                                                                    by himself to original drawings Airbus lent         Like true aircraft, the model airplane is not
                                                                                                                                                                                                                                                                            For interesting multimedia services
                                                                                                                                                    him, the 64-year-old has produced a unique          allowed to take off just anywhere in the                            associated with this article, go to:
                                                                                                                                                    specimen that is unparalleled anywhere in           country, being cleared for operation only                           http://www.mtu.de/107MegaModel
                                                                                                                                                    the world. It has cost him in excess of 2,000
                                                                                                                                                    working hours and a tidy sum of money that
                                                                                                                                                    could have bought him a near-luxury class
                                                                                                                                                    car.

           Mini-engines power                                                                                                                       For a model airplane, the dimensions are
                                                                                                                                                    impressive indeed: the model is 4.80 meters
                                                                                                                                                    long, has a wingspan of 5.40 meters and an
                                                                                                                                                    empennage 1.65 meters high. lt weighs fully

              mega-model
                                                                                                                                                    70 kilograms and in every detail is a high-
                                                                                                                                                    fidelity likeness of the original airplane that
                                                                                                                                                    weighs in empty at 277 tons. Since the A380
                                                                                                                                                    midget brings more than 25 kilograms to the
                                                                                                                                                    scales, the German Federal Office of Civil
                                                                                                                                                    Aeronautics (LBA) has ruled it needs a serv-
                                                               By Andreas Spaeth                                                                    ice license. But at least Michel didn’t have to
                                                                                                                                                    obtain a separate operator license for it; he
              O    ne after the other, the four engines, each barely the size of a water bucket, begin to buzz and slowly rev up. To                already had one for a prior model, a 60-kilo-
              make sure they deliver the specified twelve kilograms of unit thrust, Peter Michel dips his hand into the exhaust gas                 gram Boeing 747-400. “That requires some
              stream. The German aircraft model freak has built the world’s largest jet-powered airplane model, an Airbus A380                      sort of basic pilot training,” explains the
              replica. On flight displays, it enthralls spectators in Germany and abroad.                                                           model builder. “One that primarily teaches
                                                                                                                                                    you to get and keep the thing in the air.”

The mini-engines are custom-manufactured,         running at maximum takeoff power, he uses        ed commands, radioed to them via two             During the aircraft certification process, the
costing 3,500 euros apiece. The original          his remote control to cycle the model A380’s     antennas, before he proceeds to taxi the         LBA examiners put the model builder and his
A380 powerplant, the GP7000, in which MTU         elevator, rudder, wing slats and speed brakes    small giant to the runway and take it ele-       showpiece through gruelling tests, loading
Aero Engines has a role, is 4.75 meters long      through their motions just like the pilots of    gantly into the air after a short takeoff run.   the model’s wings with 75-kilogram sand
and weighs six tons, but its small replicas,      the true mega-transport will to check their                                                       bags to prove it can safely survive three-
too, pack a tremendous wallop for their size.     proper function before takeoff. They all must    From the excitement, drops of sweat are          times the force of gravity. But made of styro-
                                                                                                                                                                                                                      Prior to the next takeoff, Peter Michel—here dressed in red—takes great pains with every little
When Michel is sure the four engines are all      respond flawlessly to Michel’s thumb-operat-     forming on the model maker’s forehead at         foam, balsa and plywood—coated with fiber-                        detail.

28   REPORT                                                                                                                                                                                                                                                                                                REPORT       29
Reports

               Airborne paintings
                                                             By Patrick Hoeveler

                         I t is not only with aircraft enthusiasts and model makers that custom-painted combat air-
                         craft are the vogue. Air force squadrons are investing much effort in creating unique works
                         of art on their warbirds. A very special instance of such artistic sense can be found on MTU
                         Aero Engines’ Munich premises: the first privately owned German Tornado. After over two
                         decades in service, the former strike fighter now symbolizes the close cooperation that
                         exists between the German military and MTU.                                                                            At the Tiger Meet, the participating squadrons vie for   The special decorations are getting ever splashier, like on this “Blue Lightning” Tornado of fighter
                                                                                                                                                honors with spectacular paint jobs.                      bomber wing 31 “Boelcke”.

Beauties on the catwalk: During the annual       craft for the meet of the squadrons with wild   retired Tornado symbolizes the long years of   license programs/cooperative models at                   of German Air Force (GAF) equipment now                    Germany. “It takes about two hours, using a
NATO Tiger Meet exercise, the colorfully         cats in their coats of arms, but often adds     cooperation between MTU and the German         Germany’s leading engine manufacturer and                put to some other use.”                                    high-pressure cleaner.” He remembers it
painted fighter aircraft take center stage.      color also to military aircraft parading at     Armed Forces and, moreover, “documents         had a major role in getting the strike fighter                                                                      wasn’t easy the find the miracle paint he
“These custom-painted jets always catch the      anniversaries or other events.                  the still closer ties between us since the     designated “43+86” to Munich. “The Tornado               Enter Burghard Jepsen. “First, we needed to                needed. And “it took two years or so until the
eye,” notes Burghard Jepsen, who has done                                                        inauguration in 2003 of the industrial-mili-   is the first aircraft type where MTU was                 strip the old paint job, considering that the              German Federal Office of Civil Aeronautics
the painting on most of the colorful birds. He   A very special instance of aerial art sits at   tary cooperative model of engine mainte-       actively involved in engine development. The             camouflage paint didn’t mix well with the                  finally approved it for flying operations.”
uses his spray gun to airbrush not only air-     the main gate of MTU’s Munich factory. The      nance,” says Ulrich Ostermair. He supervises   special paint scheme says that this is a piece           new colors.” Next came two coats of primer
                                                                                                                                                                                                         plus a black topcoat before Jepsen and his                 The special paint does not come cheap. For
                                                                                                                                                                                                         team of four focused on the detail work. The               a tailfin alone, the price of the almost six
                                                                                                                                                                                                         empennage was held in stone grey to sug-                   liters needed for the job may run around
                                                                                                                                                                                                         gest the solid cooperation practiced be-                   4,000 euros. Mostly, the members of the
                                                                                                                                                                                                         tween GAF and MTU. Finally, Jepsen added                   squadron pay it out of their own pockets and
                                                                                                                                                                                                         the logos of the two partners. A special high-             so the pride of ownership matches the
                                                                                                                                                                                                         light are the RB199 engine silhouettes on                  expense. In such cases, Jepsen may now and

                                                                                                                                                                                                         either side of the aircraft. Concluding the                then choose not to charge for his work at all,
                                                                                                                                                                                                         four days of work, done at the Erding air                  billing only the cost of material. He has a
                                                                                                                                                                                                         base, was a three-layer coating of clear tita-             growing number of private customers, too,
                                                                                                                                                                                                         nium varnish.                                              who want to have their property adorned. So
                                                                                                                                                                                                                                                                    he has brightened up even complete busi-
                                                                                                                                                                                                         Jepsen remains uniquely responsible for his                ness jets and commercial aircraft. But he
                                                                                                                                                                                                         work as long as his objets d’art are flying.               maintains that “combat aircraft are the best
                                                                                                                                                                                                         The German military has strict notions about               advertising you can have, and they’re the
                                                                                                                                                                                                         the paint jobs: it wants the paint to remain               most fun to do.”
                                                                                                                                                                                                         intact for about a year, regardless of any
                                                                                                                                                                                                                                                                               For additional information, contact
                                                                                                                                                                                                         storms the jet would have to fly through, and                         Ulrich Ostermair
                                                                                                                                                                                                         it also requires the paint job to wash off with-                      +49 89 1489-3621
                                                                                                                                                                                                         out resort to poisonous chemicals. “If sud-
                                                                                                                                                                                                                                                                              To download images associated with this
                                                                                                                                                                                                         denly a mission arises, the paint has to come                        article, go to:
                                                                                                                                                                                                         off pronto,” says the man from northern                              http://www.mtu.de/107Paintings

30   REPORT                                                                                                                                                                                                                                                                                                     REPORT   31
You can also read
