Steven Dorresteijn
                        Sales Manager Europe
            ABB Product Group EV Infrastructure

Sponsors
Steven Dorresteijn Sponsors - Cenex-LCV
CONFIDENTIAL

SEPTEMBER 6TH, 2017 / STEVEN DORRESTEIJN / EP EVI

High Power EV Charging and Future Trends
Cenex-LCV2017
Steven Dorresteijn Sponsors - Cenex-LCV
Follow the car through Europe, and open standard protocols
                                                       2010 - 2016                                                                  2017                                 2018                                 2019                                 2020                2021, …
                                                                                                                                                                                                                                          500 km
DC high-power charging CCS (≥350 kW @400/800 V)                                                                                                                                                                                               Porsche Mission E

                                                                                                                                                               500 km                                                                                                          500 km
DC high-power charging CCS (≥150 kW @400 V)
                                                                                                                                                      Audi SUV (Q6)           FF 91       650 km                                                                       VW ID Buzz
                                                                                                                                                                         650 km
                                                                                                                                                                                                                        ?? km

                                                                                                                                                                   Lucid Air                                 VW SUV
                                                                                                                                        300              450                                                                      ?? km         500 km?      450 km?
                                                                                                                                                                                            ?? km                 ?? km
                                                                                                                                        km               kmh
DC fast charging CCS                                                                        130 km
                                                                                                                            Opel Ampera-e Jaguar i-Pace                           VW CUV?                                                             Peugeot
(50 kW @400 V)                                                                                                                       190 km                                                        ??   Ford Model E BMW Mini E           VW ID       mid-size
                                                                      110 km                                                                                            165
                                                                               BMW i3                                                                                   km
                                                                                                                                                                                                   km             500
                                                                                          130 km                                                                                       AstonMartin                km
                                                                                                                                                                                                                                500
                                                                                                                              BMW i3 2.0           300 kmFocus      Electric             RapidE         Volvo500EV        Daimler
                                                                                                                                                                                                                               km?EQ
                                                            VW e-UP!                                                           140 km
                                                                                                                                                                                  ??                                                  ?? km
                                                                                 VW e-Golf                                                                                        km
                                                                                                                                                                                                             km?
                                                                                                                                         VW e-Golf 1.1
                                                                                                                  Hyundai Ioniq                                         Kia Niro                    320 kmSkoda
                                                                                                                                                   ?? km
                                                                                                                                                       350                                                        E        Renault XX
                                                                                                                                                       km                          Hyundai eSUV                    ?? km

                                                             110 km                                      450 km
                                                                                                                                  450 km      Tesla Model 3
DC fast charging                              110 km                                                                                              ccs?                                                  Mazda EV
                                                                                130 km
CHAdeMO                                                                                                              Tesla Model X
                            120 km
                                                                                         Tesla +adapter                                                                                                 chademo?
                                                  Peugeot                                                              (adapter)
(50 kW @400 V)                                     Partner        Nissan Leaf 1.1                           110
                                                                                                                                                   300
                                                                                                                                                   km
               Nissan Leaf 1.0       Citroën C-Zero                                                         km
                                                                      40        150
                                     110 km   110 km                            km
                                                                                                                                           Nissan
                                                                      km
           110 km                                                                          Nissan e-NV200                                  Leaf 2.0
                                                                                                                   180 km                                 200
                                                     Mitsubishi                                                                                           km
                           Peugeot iOn             Outlander PHEV Kia
           Mitsubishi i-MiEV        Citroën Berlingo             Soul-EV                            Nissan Leaf 3.0                              Infinity LE
                                                            130
AC fast charging 43 kW                                      km

                                               Renault Zoe ZE
                                                   450 km              110 km                      130                 200
                                                                                                   km                  km                  ??
AC charging 22 kW                                                                                                                          km
                                      Tesla Model S Daimler Smart ED                  Renault Zoe         Renault Zoe 1.1
                                                                                                                       Daimler E-Smart
                                                                                           140 km                    450 km
AC charging 11 kW
                                                                               Mercedes B250E Tesla Model S
                                                                                                                      110
Only AC slow                                                                                                          km
                                                           Ford Focus
(3.6-7.2 kW)                      Smart ED                            100 Renault Mahindra e20
                      Mercedes Gen 1                         Electric km                     200 km
                                            Renault Renault              Kangoo ZE
                      Vito E-cell
                                          Fluence ZE Twizy       Honda Fit         Citroën E-Mehari
                                                                                                                                                                                                                                                                  12 September 2017
Steven Dorresteijn Sponsors - Cenex-LCV
Porsche’s vision into high-end EV future
Mission-E concept demonstrates advanced possibilities

                                                Porsche 400/800V technology
                                                •     Porsche 400/800V technology allows charging at 400V & 800V DC
                                                      chargers

                                                •     Charging at 800V opens up future possibility to reach charging
                                                      powers of up to ~300 kW

                                                    https://presse.porsche.de/prod/presse_pag/PressResources.nsf/Content?Rea
                                                    dForm&languageversionid=545926

12 September 2017   Slide 4
Steven Dorresteijn Sponsors - Cenex-LCV
ABB DC fast charge installations
Proven technology in the field since May 2010

 Actual:
 Australia, Austria, Azerbaijan, Belgium, Brazil, Canada, China, Chili,
 Colombia, Croatia, Czech, Denmark, Egypt, Estonia, Faroe Islands,
 Finland, France, Germany, Greece, Greenland, Hong Kong, Hungary,
 India, Iceland, Ireland, Italy, Japan, Jordan, Kazakhstan, Latvia,
 Liechtenstein, Lithuania, Malaysia, Mexico, Monaco, The Netherlands,
 New Zealand, Norway, Poland, Reunion Island, Romania, Russia,
 Singapore, Slovakia, Slovenia, South Africa, South Korea, Spain, Sri
 Lanka, Sweden, Switzerland, Taiwan, Thailand, Turkey, United
 Kingdom, USA.

                               Total 6.000 units sold

                         of which several hundreds
                    150 and 300kW High Power Chargers
                                  (for car and bus)

12 September 2017    Slide 5
Steven Dorresteijn Sponsors - Cenex-LCV
ABB and high power charging
Our 2.5 year journey in the high power charging domain

   2015, start HPC program            2016, Launch e-bus               2016, OEM co-development            2016, Start Cooled cable
   Start development of 150-460       Successful launch of e-bus       working with several OEMs           Co-development with
   kW power platform                  HVC variant, small scale         on high power charging              multiple suppliers
   Specs definition with OEMs         serial production

   Full launch
   Terra HP series
                                                                                                                          2016-now, OEM testing
                                                                                                                          Testing with several OEMs,
                                                                                                                          in their test labs
                              In progress, Baker, CA

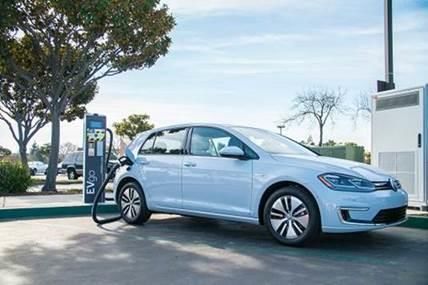

                                                            Feb 2017, Freemont, CA               Feb 2017, field test
                              In progress with 2nd USA site st
                                                            1 functional field installation 150- Trial installation of charge
                              with 150-350 kW
12 September 2017   Slide 6                                 350 kW, NRTL certification           post with customers
Steven Dorresteijn Sponsors - Cenex-LCV
ABB actively engaged in the new high power CCS standard
CCS standard changes required for power >150 kW
             Standard         Specification   Max charging power
                                (today)           for EV car
            CHAdeMO          50-500V, 125A         ~50 kW
            CCS              200-500V, 200A       ~80-95 kW

                  CCS today                                            New high power CCS proposal
              CCS connector                            Special CCS connector, backward compatible with today’s cars
               200 – 500 VDC                                                    Up to 920 VDC
                   200 ADC                                                      350 / 500 ADC
              Up to ~80-95kW                                           150kW – 350 kW charging power
              charging power
                                                              Power electronics cabinet parameters under review:
                                                                                    - Current
                                                                                   - Voltage
                                                                                 - Safety concept
               CE / UL charger
                                                                                - Isolation concept
              certification based
             on today’s standard                                     - Electro Magnetic Compatibility (EMC)
                                                                               - Power quality
                                                                                  - Accuracy
                                                                Update of IEC standards takes until 2018/2019
Steven Dorresteijn Sponsors - Cenex-LCV
ABB high power charger system
                                                                                                Prototype stadium now
160-350 kW, up to 920V, liquid cooled charging cables

                                                                      Ultra high output current capability
                                                                      (350A / 500A)

                                                                      Wide voltage range
                                                                      200 – 920V DC

                   Power cabinet(s)       Prototype Charge post       Flexible charging cables
                                                                      Advanced liquid cooling system for HP-CCS
  General remarks on high power CCS:
  •   CE certification of charger and cooled cable depends on standards
  •   Update of IEC standards takes until 2018/2019
  •   VDE application rule (“VDE Anwendungsregel”) was chosen as fast-track, and is already available
  •   CHAdeMO is also working on high power version (100kW – 500V / 200 A) non liquid-cooled cable required
Steven Dorresteijn Sponsors - Cenex-LCV
ABB Terra HP power cabinet
Modular power cabinet platform (160-350 kW)
                                               Terra HP cabinet: Ultra-high output current design
                                               •   375A max. output per single 160 kW cabinet
                                CNTRL          •   150 – 920VDC output voltage range
                                               •   160 kW nominal / 175 kW peak power per cabinet
                         DC      DC       DC
                                               •   400VAC±10% /480VAC±10% input, Galvanic isolation included in cabinet
                                               •   Operating temperature: -35 °C … +50 °C
                         AC     AC        AC

                              Isolation
                                               Robust outdoor cabinet
                                               •   IP 54 cabinet can be placed outdoors
                                               •   Vandalism proof, stainless steel, resistant against heavy snow & rain

                                               Modular up to 480 kW
                                               •   Internal cabinet modularity: 3 x 125 A / 920 VDC
                                               •   Power module redundancy & automatic failover mechanism

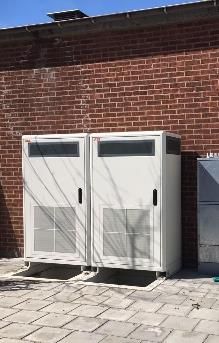

  Dual cabinet example
                                               Remote management & diagnostics
                                               •   Works with all ABB cloud connected services
Steven Dorresteijn Sponsors - Cenex-LCV
ABB Terra CP350 / Terra CP500 charge post
Modular charge post platform (350 A / 500 A)

                                                            Modular charge dispenser

                                                            •   Single CCS version

                                                                  •   CP350: CCS-1 or CCS-2: 350A / 1000V capability, liquid cooled cable

                                                                  •   CP500: CCS-1 or CCS-2: 500A / 1000V capability, liquid cooled cable

                                                            •   Multi standard CCS + CHAdeMO version

                                                                  •   CCS-1 or CCS-2: 500A - 1000V capability, liquid cooled cable +

                                                                  •   CHAdeMO: 200A / 500V capability, non-liquid cooled cable

                                                            •   7” touch screen

                                                            •   DC metering option
                 NOTE: Images are impressions, product in
                 development and design subject to change
                                                                                      Payment solutions

                                                                                      •   Creditcard terminal for EU & USA

      Final timing of CE certified Charge Post depends on                             •   WeChat payment for China
          the timing of the HP-CCS standard, and the
        availability of CE certified liquid cooled HP-CCS                             •   NFC, RFiD (Legic, MiFare, Calypso, etc)
                      cables and cooling unit
                                                                                      •   PIN code access
ABB’s Dynamic DC: A future proof & field upgradeable system
Power sharing between power cabinets up to 460 kW*
                            175 kWp                  2 x 350 kWp                    2 x 350 kWp                         2 x 460 kW*
                          Single system             Utilization = 0.5             Utilization = 0.75             Utilization = 1 @ 350kW
                                          Upgrade                       Upgrade                        Upgrade

* 460 kW option
 depending on                        2017           2018                  2019            2020            2021      2022
standardization

                                                Build up network & functionality according to market growth
12 September 2017   Slide 11
Small scale production of High Power Charger
Italy

                               Fig: Small scale 160kW DC power cabinets manufacturing in progress since late 2016

12 September 2017   Slide 12
It is all about making your business work
                               We are looking forward to empowering you!

12 September 2017   Slide 13
Contact information

                               Steven Dorresteijn

                               Sales Manager Europe
                               ABB B.V.
                               Product Group EV Charging Infrastructure
                               High Tech Campus 5
                               5656 AE Eindhoven
                               The Netherlands
                               M: +31 6 2342 7031
                               E: steven.dorresteijn@nl.abb.com
                               I: http://www.abb.com/evcharging

12 September 2017   Slide 14
