St1 Cellunolix™ Efforts in Europe and the United
States, Biofuels

                                           St1 Nordic Oy
                                       Advanced Biofuels R&D
                                          Tom Granström

1   25.9.2018   ICEF2018 Tokyo Japan
St1 Cellunolix Efforts in Europe and the United States, Biofuels - St1 Nordic Oy Advanced Biofuels R&D Tom Granström
St1 home market                                                                                                           MARKET SHARES 2017          KEY FIGURES 2017

                                                                                                                            FINLAND                  Net Sales, MEUR
                ST1
                                                                                                                            Petrol           21.9%
Home market consists of Finland,
Sweden and Norway.
Headquarters in Helsinki.
                                                                                                                            Diesel           18.7%         6,540
Employs more than 750 people.
                                                                                                                            Light fuel oil   23.2%
Operations are strengthened by
strategic long-term partnerships                                                                                            SWEDEN                   Profit for the period, MEUR
in various areas.
                                                 404               288 201                         258 219
                                                                                                                            Petrol           19.0%
        STATION NETWORK
Total of ca. 1400 St1- and Shell-sites
                                                                                                                            Diesel           14.6%         209.1
in Finland, Sweden and in Norway.
                                                                                                                            Light fuel oil   22.4%
                                                                                                                            NORWAY                   Return on Equity, %

                                                                                                                            Petrol           23.4%
                                                                                                                                                               23.4
       ENERGY PRODUCTION
Biorefineries producing waste-                                                                                              Diesel           21.5%
based advanced ethanol. Industrial
wind power plants. Geothermal                                                                            Wind power plant
                                                                                                                            Marine gas oil   23.9%
pilot heat plant under construction.                                                                     Biorefineries
Oil refinery in Sweden.                                                                                  Oil refinery
                                                       Wind farms owned by TuuliWatti Oy,
                                                       an associated company of St1 and S-Voima.

       2     25.9.2018        ICEF2018 Tokyo Japan
St1 Cellunolix Efforts in Europe and the United States, Biofuels - St1 Nordic Oy Advanced Biofuels R&D Tom Granström
Year 2017 in figures

3   25.9.2018   ICEF2018 Tokyo Japan
St1 Cellunolix Efforts in Europe and the United States, Biofuels - St1 Nordic Oy Advanced Biofuels R&D Tom Granström
World Energy and C02 at Glance in 2017
                                                                                                       40000                        17 large-
14000                                                2000                                                                           scale CCS
                                 33432 Mt                                       Increase in            35000
                                                                                                                                   capacity to
                                   C02               1800                       renewable
12000                                                                                                  30000                       capture up
                                 emissions                                      energy 9 %
                                                     1600                                                                           to 37 Mt
10000                                                1400                                              25000                          CO2

8000                                                 1200
                                                                                                       20000
                                                     1000
6000                                                                                                   15000
                                                      800
4000                                                  600                                              10000
                                                      400
2000                                                                                                    5000
                                                      200
    0                                                   0                                                   0
     Total Energy Consumption Mtoe                          Total Capacity GW                                   C02 emissions Mtpa
     Renewable Energy Mtoe                                  Installed Capacity GW                               C02 capture Mtpa

  BP Statistical Review of World Energy, June 2017     REN21. Global Status Report, 2017      Global Carbon Capture and Storage Institute Ltd 2017

        4   25.9.2018   ICEF2018 Tokyo Japan
St1 Cellunolix Efforts in Europe and the United States, Biofuels - St1 Nordic Oy Advanced Biofuels R&D Tom Granström
St1 Cellunolix™ process is                                                 Energy
                                                                           • steam
                                                                                                   Additives
                                                                                                   • enzymes
                                                                                                                           Utilities
                                                                                                                           • water
optimised for softwood                                                     • electricity           • yeast
                                                                                                   • chemicals
                                                                                                                           • cooling water

Raw material spruce or pine sawdust
10 ML (2.6 MG) bioethanol production
40 M€ (42.5 USD) investment

                                                                         Thermal pre-                            Fermen-           Distillation
                                                                                               Hydrolysis                                          99.7%
                                                                          treatment                               tation          Dehydration     Ethanol

                                                                                                       Water circulation
                                             Saw mill dust

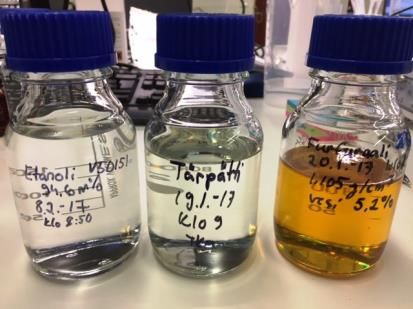

                                                                           Energy products         Side products           Waste water
                                                                           • lignin                • turpentine            • existing waste
                                                                           • biogas                • furfural                water
                                              Green Energy Congress 28-30.11 2016 Atlanta US       • vinasse                 treatment plant
                                                                                                                           • water systems
       22.11.2016

   5      25.9.2018   ICEF2018 Tokyo Japan
St1 Cellunolix Efforts in Europe and the United States, Biofuels - St1 Nordic Oy Advanced Biofuels R&D Tom Granström

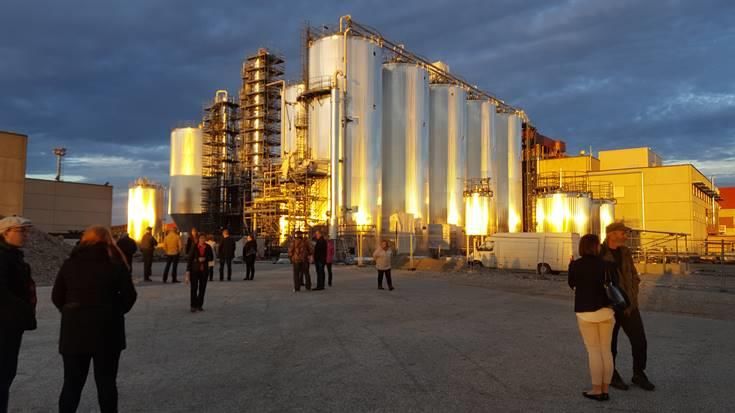

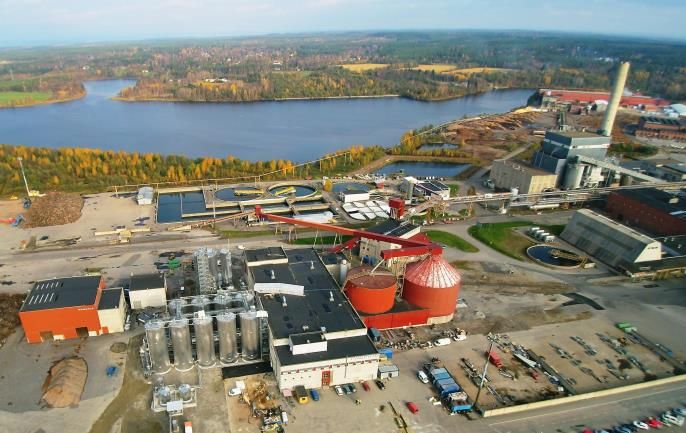

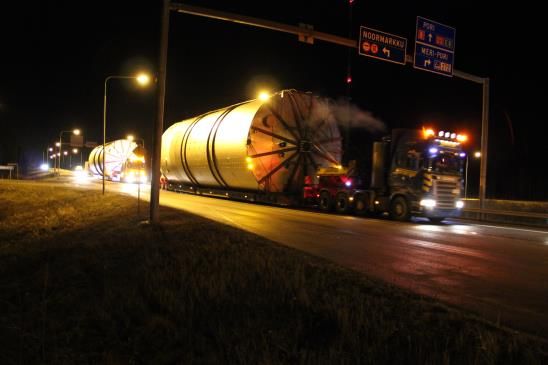

St1 Cellunolix® Kajaani plant site

6   25.9.2018    ICEF2018 Tokyo Japan
St1 Cellunolix Efforts in Europe and the United States, Biofuels - St1 Nordic Oy Advanced Biofuels R&D Tom Granström
Biogas
St1 Cellunolix™                                                                              Treatment of
                                                                                               distillation
                                                                                              stillage and
improved process is                                             Water circulation            waste water         Nutrient
                                                                                                                recycling
using saw dust and
waste wood                                  Saw dust
50 ML (13.2 MG) production                                  Improved St1 Cellunolix® process                       99.7%
150 M€ (160 M USD) investment                                                                                     Ethanol
                                          Waste wood

                                                         Modified           Transportation   Hydrogenated
                                                           lignin            fuels (vaxes,   vegetable oils
                                                        (biocrude)             parafins)        (HVO)

                                                       St1 Refinery
                                                       Gothenburg                                             Gas stations

   7   25.9.2018   ICEF2018 Tokyo Japan
St1 Cellunolix Efforts in Europe and the United States, Biofuels - St1 Nordic Oy Advanced Biofuels R&D Tom Granström
Background slides

8   25.9.2018   ICEF2018 Tokyo Japan
St1 Cellunolix Efforts in Europe and the United States, Biofuels - St1 Nordic Oy Advanced Biofuels R&D Tom Granström
An example of the challenge: demand of jet fuel
                                       Jet fuel demand to rise by 55% as air travel keeps
                                       increasing world-wide (ExxonMobil Outlook)
                                       • Center for Climate and Energy Solutions estimate that:
                                           • Emissions from aviation make 2 percent of global emissions
                                             already in 2013
                                           • If global aviation were a country, it would rank as the
                                             seventh largest carbon dioxide emitter
                                           • In 2010 2.4 billion passengers and 40 million metric tons of
                                             goods
                                           • By 2050, that could grow to 16 billion passengers and 400
                                             million metric tons of goods
                                       But no significant large scale renewable energy
                                       replacement developed

9   25.9.2018   ICEF2018 Tokyo Japan
St1 Cellunolix Efforts in Europe and the United States, Biofuels - St1 Nordic Oy Advanced Biofuels R&D Tom Granström

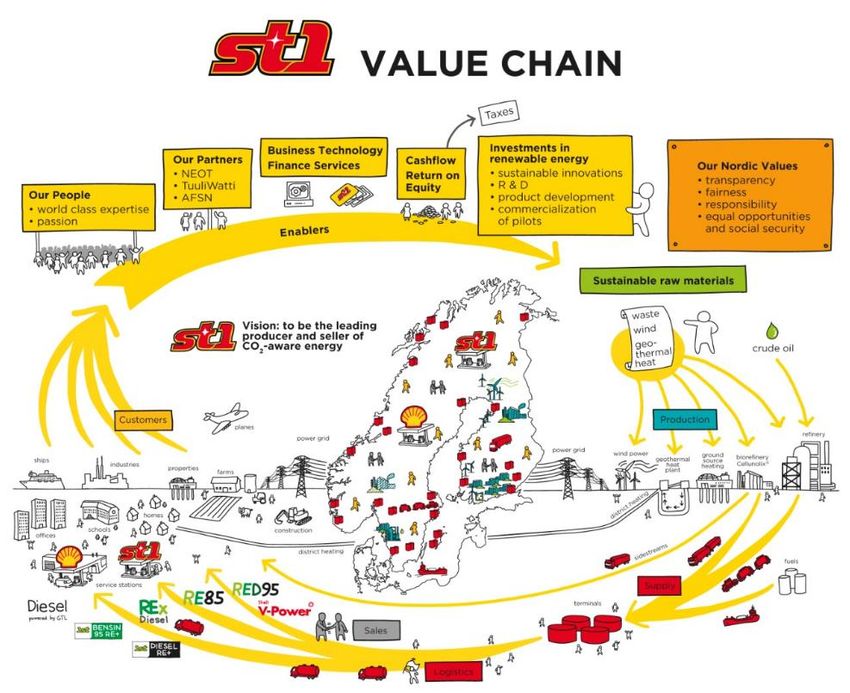

St1 value chain video

10   25.9.2018   ICEF2018 Tokyo Japan
St1 advanced ethanol production - Development
                                                                                                          Cellunolix® plants

                                                                                         Cellunolix®
                                                                                      commercialisation
        Production volume

                                                                        Cellunolix®
                                                                        demo plant            • 5 Etanolix® plants (food industry residues) in Finland
                                                                                                and Sweden
                                                                                              • 1 Bionolix® plant (household and grocery biowaste) in
                                                      Etanolix®                                 Finland
                                                       plants                                 • 1 Cellunolix® plant (saw dust) in Finland
                                                                                              • Letter of intent signed to construct a Cellunolix® plant
                             Etanolix®        Bionolix®                                         (forest industry residues) in Norway
                              plants            plant   Cellunolix®
                                                                pilot

                            2006                    2011                 2016                    2021                 2026           Time

11   25.9.2018                           ICEF2018 Tokyo Japan
Sawn softwood production In Europe, 2014
                       Germany
                         16 %                                                         3              Sawn softwood production amounts In Europe in
                                                        2014                Mill. m       %Chg*
Russia                                                                                               2014
                                                        Europe total           133        3%
 24 %
                                                        Russia                 32         1%         • Saw dust amount is approximately 30 % of
                                    Sweden              Germany                21         2%           production of the mill.
                                     13 %               Sweden                 18         10 %       • In Europe there is an oversupply in pulp logs, bark
                                                        Finland                11         5%           and sawdust. For example in Finland forest chips
                                                        Austria                 8         -2 %         are being subsidized, putting pressure in sawmills’
                                                        France                  6         -3 %         by‐products. 1 In Finland roughly 3.3 million bulk
                                    Finland             Others                 37         5%
                                                                                                       cubic meter of softwood saw dust is annually
                                      8%
                                                                                                       formed.
                                                        * compared with the prev. year
                                                                                                     • About 18 million bulk cubic meter of softwood saw
                             Austria
  Others                                                                                               dust is annually formed in Nordic countries
                         France6 %                                                                     (Finland, Sweden and Norway) and Germany and
   28 %
                           5%                         Source: FAO and European Organization of the
                                                                                                       Austria
                                                      Sawmill Industry
                                                      1 Softwood Market Development – European

                                                      Production, Auvinen S.J., INTERNATIONAL
                                                      SOFTWOOD CONFERENCE 2016 PARIS
                                                                                                      This corresponds to approximately 570
                                                                                                      million liters of bioethanol production
                                                                                                      potential annually

                     http://www.forestindustries.fi/statistics/industry/20-Sawmill%20Industry/

 12      25.9.2018       ICEF2018 Tokyo Japan
St1 Refinery in Gothenburg
Refines 30 million barrels of crude oil annually
•    Petrol, sulphure-free MK-1 diesel, other middle distillates and
     liquid gas
•    Most of the products are sold through St1’s own network in
     Sweden and Finland

One of the world’s most energy-efficient refineries
•    Most of its energy needs are covered by own gas production
•    Nearly a third of the heat generated by the plant is recycled into
     the City of Gothenburg’s municipal heating network to provide
     heating for appr. 70 000 dwellings

Certified in accordance with the EU’s Eco-Management and
Audit Scheme (EMAS) and the ISO 14001 environmental
system

St1’s goal is to convert the refinery into biorefinery
•    Etanolix® advanced ethanol plant integrated into refinery 2015

13   25.9.2018     ICEF2018 Tokyo Japan
