Signature Identification and User Activity Analysis on Whatsapp
Web through Network Data
Ramraj S1*
Research Scholar, Department of Computer Science and Engineering
SRM IST, Kattankullathur
Dr Usha G2
Associate Professor, Department of Software Engineering
SRM IST, Kattakullathur
Abstract
WhatsApp messenger is a popular instant messaging application that employs end-to-end
encryption for communication. WhatsApp Web is the browser-based implementation of
WhatsApp messenger. Users of WhatsApp communicate securely using SSL protocol.
Encryption and use of common port for communication by multiple applications poses
challenge in traffic classification for application identification. It is highly needed to
analyze the network traffic for the purpose of QoS, Intrusion Detection and application
specific traffic classification. In this paper, we have done traffic analysis on the network
packets captured through data transfer in whatsapp web. In the result, we have explored
the user activities such as message texting, contact sharing, voice message, location sharing,
media transfer and status viewing. Packet level traffic analysis of user activities reveal
patterns in the encrypted SSL communication. This pattern is identified across SSL packet
lengths for WhatsApp media transfer and voice message communication. Other important
features WhatsApp is the ability to view the status of the message being sent. We have
identified the read and unread message status in these data packets by exposing signatures
in the network layer. These signatures are identified with the help of the SSL lengths in the
TLS header information of WhatsApp Web network traffic traces. Various other
information on WhatsApp traffic presented in our study is relevant to the version of
WhatsApp Web v0.3.2386.
Keywords - WhatsApp Web; Network traffic; User activities; Encryption; Pattern
identification, Read Receipts, SSL encryption, Network Security, Traffic Analysis, Signature
Identification
1.Introduction:
With social media being one of the most important services of the Internet, WhatsApp
outshines its competitors such as WeChat, Viber, Hangout, Telegram and Skype in the world of
instant messaging applications with over 300 million users everyday [1]. It is known for its
availability in multiple platforms and responsive user interface with various features as
mentioned in [2]. It supports instant text messaging, voice calls, video calls, and media sharing
like images, videos, documents. WhatsApp also provides a web interface known as WhatsApp
Web [3] that can be accessed using any web browser on a desktop. WhatsApp Web gives a
seamless connection between the browser and the messenger application in the smartphone by
providing secure and reliable advantages with amazing keyboard shortcuts. WhatsApp Web
allows users to access WhatsApp on various platforms like desktop or laptop with the help of a
web browser. This reduces the burden of handling multiple devices for those who predominantly
work on computers. Being the most widely used instant messaging application all over the world,
WhatsApp definitely presents an opportunity to conduct research on its network traffic.
Communication between users in the Internet is made possible through transfer of network
packet data, which contains packet header information and the message payload. It can be
brought to light that WhatsApp provides end-to-end encryption [2] with SSL (TLS) protocol.
Encryption ensures that only the sender and recipient has access to what they have exchanged
using WhatsApp. The communication flow of the WhatsApp Web in the network layer can be
examined with the help of the network traffic. After the addition of end-to-end encryption,
WhatsApp has revamped their network security protocols making it resistant against intrusion.
However, the paper brings out the possible information that can be obtained by examining the
network traffic of the WhatsApp Web application between a sender and a receiver. One of the
characteristics that can be retrieved from the network traffic is the payload content. This can be
utilized to derive a signature using payload-based traffic classification. Since the WhatsApp
traffic is encrypted, analysis of the network layer payload content does not reveal any pattern. To
overcome this situation presented by SSL encryption, an approach based on inspection of packet
length is considered in this paper, to have insight into the working of WhatsApp Web.
Also, WhatsApp gives the user the ability to see the status of a chat message being
exchanged by providing three statuses [3], namely, (i) Message successfully sent (single check
mark in grey color in grey color) (ii) Message successfully delivered to the recipient’s phone
(two check marks in grey color) (iii) Recipient has read the message (two check marks in blue
color). This proves to be an advantage as the user who sends a message (text/media) to a person
or a group has the means to see whether the message is delivered or whether it has been read by
the recipient(s). This functionality is provided to both the WhatsApp mobile application and
WhatsApp Web. However, WhatsApp also offers the user the option of turning off the read
receipt in which case the sender cannot see if the message has been read by the recipient. With
WhatsApp being the most popular messaging application and known for its renowned end-to-end
encryption of messages, this provides an opportunity to examine the strength of its security on its
read receipts. By identifying a signature to differentiate the read receipts, it is possible to
demonstrate an inadequacy in the encryption presented by WhatsApp in terms of leakage of
information. Enterprises and Institutes can reproduce the methodology formulated in this paper
to help impose policies for efficient network monitoring of WhatsApp Web. Along with network
traffic pattern analysis, this paper exhibits an extensive study of WhatsApp Web’s network
traffic by considering traffic trace information, primarily the SSL length, to arrive at a signature
that could possibly classify WhatsApp’s read receipts.
2.Key Contributions:
2.1) Considering the need for research in whatsapp web data, this paper proposes a study
on various user activities of WhatsApp Web and signature analysis of read receipts.
2.2) For our study, user activities such as text-messaging, media sharing, contact sharing,
location sharing, voice messaging and viewing statuses, which are cited as “user
activities” throughout the paper is included.
2.3) The whatsapp web traffic network dataset is generated in real-time for various
scenarios which contains only SSL data packets.
2.4) The generated data is captured through wireshark v2.4.4 snipping tool and is
preprocessed.
2.5) Pattern of SSL packet length is analysed to identify significant information about
WhatsApp Web user activities.
2.6) From the TLS record layer length field, dimensions such as read and unread
messages from network packet level is explored.
3. Paper organization:
The paper first highlights the related work on network traffic analysis and signature
identification in Section 4, then proceeds with the procedure of traffic generation, capture and
filtering in Section 8. Section 8 and Section 9 discusses the analysis of the captured network
traffic. The algorithmic process of the traffic pattern identification and signature verification is
explained in Section 6 followed by the conclusion and references.
4. RELATED WORK
One of the most important aspects of network management has been network traffic
classification. With the skyrocketing growth of the Internet, the composition of network traffic is
becoming complex and varied. Accordingly, network traffic classification has come a long way
from the traditional methods of port-based classification to the Deep Packet Inspection method to
flow-based statistical method to host-based behavior classification. Introduction of encryption
and obfuscation techniques has resulted in a significant rise in encrypted network applications
and traffic in network [15]. According to the Dornger in [16], encrypted network traffic
classification can be studied by considering classification based on packet information or based
on host/social (popularity of the host which is the number of hosts communicating with it)
information.
With the popularization of the Internet and high speed networks, network traffic is being
generated at an enormous rate. The introduction of encryption has helped in securing the user’s
personal information and maintaining their privacy.Consequently, a lot of research is being carried out to test the credibility of encrypted traffic. One way is to identify a signature in the network traffic that corresponds to a particular application or an user activity of an application. Network traffic consists of header information like ports, IPs, payload length, protocol, etc which are currently used to classify applications [1]. Identification of signature in the payload length is a technique commonly used to classify an application with high accuracy [2][3][4]. Some researchers found a way to automate the process of signature identification by finding a string or hex subsequence in the payload [5][6]. [7] proposed a behaviour signature for internet traffic identification that assessed the first few packets of multiple traffic flows. This signature was proved to be successful by obtaining a precision of 100% in categorizing ten different applications. [8] was able to discern SSL/TLS traffic using signature matching methods. Instant Messaging applications are a primary medium for communication on the Internet. Thus, significant research is being done to identify signatures in these applications to validate their encryption and privacy features. [9] displayed a dependable framework to identify Viber traffic over the network layer and also went on to classify voice/video calls and chat messages (voice/text/media) using signatures found in TCP payload sizes. [10] has provided a comprehensive study that investigates information leakages by analyzing packet sizes. Operating System (iOS/OSX) of devices used has been identified based on packet lengths and direction pairs. Language used and plaintext length of the message has been characterized by examining the count of packet lengths and direction pairs. Finally, the study also distinguishes user actions with the help of signatures that have been found in the packet lengths. [11] implements a system to meticulously identify Skype traffic over the network by revealing signatures with regard to the UDP flows of Skype. Skype VoIP calls are detected by finding a signature in the port usage and payload size of the packets in a session [12]. [13] shows that the behaviour of WhatsApp voice calls can be studied by analyzing the WhatsApp traffic between users. An algorithm was also developed to characterize voice calls from other applications such as text messaging or media sharing which considered UDP flow information and traffic time series to perform the classification. This study is centralized on WhatsApp Web network traffic to identify signatures of read receipts based on the SSL packet length field in TLS header. It also exposes WhatsApp’s end-to-end encryption by revealing some user information in the network layer. There are many researches on the encryption aspect of instant messaging applications to validate their secured communication methodologies. TCP payload sizes have been used to distinguish Viber traffic through a framework, which classifies voice/video calls, and chat messages over the network layer by Sudozai et al [17]. Scott et al. [18] used packet size, direction pairs and count of packet lengths of iMessage (Apple’s messenger application) network traffic to perform various classifications like OS of device, language used and plain text length. Jayeeta et al. [19] presented a case study on Google Hangouts by studying the domain name servers (DNS) and further using it to classify the Google application traffic as Gmail, Hangout or Google plus. This is done by following a packet-based identification (ports and packet lengths). Alshammari et al. [21] used a flow-based feature set consisting of 22 features such as protocol, duration of flow, number of packets in forward direction, mean forward packet length to identify VoIP traffic of
Gtalk and Skype. The authors performed this classification with the help of three machine-
learning algorithms, namely, C4.5, AdaBoost and Genetic Programming and concluded that C4.5
had the best classification performance. Wongyai et al. [22] conducted traffic analysis of packets
that are generated when the Facebook homepage is being loaded. After investigating these
packets, the authors summarized the number of components loaded and the order they are loaded
in, number of TCP streams used and the number of servers accessed while the Facebook
homepage is being loaded.
Recently, new studies are being conducted on the widely known WhatsApp application
since there is not a lot of research work present. Yanjie Fu et al. [23] tried to classify user
activities of WeChat and WhatsApp based on the packet lengths in the traffic and the time delay
between the sessions. Antonio et al. [13] proposed a blind traffic classification for VoIP calls in
WhatsApp messenger in android. They have obtained results based on the data rate and protocols
that were used by the WhatsApp messenger application.
In this paper, the aim is to study various user activities of WhatsApp Web. These
activities include, text-messaging, media sharing, contact sharing, location sharing, voice
messaging and viewing statuses, which are cited as “user activities” throughout the paper. It is
done through the inspection of the network traffic packets. It also concentrates on the SSL packet
lengths to identify any significant information. To the best of authors’ knowledge, not much
work has been reported in this area.
PROPOSED METHOD
5. Whatsapp User Activity Analysis:

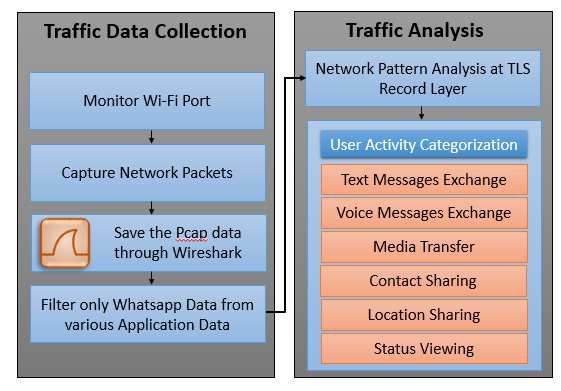

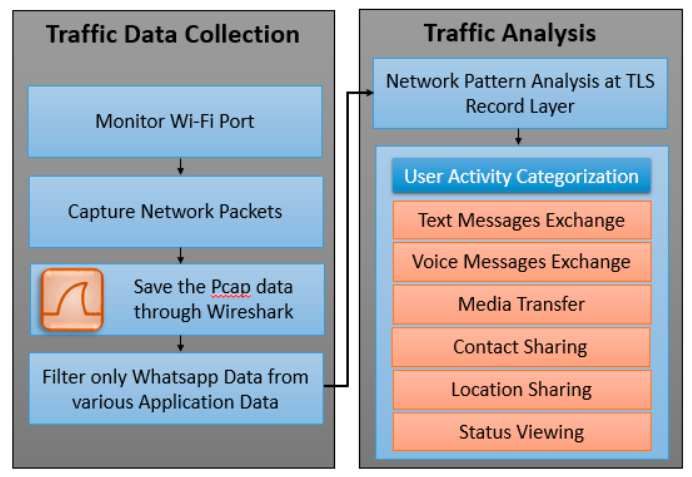

The raw network data is monitored through Wi-Fi port and captured. Then the captured packets
are saved as Pcap files through wireshark. The Pcap data contains data of all applications in the
network from which the whatsapp data is alone filtered through the SSL header file. Then the
network traffic pattern is analyzed.Figure 1: Methodology: Whatsapp User Activity Analysis 6. Signature Identification: After the signatures that have been identified by traffic analysis, an algorithm is created to help classify the different read receipts from the traffic traces. In order to apply this algorithm, a methodology is followed which is represented by the flow chart given in Figure 2. Figure 2: Methodology: Signature Identification
6.1) Unidirectional flow creation: Since the signature is obtained from one direction of
the communication (WhatsApp server to sender), traffic traces are converted to
unidirectional flows. A flow is a 5-tuple that consists of source IP, source port,
destination IP, destination port, and transport protocol.
6.2) Extraction of WhatsApp Server to Sender Flow: Many unidirectional flows
are created from each source IP to each destination IP. From these set of flows, only the
WhatsApp server (source IP) to sender flow (destination IP) is carefully extracted as the
signature is found only in this flow.

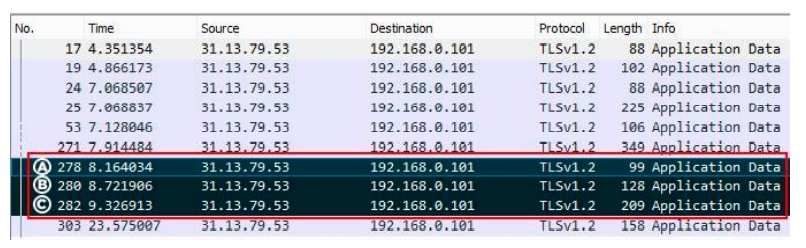

6.3) SSL Length retrieval: The unidirectional flows consists of various header
information. However, only the SSL lengths are retrieved from the flow because the
signature identified based on it.
6.4) Algorithm Implementation: The purpose of this algorithm is to verify whether the
SSL lengths from the WhatsApp server to sender flow contain the signature. The
retrieved SSL lengths are grouped in an array which is fed as the input to the algorithm.
The pseudocode of the algorithm used is shown below:
Algorithm 1. Read Receipt Identification
procedure: signature_check(p_lengths)
for Pi in p_lengths

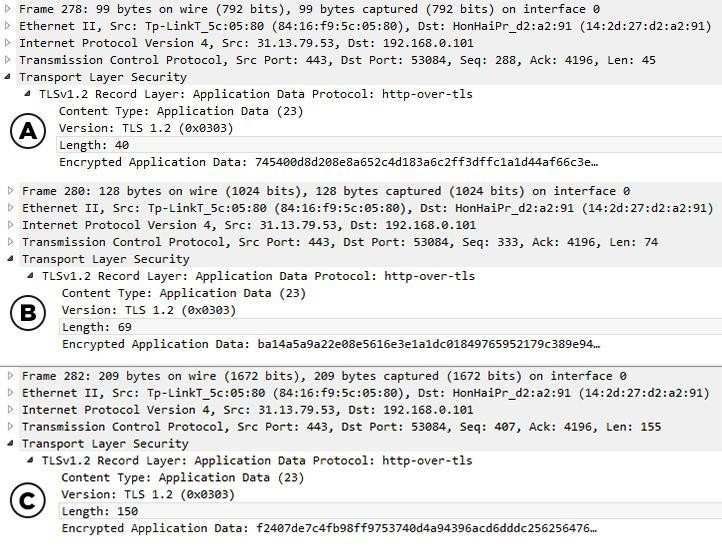

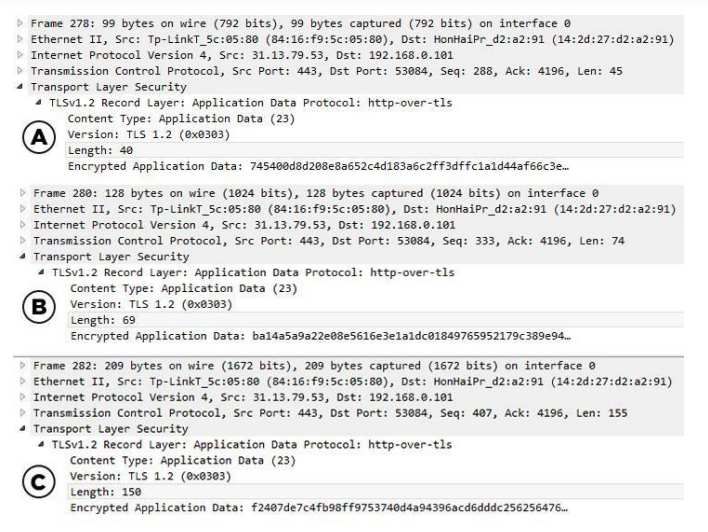

if Pi = 40 and Pi+1 = 69, then
if Pi+2 = 149, then
return two check marks
else if Pi+2 = 150, then
return two blue check marks
else
return single check mark
end if
if Pi = 47 and Pi+1 = 76, then
if Pi+2 = 155, then
return two check marks
else if Pi+2 = 156, then
return two blue check marks
else
return single check mark
end if
i++
end forThe algorithm parses through the array of SSL lengths and compares each value of the array to
the identified signatures. When a value of the array matches the first value of either signatures,
the subsequent values of the array are checked sequentially against the read receipts signatures.
If a match is found for one of the signatures, that particular read receipt is returned by the
algorithm.
7. EXPERIMENTAL SETUP
The whatsapp web traffic data is analyzed in the real time data captured as below:
8. TRAFFIC COLLECTION
Availability of data is the basis of any traffic classification research. The focus of this paper is on
identification of traffic pattern and signature in WhatsApp Web user activities. Hence, data or
traffic traces pertaining to these activities of WhatsApp Web communication is the primary
requirement.
8.1)Traffic Generation
The initial requirement is WhatsApp Web network traffic which should be generated
without any interference from other applications. The network traffic is introduced by
exchanging any message or media with a recipient using WhatsApp Web as the
medium. It is made sure that only WhatsApp Web is running in the host machine. No
other applications should be active in the background to avoid noise. The version of
WhatsApp Web used in this study is v0.3.2390.
The common user activities in whatsapp web are described in Table 1.
TABLE 1: USER ACTIVITIES IN WHATSAPP WEB
Activity Description
Text Messages Users exchange messages in
exchange plain text or emojis
Voice Messages Users exchange voice message
exchange by recording an audio clip.
Media transfer Users exchange media files
like images, documents, videos
and audios
Contact sharing Users share the contacts
available in their phonebook.
Location Users share any location or a
Sharing live location using GoogleMaps.
Status viewing Users view the media statuses
uploaded by their contacts.
It is to be noted that calling features like voice call and video call are not available in
WhatsApp Web. There are no traffic trace data of WhatsApp user activities available in
literature. Therefore, it is required to devise a method for WhatsApp Web traffic generation. The
traffic, thus, generated is considered as the ground truth in this paper. In this traffic generation
activity, it is ensured that network traffic pertaining to only WhatsApp Web is generated by the
machine. This is done by ensuring that no other application responsible for generating network
traffic is running on the machine while WhatsApp communication is happening. In addition,
apart from WhatsApp Web traffic, there is no browsing traffic is generated. It is also ensured that
WhatsApp communication is only between two communicating parties. The version of
WhatsApp application in use is mentioned in Table 2.
TABLE 2: WHATSAPP APPLICATION VERSION
Application Version Dated
WhatsApp Messenger (Android) v2.19.69 January 2021
WhatsApp Web V0.3.2386 January 2021
The various scenarios based on WhatsApp application type and network connectivity for the
traffic generation of the different WhatsApp Web user activities are listed below:
8.1.1) Sender and Receiver using WhatsApp Web on Wi-Fi:
8.1.1.1) Media Transfer: In this scenario, both the sender and receiver
exchange media files like documents, images, audios, videos using WhatsApp
Web. Both the sender and receiver use Wi-Fi connectivity. It is to be noted that,
while exchanging media files, the sender needs to transfer a new file every time
because WhatsApp maintains a local cache of files that are already exchanged and
does not retransmit it. In case a file that has been sent earlier needs to be resent, it
has to be deleted from the conversation chat history in WhatsApp. It is also
ensured that only one media file is transferred at a time and text messages are not
sent.
8.1.1.2) Text Messages: In this scenario, the sender and receiver exchange
only text messages of any length.
8.1.1.3) Contact Sharing: In this scenario, the sender and receiver
exchange only contacts.
8.1.1.4) Voice Message: In this scenario, the sender and receiver exchangeonly voice messages.
8.1.1.5) Location Sharing: In this scenario, only the sender can send the
location using the mobile application as WhatsApp Web does not provide the
ability to share locations.
8.1.1.6) Status: In this scenario, the traffic is generated by viewing the
status uploaded by any of the user’s contacts. It is to be noted that WhatsApp Web
does not provide the user the ability to upload media status.
8.1.2) Sender using WhatsApp Web and Receiver using WhatsApp Messenger on
Wi-Fi or vice versa:
In this scenario, the traffic is generated in the same way as the first case for all
activities with the only difference being that the receiver uses the WhatsApp messenger
on a mobile device.
8.1.3) Sender using WhatsApp Web on Wi-Fi, Receiver using WhatsApp
Messenger on mobile data or vice versa:
In this scenario, the traffic is generated in the similar way as the first case for all
activities with the only difference being that the receiver uses WhatsApp messenger on a
mobile device and is connected to the Internet using mobile data instead of Wi-Fi.
For signature identification of these whatsapp data, three different experiments
are carried out to analyze the three read receipts as below:
8.1.3.1) Receiver is offline: The sender sends a message or media in
WhatsApp Web while the receiver is offline. This gives a single check mark for
the message that has been sent.
8.1.3.2) Receiver is online but not chatting with the sender: This
experiment is same as the above but the receiver is online and hasn’t read the
message yet. This gives two check marks for the message that has been sent.
8.1.3.3) Receiver is online and chatting with the sender: In this
experiment, the receiver is in the sender’s chat when the message is being sent.
This makes the message being instantly read by the receiver and gives two blue
check marks for the message in the sender end.
8.2) Traffic Capture
The WhatsApp traffic, thus, generated needs to be captured for further analysis.
The traffic is always captured at the communicating endpoint, which uses WhatsApp
Web irrespective of sender or receiver. Wireshark is a GUI based packet sniffing tool,
used to capture the traffic of various user activities of WhatsApp Web, store in traffictrace files, and analyze the network protocols and various other header information
packets. It allows interactive viewing of packet data from live network or from a
previously saved capture file. Wireshark's native capture file format for the traffic trace
files is pcap format, which is also the format used by tcpdump.
8.3) Automation of Traffic Generation and Capture
In order to generate and capture the WhatsApp communication traffic with
minimum manual user intervention, automation of the generation and capture process is
devised. This allows huge collection of traffic traces at a shorter period and makes the
traffic generation and capture process uniform and less cumbersome. Macro Recorder
[15] tool is used to automate the traffic generation process. Macro Recorder is a record
and playback automation tool for Windows that records the mouse and keyboard actions
and replay them for a specified number of times. The tool is mainly used for software
testing and system maintenance but, in this study the tool serves the purpose of
automating the traffic generation and collection process. Macro Recorder version 1.0.58f
is used in this paper.
8.4) Traffic Filtering
After the generation and capturing of network packets, there is still a possibility
for the existence of other packets in the captured traffic trace file that belong to non-
WhatsApp applications. This is due to several undetected operating system background
applications. This noisy traffic needs to be removed from the captured traffic trace file.
Therefore, filtering of traffic is done to ensure that all packets in the captured traffic trace
file are relevant to the WhatsApp Web communication only. It is to be noted that
WhatsApp uses SSL/TLS protocol for the packet transfer. The filtering of traffic is
achieved through Wireshark such that all SSL traffic is retained. In addition, it is
confirmed that either of the source IP or destination IP of the packets in the traffic trace
file belongs to the pool of WhatsApp server IPs [16]. The communication between a
sender and a receiver always occur with a server as a medium. All the traffic traces,
generated due to the activities, from the sender is first passed to the server and then it
reaches the receiver from the server. This server IP can be used to excerpt the WhatsApp
traffic traces from the non-WhatsApp SSL traffic traces for further analysis.
9.RESULT ANALYSIS
The filtered WhatsApp Web traffic is analyzed to identify the presence of patterns in the
packet stream and the user read signature.
Traffic pattern analysis:
The WhatsApp Web traffic that has been captured contains only SSL packets as
WhatsApp uses SSL for communication. As SSL data is encrypted, inspecting the payload ofSSL packets does not reveal any pattern. The information available in the SSL header for
multiple packets of an SSL captured traffic trace and across multiple traffic traces are analyzed.
An important parameter in the SSL header is the length field of the TLS Record Layer [17]. This
length field for consecutive packets of a WhatsApp capture traffic trace is analyzed. The research
findings post traffic analysis is elaborated below:
9.1) Media Transfer and Voice Messages:
Analysis for multiple media transfer and voice message traffic traces has revealed that
WhatsApp Web uses TLSv1.2 and TLSv1.3 for these communications. Further inspection of
traffic traces using TLSv1.3 protocol revealed a specific signature or pattern across the SSL
length field. This SSL length field is cited as “SSL packet length” for the rest of the paper. It is
observed that certain sequences of SSL packet lengths always occur in these captured WhatsApp
traffic traces. Few of the length sequences have been presented in Table 3 and they form the
pattern for the identification of media transfer and voice messages.
The pattern identified always starts with the SSL packet length 69, which occurs between
5 to 13th packets from the WhatsApp SSL client hello packet. This SSL packet length may be
th
followed by the SSL packet lengths 26 and/or 30. x in the pattern represents any single SSL
packet length. The regular expression for all possible patterns can be written as:
/69(\,\d{0-4})(\,26){0-2}(\,?\d{0-4})(\,30)?(\,?\d{0-4})/
The regex is written with respect to PCRE format [18] that is a commonly used standard
for regular expressions. It is also found that, certain media transfer and voice messages traffic
traces use TLSv1.2. However, these traffic traces do not uncover any relevant pattern or other
useful information.
TABLE 3: SSL PACKET LENGTH PATTERNS IN MEDIA TRANSFER, VOICE MESSAGE
PATTERNS AND STATUS VIEWING
69,x,..
69,26,x,..
69,26,30,x,..
69,26,26,x,..
69,26,26,30,x,..
69,26,26,x,30,x,..
69,x,26,30,x,..
69,x,26,26,30,x,..
69,x,26,26,x,30,x,..
69,x,26,x,30,..
69,30,x,..
69,x,30,x,..
69,x,26,x,..9.2) Text Messages and Contact Sharing:
Following the analysis of traffic traces of text messages and contact sharing, it is
observed that both these activities use TLSv1.2 protocol. There is no presence of significant
signatures or patterns in the SSL packet lengths.
9.3) Status:
Upon studying the traffic traces collected for media statuses, it is found that WhatsApp
Web uses TLSv1.3 while viewing media statuses and follows the same pattern as mentioned in
Table 3. It is to be noted that WhatsApp Web uses TLSv1.2 for statuses that have already been
viewed by the user and no pattern is identified in the SSL packet lengths.
9.4) Location Sharing:
It is observed that unlike other user activities that use TLS, WhatsApp Web facilitates
location sharing using GQUIC protocol. As the location is shared using Google Maps, the
Google servers are accessed instead of WhatsApp. Therefore, the location is transmitted through
Google server IPs.
Signature Identification:
WhatsApp is SSL encrypted, hence, the application payload data does not reveal any signature.
But, after inspecting the TLS record layer length field in all the capture files, signatures are seen.
It is to be noted that the signatures are identified only in the traffic traces using TLSv1.2
protocol. The scenario is illustrated in Figure 3. The packets of the traffic traces are marked in
Figure 3 [A, B, C]. They are found to be common in all the WhatsApp capture files with the
source being a WhatsApp server and the destination being the sender.
Figure 3. Common Traffic Traces
Figure 4 depicts the SSL length for consecutive three packets for the scenario when receiver has
seen the image sent by a sender and the sender has received the read receipts in the form of two
check marks in blue color. These sequence of packet length form a signature for the read receiptindicated by two blue check mark This signature always occur towards the end of WhatsApp
server to sender traffic trace. In each experiment, two significant signatures are found for each
read receipt.
Figure 4. Signature revealed as SSL packet length for two blue check marks in SSL length
TABLE 4: SIGNATURES OF READ RECEIPTS
Signature 1 Signature 2
Single check mark 40,69 47,76
in grey color
(Sent)
Two 40,69,149 47,76,155
check marks in
grey color
(Send and
Received)
Two Check Marks 40,60,150 47,76,156
in blue color
(Send and Read)Both the signatures found during traffic analysis for all three read receipts are tabulated in
Table4.
10. CONCLUSION
The research conducted in this paper highlights the presence of pattern in encrypted
whatsapp web communication. Network traffic analysis at packet level reveal distinct pattern for
various whatsapp web user activities. This pattern is revealed on analysis of the SSL packet
lengths for the user activities of media transfer, statuses and voice message in WhatsApp Web.
Also, the paper proposes a methodology to identify signatures in SSL lengths to classify the
various read receipts provided by WhatsApp. This work can be further extended for whatsapp
communication over mobile application as well.
11. DECLARATIONS:
FUNDING
The authors express their sincere gratitude to the SRM Institute of Science and Technology, Tamil Nadu,
India for aiding in facilitating the research. Our project is funded by the university in the way of grants
such as resources and guidance. For the project, the dataset was derived by the Port Mirroring Technique,
which involved the use of a Port Mirroring Switch obtained from the college lab. Resources like stable
network, labs, systems etc. were also granted by the college. Throughout the software development cycle
and research, the funding was offered by the university. No external funding was involved in this project.
CONFLICTS OF INTEREST/ COMPETING INTERESTS
The authors declare that they have no known competing financial interests or personal relationships that
could have appeared to influence the work reported in this paper.
AVAILABILITY OF DATA AND MATERIALS
The datasets generated during and/or analyzed during the current study are available in the
https://github.com/nishantuzir/just_a_naive_flowmeter/tree/master/sample
CODE AVAILABILITY -
All code for data cleaning and analysis associated with the current submission is available at
https://github.com/nishantuzir/just_a_naive_flowmeter repository. and can be accessed freely by anyone.References [1] Yoon, S.H., Park, J.S. and Kim, M.S. (2012). Signature maintenance for Internet application traffic identification using header signatures. In 2012 IEEE Network Operations and Management Symposium, 1151-1158. http://dx.doi.org/10.1109/NOMS.2012.6212042 [2] Goo, Y.H., Shim, K.S., Lee, S.K. and Kim, M.S. (2016). Payload signature structure for accurate application traffic classification. In 2016 18th Asia-Pacific Network Operations and Management Symposium (APNOMS), 1-4. https://doi.org/10.1109/APNOMS.2016.7737287 [3] Shim, K.S., Ham, J.H., Sija, B.D. and Kim, M.S. (2017). Application traffic classification using payload size sequence signature. International Journal of Network Management, 27(5). https://doi.org/10.1002/nem.1981. [4] Lee, S.H., Park, J.S., Yoon, S.H. and Kim, M.S. (2015). High performance payload signature-based Internet traffic classification system. In 2015 17th Asia-Pacific Network Operations and Management Symposium (APNOMS), 491-494. https://doi.org/10.1109/APNOMS.2015.7275374 [5] Feng, X., Huang, X., Tian, X. and Ma, Y. (2010). Automatic traffic signature extraction based on Smith-waterman algorithm for traffic classification. In 2010 3rd IEEE International Conference on Broadband Network and Multimedia Technology (IC-BNMT), 154-158. https://doi.org/10.1109/ICBNMT.2010.5704886 [6] Park, B.C., Won, Y.J., Kim, M.S. and Hong, J.W. (2008). Towards automated application signature generation for traffic identification. In NOMS 2008-2008 IEEE Network Operations and Management Symposium, 160-167. https://doi.org/10.1109/NOMS.2008.4575130 [7] Yoon, S.H., Park, J.S. and Kim, M.S. (2015). Behavior signature for fine-grained traffic identification. Appl. Math, 9(2L), 523-534. [8] Sun, G.L., Xue, Y., Dong, Y., Wang, D. and Li, C. (2010). An novel hybrid method for effectively classifying encrypted traffic. In 2010 IEEE Global Telecommunications Conference GLOBECOM 2010, 1-5. https://doi.org/10.1109/GLOCOM.2010.5683649 [9] Sudozai, M.A.K., Habib, N., Saleem, S. and Khan, A.A. (2017). Signatures of viber security traffic. Journal of Digital Forensics, Security and Law, 12(2), 11. https://doi.org/10.15394/jdfsl.2017.1477 [10] Coull, S.E. and Dyer, K.P. (2014). Traffic analysis of encrypted messaging services: Apple imessage and beyond. ACM SIGCOMM Computer Communication Review, 44(5), 5-11. https://doi.org/10.1145/2677046.2677048
[11] Yuan, Z., Du, C., Chen, X., Wang, D. and Xue, Y. (2014). Skytracer: Towards fine-grained identification for skype traffic via sequence signatures. In 2014 International Conference on Computing, Networking and Communications (ICNC), 1-5. https://doi.org/10.1109/ICCNC.2014.6785294 [12] Sven Ehlert, Sandrine Petgang. “Analysis and Signature of Skype VoIP Session Traffic”. Fraunhofer FOKUS Technical Report NGNI-SKYPE-06b [13] Cuadra‐Sanchez, A. and Aracil, J. (2017). A novel blind traffic analysis technique for detection of WhatsApp VoIP calls. International Journal of Network Management, 27(2). https://doi.org/10.1002/nem.1968 [14] Kumar, N. and Sharma, S. (2016). Survey Analysis on the usage and Impact of Whatsapp Messenger. Global Journal of Enterprise Information System, 8(3), 52-57. [15] Cao, Z., Cao, S., Xiong, G. and Guo, L. (2012). Progress in study of encrypted traffic classification. In International Conference on Trustworthy Computing and Services, 78-86. https://doi.org/10.1007/978-3-642-35795-4_10 [16] Dorfinger, P. ( 2010). Real-time detection of encrypted traffic based on entropy estimation. na. [17] Nguyen, T.T. and Armitage, G. (2008). A survey of techniques for internet traffic classification using machine learning. IEEE communications surveys & tutorials, 10(4), 56-76. https://doi.org/10.1109/SURV.2008.080406 [18] Shen, G. and Fan, L.(2008). Network traffic classification based on message statistics. In 2008 4th International Conference on Wireless Communications, Networking and Mobile Computing, 1-4. https://doi.org/10.1109/WiCom.2008.1046 [19] Datta, J., Kataria, N. and Hubballi, N. (2015). Network traffic classification in encrypted environment: a case study of google hangout. In 2015 twenty first national conference on communications (NCC), 1-6. https://doi.org/10.1109/NCC.2015.7084879 [20] Alshammari, R. and Zincir-Heywood, A.N. (2009). Machine learning based encrypted traffic classification: Identifying ssh and skype. In 2009 IEEE symposium on computational intelligence for security and defense applications, 1-8. https://doi.org/10.1109/CISDA.2009.5356534 [21] Alshammari, R. and Zincir-Heywood, A.N. (2010). An investigation on the identification of VoIP traffic: Case study on Gtalk and Skype. In 2010 International Conference on Network and Service Management, 310-313. http://dx.doi.org/10.1109/CNSM.2010.5691210
[22] Wongyai, W. and Charoenwatana, L. (2012). Examining the network traffic of facebook homepage retrieval: An end user perspective. In 2012 Ninth International Conference on Computer Science and Software Engineering (JCSSE), 77-81. http://dx.doi.org/10.1109/JCSSE.2012.6261929 [23] Fu, Y., Xiong, H., Lu, X., Yang, J. and Chen, C. (2016). Service usage classification with encrypted internet traffic in mobile messaging apps. IEEE Transactions on Mobile Computing, 15(11), 2851-2864. https://doi.org/10.1109/TMC.2016.2516020
Figures Figure 1 Methodology: Whatsapp User Activity Analysis Figure 2
Methodology: Signature Identi cation Figure 3 Common Tra c Traces Figure 4 Signature revealed as SSL packet length for two blue check marks in SSL length
You can also read
