ORIGINAL AND STILL NO 1 - Product Catalogue 2019 - Made in the UK - Carp Porter

"We lead others follow "

    w w w. c a r p - p o r t e r. c o m
  Product Catalogue 2019

ORIGINAL AND STILL NO 1
         Made in the UK

w w w. c a r p - p o r t e r. c o m

Prestige engineering invented the carp-porter barrow
over 20 years ago. This revolutionised the way tackle
was transported to the swim.

Around 15 years ago we invented the first motorised
porter. This was an immediate success, there has been a gradual process of
innovation and improvement over the years. The initial models had a few
teething issues, however the hard learnt experience gained from this has now
resulted in an ultra reliable product with a fully backed up warranty. One of
the main components subject to extreme conditions are the electric
controllers. We pride ourselves on using electronics, manufactured and sealed
to our specifications by an MOD approved company.

The motors and gearbox are UK made exclusively for us to our own
specification. All the axle assembly and running gear are UK made on CNC
machines. We avoid far eastern manufacture on these key components to
                       keep reliability as high as possible. (it would be much
                       cheaper to bring in these far eastern components
                       but, by experience they do not meet our stringent
                       standards). Please note each barrow is hand assembled
                       and tested individually. The electrics are tested one by
                       one under water for water tightness.

The culmination of all this experience is the new 2019 generation of
Power-porters. We are proud to announce the new range, which have the
following unique new features:

                            Check carp-porter.com video page

▶ New custom made waterproof durable speed controller.
▶ New extra strength cnc front axle supports.
▶ New extreme Big Boy Porter: The Ultimate.
▶ New tracking system on some models (patent pending).
▶ New drop in bag system.
▶ New all-terrain extra wide tractor tyre (some models).
▶ New extra torque 30:1 gearbox. Designed to give high
  torque at low speed.
▶ We do not use hub motors as the torque is nowhere
  near sufficient for difficult terrain.
▶ New cable clips custom made.

All models have following unique features:
▶ Custom programmed software for soft start and slow
  reverse gear for safety.
▶ Precision machined axle and hubs with disconnect
  drive feature.
▶ Maximum torque generated from bespoke motor and
  gearbox unit.
▶ Automatic fuse protection safety system.
▶ New quick charge charger with led charge indication.
▶ New hand controller featuring adjustable speed control
  and LED battery charge indication.
▶ All electrics in die cast sealed box and tested under
  water individually!!
▶ New IP68 watertight locking connector system.
▶ Electrics date coded and guaranteed.
▶ All power-porters easily folding for compact storage.
▶ All power-porters are compatible with extensive spares and
  Carp-Porter luggage systems. (Spares guaranteed for 5 years minimum).

Your assurance of quality
is based on all the features
above, combined with our
experience built up over
decades. Remember that
we specialise in
wheelbarrows and that is
our business.

  Check carp-porter.com video page

BRAND NEW

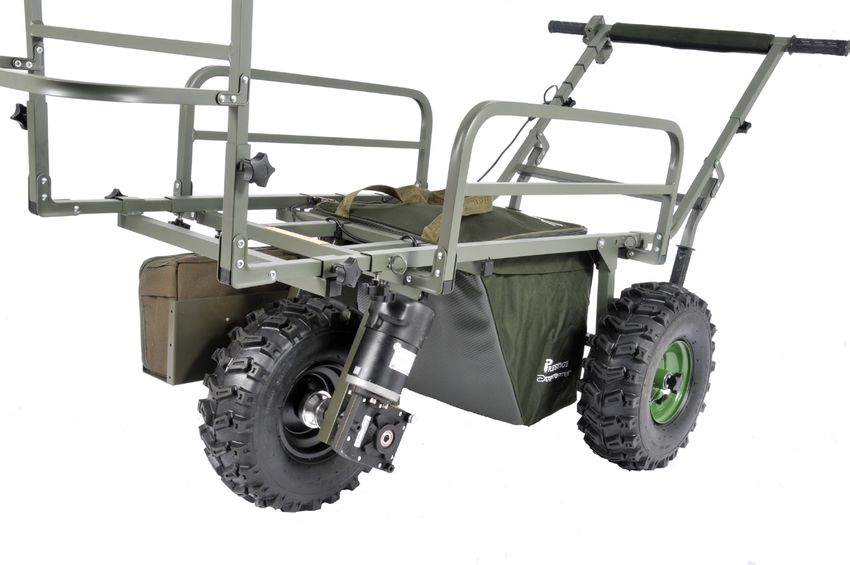

                       BIG BOY XTREME
                          FOR ULTIMATE POWER
                                 FOR ULTIMATE POWER

Size folded 940 x 660mm plus wheel unit 480 x 480mm

This is designed for moving max loads up virtually any hill.
▶ All-terrain front wheel for extra grip
▶ Features two extra large capacity batteries for extra power and distance.
▶ High torque gearbox - tackle any hill fully loaded.
▶ Easy to steer crossbar handle and maximum stability
▶ All-terrain rear wheels - extra stable.
▶ New LED hand control
▶ Precision engineered hub disconnect feature
▶ Rear brake feature
▶ Battery 2x 12v (24v) 22ah

Approx distance based on average terrain with
100kg load 3hrs continuous walking
(around 6 miles). Includes rear wheels,
           drop in bag and side bag storage.

                     Check carp-porter.com video page

Check carp-porter.com video page

24V PRO 2019
Size folded approx 1100mm x 660m plus depth of wheel unit 480 x 480mm

This is our most popular model features:
▶ New hand control and drop in bag.
▶ Precision engineered free wheel hub.
▶ Includes triporter rear wheels.
▶ Y bar deluxe.
▶ Drop in bag.
▶ Puncture proof Kevlar tyre.
▶ Battery 2x 12v (24v) (12 ah)

Approx 2 hrs continuous walking. Around 4 miles.

                      Check carp-porter.com video page

XTREME POWERKIT
Everything necessary to convert a Big Boy or Triporter barrow into an
Extreme barrow.

▶ Includes unique pat pending tracking system
▶ Just bolt on to existing barrow and
  ready to use.

Approx 3 hrs continuous walking around
6 miles continuous walking.

                   ACCESSORIES

 Wheel bag and travel bag new accessories check out the range
              of accessories on carp-porter.com

                     Check carp-porter.com video page

FAT BOY POWER 24V
This is the same drive as the 24V Pro in a more compact lighter package.

▶ Folds flat for easy storage size folded approx 940 x 660mm
▶ This is the perfect barrow for most anglers.
▶ Triporter rear wheels can be added as optional extra if required.
▶ Drop in bag.
▶ High grip all-terrain wheel.
▶ Battery 2x 12v (24v)

Approx 2 hrs continuous walking around 4 miles continuous walking.
Fatboy power 12V version available same as above but please note this barrow has a single 12v battery. Ideal for lighter tackle and
shorter distance but will need assistance up steep inclines.

   Unit 8 Buckwin Square, Watkins Close, Burnt Mills Industrial Estate, Basildon, Essex SS13 1BJ
                            01268 726661 | www.carp-porter.com
