New Production Processes to be implemented in the Project 01/07/2021
←
→
Page content transcription
If your browser does not render page correctly, please read the page content below
New Production Processes to be
implemented in the Project
01/07/2021
This project has received funding from European Union’s Horizon 2020 research and
innovation programme under grant agreement n° 101006860
- Content -
❑ Brief Introduction
❑ Process detailing
➢ATP/AFP & 3D Printing
➢Adaptive moulds for composite panel assemblies
➢Out-of-die UV cured pultrusion
➢Thermoplastic composites Hot-Stamping
❑ Process-Component matching
01/07/2021 Rúben Pereira (INEGI) 2
- Brief Introduction -
❑ Today, Fibre-Reinforced Polymers (FRP) materials are extensively used for building lightweight hull
structures of medium and large vessels like leisure craft and sailing yachts, naval ships, patrol and
rescue vessels. However, the production capacity in numbers of FRP ships does not achieve its full
potential due to high total production costs.
❑ This limitation is due to the lack of automated procedures and the current semiartisanal
methods used in FRP shipbuilding.
IMPLEMENTATION OF NEW PRODUCTION PROCESSES
✓ Flexibility
✓ Automatization
✓ Shipyard 4.0
✓ Modular shipbuilding
✓ Lower costs
[1],[2]
01/07/2021 Rúben Pereira (INEGI) 3
- New Production Processes -
➢ATP/AFP & 3D Printing
➢Adaptive moulds for composite panel assemblies
➢Out-of-die UV cured pultrusion
➢Thermoplastic composites Hot-Stamping
01/07/2021 Rúben Pereira (INEGI) 4
- ATP/AFP & 3D Printing -
CONTEXTUALIZATION
CONTINUOUS FIBRES SHORT, LONG AND CONTINUOUS FIBRES
[3]
TECHNOLOGY
IMPLEMENTATION

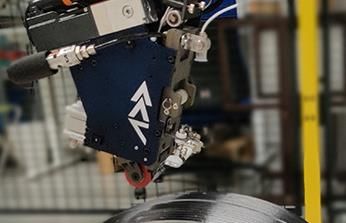

AUTOMATED TAPE PLACEMENT + AUTOMATED FIBRE PLACEMENT 3D PRINTING
ATP/AFP & 3D Printing can be implemented at different levels:
Prototype Mould Product
01/07/2021 Rúben Pereira (INEGI) 5
- ATP/AFP & 3D Printing -
FEATURES & APPLICATIONS
Features Applications
ATP/AFP Process
❑ Repeatability
❑ High accuracy
❑ Fully automated
3D PRINTING
❑ Flexibility of design
❑ Load-optimized design
❑ Cost-effectiveness
❑ Faster cycle times
❑ Recyclability
[4]
01/07/2021 Rúben Pereira (INEGI) 6
- Adaptive moulds for composite panel assemblies -
CONTEXTUALIZATION
LIMITATIONS OF FRPs IN SMALL SERIES
MANUFACTURING OF LARGE HULLS
❑ To produce a perfect composite shell structure, like a
hull, one or several large moulds are needed
❑ Long lead-times due to the design, development, and
manufacturing of different and large moulds
❑ No flexibility once the moulds are manufactured TECHNOLOGY
❑ High tooling costs related to the moulds manufacturing
process, which does not add value to the product itself
IMPROVEMENT
❑ Storage of numerous and large moulds MODULARITY
❑ Handling and demoulding of one-piece large hulls
❑ High risky produce of large hulls at the first time using
one-shot processes
❑ The use of resins that cure at high temperatures means
that the entire mold is inserted into a large oven.
01/07/2021 Rúben Pereira (INEGI) 7
- Adaptive moulds for composite panel assemblies -
FROM CAD TO ASSEMBLY
MOULD
CAD SURFACE INFUSION DEMOULDING ASSEMBLY
CONFIGURATION
PROCESS
Cost-effective manufacture of different curved panels capable of being assembled to form a
complete hull section
ASSEMBLY
01/07/2021 Rúben Pereira (INEGI) 8
- Out-of-die UV cured pultrusion -
CONTEXTUALIZATION
SHIP COMPOSITE
STRINGERS/BEAMS SOLUTION
OUT-OF-DIE UV
Curved profiles for ships are CURED
manufactured manually in
straight sections PULTRUSION
➢ High operational and
assembly costs
➢ Restriction to the modular
construction CONCEPT
➢ No flexibility
[6]
Straight Profile Continuous
Research Project to be transferred
[5] to Naval Industry
Assembly Curved Profile
01/07/2021 Rúben Pereira (INEGI) 9
- Out-of-die UV cured pultrusion -
FEATURES & APPLICATIONS
Features
❑ Low cost Applications
➢ Raw materials easier to handle and store
Ship Composite Stringers & Beams
➢ Small and simple moulds

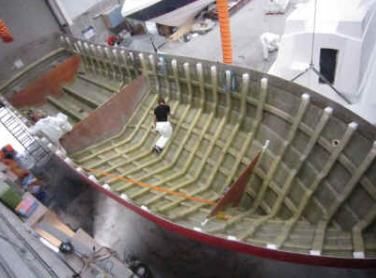

❑ High Flexibility R1
➢ Same mould for different geometries R2
3D PRINTING
R3
❑ More environmentally friendly
➢ Less emission of Volatile Organic Compounds (VOC) 250 mm
[5]
❑ Unique solution
➢ Curved profiles with different radii and orientations
01/07/2021 Rúben Pereira (INEGI) 10- Thermoplastic composites Hot-Stamping -
CONTEXTUALIZATION
AERONAUTICAL
ASSEMBLIES
❑ Assembly of flat or
light-curved primary
structures using small
and complex
secondary structures
TECHNOLOGY
like clips and
brackets
TRANSFER
❑ Widebody aircrafts
such A350XWB need
8000 clips & brackets
NEEDS SOLUTION BENEFITS
❑ High production rate ❑ Modularity
manufacturing
processes
❑ Feasibility and ease of
HOT-STAMPING ❑ Flexibility
automation PROCESS ❑ Low-cycle times
❑ Flexible design ❑ Automation
[7]
01/07/2021 Rúben Pereira (INEGI) 11- Thermoplastic composites Hot-Stamping -
FROM CAD TO COMPONENT
PROCESS [8] [9] [10] [11]
AUTOMATED LAYUP CONSOLIDATION HEATING HOT STAMPING
COMPOSITE TAPE TAILORED LAYUP PREFORM MELTED PREFORM FINAL PART
PRODUCT
[3] [12] [13] [14]
01/07/2021 Rúben Pereira (INEGI) 12- Thermoplastic composites Hot-Stamping -
FEATURES & IMPLEMENTATION
Per unit-cost at unit #100
Features Functional unit: 1000
3D - 600x600x0.6mm 900
204
SF – Stamp Forming 800
❑ Fully automated CM – Compression Moulding
AFP – Automated Fibre Placement 700 64
HL – Hand Layup
❑ Repeatability RTM – Resin Transfer Moulding
600
❑ Flexibility TP – Thermoplastic
500
TS – Thermoset 136 296
64
❑ Low production cycle 400 83
73 685
300 102 185
❑ High accuracy 146
200
❑ Low cost 326
261 213
100 177
❑ Load-optimized design 0
❑ Material saving SF - TP CM - TP AFP - TS HL - TS RTM - TS
❑ In-line QC Tooling Cost/Unit Material Cost/Unit Labor Cost/Unit
[16]
[15]
❑ Shop floor
Amortizing tooling and setup initial investments

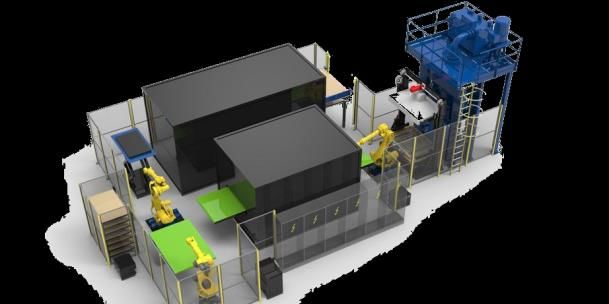

Hot-Stamping Cell
01/07/2021 Rúben Pereira (INEGI) 13- Process-Component matching -
MEDIUM TO LARGE VESSELS
SMALL VESSELS
Hot-Stamping
[17]
Adaptive moulds
ATP/AFP Out-of-die UV 3D Printing
cured pultrusion
01/07/2021 Rúben Pereira (INEGI) 14https://www.fibre4yards.eu/ https://www.linkedin.com/company/fibre4yards/ If not acknowledged, images courtesy of the consortium partners. This presentation reflects only the consortium's view. The European Commission and the European Climate, Infrastructure and Environment Executive Agency (CINEA) are not responsible for any use that may be made of the information it contains. This project has received funding from European Union’s Horizon 2020 research and innovation programme under grant agreement n° 101006860.
