(My) highlights of ATLAS Phase II strips tracker meeting at Valencia - Sergio Díez Cornell 18 Feb 2014

(My) highlights of ATLAS Phase II strips
      tracker meeting at Valencia
             Sergio Díez Cornell
                18 Feb 2014

Meeting timetable

 Half a day of 250 nm prototype activities

 A full day of 130 nm ASICs and modules electrical

 Half a day of stave/petal local support

 A full day of organization structure

 Half a day of simulation and layout

 Half a day of integration (global support, installation)

  18 Feb 2014                  S. Díez, Highlights of Valencia strips meeting   2

Meeting timetable

 Half a day of 250 nm prototype activities

 A full day of 130 nm ASICs and modules electrical

 Half a day of stave/petal local support

 A full day of organization structure

 Half a day of simulation and layout

 Half a day of integration (global support, installation)

  18 Feb 2014                  S. Díez, Highlights of Valencia strips meeting   3

Phase II strips tracker organizational chart

 18 Feb 2014        S. Díez, Highlights of Valencia strips meeting   4

ITk roadmap

 18 Feb 2014   S. Díez, Highlights of Valencia strips meeting   5

250 nm program: full length DC-DC stave
 Single-sided DC-DC stave completed at RAL

   18 Feb 2014                 S. Díez, Highlights of Valencia strips meeting   6

250 nm program: full length SP stave
 SP stave core:
     Tape manufactured at Altaflex Inc. and
      surveyed at LBL (Carl, Brian)
     Core manufactured at Yale, BNL and
      surveyed at LBL (Carl, Haichen)
     Shipment to RAL for module assembly with
      no damage
 4 modules already placed at RAL
     SP provided by (new) SP protection boards
      (SPP)
     Hookup mistake on SPP board
            • Several modifications needed (ongoing)

                                 2V5               0V

        SPout                                                                               SPin

                                 SPout     SPin
   18 Feb 2014                             S. Díez, Highlights of Valencia strips meeting          7

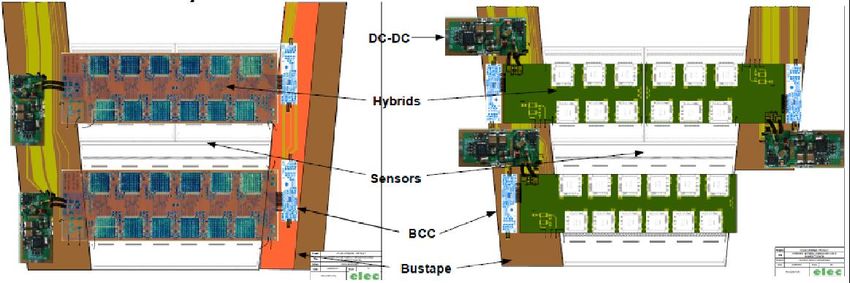

250 nm program: endcap petalets (I)
 Petalets: shortened versions of endcap petals, double-sided, mimic sensor splitting on
  central area of petal
      Two versions of petalets, depending on power/data routing and size of hybrids

   Modules OK, first petalet just assembled                                      Hybrids OK, tapes and modules soon

         Only DC-DC power so far
         Sensors produced at CNM Barcelona with standard and embedded (double metal) bonding pads
         Custom End of Petal (EoP) boards
         Cores and mounting tools ready
    18 Feb 2014                               S. Díez, Highlights of Valencia strips meeting                          8

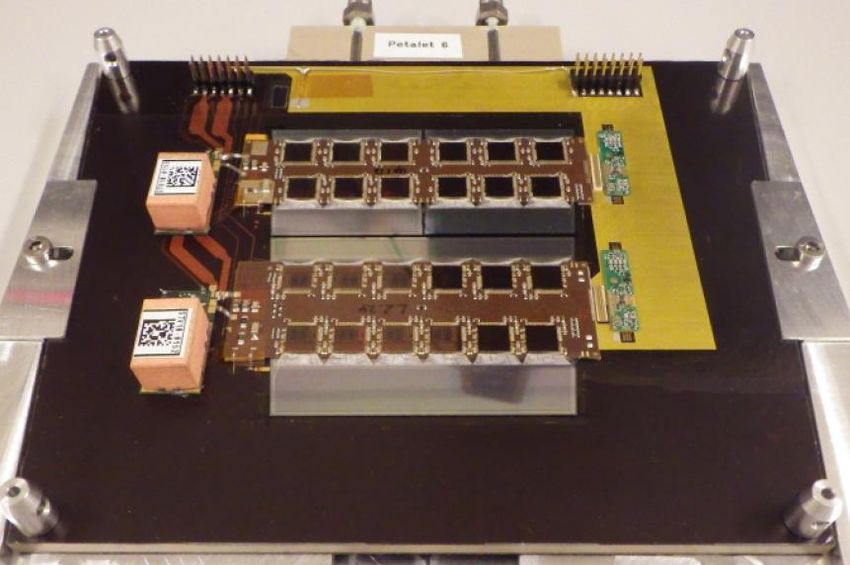

250 nm program: endcap petalets (II)

 First petalet just assembled
      Single top hybrid, standard pads
      Noise and readout issues, ongoing work

                                                          Second petalet: lower module assembled
                                                                   Single top hybrid, embedded pads
                                                                   Same noise issues, ongoing work

  18 Feb 2014                       S. Díez, Highlights of Valencia strips meeting                     9

Plans for 250 nm completion
 Finish full length SP stave

 Populate second side of full length staves

 Finish 10 petalets (singe hybrid, double hybrid, standard pads, embedded pads)
      Come out with a single layout (single or double hybrid) and move on to 130 nm

 Irradiations and comparison of standard and embedded pad sensors for petalets

 Test beam studies on double sided petalet

 CO2 cooling tests on full length staves

 SP studies for petals on a bigger prototype (full length petal, 130 nm)

 Noise injection tests on power lines and cooling pipes

   18 Feb 2014                       S. Díez, Highlights of Valencia strips meeting    10

What’s wrong with the new ABCN 130 ASIC?
 XOFF and DATA are bidirectional lines
      Control data flow on the serial chain between chips and the HCC (outside world)
             • XOFF determines if the chip is ready to receive (or send) data from (to) the adjacent chip
             • DATA is the line to which the data is sent (or received) if the corresponding XOFF gives the OK
      There are left and right lines, which can be set to be Drivers (D) or receivers (R)
             • i.e., If XoffR is a D  then DataR is a R, XoffL is a R and DataL a D
                    One single bit controls the driver or receiver state of these lines on a chip, “dir”
                    This same bit controls the associated function for XOFF and DATA on the core logic

                           L                   R

   18 Feb 2014                               S. Díez, Highlights of Valencia strips meeting                      11

What’s wrong with the new ABCN 130 ASIC?
 This same bit controls the associated function for XOFF and DATA on the core logic
      It makes sense, but…
      The bit is always flipped, no matter which state you choose
             • If XOFF is a driver, it is set as “sending 0”, if it is a receiver, it is set as “Not listening”
             • Same thing for DATA

                 What it should be                                                                What it is

                                                      dir                                                         dir

                         dir                          dir                                          dir            dir

   18 Feb 2014                                   S. Díez, Highlights of Valencia strips meeting                         12

ABCN 130 fix
 Focused Ion Beam (FIB) to correct polarity
  of driver/receiver state of XOFF and DATA
      Open passivation layers
      Cut each line
      “Draw” metal contact
 One day per chip, ~ 2000 $ /ASIC for
  just one side of the chip

   18 Feb 2014                   S. Díez, Highlights of Valencia strips meeting   13

ABCN 130 test results

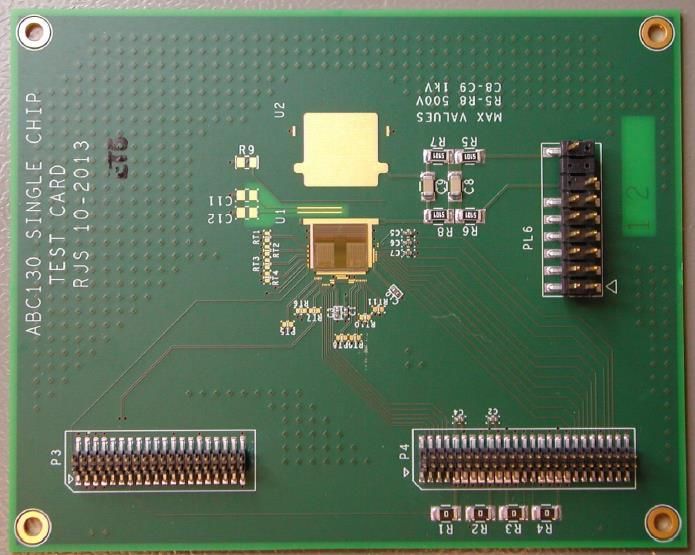

 Single chip test boards and software developed
 4 chips FIBed and re-tested at UK
      3 of them worked after repair
      Lower power than expected (~ 9% lower), to be
       confirmed at higher clock rates (160, 320 MHz)
      Slightly lower gain than expected
              • 70 mV/ fC observed, 90 mV/fC expected
      Trimming possible
      Decent noise performance up to 7 fC
                                                                                            Response curve up to 7 fC

 I analogue          54 mA

  I digital          33 mA

   Total I           87 mA

  I/channel         0.34 mA

  P/channel         0.51 mW

   18 Feb 2014                             S. Díez, Highlights of Valencia strips meeting                           14

Future ABCN 130 ASIC
 Learn as much as possible from current chips
     FIB 5 ASICs, make a shortened hybrid version
     External calibration charge measurements to understand low gain
 Redesign, correct, recheck, resubmit
     5-7 weeks from now

   18 Feb 2014                       S. Díez, Highlights of Valencia strips meeting   15

ABCN 130 module components and assembly

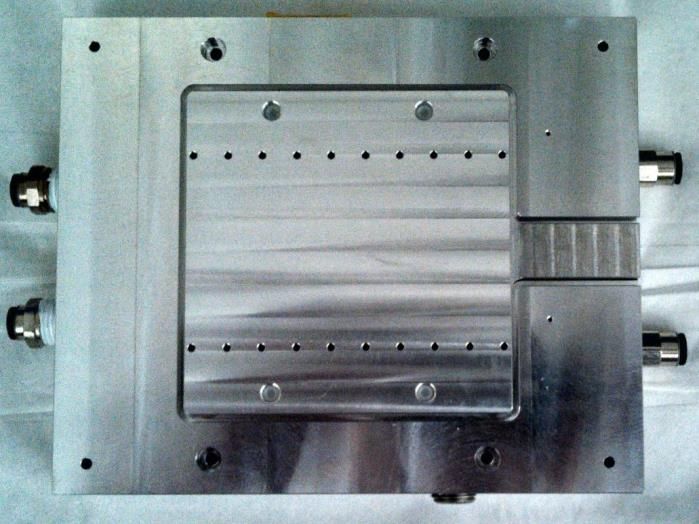

 Lots of progress with thermo mechanicals and dummies (bonding, gluing, mounting
  jigs, testing jigs,…)

   18 Feb 2014                   S. Díez, Highlights of Valencia strips meeting     16

LV powering: New DC-DC converters

                     New module topology requires new
                      converters geometry                             8 mm
                              Identical functionality as current
                               converters, plus sensor HV filtering

                                                                              43.75 mm
 18 Feb 2014    S. Díez, Highlights of Valencia strips meeting               17

DC-DC converter with planar coil
 Developed by Yale using mostly commercial
  components
     Significant reduction in height
           • Easier integration and cooling
     Similar or superior noise performances on
      ABCN25 modules compared to current
      converters
     Also requires shielding
     Lower efficiency due to proximity of shielding
      to coil (inductance decreases)
     Ideally would like to maintain efficiency of
      current converters with planar coils
           • Some ideas already being sketched
     Ideally, one would use a planar coil with custom
      ASIC present in current converters

    18 Feb 2014                               S. Díez, Highlights of Valencia strips meeting   18

LV powering decision
 Route to a powering decision
     Look for significant differences in “standard” test results
            • ENC, NO, DTN
     Look for susceptibility to external noise signals
            • On LV inputs, pipes, etc
     Which powering option is better for our material budget?

     Test staves with ABC-130 with serial power and DC-DC
            • Fully loaded on one side and partially loaded on the other side
     One solution for the barrel and EC unless there were extremely compelling reasons
     A serial powering design should be evaluated for the EC petals

 Timeline: ~ Q2 2015

  18 Feb 2014                            S. Díez, Highlights of Valencia strips meeting   19

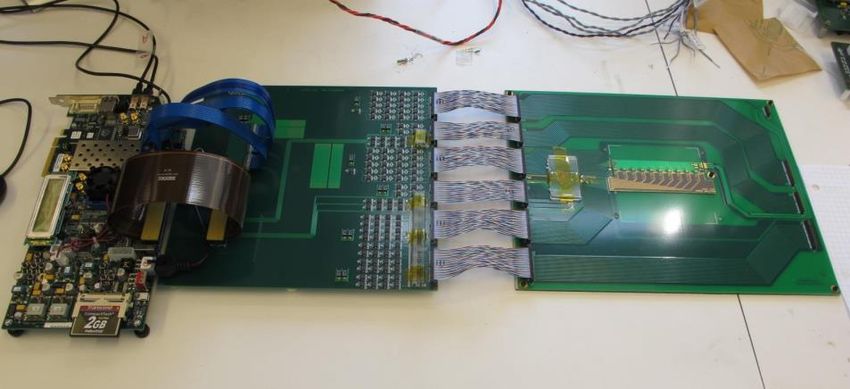

Test of Fast Cluster Finder features

 DAQ hardware and test setup developed at LBL
  (Eric, Silvain)
 FCF correlator logic and test interface ready
  (Lorenzo)
 Could also be a good alternative to test ASICs
  using FCF lines
 Still struggling to get the chips to respond

   18 Feb 2014                   S. Díez, Highlights of Valencia strips meeting   20

Moving towards bigger objects
 Stave 130 geometry well established
 Petal geometry still has many unknowns
      11 different modules on a petal!
      Many options, none of them very nice: straight or curved
       hybrids, straight sensor pads, curved strips, strips with
       different lengths within each sensor,…
      Design and manufacture all different ABCN130 hybrid
       flavors during the next year

 18 Feb 2014                      S. Díez, Highlights of Valencia strips meeting   21

Tons of other topics…
     HV powering: irradiation campaign and selection of technology
     130 nm bus tapes: one single flavor for both power distributions, both axial and stereo
     Layout for pure electrical EoS well advanced
     Investigation of orbital welding and electrical break on cooling pipes
     Honeycomb gluing and defect modeling for honeycomb-fiber delamination
     Stave core QA studies
     New measuring techniques for defects on staves and petals (Carl’s LDRD)
     New stave core assembly jig
     New optical package for opto links (“lightpeak”) in development
     Mechanical tests on petal prototypes
     Future FEA studies on staves and petals
     Barrel and endcaps global structures and assembly
     Type-I services for barrel and endcaps

    18 Feb 2014                      S. Díez, Highlights of Valencia strips meeting        22

Simulation session
 A morning session of simulation studies (not summarized in this talk)
         Hit requirements (number of layers)
         Occupancy
         Influence of material
         Alignment
         Current status of simulations
 Asked for needs from the upgrade strip community
      High priority simulation studies
             • Endcap strip simulation (this is a bottleneck on simulations)
             • Study dropping stub
      Medium priority simulation studies
             • Study dropping end cap disk
             • Drop stereo layer study needs tracking experts
      Strip community to provide list of failure modes, ITK-SIM to study effect
      Efficiency/ fake rate as a function of Nhits/ExpectedHits
      Use extra material samples to study occupancy near jets
 Improve interaction with trigger group
 Need to be careful planar sensor priorities aren’t dropped for CMOS
