FriDAQ Infrastructure
Benjamin Moritz Veit
8. Februar 2021
Benjamin Moritz Veit FriDAQ Infrastructure 8. Februar 2021 1 / 24
Selection of Server Hardware
Usage of AMD EPYC architecture in other DAQ systems
(e.g. LHCb) lead us to look into this architecture.
AMD EPYC MCM architecture is considerably different from Intel single
die configuration → Advantages in NUMA configuration.
Higher IO capability (PCIe4.0) and more lanes per CPU.
Better price/performance figure than Intel.
AMD EPYC 7002 architecture:
Chip Cores/Threads max Freq. TPD Cache Cost Cost/Core
EPYC 7282 16/32 2.8Ghz 120W 64MB 650 40
EPYC 7402P 24/48 2.8Ghz 180W 128MB 1300 54
EPYC 7542 32/64 2.9Ghz 225W 128MB 2660 83
EPYC 7262 8/16 3.2Ghz 155W 128MB 650 81
EPYC 7232P 8/16 3.1Ghz 120W 32MB 460 58
→ EPYC7282 has the best price/performance tag!
Benjamin Moritz Veit FriDAQ Infrastructure 8. Februar 2021 2 / 24
Supermicro 1014S-WTRT
Single AMD EPYC7002
Processor
8x DIMMs
(ECC DDR4-3200MHz)
2x PCI-E 4.0 x16 (FHFL) slots
1x PCI-E 4.0 x16 (LP) slot
4 Hot-swap 3.5 SATA3 drive
2xPCIe/SATA3 NVMe M.2
2x10GBase-T (Broadcom
BCM57416)
Integrated IPMI 2.0 + KVM
(dedicated port)
Benjamin Moritz Veit FriDAQ Infrastructure 8. Februar 2021 3 / 24
AMBER Server V1
Single AMD EPYC7282
Processor (16C/32T)
64GB (ECC DDR4-3200MHz)
512GB NVMe SSD
4x 3.5 HDD Bay
Expansion cards:
Nvidia ConnectX-4Lx
2x25Gbit (default)
LSI MegaRAID SAS
9380-8e (optional +750Euro)
Spillbuffer card (optional)
Universal system for all computation nodes in the AMBER DAQ. Allows
up to 3x PCIe expansion cards and 4x 3.5 HDD
Cost point ≈ 2200Euro (base system)
Benjamin Moritz Veit FriDAQ Infrastructure 8. Februar 2021 4 / 24
Local Storage
JBOD Disk
Chassis
(384TB each)
...
4x MiniSAS3
(12Gbit/s)
ReadOut
Engines ...
25Gbit/s
SFP+ DAC
QFX5120-48Y
25Gbit
Switch
25Gbit/s
SFP+ DAC
HLT Nodes
...
Benjamin Moritz Veit FriDAQ Infrastructure 8. Februar 2021 5 / 24
Supermicro SuperChassis CSE-846BE2C-R1K03JBOD
4U Storage JBOD Chassis
24 x 3.5 hot-swappable HDDs
bays
8 x Mini-SAS HD ports
1x IPMI port for Remote
System Power on/off and
system monitoring
Dual Expander Backplane
Boards support SAS3/2 HDDs
with 12Gb/s throughput
1000W (1+1) 96% efficient
Titanium level power supplies
24x 16TB = 384TB Raw capacity
System Cost (24x320Euro + 1500Euro + 750Euro ≈ 10000 Euro)
Benjamin Moritz Veit FriDAQ Infrastructure 8. Februar 2021 6 / 24
DAQ General Overview
CERN
FrontEnd SpillBuffer PCIe ReadOut Engine Tape
LV1+ Multiplexer
JBOD Local Storage Archive HLT Node
LV0
FrontEnd Multiplexer
SpillBuffer PCIe ReadOut Engine
Crosspoint LV1+ Multiplexer HLT Node
FrontEnd JBOD Local Storage
20Gbit/s
Switch
(72x72)
SpillBuffer PCIe ReadOut Engine
LV1+ Multiplexer HLT Node
FrontEnd JBOD Local Storage
LV0
FrontEnd SpillBuffer PCIe ReadOut Engine
Multiplexer
LV1+ Multiplexer JBOD Local Storage HLT Node
24 Interlinks
FrontEnd DAQ Switch
(8x8)
SpillBuffer PCIe ReadOut Engine
51.2Gbit/s 25Gbit
LV1+ Multiplexer JBOD Local Storage HLT Node
AMBER Network
...
...
SpillBuffer PCIe ReadOut Engine
LV1+ Multiplexer HLT Node
JBOD Local Storage
Crosspoint
Switch SpillBuffer PCIe ReadOut Engine
(72x72) LV1+ Multiplexer HLT Node
JBOD Local Storage
FrontEnd
LV0
Multiplexer SpillBuffer PCIe ReadOut Engine
FrontEnd LV1+ Multiplexer HLT Node
JBOD Local Storage
FE sents Multiplexing on Load ballancing Multiplexing on Multiplexing data Receives data and save it in local Fetches data from
continous HIT image level and of links TimeSlices level which belongs to storage local storage for
information in buffering between LV0 and buffering one TimeSlices to filtering
Images and LV1+ MUX one ReadOut Local storage for O(1-2Weeks)
Engine
Max 120 Input Links Max Rate: 8x6.4Gb/s
Possible scheme for maximum configuration
96 input links on the cross-point switches
8x8 DAQ switch
→ max 8 readout engines → 8x650 Mbyte/s = 5.2 Gbyte/s (sustained)
Can be doubled by adding a second DAQ switch!
Benjamin Moritz Veit FriDAQ Infrastructure 8. Februar 2021 7 / 24
FriDAQ Rack Planning
Server Rack Server Rack Server Rack
24xMTP-Patch-Panel
Router
X-Switch
24xMTP-Patch-Panel NetworkMaster
24xMTP-Patch-Panel GW01
X-Switch
GW02
24xMTP-Patch-Panel
HLT01
aTCA 8xMUX2
4xMTP->LC
4xMTP->LC HLT02
Ethernet Switch TCS Distribution
aTCA Switch HLT03
TimeSlice
Builder
HLT04
aTCA 24xMUX1
DB Master HLT05
FileServer HLT06
TCS Distribution
Web Server HLT07
Ethernet Switch
DAQ HLT08
TCS Distribution Master
Switch Ethernet Switch
RE01 RE05
aTCA 24xMUX1
Storage1 Storage5
RE02 RE06
aTCA 24xMUX1 Storage2 Storage6
TCS Distribution RE03 RE07
Ethernet Switch
Storage3 Storage7
TCS Distribution
RE04 RE08
aTCA 24xMUX1
Storage4 Storage8
4x100W Switches = 0.4kW 8*350W Server = 2.8kW
12*300W HLT = 3.6kW
4*6Slot*200W = 4.8kW 4x250W Disk Array = 1.0kW 4*250W Disk Array = 1.0kW
2*2Slot*200W = 0.8kW 1x100W Switch = 0.1kW
2x100W(X-Switch) = 0.2kW
1x300W Router = 0.3kW
1x100W Switch = 0.1kW 3*150W Small Server = 0.5kW
5.2kW 4.9kW 5.5kW
https://schroff.nvent.com/en-gb/search#q=ATCA
→ Power requirements: 2x 16 A per rack
Benjamin Moritz Veit FriDAQ Infrastructure 8. Februar 2021 8 / 24
Network
CERN IT route the subnet 172.22.0.0/18 (172.22.0.1 - 172.22.63.254 [16,384]) via our
new layer3 switch since December 2020.
VLANs are used to separate sub-nets. The cross sub-net communication is realized via a central
layer3 switch. DHCP/DNS is provided by a new, separated network gateway.
Benjamin Moritz Veit FriDAQ Infrastructure 8. Februar 2021 9 / 24
Network Scheme
COMPASS CR Bld. 892 COMPASS DOMAIN
COMPASS/GPN 172.22.24.0/24
Gateway and VlanID: 10
DHCP/DNS for privat l3-interface: 172.22.24.23
VLANS
COMPASS IPBus
10.152.0.0/16
COMPASS
VlanID: 50
l3-interface: 10.152.0.5
PCCOGW00
172.22.24.241
CERN Network
COMPASS SlowCTRL
192.168.104.0/24
VLAN Trunk (all)
VlanID: 70
l3-interface: 192.168.104.5
COMPASSPriv
20Gbit LAG
COMPASS DOMAIN
192.168.101.0/24
VlanID: 60
l3-interface: 192.168.101.5
CERN HP COMPASS
Router Juniper Switch
172.22.24.1 172.22.24.23
IPMI
192.168.100.0/24
VlanID: 30
l3-interface: 192.168.100.5
VLAN Trunk (all)
AMBER
172.22.28.0/22
VlanID: 128
l3-interface: 172.22.28.1
AMBER
AMBER SlowCTRL
Experimental Area 172.22.32.0/22
VlanID: 132
l3-interface: 172.22.32.1
...
Access Switch Access Switch
AMBER IPBus
172.22.36.0/20
VlanID: 136
l3-interface: 172.22.36.1
Routing between COMPASS and AMBER network might be required if we
want to use COMPASS control room?!
Benjamin Moritz Veit FriDAQ Infrastructure 8. Februar 2021 10 / 24New central layer3 switch

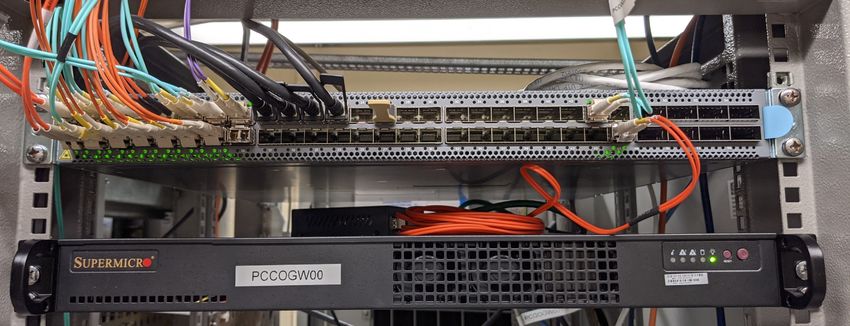

Juniper QFX-5120-48Y
48x 25 GbE (SFP28)/10 GbE (SFP+)/1 GbE (SFP) downlink ports
8x 100 GbE (QSFP28)/40 GbE (QSFP+) uplink ports
Up to 4 Tbps L2 and L3 performance (bidirectional)
Latency as low as 550 nanoseconds
2.9 GHz quad-core Intel CPU with 16 GB memory and 100 GB SSD
storage
Benjamin Moritz Veit FriDAQ Infrastructure 8. Februar 2021 11 / 24Status of Network Installation
Central layer3 network switch installed and configured
All switches in the area are updated and configure
All switches are connected to juniper switch as star point
New NETGW00 deployed with OPNsense as OS - act as DNS and DHCP
Network configuration of servers in COMPASS network is adapted
Benjamin Moritz Veit FriDAQ Infrastructure 8. Februar 2021 12 / 24Network Map
All network equipment is integrated in Zabbix monitoring!
Benjamin Moritz Veit FriDAQ Infrastructure 8. Februar 2021 13 / 24Speed towards CTA
The connection towards the new Central Tape Archive was tested during
the 2020 Dry Run.
Over 7 Gbit/s archived!
Still discussion over bigger up-link towards CERN data centers is ongoing
(min 20 Gbit/s)
Benjamin Moritz Veit FriDAQ Infrastructure 8. Februar 2021 14 / 24Fiber Distribution Status Quo
Old style SC connectors / low density installation / aging
→ Multiple conversions between connector types
LC-SC/SC-MTP/MTP-LC... Multiple points of failure!
Lack of fibers especially at BMS/CEDARS, Target, Gallery, Trigger
→ Use of Multiplexer in experimental area to concentrate fibers
Sensitive to radiation! (Problems on Gallery and CEDARs in 2018)
Change of classical read-out scheme to trigger-less read-out
→ Additional fibers needed to avoid multiple MUXs in area.
→ Higher speed of serial links not compatible with current fibers.
Avoid radiation issue for future hadron runs!
Benjamin Moritz Veit FriDAQ Infrastructure 8. Februar 2021 15 / 24MTP/MPO Technology

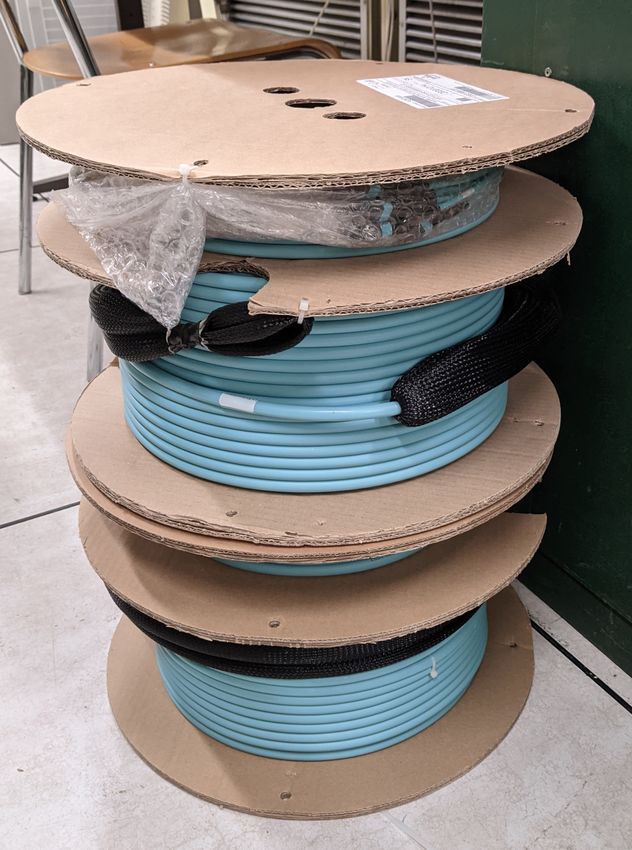

High density Fiber Connectors - used also in all new DAQ developments.
MTP-24 with OM3/4 fiber as new standard for the DAQ.
https://www.samm.com/en/page/109/mpo-mtp-frequently-asked-questions.html
Benjamin Moritz Veit FriDAQ Infrastructure 8. Februar 2021 16 / 24Plans:
Removing all Multiplexers from the area (at least for the high radiation locations) and have
direct connections to the DAQ barracks and place multiplexers there...
4
0
1 8
3 5
2 9
6 7
Benjamin Moritz Veit FriDAQ Infrastructure 8. Februar 2021 17 / 24Test Area (CEDAR)
TPC
1
TPC
To connect our equipment at the two test location ≈20-25m of patch cables are needed
Do we want to have a direct run from BMS to our DAQ or go over (1) as a patch-point?
Benjamin Moritz Veit FriDAQ Infrastructure 8. Februar 2021 18 / 24Status
Fe Fibers Estimated Newly
Position Name old setup new Fibers Installed Comment
0 BMS 14 72 0
1 CEDAR 12 72 0 Covert by BE
2 Target 341 432 144 To be Installed
3 SM2 401 432 144 Installed
4 Gallery 305 360 0
5 ECAL2 390 432 0
6 VETO 12 72 24 Installed
7 Trigger 24 72 48 Installed
8 BeamDump 12 72 0
9 RICH 180 216 144 Installed
We have to decide about BeamDump position if we want to use it as test
location for PRM!
Benjamin Moritz Veit FriDAQ Infrastructure 8. Februar 2021 19 / 24New Fibers Benjamin Moritz Veit FriDAQ Infrastructure 8. Februar 2021 20 / 24

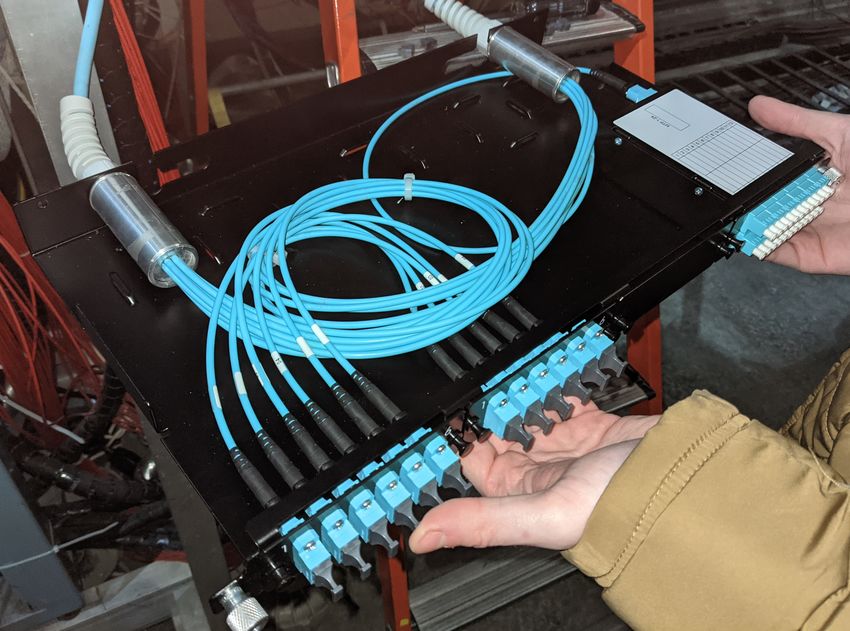

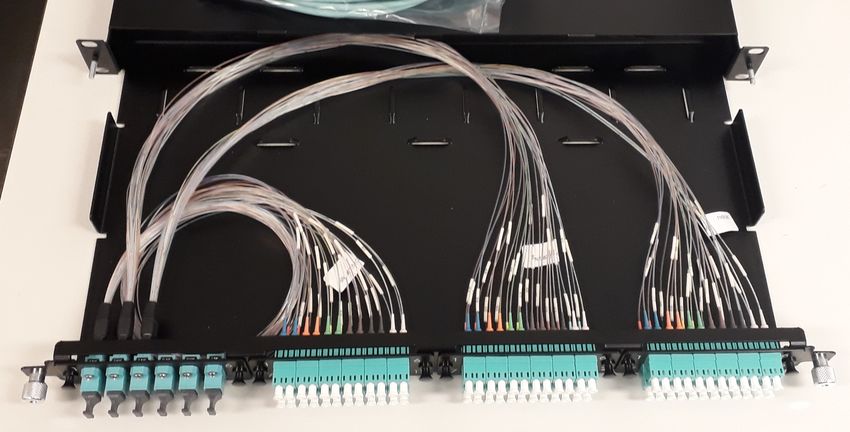

New Fiber patch panels
DAQ-Barracks: SM2-Position:
11xMTP-24
24xLC
RICH-Position:
48xMTP-24 in 2x1U
96xLC to 8x MTP-24 in 2x1U
11xMTP-24
24xLC
Material for Target position arrived but still have to be installed.
Benjamin Moritz Veit FriDAQ Infrastructure 8. Februar 2021 21 / 24General Status Benjamin Moritz Veit FriDAQ Infrastructure 8. Februar 2021 22 / 24
General Status Benjamin Moritz Veit FriDAQ Infrastructure 8. Februar 2021 23 / 24
Order/Delivery Status
Goal for tests in 2021:
General Infrastructure + 1x complete read-out chain running ...
4x Amber Server V1 (1x File-Server, 1x DB-Server, 1x ReadOutEngine, 1x HLT)
( 2x already delivered, 2x ordered )
2x Low cost Server (1x Gateway, 1x Web Server)
( 2x ordered )
2x 24 Port 1 GbE Network Switch
( not yet ordered - waiting for final offer )
8x 16 TB HDD
( 8x ordered - arrived today at CERN)
1x Storage Array + Raid Controller
( Not yet ordered - waiting for budget (≈ 10kEuro) )
Benjamin Moritz Veit FriDAQ Infrastructure 8. Februar 2021 24 / 24You can also read
