                                                          FORGE is a world
                                                          leading numerical
                                                          simulation software
                                                          for all bulk metal
                                                          forming processes.
                                                          It is used both at design and R&D
                                                          levels by many forming companies
                                                          and universities worldwide working
                                                          in various industrial fields.

    Automotive Defense                                     Reduce design cycle
                                               Minimize real scale tryouts
                    Aerospace Energy
              Steel making                                           Increase yield
                        Construction/Mining   Extend die life
              Oil and Gas
                            Medical               Optimize and consolidate quotations
FORGE world leading numerical simulation software
4   www.transvalor.com                                                                                                                                  5

                  FORGE is a world leading                           FORGE is best suited for the simulation of hot, warm and cold forming
                                                                     processes of various materials such as:
                  numerical simulation software
                                                                     > Steel > Aluminium > Copper > Brass
                  for all bulk metal                                       > Titanium > Nickel based alloys > Noble metals
                  forming processes
                                                                                                                      When it comes to producing forged
                  Closed die
                                                                                                                      components the forming industry
                  Open die                                                                                            faces various challenges.
                                        Hot forging                                            Ring rolling of an
                                        of a connecting rod                                    aerospace engine       Challenges related to the part:
                  Rolling                                                                      component              Final shape / dimensions
                  Reducer rolling                                                                                     Underfillings / excess material
                                                                                                                      Folds / laps
                  Cross wedge rolling
                                                                                                                      Porosities / segregations
                                        Heat treatment: prediction
                  Ring rolling          of metallurgic phases                                                         Microstructure
                                                                                               Forging of an
                                                                                               aerospace blade        Grain flow
                  Flow forming
                                                                                                                      Final in-use properties
                  Extrusion
                                                                                                                      Challenges related to dies:
                  Wire drawing          Cross wedge rolling                                                           Die life (cracks, wear…)
                                        of a connecting
                  Deep drawing          rod preform
                                                                                               Open die forging
                                                                                                                      Challenges related to the equipment:
                                                                                               of a shaft             Appropriate equipment selection
                  Shearing
                                                                                                                      Press jam
                  Piercing                                                                                            Equipment deflection

                  Flash trimming        Thread rolling
                                                                                               Quenching of a shell
                                                                                                                      These challenges often lead to costly
                                        of a screw
                                                                                               used in the            shop floor trials.
                  Heat treatment                                                               energy field

                                                                                With FORGE real scale tryouts are
                                                                                 minimized, productivity is increased
FORGE world leading numerical simulation software
6   www.transvalor.com                                                                                                                                                                                     7

        FIRST TIME RIGHT DESIGN                                                                                                                                    FORGE is the expert
                                                                                                                                                                   simulation solution
        OF FORGED COMPONENTS                                                                                                                                       at the design stage
        FORGE makes it fast and easy to predict accurately:
                                                                                                                                                                   Analyse, master and optimize forming
        Final shape and dimensions, underfillings and excess material,                                                                                             processes, deliver high quality parts on
        folds/laps, porosities, grain flow, microstructure.                                                                                                        time, on cost and increase productivity.

                                                                                                                         Grain flow analysis of a one-cylinder
                                                                                                                         crankshaft: close correlation between
                                                                                                                         prediction and real part.

                                        Fill-up analysis of a      Reduction of excess material of a
                                     stainless steel gas turbine    commercial vehicle sector shaft:
                                 blade. Underfilled area is                 initial shape in red and                     Grain size prediction                                                  Max ASTM value
                             shown in red.                                 optimized shape in blue.                      of a Ni-based alloy disk.
                                                                                                                                                                                                Min ASTM value

              Actual                                                            Simulation
             forging                                                            result

                                                                               Fold/lap analysis: accurate folds/laps
                                                                               prediction of a mining steel component.
                                                                               Fold/lap area is shown in red inside
                                                                               the frame.

“For the Hirschvogel Automotive Group not only technical but also economic advantages result from the                                                            Porosity evolution in the core of an ingot.
application of the FORGE software. Lately, these have been approved via monetarily assessable as well as                                                         Porosities evolution are tracked from casting
non-monetarily assessable criteria. Furthermore the good relationship between Hirschvogel Automotive Group                                                       process and during the complete forging process.
and Transvalor S.A. - which has evolved over more than 10 years of collaboration - is remarkable.”
            Jochen Heizmann, Research & Development, Hirschvogel Umformtechnik GmbH, Denklingen, Germany
FORGE world leading numerical simulation software
8    www.transvalor.com                                                                                                                                                                                                    9

               INCREASE DIE LIFE AND OPTIMIZE
               EQUIPMENT USE
               FORGE allows the accurate prediction of stress, wear and temperature in the dies, through
               both coupled or uncoupled analysis applicable over the complete process simulation.
               FORGE also offers advanced features to optimize and select the appropriate equipment on
               the shop floor thanks to accurate prediction of forging load and equipment deflection.
                                                                                                                                                                                                        6-cylinder crankshaft forging load
                                                                                                                                                                                                                graph (mechanical press).

     Uncoupled die stress analysis
          allowing accurate stress
      prediction. High stresses are
                                                                                                                FORGE offers the most unique
                     shown in red.                         Die crack                                            advantages for equipment
             Hot forged steel yoke
Hirschvogel Umformtechnik GmbH
                                                                                                                dimensioning and die life extension
                                                        Actual                         Simulation
                                                           die                             result                                    120
                                                                                                                                     110
                                                                                                                                     100
                                                                                                                                      90

                                                                                                            Compressive force (MN)
                                                                                                                                      80
                                                               Thermo-mechanical analysis fully coupled                               70
                                                               between the dies and the part offering the                             60
                                                               highest accurate results. Von Mises stress
                                                               distribution is represented here.                                      50
                                                                                                                                      40
                                                                                                                                      30
                                                                                                                                                                                                        Closed correlation between
                                                                                                                                      20
                                                                                                                                                                                                        FORGE compressive
                                                                                                                                      10                    max. compressive force - measurement (MN)
                                                                                                                                                            max. compressive force - simulation (MN)
                                                                                                                                                                                                        force prediction and
                                                                                                                                       0                                                                experiment.
                                                                                                                                           0   5   10       15          20           25            30   Buderus Edelstahl GmbH
                                                                                                                                                        Blow No.
FORGE world leading numerical simulation software
10    www.transvalor.com                                                                                                                                                                       11

      CUTTING EDGE TECHNICAL FEATURES                                                                                                        Fully embedded features
                                                                                                                                             in the FORGE software

      Powerful                                                                                                                               Heat treatment capability for the simulation
                                                                                                                                             of heating, soaking and quenching. Prediction
                                                                                                                                             of phases, hardness, residual stresses and part
                                                                                                                                             distortion during quenching.
                        Unique backward & forward surface tracking features
                                                                                                                                             Induction heating feature for the simulation of
                        Easy to setup tracking features of points or surfaces:                                                               initial billet heating and heat treatment.
                        Defect area can be localized in the final geometry,
                                                                                                                                             Simulation of carburization.
                        Flash or final shape’s position in the initial geometry can be determined.

                                                                                                     Prediction of residual stresses after
                                                                                                     quenching in a crankshaft.
     The central looseness
     area of a crankshaft is
     localized in red. It is set in
     the initial billet and tracked
     during the entire forging sequence
     until the final shape.
                                                                                                                                                 Coil

                                                                                                                                                 Part
                        Reverse tracking of flash (in blue) up to the initial billet
                        geometry in a saddle (automotive component).                                                                         Prediction of temperature by induction heating
                                                                                                                                             in the initial billet of an energy component.

 Access to the prediction of material flow and geometry of the final shape, distribution of
 many fields during the complete process:
       In the workpiece: contact distance to the dies, temperature, displacements, effective
       strain, strain rate, stresses, damage, folds, microstructure, hardness, metallurgic phases,
       and many additional user fields.
       In the dies: temperature, stresses, wear, resulting force and many others.
FORGE world leading numerical simulation software
12   www.transvalor.com                                                                                                                                                                                       13

Pioneer and market leader                                                                                        Extensive
in automatic optimization                                                                                        Databases
FORGE includes an automatic optimization feature based on the MAES algorithm                                     Press and equipment kinematics available and filtered to comply
(Meta-model Assisted Evolution Strategy). It can be coupled with some CAD packages.                              with product and process selection:
In this example, thanks to FORGE optimization feature linked with a CAD system, the initial
billet weight has been reduced by 10% per part.                                                                  Hydraulic press, hammer, counter blow
                                                                                                                 hammer, knuckle joint press, mechanical
                                                                                                                 press, multi-speed hydraulic press, screw
                                                                                                                 press, link drive press, orbital forging press,
                                                                                                                 incremental forging press, rotary swaging,
                                                                                                                 forging machine, rolling mills including
                                                                                                                 ring rolling.

Automatic parameters setting
in the CAD system.

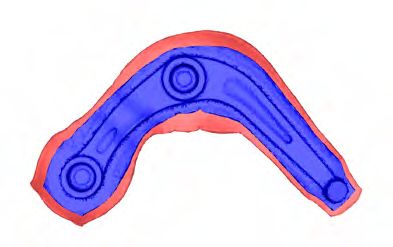

                                         Flash pattern before
                     (in red) and after optimization (in blue).
                                                                     AUTOMATIC
                                                                   OPTIMIZATION
                                                                                                                                                                   Extensive material database
Numerical facts                                                                                                                                                    for forming and heat treatment
                                                                                                                                                                   processes
  Fast, accurate and efficient 2D and 3D Finite Element simulation                                                                                                 Over 1000 materials are available in our
  software based on the use of 4-node triangles and 5-node tetrahedra,                                                                                             database. Integration of your own material
  best suited elements for complex shapes                                  “The analysis carried out with
                                                                           FORGE to model the evolution of                                                         dataset is possible in tabulated format.
  Implicit solver for accurate stress prediction and volume conservation   defects in Aeroengine disk forging
  Fully parallel up to 64 computer cores: solving, automatic remeshing     would not have yielded results this                                                     Feature to import from Sente Software JMatPro.
  and mapping are done in parallel on each core                            close to experimental values on
                                                                           many other metal forming software                                                       Wide range of friction laws.
  Updated Lagrangian approach and Arbitrary Langrangian Eulerian for
                                                                           products. FORGE has a unique
  well suited processes                                                                                                                                            Non-uniform friction coefficient and HTC
                                                                           multi body approach to modeling
  Bi-mesh technique allowing CPU time reduction for localized              such complicated phenomena                                                              for the same die.
  deformation processes                                                    which enhances the simulation
  Automatic adaptative time step                                           capabilities of processes.”
  User variables and subroutines can be defined and visualized in the
                                                                               Rajiv Shivpuri, Manufacturing
  graphical post processing interface
                                                                                             Research Group
  Automatic optimization feature based on the MAES algorithm                 Ohio State University, Columbus
  (Meta-model Assisted Evolution Strategy) and coupling of optimizer                                  OH USA
  with CAD packages.
FORGE world leading numerical simulation software
14   www.transvalor.com                                                                                                                                                               15

           CUTTING EDGE TECHNICAL FEATURES

           Fast
           Market leader in parallel computation and
           numerical techniques to reduce computation time
           Pioneer in parallel computation FORGE offers the highest
           scalability allowing more accurate results within very short
           computation times.

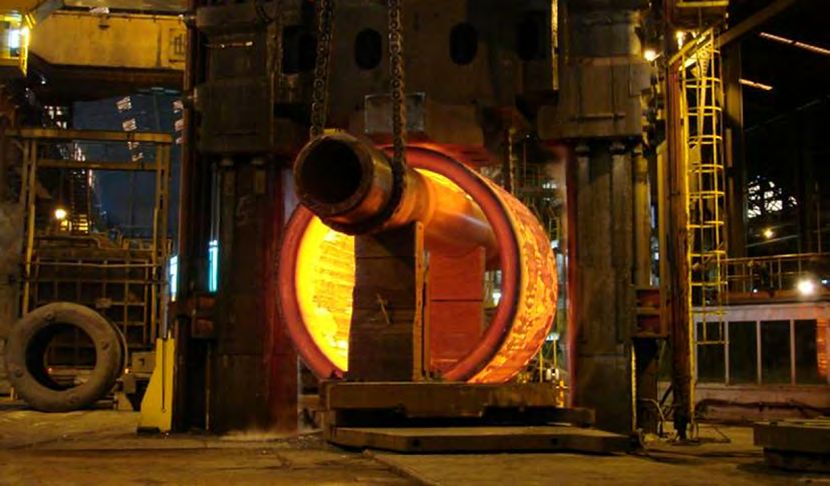

                                                                                                                                                                                   © AREVA Creusot Forge

                                                                                                                                                                          X2
                                                                                                                                                                          FASTER
                                                                                                                                                                                   X3
                                                          Computation time

                                                                                                                                                                                   FASTER

                                                                                             X1.2
                                                                                             FASTER

                                                                                                                                      FORGE embeds a new bi-mesh
                                                                                                         X2                           technique for CPU demanding
                                                                                                         FASTER
                                                                                                                                      processes with localized
                                                                                                                     X3.7

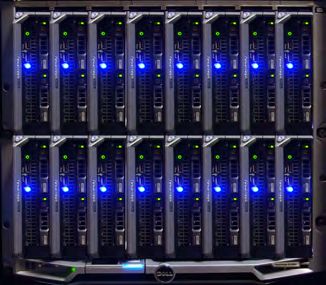

FORGE runs on various Windows and Linux platforms,                                                                   FASTER           deformation such as becking,
from standard workstations to multi-core High                                                                                         cogging and incremental
Performance Computing clusters.                                                4 cores      6 cores     12 cores     24 cores         forging.
                                                                             Computation time versus number of computer cores         This method allows significant
                                                                             for the complete forging sequence (5 stages) of a        CPU time reduction while
                                                                             steering sector shaft. Parallel computation efficiency   retaining similar result quality.
                                                                             is 80 % on this simulation.
FORGE world leading numerical simulation software
16   www.transvalor.com                                                                                                                       17

     CUTTING EDGE TECHNICAL FEATURES

 Flexible & Easy to Use
     Geometry import Interface with most available CADs through neutral formats such as STEP,
     STL, UNV, Nastran/Patran, Parasolid.

     Result export interface in DXF (for 2D simulations) and STL, UNV and Ansys file formats (for
     3D simulations).

     Batch processing and simulation chaining for increased productivity.

     Automatic simulation report including setup data summary, selected results
     and computation details.

                   Unmatched Flexibility                                                                         FORGE solver
     FORGE provides the highest flexibility with unlimited access to the Graphical
     User Interface for 64-bit pre and post processing. License fees are related to the
     number of computer cores regardless of the number of users. Extra flexibility
     benefits are:

         Job scheduling
         2D and 3D automatic transitions between stages                                              > User #1                    > User #5
         Dynamic token allocation across multiple and remote sites (Floating License)
         Solver support for up to 64 cores in parallel (one simulation can be executed on 64 cores
         concurrently)
         Token borrowing

                                                                                                     > User #2    > User #3     > User #4
FORGE world leading numerical simulation software
18   www.transvalor.com                                                                                                    19

     Customer services
                          Regular new releases and Service Packs when
                          required. Customer support through NetViewer.
                          Customer on-site training on request.
                          Frequent customer visits. User meetings are held
                          wordwide on an annual basis.

                                                      All processes and all features mentioned in this brochure are available
                                                                               in the FORGE software with no additional cost

                                                                                 www.transvalor.com
FORGE is a trade mark of TRANSVALOR S.A. - non-contractual Document - Design Emmanuel Briot - PrintCentre
TRANSVALOR S.A.
Parc de Haute Technologie          TRANSVALOR has been certified ISO 9001:
                                   2008 by the Bureau Veritas Quality
694, avenue du Dr. Maurice Donat   International (BVQI) for the develop-
06255 Mougins Cedex - France       ment, industrialisation and licensing of
                                   computed-aided engineering software
Phone: +33 (0)4 92 92 42 00        and related services.
                                   This certification shows the will of
Fax: +33 (0)4 92 92 42 01          TRANSVALOR to progress and to answer
Email: marketing@transvalor.com    better its customers’ expectations.

FORGE world leading
numerical simulation
software
You can also read
