Fast charge collection in small
collection electrode monolithic
       CMOS pixel sensors
         CERN Detector Seminar
              29.01.2021
          Magdalena Munker
Fast charge collection in small collection electrode monolithic CMOS pixel sensors - CERN Detector Seminar 29.01.2021 Magdalena Munker
Challenging requirements for future High Energy
        Physics (HEP) silicon tracking detectors
         Requirements for future HEP tracking detectors: CERN-OPEN-2018-006
                                                                              à Extreme radiation tolerance

                                                                              à Very fast

                                                                              à Very large surface

                                                                              à Very thin

                                                                              à Ultimate granularity

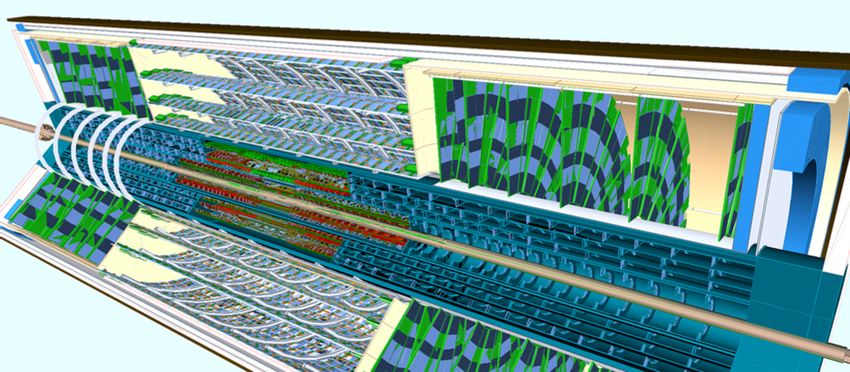

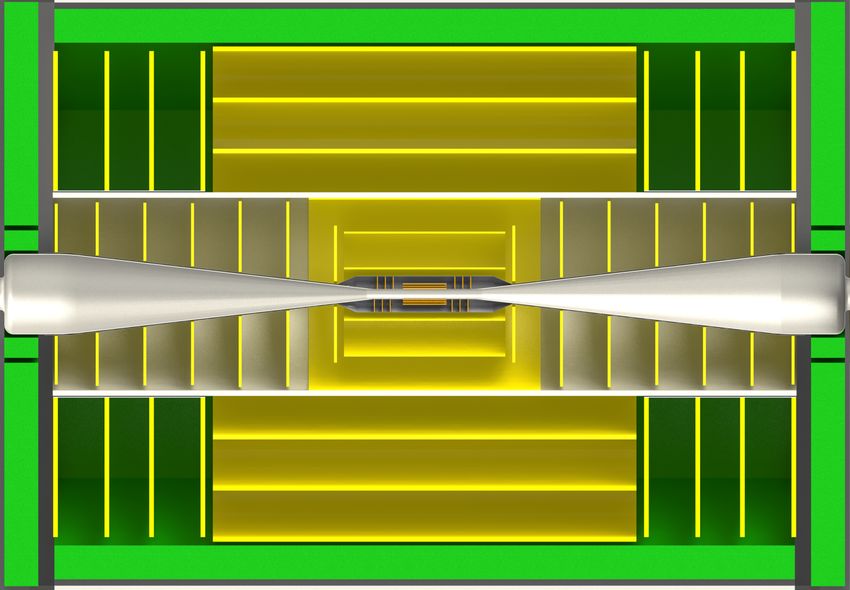

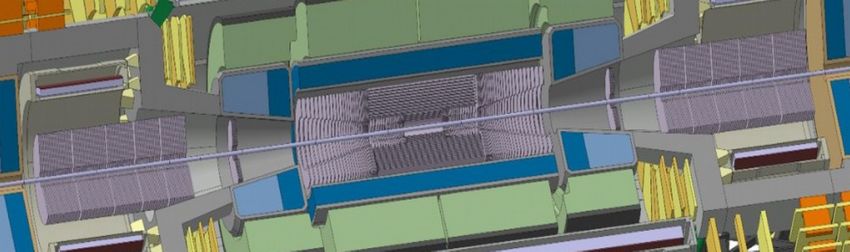

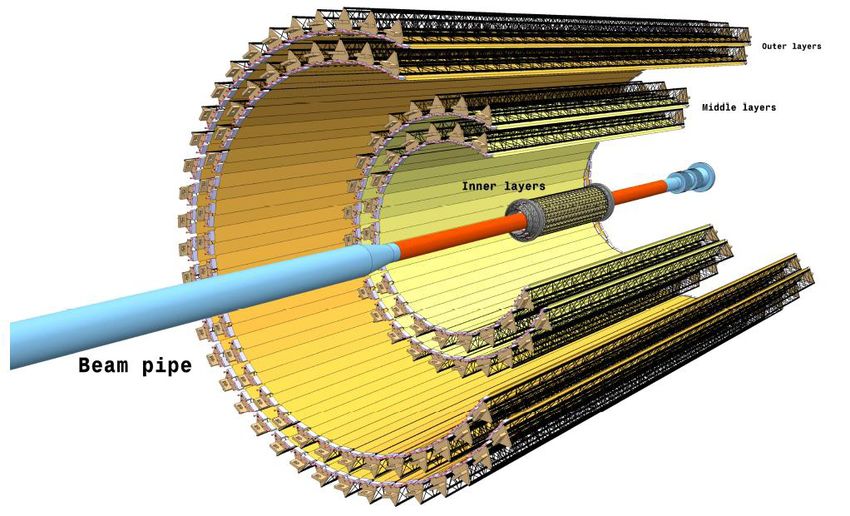

ALICE ITS4:                ATLAS ITK:                      FCC hh:                          CLIC 3TeV:

                                                                                                              p. 2
Fast charge collection in small collection electrode monolithic CMOS pixel sensors - CERN Detector Seminar 29.01.2021 Magdalena Munker
Overview on silicon pixel detector technologies
                                                                                                                           Sketches from Daniel Hynds
Hybrid:
Advantage = separate optimisation sensor r/o chip:
à Fit complex functionality in small area of pixel size required for precision
à Highly optimized sensors
                                                                                         Challenge = interconnects
 Planar sensor – bump bonded:        Active HV-CMOS sensor –
                                     capacitively coupled:

                                                                                                      Silicon On Insulator SOI-CMOS:

                                                                  Sketches from Daniel

Monolithic:
Advantage = no interconnects, benefit from CMOS imaging industry:
                                                                                         Challenges:
à Large area production with lower costs/effort & reduced material
                                                                                         - Impact of circuitry on sensor & vice versa
à Potential for smaller pixels & large signal/noise
                                                                                         - Trade off between
Large collection electrode                    Small collection electrode                       - High field
                                              CMOS:
CMOS:                                                                                             (large collection electrode)
                                                                                               - Low capacitance
                                                                                                  (small collection electrode)

                                                                                                                                                    p. 3
Fast charge collection in small collection electrode monolithic CMOS pixel sensors - CERN Detector Seminar 29.01.2021 Magdalena Munker
Outline
Introduction:
• Motivation and overall aim of development
• Standard 180nm small collection electrode CMOS
   process

Sensor design optimization towards 1 nanosecond
charge collection time in 180nm process:
• Simulation based optimization
• Measurements

Towards sub-nanosecond charge collection:
• ATTRACT FASTpix project
• 65nm process technology

                                                   From: https://indepth.dev/posts/1151/a-deep-dive-into-injectable-and-providedin-in-ivy   p. 4
Fast charge collection in small collection electrode monolithic CMOS pixel sensors - CERN Detector Seminar 29.01.2021 Magdalena Munker
Application of standard CMOS small collection electrode
technology in HEP experiments
MIMOSA – IPHC Strasbourg:                        INMAPS – STFC :                                                           ALPIDE – ALICE ITS3 :
~ STAR collaboration and IPHC Strasbourg ~        ~ N. Guerrini, STFC ~                                                      ~ ALICE collaboration ~

MIMOSA28 in the STAR pixel detector - first     • Deep p-well for shielding                                  • Low capacitance < 5fF, zero-suppressed r/o
MAPS system in HEP:                           New
                                                 The INMAPS process: quadruple well for full CMOS in

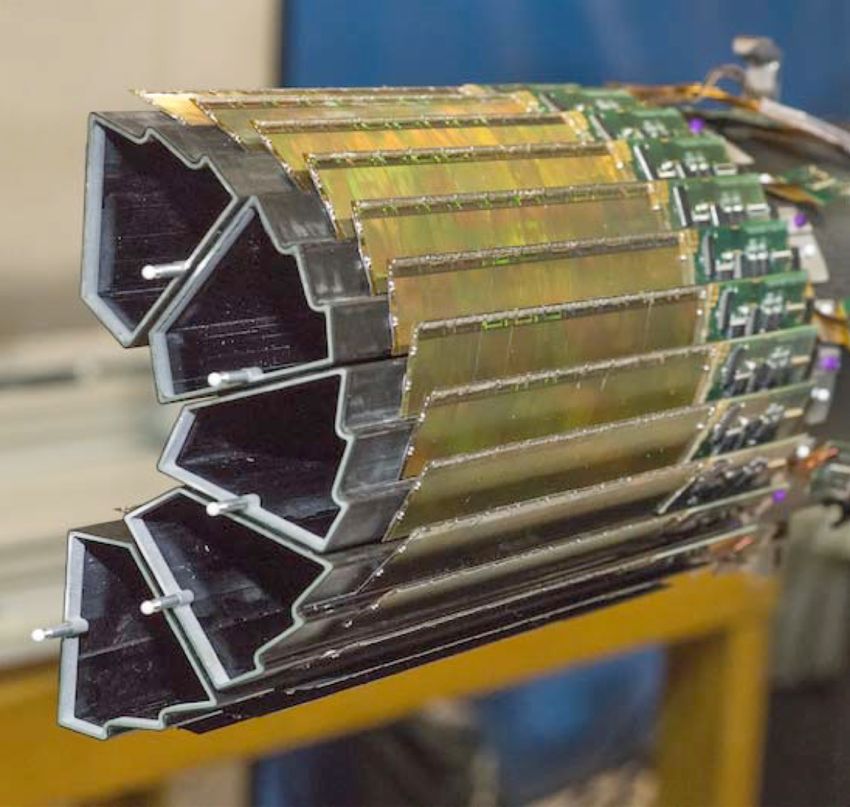

                                                à ALICE   Inner Tracking
                                                  First technology   prototypeSystem,
                                                  allows for full in-pixel CMOS
                                                                                   that closer to• IP,ALPIDE         thinner,    better
                                                                                                                            in ITS, area =position
                                                                                                                                           10m2: resolution

                                               The INMAPS process: quadruple7well               layers, for12.5fullGpixels in covering   10 m
                                                                                                 STFC development,            collaboration   2 TowerJazz
                                                                                                                                            with
                                                                                                                      CMOS    in the pixel
                                                                                                 Additional deep P-well    with implant
                                                                                                                                  5 μm allows  complex
                                                                                                                                        position       in-pixel CMOS an
                                                                                                                                                  resolution
                                                                         STFC development, in collaboration with TowerJazz
                                                                                        Additional deep P-well implant
                                                                                                                      Closer: Inner layer radius 39 mm -> 22 mm applications (Tow
                                                                                                                 Newallows
                                                                                                                         generation       of CMOS
                                                                                                                            complex in-pixel   CMOS  and sensors       for scientific
                                                                                                                                                         100 % fill-factor
                                                                                        New generation of CMOS sensors for scientific applications (TowerJazz CIS 180nm)
                                                                                                                 Also 5Gb/s transmitter in development
                                                                                                                      Thinner:
                                                                                        Also 5Gb/s transmitter in development              X/X 1.14% -> 0.3 % (inner layers)
                                                                                                                            Sensors 2008 (8)05336, DOI:10.3390/s8095336
                                                                                        Sensors 2008 (8) 5336, DOI:10.3390/s8095336

                                                                                                                      Pixel        size: 50 x 425 μm2 -> 27 x 29 μm2
                                                                                        https://iopscience.iop.org/article/10.1088/1748-0221/7/08/C08001/meta
                                                                                                                            https://iopscience.iop.org/article/10.1088/1748-0221/7/08/C08001/meta
                                                                                        https://iopscience.iop.org/article/10.1088/1748-0221/14/01/C01006/meta
                                                                                                                        https://iopscience.iop.org/article/10.1088/1748-0221/14/01/C01006/meta
                                                                                        http://pimms.chem.ox.ac.uk/publications.php …
                                                                                                                                            courtesy of N. Guerrini, STFC
                                                                                      The ALPIDE (ALICEhttp://pimms.chem.ox.ac.uk/publications.php
                                                                                                             Pixel Detector) developed for the…ALICE upgrade (ITS and MFT)
                                                                                                                                                                        courtesy of
                                                      TPAC         DECAL
                                                ILC ECAL (CALICE) Calorimetry
                                                                                              will
                                                                                            PIMMS   be  used   for  several
                                                                                                                CHERWELL       other
                                                                                      TOF mass spectroscopy Calorimetry/Tracking
                                                                                                                                     HEP detectors
                                                                                                                                   LASSENA
                                                                                                                                                   and other applications
                                              NICA MPDTPAC
                                                       (@JINR)                  sPHENIX
                                                                                   DECAL
                                                                                        (BNL)                               proton CT (tracking)
                                                                                                                    ALPIDE for proton CHERWELL
                                                                                                                 PIMMS                CT:     ALPIDE in space, CSES:
                                                                                                                                                          LASSENA               CSES – HEPD2     …
                                                ILC ECAL (CALICE) Calorimetry                              TOF mass spectroscopy Calorimetry/Tracking

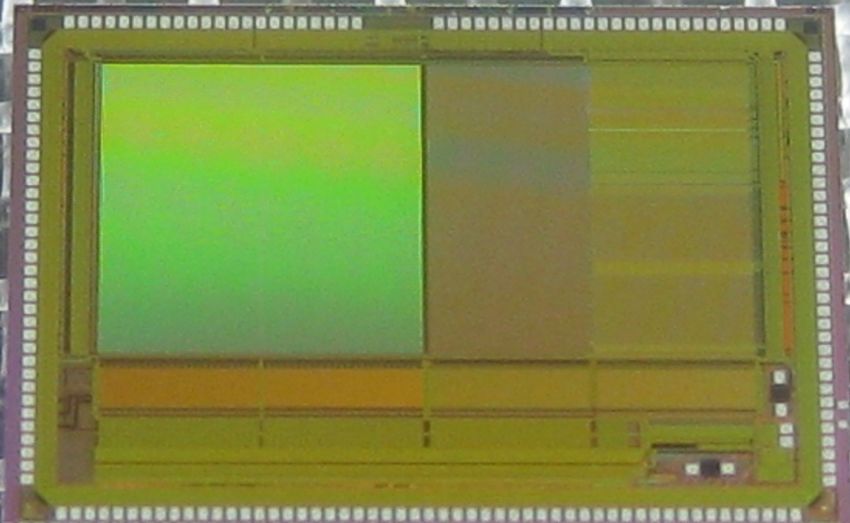

                                                  50µm pixel             50µm pixel         70µm pixel         48 µm x 96 µm pixel       50µm pixel, waferscale

                                                                               Also used for the ALPIDE (27 µm x 29 µm pixel) and MIMOSIS (CBM)
•   Twin well 350nm CMOS                         walter.snoeys@cern.ch
                                                 •      Quadruple well 180nm CMOS                                                                                           9

                                                                                                                                                       9
•   No reverse bias à NIEL ~1012neq/cm2          •      Reverse bias of a few volts                                                                                                              p. 5
Fast charge collection in small collection electrode monolithic CMOS pixel sensors - CERN Detector Seminar 29.01.2021 Magdalena Munker
Unification of requirements
Monolithic:                                                                                           Fast charge collection:
• Reduced production effort (no                                                                       • Increased sensor radiation tolerance
  interconnects needed, especially                                                                    • Improved timing precision
  relevant for high granularity)                                                                      • Increased efficiency for thin sensors
• Reduced costs (especially relevant for
  large scale future silicon tracking
  detectors)
• Reduced material (especially relevant
  for high precision measurements at
  future HEP experiments)

                                           Femto-Farad sensor capacitance:
                                           • Reduced noise and increased gain
                                           à Large ratio of signal/noise (important for
                                              precise resolution and reduced power
                                              consumption)
                                                                                          https://www.callcentrehelper.com/8x8-poly-scansource-team-up-148512.htm   p. 6
Fast charge collection in small collection electrode monolithic CMOS pixel sensors - CERN Detector Seminar 29.01.2021 Magdalena Munker
Motivation to achieve fast charge collection in monolithic
CMOS sensors with a small collection electrode
                                        Opening of window to a large range of applications:

                                                       Future LHC experiments
                                                       (radiation tolerance)

                                                                                        Medical
                                                 Future collider                    applications
                                                 experiments
                                                 (radiation tolerance,
                                                 fast, thin)
                                                                            Industrial applications
                                                                         (far future: LIDAR, single
                                                                                photon detection)

La femme a la fenetre, Salvatore Dali                                                                 p. 7
Fast charge collection in small collection electrode monolithic CMOS pixel sensors - CERN Detector Seminar 29.01.2021 Magdalena Munker
Monolithic small capacitance silicon pixel technology
180nm standard imaging technology process

                                  Low resistivity substrate

                                                              p. 8
Fast charge collection in small collection electrode monolithic CMOS pixel sensors - CERN Detector Seminar 29.01.2021 Magdalena Munker
Monolithic small capacitance silicon pixel technology
180nm standard imaging technology process

                                                                     High resistivity epitaxial layer grown
                                                                     on low resistivity substrate:

                                                                     • No backside implantation
                                                                       necessary
                                  High resistivity epitaxial layer

                                  Low resistivity substrate          • Very high resistivities possible (a
                                                                       few kΩ⋅cm, needed for depletion)

                                                                     • Limited in thickness to ≤ 40μm

                                                                                                              p. 9
Fast charge collection in small collection electrode monolithic CMOS pixel sensors - CERN Detector Seminar 29.01.2021 Magdalena Munker
Monolithic small capacitance silicon pixel technology
180nm standard imaging technology process

                                                                     Reduced size of collection electrode for
                                  Small collection electrode
                                                                     femto-Farad capacitance:
                                  Small sensor junction
                                                                     à Larger voltage excursion for smaller
                                                                       capacitance
                                  High resistivity epitaxial layer
                                                                     à Higher signal/noise and reduced
                                  Low resistivity substrate            analogue power consumption

                                                                     à Note: small size of collection electrode
                                                                       leads to small sensor junction

                                                                                                                  p. 10
Monolithic small capacitance silicon pixel technology
 180nm standard imaging technology process
V(reset)       V(bias)     V(reset)
                                                                         Placement of full CMOS circuitry inside pixel
                                                                         matrix in well separated from collection
                                      Small collection electrode
                                                                         electrode:
                                      Small sensor junction
                                                                         à Monolithic design with small capacitance
                                      P-wells shielding full CMOS
                                      High resistivity epitaxial layer   à Sensor bias limited by circuitry to -6V

                                      Low resistivity substrate          à P-well changes electric field and charge
                                                                           collection in active sensor volume

                                                                                                                     p. 11
Why 3D finite element TCAD simulations?
Sensor simulation:

• Small collection electrode and small sensor pn-junction
à Electric field varies over orders of magnitude over the pixel cell
                                                                                          https://silvaco.com

• With the different wells, the epitaxial layer and substrate the doping                                                                         Used for studies
  concentration in the active sensors ranges over >5 orders of magnitude                                                                         presented here
à Impacts mobility, drift velocity, recombination, …

à Small collection electrode CMOS sensors need to be simulated in TCAD                    https://www.synopsys.com

Different options for performance evaluation:                             Transient TCAD:

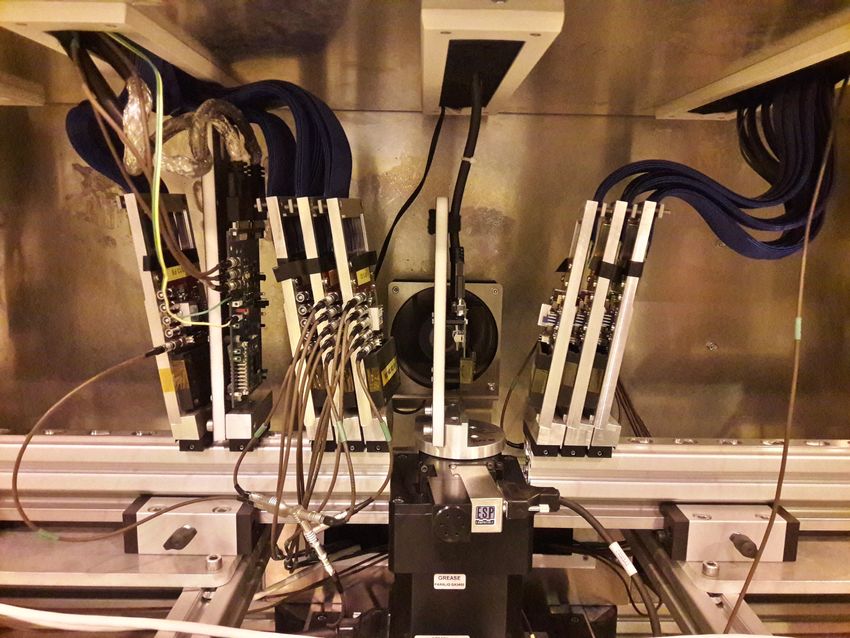

                                   CLICdp Timepix3 test-beam telescope:   • Self-consistent and detailed
                                                                          • BUT: very computing intensive
Test-beam:
• Realistic measurements,                                                 Monte-Carlo tools ‘on top’ of TCAD sensor simulations:
    always needed                                                         •   Fast, high statistics
• BUT:                                                                    •   Access to full performance
    Time and resources
                                                                              S. Spannagel et al.: Allpix2: A Modular Simulation Framework for
    consuming                                                                 Silicon Detectors, 10.1016/j.nima.2018.06.020
   à Slow turn-around                                                         H. Schindler et al., https://garfieldpp.web.cern.ch/garfieldpp/

                                                                                                                                                            p. 12
3D TCAD - electric field and depletion
Electrostatic potential (color scale) and depletion (white line)
for 25μm epitaxial layer thickness, standard process:

                                                                   Limited depletion:

                                                                   à Significant contribution from diffusion:
                                                                   • Excellent spatial precision
                                                                   • But:
      Edge of depleted region
      around collection electrode                                     • Reduced charge collection time,
                                                                          reduced radiation tolerance and time
                                                                          stamping capability
                                                                        • Reduced seed signal, reduced
                                                                          efficiency before irradiation

Even for high resistivity epitaxial layer (a few kΩ⋅cm) and maximal sensor bias voltage, the depletion in the
standard process is very limited
                                                                                                                 p. 13

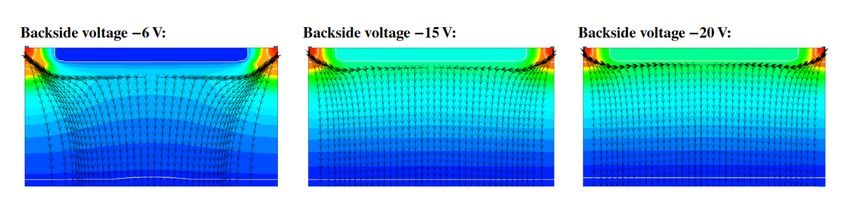

The electric field minimum at the pixel edges
Electric field in depth (color scale) and depletion (white line) for
25μm epitaxial layer thickness, standard process:
                                                                       Electrostatic potential (color scale) streamlines (black arrows)
                                                                       for 25μm epitaxial layer thickness, standard process:

       Ele
   mini ctric fiel
       mum         d
           i n se
                  nsor

  Electric field minimum in sensor focusses streamlines and introduced complex electric field configuration
  à Performance not scalable with geometry parameters

                                                                                                                                    p. 14
3D TCAD – charge collection in the standard process
Transient 3D TCAD simulation setup:          Electron density 0.5ns after signal generation:
                                                                                                   Current pulse:

                                  Cutplane

                                                                                               Star symbol
                                                                   Particle                    = electric field minimum
            Particle

    Charges are focused into electric field minimum à slow down of charge collection
                                                                                                                          p. 15
3D TCAD – charge collection in the standard process
Transient 3D TCAD simulation setup:          Electron density 1.5ns after signal generation:
                                                                                                   Current pulse:

                                  Cutplane

                                                                                               Star symbol
                                                                   Particle                    = electric field minimum
            Particle

    Charges are focused into electric field minimum à slow down of charge collection
                                                                                                                          p. 15
3D TCAD – charge collection in the standard process
Transient 3D TCAD simulation setup:          Electron density 2.5ns after signal generation:
                                                                                                   Current pulse:

                                  Cutplane

                                                                                               Star symbol
                                                                   Particle                    = electric field minimum
            Particle

    Charges are focused into electric field minimum à slow down of charge collection
                                                                                                                          p. 15
3D TCAD – charge collection in the standard process
Transient 3D TCAD simulation setup:          Electron density 3.5ns after signal generation:
                                                                                                   Current pulse:

                                  Cutplane

                                                                                               Star symbol
                                                                   Particle                    = electric field minimum
            Particle

    Charges are focused into electric field minimum à slow down of charge collection
                                                                                                                          p. 15
3D TCAD – charge collection in the standard process
Transient 3D TCAD simulation setup:          Electron density 4.5ns after signal generation:
                                                                                                   Current pulse:

                                  Cutplane

                                                                                               Star symbol
                                                                   Particle                    = electric field minimum
            Particle

    Charges are focused into electric field minimum à slow down of charge collection
                                                                                                                          p. 15
3D TCAD – charge collection in the standard process
Transient 3D TCAD simulation setup:          Electron density 6.5ns after signal generation:
                                                                                                   Current pulse:

                                  Cutplane

                                                                                               Star symbol
                                                                   Particle                    = electric field minimum
            Particle

    Charges are focused into electric field minimum à slow down of charge collection
                                                                                                                          p. 15
3D TCAD – charge collection in the standard process
Transient 3D TCAD simulation setup:          Electron density 9.5ns after signal generation:
                                                                                                   Current pulse:

                                  Cutplane

                                                                                               Star symbol
                                                                   Particle                    = electric field minimum
            Particle

    Charges are focused into electric field minimum à slow down of charge collection
                                                                                                                          p. 15
3D TCAD – charge collection in the standard process
Transient 3D TCAD simulation setup:          Electron density 14.5ns after signal generation:
                                                                                                    Current pulse:

                                  Cutplane

                                                                                                Star symbol
                                                                   Particle                     = electric field minimum
            Particle

    Charges are focused into electric field minimum à slow down of charge collection
                                                                                                                           p. 15
Impact of diffusion and field minimum on performance
    Performance observables from test beam measurements and Allpix2 (MC) + TCAD simulations:
    S. Spannagel, K. Dort, M. Munker et al., DOI: 10.1016/j.nima.2020.163784 , CERN-THESIS-2018-202

   Comparison to standard planar sensor (grey dashed line):
   •    Low detection threshold < 100 electrons
   •    Large clusters à significantly reduced efficiency and improved resolution
   •    Charge collection times tens of ns, compared to O(ns) in standard planar technologies

 The small collection electrode standard process has an excellent spatial precision, but slow charge
 collection (reduced radiation hardness and timing) and reduced detection efficiency
                                                                                                       p. 16
The two fundamental limits of the standard sensor process
                                    Electric field in depth (color scale) and depletion (white line) for
                                    25μm epitaxial layer thickness, standard process:

1. Small sensor junction:
à Limited field and depletion
à Solution:
  Introduction of deep n-implant

2. Electric field minimum:
à Long charge collection times
à Solution:                                                            Edge of depleted region
  Introduction of special implant                                   around collection electrode
  structures

                                                                                                           p. 17
Modified sensor process
 180nm modified imaging technology process:                                                                        Add large deep low dose n-implant:
V(reset)        V(bias)         V(reset)
                                                                                                                   • Large sensor junction
                                                                                                                   à Full lateral depletion
                                               Small collection electrode
                                               Deep low dose n-implant                                             • Isolation of p-wells and substrate
                                                                                                                   à Substrate voltage not limited by circuitry,
                                               P-wells shielding full CMOS                                           high sensor bias tens of volts
       Large sensor junctions                  High resistivity epitaxial layer

                                               Low resistivity substrate

                                           • Initially developed within ALICE ITS upgrade
                                                 W. Snoeys et al., DOI: 10.1016/j.nima.2017.07.046

                                           • Further R&D by ATLAS ITk CMOS development together with STREAM project
                                           •     H. Pernegger et al., https://doi.org/10.1016/j.nima.2018.07.043

                                           • Investigated within the CLICdp tracking detector development
                                                 M. Munkeret al., DOI: 10.1016/j.nima.2019.02.049

                                     V(sub)                                                                                                                    p. 18
Development of depletion in modified process
Electrostatic potential (color scale) and depletion              Gain and minimum threshold
(white line) for 25μm epitaxial layer thickness:                 vs. bias voltage:
 VRESET = 0V, VPWELL = 0V, VSUB = 0V

Complex multi-junction process:
                                                                      Iraklis Kremastiotis et al., DOI: 10.22323/1.370.0039
• Depletion from p-wells into deep n-layer:
à P-well voltage essential to fully deplete around collection electrode and maintain small sensor capacitance
• Depletion from deep planar junction into epitaxial layer:
à Substrate voltage essential for depletion in depth                                                                          p. 19
Development of depletion in modified process
Electrostatic potential (color scale) and depletion              Gain and minimum threshold
(white line) for 25μm epitaxial layer thickness:                 vs. bias voltage:
 VRESET = 0.16V, VPWELL = -1.2V, VSUB = -1.2V

Complex multi-junction process:
                                                                      Iraklis Kremastiotis et al., DOI: 10.22323/1.370.0039
• Depletion from p-wells into deep n-layer:
à P-well voltage essential to fully deplete around collection electrode and maintain small sensor capacitance
• Depletion from deep planar junction into epitaxial layer:
à Substrate voltage essential for depletion in depth                                                                          p. 19
Development of depletion in modified process
Electrostatic potential (color scale) and depletion              Gain and minimum threshold
(white line) for 25μm epitaxial layer thickness:                 vs. bias voltage:
 VRESET = 0.32V, VPWELL = -2.4V, VSUB = -2.4V

Complex multi-junction process:
                                                                      Iraklis Kremastiotis et al., DOI: 10.22323/1.370.0039
• Depletion from p-wells into deep n-layer:
à P-well voltage essential to fully deplete around collection electrode and maintain small sensor capacitance
• Depletion from deep planar junction into epitaxial layer:
à Substrate voltage essential for depletion in depth                                                                          p. 19
Development of depletion in modified process
Electrostatic potential (color scale) and depletion              Gain and minimum threshold
(white line) for 25μm epitaxial layer thickness:                 vs. bias voltage:
 VRESET = 0.48V, VPWELL = -3.6V, VSUB = -3.6V

Complex multi-junction process:
                                                                      Iraklis Kremastiotis et al., DOI: 10.22323/1.370.0039
• Depletion from p-wells into deep n-layer:
à P-well voltage essential to fully deplete around collection electrode and maintain small sensor capacitance
• Depletion from deep planar junction into epitaxial layer:
à Substrate voltage essential for depletion in depth                                                                          p. 19
Development of depletion in modified process
Electrostatic potential (color scale) and depletion              Gain and minimum threshold
(white line) for 25μm epitaxial layer thickness:                 vs. bias voltage:
 VRESET = 0.64V, VPWELL = -4.8V, VSUB = -4.8V

Complex multi-junction process:
                                                                      Iraklis Kremastiotis et al., DOI: 10.22323/1.370.0039
• Depletion from p-wells into deep n-layer:
à P-well voltage essential to fully deplete around collection electrode and maintain small sensor capacitance
• Depletion from deep planar junction into epitaxial layer:
à Substrate voltage essential for depletion in depth                                                                          p. 19
Development of depletion in modified process
Electrostatic potential (color scale) and depletion              Gain and minimum threshold
(white line) for 25μm epitaxial layer thickness:                 vs. bias voltage:
 VRESET = 0.8V, VPWELL = V, VSUB = -6V

Complex multi-junction process:
                                                                      Iraklis Kremastiotis et al., DOI: 10.22323/1.370.0039
• Depletion from p-wells into deep n-layer:
à P-well voltage essential to fully deplete around collection electrode and maintain small sensor capacitance
• Depletion from deep planar junction into epitaxial layer:
à Substrate voltage essential for depletion in depth                                                                          p. 19
P-well sensor bias voltage dependence for the
modified process                                             Electrostatic potential (color scale) and depletion
                                                             (white line) for VPWELL = -0V:

P-well sensor bias is needed for depletion around
collection electrode (to maintain low sensor capacitance)

Reduced depletion in depth for higher p-well sensor bias:

• P-wells are ramped up to voltage of backside

à Voltage difference between substrate and p-wells is
  reduced

                                                              VS
                                                               UB   = -6
                                                                           V, V
                                                                              RES
                                                                                 ET   =0
                                                                                           .8V

à Example of complexity of sensor design and the need of 3D TCAD simulations to understand performance
                                                                                                                   p. 20
P-well sensor bias voltage dependence for the
modified process                                             Electrostatic potential (color scale) and depletion
                                                             (white line) for VPWELL = -2V:

P-well sensor bias is needed for depletion around
collection electrode (to maintain low sensor capacitance)

Reduced depletion in depth for higher p-well sensor bias:

• P-wells are ramped up to voltage of backside

à Voltage difference between substrate and p-wells is
  reduced

                                                              VS
                                                               UB   = -6
                                                                           V, V
                                                                              RES
                                                                                 ET   =0
                                                                                           .8V

à Example of complexity of sensor design and the need of 3D TCAD simulations to understand performance
                                                                                                                   p. 20
P-well sensor bias voltage dependence for the
modified process                                             Electrostatic potential (color scale) and depletion
                                                             (white line) for VPWELL = -4V:

P-well sensor bias is needed for depletion around
collection electrode (to maintain low sensor capacitance)

Reduced depletion in depth for higher p-well sensor bias:

• P-wells are ramped up to voltage of backside

à Voltage difference between substrate and p-wells is
  reduced

                                                              VS
                                                               UB   = -6
                                                                           V, V
                                                                              RES
                                                                                 ET   =0
                                                                                           .8V

à Example of complexity of sensor design and the need of 3D TCAD simulations to understand performance
                                                                                                                   p. 20
P-well sensor bias voltage dependence for the
modified process                                             Electrostatic potential (color scale) and depletion
                                                             (white line) for VPWELL = -6V:

P-well sensor bias is needed for depletion around
collection electrode (to maintain low sensor capacitance)

Reduced depletion in depth for higher p-well sensor bias:

• P-wells are ramped up to voltage of backside

à Voltage difference between substrate and p-wells is
  reduced

                                                              VS
                                                               UB   = -6
                                                                           V, V
                                                                              RES
                                                                                 ET   =0
                                                                                           .8V

à Example of complexity of sensor design and the need of 3D TCAD simulations to understand performance
                                                                                                                   p. 20
P-well sensor bias voltage dependence for the
modified process                                             Electrostatic potential (color scale) and depletion
                                                             (white line) for VPWELL = -6V:

P-well sensor bias is needed for depletion around
collection electrode (to maintain low sensor capacitance)

Reduced depletion in depth for higher p-well sensor bias:

• P-wells are ramped up to voltage of backside

à Voltage difference between substrate and p-wells is
  reduced

                                                              VS
                                                               UB   = -6
                                                                           V, V
                                                                              RES
                                                                                 ET   =0
                                                                                           .8V

à Example of complexity of sensor design and the need of 3D TCAD simulations to understand performance
                                                                                                                   p. 20
Current pulse for MIP traversing pixel corner
                                                                                         for different backside bias after irradiation:

Substrate bias voltage dependence
for the modified process
M. Munker et al., DOI: 10.1088/1748-0221/14/05/C05013

Electrostatic potential (color scale) and electric field streamlines (arrow-lines):

        A higher backside bias not necessarily improves the performance
        à Can not compensate radiation induced efficiency loss with higher sensor bias
                                                                                                                                          p. 21
Impact of field minimum on performance
                                                                                                                                                   ~ ATLAS ITk CMOS collaboration and STREAM project ~
MALTA: fully monolithic small collection electrode 180nm CMOS chip with asynchronous
readout, developed within the STREAM project for the ATLAS ITk upgrade R. Cardella et al., 10.1088/1748-0221/14/06/c06019

    2 x 2 in-pixel efficiency MALTA, irradiated 1.5x1015neq/cm2, different substrate bias VSUB:
    A. Sharma et al., https://indico.cern.ch/event/773447/contributions/3371308/attachments/1822715/2981970/ASharma_AIDA_AnnualMeeting_2019_talk_small.pdf

    VSUB= -9V                                                VSUB= -15V                                        VSUB= -20V

   •   Efficiency loss in region of field minimum due long drift path
   •   Effect stronger for high substrate bias, as predicted by the simulations

  à Need to mitigate impact of electric field minimum on performance
                                                                                                                                                                                               p. 22
Additional sensor optimization
 Gap in deep n-implant:                                                            Additional p-implant:
V(reset)          V(bias)       V(reset)                                         V(reset)          V(bias)       V(reset)

                                              Small collection electrode
                                              P-wells shielding full CMOS
                                              Deep low dose n-implant
           Vertical junctions               High resistivity epitaxial layer                Vertical junctions

                                           Low resistivity epitaxial substrate

                                     V(sub)                                                                           V(sub) p. 23
bol in the figure. As visualised by
or depth  results in a pushsensor
       Additional           of charge optimization                                                   –

                                                                     2019 JINST
 is electric field minimum. For the
       mitigation of field minimum
nent of the electric field is crucial.                                                                                 M. Munker et al., DOI: 10.1088/1748-0221/14/05/C05013

      Electrostatic potential (color scale), electric field streamlines (arrow-lines) and electric field minimum (star-symbol):

    Electrostatic  potential:
     Modified process with deep n-implant:                Gap in deep n-implant:                               Additional p-implant:

        à The gap and the additional p-implant bent the streamlines away from the minimum to the collection electrodes
ocess with a pixel
      à Reduced  driftsize
                        pathof  36.4 µm
                             + charges     ⇥ get pushed and trapped in minimum
                                       do not

ar symbol  indicates
      à Faster          the electric field
               charge collection
                                                                                                                                                                        p. 24
Additional sensor optimization – mitigation of field minimum

                                Electron density 0.5ns after signal generation for the different sensor designs:

Standard process:                            Modified process:                                       Gap in deep n-implant:

               Particle                                        Particle                                               Particle

     = electric field minimum
                                                                                                                                 p. 25
Additional sensor optimization – mitigation of field minimum

                                Electron density 1.5ns after signal generation for the different sensor designs:

Standard process:                            Modified process:                                       Gap in deep n-implant:

               Particle                                        Particle                                               Particle

     = electric field minimum
                                                                                                                                 p. 25
Additional sensor optimization – mitigation of field minimum

                                Electron density 2.5ns after signal generation for the different sensor designs:

Standard process:                            Modified process:                                       Gap in deep n-implant:

               Particle                                        Particle                                               Particle

     = electric field minimum
                                                                                                                                 p. 25
Additional sensor optimization – mitigation of field minimum

                                Electron density 3.5ns after signal generation for the different sensor designs:

Standard process:                            Modified process:                                       Gap in deep n-implant:

               Particle                                        Particle                                               Particle

     = electric field minimum
                                                                                                                                 p. 25
Additional sensor optimization – mitigation of field minimum

                                Electron density 4.5ns after signal generation for the different sensor designs:

Standard process:                            Modified process:                                       Gap in deep n-implant:

               Particle                                        Particle                                               Particle

     = electric field minimum
                                                                                                                                 p. 25
Additional sensor optimization – mitigation of field minimum

                                Electron density 6.5ns after signal generation for the different sensor designs:

Standard process:                            Modified process:                                       Gap in deep n-implant:

               Particle                                        Particle                                               Particle

     = electric field minimum
                                                                                                                                 p. 25
Additional sensor optimization – mitigation of field minimum

                                Electron density 9.5ns after signal generation for the different sensor designs:

Standard process:                            Modified process:                                       Gap in deep n-implant:

               Particle                                        Particle                                               Particle

     = electric field minimum
                                                                                                                                 p. 25
Additional sensor optimization – mitigation of field minimum

                                Electron density 14.5ns after signal generation for the different sensor designs:

Standard process:                            Modified process:                                      Gap in deep n-implant:

               Particle                                        Particle                                              Particle

     = electric field minimum
                                                                                                                                p. 25
Additional sensor optimization – mitigation of field minimum
                                Single pixel current pulse from transient 3D TCAD:

                                             Standard process
                                             Modified process with deep n-layer
                                             Gap in deep n-layer

   à Mitigation of impact of electric field minimum on charge collection, order of magnitude improvement in
                                               charge collection speed
                                                                                                              p. 26
Impact of new sensor designs on charge
       sharing and spatial resolution
                                                                                                        ~ Thanks to D. Dannheim and the CLIC test-beam crew, S. Spannagel and the DESY test-beam crew ~

       CLICTD: A fully monolithic CLIC tracker 180nm small collection electrode CMOS chip with simultaneous ToT and
       ToA readout Iraklis Kremastiotis et al., DOI: 10.22323/1.370.0039 Corryvreckan: A Modular 4D Track Reconstruction and Analysis Software for Test Beam Data,
                                                                                                                                                                                                                    CLICdp-Pub-2020-005

       CLICTD sensor design:                                                       Cluster column size vs. threshold: ~ K. Dort ~
                                                                                   CLICdp
                                                                                                                                                                                          Spatial column resolution vs. threshold:
                                                                                                                                                                                          CLICdp

                                                                                                                                                    spatial resolution (col.) [µm]
                                                  mean cluster column size
                                                                                                        Continuous n-implant
                                                                             1.4
                                                                                                        Gap in n-implant                                                             10

                                                                             1.3
                                                                                                                                                                                     9

                                                                             1.2
30μm

                                                                                                                                                                                     8

                                                                             1.1                                                                                                     7                        Continuous n-implant
           37.5μm                                                                                                                                                                                             Gap in n-implant
                                                                               1                                                                                                     6
                  Columns                                                                                                                                                                 0     500 1000 1500 2000 2500
                                                                                0       500 1000 1500 2000 2500
                                                                                                              threshold [e]                                                               ~ K. Dort ~               threshold [e]
                                                      Figure
                                                 Figure  10: 16: Spatial
                                                              Mean        resolution
                                                                    cluster          in row direction
                                                                             size in column  directionasasa function of thresh-
                                                                                                            a function  of Figure Figure 17: cluster
                                                                                                                                    11: Mean  Spatialsize
                                                                                                                                                      resolution  in column
                                                                                                                                                          in row direction as adirection
                                                                                                                                                                                function as  a function of
                                                                                                                                                                                         of detection
                                                      old for both pixel flavours.                                                threshold for both pixel flavours.
       The gap in the deep n-implant reduces the charge sharing à less spatial precision à smaller node technologies
                                                 detection threshold                                                         threshold.

                                                                                                                                              537           6.5. Time resolution
                                                                                                                                                                                                                                          p. 27
Impact of new sensor designs on time
                          stamping capability                                                                                                                                                        Timing resolution vs. threshold after
                                                                                                                                                                                                     time-walk correction      ~ K. Dort ~
                                                                                                                                                                                                     CLICdp
                                                                                                                                                                                                18

                                                                                                                                                                       timing resolution [ns]
                                                                                                                                                                                                           Continuous n-implant
                                                                                                                                                                                                16         Gap in n-implant
                          In-pixel timing resolution before time walk correction
                                                                                                                                                                                                14
                          No gap in deep n-implant:                                                          Gap  in deep n-implant:
                     15
                          CLICdp
                                                            15                                          15
                                                                                                             CLICdp
                                                                                                                                               15                                               12
                                                                   - thit) [ns]

                                                                                                                                                      - thit) [ns]
in-pixel row [µm]

                                                                                   in-pixel row [µm]
                     10                                     10                                          10                                     10                                               10
                     5                                      5                                           5                                      5
                                                                                                                                                                                                8
                                                                          track

                                                                                                                                                             track
                      0                                     0                                            0                                     0
                                                                   (t

                                                                                                                                                      (t
                    -5                                      -5                                         -5                                      -5                                               6
                    -10                                     -10                                        -10                                     -10
                                                                                                                                                                                                     0   500 1000 1500 2000 2500
                    -15                                     -15                                        -15                                     -15                                                                            threshold [e]
                               -10      0      10                                                                 -10      0      10
                                                                     ~ K. Dort ~
                                   in-pixel column [µm]                                                             in-pixel column [µm]
                                                                 Figure 24: time residuals between track timestamp and CLICTD
                                                                                                                                                                      Figure 25: Time resolution as a function of the detection threshold.
                                                                 timestamp after time-walk correction.
Figure 19: In-pixel time residuals for the pixel flavour with continuous           Figure 20: In-pixel time residuals for the pixel flavour with gap in the
                                                                                                                                                                     More precise timing resolution for design with gap:
                          à Reduced timing spread over pixel cell with gap due to:
n-implant before time-walk correction.                                             n-implant before time-walk correction.
                                                                                                                                                                     à Accelerated charge collection (sensor effect)
                                                                                       indicating that the time resolution degrades in the pixel
                                   • Reduced charge sharingedge
                                                             (less   time-walk)
                                                                             571

                                                                regions [8]. 572                                                                                     à Disclaimer: timing resolution limited by frontend
                                                                                         The one dimensional residual distributions are depicted
                                   • Accelerated charge collection (sensor effect)     in Fig. 24 for both pixel flavours. The time resolution is
                                                                                       calculated using the RMS of the central 3 (99.7%) of the                      à Need fast circuitry to access full sensor optimization
                                                                                       distribution, which amounts to 6.6 ns and 5.9 ns for the
                                                                                       pixel flavour with continuous n-implant and gap in the
                                                                                                                                                                                                                        p. 28
Impact of new sensor designs on charge
sharing and efficiency
                                 Cluster column size vs. threshold:
                                 CLICdp                               ~ K. Dort ~                                Efficiency vs. threshold:
                                                                                                                 CLICdp                                ~ K. Dort ~
mean cluster column size

                                                                                              efficiency
                           1.4                         Continuous n-implant                                  1
                                                       Gap in n-implant

                           1.3
                                                                                                       0.95

                           1.2

                                                                                                           0.9
                           1.1
                                                                                                                         Continuous n-implant
                                                                                                                         Gap in n-implant
                             1
                              0       500 1000 1500 2000 2500                                                    0    200 400 600 800 1000 1200
                                                            threshold [e]                                                                    threshold [e]
Figure 10: Mean    cluster
               Figure  12: size in column
                           Cluster          direction
                                    seed signal       as a function
                                                distribution for bothofpixel
                                                                          Figure  11: at
                                                                             flavours Mean cluster
                                                                                            Figuresize
                                                                                                    13: in row
                                                                                                         Hit   directionefficiency
                                                                                                             detection    as a function of detection
                                                                                                                                   as a function  of threshold for both
detection threshold  à The gap in the n-implant reduces the charge sharing increases the single pixel signal and efficiency
               nominal conditions.                                        threshold.        pixel flavours.

                     à Efficient operation window (> 99%) extended by > x2
                     à Sensor design optimization is essential for thin sensors
                                                                                                                                                                          p. 29
Mini-Malta efficiency after irradiation of 1e15 neq/cm2

Impact of new sensor designs on
                                                                                                      for different sensor design variants:
                                                                                                       Enlarged transistors     Standard transistors

efficiency after irradiation                                                                                 Additional
                                                                                                             p-implant
                                                                                                                                        Additional
                                                                                                                                        p-implant

                                                                    Mini-MALTA sensor design:
Measurements from Mini-MALTA:
 ~ ATLAS ITk CMOS collaboration and STREAM project ~
 M. Dyndal et al.,10.1088/1748-0221/15/02/p02005

                                                                                                               Gap in                     Gap in
                                                       Regions of                                              n-layer                    n-layer
                                                       gap or
                                                       additional
                                                       p-implant

                                                 36.5 μm
High efficiency after irradiation due to:                                                                    Continuous                 Continuous
                                                                                                                                        n-layer
                                                                                                             n-layer
1. Fast charge collection and reduced trapping probability
2. Reduced charge sharing and higher single pixel signal

   à The sensor optimization made these sensors radiation hard up to levels of 1015neq/cm2

Further: Cz-starting material instead of epitaxial layer to overcome limitations in sensor thickness and resulting
signal (~2k electrons for 30 μm epitaxial layer thickness before irradiation) H. Pernegger et al., DOI:https://doi.org/10.1016/j.nima.2020.164381               p. 30
Implementation in prototype chips
TowerJazz 180nm chips with new sensor design solutions:

            CLICTD:                       ATTRACT FASTPIX:                      MALTA/Monopix:                                      MIMOSIS:                                INVESTIGATOR:

    Future e+e- colliders:          Future HEP experiments:                   HL-LHC and future                         Antiproton and ion research:                           R&D:
      Improved timing              Improved timing precision,                    pp-colliders:                           Increased sensor radiation                       Investigation of
     precision and high            sensor radiation tolerance                  Increased sensor                       tolerance and high efficiency for                  analogue response
 efficiency for thin sensors                                                  radiation tolerance                               thin sensors
                                         T. Kugathasan et al.,
                                                                                 I. Caicedo et al.,                                  J. Baudot et al.,                      M. Mirnova et al.,
    Iraklis Kremastiotis et al.,     https://doi.org/10.1016/j.ni
                                                                         10.1088/1748-0221/14/06/C06006              https://indico.cern.ch/event/810687/contribu   DOI: 10.1016/j.nima.2019.163381
   DOI: 10.22323/1.370.0039                ma.2020.164461
                                                                                                                     tions/3451974/attachments/1876738/31142
                                                                                   H. Pernegger et al.,              28/CMOSsensorStrasbourg_Baudot_VXDUpgr
                                                                    DOI:https://doi.org/10.1016/j.nima.2020.164381                ade_2019-07-09.pdf

            ~ Only a few example references are given, great effort in design and characterization from many groups ~
                                                                                                                                                                                             p. 31
Pushing further to the sub-nanosecond range
General question = what is the scalability and perspective of these concepts?:
• Are these improvements for a specific process technology or concepts of general
  relevance?
• Do we still need these modifications at small pixel pitch?

EU funded ATTRACT FASTpix project, W. Snoeys et al.:
• Combine small capacitance with ultra-fast charge collection in monolithic small
  pixel design
à Optimize sensor for sub-nanosecond charge collection

                                                      From: https://www.thecoachingdocs.com/blog/2019/2/25/why-pushing-a-rock-up-a-hill-is-actually-good-for-yousometimes
                                                                                                                                                                            p. 32
Trade-off between capacitance and lateral field
                                                                                                                    P-well

                                                                                                                                 Collection electrode

                 Spacing = distance between collection electrode and p-well

Lateral field and depletion:               Capacitance vs. p-well voltage:    Current pulse for particle incident at corner:
                                                                                                                 Spacing = 6μm
                                                           Spacing = 6μm
                                                                                                                 Spacing = 5μm
                                                           Spacing = 5μm                                         Spacing = 4μm
                                                           Spacing = 4μm

  à Trade-off between lateral field (speed of charge collection) and capacitance (noise, threshold)
  à Note also large performance variations for only small change (1 μm different spacing) à complex optimization
                                                                                                                                                p. 33
Resolving trade-off between fast charge collection
and capacitance                                                 Lateral field (color scale):
                                                                Standard opening:

P-well fingers, top view on pixel cell:

                                             Deep n-implant

                                             Deep p-well
                                                                P-well fingers:
                                             Collection
                                             electrode

                                                                                    Pitch = 36.6 μm

à Depletion around collection electrode and small (~femto-Farad) capacitance maintained
à Impact on lateral field (charge collection) small since deep p-well is only extended in small ‘fingers’
                                                                                                            p. 34
Hexagonal pixels - minimizing the edge regions
Simulated hexagonal unit cell –                                            Comparison hexagonal to square pixel cell
electrostatic potential:                                                   charge vs. time for particle incident at pixel corner:

                                                      m
                                                1   5μ
                                         c   h=
                                     Pit

à Hexagonal design reduces the number of neighbors and charge sharing à higher efficiency
à Hexagonal design minimizes the edge regions à faster charge collection
                                                                                                                                    p.
                                                                                                                                    p. 17
                                                                                                                                       35
Summary of sensor optimization for FASTpix
                                                                                      T. Kugathasan et al., https://doi.org/10.1016/j.nima.2020.164461
             Summary of main optimized parameters:
             Pitch                        à hexagonal design
             Opening of p-wells           à retracted deep p-well, ‘p-well fingers’
             Collection electrode size à trade-off between capacitance and lateral field
             Deep n-implant dose          à trade-off between capacitance and radiation hardness
             Depth of deep n-implant à trade-off between contact to collection electrode and optimized field configuration

                                                        Example of complex 3D TCAD                       3D TCAD current pulse for particle incident at pixel corner:
                                                        structure:

Example pixel layout:
Collection                                 Collection
electrode                                  electrode

                     Deep n-implant

                        Epitaxial layer

                                                                                                                                                              p. 36
ATTRACT FASTpix - sub-nanosecond charge collection in
CMOS pixel sensors                                                          T. Kugathasan et al., https://doi.org/10.1016/j.nima.2020.164461

FASTpix chip layout:   Pixel matrix layout on hexagonal grid:                                                         ZOOM:

                       4 analogue channels             64 (4 x 16) digital channels

                        Design of 32 hexagonal sub-matrixes:
                        • Combination of gap and p-implant, retracted deep p-well, p-well fingers,…

                                                                                                                                               p. 37
FASTpix results for charge collection  times
                                             Rise-time from Sr-90
         Rise-time from Sr-90 exposition
        Rise time distribution measured in
     20%-80%    rise-time                                     20%-80%
                                                      Rise time distributionrise-time
                                                                             measured with                          Rise20%-80%       rise-time
                                                                                                                         time distribution measured with
        test-beam, ALICE Investigator                                                                                   “modified     process”   (deep n-layer)
     “modified
        standardprocess”
                 & modified(deep
                              process:n-layer)                “standard     process”
                                                      source, FASTpix standard process:                             source, FASTpix re-optimised process:

                       -4V/-4V pwell/backside                                  -4V/-4V pwell/backside                                    -4V/-4V pwell/backside
                       10 x 10 μm2 matrix                                      10 x 10 μm2 matrix                                        10 x 10 μm2 matrix
                    CERN-THESIS-2018-202                                                     Pitch = 10 μm                                         Pitch = 10 μm

                         Pitch = 28 μm                                                   ~ E. Buschmann ~                                          ~ E. Buschmann ~

     • Narrow rise-time distribution for modified process                                                              • Narrow rise-time distribution for modified pro
     • Rise time fluctuations
       Significantly                                  Rise time fluctuations
                     wider distribution for standard process,                                                          • Significantly wider distribution for standard p
           in the order
       as expected          of uniform E-field
                     from less                             in the order of                                              Rise time fluctuations in the
                                                                                                                          as expected from less uniform E-field
       tens of
     à Direct   nanoseconds
              sensitivity to charge-collection time for the different
                                                        a few         process variants
                                                                nanoseconds                                                sub-nanosecond
                                                                                                                       à Direct                 range
                                                                                                                                sensitivity to charge-collection  time fo

November 4, 2020                                 ATTRACT FASTpix                                             16
                                                                                                                  November 4, 2020                                    ATTRACT FAS

           à Sensor process optimization improve performance significantly, even at very small pixel pitch of 10 μm
                                                                                                                                                                        p. 38
Outlook to 65nm development
                                                                                                               ~ M. Campbell, W. Snoeys, G. Aglieri Rinella ~

                                                                                                                ~ ALICE collaboration~
                                                                                                                ~ CERN EP R&D~

•   IPHC: rolling shutter larger matrices
•   DESY: pixel test structure (using charge amplifier with Krummenacher feedback)
•   RAL: LVDS/CML receiver/driver
•   NIKHEF: bandgap, T-sensor, VCO                                                                 ~ Significant contribution from different groups ~
•   CPPM: ring-oscillators
•   Yonsei: amplifier structures
•   CERN: Transistor test structures, analog pixel (4x4 matrix) test matrices in several versions (in collaboration with IPHC
    with special amplifier), digital pixel test matrix (DPTS) (32x32), pad structure for assembly testing                                             p. 39
Outlook to 65nm development
                                                                                                                                                                                   ~ J. Hasenbichler ~
                                                                                                                                                       ITS3 20um pitch - Efficiency
            A ‘pancake-like’ sensor:                                                                                                   Efficiency vs. sensor threshold from TCAD + MC(Garfield++):

                                                                                                                Efficiency [%]
                                                                                                                                 100

                                                                                                                            %
            • Thinner epitaxial layer                                                                                            98

            à Increased ratio of pitch/thickness
                                                                                                                                 96

                              p-well
                                                                                                                                 94
thickness

                                             collection
                                             electrode

                             substrate                                                                                           92

                              pitch
                                                                                                                                 90            standard
            • No depletion and field between p-wells                                                                             88
                                                                                                                                               modified

              and substrate without optimization                                                                                               gap

            • Lots of diffusion and charge sharing        https://www.thekitchn.com/how-to-make-single-serve-
                                                          pancakes-233533
                                                                                                                                 86
                                                                                                                                         60      80       100    120     140     160       180         200
                                                                                                                                                                                                 electron
                                                                                                                                                                          Sensor threshold [electrons]

              1. Process optimization improves performance in 65nm technology
              à Generic concepts, not specific to exact 180nm process technology
              2. Due to increased ratio of pitch/thickness, the sensor process optimization is more needed in the 65nm process
                                                                                                                                                                                                   p. 40
Summary
• Small collection electrode CMOS process has been optimized for fast charge collection:

    àCombination of monolithic + femto-Farad capacitance + fast charge collection opens window to many
     applications (future HEP experiments, medical and industrial applications)

• Generic optimization, applicable to different process technologies, improving various
  requirements simultaneously:
    • Efficiency before irradiation à sensor optimizations essential for the 65nm process
    • Radiation hardness
    • Time stamping capability

• Optimized designs have been implemented in many different prototype chips
    àProof of the concepts that have been developed in simulations

  ~ From charge collection times of tens of nanoseconds to well below one nanosecond ~
                                                                                                         p. 41
Acknowledgements
• To Walter Snoeys, with whom I have done the simulation based sensor
  optimization together, and Dominik Dannheim my direct supervisor, for
  being fantastic mentors over many years

• To Katharina Dort and Jan Hasenbichler for their hard work and great
  results

• To Simon Spannagel for the collaboration and Monte Carlo studies

• To the CLICdp, ALICE ITS, ATLAS ITk and STREAM collaborations
You can also read
