ETHERNET JOURNEY AT JAGUAR LAND ROVER CHALLENGES IN THE DEVELOPMENT OF AN ETHERNET BACKBONE Vector Automotive Ethernet Symposium 2017 Syreeta Bath - Technical Specialist – Vehicle Communication Networks Wednesday, May 3rd, 2017 Sachin Shinde - Senior Engineer – Vehicle Communication Networks
CONTENTS
• Our Business
• Ethernet Journey
• Backbone Enabled Architecture
− Challenges
• Next Generation Architecture
− Further Challenges
2
OUR BUSINESS
• 15 vehicle lines.
• 3 UK vehicle assembly plants, 1 engineering
and manufacturing centre and 2 UK design
and engineering sites.
• 40,000 people globally – headcount has
almost doubled over the last five years.
• Plants in China, India and Brazil.
• Employs over 10,000 engineers and
designers and actively recruiting
• Sales network in 137 countries.
• Jaguar Land Rover is the largest automotive
employer in the UK.
• 201 awards won in 2016
3
ETHERNET JOURNEY WHY ETHERNET • Next Generation Infotainment concept • Network to carry Control Data, Internet, Audio and Video • Unconstrained by the network • Decouple applications from the network • Embrace consumer technology • Emergence of BroadR-Reach • Joined Open Alliance as Promoter • Use cases for Ethernet across all vehicle domains
ETHERNET JOURNEY
2012 - 2015
• Start of Ethernet Pre development for
Infotainment
• Focus on 100 Base T1 Physical Layer
and Ethernet Protocols
2012 2015

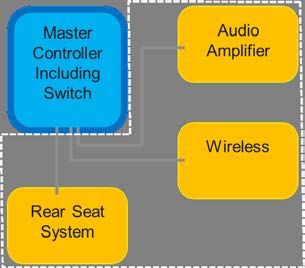

• Master controller with Broadcom
Polar Switch
• AVB 802.1 AS running in Switch
• BroadR-Reach links front to rear
• Any media any screen
In 2015 InControl TouchPro Infotainment system • Multiple HW and SW suppliers
launched to high acclaim! collaborating
5
ETHERNET JOURNEY
2015
• New electrical architecture Pre
development
2015
• FlexRay
• AutoSAR 4.x
• UTP solution for Ethernet 100Base-T1
• DoIP for Diagnostics & Software
Download
Many new technologies deployed in parallel!
6
ETHERNET JOURNEY
2017 AND BEYOND

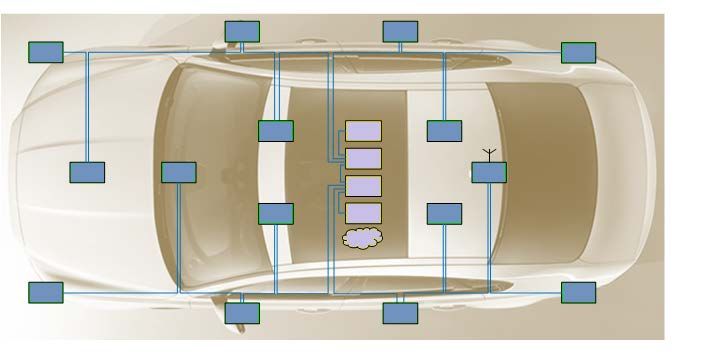

Ethernet Backbone
Capability
2017 20xx
Development of
Dynamic Network
7
BACKBONE ENABLED ARCHITECTURE
CHALLENGES
• Challenges faced when considering Ethernet Communication within the vehicle
− Protocols to use and how to configure
− Command and Control
− Audio & Video
− VLAN Implementation within a vehicle environment
− How to configure the switch for AVB and VLANs
− Bandwidth requirements and how to control
− Diagnostics
− DoIP between Ethernet nodes
− How to capture Ethernet traffic (Port Mirroring)
− Time synchronisation
8
BACKBONE ENABLED ARCHITECTURE
CHALLENGES
JLR worked on a project with Vector to demonstrate:
• Ethernet communication compatibility
between non Infotainment domain and
Infotainment domain
• Exchange information between classic
networks and Ethernet via a Gateway
• Prove out Ethernet functionality within
AutoSAR
• AutoSAR Ethernet Stack Configuration
and Toolchain capability
• Synchronisation of data between
networks
9
BACKBONE ENABLED ARCHITECTURE
CHALLENGES
• To utilise Ethernet capability when sending data between different network types
− Configuration of triggering of container PDU’s
− Rules for Ethernet to non Ethernet communication to ensure that trade off between
gateway loading and network bandwidth is considered
10BACKBONE ENABLED ARCHITECTURE
CHALLENGES
• Communication with existing non AutoSAR
SOME/IP nodes
− Limited set of SOME/IP message types
supported in AutoSAR
− SOME/IP Configuration within ARXML
• Ethernet Start-up Timing
− Slower start-up times than seen on traditional
networks
− Configuration of switches at start-up
− Negotiation time between the nodes started
late
− No wake on LAN capability at time of
development 11BACKBONE ENABLED ARCHITECTURE
CHALLENGES
• Time synchronisation over Ethernet
using IEEE 802.1 AS
− Meeting pDelay requirement for AS
Standard
• Switch vs Host Controller
Timestamping
− Accuracy & Predictability
• Time synchronisation over CAN &
FlexRay are different domains using
one global clock each with its own
synchronisation period
• Switchover of the GrandMaster
− Not supported in AutoSAR
12BACKBONE ENABLED ARCHITECTURE
CHALLENGES
• Additional knowledge gained for configuring the switch
− VLAN Configuration – Static and runtime
− Traffic shapers and scheduler for bandwidth control
− Data Mirroring – Port based
• Switch Operating Modes
− Managed mode allows analysis and modification of special Ethernet packets e.g. PTP
− Managed mode more difficult to get working needs additional driver code/switch firmware
13BACKBONE ENABLED ARCHITECTURE
CHALLENGES
• Configuration within AutoSAR
− Configuration of Time Sync for all classic buses
− Mixed AutoSAR versions - configuration and generation of ARXML files
− Diagnostics configuration (DoIP, DHCP/AutoIP)
− Analysis of generated ARXML/FIBEX contents
• Test Tools
− Tools with FIBEX with Ethernet support minimal
− Difficult to perform manual simulation for Ethernet as compared to traditional networks
− FIBEX with AutoSAR concepts e.g. container PDU/SOMEIP
14NEXT GENERATION ARCHITECTURE
THE ROAD AHEAD

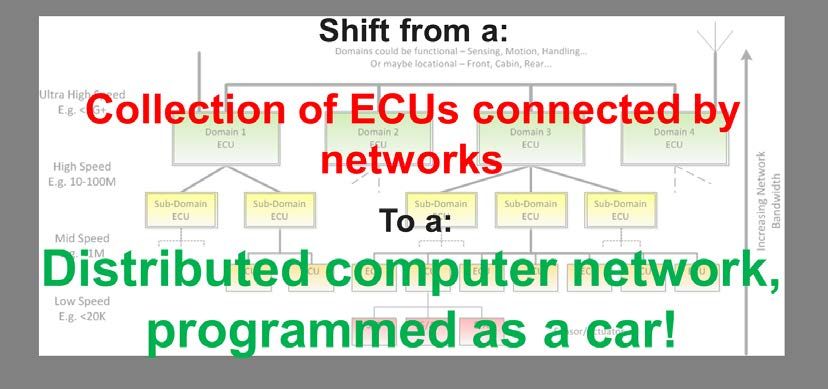

• Distributed Computer Network Programmed
as a Car
• Automotive Plug and Play requires a Service
Based Architecture
15NEXT GENERATION ARCHITECTURE
Distributed Network Programmed as a Car
• Consumer electronic gadgets have given high expectations where consumers are happy to
receive new features by a software update
• High number of static network configurations currently used imposes limitations on how new
features can be updated
− A more dynamic methodology needs to be adopted
− Complexity of features and functions are growing at a higher rate
Service Based Architecture
• Resolve the increasing vehicle variants
• Hardware & Software Re-use
• Support bandwidth increase
16NEXT GENERATION ARCHITECTURE
CHALLENGES
Shift from Static to Dynamic Network
• Collection of single busses, partly • Structured network with different speed
connected via gateways forwarding grades, access to any service from any
specific messages sub-network/bus
• Mainly sender centric transmission of • Every function represented as a service
data, only a few services offered to apps/services (in the same
• Moving of functions and ECUs process, computing platform, network, or
requires manual update of static in the cloud)
network configuration • Moving of functions and devices with
• Detailed design and configuration of automatic update of network configuration
each network variant required • Only network topology planning, all the
(complex variant handling and details shall be done automatically
software logistics)
17NEXT GENERATION ARCHITECTURE
DEMONSTRATIONS
• ConherenSE Middleware
• Automotive Plug and Play
• Described last year at the IEEE Automotive Ethernet and IP Tech Day
• Currently being demonstrated and analysed
• TSN in an SOA environment
• Currently being demonstrated and analysed
• Ultra low guaranteed latency
• Redundancy
• Network security solutions for SOA
• Currently being demonstrated and analysed
18NEXT GENERATION ARCHITECTURE
FURTHER CHALLENGES
• Distributed Computer Network Programmed as a Car
− Vehicle as a Device
• Solutions for video transfer
• Security of access to I/O
• Proving Dependability
Lots of work still to do, will not be a single step to end game, physics and availability of
technology will help decide!
19THANK YOU Syreeta Bath Jaguar Land Rover
Technical Specialist – Vehicle W/1/26 Abbey Road, Whitley
Communication Networks Coventry CV3 4LF, UK
Electrical, Electronic & Software jaguarlandrover.com
Engineering
Sachin Shinde
Senior Engineer – Vehicle
Communication Networks
Electrical, Electronic & Software
Engineering
