S É R I E C O N T E N T C R E A T I O N
Creator P100X 11th
CREATOR P100X 11TD-641FR
Create Splendid Moments
Le Creator P100X 11th est un allié de premier choix pour les
créateurs de contenu. Ses dimensions compactes peuvent
s'intégrer à n'importe quel espace de travail et ses puissants
composants répondent aux besoins des professionnels les
plus exigeants.
Selling Points
Creator P100X 11th
Windows 10 Famille - MSI recommande Windows 11
Professionnel pour les entreprises Mise à jour
GRATUITE vers Windows 11*
Processeur allant jusqu'à Intel® Core™ i9 de 11ème
génération
Carte graphique MSI GeForce® RTX de dernière
génération
Mémoire Dual Channel avec technologie DDR4 Boost
Connecteur Thunderbolt™ 4 pour des transferts de
données rapides et une utilisation polyvalente (selon
modèle)
Norme Wi-Fi 6E pour une connexion sans-fil plus
sécurisée et plus rapide
2 slots SSD M.2 PCI-e et 2 slots SATA 2.5"
Support de la résolution 5K2K
Qualité audio de niveau professionnel avec Audio Picture and logos
Boost
Upgrade facile des composants
Logiciels exclusifs MSI Center et Creator OSD
Volume de 10 ...

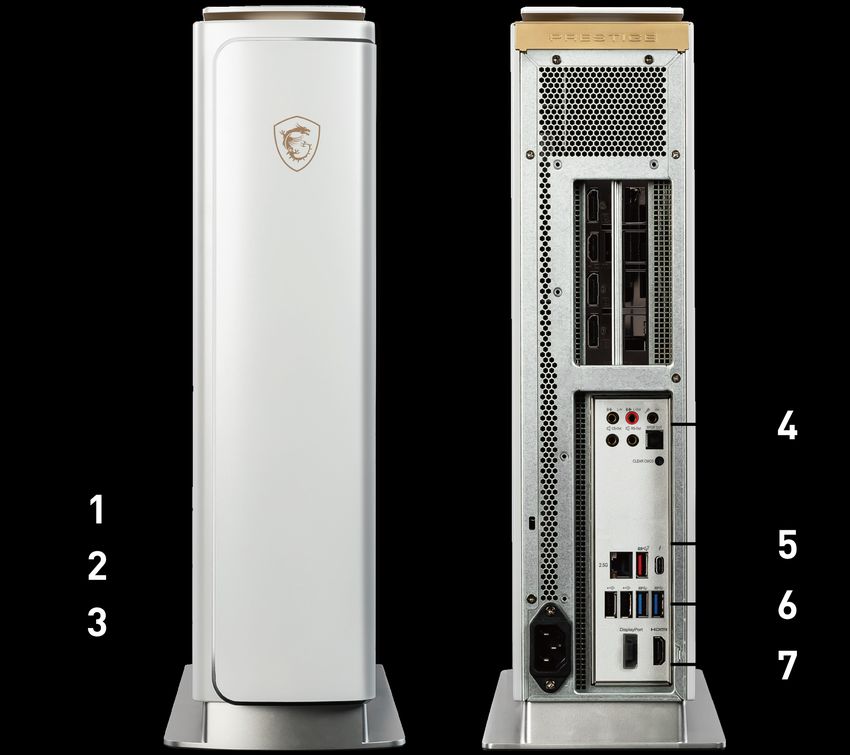

System I/O-Ports
1. 1x USB 3.2 Gen 1 Type C
2. 1x USB 3.2 Gen 1 Type A / 1x USB 2.0 Type A
3. 1x Microphone / 1x Headphone
4. 1x Line-in / 1x Line-out / 1x Mic-in / 1x CS-out / 1x RS-
out / 1x SPDIF out
5. 1x RJ45 (2.5G LAN) / 1x USB 3.2 Gen 2 Type A / 1x
Thunderbolt™3 USB Type C (USB 3.2 Gen 2/DP) with
PD charging
6. 2x USB 2.0 Type A / 2x USB 3.2 Gen 1 Type A
7. 1x DP out (1.2) / 1x HDMI out (1.4)
“2022-09-06 - Changes to the product specifications and errors excepted. The product presentation may differ from the product. Microsoft, Windows, the Windows logo, and DirectX are trademarks or registered trademarks of Microsoft Corporation in the
United States and / or other countries. Intel, the Intel logo, Intel Inside, the Intel Inside logo, Intel Core and Core Inside are trademarks of Intel Corporation in the US and other countries. Other trademarks and trade names refer to the respective owners or
their products.”
S É R I E C O N T E N T C R E A T I O N
Creator P100X 11th
CREATOR P100X 11TD-641FR
Specification
Windows 10 Pro
Operating Systems Windows
Mise à niveau GRATUITE vers Windows 11*
CPU model Intel Core i7-11700K
CPU Clock 3.6GHz
CPU Cores 8
Processor CPU TDP 125W
CPU Cache 16 MB Intel® Smart Cache
CPU Threads 16
CPU Cooling Air cooling
Chipset Motherboard Chipset Z590
VGA I/O Port HDMIx1, Display Portx3
Discrete Graphics Graphics Card GeForce RTX 3070 VENTUS 2X 8G LHR
Graphics Card VRAM 8G
Memory Capacity 32GB(32GB*1)
Memory Type DDR4 SDRAM
Memory Speed 1600(3200)MHz
Memory
Memory Module Form Factor U-DIMM
Memory Slot (Total/Free) 2/1
Memory Max Capacity Max 64GB
Total SSD Storage Capacity 1TB
Total HDD Storage Capacity 2TB*1
M.2 Slot (1) Installed SSD 1TB*1
M.2 Slot (1) Interface PCIe GEN4x4 NVMe
M.2 Slot (1) Form Factor M.2-2280 M-KEY
M.2 slots (Total/Free) 2/1
HDD (1) RPM 5400RPM
Storage
HDD (1) Form Factor 2.5 inch 7mm
HDD (1) Interface SATA GEN3
3.5" Drive Bays (Total/Free) 0/
2.5" Drive Bays (Total/Free) 2/1
ODD(Type) N/A
ODD Height N/A
ODD Type N/A
LAN Controller Intel I225-V
Wireless LAN Controller INTEL/AX210.NGWG.NV
Communications
Wireless LAN standard 802.11a/b/g/n/ac/ax 2x2+BT
Bluetooth Version 5.2
Audio Codec Realtek ALC1220P
Audio
Audio Support 7.1 Channel HD Audio
Thunderbolt N/A
USB 480Mbps (USB 2.0) 1
USB 5Gbps (USB 3.2 Gen 1 Type-A) 1
I/O Ports (Front)
USB 5Gbps (USB 3.2 Gen 1 Type-C) 1
Audio Mic-In (Front) 1
Audio-Out (Front) 1
USB 10Gbps (USB 3.2 Gen 2 Type-A) 2
USB 5Gbps (USB 3.2 Gen 1 Type-A) 2
USB 480Mbps (USB 2.0 Type A) 2
Thunderbolt Optional
LAN Ports (RJ45) 1
I/O Ports (Rear) WiFi Antenna 2
HDMI™ 1x (v2.0b)
DP out 1x (v1.4a)
Thunderbolt mini DisplayPort-in 2x (for Thunderbolt passthrough)
Audio Jack Total (Rear) 3
Flash BIOS Button 1
Rated Wattage 750W
Efficiency Rating 80PLUSE GLOD
Power
Form factor SFX
Power Supply Type POWER SUPPLY
“2022-09-06 - Changes to the product specifications and errors excepted. The product presentation may differ from the product. Microsoft, Windows, the Windows logo, and DirectX are trademarks or registered trademarks of Microsoft Corporation in the
United States and / or other countries. Intel, the Intel logo, Intel Inside, the Intel Inside logo, Intel Core and Core Inside are trademarks of Intel Corporation in the US and other countries. Other trademarks and trade names refer to the respective owners or
their products.”
S É R I E C O N T E N T C R E A T I O N
Creator P100X 11th
CREATOR P100X 11TD-641FR
Keyboard Interface N/A
Mouse Interface N/A
Power Cord 1
AC Adaptor N/A
Warranty Card 1
In The Box
Quick Guide 4
User Manual N/A
VESA Mount kit N/A
Keyboard N/A
Mouse N/A
Storage Operating Temperature Range 0° C ~ 35° C ; -20° C ~ 60° C
Storage Operating Humidity Range 0% ~ 85%;0% ~ 90%
FCC(Class B)
Regulatory Compliance CB/CE
UL(CUL)
Certifications
BSMI
VCCI
RCM(C-Tick)
Product Dimensions (WxDxH) (mm) 131.85 x 372.2 x 408.88
Product Dimensions (WxDxH) (inch) 5.19 x 14.65 x 16.1
Inside Carton Dimensions (WxDxH) (mm) 532 x 230 x 501
Inside Carton Dimensions (WxDxH) (inch) 20.94 x 9.06 x 19.72
Outer Carton Dimensions Standard (WxDxH)
N/A
Dimension & Weight (mm)
Outer Carton Dimensions Standard (WxDxH)
N/A
(inch)
Weight (Net kg) 8.35
Weight (Gross kg) 10.2
Product Volume (Liters) 10.36
Warranty Warranty 24months
Barcode Info EAN 4719072817558
