ROBOTICA
.Nav;eam TM Stomach Capsule
u��[E oo�(Q)�(Q)[L □□
The First Robotic Controlled Capsule
MB-NCES-ST-02, v0
New Non-Invasive Method for
Complete Visualization of the Stomach
Non- invas ive , Por ce du er time
no se dation 15 m inute s
® Single -use E as y op e r ation ¼
�r{r
Di rect andcont rolle d visu al ization
� of g ast r ic p ylo u
r s, angulus, Hig h qu al ity im ag ing [EJ
ant ur m, body, fundus, andc a rdi a

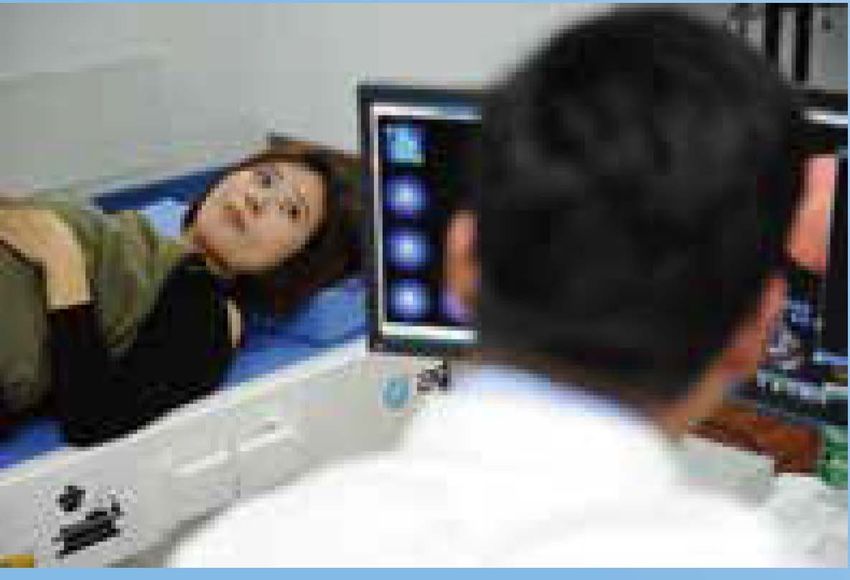

�NaviCamTM Stomach Capsule Endoscopy Procedure �
2
(Prep are with Po tr able Data R eco rde r) ln...._ge_ s_t _C__,ap'--s_ul_e ___)
(____
(___E_x_a_m_in_e _R_e _al_ T_ im_e __) (___R_ e_ a_d,_ l_nt_e _pr _ re_t,_ R_ e_p _o _rt__)
MB-NCES-ST-02, v0
Revolutionizing Capsule Endoscopy
Traditional capsule endoscopy is propelled by natural motility of the digestive tract, while the
stomach is also affected by gravity. Until now, this limitation has prevented complete
visualization of the gastric cavity. The NaviCam TM Stomach Capsule can be guided real-time in
5 dimensions, 2 rotational and 3 translational, by the physician or technician sitting at the
control console.
NaviCam™ has been demonstrated in
a multi-center blinded study comparing
Stomach Capsule with conventional
gastroscopy in 350 patients from Aug
2014 to Dec 2014.
Real time positioning with magnetic and RF sensor array
Human-machine interaction, 5-dimensional with remote control
The NaviCam TM Stomach Capsule visualized focal
lesions in the upper and lower stomach with
comparable accuracy to conventional gastroscopy
and is safe and preferred by almost all patients.
Zhuan Liao, Xi Hou, En-Qiang Ling-Hu, et al.
Accuracy of Magnetically Controlled Capsule Endoscopy, Compared
with Conventional Gastroscopy, in Detection of Gastric Diseases.
{Clinical Gastroenterology and Hepatology, the official clinical practice
journal of the American Gastroenterological Association.)
�Take "Control" with the NaviCam™ Stomach Capsule�
N av1·c am TM 1s
·
...
• Guided in 5 dimensions, 2 rotational and 3 translational
• Guided by medical practitioner seated at the control console
11nx
D""""'
dwcandingpat
MB-NCES-ST-02, v0
(�!�-��)) Take "Control" with NaviCam™
Precise Control at 5 mm Accuracy
� Capsule Position and Direction Control )>---------------•
Three-dimension translational and two-dimension rotational control to
guide precise movement of capsule inside stomach
Operator can guide the motion of the capsule to control up, down, forward,
backward, left, right, tilt, rotate, and jump
C [ - �
Horizontal rotation >»> z
Joystick
Reset button to quickly move the capsule back to original position for examination
of next gastric landmark
Capsule Up Capsule Down Capsule in horizontal position
MB-NCES-ST-02, v0
Real-Time Imaging and Reading
-1·
- -

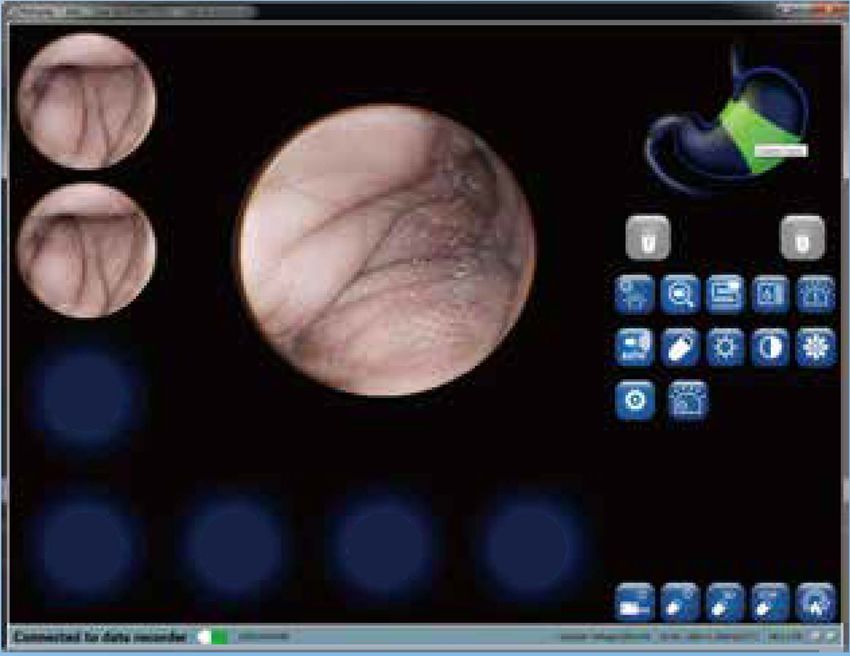

Simple, intuitive review screen
Easily capture images by pressing right joystick
button during live review
MB-NCES-ST-02, v0
Intelligent Aids
(Automatic Exposure ControlJ,_________________---.
Depending on the target area, the NaviCamTM Stomach Capsule enables automatic exposure
control to ensure that images are clear and bright to maximize resolution for the reader.
Under exposure
...._____>
Automatically compensated Compensated

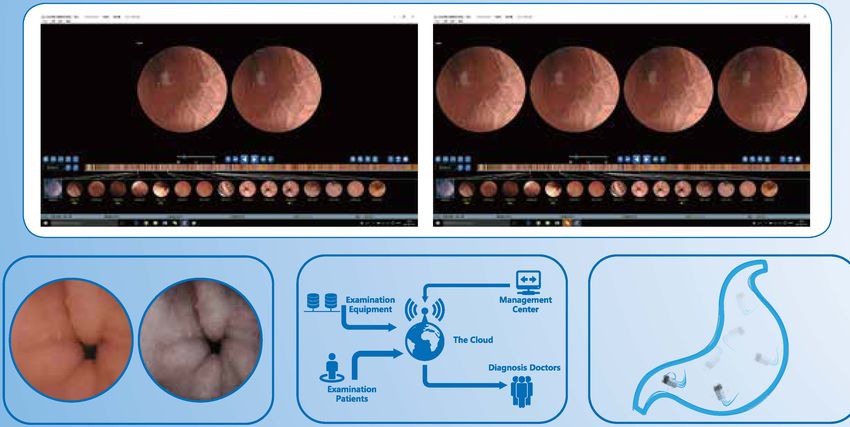

Intelligent picture browsing functions greatly improve the efficiency of reading. ESNavi™
software enables chroma functionality or focusing only on suspected areas on interest.
Realization of Intelligent (Remote Reading Function) ( Automatic Navigation )
Chroma Capsule Image
( Detecting Capsule Position
)f--------------•
Magnetic sensor detects capsule position
without need for X-ray.
MB-NCES-ST-02, v0
Technical Parameters
( Magnetic Controller )>-----------------
Real time positioning with magnetic and RF sensor array.
5-dimensional control
Maximum function distance 30cm Maximum noise S65dB (A)
Working temperature 0- 40 ·c Safety category I-B Continuous
Maximum weight load 135KG

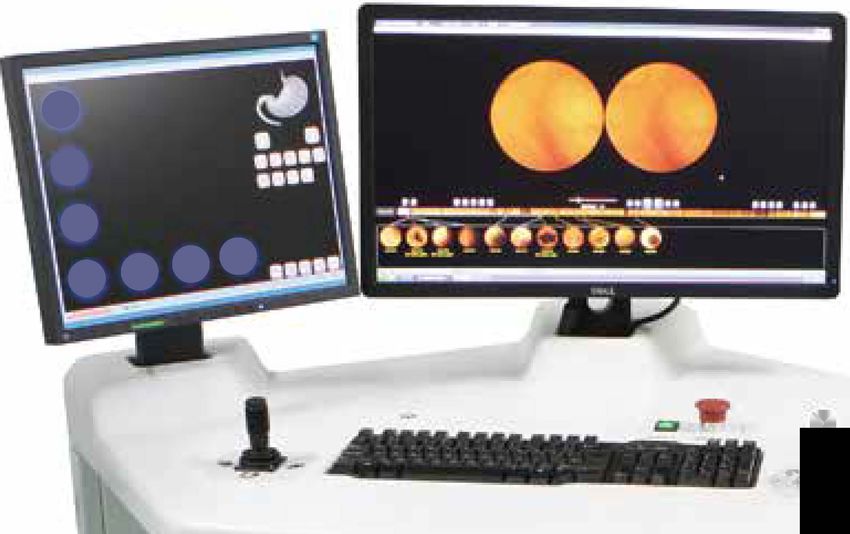

Eizo medical grade image monitor
Display
Dell large screen operation monitor
Model Depth (mm) Width (mm) Height (mm)
Work station 1190±20 840±20 790±20
Rotational station 2140±20 1850±20 1930±20
Minimum installation space I 3m*4m*1.9m
( Portable Data Recorder )1-------------------
Adjustable and comfortable for different body shapes and sizes
Working time �10h Storage 4GB microSD
Charging time 2-4h USB interface USB2.0
Working 0-40C Total weight 1.7kg
temperature
Power Rechargeable lithium battery
Gocator ] ,_______________________.,
Radiation free magnetic sensor detector
Detection distance :s;150mm Total weight 175g
Charging time 2-4h Working temperature 5-40 ·c
Power Rechargeable lithium battery

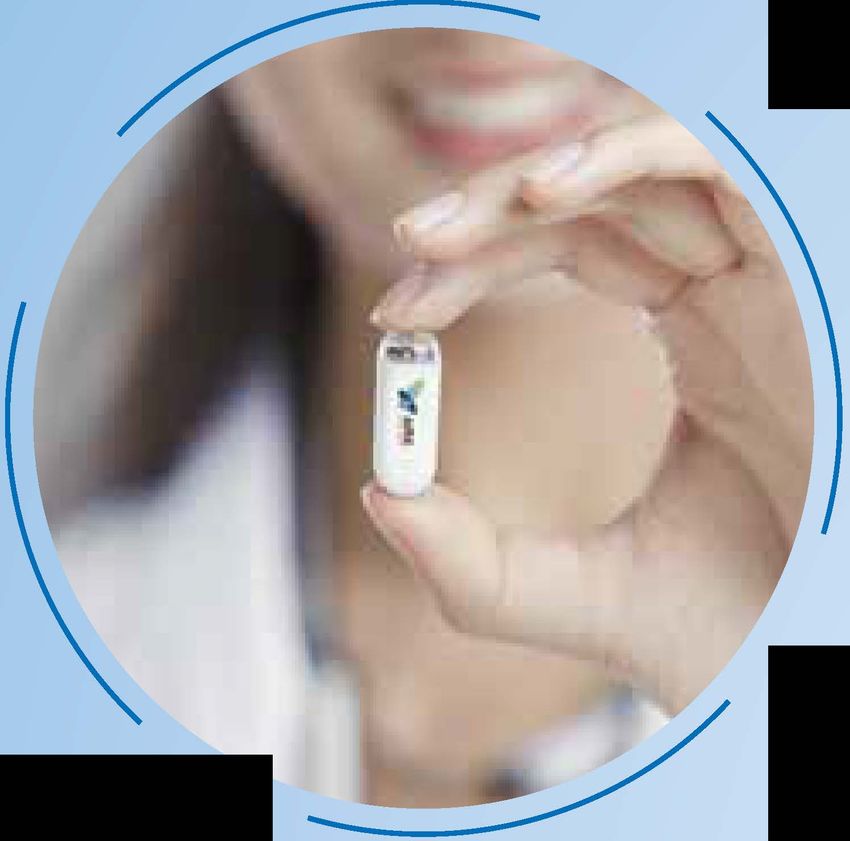

( Ingestible Capsule Endoscope )>--------------------.
//'\
Unique design with magnet and position sensor
ir- l
27mm -----
Size 11.8*27mm FOV 140 °
I � �
View depth 0-30mm Line resolution 6 Ip/mm 1�0 ��e Anx
cl� 3
3
\,',,,-;
Illumination LED Magnification 8 I
Picture Working time
resolution 480x480 >8 hrs
MB-NCES-ST-02, v0
