Inflations, deflations and slip on the faults
Inflations, deflations and slip on the faults
Salvatore Consoli, INGV-OE (salvatore.consoli@ingv.it)
Francesco Carnemolla, Università di Catania (francesco.carnemolla@unict.it)
Shan Gremion, ENS Lyon (shan.gremion@ens-lyon.fr)
Pierre Briole, ENS Paris & INGV-OE (pierre.briole@ens.fr)
& un certo Daniele
Inflations, deflations and slip on the faults
Salve, my name is Daniele. I am from Etna.
        I trust in Etna! I trust also in InsegnaciEtna!
                     Welcome to Sicily!
                 I will speak Italian. Sorry!
I hope that you will enjoy and want to learn Italian with me!
                      E ora, andiamo!
Inflations, deflations and slip on the faults
GPS measures precisely the deformations of Etna
Data transmitted in real time and                  Maintenance made by several
processed at the INGV-OE in Catania.           technicians using dedicated equipment.

Winter maintenance at the Cratere del Piano
GPS station.
          Tre ore di salita, poi                 10 km
          chissa quante ore di

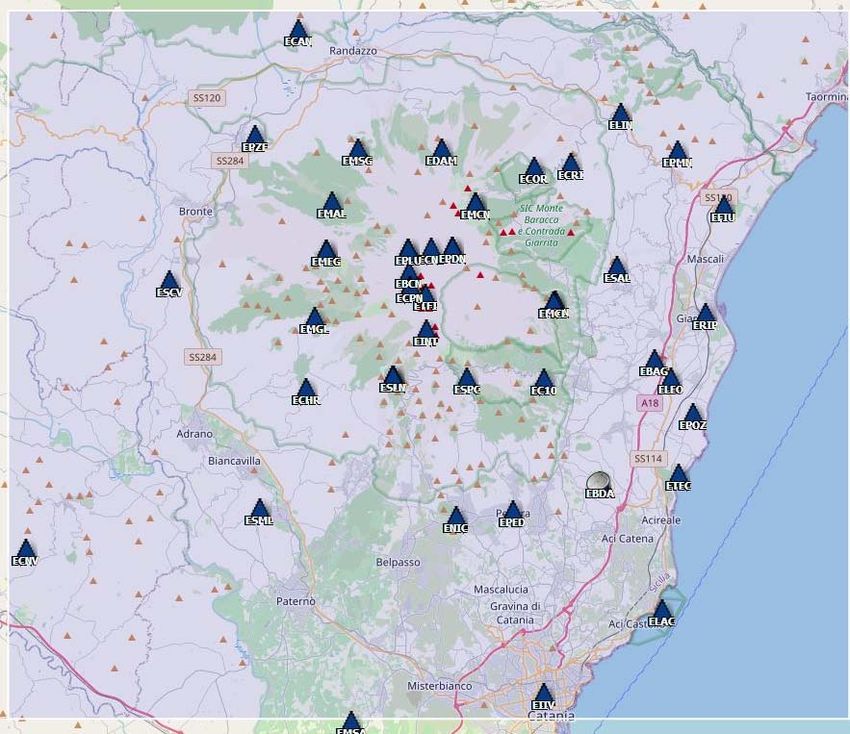

          lavoro…, e infine                   More than 40 permanent GPS stations
          mezz’ora di sciata felice
                                      Accuracy = 1 to 2 centimeters in real time
Inflations, deflations and slip on the faults

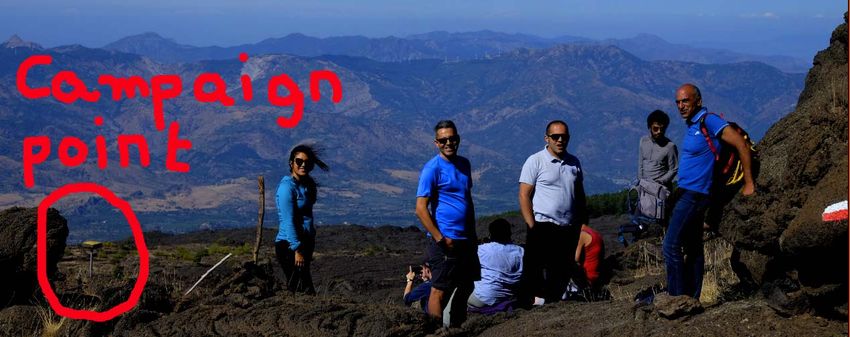

Campaign GPS measurements
During eruptions and after
earthquakes, GPS measurements
are made at additional (not
permanent) points.
This increases of density of GPS
points is needed to characterize
properly the deformations and
interpret them.
                                             Grid with the programming of a GPS campaign.

          Non c'è puzza di
          muffa da queste parti

      GPS measurement near Grotta dei Lamponi in July 2019
                                                                  Campaign measurement
                                                                  in June 2020
Inflations, deflations and slip on the faults

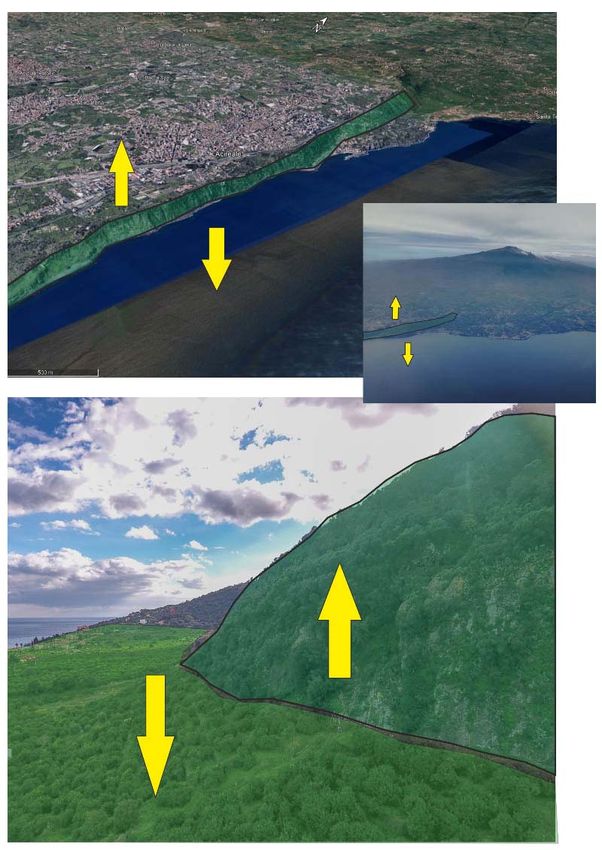

Caspita, guarda che tra       What is a fault?
cent’anni questa strada si
butta nella sciara!                              Timpa of Acireale

                       2002

 Pernicana Fault

                      2006
Inflations, deflations and slip on the faults

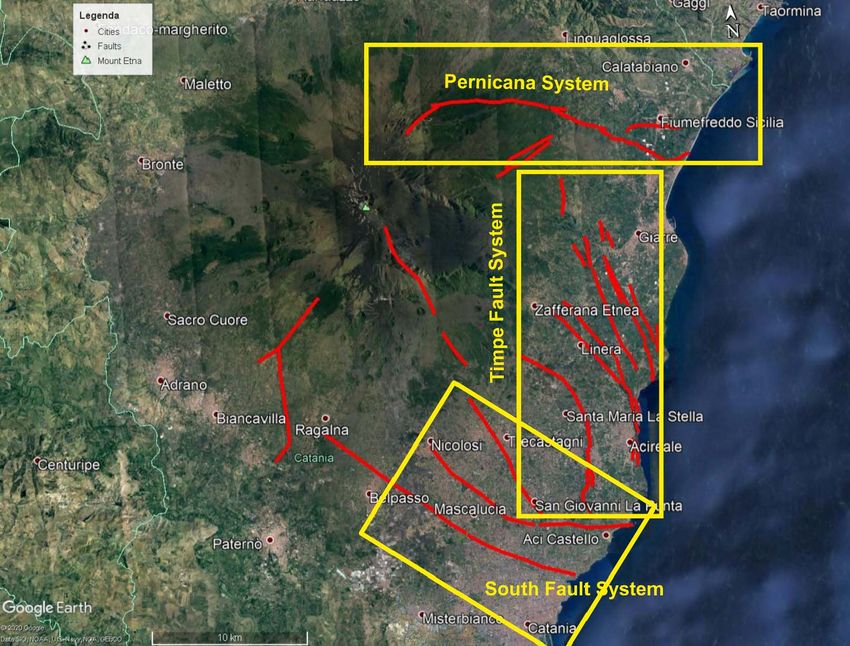

Where are the faults?

comu diceva u
vìecchiu Padron
‘Ntoni       Mamma   mia, troppe faglie!
         Ciccio, sono tutte uguali,
         oppure quelle grandi fanno
         da grandi, e quelle piccole da
         piccole?
Inflations, deflations and slip on the faults
Faults on Etna

    Seismic faults                                                     Aseismic faults

                                         Chissà se esistono
                                                faglie
                                          alternativamente
                                       sismiche e asismiche?

             Instant Movement
                                                                        Slow Movement

Seismogram of the earthquake of                                Time series of the GPS station ELAC
December 2018 at the seismic station
ESVD                                                                        drawings from Pierre Bichet
Inflations, deflations and slip on the faults
The seismic fault of December 2018

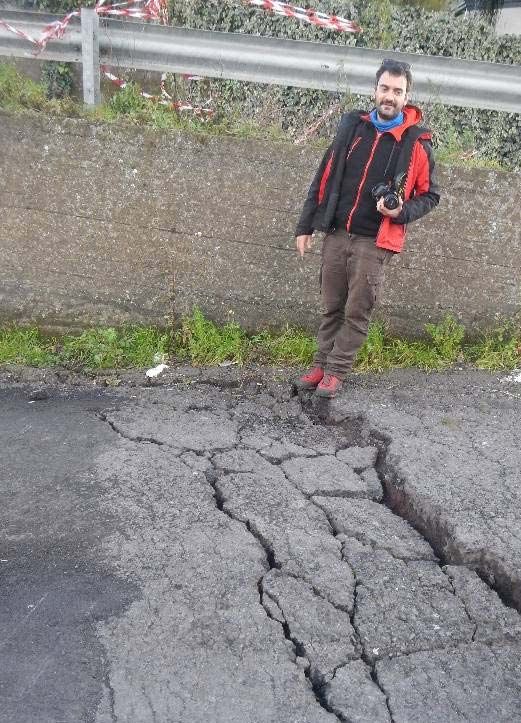

                                                     The village of Fleri after the
                                                     December 2018 earthquake

        Ciccio, stai attento di non
        cadere nella faglia perché
        mi sa che arrivi dritto al
        centro del vulcano!                   East         North         Vertical
                                      Abrupt motion at the EBDA GPS station in
                                                               december 2018
Inflations, deflations and slip on the faults
The aseismic fault of Aci Trezza
   La faglia è mobile, qual piuma al vento, ...

                      Tremestieri

                                                  East   North   Vertical

                        Aseismic cracks along
                        the Aci Trezza – San
                        Gregorio fault zone

  San Gregorio
Inflations, deflations and slip on the faults
Vertical movement of the GPS stations

                                  Meters
                                                    steady   inflation

Interessante pero, attenzione,             Twenty years
i salti di ESLN (il verde) sono
dovuti a cambiamenti
dell’antenna GPS
Horizontal movement of the GPS stations
             East component                                  North component
   Meters

                           steady   inflation                         steady    inflation

Increasing position towards East                Increasing position towards South
EINT break of position during 2018 eruption     EINT break of position during 2018 eruption
ESLN break of position during 2018 eruption     ESLN break of position during 2018 eruption
              tanta roba
Horizontal velocities of the GPS stations
                         2000 – 2020 DEFORMATION PATTERNS

                                       Mainly towards East
                         2000 ‐ 2008   flank of Etna
                                       Secular flank collapse

                                     Mainly towards East
                                     flank of Etna
                         2009 ‐ 2015
                                     Steady velocities

                                     Change of orientation
                                     Radial inflation
                         2016 ‐ 2018
                                     Increasing velocities

 Insomma, gira come la                  High velocities close
 banderuola secondo da   2019 ‐ 2020    to summit
 dove tira il vento                     Radial inflation
                                        Increasing velocities
Vertical velocities of the GPS stations
                                             NB: smaller amplitude than
                                             horizontal velocities

Citius!
Altius!
Fortius!

       2000 ‐ 2008        2009 ‐ 2015          2016 ‐ 2018        2019 ‐ 2020

           Deflation                          Gradual inflation
                                        Higher velocities close to summit

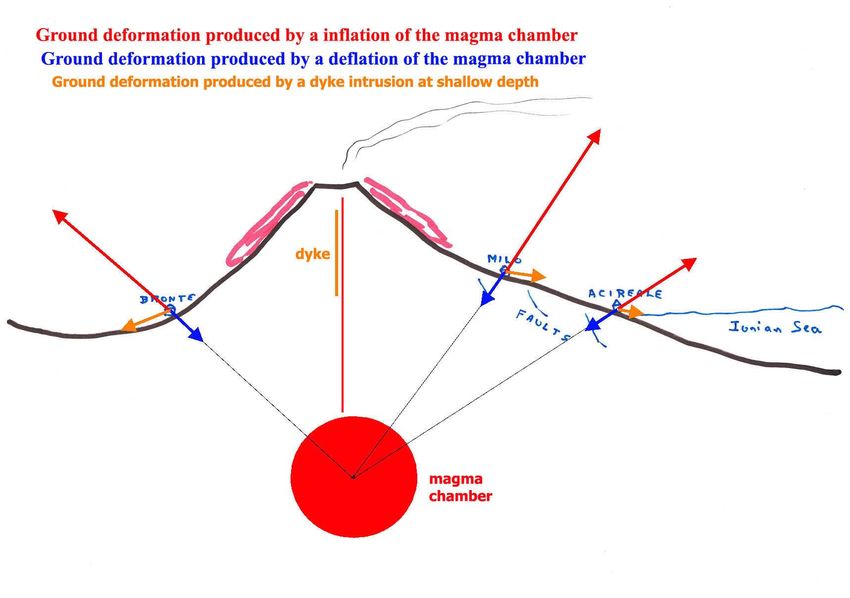

The questions:
- Where is my magma ?          The reality
- What is the volume change?

        Cosa sta
        combinando
        questa volta?
The model !

Boh, cosi simplice
il modello, io non
ci credo!
Oui, Ciccio, et leur longueur
      Guarda Shan, i vettori
                                       diminue quand la distance
      sono allineati verso il centro
                                                augmente!
      della camera magmatica!
                                                        encore heureux!
bah, Newton non sarebbe stato
meravigliato!

           Carino questo
           modello, pero!
dU = dUmax cos³θ
                               dUmax                                  dV ~ 4 P2 dUmax
         U/R = dU/dR

                                            dU

                                                  dR

                               P

To be constrained
                                                 R = horizontal distance source – station
    the model
    requires a      U          θ                 H = vertical difference source – station
sufficient number                                dR = horizontal displacement
 of observations           R                     dH = vertical displacement
                                                 Θ = angle

             E ora, ciascuno                     dUmax = maximum vertical change (on top of
                                                 the magma chamber)
             dice la sua!
                                                 P = depth of the reservoir
                                                 dV = volume change
Tomorrow GPS in the schools of InsegnaciEtna ?

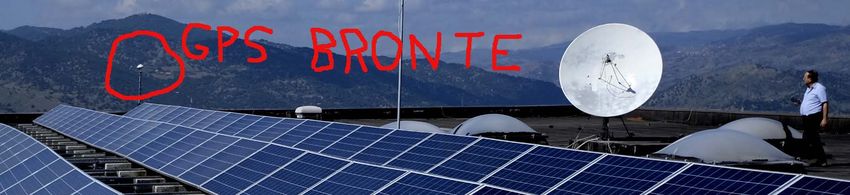

There is already one at the IISS Benedetto Radice, Bronte (here with Ugo Modica on the roof last year)!
Low cost GPS instruments could be                                           The Geocube light GPS
installed in several school. This might be                                  experimented in 2017
interesting for the students and their
teachers and would make the GPS
monitoring network of Etna denser.
There are different technologies available.

 Yes we can!      Allora, se credi che
                  tua scuola vorebbe
                  ospitarne uno, parla
                  con Salvo e Ciccio Simple and light mobile GPS
                                       system developed by INGV-OE
E tutto per oggi, ciao a tutti!
Ci vediamo sull’Etna (quello
vero!) l’anno prossimo, per
    InsegnaciEtna2021!
