EMERGENCY SHOWERS AND EYEWASH
     EXPLANATION OF STANDARDS
     ANSI STANDARD ANSI Z358.1-2004
      ANSI Standard: ANSI Z358.1 – 2004 (Emergency Eye Wash & Shower Equipment)

      This standard serves as a Guide for the Proper Design, Performance and Installation of Emergency Equipment to Comply with OSHA
      Regulations. This Standard was most recently updated in 2004.

      The” Acorn” Range of Emergency Equipment is Manufactured to Comply with the requirements of ANSI Z358.1 the following Important
      features Must be followed when choosing and installing Emergency Equipment in accordance with the ANSI standards.

      Location: The Emergency Equipment should be installed not more than 10 seconds walking time from the location of the Hazard. The
      Equipment must be installed on the same level as the Hazard. (i.e. This should not require walking up or down stairs or ramps). The path of
      Travel from the Hazard to the Equipment should be free from Obstructions and as straight as possible.

      In some circumstances these guidelines may be inadequate. For example where particularly strong acids, Caustics or other materials where
      the consequences of a spill would be very dangerous Emergency equipment should be installed directly adjacent to the Hazard.

      Laboratory environments may also require special consideration should the Emergency equipment be installed in a Hallway or Corridor outside
      the laboratory room. This is common and while this may satisfy the Provisions of the standards it still does not provide worker with immediate
      access to Emergency equipment. In these cases dual purpose Eye wash drench hose units can be installed at labs sinks. These Units are
      highly accessible and versatile.

      Water Supply: The ANSI standard requires the availability of Large and continuous volumes of water. The water supply must be capable of
      delivering an uninterrupted flow minimum of at least 30PSI flow pressure. Piping should be at least as large as the inlet size of the unit to be
      installed.

      Water Temperature: The ANSI Standard requires that water being delivered by Emergency equipment be Tepid (Moderately warm or
      lukewarm) tepid water is defined as between 60 -100 degrees F. If it is possible that a chemical reaction may be accelerated by warm water
      a medical professional should be consulted to determine the optimum temperature.

      Water Disposal: The ANSI Standard does not include provisions for disposal of water. However consideration must be given to where the
      waste will go to ensure that a Hazard is not created.

      Identification & Signage: ANSI Z358.1 standard provides that Emergency units be easily identifiable with Highly Visible sign. Without
      suitable signage Emergency equipment can blend in and become part of the surroundings and become difficult to locate in an emergency.
      Signage used should comply with the provisions of ANSI Z535.1 through ANSI Z535.5. This requires White Background with green Lettering.
      Graphic and lettering must be of correct size and format. All Acorn Signage complies with the requirements.

90
Emergency showers and eye wash - NZ's Largest range of Safety Showers and Eyewashes

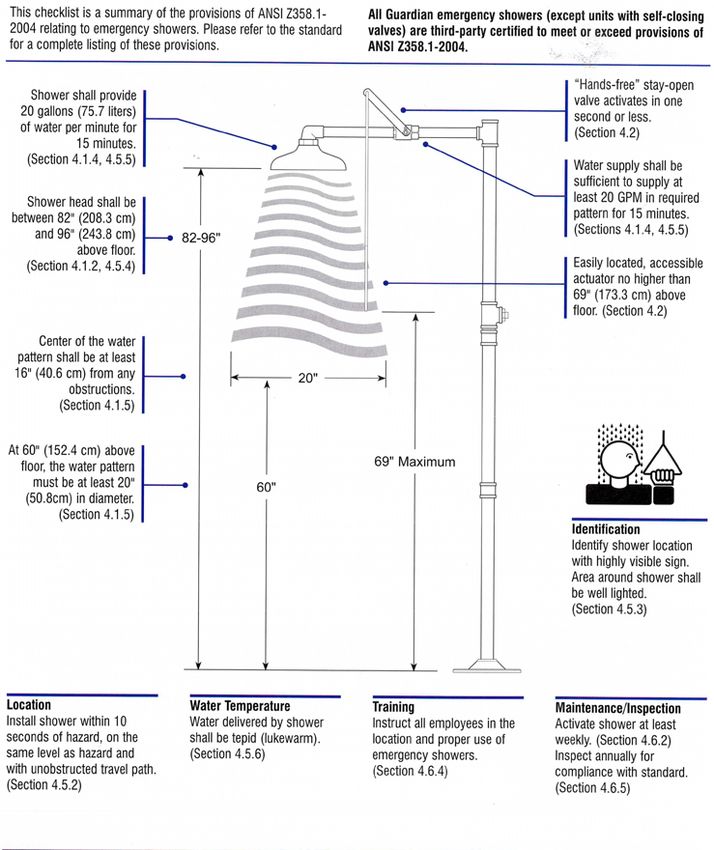

EMERGENCY SHOWERS: aNSI gUIDELINES
                       All Acorn emergency showers (except units with
                       self-closing valves) are third-party certified to meet
                       or exceed provisions of ANSI Z358.1-2004

                                                       www.bintec.co.nz         91
Emergency showers and eye wash - NZ's Largest range of Safety Showers and Eyewashes
EMERGENCY SHOWERS AND EYEWASH
     All emergency safety showers & eyewashes can be ordered in stainless if required. Lead time applies

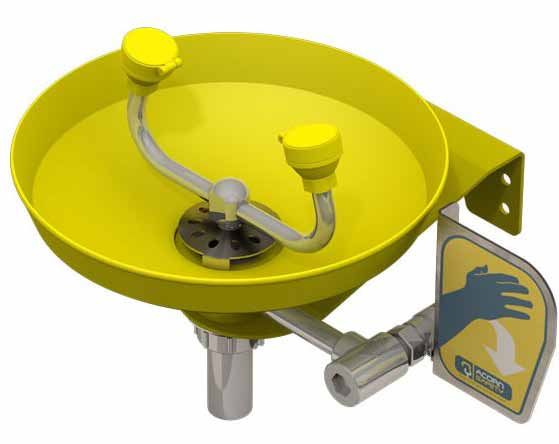

                                                                              Wall mounted Eyewash
                                                                              Code 33AC S0410
                                                                              • In line strainer and a stay open 1/2 ball valve
                                                                              • ABS plastic eye/face wash spray heads
                                                                              • Push handle
                                                                              • ANSI compliant 2358.1-2004
                                                                              • Water supply 1/2’’ NTP female threaded chrome plated brass inlet
                                                                              • Ex Stock

                                                                                                                                                   made in usa

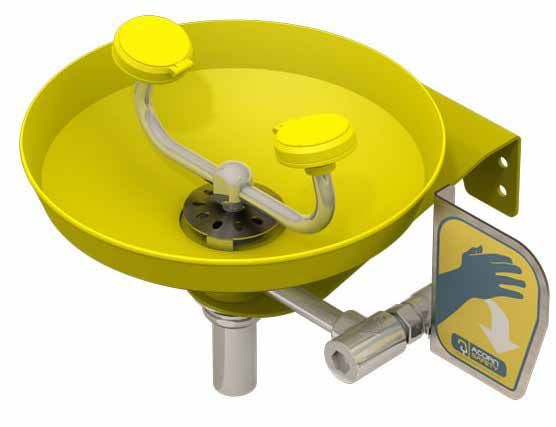

                                                                              Wall mounted Eye & facewash
                                                                               Code 33AC S0420
                                                                              • ABS plastic eye/facewash spray heads
                                                                              • In line strainer and a stay open 1/2 ball valve
                                                                              • Galvanized pipe with yellow powder coat finish
                                                                              • Push handle
                                                                              •  ANSI compliant 2358.1-2004
                                                                              • Water supply 1/2” Ntp female threaded chrome plated
                                                                                  brass inlet
                                                                              • Bench mounted also available on indent
                                                                              • Ex Stock

                                                                                                                                                   made in usa

92
Emergency showers and eye wash - NZ's Largest range of Safety Showers and Eyewashes
PEDESTAL MOUNTED eyewash
Code 33AC S0310
• ABS plastic eyewash spray heads
• In line strainer and a stay open 1/2 ball valve
• Galvanized pipe with yellow powder coat finish
• Push handle
• ANSI compliant 2358.1-2004
• Water supply 1/2’’ NTP female threaded
chrome plated brass inlet
• Ex Stock

Foot control
Code 33AC HFC
• Foot control to add to combination stations
• Ex Stock

                                                                               made in usa

PEDESTAL MOUNTED eye & facewash
Code 33AC S0320
• ABS plastic eyewash spray heads
• In line strainer and a stay open 1/2 ball valve
• Galvanized pipe with yellow powder coat finish
• Push handle
• ANSI compliant 2358.1-2004
• Water supply 1/2’’ NTP female threaded chrome plated brass inlet
• Ex Stock

Foot control
Code 33AC HFC
• Foot control to add to combination stations

                                                                               made in usa

                                                                     www.bintec.co.nz        93
Emergency showers and eye wash - NZ's Largest range of Safety Showers and Eyewashes
EMERGENCY SHOWERS AND EYEWASH

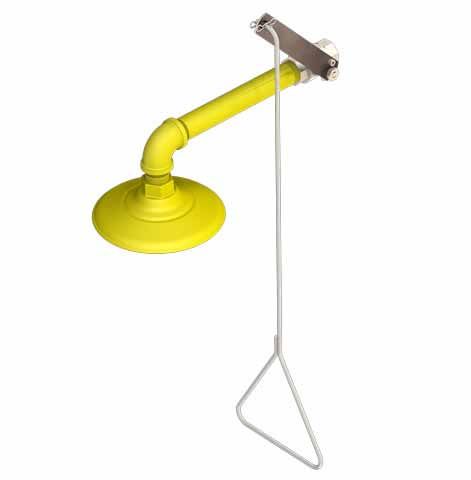

                   Wall mounted Shower
                   Code 33AC S1200
                   • ABS shower head
                   • 1’’ stay open ball valve with pull rod
                   • Galvanized pipe with yellow powder coat finish
                   • Pull rod
                   • ANSI compliant 2358.1-2004
                   • Water supply 1’’ NTP female threaded brass inlet
                   • Ex Stock

                                                                        made in usa

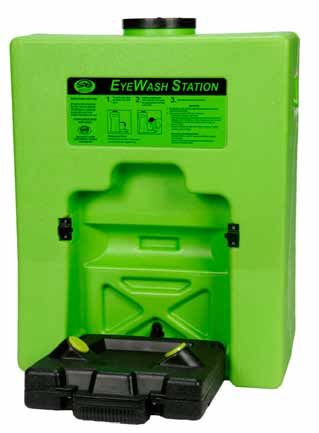

                   Portable Eyewash station
                   Code 3301106
                   • Holds 16 gallons (60 litres) of portable water
                   • 1 hand operation
                   • Gravity fed
                   • 15min flow time
                   • Wall mounting bracket included
                   • 1 x water preservative included. Recommended to
                   change every 90 days

                   •   Compliant with ANZ12 358.1
                   •   to be used with Code  3301106

                                                                NO PLUMBING
                   •   1 bottle for 16 gallons (60 litres)
                   •   Ex Stock

                                                                REQUIRED
                   Bacteriostatic Eyewash
                   Preservative
                   Code 3301200
                   • Use with 3301106 Portable Eyewash Station
                   • Water Preservative
                   • Add one bottle per 15 gallons of water
                   • 8oz Bottle

                                   Pack     Carton
                        Code
                                    Qty      Qty

                       3301106       1        1
                       3301200       1        4

94
Emergency showers and eye wash - NZ's Largest range of Safety Showers and Eyewashes
Wall mounted self closing
drench hose
Code 33AC S0402
• ABS plastic eye/face wash spray head
• Stay open squeeze lever valve
• 8ft Reinforced PVC hose
• ANSI Z 358.1-2004
• Water supply 3/8 ntp male threaded chrome  plated brass swivel inlet
• Maximum pressure 300psi
• Note ANSI Z 358.1-2004 states that Drench hoses can be used as
supplements but cannot replace other types of emergency equipment
• Ex Stock

                   Wall mounted
                   self closing drench hose
                   Code 33AC S0402-CH12
                   • ABS plastic eye/face wash spray head
                   • Stay open squeeze lever valve
                   • 12’’ Reinforced coiled PVC hose

                                                                                   made in usa

Pedestal shower
Code 33AC S1300
• ABS shower head
• 1’’ stay open ball valve with pull rod
• Galvanized pipe with yellow powder coat finish
• Pull rod
• ANSI compliant 2358.1-2004
• Water supply 1-1/4’’ NTP female threaded side or top inlet
• Ex Stock

                                                                                   made in usa

                                                                         www.bintec.co.nz        95
Emergency showers and eye wash - NZ's Largest range of Safety Showers and Eyewashes
EMERGENCY SHOWERS AND EYEWASH

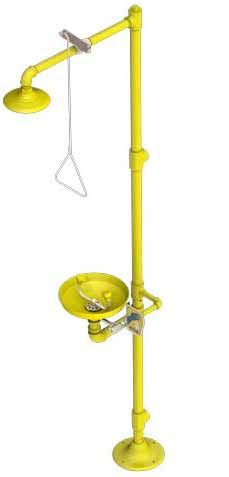

                   Combination station
                   eye wash & showerhead
                   Code 33AC S1310
                   • ABS plastic eyewash spray heads
                   • In line strainer and a stay open 1/2 ball valve
                   • Galvanized pipe with yellow powder coat finish
                   • Push handle for eyewash
                   • Pull rod for shower
                   • Foot control 33AC S0000-HFC optional (see options)
                   • ANSI 2358-1-2004
                   •Water supply 1 1/4 NTP female threaded side or top inlet

                   Foot control
                   Code 33AC HFC
                   • Foot control to add to combination stations
                   • Ex Stock

                                                                                made in usa

                   combination station eye &
                   facewash & showerhead
                   Code 33AC S1320
                   • ABS plastic eyewash spray heads
                   • In line strainer and a stay open 1/2 ball valve
                   • Galvanized pipe with yellow powder coat finish
                   • Push handle for eyewash
                   • Pull rod for shower
                   • Foot control 33AC S0000-HFC optional (see options)
                   • ANSI 2358-1-2004
                   • Water supply 1 1/4 NTP female threaded side or top inlet
                   • Ex Stock

                   Freeze resistant models available on indent

                   Foot control
                   Code 33AC HFC
                   • Foot control to add to combination stations

                                                                                made in usa

96
Emergency showers and eye wash - NZ's Largest range of Safety Showers and Eyewashes
combination SHoWER - eye,
facewash & drench hose
Code 33AC S1321
• ABS plastic eyewash spray heads
• In line strainer and a stay open 1/2 ball valve
• Galvanized pipe with yellow powder coat finish
• Push handle for eyewash
• Pull rod for shower
• Foot control optional (see options)
• Drench hose
•   Water supply 1-1/4” NPT Female Threaded side or Top inlet
• Waste 1-1/4” NPT Female outlet
• Ex Stock

Freeze resistant models available on indent

                                                                          made in usa

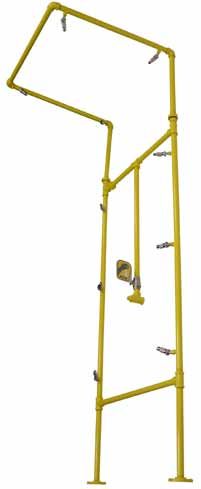

Emergency Shower booth
Code 33AC S4400
• 10x Chrome plated brass nozzles
• 1’’ Stay open ball valve
• Each nozzle 7.5 lpm flow regulated
• Ex Stock

ANSI compliant 2358.1-2004

Can’t find the Emergency
Solution you need?                                                        made in usa

Feel free to ask...More
options are available!
