2             LCD reversing video systems

PROFESSIONAL ‘PERFECT VIEW’ SOLUTIONS
READY-TO-INSTALL SYSTEMS FOR EVERY DEMAND

Perfect picture quality in two versions

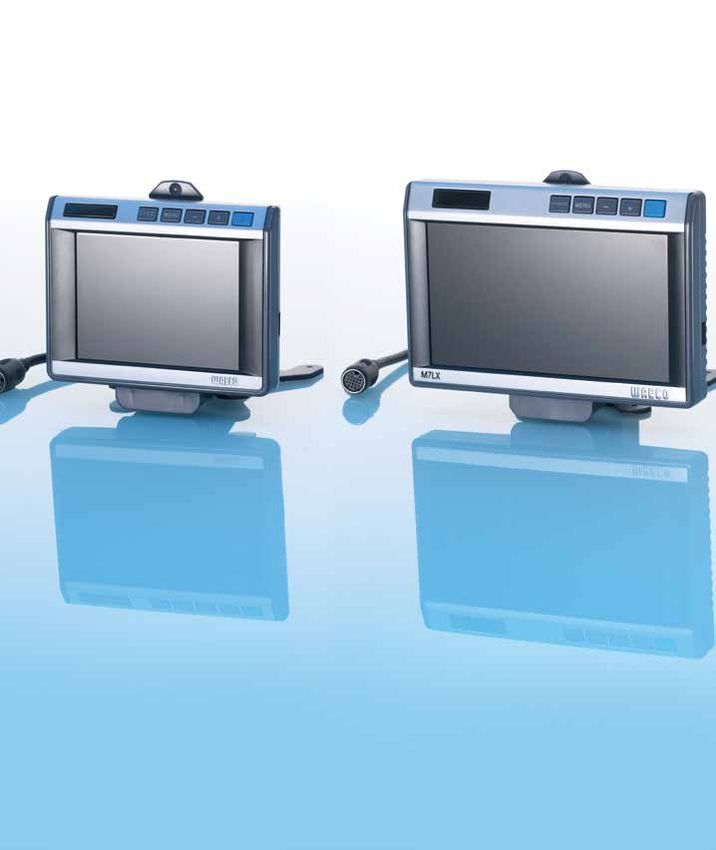

WAECO PerfectView LCD monitors
WAECO PerfectView LCD monitors feature advanced LED                                                             USB charger port.
background illumination for excellent picture quality, even when
                                                                                                                For 12/24 volts operating voltage
temperatures are low. Moreover, they have a long service life and                                               (input circuit with overvoltage protection).
consume little energy. A practical detail is the Easylink mount.
The M 5L has two camera inputs – with separate controls.                                                        EMC interference resistance according to Volvo standard.
The M 7LX high-end model stands out with its three
independently programmable camera inputs and
adjustable OSD distance marks.
     LED background illumination for optimal picture
                                                                                                                      W
                                                                                                                          AE
                                                                                                                            CO
                                                                                                                                       Easylink monitor mount
     quality, even when temperatures are low.                                                                                          Ideal when a monitor is used in various
                                                                                                                                       vehicles of a fleet or for anti-theft protection.
     Two or three camera inputs (with separate controls).                                                            WA
                                                                                                                       ECO
                                                                                                                                       The monitor can be detached with a click and
                                                                                                                                       attached again just as quickly. The base is
     Detachable monitor.
                                                                                                                                       firmly anchored in the dashboard.

                                                                                                                                           No cables coming out of the monitor.
                                                                                                                                           Anti-theft feature.

     Easylink monitor mount:                               USB port for charging                                System cables                                        PerfectView M 7LX with 3 camera inputs
     Docking station for theft prevention                  MP3 players and the like                             with threaded connectors                             and adjustable OSD distance marks

                                            Contents, specifications and availability are subject to change due to technical improvement. Dometic GROUP accepts no liability for errors and printing mistakes.
CAMERA-MONITOR SYSTEMS - FOR RECREATIONAL AND COMMERCIAL USE - INSPIRED BY COMFORT
LCD reversing video systems                                                3

 WAECO PerfectView RVS 550
 High end reversing video systems with high quality 5" LCD monitor and colour camera.

                                                            5" LCD colour monitor M 5L
                                                            For 12 volt and 24 volt                     Technical data             M 5L

                                          With              operating voltage.                          Dimensions                 W143 x H112 x D118 mm
                                                                                                                                   (incl. mount)
                                                            Switches on automatically
                                      infrared              or by manual operation.
                                                                                                        Diagonal screen dimension 5" / 127 mm (visible picture)
                                                                                                        Operating voltage          10/30 volts DC

                                          LED!              Automatic dimmer adjustment.                Power consumption
                                                                                                        Resolution
                                                                                                                                   max 10 watts
                                                                                                                                   337,000 pixels
                                                            Real-view or mirrored picture function.
                                                                                                        Video standard             PAL / NTSC auto
                                                            337,000 pixels.                             Operating temperature      –20 to +70 °C
                                                            2 camera inputs with                        Vibration resistance       4g
                                                            separate controls.                          Weight                     350 g
                                                                                                        Picture brightness         approx. 400 cd/m²
                                                            Image settings can be                       Dimmer                     Automatic via LDR
   Monitor M 5L                                             saved for either camera.                    Camera inputs              2 with signal recognition
                                                            Loudspeaker.                                Mirror function            Can be set
                                                                                                        Certification              E11
                                                            USB port for recharging
                                                            of MP3 players, etc.
                                                            LED background illumination
                                                            and illuminated buttons.
                                                            Comes with Easylink connector.
                                              CAM 50C

                                                            Colour camera CAM 50C

                                                            Colour camera (PAL) with LED.               Technical data             CAM 50C
                                                                                                        Dimensions                 W94 x H62 x D48 mm
                                                            Real-view or mirrored picture function.                                (incl. mount)
                                    COLOUR
                             5"                   IP69K     Anodised and powder coated housing.         Operating voltage          12 volts DC
     AUDIO                                                  Adjustable anti-dazzle sunshield.           Power input                1.8 watts
                                                                                                        Picture sensor             1/4" SONY CCD
                                                            Microphone.                                 Resolution                 approx. 270,000 pixels
                                                            Temperature controlled heater.              Picture angle              120° diagonal
                                                                                                                                   h: 100° v: approx. 70°
                                                            Electronic brightness adjustment.
                                                                                                        Light sensitivity          < 1 lux or 0 lux with LED
                                                            LDR controlled IR-LEDs.                     Video standard             PAL
                                                                                                        Operating temperature      –20 °C to +65 °C
                                                            Wide-angle lens with large picture
                                                                                                        Colour                     Silver
                                                            angle (120° diagonal).
                                                                                                        Vibration resistance       6g
                                                            20 m monitor to camera                      Weight                     400 g
                                                            connection cable.                           Brightness adjustment      Electronic
                                                            Installation fittings for all components.   Mirror function            Can be set
                                                                                                        Type of protection         IP 69K
                                                                                                        Certification              E11
                                                                                                                                                  LCD CT
                                                                                                                                                    PA
                                                                                                                                                COM ASS
                                                                                                                                                  CL NDING
                                                                                                                                                        STA
                                                                                                                                                    OUT        OR
                                                          Scope of delivery: 5" LCD colour monitor incl. Easylink monitor                                 UE F
                                                                                                                                                      VAL
   Dimensions (mm)                                        mount, colour camera, 20 m monitor-to-camera connection cable,                                   O NEY
                                                                                                                                                         M
                                                          set of cables for monitor, installation fittings for all components,
                                                          anti-dazzle sunshield.

                                                          Product                                       Ref. No.
                       112

                                                          PerfectView RVS 550 monitor                   9101900009
                                                  62

                                                          and camera system

              143    11
                       8             94      48
                                                          PerfectView M 5L monitor                      9102100006

                                                          PerfectView CAM 50C camera                    9102000019

www.waeco.com.au
CAMERA-MONITOR SYSTEMS - FOR RECREATIONAL AND COMMERCIAL USE - INSPIRED BY COMFORT
4            LCD reversing video systems

WAECO PerfectView RVS 750X
High-end reversing video systems with high-quality 7" LCD monitor and colour camera

                                                                                7" LCD colour monitor M 7LX
                                                                                 For 12 volt and 24 volt                         Technical data             M 7LX
                                                                                 operating voltage.                              Dimensions                 W186 x H145 x D118 mm
                                                                                                                                                            (incl. mount)
                                                                                 Switches on automatically
                                                                                                                                 Diagonal screen dimension 7" / 178 mm (visible picture)
                                                                                 or by manual operation.
                                                                                                                                 Operating voltage          12/24 volts DC
                                                                                 Automatic dimmer adjustment.                    Power consumption          max. 10 watts

                                                                                 Real-view or mirrored picture function.         Resolution                 approx. 337,000 pixels
                                                                                                                                 Video standard             PAL / NTSC auto
                                                                                 Adjustable distance marks.                      Operating temperature      –10 °C to +60 °C
                                                                                 337,000 pixels.                                 Vibration resistance       4g
                                                                                                                                 Weight                     400 g
                                                                                 3 camera inputs with
                                                                                                                                 Picture brightness         300 cd/m²
                                                                                 separate controls.
                                                                                                                                 Dimmer                     Automatic via LDR
                                                                                 Image settings can be                           Camera inputs              3 with signal recognition
                                                                                 saved for either camera.                        Mirror function            Can be set
                                                                                                                                 Certification              E11
    Monitor M 7LX                                                                Loudspeaker.
                                                                                 USB port for recharging
                                                                                 of MP3 players, etc.
                                                                                 LED background illumination
                                                                                 and illuminated buttons.

          With                                              CAM 50C
                                                                                 Comes with Easylink connector.

     infrared                                                                   Colour camera CAM 50C
                                                                                 Colour camera (PAL) with LED.                   Technical data             CAM 50C
         LED!                                                                    Real-view or mirrored picture function.
                                                                                                                                 Dimensions                 W94 x H62 x D48 mm
                                                                                                                                                            (incl. mount)
                                                                                 Anodised and powder coated housing.             Operating voltage          12 volts DC
                                                                                 Adjustable anti-dazzle sunshield.               Power input                1.8 watts
                                                                                                                                 Picture sensor             1/4" SONY CCD
                                                                                 Microphone.                                     Resolution                 approx. 270,000 pixels
                                                                                 Temperature controlled heater.                  Picture angle              120° diagonal
                                                                                                                                                            h: 100° v: approx. 70°
                                                                                 Electronic brightness adjustment.               Light sensitivity          < 1 lux or 0 lux with LED
                                                                                 LDR controlled IR-LEDs.                         Video standard             PAL
                                             COLOUR                                                                              Operating temperature      –20 °C to +65 °C
                              7"                               IP69K             Wide-angle lens with large picture
                                                                                                                                 Colour                     Silver
     AUDIO                                                                       angle (120° diagonal).
                                                                                                                                 Vibration resistance       6g
                                                                                 20 m monitor to camera                          Weight                     400 g
                                                                                 connection cable.                               Brightness adjustment      Electronic
                                                                                 Installation fittings for                       Mirror function            Can be set
                                                                                 all components.                                 Type of protection         IP 69K
                                                                                                                                 Certification              E11

                                                                              Scope of delivery: 7" LCD colour monitor incl. Easylink monitor mount,
                                                                              colour camera, 20 m monitor-to-camera connection cable, set of cables
                                                                              for monitor, installation fittings for all components, anti-dazzle sunshield.

                                                                              Product                                            Ref. No.
                                                                              PerfectView RVS 750X monitor                       9101900010
                                                                              and camera system
                                                                              PerfectView M 7LX monitor                          9102100008

                                                                              PerfectView CAM 50C camera                         9102000019

    Dimensions (mm)                                                                                                                       Distance marks
                                                                                                                                          on the monitor
                                                                                                       B
                                                                                                                                          A: Stop line at 0.5 m distance
                                                                                                                                          B: Warning line at 3 m distance
                              145

                                                                                                                            C
                                                               62

                                                                                                                                          C: Reference line for vehicle width
                                                                                       C                                                  D: Vehicle rear
                      186     8               94          48
                            11
                                                                                                                                          The adjustable distance marks clearly
                                                                                                               A                D         show which obstacles are in the danger
                                                                                                                                          zone. This makes reverse parking safe and
                                                                                           D
                                                                                                                                          simple, even with a 40-tonne truck.

                                  Contents, specifications and availability are subject to change due to technical improvement. Dometic GROUP accepts no liability for errors and printing mistakes.
CAMERA-MONITOR SYSTEMS - FOR RECREATIONAL AND COMMERCIAL USE - INSPIRED BY COMFORT
Optional cameras                                 5

 WAECO PerfectView CAM18
 Optional camera

                                            Colour ball camera

                                          Camera with housing for                     Technical data            CAM 18
                                          flexible fitment and alignment.             Dimensions                W84 x H58 x D44 mm (incl. mount)
                                            Normal or mirrored picture function.      Operating voltage         11-16 volts DC
                                                                                      Power input               approx. 1 watts
                                            Sturdy ABS plastic housing.
                                                                                      Picture sensor            1/4" CMOS
                                            Freely adjustable ball camera.            Resolution                270,000 pixels
                                            Microphone.                               Picture angle             120° diagonal
                                                                                                                h: approx. 90° v: approx. 70°
                                            LDR-controlled IR LEDs.
                                                                                      Light sensitivity         < 1 lux or 0 lux with LED
                                                                                      Video standard            PAL
                                                                                      Operating temperature     –20 °C to +65 °C
                                                                                      Vibration resistance      6g
                                                                                      Weight                    100 g
                                                                                      Brightness adjustment     Electronic
                                                                                      Mirror function           Can be set
                                                                                      Type of protection        IP 68
                                                                                      Test marks                E-certificate

    CAMERA

                                          Also required: Extension cable (not included) - see options on page 6
   Dimensions (mm)

                                          Scope of delivery: colour camera in ABS housing.
                                     58

                                          Product                                     Ref. No.
                                          PerfectView CAM18                           9102000041
                           44   84

 WAECO PerfectView CAM44
 Optional camera

                                            Colour twin camera with shutter

                                          Camera with two lenses: one for             Technical data            CAM 44
                                          close-range and one for long-range.         Dimensions                W114 x H74 x D62 mm (incl. mount)
                                            Picture angle: close-range 140°           Operating voltage         11 – 16 volts DC
                                            diagonal, long-range 50° diagonal.        Power input               approx. 1.2 watts
                                                                                      Picture sensor            1/4" CMOS
                                            Operation via the two camera
                                                                                      Resolution                290,000 pixels
                                            inputs of the monitor.
                                                                                      Picture angle             Diagonal: 140°
                                            Manual or automatic switching             (close range camera)      Horizontal: 100°
                                            between the cameras.                                                Vertical: 72°
                                            Anodised and powdercoated                 Picture angle             Diagonal: 50°
                                            aluminium housing with stainless          (long range camera)       Horizontal: 35°
                                                                                                                Vertical: 28°
                                            steel cap and mount.
                                                                                      Light sensitivity         < 1 lux or 0 lux with LED
                                            Motor powered camera cover                Video standard            PAL
                                            protects against dirt and damage
                                                                                      Operating temperature     –30 °C to +70 °C
                                            Microphone.                               Colour                    Silver
                                            LDR-controlled IR LEDs for                Vibration resistance      6g
                                            improved night vision.                    Weight                    360 g
                                            Distance marks (3 lines)                  Brightness adjustment     Electronic
                                            in reversing mode.                        Mirror picture function   Factory pre-mirrored
                                                                                      Type of protection        IP 68

                                                                                      Test marks                E-certificate
    CAMERA

                                          Info: No additional adapters required for
   Dimensions (mm)
                                          connection to M 5L or M 7LX monitors.
                                          Scope of delivery: Camera, 20 m connection cable from
                                          the monitor to the camera, installation fittings for all components.
                                     74

                                          Product                                     Ref. No.
                     114                  PerfectView CAM 44                          9102000061
                                62

www.waeco.com.au
CAMERA-MONITOR SYSTEMS - FOR RECREATIONAL AND COMMERCIAL USE - INSPIRED BY COMFORT
6         Optional cameras & accessories

WAECO PerfectView CAM 16
Optional camera

                                                                                Colour cylinder camera

                                                                              Camera for discreet mounting in                       Technical data               CAM 16
                                                                              bumpers, bus mirrors, etc.                            Dimensions                   Ø30 x L46 mm (incl. mount)
                                                                                 Colour cylinder camera (PAL).                      Operating voltage            12 volts DC
                                                                                                                                    Power input                  80 mA (max 1 watt)
                                                                                 Real-view or mirrored picture function.
                                                                                                                                    Picture sensor               1/4" CCD sensor
                                                                                 Excellent light sensitivity.                       Resolution                   290,000 pixels
                                                                                 Can be fitted with or                              Picture angle                150° diagonal
                                                                                 without mounting bracket.                                                       h: approx. 104° v: approx. 80°
                                                                                                                                    Light sensitivity            < 2 lux
                                                                                 Mounting bracket included
                                                                                                                                    Video standard               PAL
                                                                                 in the delivery kit.
                                                                                                                                    Operating temperature        –20 °C to +65 °C
                                                                                 Compact size.                                      Vibration resistance         6g
                                                                                 Wide-angle lens with large                         Weight                       60 g
                                                                                 picture angle (150° diagonal).                     Brightness adjustment        Electronic

                                                                                 The ideal side camera                              Mirror function              Can be set
                                                                                                                                    Type of protection           IP 67
    CAMERA                                                                                                                          Test marks                   E13

                                                                              Info: For connection to monitor models M 5L,
    Dimensions (mm)                                                           and M 7LX, the ADAPT3 adapter is required.
                                                                              Scope of delivery: colour cylinder camera, mounting bracket, 20 m
                                                                              monitor-to-camera connection cable, installation fittings for all components.
                                            30

                                                                              Product                                               Ref. No.
                                                                              PerfectView CAM 16                                    RV-16
                           30          46                                     Also required: ADAPT3 monitor
                                                                              adapter, new plug / old socket
                                                                              (6-pin mini DIN, grey cable)                          9102200046

Accessories for RVS 550 & 750X

                                                                                6-pole threaded connector, water proof

                                                                                Available in 5 m, 10 m and 20 m lengths

                                                                              Product                                               Ref. No.
                                                                              Extension cable - 5 m                                 9102200028
                                                                              Extension cable - 10 m                                9102200029
                                                                              Extension cable - 20 m                                9102200030

                                                                                Tow set plug/play

                                                                                Plug/play towset for trailers & caravans. Note: Suitable length extension cable to suit towing vehicle also required.

                                                                              Product                                               Ref. No.
                                                                              Plug play towset                                      9102200101

                                                                                Cable set for trailers

                                                                                 Trailer cable for connection between camera                        With prepared system connections,
                                                                                 and monitor, light duty design, incl. socket.                      5 m working length.
                                                                                 For towing vehicles with trailer,
                                                                                 suitable for cars and caravans.

                                                                              Product                                               Ref. No.
                                                                              RV-34 cable system towing                             9102200041

                 ADAPT 2                                                        Cable adapters

                                                                                 Adapters for adapting installed cables when existing
                                                                                 components are replaced by new ones; eliminate
                                                                                 the need to re-lay cables.
                 ADAPT 3
                                                                                 Easy allocation to cable systems with
                                                                                 colour-coded plug connectors.
                                                                                 Clear identification of suitable connections on the adapters.

                                                                              Product                                                                    Ref. No.
                                                                              ADAPT 2 camera adapter (new camera/old monitor)                            9102200043
                                                                              ADAPT 3 monitor adapter (new monitor/old camera)                           9102200046

                                Contents, specifications and availability are subject to change due to technical improvement. Dometic GROUP accepts no liability for errors and printing mistakes.
LCD reversing video systems                                            7

 EVERYTHING IN SIGHT - EVEN UNDERWATER
 FOR PRIVATE AND PROFESSIONAL USE
                                                The LCD marine underwater colour video system allows you to see
                                                below the surface and is ideal for leisure activities such as fishing,
                                                treasure hunting or observing scuba skills in open-water diving sites.
                                                The system is particularly also lending itself to a variety of professional
                                                applications. It can be used for inspections, maintenance and repairs on
                                                ship hulls, landing stages, bank reinforcements and pipe systems, but
                                                also for rescue services. The system comes with a flat 7" colour screen,
                                                a colour camera with 18 metre cable, battery and adapter, all packed
                                                in a convenient carry case with an inbuilt sunshield for
                               LED              those glary days on the water.

                                                No chance of escaping the eye of LCD Marine. Equipped with LEDs, the
                                                camera delivers clear images of the target even in complete darkness.

 WAECO PerfectView LCD marine
 Underwater camera system

                                          Colour LCD monitor
                                           For 12 volt operating voltage with       Technical data            Monitor (Colour LCD)
                                           4.5 Ah rechargeable battery.             Dimensions                W176 x H126 x D25. mm

                                           Touch menu button with picture           Diagonal screen           7" (178 mm)
                                                                                    dimension
                                           quality adjustment and LED
                                                                                    Picture resolution        320 (TV lines)
                                           sharpness adjustment
                                                                                    Input voltage             12 volts DC
                                           of the camera.
                                                                                    Operating temperature     -29 °C to +49 °C
                                           AV input socket.
                              Monitor

                                          Colour camera RV-28
                                           Sturdy, waterproof, plastic housing.     Technical data            RV-28
                                                                                    Dimensions                W188 x H40 x D96 mm
                                           Waterproof up to approx. 18 metres.
                                                                                    Light source              Built in white light LED bulbs
                                           Integrated LED light
                                                                                    Angle of view             83° horizontal
                                           (adjustable from monitor).                                         60° vertical
                                           Maximum depth: 18 metres.                Depth of view             4 m approx. in clear water
                                RV-28      (cable length)

                                                                                                                       COLOUR
                                                                                                         7"

                                         Scope of delivery: 7" flat LCD colour monitor, 18 m cable to connect the monitor with
                                         the camera, underwater colour camera with plastic housing, 4.5 Ah rechargeable
                                         battery and charger/mains unit, set of cables, carry case, sunshield.

                                         Product                                    Ref. No.

                            Carry case
                                         PerfectView LCD RV-Marine                  RV-MARINE/LCD

 Accessory for PerfectView LCD marine
 Camera holder RV-28KH

                                           Camera holder RV-28KH
                                         Using the camera holder, you can fix the RV-28 camera to a pole.
                                         Thus secured, the camera makes an efficient tool for visual
                                         inspections of hulls, landings, etc. The holder is supplied in
                                         anodised aluminium with plastic screws.

                                         Product                                    Ref. No.
                                         PerfectView RV-28KH                        RV-28KH
