2020 MARITIME PRODUCTS PRICE LIST - Furuno
2020 MARITIME
PRODUCTS PRICE LIST
2020 MARITIME PRODUCTS PRICE LIST - Furuno
2                                                                             2020 FLIR Maritime Retail Price List (Euros)

                                                      MD-SERIES FIXED MOUNT THERMAL CAMERAS

                                          PART NUMBER                     DESCRIPTION                                                                                                                          MSRP

                                                                          MD-324 Fixed Mount Thermal Camera (NTSC, 30Hz)
                                                                          •   320 x 240 pixel resolution
                                           432-0010-01-00                 •   24° x 18° Field of View                                                                                                          €3,495
                                                                          •   2X Electronic Zoom
                                                                          •   Analog video output and IP control
                                                                          •   Ball up or ball down mounting

                                                                          MD-324 with Joystick Control Unit (NTSC, 30Hz)
                                                                          •   FLIR Joystick Controller Kit (JCU1) included
                                                                          •   320 x 240 pixel resolution
                                           432-0010-11-00                 •   24° x 18° Field of View                                                                                                          €3,495
                                                                          •   2X Electronic Zoom
                                                                          •   Analog video output and IP control
                                                                          •   Ball up or ball down mounting

                                                                          MD-625 Fixed Mount Thermal Camera (NTSC, 30Hz)
                                                                          •   640 x 480 pixel resolution
                                           432-0010-03-00                 •   25° x 19° Field of View                                                                                                          €4,499
                                                                          •   2X and 4X Electronic Zoom
                                                                          •   Analog video output and IP control
                                                                          •   Ball up or ball down mounting

                                                                          MD-625 with Joystick Control Unit (NTSC, 30Hz)
                                                                          •   FLIR Joystick Controller Kit (JCU1) included
                                                                          •   640 x 480 pixel resolution
                                           432-0010-13-00                 •   25° x 19° Field of View                                                                                                          €4,999
                                                                          •   2X and 4X Electronic Zoom
                                                                          •   Analog video output and IP control
                                                                          •   Ball up or ball down mounting

    What’s In the Box: Every MD-Series Thermal Camera System ncludes:
    •   Camera unit
    •   Camera base O-ring
    •   RJ-45 Ethernet cable, double shielded, low smoke zero halogen (LSZH) rated, 25 feet (7.7 meters)
    •   Coaxial video output cable, 25 feet (7.7 meters)
    •   12V DC Power Over Ethernet (PoE) injector
    •   RJ45 weatherproof coupler
    •   Female-to-female F-type video connectors
    •   Stainless steel mounting hardware kit

    Note: 9Hz export versions are available by adding the letter ‘S’ to the end of the part number.

                          Prices subject to change without prior notice. Equipment described herein may require US Government authorization for export purposes. Diversion contrary to US law is prohibited.
                                                                                               All images for illustrative purposes only.
2020 MARITIME PRODUCTS PRICE LIST - Furuno
3                                                                     2020 FLIR Maritime Retail Price List (Euros)

                                                 M100 & M200-SERIES PAN AND TILT CAMERAS

                                         PART NO:.                DESCRIPTION                                                                                                 MSRP

                                                                  M132 Tilt-Adjustable Thermal Camera (NTSC, 9Hz)
                                                                  •   Tilt-adjustable
                                                                  •   320 x 240 pixel resolution
                                            E70432                •   24° x 18° Field of View                                                                                €2,995.00
                                                                  •   4X continuous electronic zoom
                                                                  •   IP video output viewing and control
                                                                  •   Ball up or ball down mounting

                                                                  M232 Pan and Tilt Thermal Camera (NTSC, 9Hz)
                                                                  •   Pan and tilt for horizon-to-horizon viewing
                                                                  •   320 x 240 pixel resolution
                                            E70354                •   24° x 18° Field of View                                                                                €3,495.00
                                                                  •   4X continuous electronic zoom
                                                                  •   IP video output viewing and control
                                                                  •   Ball up or ball down mounting

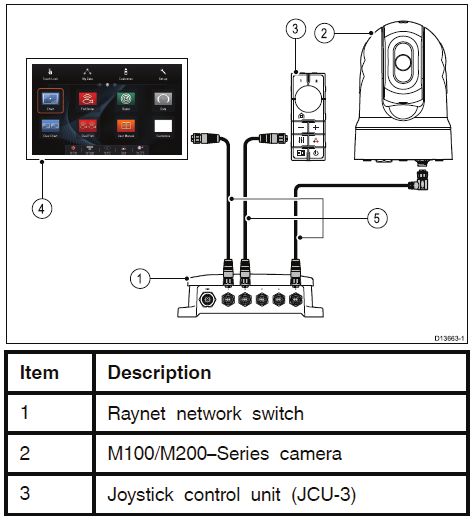

    What’s In the Box: Every M132 and M232 Thermal Camera Includes:
    •   Camera unit
    •   Top down riser kit
    •   Thermal camera base-seal
    •   Right-angled RayNet to RayNet cable, 32 feet (10 meters)
    •   RayNet to RJ45 adapter cable, 4-inches (100mm)
    •   Right-angled 3-pin power cable, 32 feet (10 meters)
    •   Stainless steel mounting hardware kit

    Notes: JCU3 joystick controller and IP to analog video decoder sold separately.

                                                                   M132 AND M232 ACCESSORIES

                                                                   JCU3 Compact Joystick Control Unit for M132 and M232. Includes Joystick Control
                                            A80510                                                                                                                            €345.00
                                                                   Unit (JCU3), power cable, network cable and mounting hardware.

                                                                   PoE Switch 5-Port Industrial PoE+ UnManaged Ethernet Switch, 4-Port IEEE 802.3at
                                            4141042                                                                                                                           €345.00
                                                                   Compliant. PoE+ Function with 30W/Port, Antaira Model LNP-0500-24-T

                                       308-0251-30-00              Cable - RAYNET Straight Connector to RJ45, 100ft, LSZH                                                     €135.00

                                       308-0252-30-00              Cable - RAYNET Right Angle to RJ45, 100ft, LSZH                                                            €135.00

                                            A80512                 Cable - RAYNET Right Angle, 33ft                                                                           €135.00

                                       308-0253-30-00              Cable - Power Straight, 12 AWG, 100ft, LSZH                                                                €375.00

                                       308-0254-30-00              Cable - Power Right Angle, 12 AWG, 100ft, LSZH                                                             €375.00

                                            A80508                 IP to Analog Video Decoder                                                                                 €995.00

                                    Prices subject to change without prior notice. Equipment described herein may require US Government authorization for export purposes.
                                                              Diversion contrary to US law is prohibited. All images for illustrative purposes only.
2020 MARITIME PRODUCTS PRICE LIST - Furuno
4                                      2020 FLIR Maritime Retail Price List (Euros)

    M300 SERIES: STABILIZED PAN, TILT & ZOOM IP CAMERAS

       PART NO:.                   DESCRIPTION                                                                                                          MSRP

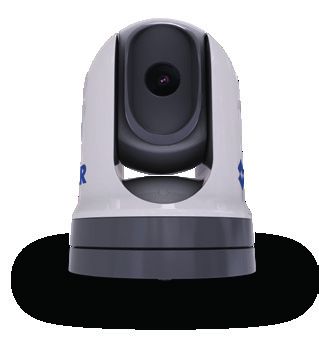

                                   M300C Stabilized Visible IP Camera
                                   •   High definition lowlight lens
                                   •   12X continuous electronic zoom
          E70605                   •   30X optical zoom                                                                                                €6,495.00
                                   •   2 axis gyro-stabilization
                                   •   Ball up or ball down mounting

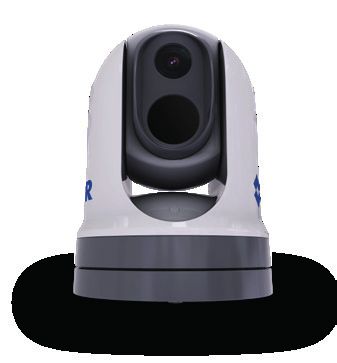

                                   M332 Stabilized 30Hz Thermal IP Camera
                                   •   320 x 240 pixel resolution
                                   •   24 ° x 18 ° field of view
          E70527                   •   4X continuous electronic zoom                                                                                   €8,495.00
                                   •   2 axis gyro-stabilization
                                   •   Ball up or ball down mounting

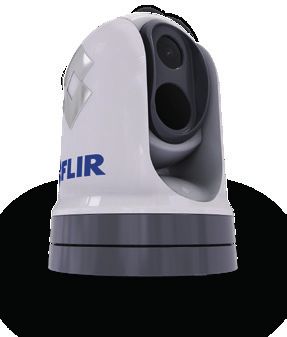

                                   M364 Stabilized 30Hz Thermal IP Camera
                                   •   640 x 512 pixel resolution
          E70525                   •   24 ° x 18 ° field of view                                                                                       €14,195.00
                                   •   8X continuous electronic zoom
                                   •   2 axis gyro-stabilization
                                   •   Ball up or ball down mounting

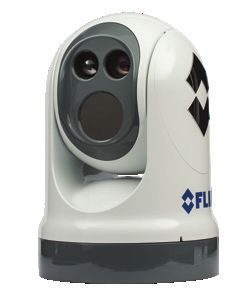

                                   M364C Stabilized 30Hz Thermal IP Camera and Color Low Light Camera
                                   •   640 x 512 pixel resolution
                                   •   24 ° x 18 ° field of view
          E70518                   •   8x continuous electronic zoom                                                                                   €20,495.00
                                   •   2 axis gyro-stabilization
                                   •   30X optical zoom
                                   •   Ball up or ball down mounting
                                   •   Color Thermal Vision

                                   M364C LR Stabilized 30Hz Thermal Long Range IP Camera and
                                   Color Low Light Camera
                                   •   640 x 512 pixel resolution
                                   •   18 ° x 13.5 ° field of view
          E70520                   •   8X continuous electronic zoom                                                                                   €29,495.00
                                   •   2 axis gyro-stabilization
                                   •   30X optical zoom
                                   •   Ball up or ball down mounting
                                   •   Color Thermal Vision

    Prices subject to change without prior notice. Equipment described herein may require US Government or/and EU authorization for export purposes.
                                   Diversion contrary to US law is prohibited. All images for illustrative purposes only.
2020 MARITIME PRODUCTS PRICE LIST - Furuno
5                                                                   2020 FLIR Maritime Retail Price List (Euros)

                                M300 SERIES: STABILIZED PAN, TILT & ZOOM IP CAMERAS

                                 PART NO:.                  DESCRIPTION                                                                                                              MSRP

                                                            M332 Stabilized 9Hz Thermal IP Camera
                                                            •   320 x 240 pixel resolution
                                    E70528                  •   24° x 18° field of view                                                                                             €8,495.00
                                                            •   4X continuous electronic zoom
                                                            •   2 axis gyro-stabilization
                                                            •   Ball up or ball down mounting

                                                            M364 Stabilized 9Hz Thermal IP Camera
                                                            •   640 x 512 pixel resolution
                                    E70526                  •   24° x 18° field of view                                                                                             €14,195.00
                                                            •   8X continuous electronic zoom
                                                            •   2 axis gyro-stabilization
                                                            •   Ball up or ball down mounting

                                                            M364C Stabilized 9Hz Thermal IP Camera and Color Low Light Camera
                                                            •   640 x 512 pixel resolution
                                                            •   24° x 18° field of view
                                    E70519                  •   8x continuous electronic zoom                                                                                       €20,495.00
                                                            •   2 axis gyro-stabilization
                                                            •   30X optical zoom
                                                            •   Ball up or ball down mounting
                                                            •   Color Thermal Vision

                                                            M364C LR Stabilized 9Hz Thermal Long Range IP Camera and Color
                                                            Low Light Camera
                                                            •   640 x 512 pixel resolution
                                                            •   18° x 13.5° field of view
                                    E70521                  •   8X continuous electronic zoom                                                                                       €29,495.00
                                                            •   2 axis gyro-stabilization
                                                            •   30X optical zoom
                                                            •   Ball up or ball down mounting
                                                            •   Color Thermal Vision

    What’s In the Box: Every M-Series thermal camera system includes:
    •   Camera head
    •   Top Down Riser
    •   3 x 3 meter cable set: Power/Serial/Composite Video Cable, Raynet to Raynet Ethernet Cable, Coax HD-SDI cable
    •   Raynet to RJ45 adaptor
    •   Camera installation hardware

                                                                              M300 ACCESSORIES

                                                            JCU1 POE Injector Kit
                                    T70477                  (Includes Joystick Control Unit (JCU 1) with weather cover, 25’ and 1’ Shielded Ethernet                                  €849
                                                            cable (RJ-45), Power over Ethernet Injector, waterproof coupler, and mounting hardware)

                                                            JCU2 POE Injector Kit
                                    T70478                  (Includes Joystick Control Unit (JCU2) with weather cover, 25’ and 1’ Shielded Ethernet                                  €1,500
                                                            cable (RJ-45), Power over Ethernet Injector, waterproof coupler, and mounting hardware)

                                 Prices subject to change without prior notice. Equipment described herein may require US Government or/and EU authorization for export purposes.
                                                                Diversion contrary to US law is prohibited. All images for illustrative purposes only.
2020 MARITIME PRODUCTS PRICE LIST - Furuno
6                                     2020 FLIR Maritime Retail Price List (Euros)

                          M-SERIES CABLES AND ACCESSORIES

    PART NO:.                DESCRIPTION                                                                                                         MSRP

                             ETHERNET CABLE
    308-0163-25                                                                                                                                   €49
                             Double shielded, RJ-45, LSZH, 25ft

                             ETHERNET CABLE
    308-0163-50                                                                                                                                   €89
                             Double shielded, RJ-45, LSZH, 50ft

                             ETHERNET CABLE
    308-0163-75                                                                                                                                  €129
                             Double shielded, RJ-45, LSZH, 75ft

                             ETHERNET CABLE
    308-0163-100                                                                                                                                 €169
                             Double shielded, RJ-45, LSZH, 100ft

                             VIDEO CABLE
    308-0164-25                                                                                                                                   €59
                             F-Type terminated on cam. end, BNC terminated on mon. end, 25 ft

                             VIDEO CABLE
    308-0164-50                                                                                                                                   €79
                             F-Type terminated on cam. end, BNC terminated on mon. end, 50 ft

                             VIDEO CABLE
    308-0164-75                                                                                                                                   €119
                             F-Type terminated on cam. end, BNC terminated on mon. end, 75 ft

                             VIDEO CABLE
    308-0164-100                                                                                                                                 €139
                             F-Type terminated on cam end, BNC terminated on mon. end, 100 ft

                             CONNECTOR
      4115028                                                                                                                                     €17
                             RJ45 Waterproof Enclosure

                             DELUXE DUAL STATION ACCESSORY KIT FOR M-SERIES
                             (Includes Joystick Control Unit (JCU1) with weather cover, 25' Shielded Ethernet cable
    500-0393-00                                                                                                                                  €1,199
                             (RJ-45), 25' Video Cable, 50' Video Cable, Video Amplifier/splitter, Qty 2 12V Power over
                             Ethernet injector, and mounting hardware)

                             STANDARD DUAL STATION ACCESSORY KIT FOR M-SERIES
    500-0394-00              (Includes Joystick Control Unit (JCU1) with weather cover, 25' Shielded Ethernet cable                              €999
                             (RJ-45), Qty 2 12V Power over Ethernet injectors, and mounting hardware)

                             JOYSTICK CONTROL UNIT (JCU1) FOR M-SERIES
    500-0395-00                                                                                                                                  €849
                             (Includes Joystick Control Unit with weather cover, and mounting hardware)

      4113315                Weather Cover for Joystick Control Unit (JCU1)                                                                       €19

                             JCU1 POE INJECTOR KIT
      T70477                 (Includes Joystick Control Unit (JCU 1) with weather cover, 25’ and 1’ Shielded Ethernet                            €849
                             cable (RJ-45), Power over Ethernet Injector, waterproof coupler, and mounting hardware)

                             JCU2 POE INJECTOR KIT
      T70478                 (Includes Joystick Control Unit (JCU2) with weather cover, 25’ and 1’ Shielded Ethernet                             €1,500
                             cable (RJ-45), Power over Ethernet Injector, waterproof coupler, and mounting hardware)

      4113746                12V Power over Ethernet Injector                                                                                    €149

                             Glass Filled ABS Top-Down Riser Kit for M-Series
    500-0399-00                                                                                                                                  €149
                             (Includes Top Down riser, deck seal gasket, fastener kit)

      4108996                Video distribution amplifier with fusible link                                                                      €239

      4112907                DC-DC Converter                                                                                                     €149

        Prices subject to change without prior notice. Equipment described herein may require US Government authorization for export purposes.
                                  Diversion contrary to US law is prohibited. All images for illustrative purposes only.
2020 MARITIME PRODUCTS PRICE LIST - Furuno
7                                                                        2020 FLIR Maritime Retail Price List (Euros)

                                           M400 & M400XR MULTI SENSOR CAMERA SYSTEMS

                                        PART NO:.                  DESCRIPTION                                                                                                    MSRP

                                                                   M400 STABILIZED THERMAL/VISIBLE CAM W/JCU (NTSC)
                                                                   • 640 x 480 LWIR thermal imager with 3X optical zoom,
                                                                     18° to 6° Field of View
                                                                   • HD color camera w/lowlight and 30X optical zoom, 64° to 2.3° Field of View
                                      432-0012-08-00               • High Intensity LED Spotlight                                                                                €70,000
                                                                   • 2-axis gyro-stabilization
                                                                   • HD-SDI, analog and IP video outputs
                                                                   • Ball-up or ball-down mounting
                                                                   • FLIR Joystick Control Unit (JCU2) Included

                                                                   M400XR STABILIZED THERMAL/VISIBLE CAM W/JCU (NTSC)
                                                                   • Video target tracking
                                                                   • Marine fire fighting temperature software
                                                                   • 640 x 480 LWIR thermal imager with 3X optical zoom,
                                                                     18° to 6° Field of View
                                                                   • HD color camera with lowlight and 30X optical zoom,
                                      432-0012-04-00                                                                                                                             €85,000
                                                                     64° to 2.3° Field of View
                                                                   • High Intensity LED Spotlight
                                                                   • 2-axis gyro-stabilization
                                                                   • HD-SDI, analog and IP video outputs
                                                                   • Ball-up or ball-down mounting
                                                                   • FLIR Joystick Control Unit (JCU2) Included

                                                                   M500 STABILIZED COOLED THERMAL/VISIBLE CAMERA SYSTEM
                                                                   WITH JCU (NTSC, 30HZ)
                                                                   • Video target tracking
                                                                   • 640 x 512 Cooled MWIR Imager, 14X optical zoom, 28° to 21° Field of View
                                                                   • HD color camera with lowlight and 30X optical zoom,
                                      432-0012-05-00                 64° to 2.3° Field of View                                                                                   €185,000
                                                                   • High Intensity LED Spotlight
                                                                   • 2-axis gyro-stabilization
                                                                   • HD-SDI, analog and IP video outputs
                                                                   • Ball-up mounting
                                                                   • FLIR Joystick Control Unit (JCU2) Included

    What’s In the Box: Every M400, M400XR & M500 thermal camera system includes:
    •   Camera unit
    •   FLIR Joystick Control Unit (JCU2) kit
    •   5-Port PoE+ Ethernet Switch
    •   Power cable, right angle, 12 AWG, 3 meters
    •   Ethernet cable, right angle to RJ45, 1 meter
    •   RJ45 waterproof Ethernet coupler
    •   AV and serial cable, right angle, 1 meter
    •   HD-SDI cable, 1 meter
    •   HD-SDI Isolation Transformer
    •   Camera base O-ring and stainless steel mounting hardware kit

    Notes: Additional cables or accessories may be required depending on planned installation.
    9Hz export versions are available by adding the letter ‘S’ to the end of the part number. Excludes M500.

                                        Prices subject to change without prior notice. Equipment described herein may require US Government authorization for export purposes.
                                                                  Diversion contrary to US law is prohibited. All images for illustrative purposes only.
2020 MARITIME PRODUCTS PRICE LIST - Furuno
8                                     2020 FLIR Maritime Retail Price List (Euros)

                         M400, M400XR & M500 ACCESSORIES

                                Additional Joystick Control Unit for M400, MV or MU Series
      500-0398-10                                                                                                                                €1,500
                                Includes Joystick Control Unit (JCU2) and mounting hardware.

        4141864                 Cable: HD/SDI, 100FT                                                                                              €170

    308-0251-30-00              Cable: RAYNET Straight Connector to RJ45, 100ft, LSZH                                                             €135

    308-0252-30-00              Cable: RAYNET Right Angle to RJ45, 100ft, LSZH                                                                    €135

    308-0253-30-00              Cable: Power Straight, 12 AWG, 100ft, LSZH                                                                        €375

    308-0254-30-00              Cable: Power Right Angle, 12 AWG, 100ft, LSZH                                                                     €375

    308-0255-30-00              Cable: AV and Serial, Straight, 100ft, LSZH                                                                       €500

     308-0256-30-00             Cable: AV and Serial Right Angle, 100ft, LSZH                                                                     €500

                     FLIR OCEAN SCOUT HANDHELD CAMERAS

      PART NO:.                DESCRIPTION                                                                                                        MSRP

                               Ocean Scout TK, NTSC, 9Hz

    432-0012-22-00S            Includes handheld thermal imager with 160 x 120 thermal resolution and a 20º x 1º FoV,                              €526
                               internal Li-ion long life battery, image and video capture downloadable via USB; USB
                               charging cable neck lanyard, lens cap; Quick start guide.

                               Ocean Scout 240, NTSC, 9Hz

    432-0008-22-00S            Includes handheld thermal imager with 240 x 180 thermal resolution and 24° x 18° FoV,                              €1312
                               image freeze, LED tasklight,internal Li-ion long life battery, USB charging cable with 110v
                               adapter, wrist strap, Molle bag, Quick Start Guide.

                               Ocean Scout 320, NTSC, 9Hz

    432-0009-22-00S            Includes handheld thermal imager with 336 x 256 thermal resolution and 17° x 13° FoV,                              €1576
                               2x digital e-zoom, LED tasklight, internal Li-ion long life battery, USB charging cable with
                               110v adapter, Custom Video out cable, wrist strap, Molle bag Quick Start Guide.

                               Ocean Scout 640, NTSC, 9Hz

    432-0019-22-00S            Includes handheld thermal imager with 640 x 512 thermal resolution and 18° x 14° FoV,                              €2,102
                               2x digital e-zoom, LED tasklight, internal Li-ion long life battery, USB charging cable with
                               110v adapter, Custom Video out cable, wrist strap, Molle bag Quick Start Guide.

                               LS-X, NTSC, 30Hz
                               This product is restricted to Professional First Responders only Includes handheld
    431-0010-21-00             thermal imager with 320 x 240 thermal resolution with 17° x 13° FoV, 2X and 4X digital                            €2,281.00
                               e-zoom, laser pointer, USB charging, Custom Video out cable, embedded Long Life
                               Rechargeable Battery, USB Cable, Molle bag, Wrist Strap, Quick Start Guide.

                               LS-XR, NTSC, 30Hz
                               This product is restricted to Professional First Responders only Includes handheld
    431-0011-21-00             thermal imager with 640 x 480 thermal resolution with 18° x 14° FoV, 2X, 4X and 8X                                €3,159.00
                               digital e-zoom, laser pointer, USB charging adapter, Custom Video out cable, embedded
                               Long Life Rechargeable Battery, USB Cable, Molle bag, Wrist Strap, Quick Start Guide.

        Prices subject to change without prior notice. Equipment described herein may require US Government authorization for export purposes.
                                  Diversion contrary to US law is prohibited. All images for illustrative purposes only.
2020 MARITIME PRODUCTS PRICE LIST - Furuno
9                                     2020 FLIR Maritime Retail Price List (Euros)

                                     SCION HANDHELD CAMERAS

    PART NO:.                DESCRIPTION                                                                                                          MSRP

                             Scion 9Hz Handheld Thermal Camera

    7-TM-01-F110             • Scion Thermal Monocular 320 x 240                                                                                 €2,190.00
                             • 16º Field of View
                             • IP video streaming

                             Scion 9Hz Handheld Thermal Camera

    7-TM-01-F130             • Scion Thermal Monocular 640 x 480                                                                                 €2,629.00
                             • 24º Field of View
                             • IP video streaming

                 OCEAN SCOUT AND LS SERIES ACCESSORIES

                               Camera Carrying Pouch
       4126884                                                                                                                                    €26.00
                               Black for Ocean Scout or LS Series (Camera and Accessories not included)

                               Rigid Camera Case
       4126885                                                                                                                                   €160.00
                               Yellow for Ocean Scout or LS-Series (Camera and Accessories not included)

                               Floating Wrist Lanyard
       4127305                                                                                                                                    €18.00
                               For Ocean Scout or LS-Series (Camera and Accessories not included)

        Prices subject to change without prior notice. Equipment described herein may require US Government authorization for export purposes.
                                  Diversion contrary to US law is prohibited. All images for illustrative purposes only.
2020 MARITIME PRODUCTS PRICE LIST - Furuno
10                                                     2020 FLIR Maritime Retail Price List (Euros)

 MD-SERIES INSTALLATION

                                                                                                                                    WATERPROOF ENCLOSURE
                         WATERPROOF ENCLOSURE

                                                                                             MALE TERMINATION

      MALE TERMINATION

                                                                                             FEMALE TO FEMALE

     FEMALE TO FEMALE

                                                                                                                                FOLLOW MANUFACTURER
                                                                                                                                      SPECIFIC SEALING
                                                                                                                                         REQUIREMENTS

                                 FOLLOW MANUFACTURER
                                 SPECIFIC SEALING
                                 REQUIREMENTS

 M100/M200 INSTALLATION
                                                               Connection to Video over
                                                              IP Compatible MFD (Axiom)

                                                 Item             Description

                                                 1                Raynet network switch

                                                 2                M100/M200–Series camera

                                                 3                Joystick control unit (JCU-3)

                                                 4                Raymarine MFD

                                                 5                RayNet-to-RayNet cable

                         Prices subject to change without prior notice. Equipment described herein may require US Government authorization for export purposes.
                                                   Diversion contrary to US law is prohibited. All images for illustrative purposes only.
11                                                                                         2020 FLIR Maritime Retail Price List (Euros)

 M-SERIES INSTALLATION

                                                                                                                                                                                                                     FLIR PN 500-0385-00

                                                                                                    ATTACH GROUND STRAP
        POWER CABLE                                                                                 TO MOUNTING STUD
        18AWG TINNED STRANDED WIRE
        RED WIRE: +12-24 VDC (3.8-1.9 AMP MAX)
        BLK WIRE: DC RETURN
        GRN WIRE: EARTH GROUND
                                                                                                             CONNECTOR
                                                                                                             RJ45 WATERPROOF ENCLOSURE                                                                                NETWORK CABLE FOR PoE DEVICES (IEEE802.3af)
                                                                                                             FLIR PN 4115028                                                                                          8 CONDUCTOR T568B, ETHERNET, DOUBLE SHIELDED
                                                                                                                                                                                                                      FLIR PN 308-0163-25 OR EQUIVALENT
        BUTT SPLICE OR INSTALLER                                                                                                                                                                                      NOTE: TO MAINTAIN IEC 60945 EMI COMPLIANCE,
        SUPPLIED CONNECTOR                                                                                                                                                                                            USE OF DOUBLE SHIELDED CABLE REQUIRED.

                                                                                           RG59U VIDEO CABLE
                                                                                           F-TYPE MALE TERMINATION

                          INSTALLER SUPPLIED POWER CABLE                                                                                          SWITCHED (IR OR VIS) VIDEO CABLE
                                                                                                                                                  (DUAL ONLY)
                          GAUGE OF WIRE TO BE APPROPRIATE
                          FOR SUPPLY VOLTAGE AND LENGTH OF
                          CABLE RUN TO ENSURE ADEQUATE
                          CURRENT CARRYING CAPABILITY.

                                                                                                                                                  IR VIDEO CABLE

                                                                                       CONNECTOR
                                                                                       F-TYPE FEMALE TO FEMALE
                                                                                       FLIR PN 4115330

                                                                                                                                                   INSTALLER SUPPLIED VIDEO CABLE
                                                                                                                                                   SHALL BE RATED RG59U OR BETTER

     M400/M500 INSTALLATION

                                                                           M400

                                                                                                                                                                                 NOTE: CABLE CONFIGURATIONS SHOWN ARE FOR SHORT CABLES
                                                                                                                                                                                 INCLUDED WITH EACH UNIT. LONG ACCESSORY CABLES ARE AVAILABLE
                                                                                                                                                                                 WHERE NO IN-LINE COUPLING IS NECESSARY. FOR MORE INFORMATION,
                                                                                                                                                                                 SEE SHEET 9

                                                                                                                                                                                             JCU                            JCU
                                                                                                                                                                                                                                              FLIR PN 500-0398-10

                                                                                                                                              MANUFACTURER SPECIFIC ENVIRONMENTAL
                                                                                                                                              EXPOSURE RATINGS APPLY

            POWER CABLE
            12AWG TINNED STRANDED WIRE
            RED WIRE: +12-24 VDC (4.4-2.2 AMP NOM)                                                        CONNECTOR
            BLK WIRE: DC RETURN                                                                           RJ45 WATERPROOF ENCLOSURE               POE NETWORK SWITCH
            DRAIN WIRE: EARTH GROUND                                                                      FLIR PN 4115028                         IEEE802.3af, T568B COMPLIANT
                                                                                                                                                  FLIR PN 4141042

            BUTT SPLICE OR INSTALLER
            SUPPLIED CONNECTOR

                                                                                                 (100M RUN LENGTH MAX WITHOUT BUFFER)

                                                                                              HD/SDI CABLE - RG6 BNC

                                                                                                      ISOLATION TRANSFORMER                                                                                         NETWORK CABLE FOR PoE DEVICES (IEEE802.3af)
                                                                                                      BNC FEMALE TO FEMALE                                                                                          8 CONDUCTOR T568B, ETHERNET, DOUBLE SHIELDED
                                                                                                                                                                                            DISPLAY                 FLIR PN 308-0163-25 OR EQUIVALENT
                                                                                                                                                                                                                    NOTE: TO MAINTAIN IEC 60945 EMI COMPLIANCE,
                                                                                                                                                                                                                    USE OF DOUBLE SHIELDED CABLE REQUIRED.
                                       INSTALLER SUPPLIED POWER CABLE                                                                                 HD/SDI CABLE
                                       GAUGE OF WIRE TO BE APPROPRIATE                                                                   (100FT RUN LENGTH MAX WITHOUT BUFFER)
                                       FOR SUPPLY VOLTAGE AND LENGTH OF
                                       CABLE RUN TO ENSURE ADEQUATE
                                       CURRENT CARRYING CAPABILITY.                    COUPLER
                                                                                       F-TYPE FEMALE TO
                                                                                       FEMALE                                                     ANALOG VIDEO CABLE
                                                                                                                                         (100FT RUN LENGTH MAX WITHOUT BUFFER)
                                                                                     ANALOG VIDEO CABLE
                                                                                     RG179 F-TYPE

                                                                                                                                         INSTALLER SUPPLIED VIDEO CABLE
                                                                                                                                         SHALL BE RATED RG6

                                                        PELCO INTERFACE            NMEA INTERFACE

                                                                                                                                                                                   INTERCONNECT DIAGRAM
                                                                                                                                                                                   MULTIPLE JCU - POE SWITCH

                                                            Prices subject to change without prior notice. Equipment described herein may require US Government authorization for export purposes.
                                                                                      Diversion contrary to US law is prohibited. All images for illustrative purposes only.
2020 Maritime Products Price List

CAMERA FORMAT AND EXPORT NOTES
The information contained in this page pertains to a dual use product controlled for export by the
Export Administration Regulations (EAR). Diversion contrary to US law is prohibited. US Department
of Commerce authorization is not required prior to export or transfer to foreign persons or parties
unless otherwise prohibited.

WARRANTY
FLIR's service commitment of outstanding warranty and technical support now offers you even more; by
registering your system with FLIR at www.flir.com/productreg, the 2-Year Standard Limited Warranty is
upgraded and replaced by the 3-Year Extended Limited Warranty for FREE.

In North America, FLIR also offers On-Board Repair Service, a Warranty Service Program and Advance
Warranty Replacement for some products. These programs and services, when available, are designed to
help minimize the down - time of products that may require warranty repair.

For complete details on FLIR's industry-leading warranty please visit
www.flir.com/maritime.

US EXPORT REGULATIONS
             US EXPORT REGULATIONS
Equipment described herein is subject to US export regulations and may
                     Equipment
require a license prior          described
                        to export.           hereincontrary
                                      Diversion      is subjecttotoUS
                                                                    USlaw
                                                                       export  regulations and may
                                                                           is prohibited.
                   requirepurposes
Imagery for illustration   a license prior
                                       only.toSpecifications
                                               export. Diversion    contrary
                                                                  are subjecttoto
                                                                                USchange
                                                                                   law is prohibited.
                   Imagery
without notice. ©2019   FLIRforSystems,
                                illustrationInc.
                                              purposes   only.reserved
                                                 All rights    Specifications are subject to change
                             without notice. ©2019 FLIR Systems, Inc. All rights reserved

FLIR MARITIME US, INC.                   FLIR SYSTEMS BVBA                              FLIR MARITIME UK
9 TOWNSEND WEST                          LUXEMBURGSTRAAT 2, 2321                        CARTWRIGHT DRIVE
NASHUA, NH 03063                         MEER                                           FAREHAM, HAMPSHIRE
USA                                      BELGIUM                                        UK
(603) 324-7900                           +32 (0)3 287 87 10                             +44 (0)1329 246 700

EQUIPMENT DESCRIBED HEREIN IS SUBJECT TO US EXPORT REGULATIONS AND MAY REQUIRE A LICENSE PRIOR TO EXPORT.
DIVERSION CONTRARY TO US LAW IS PROHIBITED. IMAGERY FOR ILLUSTRATION PURPOSES ONLY. SPECIFICATIONS ARE
SUBJECT TO CHANGE WITHOUT NOTICE. ©2019 FLIR SYSTEMS, INC. ALL RIGHTS RESERVED. 09/25/19

20-0169-MAR (EMEA Euros)
You can also read
